HONDA CIVIC 2004 7.G Owners Manual

Î
ÎThe United States Clean Air Act
sets standards f or automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
Scheduled maintenance is on page . As gasoline evaporates in the f uel
tank, an evaporative emissions
control canister f illed with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is of f . Af ter
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The Onboard Ref ueling Vapor
Recovery (ORVR) system captures
the f uel vapors during ref ueling. The
vapors are adsorbed in a canister
f illed with activated carbon. While
driving, the f uel vapors are drawn
into the engine and burned of f .
In Canada, Honda vehicles comply
with the Canadian Motor Vehicle
Saf ety Standards (CMVSS) f or
Emissions valid at the time they are
manuf actured.
The burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx) and hydrocarbons (HC).
Gasoline evaporating f rom the tank
also produces hydrocarbons. Con-
trolling the production of NOx, CO,
and HC is important to the environ-
ment. Under certain conditions of
sunlight and climate, NOx and HC
react to f orm photochemical ‘‘smog.’’
Carbon monoxide does not contri-
bute to smog creation, but it is a
poisonous gas.
Your vehicle has a Positive
Crankcase Ventilation System. This
keeps gasses that build up in the
engine’s crankcase f rom going into
the atmosphere. The Positive Crank-
case Ventilation valve routes themfrom the crankcase back to the
intake manif old. They are then
drawn into the engine and burned.
137
Emissions Cont rols
Crankcase Emissions Control
System Evaporative Emissions Control
System
Onboard Ref ueling Vapor
Recovery
The Clean Air Act
T echnical Inf ormation202
——y
y
(yy

The exhaust emissions controls
include three or f our systems: PGM-
FI, Ignition Timing Control, Exhaust
Gas Recirculation (SOHC VTEC
engine only), and Three Way
Catalytic Converter. These three or
f our systems work together to
control the engine’s combustion and
minimize the amount of HC, CO, and
NOx that comes out the tailpipe. The
exhaust emissions control systems
are separate from the crankcase and
evaporative emissions control
systems.
The PGM-FI System uses sequential
multiport f uel injection.
It has three subsystems: Air Intake,
Engine Control, and Fuel Control.
The Engine Control Module (ECM)
or the Powertrain Control Module
(PCM) uses various sensors to
determine how much air is going
into the engine. It then controls howmuch f uel to inject under all operat-
ing conditions.
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
The Exhaust Gas Recirculation
(EGR) system takes some of the
exhaust gas and routes it back into
the intake manif old. Adding exhaust
gas to the air/f uel mixture reduces
the amount of NOx produced when
the f uel is burned.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor.
The emissions control systems are
designed and certif ied to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
genuine Honda replacement parts or
their equivalent f or repairs. Using
lowerqualitypartsmayincreasethe
emissions f rom your vehicle.
The emissions control systems are
covered by warranties separate f rom
the rest of your vehicle. Read your
warranty manual f or more inf orma-
tion.
2
2
Emissions Cont rols
T echnical Inf ormation
Exhaust Emissions Controls Replacement Parts
PGM-FI Syst emIgnit ion T iming Cont rol Syst em
Exhaust Gas Recirculat ion (EGR)Syst em
Three Way Catalytic Converter
203
——y
y
(yy

The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without af f ecting the metals.
The catalytic converter is ref erred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter inef f ective.Keep the engine tuned-up.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on f ire any com-
bustible materials that come near it.
Parkyourvehicleawayfromhigh
grass, dry leaves, or other f lamma-
bles. A defective three way catalytic
converter contributes to air pollution,
and can impair your engine’s per-
f ormance. Follow these guidelines to
protect your vehicle’s three way
catalytic converter.
Have your vehicle diagnosed and
repaired if it is misf iring, back-
f iring, stalling, or otherwise not
running properly.

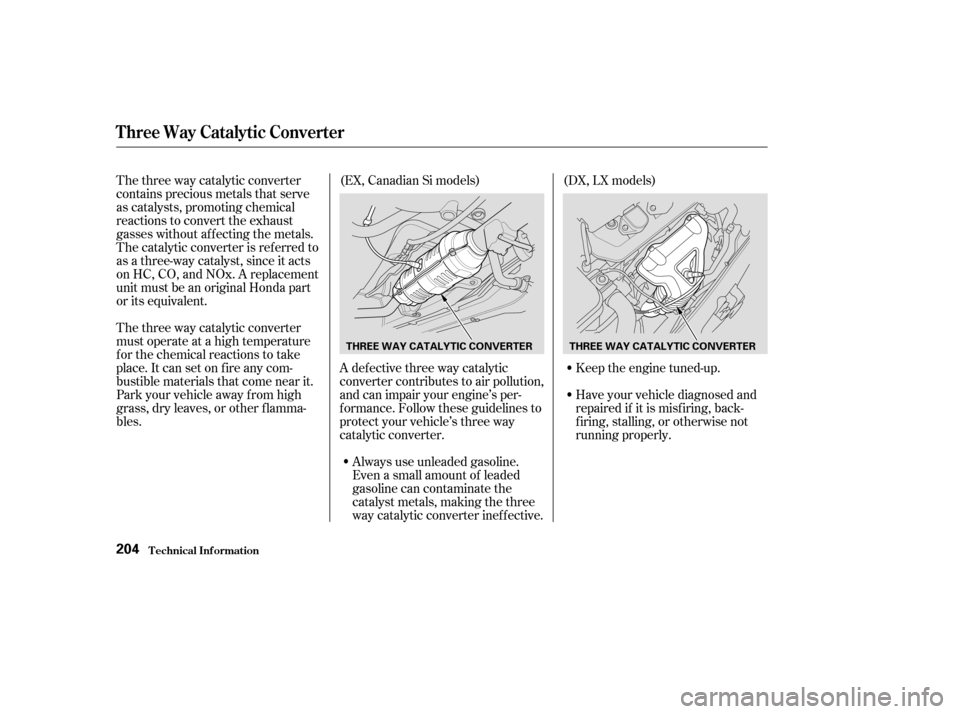

(DX, LX models)
(EX, Canadian Si models)
Three Way Catalytic Converter
T echnical Inf ormation204
THREE WAY CATALYTIC CONVERTER THREE WAY CATALYTIC CONVERTER
——y

y
(yy

Make sure the gas tank is nearly,
but not completely, f ull (around
3/4).
Make sure the ambient
temperature is between 20° and
95°F.Without touching the accelerator
pedal, start the engine and let it
idle f or 20 seconds.
If you take your vehicle f or a state
emissions test shortly af ter the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics f or the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions. If the testing f acility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle re-tested within the
next two or three days, you can
condition the vehicle for re-testing
by doing the f ollowing.
Make sure the vehicle has been
parked with the engine of f f or 8
hours or more. Keep the vehicle in Park
(automatic transmission) or
Neutral (manual transmission).
Increase the engine speed to 2,000
rpm and hold it there until the
temperature gauge rises to at least
1/4of thescale(approximately3
minutes).
St at e Emissions T est ing
T esting of Readiness Codes
T echnical Inf ormation205
——y
y
(yy

Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80to97km/h)foratleast20
minutes. Drive on the highway in
D (A/T) or 5th (M/T). Do not use
thecruisecontrol.Whentraffic
allows, drive f or 90 seconds
without moving the accelerator
pedal. (Vehicle speed may vary
slightly; this is okay.) If you cannot
do this f or a continuous 90
seconds because of traf f ic
conditions, drive f or at least 30
seconds, then repeat it two more
times (for a total of 90 seconds).Then drive in city/suburban
traffic for at least 10 minutes.
When traf f ic conditions allow, let
the vehicle coast f or several
seconds without using the
accelerator pedal or the brake
pedal.
If the testing f acility determines the
readiness codes are still not set, see
your Honda dealer.
St at e Emissions T est ing
T echnical Inf ormation206
——y
y
(yy

....
Customer Service Inf ormation . 208
....................
Warranty Coverages . 209
Reporting Saf ety Def ects
..........................
(U.S. Vehicles) . 210
.....................
Authorized Manuals . 211
Warranty and Customer Relations
Warrant y and Cust omer Relat ions207
——y
y
(y
y

Honda dealership personnel are
trained prof essionals. They should
be able to answer all your questions.
If you encounter a problem that your
dealership does not solve to your
satisf action, please discuss it with
the dealership’s management. The
Service Manager or General
Manager can help. Almost all
problems are solved in this way.
If you are dissatisf ied with the
decision made by the dealership’s
management, contact your Honda
Customer Service Office.
U.S. Owners:Canadian Owners:
In Puerto Rico and the U.S. Virgin
Islands:
When you call or write, please give
us this inf ormation:
Vehicle Identif ication Number
(see page )
Name and address of the dealer
who services your vehicle
Date of purchase
Mileage on your vehicle
Your name, address, and tele-
phone number
A detailed description of the
problem
Name of the dealer who sold the
vehicle to you 194
Cust omer Service Inf ormat ion
Warrant y and Cust omer Relat ions208
CUSTOMER RELATIONS
RELATIONS AVEC LA CLIENTÈLE
American Honda Motor Co., Inc.
Honda Automobile Customer Service
Mail Stop 500-2N-7A
1919 Torrance Boulevard
Torrance, California 90501-2746
Tel: (800) 999-1009 Honda Canada Inc.
715 Milner Avenue
Toronto, ON
M1B 2K8
Tel: 1-888-9-HONDA-9
Fax: Toll-free 1-877-939-0909
Toronto (416) 287-4776
Bella International
P.O. Box 190816
San Juan, Puerto Rico 00919-0816
Tel: (787) 250-4318
——y
y
(y

y

µµ
µ
µ µ
µ µ
µ µ
Your new Honda is covered by these
warranties:
covers your new vehicle, except f or
the battery, emissions control
systems, and accessories, against
def ects in materials and
workmanship. provides prorated
coverage f or a replacement battery
purchased f rom a Honda dealer.
these two
warranties cover your vehicle’s emis-
sions control systems. Time, mileage,
and coverage are conditional. Please
read the warranty manual for exact
inf ormation.
this warranty gives up
to 100 percent credit toward a
replacement battery. a seat
belt that f ails to f unction properly is
coveredfortheusefullifeof the
vehicle.
all exterior body panels are
covered f or rust-through f rom the
inside f or the specif ied time period
with no mileage limit.
Honda Accessories are covered
under this warranty. Time and
mileage limits depend on the type of
accessory and other f actors. Please
read your warranty manual f or
details.
covers all Honda
replacement parts against defects in
materials and workmanship. provides
coverageforaslongasthepur-
chaser of the muf f ler owns the
vehicle.
Restrictions and exclusions apply to
all these warranties. Please read the
2004 Honda Warranty Inf ormation
booklet that came with your vehicle
f or precise inf ormation on warranty
coverages. Your Honda’s original
tires are covered by their
manuf acturer. Tire warranty inf or-
mation is in a separate booklet.
Please ref er to the 2004 Warranty
Manual that came with your vehicle.
Warranty Coverages
U.S. Owners
Canadian Owners
New Vehicle L imit ed Warrant y Replacement Bat t ery L imit ed
Warranty
Emissions Cont rol Syst ems Def ect s Warrant y and EmissionsPerf ormance Warranty
Original Equipment Bat t ery L imit edWarranty Seat Belt Limited Warranty
Rust Perf orat ion L imit ed Warrant y
Accessory Limited Warranty
Replacement Part s L imit edWarranty Replacement Muf f ler L if et ime
Limited Warranty
Warrant y and Cust omer Relat ions209
——y
y
(y
y

If NHTSA receives similar com-
plaints, it may open an investigation,
and if it f inds that a saf ety def ect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or
American Honda Motor Co., Inc.
If you believe that your vehicle has a
def ect which could cause a crash or
could cause injury or death, you
should immediately inf orm the
National Highway Traf f ic Saf ety
Administration (NHTSA) in addition
to notifying American Honda Motor
Co., Inc.
To contact NHTSA, you may either
call the Auto Saf ety Hotline toll-f ree
at 1-800-424-9393 (or 366-0123 in
Washington D.C. area) or write to:
NHTSA, U.S. Department of
Transportation, Washington,
D.C. 20590. You can also obtain
other inf ormation about motor
vehicle safety from the Hotline.
Warrant y and Cust omer Relat ions
Reporting Saf ety Def ects (U.S. Vehicles)
210
——y
y
(y
y

ÎÎ
Î
µ µµ µÎ   $#
Valid only f or sales within the U.S. Canadian owners should
contact their authorized Honda dealer.
T he publications shown below can be purchased f rom Helm
Incorporated. You can order in any of three ways:
If you are interested in other years or models, contact Helm Inc. at 1- 800-782-4356 Detach and mail the order f orm on the right half of this page
Call Helm Inc. at 1-800-782-4356
Go online at
(credit card orders only)
Purchasing Factory Authorized Manuals
(U.S. only)
Authorized Manuals
211
Publication
Form Number 61S5A08
61S5A08EL 61S5A30
31S5A630
31S5AQ10 HON-R Form Description
2001 2004 Honda Civic 2/4 Door Service Manual
2001 2004 Honda Civic 2/4 Door
Electrical Troubleshooting Manual 2001 2004 Honda Civic 2/4 Door
Body Repair Manual
2004 Honda Civic 4 Door Owner’s Manual
2004 Honda Civic 4 Door Quick Start Guide
Order Form for Previous Years-
Indicate Year and Model Desired Price
Each
$70.00 $50.00$44.00$34.00$12.00
FREE (NOTE: For Credit Card Holder Orders Only)
MINIMUM CREDIT CARD PURCHASE $10.00
ORDER TOLL FREE: 1-800-782-4356
OR
PUBLICATION NUMBER VEHICLE MODEL
Name Year Qty
Price
Each Total
Price
GRAND TOTAL
HANDLING CHARGE
Mich. Purchases
Add 6% Sales Tax
TOTAL MATERIAL
$6.95Prices are subject to change without notice and without incurring
obligation. Monday-Friday 8:00 A.M. 6:00 P.M. EST
By completing this form you can order the materials desired. You can
pay by check or money order, or charge to your credit card. Mail to
Helm Incorporated at the address shown on the back of the order form.
Prices are subject to change without
notice and without incurring obligation.
Orders are mailed within 10 days. Please
allow adequate time for delivery.
www. helminc. com
——y
y
(y
y
