Page 181 of 253

HONDA CIVIC 2006 8.G Owners Manual Fluid Locations
190
RADIATOR CAP
ENGINE OIL DIPSTICK
(Orange loop)
ENGINE OIL
FILL CAP
WASHER FLUID
(Blue cap)
POWER STEERING
FLUID (Red cap)
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
ENGI

Page 182 of 253

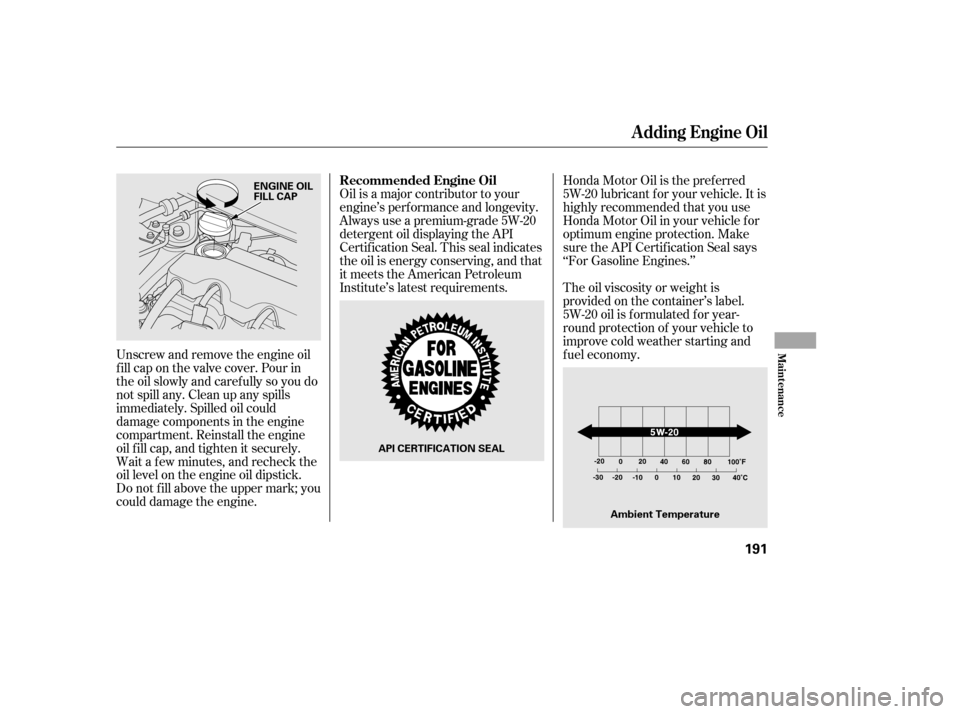

HONDA CIVIC 2006 8.G Owners Manual Oil is a major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade 5W-20
detergent oil displaying the API
Certif ication Seal. This seal indicates
the oil is energy

Page 183 of 253

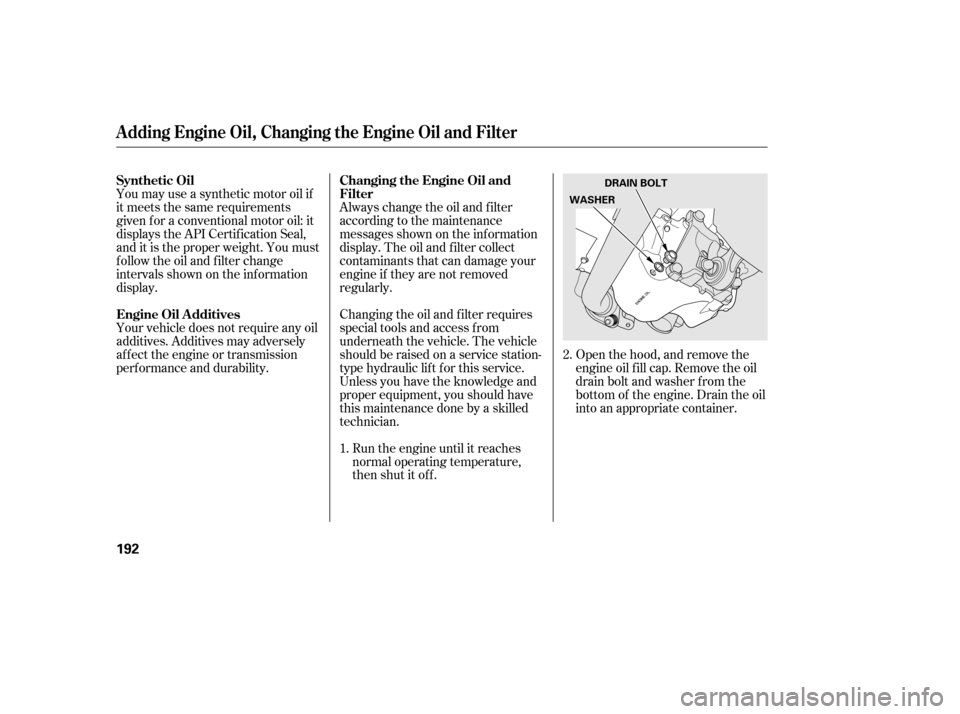

HONDA CIVIC 2006 8.G Owners Manual Your vehicle does not require any oil
additives. Additives may adversely
af f ect the engine or transmission
perf ormance and durability.
You may use a synthetic motor oil if
it meets the same requir

Page 184 of 253

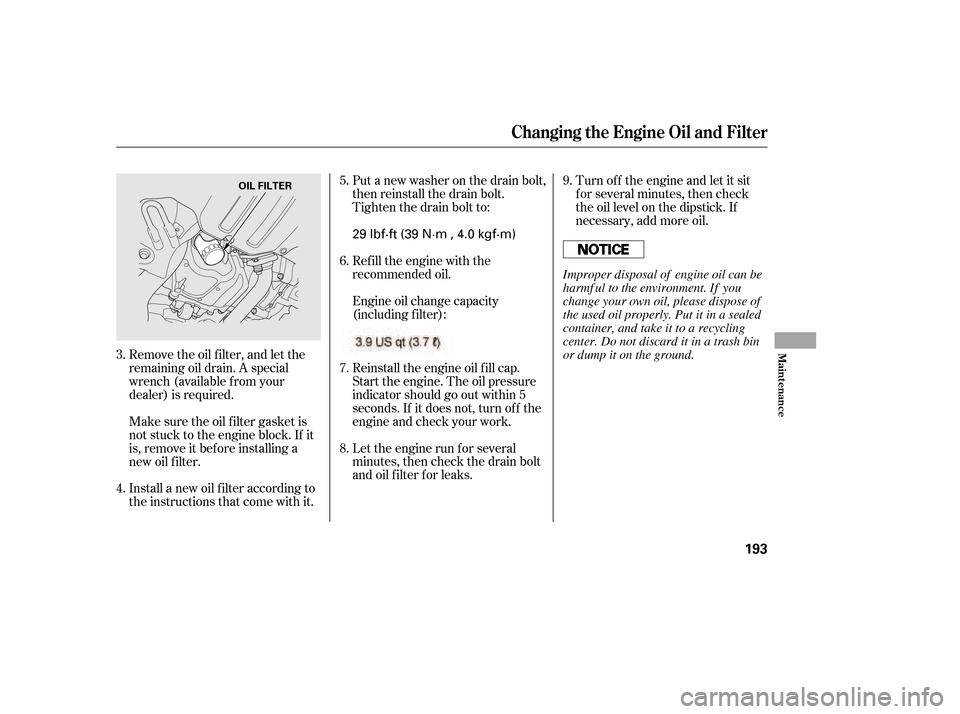

HONDA CIVIC 2006 8.G Owners Manual Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten the drain bolt to:
Refill the engine with the
recommended oil.
Engine oil change capacity
(including f ilter):
Reinstal

Page 185 of 253

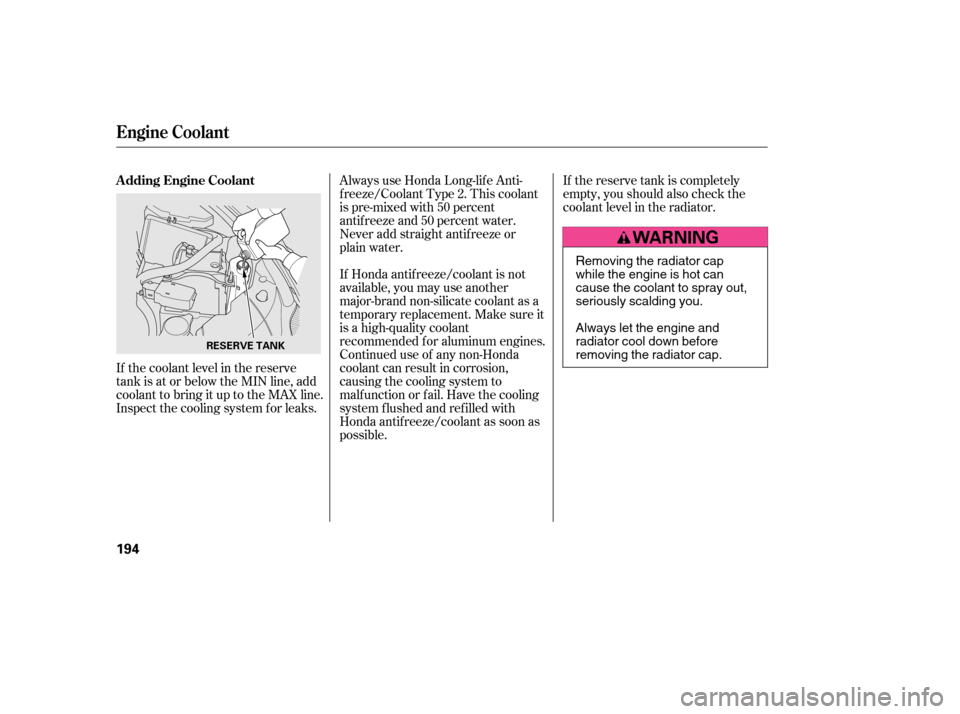

HONDA CIVIC 2006 8.G Owners Manual If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to t

Page 186 of 253

HONDA CIVIC 2006 8.G Owners Manual The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.
Pourthecoolantslowlyand
caref ully so you do not spill any.
Clean up any spill immediately; it
could damage c

Page 187 of 253

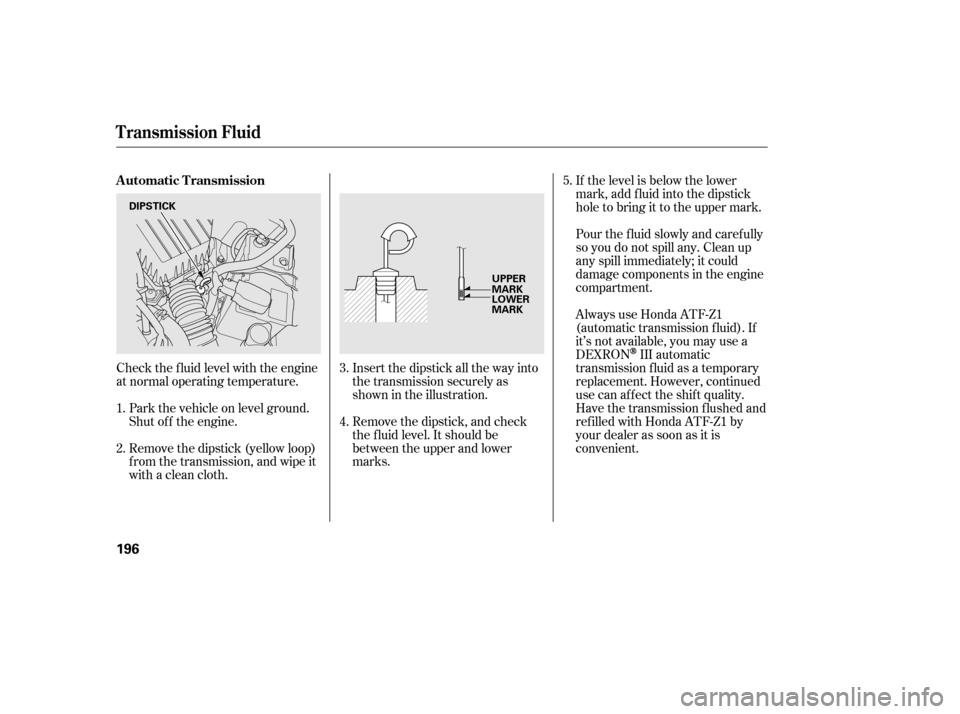

HONDA CIVIC 2006 8.G Owners Manual Pour the f luid slowly and caref ully
so you do not spill any. Clean up
any spill immediately; it could
damage components in the engine
compartment.
Check the f luid level with the engine
at normal o

Page 188 of 253

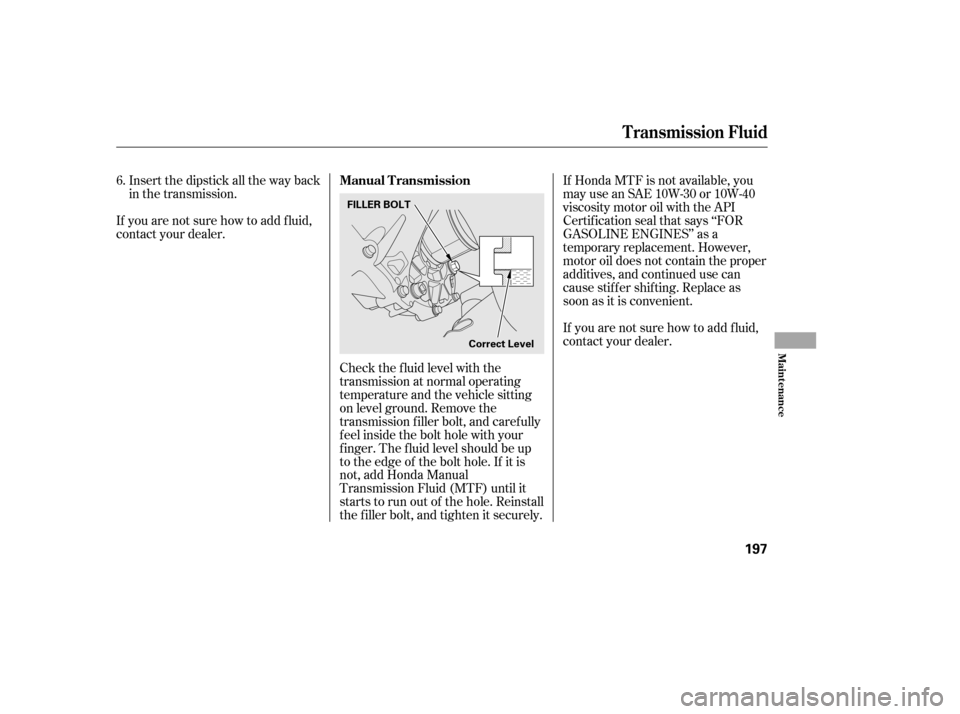

HONDA CIVIC 2006 8.G Owners Manual If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,

Page 189 of 253

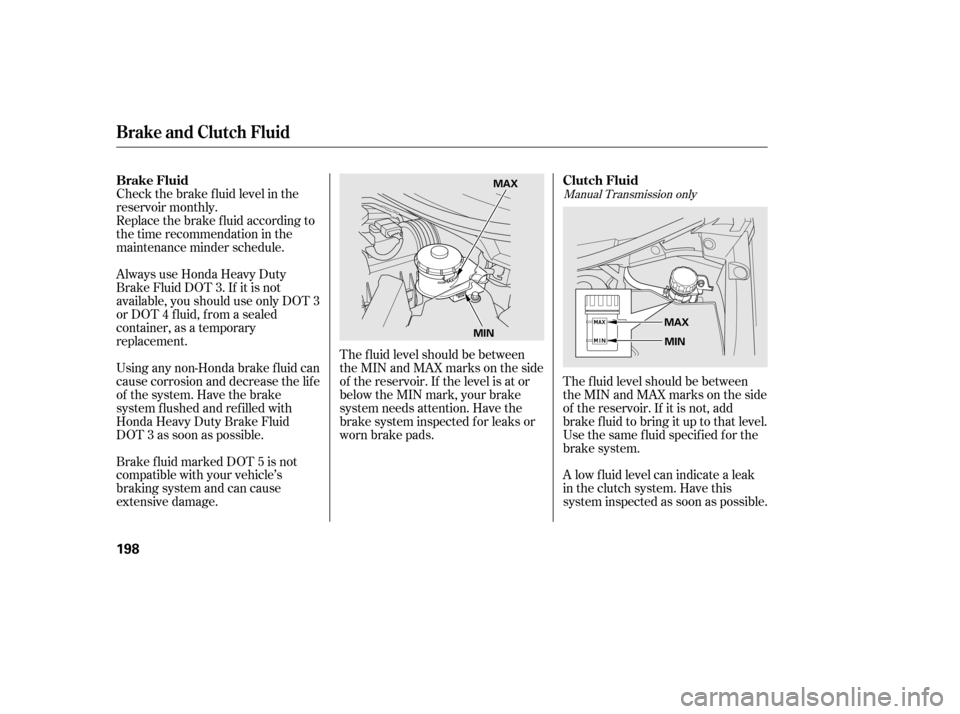

HONDA CIVIC 2006 8.G Owners Manual Manual Transmission only
The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If it is not, add
brake f luid to bring it up to that level.
Use the same fluid specified for

Page 190 of 253

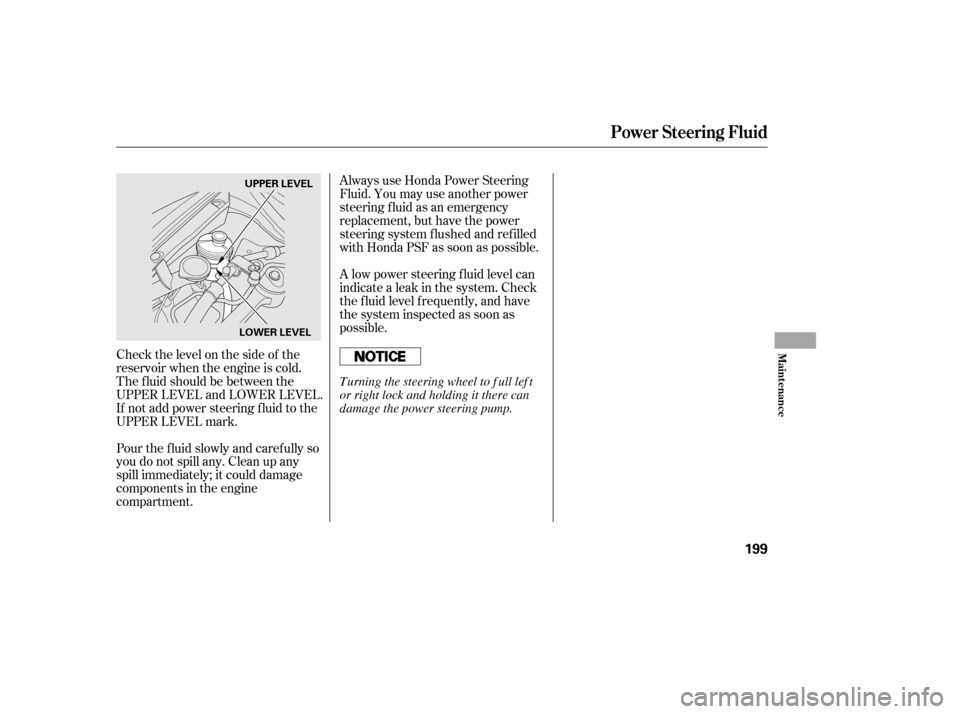

HONDA CIVIC 2006 8.G Owners Manual Always use Honda Power Steering
Fluid. You may use another power
steering f luid as an emergency
replacement, but have the power
steering system f lushed and ref illed
with Honda PSF as soon as possi
