HONDA CIVIC 2006 8.G User Guide
Manufacturer: HONDA, Model Year: 2006, Model line: CIVIC, Model: HONDA CIVIC 2006 8.GPages: 253, PDF Size: 7.61 MB
Page 11 of 253
Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the protective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
See page f or how to adjust the

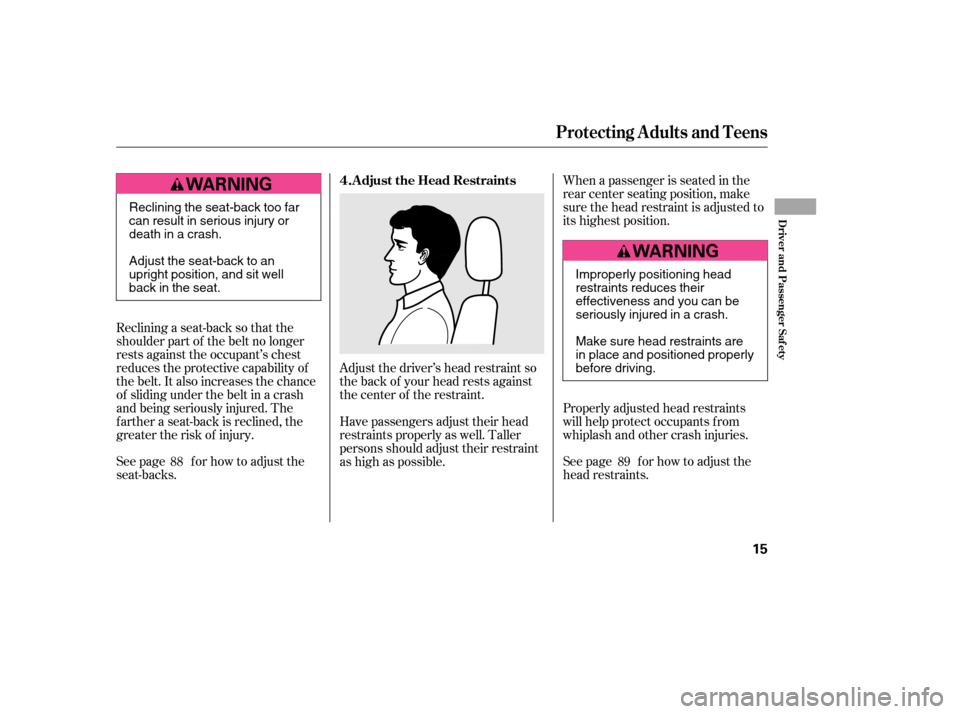

seat-backs.Adjust the driver’s head restraint so
the back of your head rests against
the center of the restraint.
See page f or how to adjust the
head restraints.
Properly adjusted head restraints
will help protect occupants f rom
whiplash and other crash injuries.
When a passenger is seated in the
rear center seating position, make
sure the head restraint is adjusted to
its highest position.
Have passengers adjust their head
restraints properly as well. Taller
persons should adjust their restraint
as high as possible.
88 89
Protecting A dults and Teens
A djust the Head Restraints
4.
Driver and Passenger Saf ety
15
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position, and sit well
back in the seat. Improperly positioning head
restraints reduces their
effectiveness and you can be
seriously injured in a crash.
Make sure head restraints are
in place and positioned properly
before driving.
— —y
y
(# y
y
Page 12 of 253

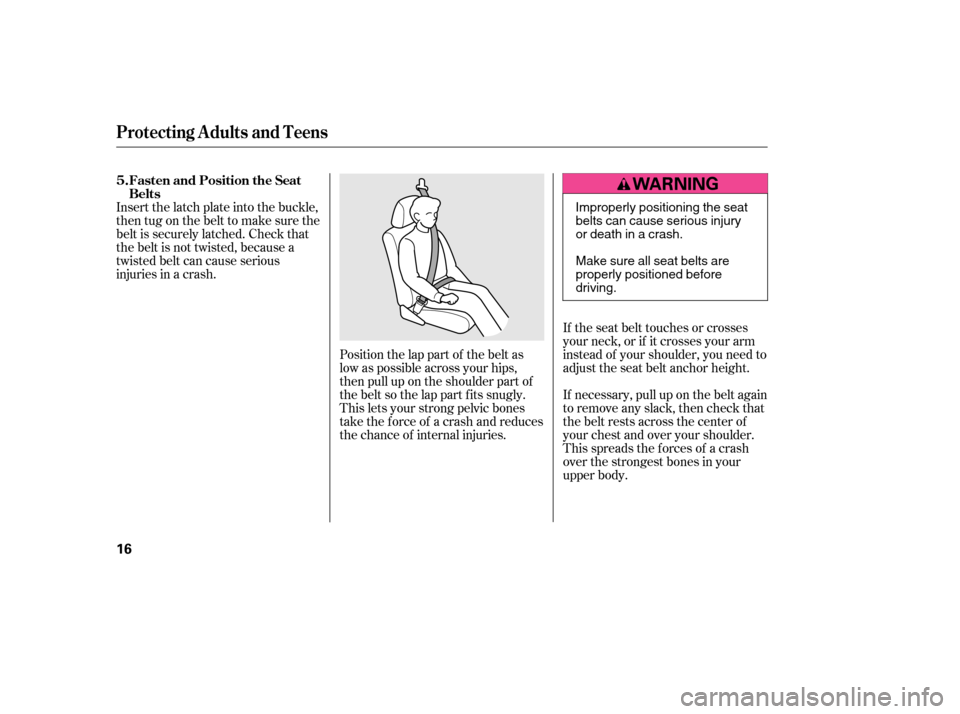

If the seat belt touches or crosses
your neck, or if it crosses your arm
instead of your shoulder, you need to
adjust the seat belt anchor height.
If necessary, pull up on the belt again
to remove any slack, then check that
the belt rests across the center of
your chest and over your shoulder.
This spreads the f orces of a crash
over the strongest bones in your
upper body.
Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
the belt so the lap part f its snugly.
This lets your strong pelvic bones
take the force of a crash and reduces
the chance of internal injuries.
Insert the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched. Check that
the belt is not twisted, because a
twisted belt can cause serious
injuries in a crash.
Protecting A dults and Teens
Fasten and Position the Seat
Belts
5.
16
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned beforedriving.
— —y
y
(# y
y
Page 13 of 253
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both f eet up, the
chance of injury during a crash is
greatly increased.
After all occupants have adjusted
their seats and put on seat belts, it is
very important that they continue to
sit upright, well back in their seats,
with their feet on the floor, until the
vehicle is parked and the engine is
of f .
This could cause
very serious injuries in a crash.
See page f or additional
inf ormation about your seat belts
and how to take care of them. Using a seat
belt that is not working properly can
result in serious injury or death.
Have your dealer check the belt as
soon as possible.

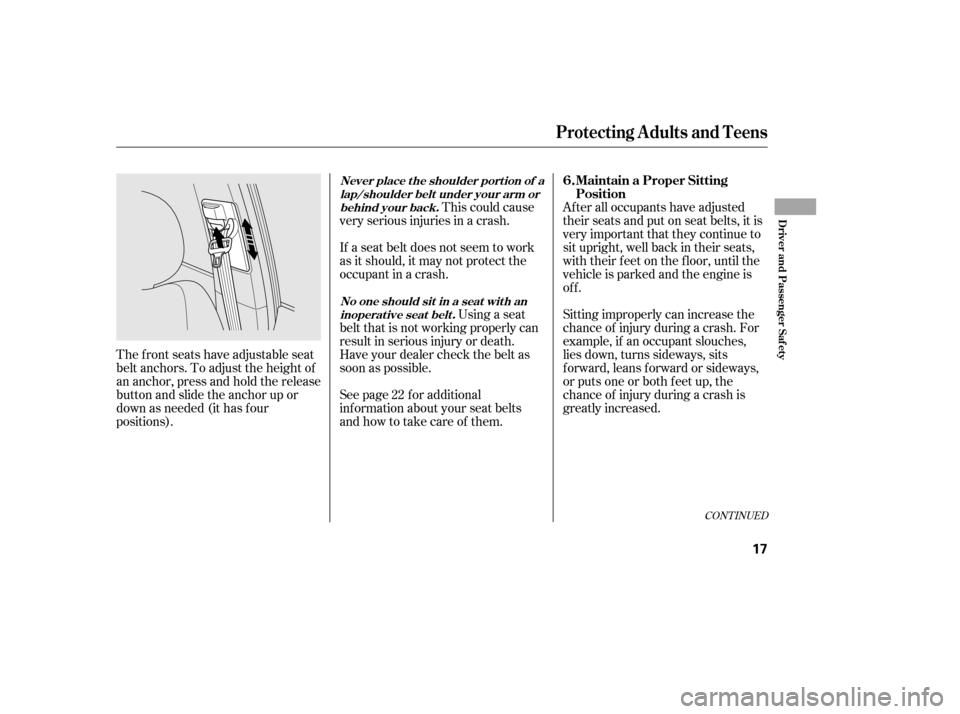

The front seats have adjustable seat
belt anchors. To adjust the height of
an anchor, press and hold the release
button and slide the anchor up or
down as needed (it has f our
positions). If a seat belt does not seem to work
as it should, it may not protect the
occupant in a crash.
22
CONT INUED
Protecting A dults and T eens
Maintain a Proper Sitting
Position
6.Never place t he shoulder port ion of a
lap/shoulder belt under your arm orbehind your back.
No one should sit in a seat wit h aninoperat ive seat belt .
Driver and Passenger Saf ety
17
— —
y
y
(# y y
Page 14 of 253

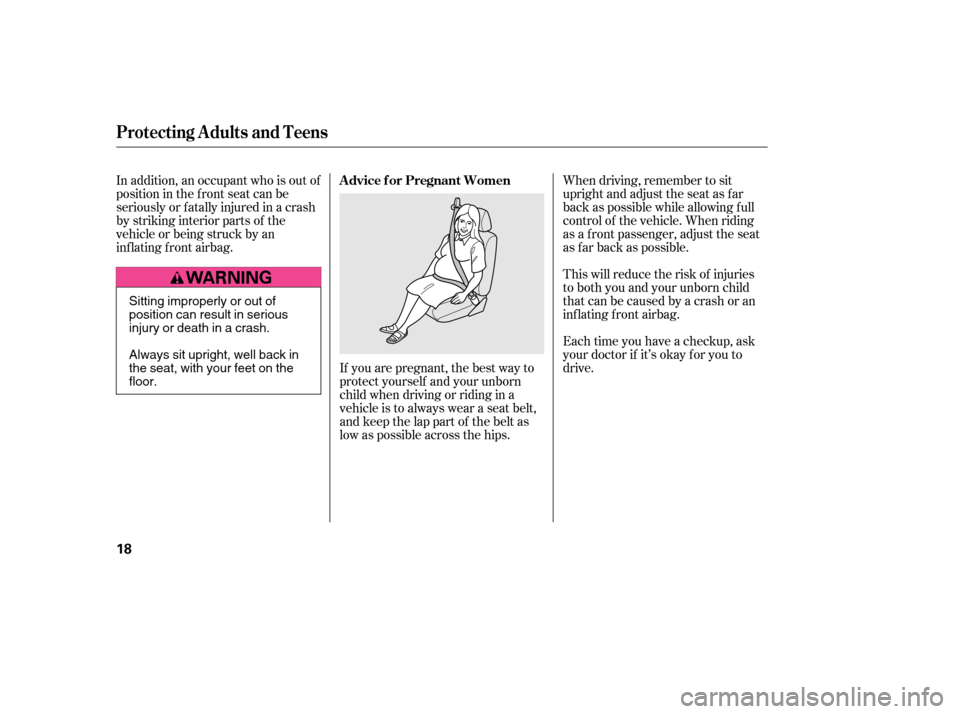

If you are pregnant, the best way to
protect yourself and your unborn
child when driving or riding in a
vehicle is to always wear a seat belt,
and keep the lap part of the belt as
low as possible across the hips.When driving, remember to sit
upright and adjust the seat as f ar
back as possible while allowing f ull
control of the vehicle. When riding
as a f ront passenger, adjust the seat
as far back as possible.
This will reduce the risk of injuries
to both you and your unborn child
that can be caused by a crash or an
inflating front airbag.
Each time you have a checkup, ask
your doctor if it’s okay f or you to
drive.
In addition, an occupant who is out of
position in the f ront seat can be
seriously or f atally injured in a crash
by striking interior parts of the
vehicle or being struck by an
inflating front airbag.
Advice f or Pregnant Women
Protecting A dults and Teens
18
Sitting improperly or out of
position can result in serious
injury or death in a crash.
Always sit upright, well back in
the seat, with your feet on thefloor.
— —y
y
(# y
y
Page 15 of 253
If your
hands or arms are close to an
airbag cover, they could be injured
if the airbag inf lates.
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp object in
your mouth, can result in injuries
if your f ront airbag inf lates.
Objects on
the covers marked ‘‘SRS AIRBAG’’
could interf ere with the proper
operation of the airbags or be
propelled inside the vehicle and
hurt someone if the airbags inf late.
If they do, they
could be very seriously injured in a
crash.
Devices intended to improve
occupant comf ort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
the seat belt and increase the
chance of serious injury in a crash. If a side airbag or a
side curtain airbag inf lates, a cup
holder or other solid object
attached on or near the door could
be propelled inside the vehicle and
hurt someone.
K eep your hands and arms away
f rom t he airbag covers.
Do not place hard or sharp object s
bet ween yourself and a f rontairbag.
Do not at t ach or place object s onthe f ront airbag covers.
T wo people should never use t he
same seat belt .
Do not put any accessories on seatbelts. Do not at t ach solid object s on or
near a door.

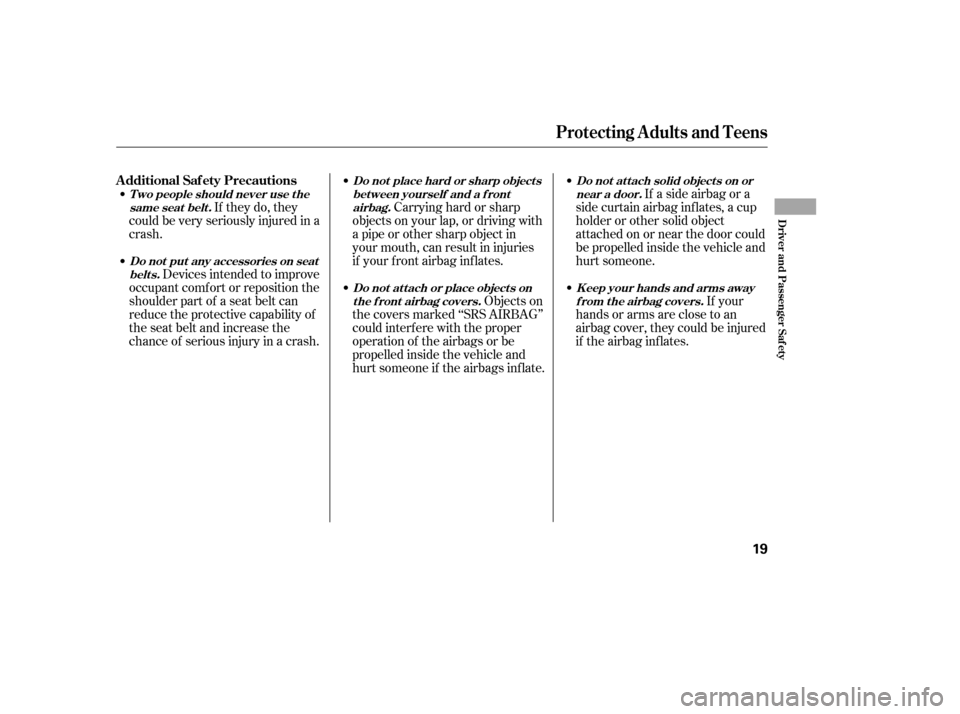

Additional Saf ety Precautions
Protecting A dults and Teens
Driver and Passenger Saf ety
19
— —y
y
(# y y
Page 16 of 253

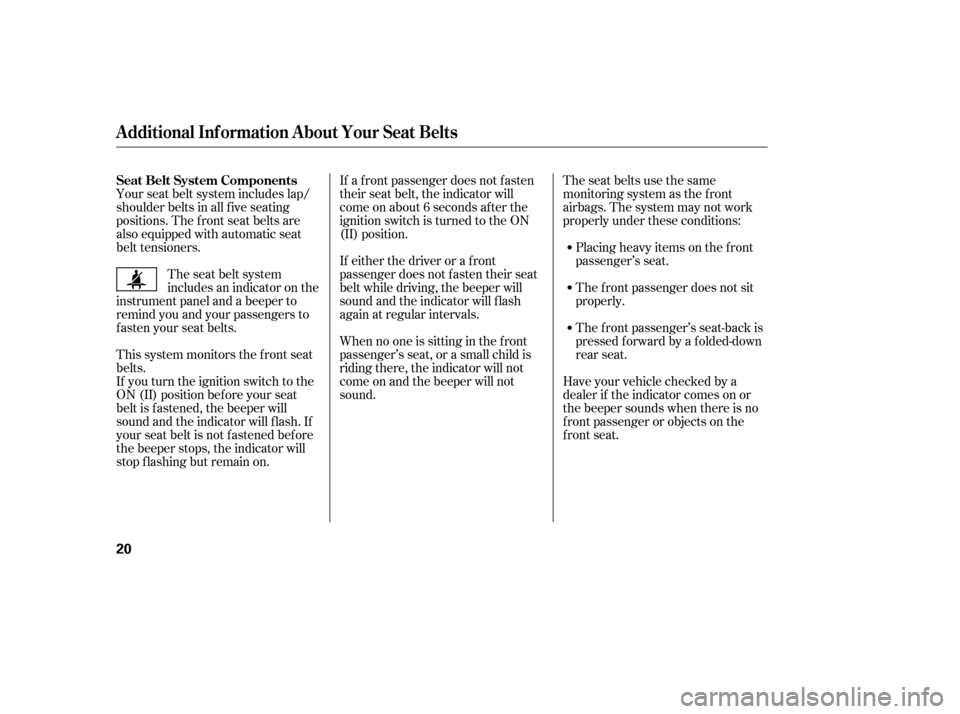

Your seat belt system includes lap/
shoulder belts in all f ive seating
positions. The f ront seat belts are
also equipped with automatic seat
belt tensioners.The seat belts use the same
monitoring system as the f ront
airbags. The system may not work
properly under these conditions:
Placing heavy items on the front
passenger’s seat.
The f ront passenger does not sit
properly.
The f ront passenger’s seat-back is
pressed f orward by a f olded-down
rear seat.
The seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you and your passengers to
f asten your seat belts.
This system monitors the f ront seat
belts.
If you turn the ignition switch to the
ON (II) position bef ore your seat
belt is f astened, the beeper will
sound and the indicator will f lash. If
your seat belt is not f astened bef ore
the beeper stops, the indicator will
stop f lashing but remain on. If a f ront passenger does not f asten
their seat belt, the indicator will
come on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either the driver or a f ront
passenger does not f asten their seat
belt while driving, the beeper will
sound and the indicator will f lash
again at regular intervals.
When no one is sitting in the f ront
passenger’s seat, or a small child is
riding there, the indicator will not
come on and the beeper will notsound.
Have your vehicle checked by a
dealer if the indicator comes on or
the beeper sounds when there is no
frontpassengerorobjectsonthe
front seat.
Additional Inf ormation About Your Seat Belts
Seat Belt System Components
20
— —y
y
(# y y
Page 17 of 253
CONT INUED

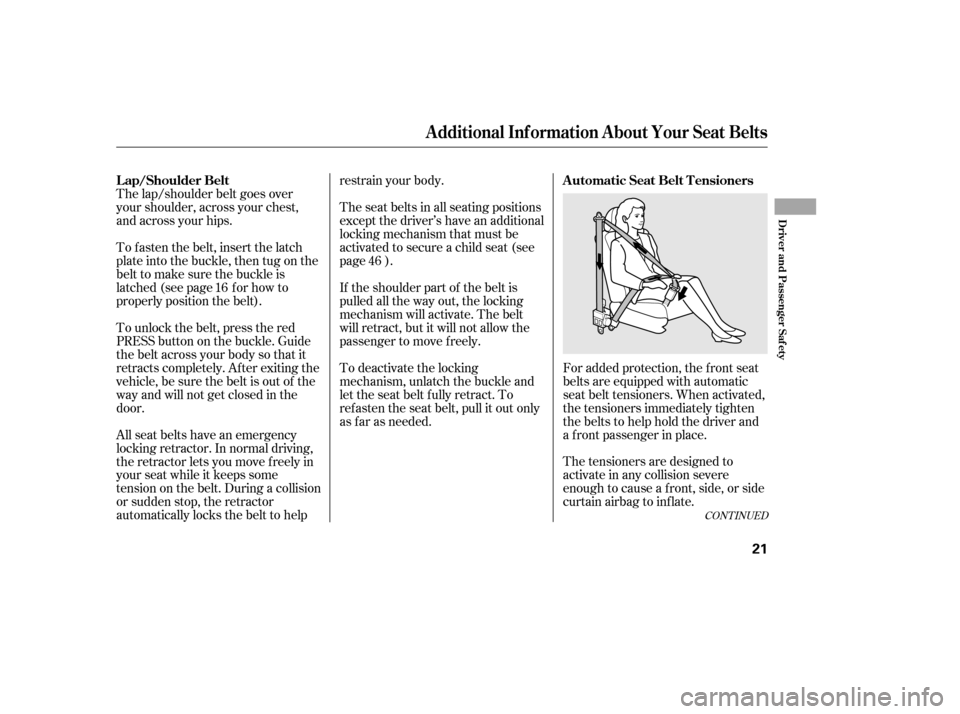

For added protection, the f ront seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and
a f ront passenger in place.
The tensioners are designed to
activate in any collision severe
enough to cause a f ront, side, or side
curtainairbagtoinflate.
The lap/shoulder belt goes over
your shoulder, across your chest,
and across your hips.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page f or how to
properly position the belt).
To unlock the belt, press the red
PRESSbuttononthebuckle.Guide
the belt across your body so that it
retracts completely. Af ter exiting the
vehicle, be sure the belt is out of the
way and will not get closed in the
door.
All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move f reely in
your seat while it keeps some
tension on the belt. During a collision
or sudden stop, the retractor
automatically locks the belt to help restrain your body.
The seat belts in all seating positions
except the driver’s have an additional
locking mechanism that must be
activated to secure a child seat (see
page ).
If the shoulder part of the belt is
pulled all the way out, the locking
mechanism will activate. The belt
will retract, but it will not allow the
passenger to move f reely.
To deactivate the locking
mechanism, unlatch the buckle and
let the seat belt f ully retract. To
ref asten the seat belt, pull it out only
as f ar as needed.
16
46
Additional Inf ormation About Your Seat Belts
A utomatic Seat Belt T ensioners
L ap/Shoulder Belt
Driver and Passenger Saf ety
21
— —y
y
(# y y
Page 18 of 253

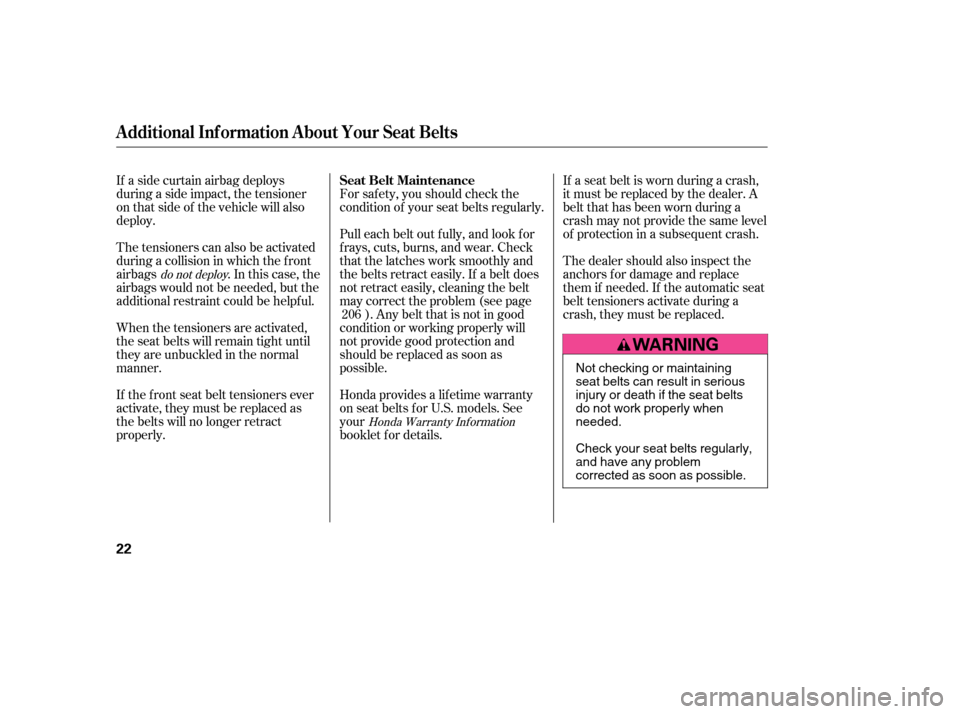

If a seat belt is worn during a crash,
it must be replaced by the dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
The dealer should also inspect the
anchors f or damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
For saf ety, you should check the
condition of your seat belts regularly.
Pull each belt out f ully, and look f or
f rays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. If a belt does
not retract easily, cleaning the belt
may correct the problem (see page
). Any belt that is not in good
condition or working properly will
not provide good protection and
should be replaced as soon as
possible.
Honda provides a lif etime warranty
on seat belts f or U.S. models. See
your
booklet f or details.
If a side curtain airbag deploys
during a side impact, the tensioner
on that side of the vehicle will also
deploy.
The tensioners can also be activated
during a collision in which the f ront
airbags . In this case, the
airbags would not be needed, but the
additional restraint could be helpf ul.
When the tensioners are activated,
the seat belts will remain tight until
they are unbuckled in the normal
manner.
If the f ront seat belt tensioners ever
activate, they must be replaced as
the belts will no longer retract
properly.
206
Honda Warranty Inf ormation
do not deploy
Additional Inf ormation About Your Seat Belts
Seat Belt Maintenance
22
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly whenneeded.
Check your seat belts regularly,
and have any problem
corrected as soon as possible.
— —y
y
(# y y
Page 19 of 253
CONT INUED

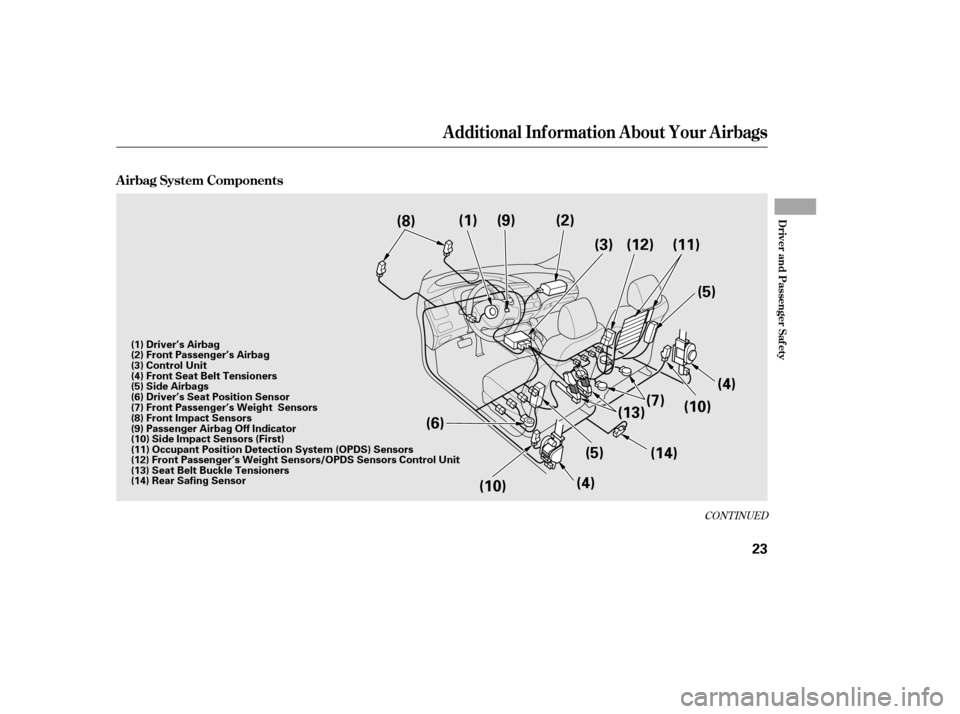

A irbag System Components
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
23
(9)
(8) (1) (2)
(3) (11)
(5)
(4)
(13) (7)
(10)
(14)
(5)
(4)
(6)
(10) (12)
(1) Driver’s Airbag
(2) Front Passenger’s Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners
(5) Side Airbags
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Weight Sensors
(8) Front Impact Sensors
(9) Passenger Airbag Off Indicator
(10) Side Impact Sensors (First)
(11) Occupant Position Detection System (OPDS) Sensors
(12) Front Passenger’s Weight Sensors/OPDS Sensors Control Unit
(13) Seat Belt Buckle Tensioners
(14) Rear Safing Sensor
— —y
y
(# y y
Page 20 of 253
Two SRS (supplemental restraint
system) f ront airbags. The driver’s
airbag is stored in the center of
the steering wheel; the f ront
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
Two side airbags, one f or the
driver and one f or a f ront
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page ).
Two side curtain airbags, one f or
each side of the vehicle. The
airbags are stored in the ceiling,
above the side windows. The f ront
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page).

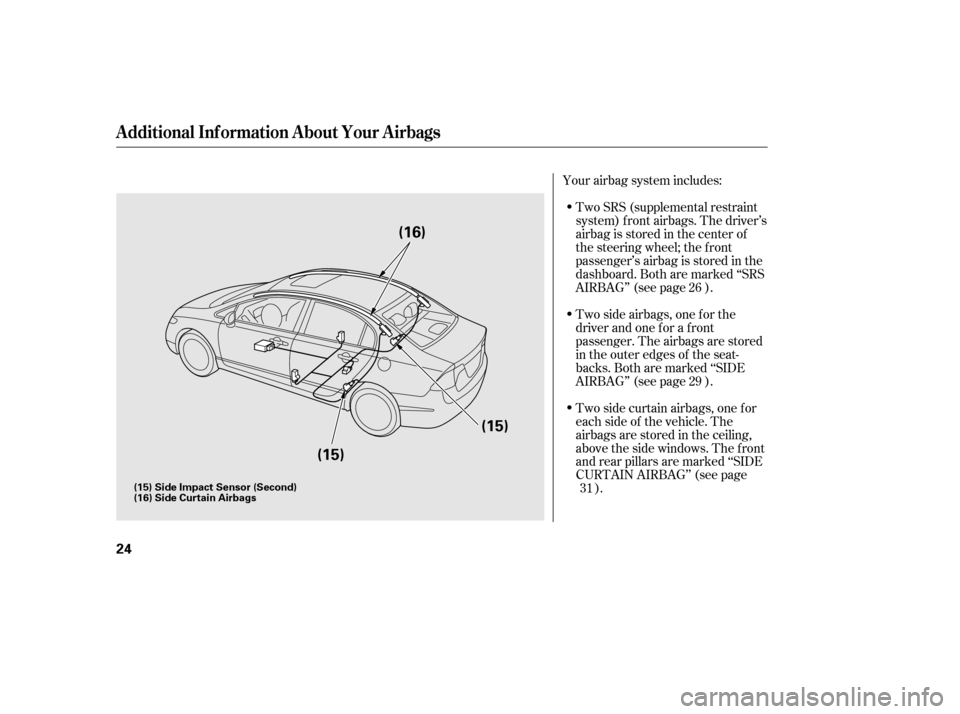

Your airbag system includes:
2629
31
Additional Inf ormation About Your Airbags
24
(16)
(15)
(15)
(15) Side Impact Sensor (Second)
(16) Side Curtain Airbags
— —y
y
(# y y
