coolant reservoir HONDA CIVIC 2006 8.G Owners Manual

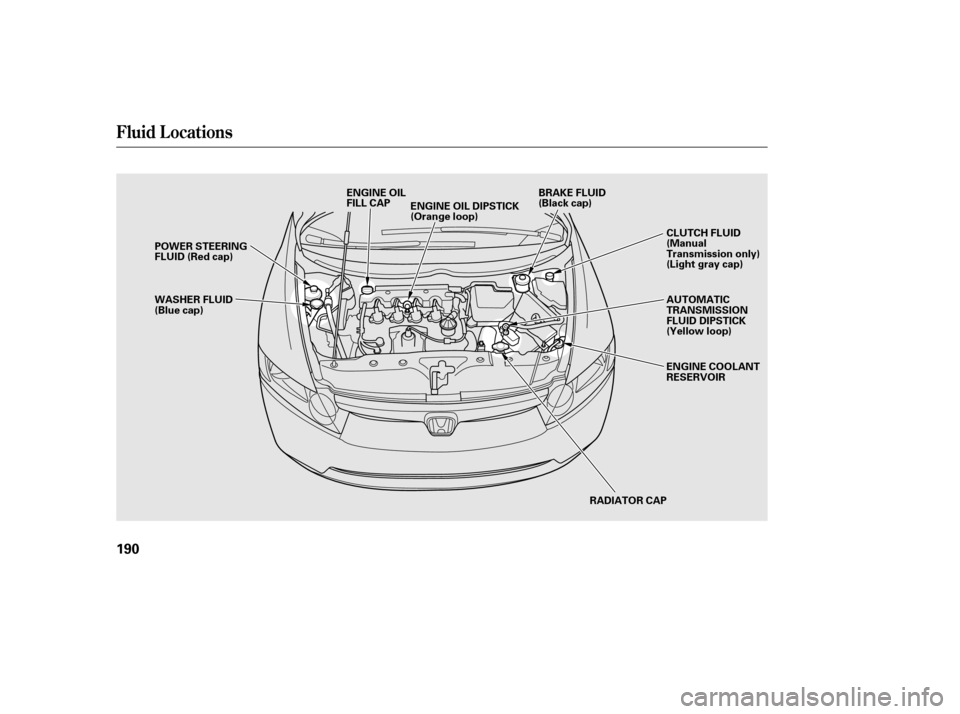

Fluid Locations
190
RADIATOR CAP
ENGINE OIL DIPSTICK
(Orange loop)
ENGINE OIL
FILL CAP
WASHER FLUID
(Blue cap)
POWER STEERING
FLUID (Red cap)
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
ENGINE COOLANT
RESERVOIR
CLUTCH FLUID
(Manual
Transmission only)
(Light gray cap)
BRAKE FLUID
(Black cap)
——
y
y
(#y
y

The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.
Pourthecoolantslowlyand
caref ully so you do not spill any.
Clean up any spill immediately; it
could damage components in the
engine compartment.
Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components. Check the f luid level in the
windshield washer reservoir at least
monthly during normal use.
Make sure the engine and radiator
are cool. When you ref ill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer f luid
on a clean cloth. This will help to
condition them.
Fill the reservoir with a good-quality
windshield washer f luid. This
increases the cleaning capability and
prevents f reezing in cold weather.
The low washer
level indicator will come on when the
level is low.
Relieve any pressure in the cooling
system by turning the radiator cap
counterclockwise, without
pressing down.
Remove the radiator cap by
pushing down and turning
counterclockwise. Put the radiator cap back on, and
tighten it fully.
3. 4. 5.
1. 2. 6.
On Canadian models:
Windshield Washers

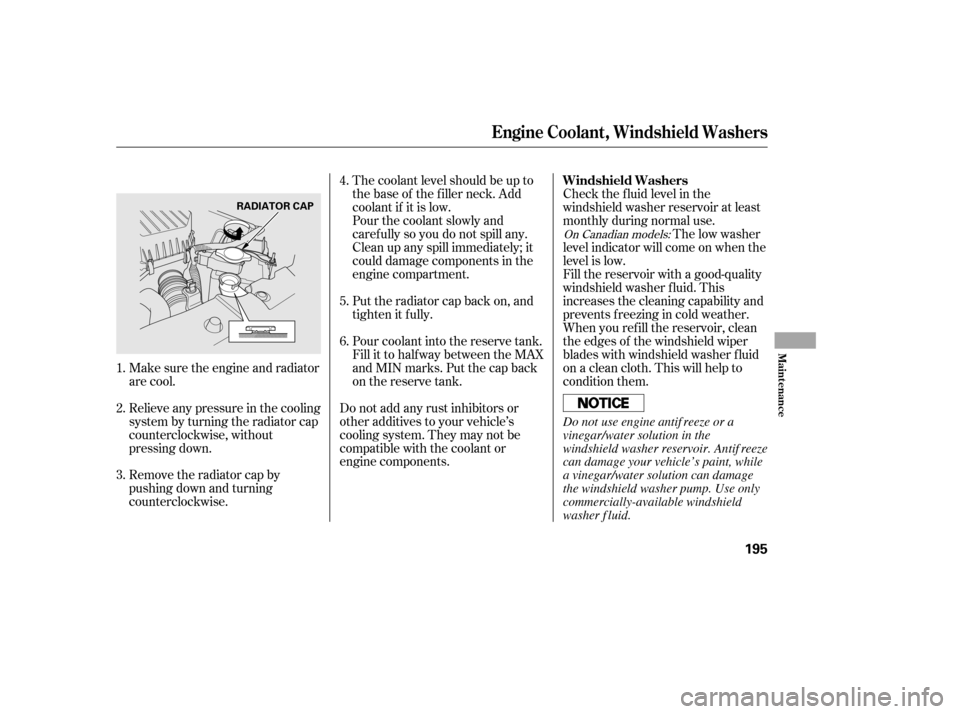

Engine Coolant, Windshield Washers
Maint enance
195
RADIATOR CAP
Do not use engine antif reeze or a
vinegar/water solution in the
windshield washer reservoir. Antif reeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer f luid.
——y
y
(#y
y

Î Î
´ µ
Î Î

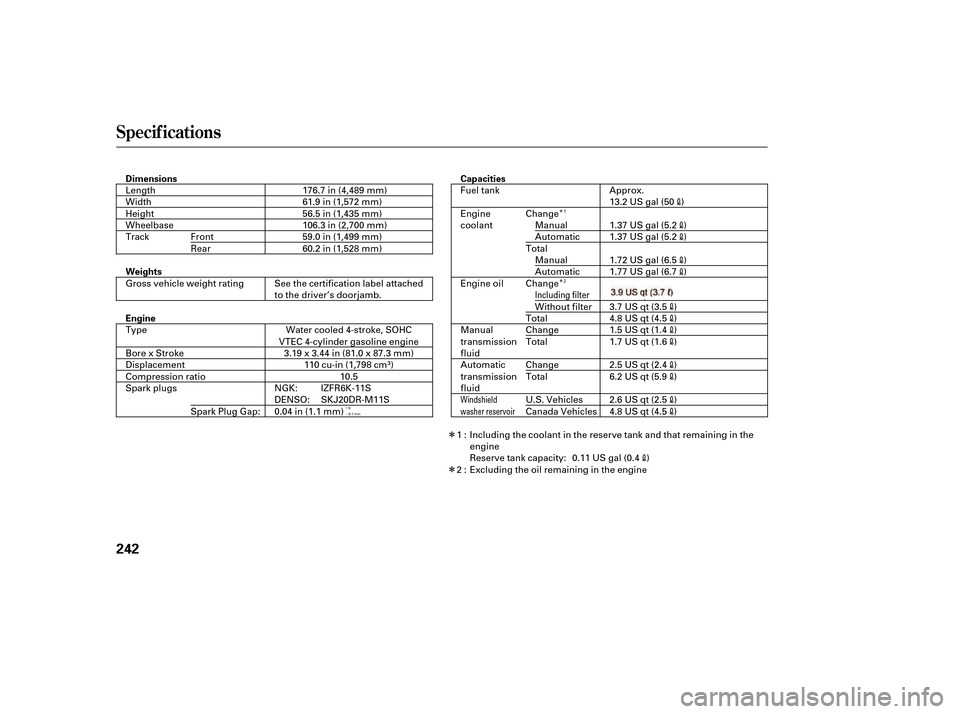

Specif icat ions
242
Dimensions
Weights
EngineCapacities
176.7 in (4,489 mm)
61.9 in (1,572 mm)
56.5 in (1,435 mm)
106.3 in (2,700 mm)
59.0 in (1,499 mm)
60.2 in (1,528 mm) 13.2 US gal (50
)
1.37 US gal (5.2
)
1.37 US gal (5.2)
1.72 US gal (6.5
)
1.77 US gal (6.7)
4.2 US qt (4.0
)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
Water cooled 4-stroke, SOHC
VTEC 4-cylinder gasoline engine
3.19 x 3.44 in (81.0 x 87.3 mm) 110 cu-in (1,798 cm
)
10.5 3.7 US qt (3.5
)
1.5 US qt (1.4
)
1.7 US qt (1.6)
NGK:
DENSO: IZFR6K-11SSKJ20DR-M11S
0.04 in (1.1 mm)
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Excluding the oil remaining in the engine
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity:
Fuel tank
Engine
coolant
Engine oil Manual
transmission
fluidAutomatic
transmission
fluid
4.8 US qt (4.5
)
2.6 US qt (2.5)
6.2 US qt (5.9
)
2.5 US qt (2.4)
0.11 US gal (0.4
)
4.8 US qt (4.5
)
Front Rear
Approx.
Spark Plug Gap: 1: 2:Change
Manual Automatic
Total
ManualAutomatic
Change
Without filter
Total
ChangeTotal
Change Total
U.S. Vehicles
Canada Vehicles
Windshield
washer reservoir0
0.1 mm
1 2
Including filter
