HONDA CIVIC 2008 8.G Owner's Manual

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock f unction. For more
inf ormation, see page .When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash.
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. It will then go of f if
you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink,
and the engine’s f uel system will be
disabled (see page ).
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
214 77
249 250
Instrument Panel Indicators
Anti-lock Brake System
(A BS) Indicator
Turn Signal and Hazard Warning
Indicators
Immobilizer System
Indicator
Inst rument s and Cont rols
59
——

y

y
(+yy

If you turn the steering wheel to the
f ull lef t or right position repeatedly
while stopping or driving at very low
speed, you may f eel slightly harder
steering due to overheating of the
steering gearbox.
Continuously driving under those
conditions could damage the power
steering system.This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in f or scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the information display. See page
f or more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
This indicator normally comes on
when you turn the ignition switch to
the ON (II) position and goes of f
af ter the engine starts. If it comes on
at any other time, there is a problem
in the electric power steering system.
If this happens, stop the vehicle in a
saf e place, and turn of f the engine.
Reset the system by restarting the
engine. The indicator will not turn
of f immediately. If it does not go of f
after driving a short distance, or
comes back on again while driving,
take the vehicle to your dealer to
have it checked. With the indicator
on, the EPS may be of f , making the
vehicle harder to steer.
225
Instrument Panel Indicators
Electric Power Steering
(EPS) Indicator
Maintenance Minder
Indicator
Si and Canadian DX-G with manual
t ransmission models
60
—
—y

y
(+yy

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost the pressure, and determine
the cause. If it is because of a flat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service
(see page ). For more
inf ormation, see page .If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS. With
this indicator on, the low tire
pressure indicator will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
To protect the engine f rom damage,
never drive with the tachometer in
its red zone.

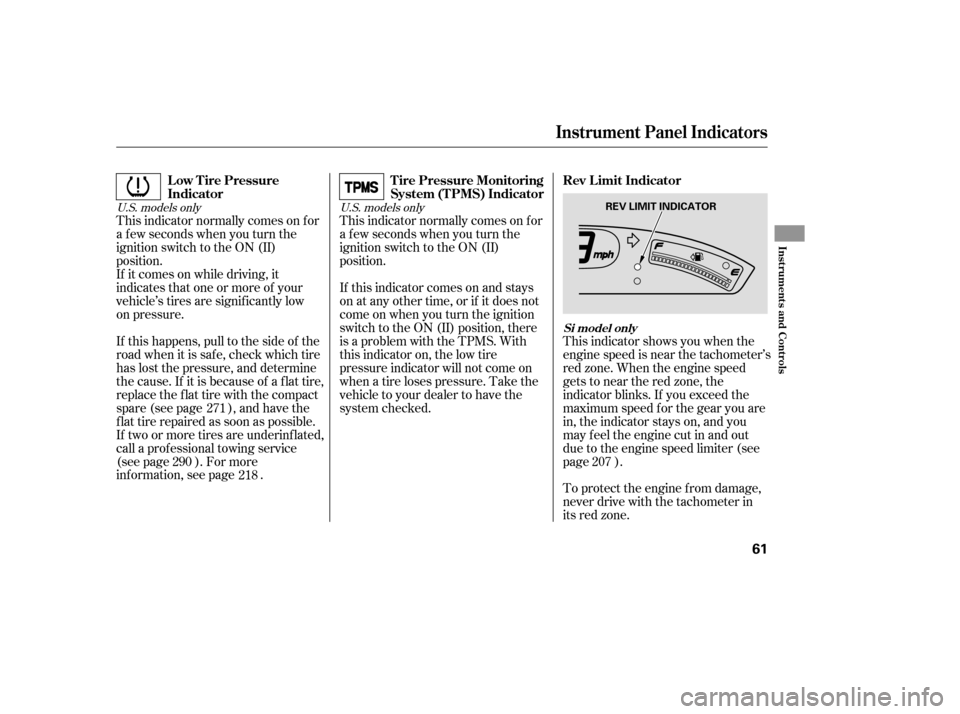

This indicator shows you when the
engine speed is near the tachometer’s
red zone. When the engine speed
gets to near the red zone, the
indicator blinks. If you exceed the
maximum speed f or the gear you are
in, the indicator stays on, and you
may f eel the engine cut in and out
due to the engine speed limiter (see
page ).
271
290 218 207
U.S. models only U.S. models only
Tire Pressure Monitoring
System (T PMS) Indicator
Low Tire Pressure
Indicator Rev L imit Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
Si model only
61
REV LIMIT INDICATOR
——

y

y
(+yy

If itcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Take
your vehicle to a dealer to have it
checked. Without VSA, your vehicle
still has normal driving ability, but
will not have VSA traction and
stability enhancement. See pagef or more inf ormation on the
VSA system. This indicator has three f unctions:
It flashes when VSA is active (see
page ).
It comes on as a reminder that you
have turned off the vehicle
stability assist (VSA) system.
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. See page f or more
inf ormation on the VSA system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ).
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control. 1. 2. 3.
216
216
182
182 216
If equipped
If equipped If equipped If equipped
VSA A ctivation Indicator
Vehicle Stability Assist
(VSA ) System Indicator
Cruise Main Indicator
Cruise Control Indicator
Instrument Panel Indicators
62
——

y

y
(+yy

If this indicator comes on when you
turn the ignition switch to the ON
(II) position and release the parking
brake, it means there is a problem
withtheDRL.Theremayalsobea
problem with the high beam
headlights. Have your vehicle
checked by your dealer.
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).This indicator comes on if either
door is not closed tightly.
This indicator comes on when the
washer f luid level is low. Add washer
f luid when you see this indicator
(see page ).
This indicator comes on if the trunk
lid is not closed tightly.
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or LOCK (0) position without
turning of f the light switch, this
indicator will stay on. A reminder
chime will also sound when you open
the driver’s door.
72 241
73
Canadian models only
High Beam Indicator Door-open Indicator
T runk-open Indicator L ights On Indicator
Washer Level Indicator
Daytime Running L ights
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
63
——

y

y
(+yy

If equipped

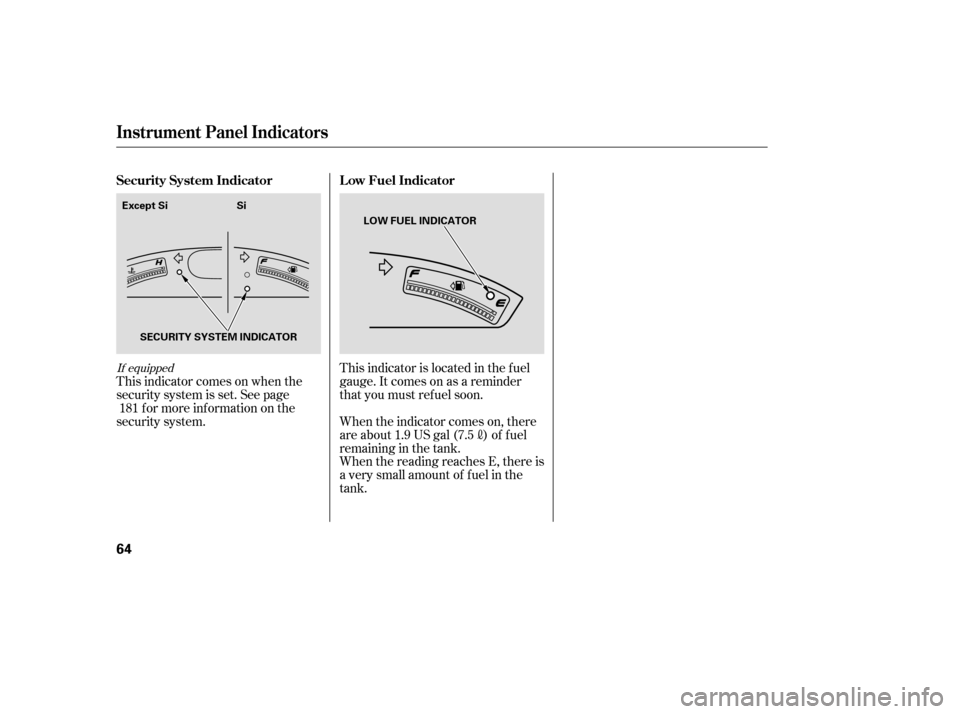

This indicator comes on when the
security system is set. See pagef or more inf ormation on the
security system. This indicator is located in the f uel
gauge. It comes on as a reminder
that you must ref uel soon.
When the indicator comes on, there
are about 1.9 US gal (7.5
)of fuel
remaining in the tank.
When the reading reaches E, there is
a very small amount of f uel in the
tank.
181
Instrument Panel Indicators
Security System Indicator L ow Fuel Indicator
64
LOW FUEL INDICATOR
SECURITY SYSTEM INDICATOR
Except Si Si
—
—y

y
(+yy

Press and hold the display change
button until you hear a beep. The
speedometer, trip meter, and
odometer readings switch between
miles per hour (mph) and kilometers
per hour (km/h).This meter shows the number of
miles or kilometers driven since you
last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the SEL/
RESET button repeatedly. Each trip
meter works independently, so you
can keep track of two dif f erent
distances.
When you turn the ignition switch to
the ON (II) position, what you last
selected is displayed.
To reset a trip meter, display it, and
then press and hold the SEL/RESET
button until the number resets to‘‘0.0.’’
This shows the total distance your
vehicle has been driven. It measures
miles or kilometers.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
The odometer and the outside
temperature indicator (if equipped)
use the same display. To switch the
display between them, press the
SEL/RESET button repeatedly.
When you turn the ignition switch to
the ON (II) position, your last
selection is displayed.
Display Change Button Odometer Trip Meter
Gauges
66
DISPLAY CHANGE BUTTON
——

y

y
(+y
y

Another accessory power socket is in
the center console compartment.
None of the sockets will power an
automotive type cigarette lighter
element. When both sockets are
being used, the combined power
rating of the accessories should be
120 watts or less (10 amps).To use the vanity mirror on the back
of the sun visor, pull up the cover.
Make sure to put the socket cover
back in place to prevent any small
foreign objects getting into the
socket.
On EX, EX-L and Si models
Vanity Mirror
Interior Convenience Items
Inst rument s and Cont rols
109
CONSOLE COMPARTMENT
EX, EX-L and Si
——

y
y
(+y

y

Af ter both doors are closed tightly,
the light dims slightly, then f ades out
in about 30 seconds.
The ceiling light (with the switch in
the center position) comes on when
you remove the key f rom the ignition
switch. If you do not open a door, the
light stays on, then f ades out in
about 30 seconds.
If you leave either door open without
the key in the ignition switch, the
ceiling light goes of f af ter 3 minutes.

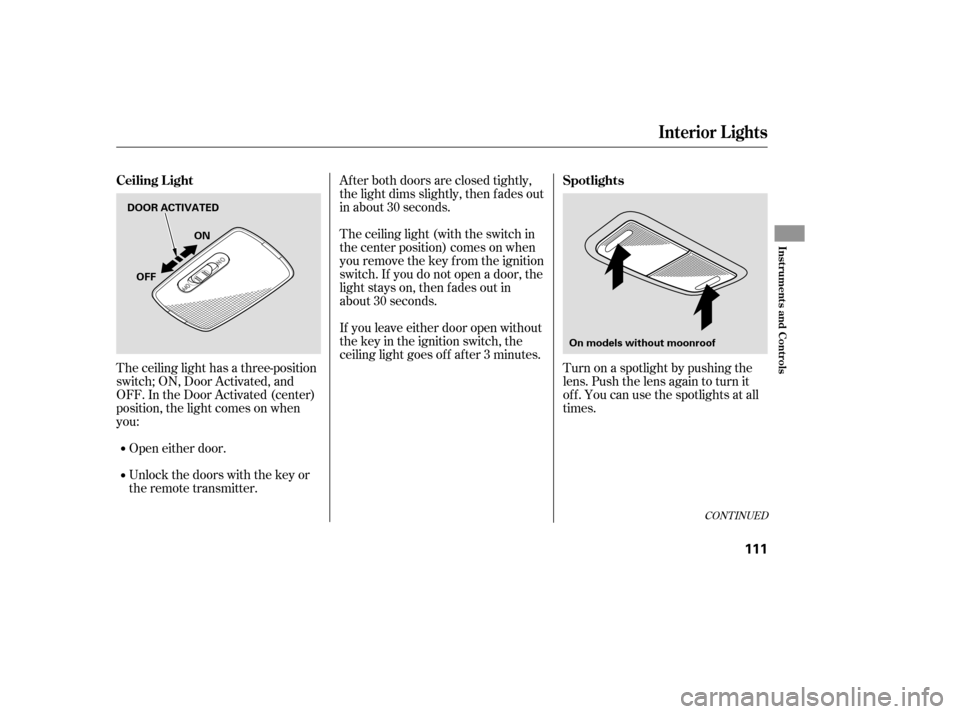

The ceiling light has a three-position
switch; ON, Door Activated, and
OFF. In the Door Activated (center)
position, the light comes on when
you:
Open either door.
Unlock the doors with the key or

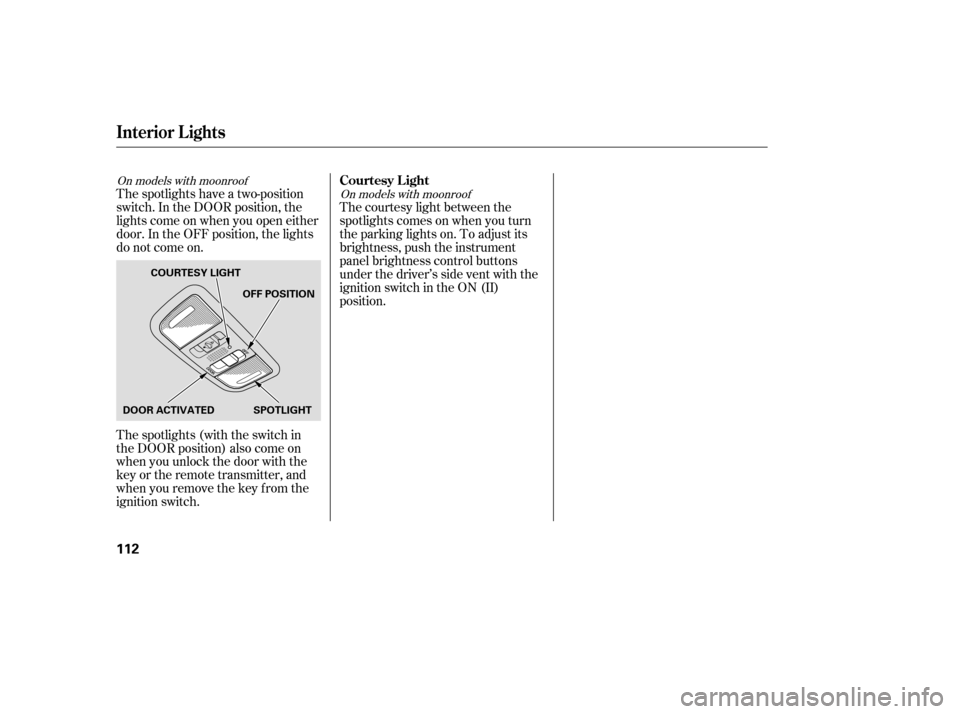

the remote transmitter. Turn on a spotlight by pushing the
lens. Push the lens again to turn it
of f . You can use the spotlights at all
times.
CONT INUED
Spotlights
Ceiling L ight
Interior Lights
Inst rument s and Cont rols
111
DOOR ACTIVATED
ON
OFF
On models without moonroof
——

y

y
(+y

y

The spotlights have a two-position
switch. In the DOOR position, the
lights come on when you open either
door. In the OFF position, the lights
do not come on.
The spotlights (with the switch in
the DOOR position) also come on
when you unlock the door with the
key or the remote transmitter, and
when you remove the key f rom the
ignition switch.The courtesy light between the
spotlights comes on when you turn
the parking lights on. To adjust its
brightness, push the instrument
panel brightness control buttons
under the driver’s side vent with the
ignition switch in the ON (II)
position.
On models with moonroof
On models with moonroofCourtesy L ight
Interior Lights
112
DOOR ACTIVATEDOFF POSITION
SPOTLIGHT
COURTESY LIGHT
——

y
y
(+y

y
