HONDA CIVIC 2010 8.G Owners Manual

CONT INUED
You can also select a file from any
list on the iPod menu: playlists,
artists, albums and songs. Press the
AUDIO button to display the screen,
then touch the iPod MENU icon.Select the desired mode by touching
the appropriate icon, or move the
joystick, then press ENT.If you select ‘‘ALL’’ on either the
artists or albums list, all available
f iles on the selected list are played.
PresstheAUDIObuttontogoback
to the normal audio playing display.
Pressing the CANCEL button goes
back to the previous screen, and
pressing the MAP button cancels the
audio control display on the screen.
Audio System (Models with navigation system)
T o Select a File f rom iPod Menu
Features
187
Table of Contents

Ûݵ
µ

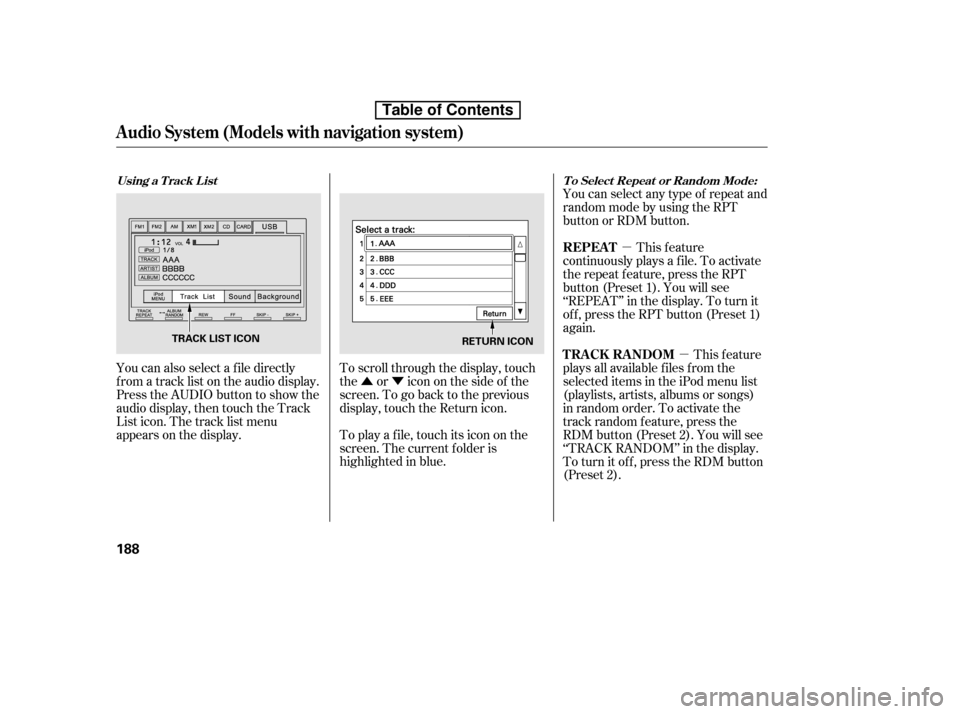

You can also select a f ile directly
f rom a track list on the audio display.
Press the AUDIO button to show the
audio display, then touch the Track
List icon. The track list menu
appears on the display. To scroll through the display, touch
the or icononthesideof the
screen.Togobacktotheprevious
display, touch the Return icon.
To play a f ile, touch its icon on the
screen. The current f older is
highlighted in blue.You can select any type of repeat and
random mode by using the RPT
button or RDM button.
This feature
continuously plays a f ile. To activate
the repeat f eature, press the RPT
button (Preset 1). You will see
‘‘REPEAT’’ in the display. To turn it
of f , press the RPT button (Preset 1)
again.
This feature
plays all available f iles f rom the
selected items in the iPod menu list
(playlists, artists, albums or songs)
in random order. To activate the
track random feature, press the
RDM button (Preset 2). You will see
‘‘TRACK RANDOM’’ in the display.
To turn it off, press the RDM button
(Preset 2).
Using a T rack L ist T o Select Repeat or Random Mode:
REPEAT
TRACK RANDOM
Audio System (Models with navigation system)
188
TRACK LIST ICON
RETURN ICON
Table of Contents

µÎ Î
ÎÎ
Î
Î
This feature
plays all available albums f rom the
selected items in the iPod menu list
(playlists, artists, albums or songs)
in random order. The f iles in each
album are played in the recorded
order. To activate the album random
f eature, press and hold the RDM
button (Preset 2). You will see
‘‘ALBUM RANDOM’’ in the display.
To turn it of f , press and hold the
RDM button (Preset 2).
You can also select another list from
theiPodmenuwhilekeepingthe
random f unction. To play the radio, press the AM/FM
button or touch the FM1, FM2, AM,
XM1 , or XM2 icon. Press the CD
icon to switch to the disc mode (if a
disc is loaded). Each time you press
the CD button, the audio mode
switches between iPod, disc andXM
Radio .
If a PC card is in the audio unit,
touch the CARD icon to play the PC
card.
You can disconnect the iPod at any
time when you see ‘‘OK to
disconnect’’ message in the iPod
display. Always make sure you see
‘‘OK to disconnect’’ message in the
iPod display bef ore you disconnect it.
Make sure to f ollow the iPod’s
instructions on how to disconnect
the dock connector f rom the USB adapter cable.
The displayed message may
vary on models or versions. On
some models, there is no
message to disconnect.
When you disconnect the iPod while
it is playing, the navigation screen
shows ‘‘NO DATA.’’
If you reconnect the same iPod, the
system may begin playing where it
lef t of f , depending on what mode the
iPod is in when it is reconnected.
If you see an error message in the
screen, see page .
If equipped
Available operating f unctions vary on
models or versions. Some f unctions
may not be available on the vehicle’s
audio system. :
:
190
ALBUM RANDOM To Stop Playing Your iPod
iPod
Error MessagesDisconnect ing an iPod
Audio System (Models with navigation system)
Features
189
NOTE:
Table of Contents

Error Message
If you see an error message on the
screen while playing an iPod, f ind
thesolutioninthecharttotheright.
If you cannot clear the error
message, take your vehicle to your
dealer. Solution
Appears when an unsupported iPod is inserted.
There is no music information.
iPodError Messages
Audio System (Models with navigation system)
190
UNSUPPORTED
NO SONG
Table of Contents

µ´
Playing a USB Flash Memory Device
Audio System (Models with navigation system)
Features
191

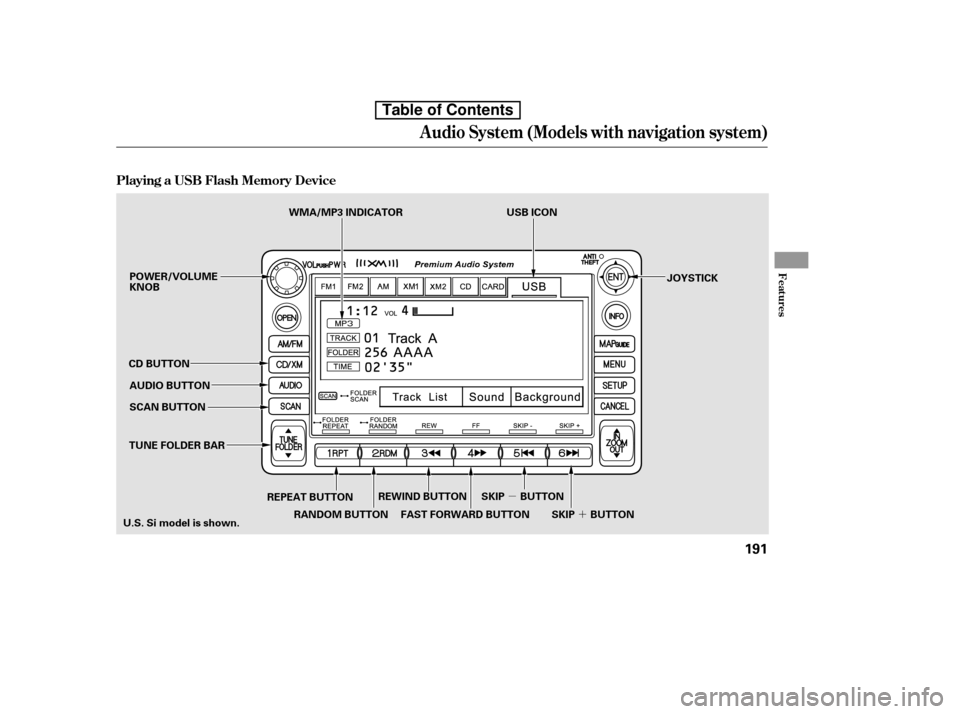

SCAN BUTTON JOYSTICK
AUDIO BUTTON
POWER/VOLUME KNOB
CD BUTTON
REPEAT BUTTON
U.S. Si model is shown. USB ICON
TUNE FOLDER BAR WMA/MP3 INDICATOR
SKIP BUTTON
REWIND BUTTON
RANDOM BUTTON FAST FORWARD BUTTON
SKIP BUTTON
Table of Contents

ÎÎ
This audio system can select and
play the audio f iles f rom a USB f lash
memory device with the same
controls used f or the in-dash disc
player. To play a USB f lash memory
device, connect it to the USB adapter
cable in the console compartment.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Press the AUDIO button beside the
screen to show the audio display and
touch the AUX icon.
The audio system reads and plays
the audio f iles on the USB f lash
memory device in MP3, WMA or
AAC f ormats. Depending on the
f ormat, the display shows MP3,
WMA or AAC when a USB flash
memory device is playing. The USB
f lash memory device limit is up to
700 f olders or up to 65535 f iles. Only AAC f ormat f iles recorded
with iTunes are playable on this
audio unit.
The recommended USB f lash
memory devices are 256 MB or
higher, and f ormatted with the FAT
f ile system. Some digital audio
players may be compatible as well. Do not keep a USB f lash memory
device in the vehicle. Direct
sunlight and high heat will damage
it.
We recommend backing up your
data bef ore playing a USB f lash
memory device.
Some devices cannot be powered
or charged via the USB adapter. If
this is the case, use the accessory
adapter to supply power to your
device.
Depending on the sof tware the
f iles were made with, it may not be
possibletoplaysomefiles,or
display some text data.
Depending on the type and
number of f iles, it may take some
time bef ore they begin to play.
Do not use an extension cable to
the USB adapter cable equipped
with your vehicle.
Do not connect your USB f lash
memory device using a hub.
Do not use a device such as a card
reader or hard drive as the device
or your f iles may be damaged.
Some USB f lash memory devices
(such as devices with security lock-
out f eatures, etc.) will not work in
this audio unit. :
To Play a USB Flash Memory
Device
Audio System (Models with navigation system)
192
NOTE:
Table of Contents

µ
µ
µ
µ µ µ µ
µ µ µ µ µ µµµ µ µ
CONT INUED
The specif ications f or compatible
AAC files are:
Bitrate:
48 320 kbps
Supported standards:
MPEG4/AAC LC
MPEG2/AAC LC
Partition: Top partition only
Maximum layers: 8
The specif ications f or compatible
WMA f iles are:
Bitrate:
48 320/VBR kbps (Max 384)
Partition: Top partition only
Maximum layers: 8
Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320/VBR kbps
(MPEG1)
Supported standards:
MPEG1 Audio Layer3
MPEG2 Audio Layer3
Partition: Top partition only
Maximum layers: 8
Depending on the type of
encoding and writing sof tware
used, there may be cases where
character inf ormation does not
display properly.
The specif ications f or compatible
MP3 f iles are:
The order of f iles in USB playback
maybedifferentfromtheorderof
f iles displayed in PC or other
devices etc. Files are played in the
orderstoredinUSBflashmemory
device. You can select the AUX mode by
using the navigation system voice
control buttons, but cannot operate
theplaymodefunctions.
Sampling f requency:
32/44.1/48 kHz (MPEG1)
16/22.05/24 kHz (MPEG2) Sampling f requency:
32/44.1/48 kHz
Supported standards:
WMA version 7/8/9
Sampling f requency:
8/11.025/12/16/22.05/24/32/
44.1/48 kHz
Audio System (Models with navigation system)
Voice Cont rol Syst em
Features
193
Table of Contents

Some versions of MP3, WMA, or
AAC f ormat may not be supported. If
an unsupported f ile is f ound, the
audio unit displays UNSUPPORTED,
then skips to the next f ile.Connect the USB f lash memory
device to the USB connector
correctly and securely.
Pull out the USB connector f rom
the holder and remove the cable
f rom the clip in the console
compartment.
In WMA or AAC format, DRM
(digital rights management) f iles
cannot be played. If the system f inds
a DRM f ile, the audio unit displays
UNPLAYABLE FILE, and then skips
to the next file.
When the USB f lash memory device
is connected and the USB mode is
selected on the audio system, the
WMAorMP3indicatorisshownon
the navigation screen. It also shows
the f older and f ile numbers, and the
elapsed time on the screen.
1.
2.Connect ing a USB Flash Memory
Device
Audio System (Models with navigation system)
194
USB ADAPTER CABLE USB CONNECTOR
USB CONNECTOR
Combining a low sampling f requency
with a low bitrate may result in
extremely degraded sound quality.
Table of Contents

ÛÝ
µ
µ µ
Ý

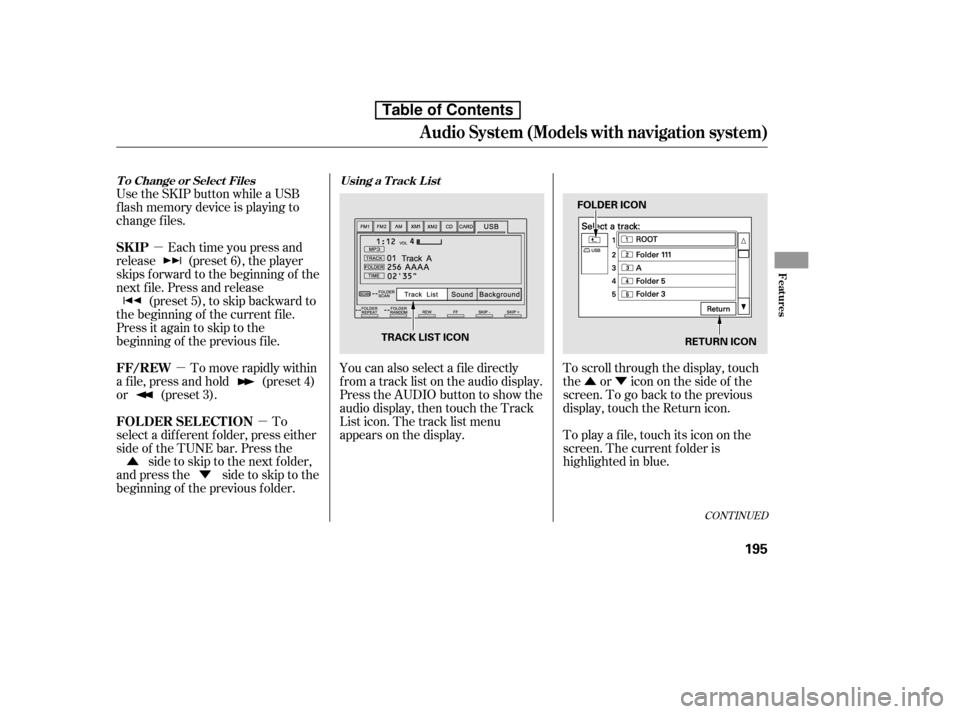

Û You can also select a f ile directly
f rom a track list on the audio display.
Press the AUDIO button to show the
audio display, then touch the Track
List icon. The track list menu
appears on the display.
To scroll through the display, touch
the or icononthesideof the
screen.Togobacktotheprevious
display, touch the Return icon.
To play a f ile, touch its icon on the
screen. The current f older is
highlighted in blue.
Each time you press and
release (preset 6), the player
skips forward to the beginning of the
next f ile. Press and release
(preset 5), to skip backward to
the beginning of the current f ile.
Press it again to skip to the
beginning of the previous f ile.
To move rapidly within
a f ile, press and hold (preset 4)
or (preset 3).
To
select a dif f erent f older, press either
side of the TUNE bar. Press the side to skip to the next folder,
andpressthe sidetoskiptothe
beginning of the previous f older.
Use the SKIP button while a USB
f lash memory device is playing to
change f iles.
CONT INUED
Using a T rack L ist
T o Change or Select Files
SK IP
FF/REW
FOLDER SELECTION
Audio System (Models with navigation system)
Features
195
FOLDER ICON
RETURN ICON
TRACK LIST ICON
Table of Contents

µµ µ
µ µ
µ
You can select any type of repeat,
random and scan modes by using the
RPT button, RDM button, or SCAN
button.
This feature
continuously plays a f ile. To activate
the track repeat f eature, press the
RPT button (Preset 1). You will see
‘‘TRACK REPEAT’’ in the display.
To turn it off, press the RPT button
(Preset 1).
This feature
replays all the f iles in the selected
f older in the order they are stored.
To activate the folder repeat feature,
press and hold the RPT button
(Preset 1). You will see ‘‘FOLDER
REPEAT’’ in the display. To turn it
off, press and hold the RPT button
(Preset 1). This feature
plays all the f iles in random order.
To activate the track random feature,
press the RDM button (Preset 2).
You will see ‘‘TRACK RANDOM’’ in
thedisplay.Toturnitoff,pressthe
RDM button (Preset 2).
This
f eature plays the f iles in the selected
f older in random order. To activate
the f older random f eature, press and
hold the RDM button (Preset 2). You
will see ‘‘FOLDER RANDOM’’ in the
display. To turn it of f , press and hold
the RDM button (Preset 2). This feature
samples all f iles in the selected
f older in the order they are stored.
To activate the scan feature, press
the SCAN button. You will see
‘‘TRACK SCAN’’ in the display. You
will also see the f ile number blinking.
You will get a 10 second sampling of
each f ile in the f older. Press the
SCAN button to get out of the scan
mode. The system plays the last f ile
sampled.
This feature
samples the f irst f ile in each f older in
the order they are stored. To
activate the folder scan feature,
press and hold the SCAN button.
You will see ‘‘FOLDER SCAN’’ in the
display. You will also see the f older
number blinking. You will get a 10
second sampling of the f irst f ile in
each folder. Press the SCAN button
to get out of the scan mode. The
system plays the last f ile sampled.
T o Select Repeat , Random or Scan
Mode:
T RA CK REPEA T
FOLDER REPEAT TRACK RANDOM
FOLDER RANDOM
TRACK SCAN
FOLDER SCAN
Audio System (Models with navigation system)
196
Table of Contents
