HONDA CIVIC 2010 8.G Owners Manual

µµ µ µ µµ µ
ÃŽ
ÃŽ
ÃŽ ÃŽ
ÃŽ
ÃŽ
No.
No.No.
Amps.
Amps. Circuits Protected Circuits Protected Amps. Circuits Protected
:
1 2345678 9
10111213141516 17181920212223242526272829303132333435363738
7.5 A
7.5 A
10 A
10 A
10 A
7.5 A
7.5 A 10 A
7.5 A
15 A
10 A
7.5 A
(15 A)
(20 A)
(7.5 A) Power Window
Fuel Pump
Alternator
ABS/VSA
Heated Seat
Front Fog Light
TPMS
Not Used ODS
MET ER
SRS
Right Headlight High Beam
Left Headlight High Beam
Small Light (Interior)
Small Light (Exterior)
Right Headlight Low Beam10 A
20 A
15 A
20 A
(20 A) 20 A
20 A
(15 A) 15 A
20 A
20 A
20 A
7.5 A 10 A
7.5 A 30 A Left Headlight Low Beam
Headlight High Beam Main
Small Lights (Main)
Not Used
Headlight Low Beam Main
Not Used
Not Used
Moonroof
Door Lock
Driver’s Power Window
Not Used
Rear Accessory Socket
Accessory
Passenger’s Power Window
Not Used
Right Rear Power Window
Lef t Rear Power Window
Not Used
Accessory Radio
HAC
Daytime Running Light
Front Wiper
If equipped
Fuse Locations
T aking Care of t he Unexpect ed
347
INTERIOR FUSE BOX
Table of Contents

µµ
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
The operator
loads your vehicle on the back of a
truck.
Therearetwowaystotowyour
vehicle: If , due to damage, your vehicle must
be towed with the f ront wheels on
the ground, do this:
Release the parking brake.
Shif t the transmission to neutral.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
The tow
truck uses two pivoting arms that go
under the f ront tires and lif t them of f
the ground. The rear tires remain on
the ground. With the f ront wheels on the ground,
do not tow the vehicle more than 50
miles (80 km), and keep the speed
below35mph(55km/h).
Start the engine.
Press on the brake pedal. Move
the shif t lever through all its
positions.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
Release the parking brake.
Turn of f the engine.
Shif t to D position and hold f or 5
seconds, then to N.
Manual transmission:
Automatic transmission:
Flat -bed Equipment
Wheel-lif t Equipment
T his is the best way to
transport your vehicle.
This is an acceptable
way to tow your vehicle.
Emergency T owing
348
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine (automatic transmission), your
vehicle must be transported with the
f ront wheels of f the ground.
Table of Contents

Do not tie down the vehicle at an
angle that would allow the towing
cables to contact the vehicle’s f ront
bumper. To avoid possible damage,
protect the f ront bumper with tape.
If your vehicle is equipped with a
f ront spoiler, remove it bef ore
towing so it is not damaged.
Emergency T owing
T aking Care of t he Unexpect ed
349
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns f reely bef ore you begin
towing.
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.
Table of Contents

µ
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.
................
Identif ication Numbers . 352
................................
Specif ications . 354
DOT Tire Quality Grading
......................
(U.S. Vehicles) . 357
.................................
Treadwear . 357
......................................
Traction . 357
.............................
Temperature . 358
.................................
Tire Labeling . 359
Tire Pressure Monitoring
System (TPMS) Required .............
Federal Explanation . 361 .......................
Emissions Controls . 363
.....................
The Clean Air Act . 363
Crankcase Emissions Control
....................................
System . 363
Evaporative Emissions Control ....................................
System . 363
Onboard Ref ueling Vapor ................................
Recovery . 363
...
Exhaust Emissions Controls . 364
....................
PGM-FI System . 364
Ignition Timing Control
................................
System . 364
Exhaust Gas Recirculation ...................
(EGR) System . 364
Three Way Catalytic ...........................
Converter . 364
....................
Replacement Parts . 364
..
Three Way Catalytic Converter . 365
........................
Emissions Testing . 366
T echnical Inf ormation
T echnical Inf ormation
351

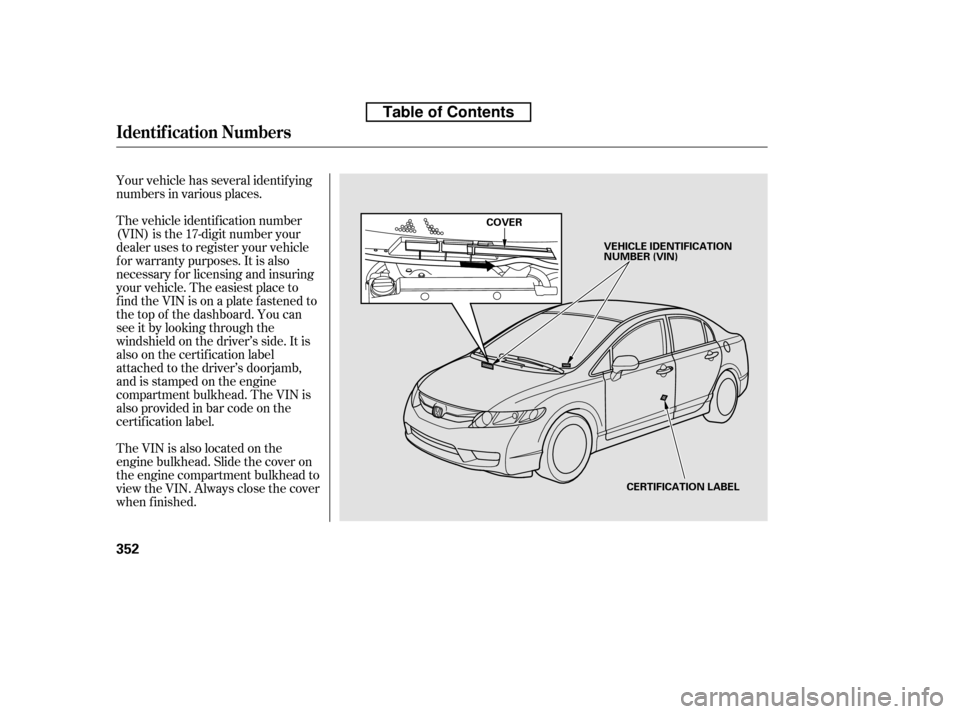

Your vehicle has several identif ying
numbers in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
The VIN is also located on the
engine bulkhead. Slide the cover on
the engine compartment bulkhead to
view the VIN. Always close the cover
when f inished.
Identif ication Numbers
352
CERTIFICATION LABEL
COVER
VEHICLE IDENTIFICATION
NUMBER (VIN)
Table of Contents

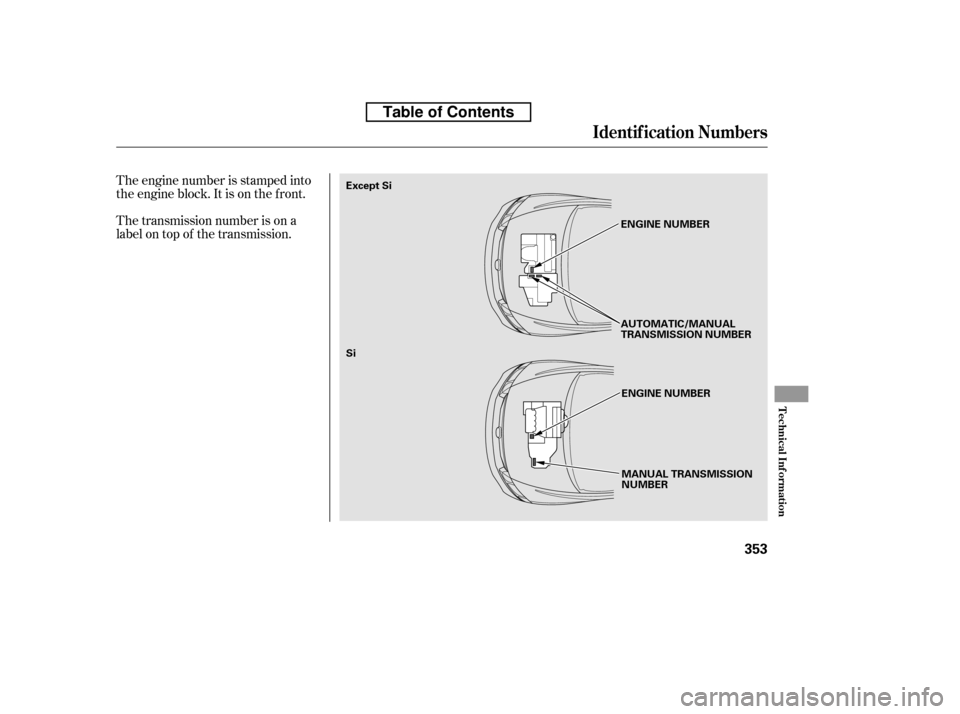

The engine number is stamped into
the engine block. It is on the f ront.
The transmission number is on a
label on top of the transmission.
Identif ication Numbers
T echnical Inf ormation
353
MANUAL TRANSMISSION
NUMBER
ENGINE NUMBER
ENGINE NUMBER
AUTOMATIC/MANUAL
TRANSMISSION NUMBER
Except Si Si
Table of Contents

ÃŽ ÃŽÃŽÃŽ
ÃŽ ÃŽ
ÃŽÃŽ ÃŽ
ÃŽ
ÃŽÃŽ
Specif ications
354
Dimensions
Weights Engine
Seating Capacities 177.3 in (4,504 mm)
69.0 in (1,752 mm)
56.5 in (1,435 mm)
106.3 in (2,700 mm)
59.0 in (1,499 mm)
60.2 in (1,528 mm)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb. Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Spark plugs
3.19 x 3.44 in (81.0 x 87.3 mm)
3.39x3.39in(86x86mm) 110 cu-in (1,799 cm
)
122 cu-in (1,998 cm)
10.5 11.0
IZFR6K11SSKJ20DR-M11SIFR7G11KSSK22PR-M11S
Total
FrontRear 523 Water cooled 4-stroke
SOHC i-VTEC , DOHC i-VTEC
4-cylinder gasoline engine
FrontRear
1:2:Except SiSi NGK:
DENSO:
NGK:
DENSO:
1 2 12
1 2
12 2
1
Table of Contents

µµ
µ µµ µ µµµµµµµµµµ
ÃŽ ÃŽ ÃŽÃŽÃŽÃŽÃŽ ÃŽÃŽÃŽÃŽÃŽ
ÃŽÃŽÃŽÃŽÃŽÃŽÃŽÃŽÃŽÃŽ
ÃŽ
ÃŽ
ÃŽ ÃŽ
Specif ications
T echnical Inf ormation
355
Air Conditioning
Capacities
Lights
Refrigerant type
Charge quantity
Lubricant oil type
HFC-134a (R-134a)
14.1 15.9 oz (400 450 g) SP-10
12 V 60 W (HB3) 12 V 51 W (HB4)
12 V 24/2 CP
12 V 21 W
12 V 21/5 W
12 V 2 CP
12 V 21 W
12 V 3 CP
12 V 21 W
4.8 US qt (4.5
)
1.8 US qt (1.7
)
1.6 US qt (1.5
)
1.19 US gal (4.5
)
1.80 US gal (6.8
)
4.6 US qt (4.4
)
4.4 US qt (4.2
)
5.8 US qt (5.5
)
6.08 US qt (5.75
)
2.5 US qt (2.4)
1.40 US gal (5.3
)
1.77 US gal (6.7
)
2.6 US qt (2.5
)
1.7 US qt (1.6
)
1.5 US qt (1.4
)
1.37 US gal (5.2
)
1.72 US gal (6.5
)
3.9 US qt (3.7
)
3.7 US qt (3.5
)
4.8 US qt (4.5
)
13.2 US gal (50
)
Fuel tank
Engine
coolant
Engine oil Manual
transmission
fluid Automatic
transmission
fluid
Windshield
washer
reservoir Headlights
Front turn signal/side marker/
Parking lights
Rear turn signal lights
Stop/Taillights
Rear side marker lights
Back-up lights
Taillights
High-mount brake light
Fog lights
License plate lights
Ceiling light
Spotlights
Trunk light 12 V
12 V
12 V
12 V
5W
8W
8W
5W
12 V 55 W
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity: 0.11 US gal (0.4
)
Excluding the oil remaining in the engine High Low
A/T
M/T
A/T
M/T
Change Total
U.S. Vehicles
Canada
Vehicles Approx.
Except Si
Change
Including filter
Without filter
Total
ChangeTotal
Change Total (Amber)
(Amber)
(H11)
Si
Except DX, Canadian DX-G
1: 2: 3:4:5:
13
34334
3434343434
2
4
5 3
Table of Contents

µ
µ µµµµµ
ÃŽÃŽÃŽÃŽÃŽÃŽÃŽÃŽÃŽ
ÃŽ
ÃŽÃŽ ÃŽÃŽ
ÃŽ
ÃŽ ÃŽ
ÃŽ ÃŽÃŽ
ÃŽ
ÃŽÃŽ
ÃŽÃŽ
Specif ications
356
Fuses
Alignment
Battery
Tires
P195/65R15 89H
Interior
Under-hood
Toe-in
Camber
Caster 7°24’0°45’
0°
0.08 in (2.0 mm)
0.00 in (0.0 mm)
Capacity 12 V
12 V
12 V36 AH/5 HR
38 AH/5 HR
45 AH/20 HR
47 AH/20 HR
12 V
12 V 38 AH/5 HR
47 AH/20 HR
12 V T135/80R16 101MT125/70D15 95M
215/45ZR17 91W P215/45R17 87V
P205/55R16 89H P195/65R15 89S
Size
Pressure
See page 347 or the fuse label
attached to the inside of the fuse
box door under the steering
column.
See page 346 or the fuse box
cover. 60 psi (420 kPa , 4.2 kgf/cm
)
33 psi (230 kPa , 2.3 kgf/cm)
32 psi (220 kPa , 2.2 kgf/cm)
30 psi (210 kPa , 2.1 kgf/cm)
T135/80D16 101M
Front Rear
FrontRear
Front Front/Rear
Spare
U.S.
Vehicles
Canada
Vehicles
Front/Rear
Spare
Si (all season tires)
Canadian DX-G with manual transmission
DX, Canadian DX-G with automatic transmission
Except EX-L, Si
EX-L, U.S. LX, LX-S, EX, Canadian Sport
1: 2:3:4:5:6:7:8:9: Optional for U.S. Si (summer tires)Si
U.S. EX-L
Si, Canadian EX-L
3
1 2 45
7
7 6
9 4, 6
3
1, 2
8, 9
Table of Contents

Quality grades can be f ound where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades.The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A T readwear T raction
DOT T ire Quality Grading (U.S. Vehicles)
T echnical Inf ormation
357
Table of Contents
