heating HONDA CIVIC 2011 8.G Owners Manual

(f luid capacities and tire pressures)
(main controls)
(seat belts, SRS, and child protection)
(indicators, gauges, dashboard, and steering column)
(heating and cooling, audio, steering wheel, security, and cruise contr ol)
(fuel, vehicle break-in, and cargo loading)
(engine and transmission operation)
(minder, f luid checking, minor services, and vehicle storage)
(vehicle specif ications, tires, and emissions controls) (warranty and contact inf ormation)
(how to order)
(f lat tire, jump starting, overheating, and f uses)
Contents
................................................................................................................................................
Index .I
..................................................
Service Inf ormation Summary . last page
...............................................................................................
Your Vehicle at a Glance .3
............................................................
Driver and Passenger Saf ety .5
..........................................
Instruments and Controls .55
.......................................
Features .109
.......................................................................
Bef ore Driving .237
.........................................................................................
Driving .253
.................................................
Maintenance .279
..............................................
T echnical Inf ormation .351
..................
Warranty and Customer Relations (U.S. and Canada only) . 369
..................................................................................
A uthorized Manuals (U.S. only) .373
........................................
T aking Care of the Unexpected .327INDEX
1
Main Menu2011 Civic 4D Online Reference Owner's Manual

How to operate the heating and air
conditioning system, the audio
system, and other convenience
f eatures.
A convenient ref erence to the
sections in this manual.
A quick ref erence to the main
controls in your vehicle.
Explains the purpose of each
instrument panel indicator and gauge,
and how to use the controls on the
dashboard and steering column.
What gasoline to use, how to break-
in your new vehicle, and how to load
luggage and other cargo.
ID numbers, dimensions, capacities,
and technical information.
How to order manuals and other
technical literature.
A summary of the inf ormation you
need when you pull up to the f uelpump.
A summary of the warranties
covering your new vehicle, and how
to contact us for any reason. Refer to
your warranty manual f or detailed
inf ormation.
The proper way to start the engine,
shif t the transmission, and park; plus
what you need to know if you’re
planning to tow a trailer.
This section covers several problems
motorists sometimes experience,
and details how to handle them.
The Maintenance Minder shows
you when you need to take your
vehicle to the dealer for maintenance
service. There is also a list of things
to check and instructions on how to
check them.
Important inf ormation about the
proper use and care of your vehicle’s
seat belts, an overview of the
supplemental restraint system, and
valuable inf ormation on how to
protect children with child restraints.
Contents
Your Vehicle at a Glance
Driver and Passenger Saf ety
Instruments and Controls
Features Bef ore Driving
Driving
T echnical Inf ormation
Warranty and Customer
Relations
(U.S. and Canada only)
Authorized Manuals
(U.S. only) Index
Service Inf ormation Summary
T aking Care of the Unexpected
Maintenance
Overview of Contents
2
TM
Main Menu

Î
Î
Î
Î
Î
Î
Î
CONT INUED: If equipped
Your Vehicle at a Glance
Your Vehicle at a Glance
3
Vehicle with navigation system is shown.DRIVER’S FRONT
AIRBAG
AUDIO SYSTEM
MOONROOF SWITCH
DOOR LOCK TAB
ACCESSORY
POWER SOCKET
AUXILIARY INPUT JACK (P.102)
(P.100)
(P.9, 24)
(P.205) PASSENGER’S
FRONT AIRBAG
HEATING/COOLING
CONTROLS
(P.114)
INSTRUMENT PANEL INDICATORS
(P.57)
GAUGES
MIRROR CONTROLS
(P.104)
POWER DOOR LOCK
MASTER SWITCH
POWER WINDOW
SWITCHES
(P.101)
(P.66)
(P.82)
FUEL FILL DOOR
RELEASE HANDLE
(P.239)
TRUNK RELEASE
HANDLE
(P.88) (P.9, 30)
(P.110)
(P.81)
(P.108)
SEAT HEATER SWITCHES AUTOMATIC TRANSMISSION (P.260)
MANUAL TRANSMISSION
(P.257)
Main Menu

Your vehicle’s exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
f ollow the inf ormation on this page.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.If you must sit in your parked vehicle
with the engine running, even in an
unconf ined area, adjust the heating
and cooling system as f ollows:
Select the f resh air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
With the trunk open, airf low can pull
exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk open, open all the windows,
and set the heating and cooling
system as shown below.
Have the exhaust system inspected
f or leaks whenever:
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in a collision that
may have damaged the underside. 1.2.3.4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety
51
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even killyou.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
Main Menu

Î
Î Î
Î Î
Î
ÎIf equipped
:
Control L ocations
56
(P.102)
MOONROOF SWITCH
AUXILIARY INPUT JACK AUTOMATIC TRANSMISSION
(P.260)
MANUAL TRANSMISSION
POWER WINDOW
SWITCHES AUDIO SYSTEM
POWER DOOR LOCK
MASTER SWITCH
FUEL FILL DOOR
RELEASE HANDLE TRUNK RELEASE
HANDLE(P.101)
(P.88) (P.114)
(P.239)
INSTRUMENT PANEL INDICATORS
(P.57)
GAUGES
(P.66)
MIRROR CONTROLS
(P.104)
Vehicle with navigation system is shown. ACCESSORY
POWER SOCKET
DOOR LOCK TAB
(P.81)
HEATING/COOLING
CONTROLS
(P.110)
(P.108)
(P.257)
(P.205)
SEAT HEATER SWITCHES
(P.100)
(P.82)
Main Menu

If you turn the steering wheel to the
f ull lef t or right position repeatedly
while stopping or driving at very low
speed, you may f eel slightly harder
steering due to overheating of the
steering gearbox.This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS. With
this indicator on, the low tire
pressure indicator will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked. For more
inf ormation, see page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on while driving,
it indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost pressure, and determine the
cause. If it is because of a f lat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service
(see page ). For more
inf ormation, see page .
270
329
349 271
U.S. models only
U.S. models only
Instrument Panel Indicators
Tire Pressure Monitoring
System (T PMS) Indicator
Low Tire Pressure
Indicator
Inst rument s and Cont rols
63
Main Menu

Î
Î
The heating and air conditioning
systems in your vehicle provide a
comf ortable driving environment in
all weather conditions.
The security system helps to dis-
courage vandalism and thef t of your
vehicle.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them. (If you have an optional
audio system, ref er to the operating
instructions that came with it.)
Air conditioning is optional on DX
model. .............
Vents, Heating, and A/C . 110
................................
Audio System . 114
Audio System (Models without
...............
navigation system) . 115
......................
Playing the Radio . 116
Playing the XM
Radio
..............................
(Optional) . 120
............................
Playing a Disc . 125
...
Disc Player Error Messages . 131
.......................
PlayinganiPod
. 133
.............
iPod
Error Messages . 140
Playing a USB Flash Memory ....................................
Device . 141
USB Flash Memory Device ....................
Error Messages . 148
Audio System (Models with ...............
navigation system) . 149
......
Playing the AM/FM Radio . 149
............
Playing the XM
Radio . 153
............................
Playing a Disc . 162
...
Disc Player Error Messages . 170
.....................
Playing a PC Card . 171
........
PC Card Error Messages . 183
.......................
PlayinganiPod
. 184
.............
iPod
Error Messages . 190 Playing a USB Flash Memory
....................................
Device . 191
USB Flash Memory Device
....................
Error Messages . 198
............
AM/FM Radio Reception . 199
..................
Protecting Your Discs . 201
................
Remote Audio Controls . 204
......................
Auxiliary Input Jack . 205
.................
Radio Thef t Protection . 206
..........................
Setting the Clock . 207
............................
Security System . 208
...............................
Cruise Control . 209
........
HandsFreeLink
. 212Bluetooth
All U.S. models except DX
If equipped
Features
Features
109
Main Menu

Turn the dial clockwise to increase
the fan speed and airflow. Turn the
dial counterclockwise to decrease
them.
This button turns the air
conditioning on and of f . The
indicatorinthebuttonisonwhen
the A/C is on.
When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
Turning this dial clockwise increases
the temperature of the airflow.
If equipped
Vents, Heating, and A/C
Fan Control Dial
Recirculation Button
Air Conditioning (A/C) Button
T emperature Control Dial
110

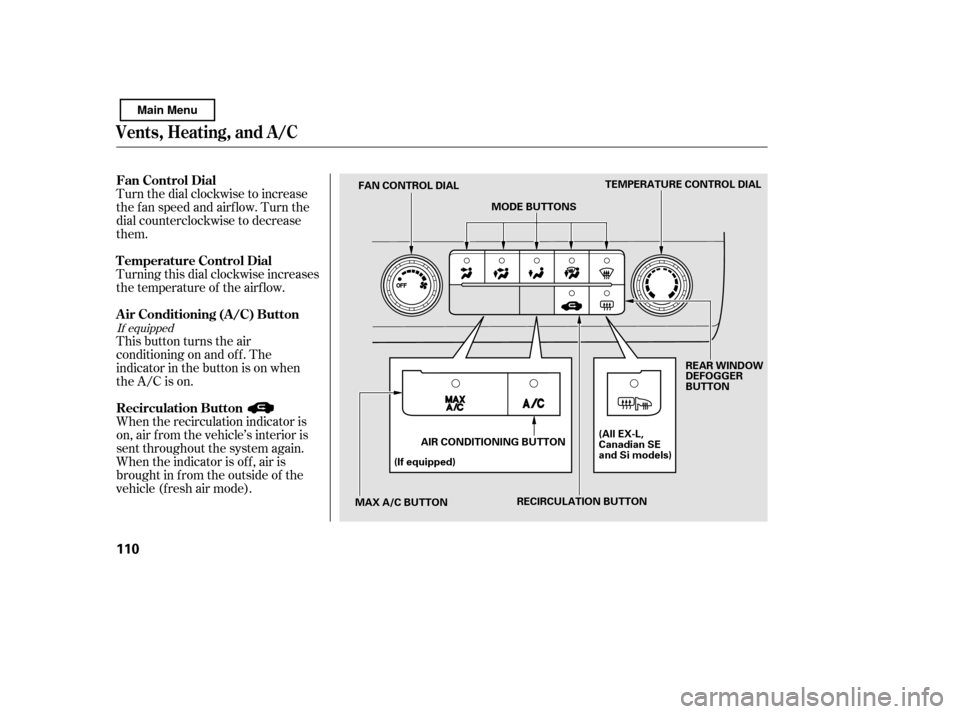

TEMPERATURE CONTROL DIAL
MODE BUTTONS
FAN CONTROL DIAL
MAX A/C BUTTON (If equipped)
AIR CONDITIONING BUTTON REAR WINDOW
DEFOGGER
BUTTON
RECIRCULATION BUTTON (All EX-L,
Canadian SE
and Si models)
Main Menu

The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Use the mode control buttons to
select the vents air flows from. Some
air will f low f rom the dashboard
corner vents in all modes.Air flows from the center
and corner vents in the dashboard.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents. When you select , the
system automatically switches to
f resh air mode.
Airf low is divided between
the f loor vents and def roster vents at
the base of the windshield.
Air f lows f rom the def roster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
f resh air mode and turns on the A/C
(if equipped). The system automatically
turns on the A/C and switches to
recirculation mode (see page to
use this setting). Air f lows f rom the
center and side vents in the
dashboard. Pressing the , A/C,
or any of the mode buttons cancels
MAX A/C, but the A/C stays on.
The ventilation system draws in
outside air, circulates it through the
interior, then exhausts it through
vents near the rear side panels.
Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed.
1. 2. 3.4.
76 112
If equipped
Vents, Heating, and A/C
Rear Window Def ogger Button
Mode Control MAX A/C Button
Ventilation
Features
111
Main Menu

The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.Select .
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page ). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected.
Make sure the temperature is set to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select f resh air mode.
Set the f an to the desired speed.
If the interior is very warm, you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
To cool the interior with MAX A/C: Set the f an to the desired speed.
Select MAX A/C.
The system automatically turns on
the A/C, selects , and
switches to recirculation mode.
Make sure the temperature is set
to maximum cool. Turn the fan on.
If the A/C is of f , turn it on (if
equipped).
Select and fresh air mode.
Adjust the temperature to your
pref erence.
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry and
can prevent the windows f rom
f ogging up.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).
1.2.3.
3.4. 5.
1. 2. 1. 2. 3.1. 2. 3. 4.
70
If equipped
Vents, Heating, and A/C
Using the Heater
Using the A /C Dehumidif y the Interior
112
Main Menu
