manual transmission HONDA CIVIC 2011 8.G Owners Manual

(f luid capacities and tire pressures)
(main controls)
(seat belts, SRS, and child protection)
(indicators, gauges, dashboard, and steering column)
(heating and cooling, audio, steering wheel, security, and cruise contr ol)
(fuel, vehicle break-in, and cargo loading)
(engine and transmission operation)
(minder, f luid checking, minor services, and vehicle storage)
(vehicle specif ications, tires, and emissions controls) (warranty and contact inf ormation)
(how to order)
(f lat tire, jump starting, overheating, and f uses)
Contents
................................................................................................................................................
Index .I
..................................................
Service Inf ormation Summary . last page
...............................................................................................
Your Vehicle at a Glance .3
............................................................
Driver and Passenger Saf ety .5
..........................................
Instruments and Controls .55
.......................................
Features .109
.......................................................................
Bef ore Driving .237
.........................................................................................
Driving .253
.................................................
Maintenance .279
..............................................
T echnical Inf ormation .351
..................
Warranty and Customer Relations (U.S. and Canada only) . 369
..................................................................................
A uthorized Manuals (U.S. only) .373
........................................
T aking Care of the Unexpected .327INDEX
1
Main Menu2011 Civic 4D Online Reference Owner's Manual

How to operate the heating and air
conditioning system, the audio
system, and other convenience
f eatures.
A convenient ref erence to the
sections in this manual.
A quick ref erence to the main
controls in your vehicle.
Explains the purpose of each
instrument panel indicator and gauge,
and how to use the controls on the
dashboard and steering column.
What gasoline to use, how to break-
in your new vehicle, and how to load
luggage and other cargo.
ID numbers, dimensions, capacities,
and technical information.
How to order manuals and other
technical literature.
A summary of the inf ormation you
need when you pull up to the f uelpump.
A summary of the warranties
covering your new vehicle, and how
to contact us for any reason. Refer to
your warranty manual f or detailed
inf ormation.
The proper way to start the engine,
shif t the transmission, and park; plus
what you need to know if you’re
planning to tow a trailer.
This section covers several problems
motorists sometimes experience,
and details how to handle them.
The Maintenance Minder shows
you when you need to take your
vehicle to the dealer for maintenance
service. There is also a list of things
to check and instructions on how to
check them.
Important inf ormation about the
proper use and care of your vehicle’s
seat belts, an overview of the
supplemental restraint system, and
valuable inf ormation on how to
protect children with child restraints.
Contents
Your Vehicle at a Glance
Driver and Passenger Saf ety
Instruments and Controls
Features Bef ore Driving
Driving
T echnical Inf ormation
Warranty and Customer
Relations
(U.S. and Canada only)
Authorized Manuals
(U.S. only) Index
Service Inf ormation Summary
T aking Care of the Unexpected
Maintenance
Overview of Contents
2
TM
Main Menu

Î
Î
Î
Î
Î
Î
Î
CONT INUED: If equipped
Your Vehicle at a Glance
Your Vehicle at a Glance
3

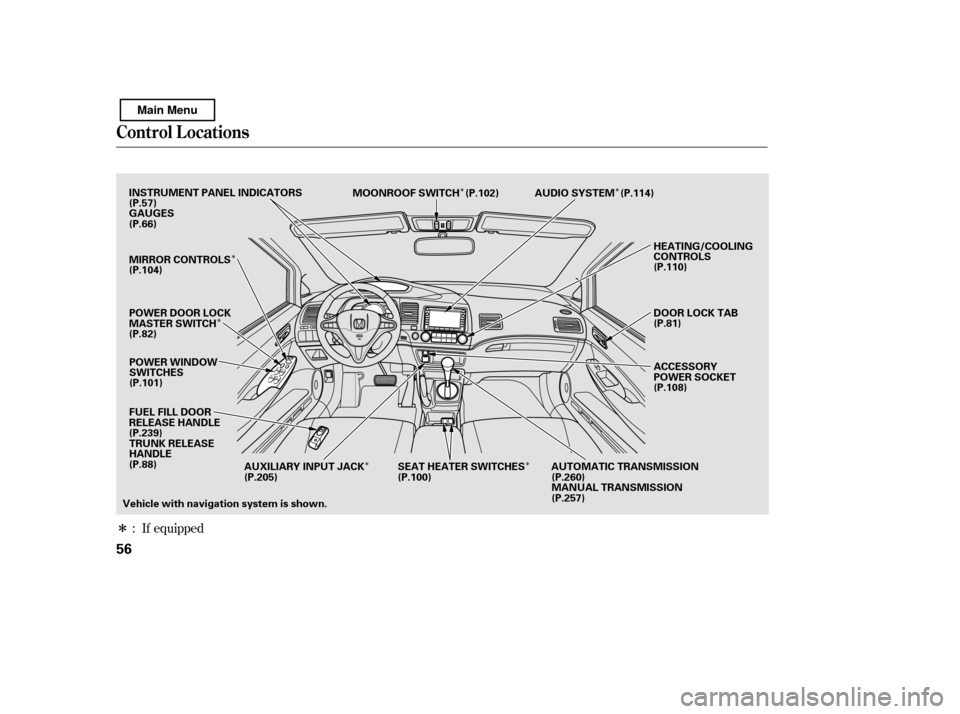

Vehicle with navigation system is shown.DRIVER’S FRONT
AIRBAG
AUDIO SYSTEM
MOONROOF SWITCH
DOOR LOCK TAB
ACCESSORY
POWER SOCKET
AUXILIARY INPUT JACK (P.102)
(P.100)
(P.9, 24)
(P.205) PASSENGER’S
FRONT AIRBAG
HEATING/COOLING
CONTROLS
(P.114)
INSTRUMENT PANEL INDICATORS
(P.57)
GAUGES
MIRROR CONTROLS
(P.104)
POWER DOOR LOCK
MASTER SWITCH
POWER WINDOW
SWITCHES
(P.101)
(P.66)
(P.82)
FUEL FILL DOOR
RELEASE HANDLE
(P.239)
TRUNK RELEASE
HANDLE
(P.88) (P.9, 30)
(P.110)
(P.81)
(P.108)
SEAT HEATER SWITCHES AUTOMATIC TRANSMISSION (P.260)
MANUAL TRANSMISSION
(P.257)
Main Menu

Î
Î Î
Î Î
Î
ÎIf equipped
:
Control L ocations
56
(P.102)
MOONROOF SWITCH
AUXILIARY INPUT JACK AUTOMATIC TRANSMISSION
(P.260)
MANUAL TRANSMISSION
POWER WINDOW
SWITCHES AUDIO SYSTEM
POWER DOOR LOCK
MASTER SWITCH
FUEL FILL DOOR
RELEASE HANDLE TRUNK RELEASE
HANDLE(P.101)
(P.88) (P.114)
(P.239)
INSTRUMENT PANEL INDICATORS
(P.57)
GAUGES
(P.66)
MIRROR CONTROLS
(P.104)
Vehicle with navigation system is shown. ACCESSORY
POWER SOCKET
DOOR LOCK TAB
(P.81)
HEATING/COOLING
CONTROLS
(P.110)
(P.108)
(P.257)
(P.205)
SEAT HEATER SWITCHES
(P.100)
(P.82)
Main Menu

µµ
µ µ
µ
µµ
Aggressive driving (hard
acceleration and braking)
Excessive idling, accelerating and
braking in stop-and-go traf f ic
Cold engine operation (engines
aremoreefficientwhenwarmedup)
Driving with a heavy load or the
air conditioner running
Improperly inf lated tires
The f ollowing f actors can lower your
vehicle’s f uel economy:
A properly maintained vehicle
maximizes f uel economy. Poor
maintenance can signif icantly reduce
f uel economy. Always maintain your
vehicle according to the maintenance
messages displayed on the
inf ormation display (see
on page ).
For example: Rapid
acceleration, abrupt cornering,
and hard braking increase fuel
consumption.
Aerodynamic drag has a big ef f ect
on f uel economy at speeds above
45 mph (75 km/h). Reduce your
speed and you reduce the drag.
Trailers, car top carriers, roof
racks and bike racks are also big
contributors to increased drag.
If your vehicle has a
manual transmission, you can
boost your f uel economy by up
shif ting as early as possible.
Idling
results in 0 miles per gallon (0 kms
per liter).
An underinf lated tire increases
‘‘rolling resistance,’’ which reduces
f uel economy.
It puts a heavier
load on the engine, increasing f uel
consumption.
In
particular, a build-up of snow or
mud on your vehicle’s underside
adds weight and rolling resistance.
Frequent cleaning helps your f uel
economy.
286
CONT INUED
Fuel Economy
Fuel Economy Factors Use the recommended viscosity motor oil, displaying the A PI
Certif ication Seal (see page).
Improving Fuel Economy Owner’s
Maintenance Checks Drive moderately
Observe the speed limit
Always drive in the highest gear
possible
Avoid excessive idling
Maintain proper tire inf lation
A void carrying excess weight in
your vehicle
K eep your vehicle clean
290
Vehicle Maint enance Drive Ef f icient ly
Bef ore Driving
245
Main Menu

This section gives you tips on
starting the engine under various
conditions, and how to operate the
manual and automatic transmissions.
It also includes important
information on parking your vehicle,
the braking system, the vehicle
stability assist (VSA
) system, the
tire pressure monitoring system
(TPMS), and f acts you need if you
are planning to tow a trailer. ........................
Driving Guidelines . 254
........................
Preparing to Drive . 255
.......................
Starting the Engine . 256
...................
Manual Transmission . 257
..............
Automatic Transmission . 260
...........................................
Parking . 264
.............................
Braking System . 265
...............
Anti-lock Brakes (ABS) . 266
Vehicle Stability Assist (VSA
),
aka Electronic Stability ........
Control (ESC), System . 268
Tire Pressure Monitoring ........................
System (TPMS) . 270
...........................
Towing a Trailer . 273
Driving
Driving
253
Main Menu

Apply the parking brake.
In cold weather, turn of f all
electrical accessories to reduce
the drain on the battery.
Press the clutch pedal down all the
way. The START (III) position
does not f unction unless the clutch
pedal is pressed.
Make sure the shif t lever is in
Park. Press on the brake pedal.Without touching the accelerator
pedal, turn the ignition key to the
START (III) position. Do not hold
the key in the START (III)
position f or more than 15 seconds
at a time. If the engine does not
start right away, pause for at least
10 seconds bef ore trying again.
1. 2. 3.
4.
Manual transmission:
Automatic transmission:
Starting the Engine
256
The engine is harder to start in cold
weather. Also, the thinner air f ound at
altitudes above 8,000 f eet (2,400
meters) adds to this problem.
T he immobilizer system protects your
vehicle f rom thef t. If an improperly
coded key (or other device) is used, the
engine’s f uel system is disabled. For
more inf ormation, see page .
79
Main Menu

CONT INUED
The manual transmission is
synchronized in all f orward gears f or
smooth operation. It has a lockout so
you cannot shift directly from fifth to
reverse.On vehicles with 6-speed manual
transmission, the lockout system
prevents you f rom shif ting directly
from any forward gear to reverse
while the vehicle is moving at a
certain speed (see page ).
When shif ting up or down, make
sure you push the clutch pedal down
all the way, shif t to the next gear,
and let the pedal up gradually. When
you are not shif ting, do not rest your
f oot on the clutch pedal. This cancause your clutch to wear out f aster.
Come to a full stop before you shift
into reverse. You can damage the
transmission by trying to shift into
reverse with the vehicle moving.
Push down the clutch pedal, and
pause f or a f ew seconds bef ore
shif ting into reverse, or shif t into one
of the f orward gears f or a moment.
This stops the gears so they won’t
‘‘grind.’’
259
The engine can be damaged if
you inadvertently downshif t into the
wrong gear (f or example, going f romthird gear at high rpms to second gear
instead of upshif ting to f ourth gear; theengine speed limiter will not work in thissituation).
On models with manual transmission
Manual T ransmission
Driving
257
NOTE:
Except Si
Si
Main Menu

Shif t up
1st to 2nd
2nd to 3rd 3rd to 4th4th to 5th
5th to 6th
When slowing down, you can get
extra braking f rom the engine by
shifting to a lower gear. This extra
braking can help you maintain a safe
speed and prevent your brakes f rom
overheating while going down a
steep hill. Bef ore downshif ting,
make sure the engine speed will not
go into the tachometer’s red zone in
the lower gear.
Your vehicle is equipped with an
aluminum shif t lever. If you leave the
vehicle parked outside f or a long time on a hot day, be caref ul bef ore
moving the shift lever. Because of
the heat, the shift lever may be
extremely hot. If the outside
temperature is low, the shif t lever
f eels cold.
Drive in the highest gear that lets
the engine run and accelerate
smoothly. This will give you good
f uel economy and ef f ective
emissions control. The f ollowing
shif t points are recommended:
Shif t up
1st to 2nd
2nd to 3rd 3rd to 4th4th to 5th Normal acceleration
15 mph (24 km/h)
27 mph (44 km/h)
39 mph (63 km/h)
53 mph (85 km/h) Normal acceleration
17 mph (27 km/h)
29 mph (46 km/h)
37 mph (60 km/h)
43 mph (69 km/h)
49 mph (79 km/h)
With 5-speed manual transmission With 6-speed manual transmission
On Si model
Recommended Shif t Points
Manual T ransmission
258
Rapid slowing or speeding up
can cause loss of control on
slippery surfaces. If you crash,
you can be injured.
Use extra care when driving on
slippery surfaces.
Main Menu

If you exceed the maximum speed
f or the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may f eel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
rpm below the red zone.
Bef ore downshif ting, make sure the
engine will not go into the
tachometer’s red zone.
Your vehicle has a rev limit indicator
to show you when the engine speed
is near the tachometer’s red zone
(see page ).If you are still unable to shif t to
reverse, apply the parking brake,
and turn the ignition key to the
ACCESSORY (I) or LOCK (0)
position.
With the clutch pedal still pressed,
start the engine.
Press the clutch pedal, and shif t to
reverse.
If you need to use this procedure to
shif t to reverse, your vehicle may be
developing a problem. Have the
vehicle checked by your dealer.
The manual transmission has a
lockout so you cannot accidentally
shif t f rom any f orward gear to
reverse while the vehicle is moving
at a certain speed. If you cannot shif t
to reverse when the vehicle is
stopped, do the f ollowing:
With the clutch pedal pressed,
move the shift lever to the first/
second gear side of the neutral
gate, then shif t to reverse.
1. 2. 3. 4.
646-speed manual transmission
On Si model
Engine Speed L imiter Reverse L ockout
Manual T ransmission
Driving
259
Main Menu
