HONDA CIVIC 2013 9.G Owners Manual

340
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS or
the compact spare tire
* is installed, the indicator blinks for about one
minute, and then stays on.
■What to do when the indicator comes on
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
U.S. models
1 If the Low Tire Pressure/TPMS Indicator Comes On or BlinksNOTICEDriving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
* Not available on all models

341
Continued
Handling the Unexpected
FusesFuse LocationsIf any electrical devices are not working,
turn the ignition switch to LOCK
(0 and
check to see if any applicable fuse is blown.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit Protected
Amps
1
EPS
70 A
−
−
ABS/VSA Motor
30 A
ABS/VSA FSR
30 A
−
−
Main Fuse
100 A
2
IG Main
50 A
Fuse Box Main 60 A
Fuse Box Main 2
60 A
Headlight Main 30 A
−
−
Rear Defogger 30 A −−
Blower 40 A
−−
Sub Fan Motor 20 A
Main Fan Motor 20 A
3
−
−
4 Left Headlight Low Beam 10 A
5
ST MG
7.5 A
6 Right Headlight Low Beam 10 A
7
−
−
8− −
9
−
−
10 − −
*1:1.8 ℓ models
*2:2.4 ℓ models11
Oil Level
7.5 A
12 Fog Lights
*
(20 A)
13
Driver’s Power Seat Sliding
*
(20 A)
14 Hazard 10 A
15
FI Sub
15 A
16 IG Coil 15 A
17
Stop
15 A
*1
10 A
*2
18 Horn 10 A19
Premium Amp
*
(20 A)
20 INJ (15 A)
21
IGP
15 A
22 DBW 15 A
23
H/L LO
20 A
24 Driver’s Power Seat
Reclining
*
(20 A)
25
MG Clutch
7.5 A
26 − −
27
SMALL
20 A
28 Interior Lights 7.5 A
29
Backup
10 A
Circuit Protected
Amps
* Not available on all models

342
uuFuses uFuse Locations
Handling the Unexpected

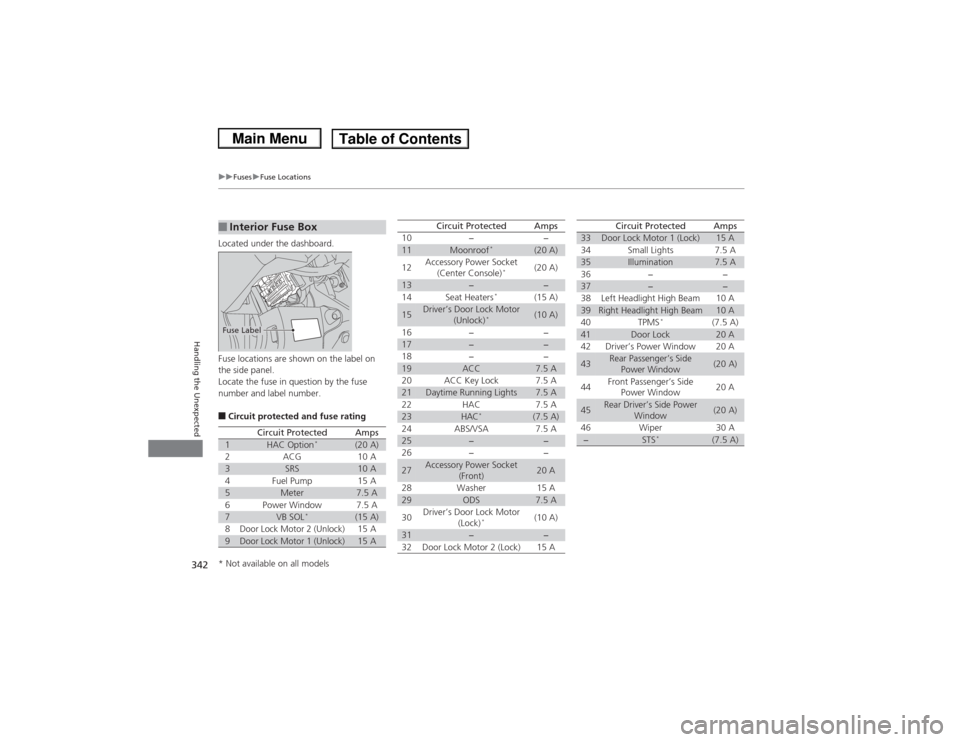

Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.■Circuit protected and fuse rating■Interior Fuse BoxFuse Label
Circuit Protected
Amps
1
HAC Option
*
(20 A)
2
ACG
10 A
3
SRS
10 A
4
Fuel Pump
15 A
5
Meter
7.5 A
6
Power Window
7.5 A
7
VB SOL
*
(15 A)
8
Door Lock Motor 2 (Unlock)
15 A
9
Door Lock Motor 1 (Unlock)
15 A
10
−
−
11
Moonroof
*
(20 A)
12
Accessory Power Socket
(Center Console)
*
(20 A)
13
−
−
14
Seat Heaters
*
(15 A)
15
Driver’s Door Lock Motor (Unlock)
*
(10 A)
16
−
−
17
−
−
18
−
−
19
ACC
7.5 A
20
ACC Key Lock
7.5 A
21
Daytime Running Lights
7.5 A
22
HAC
7.5 A
23
HAC
*
(7.5 A)
24
ABS/VSA
7.5 A
25
−
−
26
−
−
27
Accessory Power Socket
(Front)
20 A
28
Washer
15 A
29
ODS
7.5 A
30
Driver’s Door Lock Motor (Lock)
*
(10 A)
31
−
−
32
Door Lock Motor 2 (Lock)
15 A
Circuit Protected
Amps
33
Door Lock Motor 1 (Lock)
15 A
34
Small Lights
7.5 A
35
Illumination
7.5 A
36
−
−
37
−
−
38
Left Headlight High Beam
10 A
39
Right Headlight High Beam
10 A
40
TPMS
*
(7.5 A)
41
Door Lock
20 A
42
Driver’s Power Window
20 A
43
Rear Passenger’s Side Power Window
(20 A)
44
Front Passenger’s Side Power Window
20 A
45
Rear Driver’s Side Power
Window
(20 A)
46
Wiper
30 A
−
STS
*
(7.5 A)
Circuit Protected
Amps
* Not available on all models

343
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

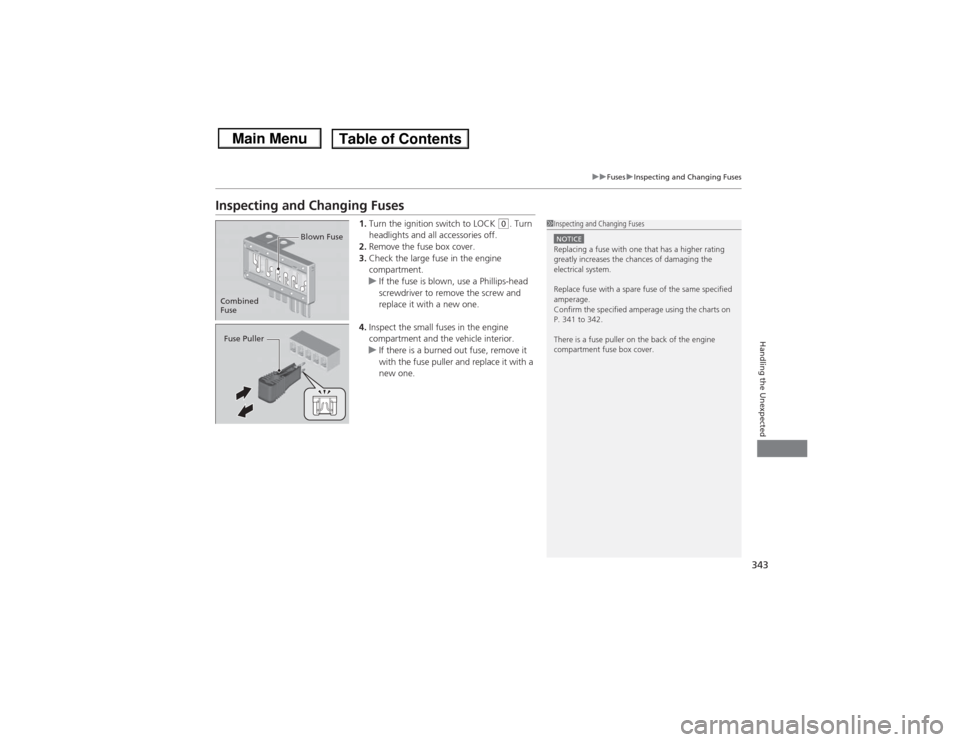

Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK
(0. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
1Inspecting and Changing FusesNOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 341 to 342.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown FuseFuse Puller

344Handling the Unexpected

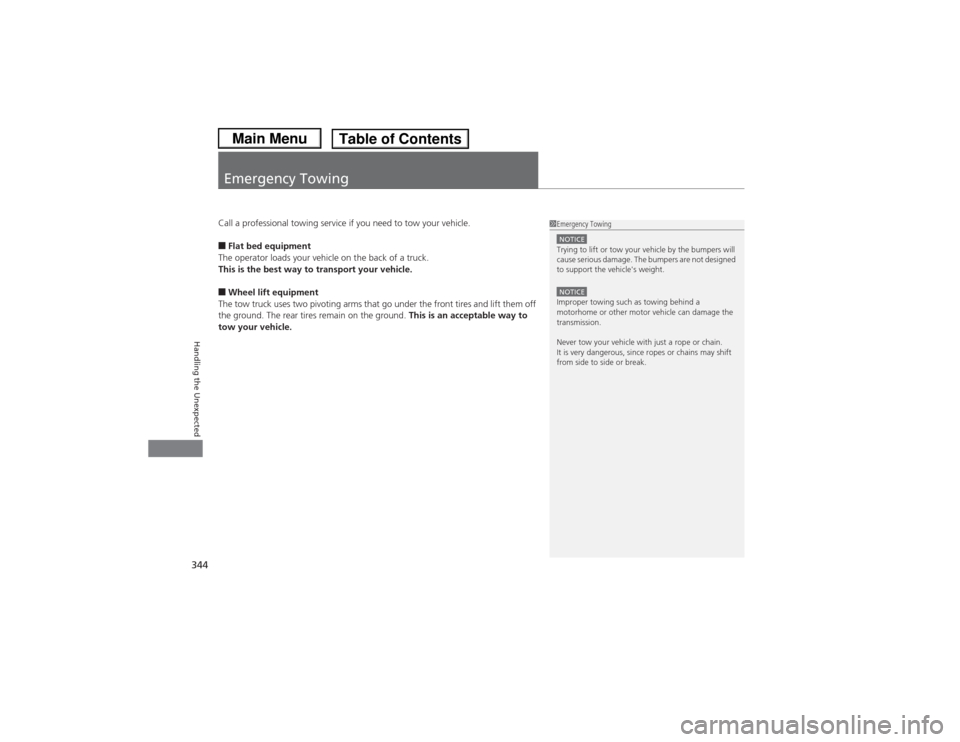

Emergency TowingCall a professional towing service if you need to tow your vehicle.■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.■Wheel lift equipment
The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency TowingNOTICETrying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.NOTICEImproper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.

345

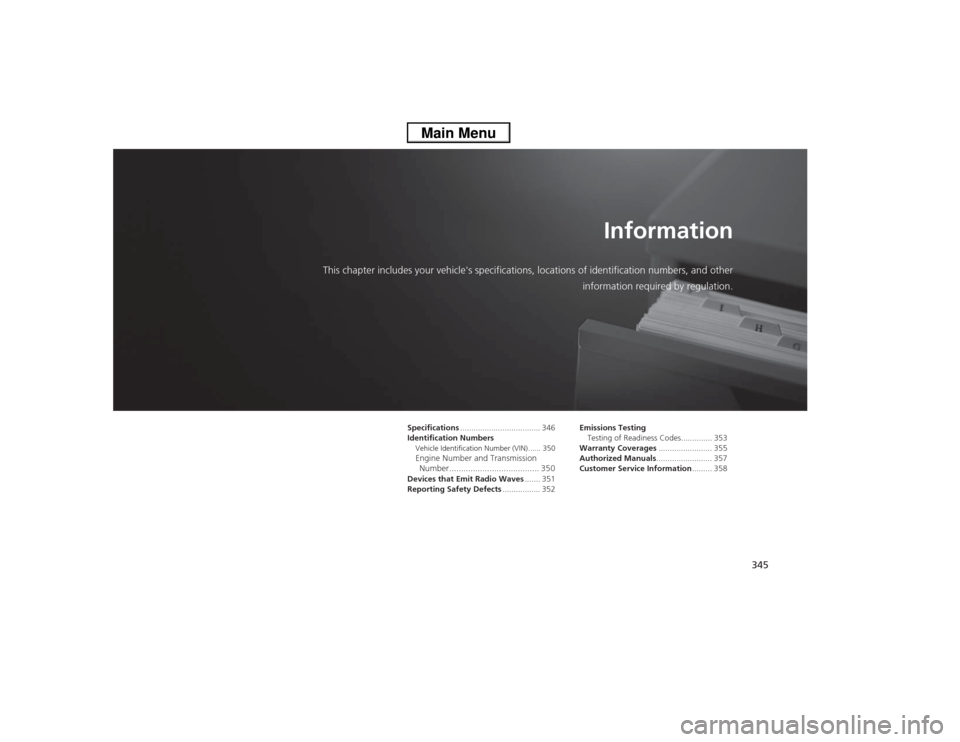

Information
This chapter includes your vehicle's specifications, locations of identification numbers, and otherinformation required by regulation.
Specifications.................................... 346
Identification NumbersVehicle Identification Nu mber (VIN) ...... 350Engine Number and Transmission
Number...................................... 350Devices that Emit Radio Waves ....... 351
Reporting Safety Defects ................. 352Emissions Testing
Testing of Readiness Codes.............. 353
Warranty Coverages ........................ 355
Authorized Manuals ......................... 357
Customer Service Information ......... 358

346Information
Specifications■Vehicle Specifications*1: LX-MT, HF, and Canadian DX models
*2: LX-AT models
*3: EX and U.S. EX-L models
*4: Canadian Touring modelsModel
Honda Civic 4-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating
U.S.: 3,693 lbs (1,675 kg)
*1
Canada: 1,675 kg
*1
U.S.: 3,748 lbs (1,700 kg)
*2
Canada: 1,700 kg
*2
U.S.: 3,792 lbs (1,720 kg)
*3
Canada: 1,720 kg
*3
Canada: 1,755 kg
*4
Gross Axle Weight
Rating (Front)
U.S.: 1,985 lbs (900 kg)
*1
Canada: 900 kg
*1
U.S.: 2,018 lbs (915 kg)
*2
Canada: 915 kg
*2
U.S.: 2,029 lbs (920 kg)
*3
Canada: 920 kg
*3
Canada: 940 kg
*4
Gross Axle Weight
Rating (Rear)
U.S.: 1,742 lbs (790 kg)
*1
Canada: 790 kg
*1
U.S.: 1,753 lbs (795 kg)
*2
Canada: 795 kg
*2
U.S.: 1,786 lbs (810 kg)
*3
Canada: 810 kg
*3
Canada: 825 kg
*4
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-101.8 ℓ engine models
■ Engine Specifications
■ Fuel
■ Battery
■ Washer FluidDisplacement
110 cu-in (1,798 cm
3)
Spark Plugs NGK DILZKR7B11GS
DENSO DXU22HCR-D11S
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Capacity/Type
38AH(5)/47AH(20)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light BulbsHeadlights (Low Beam)
51W (HB4)
Headlights (High Beam) 60W (HB3)
Fog Lights
*
55W (H11)
Front Turn Signal/Parking/Side
Marker Lights 28/8W
Brake/Taillights
21/5W
Rear Turn Signal Lights 21W (Amber)
Rear Side Marker Lights
LED
Back-Up Lights 16W
Taillights
3CP
High-Mount Brake Light 21W
Rear License Plate Lights
5W
Trunk Light 5W
Interior Lights
Map Lights
8W
Ceiling Light
8W
* Not available on all models

347
uuSpecifications u
Continued
Information
■Brake/Clutch Fluid
■ Automatic Transmission Fluid
■ Manual Transmission FluidSpecified
Honda Heavy Duty Brake Fluid DOT 3
Specified
Honda ATF DW-1
(automatic transmission fluid)
Capacity Change 2.5 US qt (2.4 ℓ)
Specified
Honda Manual Transmission Fluid
Capacity Change 1.5 US qt (1.4 ℓ)
■ Engine Oil
■ Engine CoolantRecommended
·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.7 US qt (3.5 ℓ)
Change
including
filter
3.9 US qt (3.7 ℓ)
Specified
Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.48 US gal (5.59 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire*1: Canadian DX models
*2: LX models
*3: HF model
*4: EX and U.S. EX-L models
*5: Canadian Touring modelsRegular
Size
P195/65R15 89H
*1, *2
P195/65R15 89S
*3
P205/55R16 89H
*4
P215/45R17 87V
*5
Pressure
psi(kPa[kgf/cm
2])
30 (210 [2.1])
*1, *2
32 (220 [2.2])
*3, *4, *5
Compact
Spare
*
Size T135/80D15 99M
Pressure
psi(kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel Size
Regular
15 x 6J
*1, *3
15 x 6 1/2J
*2
16 x 6 1/2J
*4
17 x 7J
*5
Compact Spare
*
15 x 4T
* Not available on all models

348
uuSpecifications u
Information
■Vehicle SpecificationsModel
Honda Civic 4-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating
U.S.: 3,925 lbs (1,780 kg)
Canada: 1,780 kg
Gross Axle Weight
Rating (Front)
U.S.: 2,117 lbs (960 kg)
Canada: 960 kg
Gross Axle Weight
Rating (Rear)
U.S.: 1,830 lbs (830 kg)
Canada: 830 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-10
2.4 ℓ engine models
■ Engine Specifications
■ Fuel
■ Battery
■ Washer FluidDisplacement
144 cu-in (2,354 cm
3)
Spark Plugs NGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel:
Type
Unleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Capacity/Type
38AH(5)/47AH(20)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light BulbsHeadlights (Low Beam)
51W (HB4)
Headlights (High Beam) 60W (HB3)
Fog Lights
35W (H8)
Front Turn Signal/Parking/Side
Marker Lights 28/8W
Brake/Taillights
21/5W
Rear Turn Signal Lights 21W (Amber)
Rear Side Marker Lights
LED
Back-Up Lights 16W
Taillights
3CP
High-Mount Brake Light LED
Rear License Plate Lights
5W
Trunk Light 5W
Interior Lights
Map Lights
8W
Ceiling Light
8W

349
uuSpecifications u
Information
■Brake/Clutch Fluid
■ Manual Transmission FluidSpecified
Honda Heavy Duty Brake Fluid DOT 3
Specified
Honda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine CoolantRecommended
·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
Specified
Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.45 US gal (5.5 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire*1: Optional for U.S. models (summer tires)Regular
Size
P215/45R17 87V
215/45ZR17 91W
*1
Pressure
psi(kPa[kgf/cm
2])
32 (220 [2.2])
Compact
Spare Size
T135/80D16 101M
Pressure
psi(kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel Size
Regular
17 x 7J
Compact Spare
16 x 4T
