9Quick Reference Guide
Instrument Panel
(P 65)
U. S.CanadaSystem Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake
System (ABS)
Indicator
Vehicle Stability
Assist (VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator
*
Electric Power
Steering (EPS)
Indicator
Lights Reminders
Lights On Indicator
High Beam IndicatorFog Light Indicator
*
Immobilizer System
Indicator Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL
Indicator
*
System Message
Indicator
*
Parking Brake
and Brake System
IndicatorSupplemental
Restraint System
Indicator
Door Open Indicator CRUISE MAIN
Indicator
*
Tachometer Instant Fuel
Economy Gauge
*
Speedometer
Fuel Gauge
Security System
Alarm Indicator
*
Shift Lever Position Indicator
*
Low Fuel Indicator
Gauges
(P 77)
/Information Display
* (P 79)
/
intelligent Multi-Information Display (i-MID)
* (P 81)
/System Indicators
(P 66)
Trunk Open Indicator
ECON Mode Indicator
*
Turn Signal and
Hazard Warning
Indicators
High Temperature
Indicator
Low Temperature
Indicator
Maintenance Minder
Indicator
*
Daytime Running
Lights Indicator
*
Washer Level
Indicator
*
i-VTEC
Indicator
Rev
Indicator
2.4 ℓ engine models
Ambient Meter
*
* Not available on all models

67
uuIndicators u
Continued

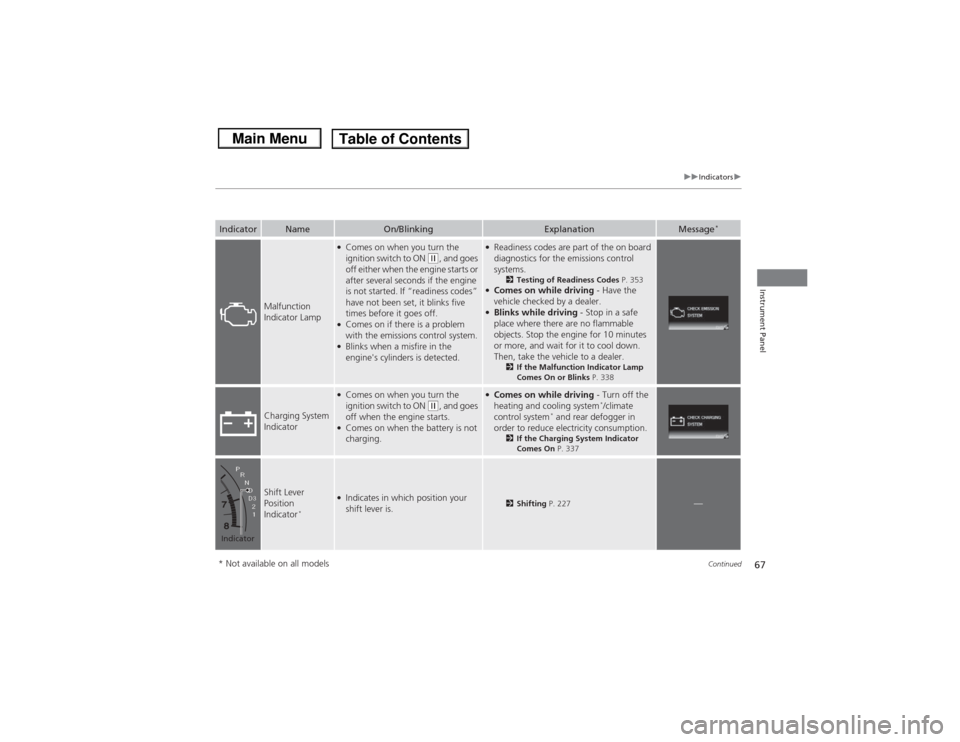

Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
*
Malfunction
Indicator Lamp
●Comes on when you turn the
ignition switch to ON
(w, and goes
off either when the engine starts or
after several seconds if the engine
is not started. If “readiness codes”
have not been set, it blinks five
times before it goes off.
●Comes on if there is a problem
with the emissions control system.●Blinks when a misfire in the
engine's cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2 Testing of Readiness Codes P. 353
●Comes on while driving - Have the
vehicle checked by a dealer.●Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the engine for 10 minutes
or more, and wait for it to cool down.
Then, take the vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 338
Charging System
Indicator
●Comes on when you turn the
ignition switch to ON
(w, and goes
off when the engine starts.
●Comes on when the battery is not
charging.
●Comes on while driving - Turn off the
heating and cooling system
*/climate
control system
* and rear defogger in
order to reduce electricity consumption.
2 If the Charging System Indicator
Comes On P. 337
Shift Lever
Position
Indicator
*
●Indicates in which position your
shift lever is.
2Shifting P. 227
—
Indicator* Not available on all models

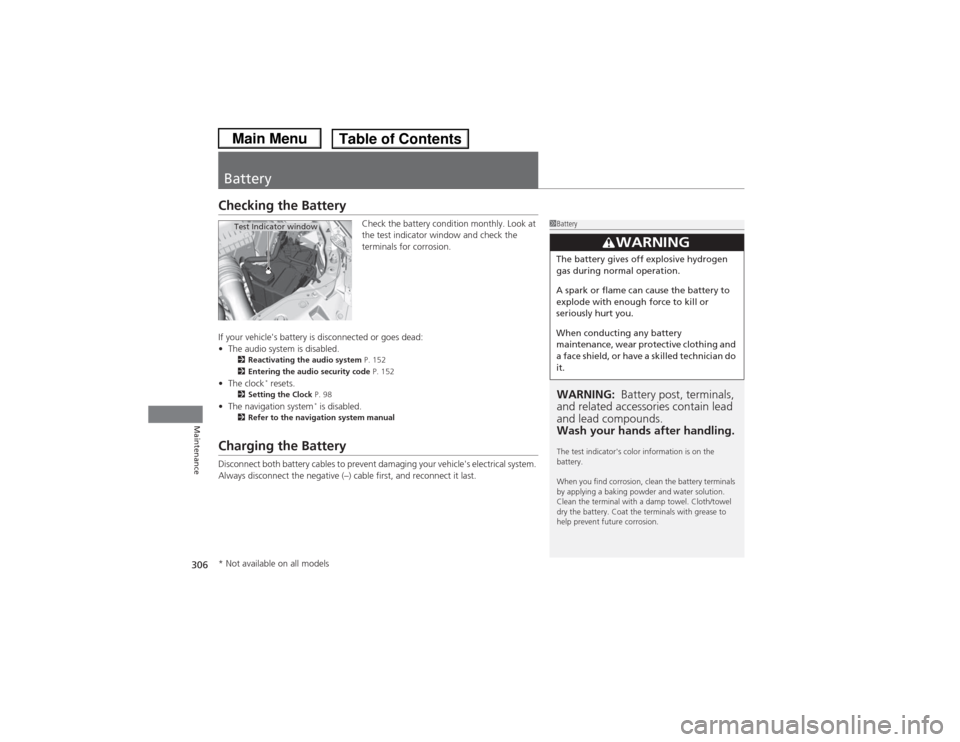

306Maintenance
BatteryChecking the Battery
Check the battery condition monthly. Look at
the test indicator window and check the
terminals for corrosion.
If your vehicle's battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 152
2 Entering the audio security code P. 152
•The clock
* resets.
2 Setting the Clock P. 98
•The navigation system
* is disabled.
2 Refer to the navigation system manual
Charging the BatteryDisconnect both battery cables to prevent damaging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
1BatteryWARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.The test indicator's color information is on the
battery.
When you find corrosion, clean the battery terminals
by applying a baking powder and water solution.
Clean the terminal with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
3
WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear protective clothing and
a face shield, or have a skilled technician do
it.
Test Indicator window
* Not available on all models

313

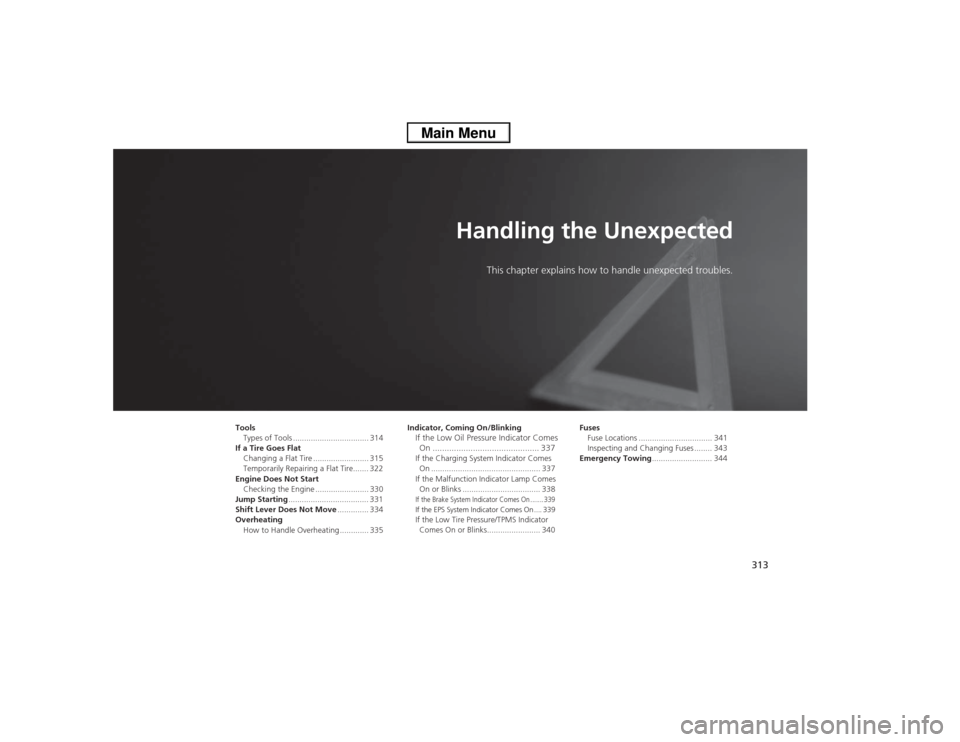

Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 314
If a Tire Goes Flat Changing a Flat Tire ......................... 315
Temporarily Repairing a Flat Tire....... 322
Engine Does Not Start Checking the Engine ........................ 330
Jump Starting .................................... 331
Shift Lever Does Not Move .............. 334
Overheating
How to Handle Overheating ............. 335 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 337If the Charging System Indicator Comes
On ................................................. 337
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 338If the Brake System Indicator Comes On ....... 339If the EPS System Indicator Comes On .... 339If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks........................ 340 Fuses
Fuse Locations ................................. 341
Inspecting and Changing Fuses ........ 343
Emergency Towing ........................... 344

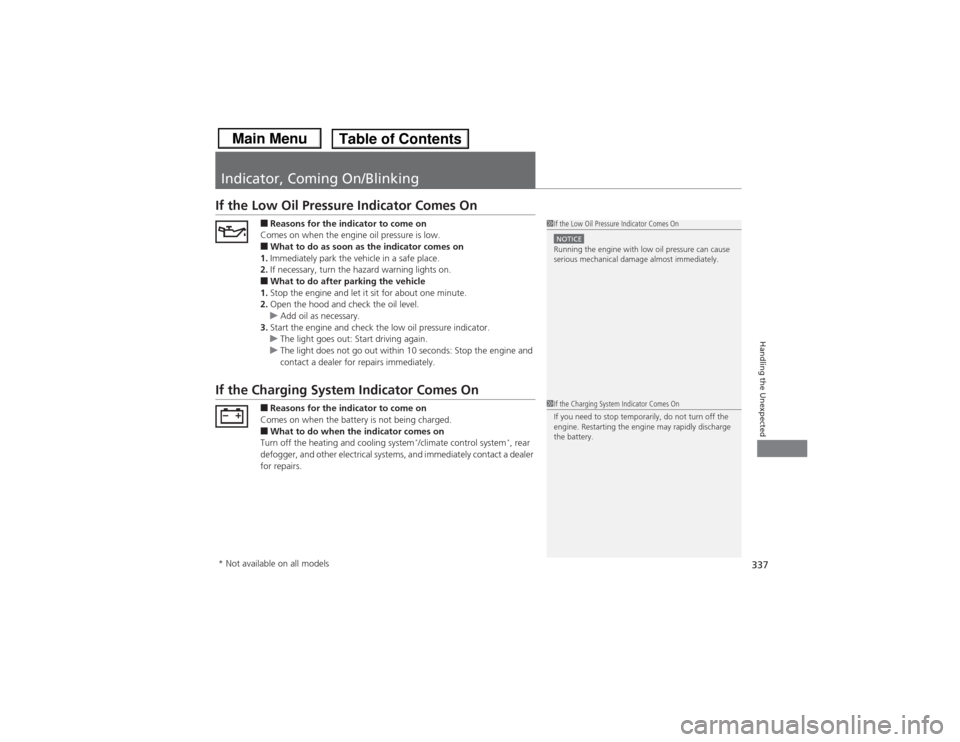

337Handling the Unexpected
Indicator, Coming On/BlinkingIf the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.■What to do as soon as the indicator comes on
1. Immediately park the vehicle in a safe place.
2. If necessary, turn the hazard warning lights on.■What to do after parking the vehicle
1. Stop the engine and let it sit for about one minute.
2. Open the hood and check the oil level.
u Add oil as necessary.
3. Start the engine and check the low oil pressure indicator.
u The light goes out: Start driving again.
u The light does not go out within 10 seconds: Stop the engine and
contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.■What to do when the indicator comes on
Turn off the heating and cooling system
*/climate control system
*, rear
defogger, and other electrical systems, and immediately contact a dealer
for repairs.
1 If the Low Oil Pressure Indicator Comes OnNOTICERunning the engine with low oil pressure can cause
serious mechanical damage almost immediately.1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engine may rapidly discharge
the battery.
* Not available on all models

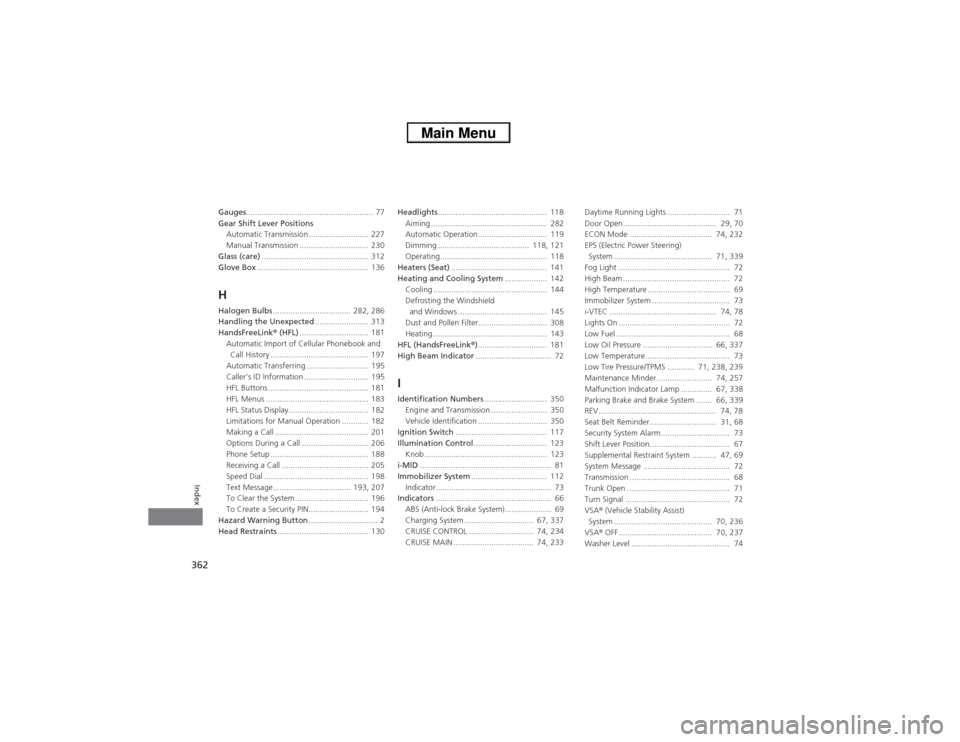

Index
359Index
Index
AABS (Anti-lock Brake System).................. 243
Accessories and Modifications ................ 251
Accessory Power Sockets ......................... 139
Additives Coolant .................................................. 275
Engine Oil ............................................... 268
Washer ................................................... 281
Additives, Engine Oil ............................... 268
Adjusting
Armrest .................................................. 134
Front Seats.............................................. 127
Head Restraints ....................................... 130
Mirrors.................................................... 126
Rear Seats ............................................... 133
Steering Wheel ....................................... 125
Temperature ............................................. 84
Air Conditioning System (Climate Control System) ....................... 146
Changing the Mode................................ 147
Defrosting the Windshield and Windows........................................ 147
Dust and Pollen Filter .............................. 308
Recirculation/Fresh Air Mode.... ............... 147
Sensor .................................................... 148
Using Automatic Climate Control............ 146
Air Conditioning System (Heating and Cooling System) ............... 142
Cooling................................................... 144
Defrosting the Windshield and Windows........................................ 145 Dust and Pollen Filter ............................... 308
Heating ................................................... 143
Air Pressure ............................... 298, 347, 349
Airbags ........................................................ 37
Advanced Airbags ..................................... 43
After a Collision......................................... 40
Airbag Care ............................................... 49
Event Data Recorder .................................. 22
Front Airbags (SRS) .................................... 40
Indicator .............................................. 47, 69
Passenger Airbag Off Indicator .................. 48
Sensors...................................................... 37
Side Airbags .............................................. 44
Side Curtain Airbags .................................. 46
AM/FM Radio .................................... 154, 159
Anti-lock Brake System (ABS) .................. 243
Indicator .................................................... 69
Armrest ..................................................... 134
Audio Remote Controls ............................ 157
Audio System ............................................ 150
Adjusting the Sound ........................ 153, 158
Auxiliary Input Jack .................................. 151
Error Messages ........................................ 175
General Information ................................ 178
Internet Radio.......................................... 168
MP3/WMA ...................................... 155, 162
MP3/WMA/AAC ...................................... 170
Reactivating............................................. 152
Recommended CDs ................................. 178
Recommended Devices ............................ 180
Remote Controls ..................................... 157 Security Code .......................................... 152
Theft Protection ...................................... 152
USB Adapter Cable.................................. 151
USB Flash Drives ...................................... 180
Authorized Manuals ................................ 357
Auto Door Locking/Unlocking ................. 105
Customize ......................................... 91, 106
Automatic Lighting .................................. 119
Automatic Transmission ........................... 226
Creeping ................................................. 226
Fluid ........................................................ 277
Kickdown ................................................ 226
Operating the Shift Lever................... 16, 228
Shift Lever Does Not Move ...................... 334
Shifting ................................................... 227
Auxiliary Input Jack .................................. 151
Average Fuel Economy ........................ 80, 83
Average Speed ........................................... 83
BBattery...................................................... 306
Charging System Indicator................. 67, 337
Jump Starting .......................................... 331
Maintenance (Checking the Battery) ........ 306
Maintenance (Replacing) ......................... 307
Belts (Seat) .................................................. 30
Beverage Holders ..................................... 138
Bluetooth ® Audio ..................................... 173
Bluetooth ® HandsFreeLink ®..................... 181
Booster Seats (For Children) ...................... 61

360Index
Brake System............................................. 241
Anti-lock Brake System (ABS) ................... 243
Brake Assist System ................................. 244
Fluid ........................................................ 280
Foot Brake ............................................... 242
Indicator ............................................ 66, 339
Parking Brake .......................................... 241
Brightness Control (Instrument Panel) .... 123
Bulb Replacement ..................................... 282
Brake/Taillights, Rear Turn Signal Lights and
Rear Side Marker Lights ......................... 291
Fog Lights ................................................ 286
Front Turn Signal/Parking/Side Marker
Lights..................................................... 289
Headlights ............................................... 282
High-Mount Brake Light .......................... 294
Rear License Plate Lights .......................... 293
Taillights and Back-Up Lights ................... 292
Bulb Specifications ............................ 346, 348CCarbon Monoxide Gas ................................ 62
Carrying Cargo .................................. 215, 217
CD Player ........................................... 155, 162
Center Pocket ............................................ 137
Certification Label .................................... 350
Changing Bulbs ......................................... 282
Charging System Indicator ................. 67, 337
Child Safety ................................................. 50
Childproof Door Locks ............................. 104 Emergency Trunk Opener ........................ 111
Child Seat .................................................... 50
Booster Seats ............................................ 61
Child Seat for Infants................................. 52
Child Seat for Small Children ..................... 53
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 57
Larger Children ......................................... 60
Rear-facing Child Seat ............................... 52
Selecting a Child Seat ................................ 54
Using a Tether ........................................... 59
Childproof Door Locks ............................. 104
Cleaning the Exterior ............................... 311
Cleaning the Interior ................................ 309
Climate Control System ............................ 146
Changing the Mode ................................ 146
Defrosting the Windshield and Windows ........................................ 147
Dust and Pollen Filter............................... 308
Recirculation/Fresh Air Mode ..... .............. 147
Sensors ................................................... 148
Using Automatic Climate Control ............ 146
Clock ............................................................ 98
Clutch Fluid ............................................... 280
Coat Hook ................................................. 140
Compact Spare Tire .................. 315, 347, 349
Console Compartment ............................. 136
Controls ....................................................... 97
Coolant (Engine) ...................................... 275
Adding to the Radiator ......... ............... .... 276
Adding to the Reserve Tank..................... 275 High Temperature Indicator ...................... 69
Low Temperature Indicator ....................... 73
Overheating ............................................ 335
Creeping (Automatic Transmission) ........ 226
Cruise Control .......................................... 233
Indicator ................................................... 74
Cup Holders .............................................. 138
Customer Service Information ................ 358
Customized Features ................................. 85
DDaytime Running Lights .......................... 121
Dead Battery ............................................ 331
Defrosting the Windshield
and Windows ................................. 145, 147
Devices that Emit Radio Waves ............... 351
Dimming
Headlights .............................................. 118
Rearview Mirror ...................................... 126
Dipstick (Engine Oil) ................................ 269
Directional Signals (Turn Signal) ............. 118
Display/Information Button ...................... 81
Door Mirrors ............................................. 126
Doors .......................................................... 99
Auto Door Locking.................................. 105
Auto Door Unlocking .............................. 105
Door Open Indicator ........................... 29, 70
Keys.......................................................... 99
Locking/Unlocking the Doors
from the Inside...................................... 103

362Index
Gauges......................................................... 77
Gear Shift Lever Positions Automatic Transmission ........................... 227
Manual Transmission ............................... 230
Glass (care) ................................................ 312
Glove Box .................................................. 136HHalogen Bulbs ................................... 282, 286
Handling the Unexpected ........................ 313
HandsFreeLink ® (HFL) ............................... 181
Automatic Import of Cellular Phonebook and Call History ............................................ 197
Automatic Transferring ............................ 195
Caller’s ID Information ............................. 195
HFL Buttons ............................................. 181
HFL Menus .............................................. 183
HFL Status Display.................................... 182
Limitations for Manual Operation ............ 182
Making a Call .......................................... 201
Options During a Call .............................. 206
Phone Setup ............................................ 188
Receiving a Call ....................................... 205
Speed Dial ............................................... 198
Text Message................................... 193, 207
To Clear the System ................................. 196
To Create a Security PIN........................... 194
Hazard Warning Button ............................... 2
Head Restraints ......................................... 130 Headlights
................................................. 118
Aiming .................................................... 282
Automatic Operation............................... 119
Dimming ......................................... 118, 121
Operating................................................ 118
Heaters (Seat) ........................................... 141
Heating and Cooling System ................... 142
Cooling ................................................... 144
Defrosting the Windshield and Windows ........................................ 145
Dust and Pollen Filter............................... 308
Heating ................................................... 143
HFL (HandsFreeLink ®)............................... 181
High Beam Indicator .................................. 72
IIdentification Numbers ............................ 350
Engine and Transmission ......................... 350
Vehicle Identification .............. ................. 350
Ignition Switch ......................................... 117
Illumination Control ................................. 123
Knob ....................................................... 123
i-MID ........................................................... 81
Immobilizer System .................................. 112
Indicator.................................................... 73
Indicators .................................................... 66
ABS (Anti-lock Brake System)..................... 69
Charging System ............................... 67, 337
CRUISE CONTROL ............................. 74, 234
CRUISE MAIN .................................... 74, 233 Daytime Running Lights ............................ 71
Door Open.......................................... 29, 70
ECON Mode ..................................... 74, 232
EPS (Electric Power Steering)
System ............................................ 71, 339
Fog Light .................................................. 72
High Beam ................................................ 72
High Temperature ..................................... 69
Immobilizer System ................................... 73
i-VTEC ................................................ 74, 78
Lights On .................................................. 72
Low Fuel ................................................... 68
Low Oil Pressure ............................... 66, 337
Low Temperature...................................... 73
Low Tire Pressure/TPMS ............ 71, 238, 239
Maintenance Minder......................... 74, 257
Malfunction Indicator Lamp .............. 67, 338
Parking Brake and Brake System ....... 66, 339
REV..................................................... 74, 78
Seat Belt Reminder.............................. 31, 68
Security System Alarm............................... 73
Shift Lever Position.................................... 67
Supplemental Restraint System ........... 47, 69
System Message ....................................... 72
Transmission ............................................. 68
Trunk Open .............................................. 71
Turn Signal ............................................... 72
VSA ® (Vehicle Stability Assist)
System ............................................ 70, 236
VSA ® OFF.......................................... 70, 237
Washer Level ............................................ 74
