HONDA CIVIC 2017 10.G Owners Manual

180
uuAdjusting the Seats uArmrest
Controls

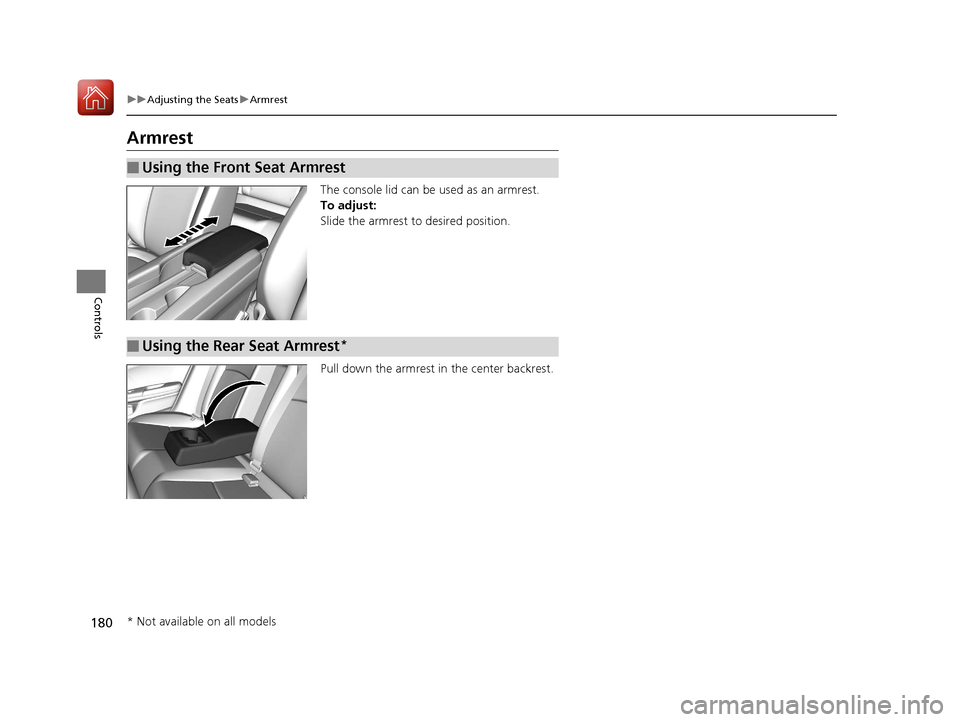

Armrest
The console lid can be used as an armrest.
To adjust:
Slide the armrest to desired position.
Pull down the armrest in the center backrest.
■Using the Front Seat Armrest
■Using the Rear Seat Armrest*
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 180 ページ ２０１６年８月３１日　水曜日　午後６時５分

181Continued
Controls

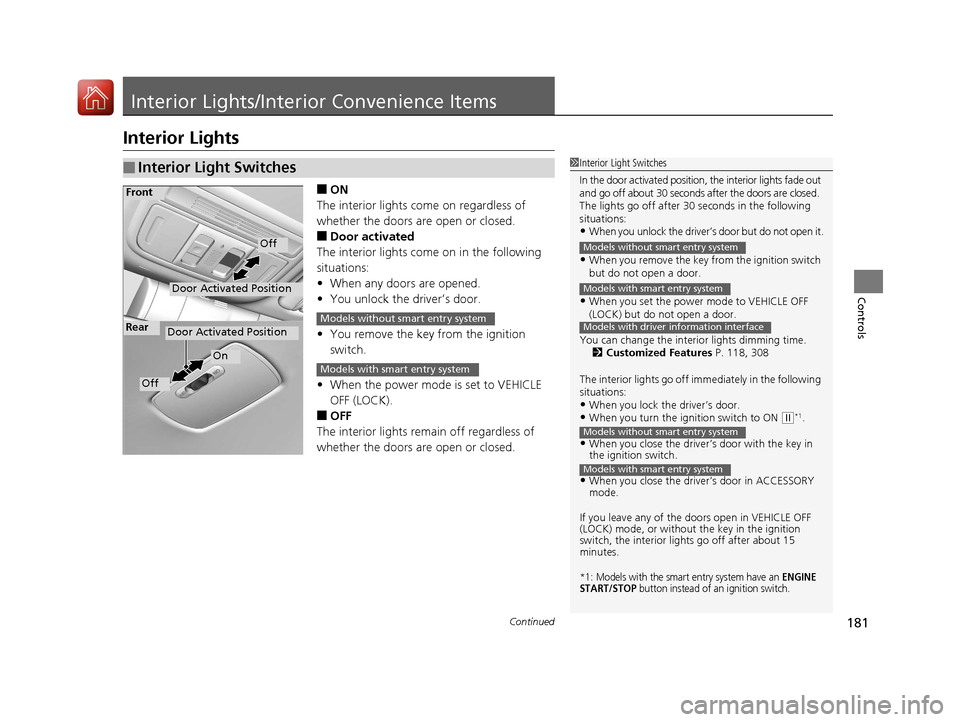

Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any doors are opened.
• You unlock the driver’s door.
• You remove the key from the ignition
switch.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade out
and go off about 30 seconds after the doors are closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open it.
•When you remove the key from the ignition switch
but do not open a door.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 118, 308
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.•When you turn the ignition switch to ON ( w*1.
•When you close the driver’s door with the key in
the ignition switch.
•When you close the driver’s door in ACCESSORY
mode.
If you leave any of the doors open in VEHICLE OFF
(LOCK) mode, or without the key in the ignition
switch, the interior li ghts go off after about 15
minutes.
*1: Models with the smart entry system have an ENGINE
START/STOP button instead of an ignition switch.
Models without smart entry system
Models with smart entry system
Models with driver information interface
Models without smart entry system
Models with smart entry system
Door Activated Position
Off
Front
Door Activated Position
On
Off
RearModels without smart entry system
Models with smart entry system
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 181 ページ ２０１６年８月３１日　水曜日　午後６時５分

uuInterior Lights/Interior Convenience Items uInterior Lights
182
Controls

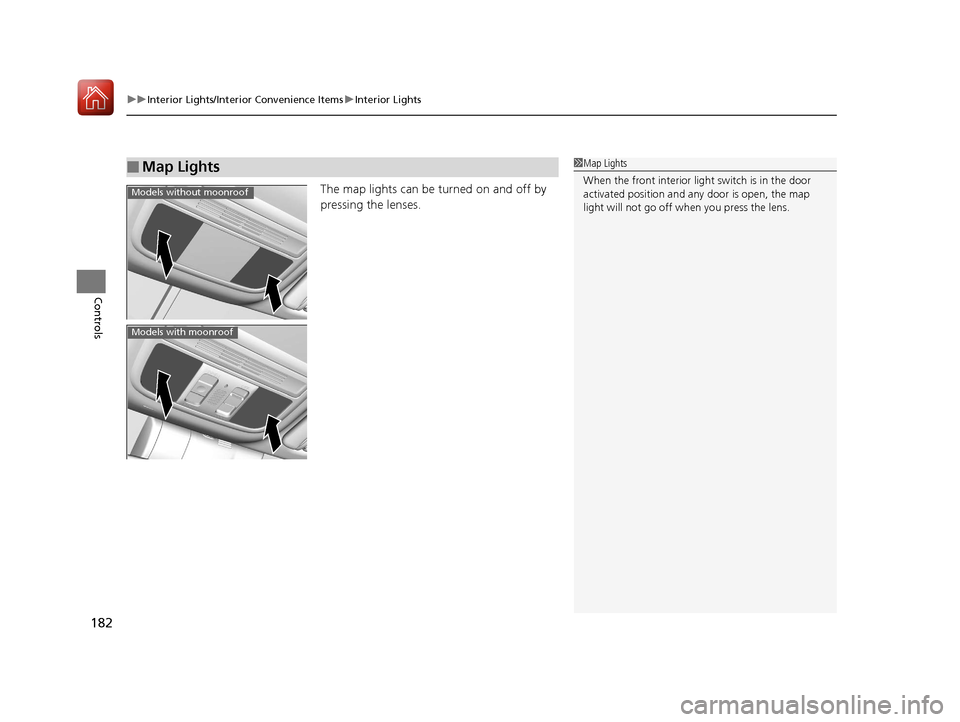

The map lights can be turned on and off by
pressing the lenses.
■Map Lights1Map Lights
When the front interior li ght switch is in the door
activated position and any door is open, the map
light will not go off when you press the lens.
Models without moonroof
Models with moonroof
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 182 ページ ２０１６年８月３１日　水曜日　午後６時５分

183
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

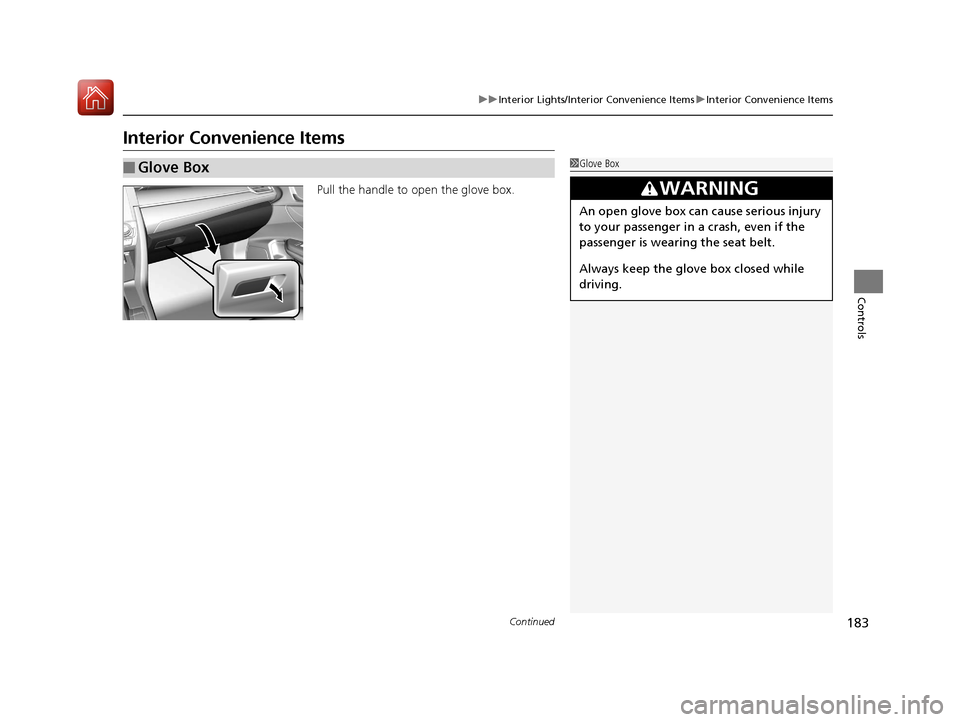

Interior Convenience Items
Pull the handle to open the glove box.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 183 ページ ２０１６年８月３１日　水曜日　午後６時５分

184
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

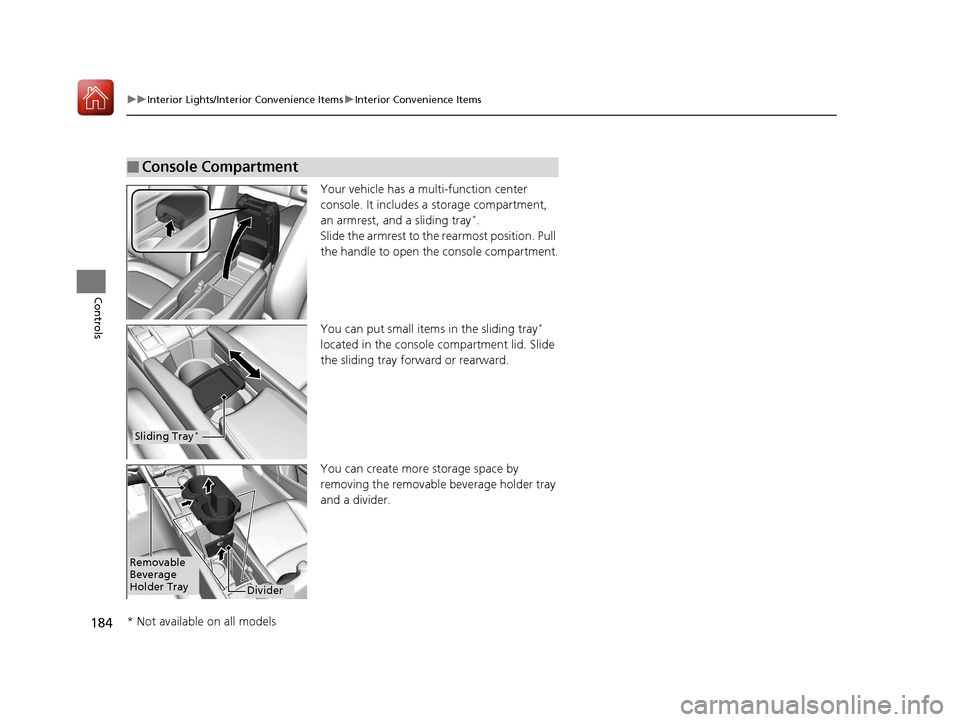

Your vehicle has a multi-function center
console. It includes a storage compartment,
an armrest, and a sliding tray
*.
Slide the armrest to the rearmost position. Pull
the handle to open th e console compartment.
You can put small items in the sliding tray
*
located in the console compartment lid. Slide
the sliding tray forward or rearward.
You can create more storage space by
removing the removable beverage holder tray
and a divider.
■Console Compartment
Sliding Tray*
Removable
Beverage
Holder Tray
Divider
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 184 ページ ２０１６年８月３１日　水曜日　午後６時５分

Continued185
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

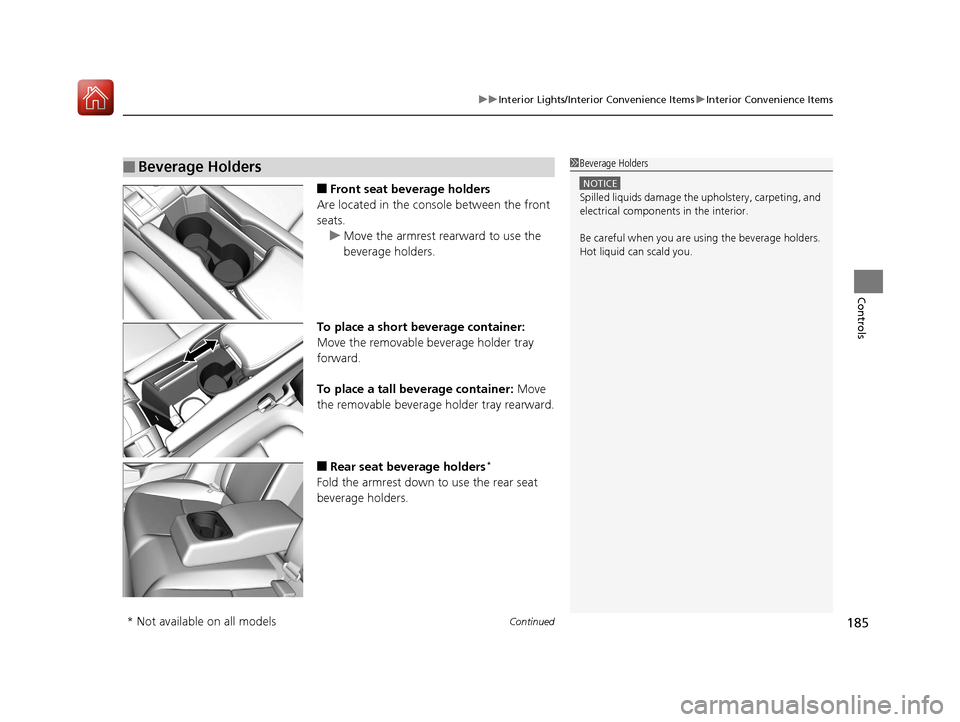

■Front seat beverage holders
Are located in the console between the front
seats. u Move the armrest rearward to use the
beverage holders.
To place a short beverage container:
Move the removable beverage holder tray
forward.
To place a tall beverage container: Move
the removable beverage holder tray rearward.
■Rear seat beverage holders*
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 185 ページ ２０１６年８月３１日　水曜日　午後６時５分

186
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

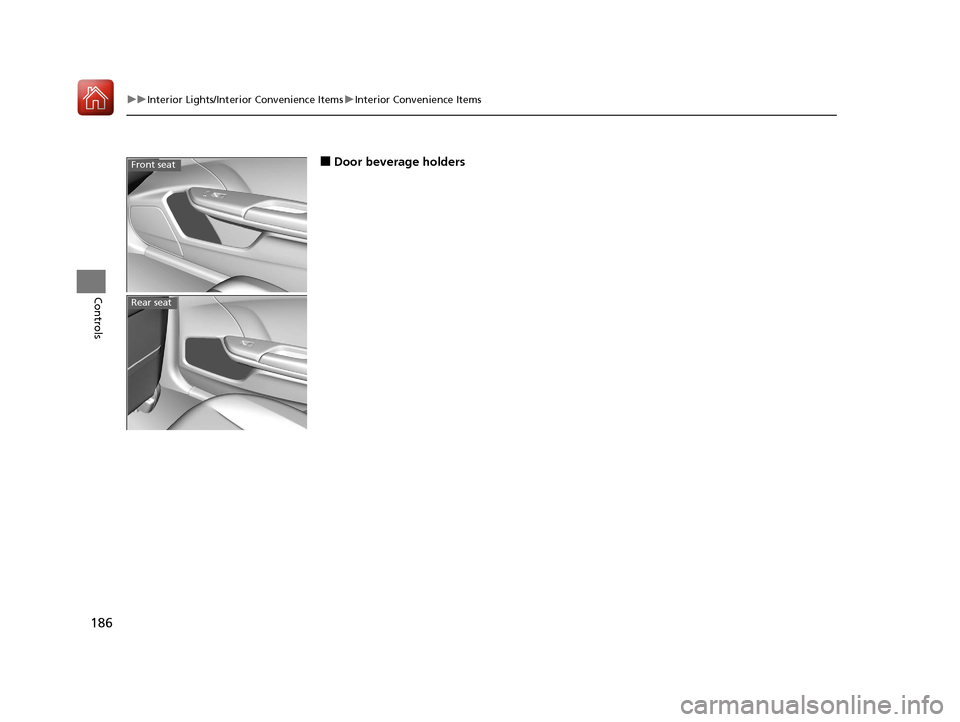

■Door beverage holdersFront seat
Rear seat
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 186 ページ ２０１６年８月３１日　水曜日　午後６時５分

Continued187
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

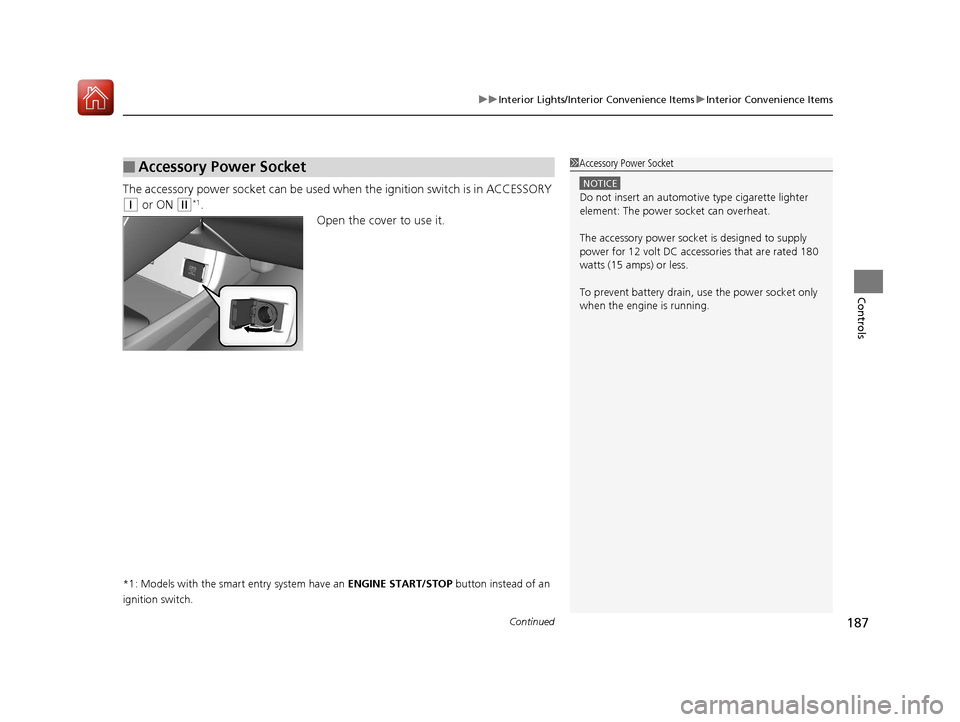

The accessory power socket can be used wh en the ignition switch is in ACCESSORY
(q or ON (w*1.
Open the cover to use it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Accessory Power Socket1 Accessory Power Socket
NOTICE
Do not insert an automotive type cigarette lighter
element: The power socket can overheat.
The accessory power socket is designed to supply
power for 12 volt DC access ories that are rated 180
watts (15 amps) or less.
To prevent battery drain, use the power socket only
when the engine is running.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 187 ページ ２０１６年８月３１日　水曜日　午後６時５分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
188
Controls

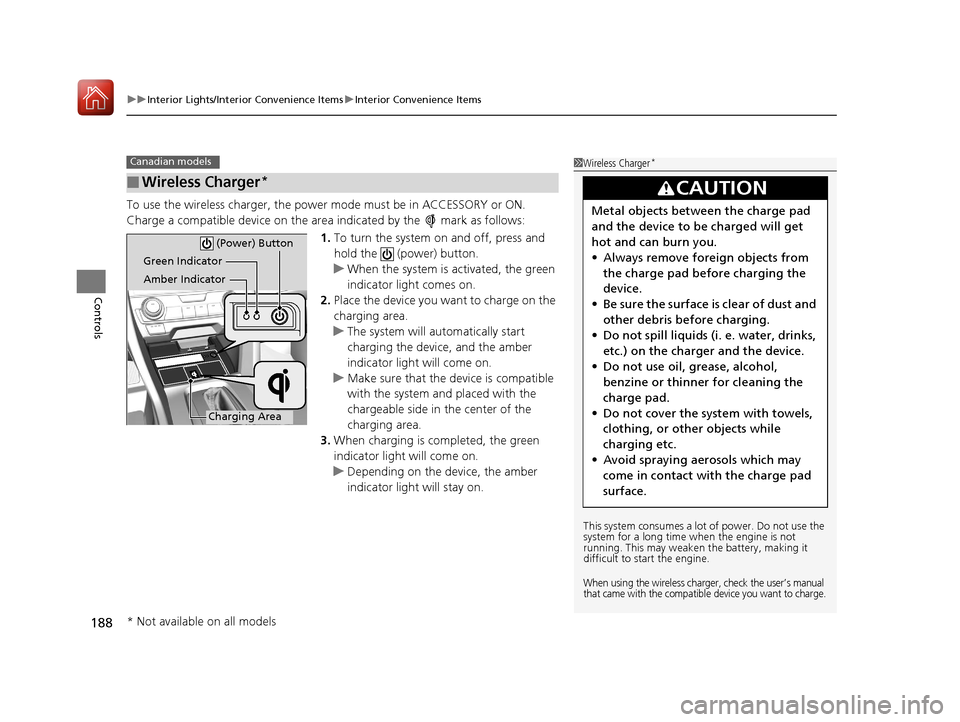

To use the wireless charger, the powe r mode must be in ACCESSORY or ON.
Charge a compatible device on the ar ea indicated by the mark as follows:
1. To turn the system on and off, press and
hold the (power) button.
u When the system is activated, the green
indicator light comes on.
2. Place the device you want to charge on the
charging area.
u The system will automatically start
charging the device, and the amber
indicator light will come on.
u Make sure that the device is compatible
with the system and placed with the
chargeable side in the center of the
charging area.
3. When charging is completed, the green
indicator light will come on.
u Depending on the device, the amber
indicator light will stay on.
■Wireless Charger*
Canadian models1Wireless Charger*
This system consumes a lot of power. Do not use the
system for a long time when the engine is not
running. This may weaken the battery, making it
difficult to start the engine.
When using the wireless charger, check the user’s manual
that came with the compatible device you want to charge.
3CAUTION
Metal objects between the charge pad
and the device to be charged will get
hot and can burn you.
• Always remove foreign objects from
the charge pad before charging the
device.
• Be sure the surface is clear of dust and
other debris before charging.
• Do not spill liquids (i. e. water, drinks,
etc.) on the charger and the device.
• Do not use oil, grease, alcohol,
benzine or thinner for cleaning the
charge pad.
• Do not cover the system with towels,
clothing, or other objects while
charging etc.
• Avoid spraying aerosols which may
come in contact with the charge pad
surface.
Green Indicator
Amber Indicator
Charging Area (Power) Button
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 188 ページ ２０１６年８月３１日　水曜日　午後６時５分

Continued189
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

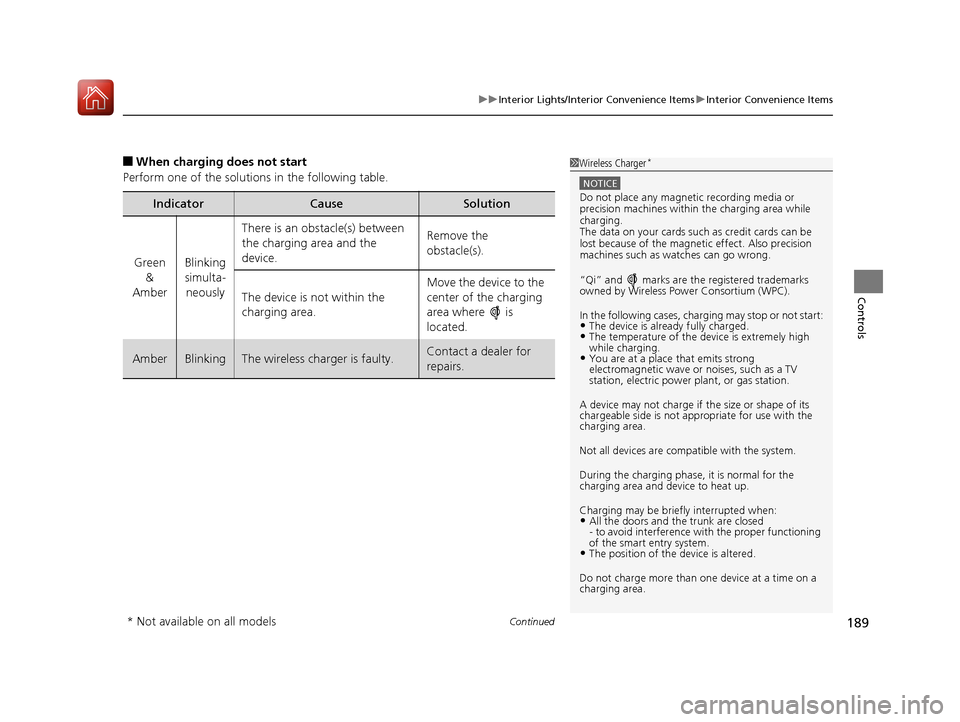

■When charging does not start
Perform one of the solutions in the following table.
IndicatorCauseSolution
Green &
AmberBlinking
simulta- neously
There is an obstacle(s) between
the charging area and the
device.Remove the
obstacle(s).
The device is not within the
charging area. Move the device to the
center of the charging
area where is
located.
AmberBlinkingThe wireless charger is faulty.Contact a dealer for
repairs.
1
Wireless Charger*
NOTICE
Do not place any magneti c recording media or
precision machines within the charging area while
charging.
The data on your cards such as credit cards can be
lost because of the magneti c effect. Also precision
machines such as watches can go wrong.
“Qi” and marks are the registered trademarks
owned by Wire less Power Consortium (WPC).
In the following cases, ch arging may stop or not start:
•The device is already fully charged.•The temperature of the device is extremely high
while charging.
•You are at a place that emits strong
electromagnetic wave or noises, such as a TV
station, electric power plant, or gas station.
A device may not charge if the size or shape of its
chargeable side is not a ppropriate for use with the
charging area.
Not all devices are compatible with the system.
During the charging phase, it is normal for the
charging area and de vice to heat up.
Charging may be briefl y interrupted when:
•All the doors and the trunk are closed
- to avoid interference with the proper functioning
of the smart entry system.
•The position of the device is altered.
Do not charge more than one device at a time on a
charging area.
* Not available on all models
