HONDA CIVIC 2017 10.G Owner's Manual

20
Quick Reference Guide
Features (P 203)
Audio Remote Controls
(P 207)
●
(+ / ( - Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM/AM/
USB/iPod/ Bluetooth ®Audio.
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Models with information display
SOURCE Button
(+ / (- / / Button
●(+ / (- Bar
Press to adjust the volume up/down.
Sliding up or down also increases or
decreases the volume.
Swipe down quickly to mute the volume
and swipe up to cancel the mute.
● / Button
Press or to cycle through the audio
mode as follows:
FM AM SiriusXM ®
*USB iPod
Bluetooth ®Audio Pandora ®*Apps*
Audio Apps*
Models with driver information interface
ENTER Button
/ / / Button34(+ / (- Bar
34
34
• When listening to the radio and
SiriusXM ®*
aPress ENTER to switch the display to a
preset list you stored in the preset
buttons.
bPress or to select a preset, then
press ENTER .
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
You can also swipe up or down to scroll
through the list of tra cks alphabetically.
34
34
34
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 20 ページ ２０１６年８月３１日　水曜日　午後６時５分

21
Quick Reference Guide
•When listening to an iPod
aPress ENTER to display the iPod music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
You can also swipe up or down to scroll
through the list of tracks alphabetically.
• When listening to Internet Radio*
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER .
•When listening to Bluetooth ®Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER .
34
34
34
34
34
● / Button
● Button:
Press to change contents.
2 Driver Information Interface
*
(P113)
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 21 ページ ２０１６年８月３１日　水曜日　午後６時５分

22
Quick Reference Guide

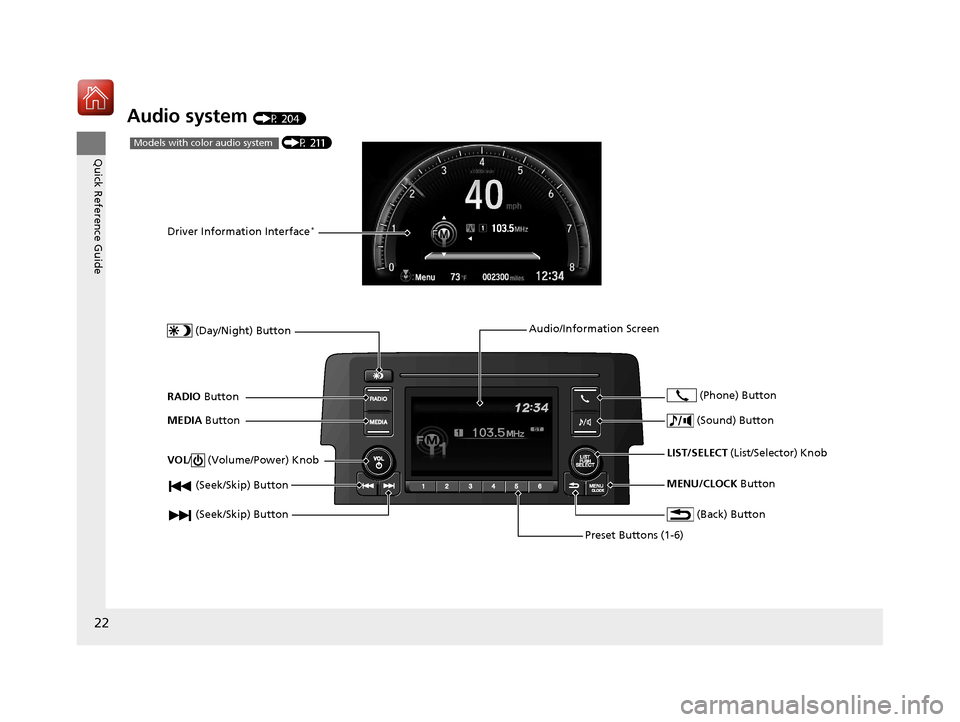

Audio system (P 204)
(P 211)Models with color audio system
(Seek/Skip) Button
RADIO Button
Driver Information Interface*
(Day/Night) Button
MEDIA Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL
/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
LIST/SELECT
(List/Selector) Knob
(Phone) Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 22 ページ ２０１６年８月３１日　水曜日　午後６時５分

23
Quick Reference Guide

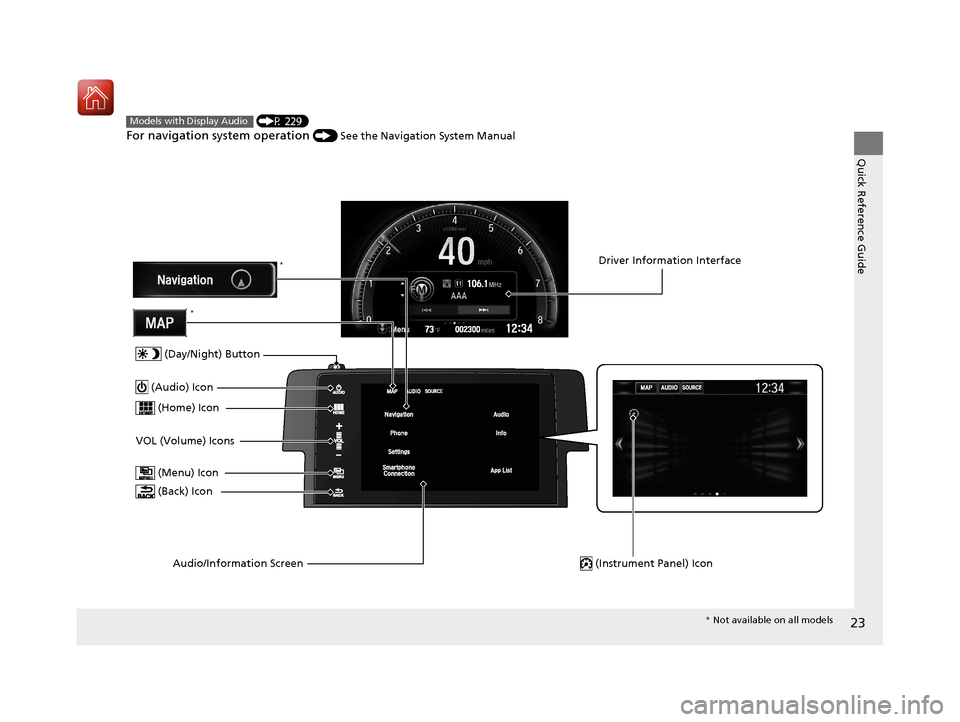

(P 229)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(Menu) Icon
VOL (Volume) Icons (Home) Icon
(Back) Icon
Audio/Information Screen
(Audio) Icon
Driver Information Interface
(Instrument Panel) Icon
(Day/Night) Button
*
*
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 23 ページ ２０１６年８月３１日　水曜日　午後６時５分

24
Quick Reference Guide
Driving (P 395)
Release ButtonShift Lever
Depress the brake pedal and press the
release button to move out of
(P.
Move the shift lever without
pressing the release button. Press the release button to
move the shift lever.
Manual Transmission* (P 413)
Continuously Variable Transmission* (P 411)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
Drive (S)
●Better acceleration.●Increased engine braking.●Going up or down hills.
Low
●Further increased engine braking.●Going up or down hills.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 24 ページ ２０１６年８月３１日　水曜日　午後６時５分

25
Quick Reference Guide
VSA® On and Off (P 448)
●The vehicle stability assist (VSA®) system helps
stabilize the vehicle during cornering, and
helps maintain traction while accelerating on
loose or slippery road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
Cruise Control* (P 417)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the –/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
Collision Mitigation
Braking System
TM (CMBSTM)
OFF Button
* (P 465)
●When a possible collision is likely unavoidable,
the CMBSTM can help you to reduce the vehicle
speed and the severity of the collision.
● To turn the CMBSTM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring
System (TPMS)
(P 452)
●Detects a change in tire conditions and overall
dimensions due to decrease in tire pressures.
● The TPMS is turned on automatically
every time you start the engine.
● A calibration procedure must be
performed when certain conditions arise.
U.S. models
Refueling (P 476)
Fuel recommendation: Unlead ed gasoline, pump octane number 87 or higher
Fuel tank capacity: 12.39 US gal (46.9 L)
aUnlock the driver’s
door. 2 Locking/Unlocking
the Doors from
the Inside
(P140)
bPress on the edge of
the fuel fill door to
make it pop up
slightly.
cAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
Wait for five seconds
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 25 ページ ２０１６年８月３１日　水曜日　午後６時５分

26
Quick Reference Guide

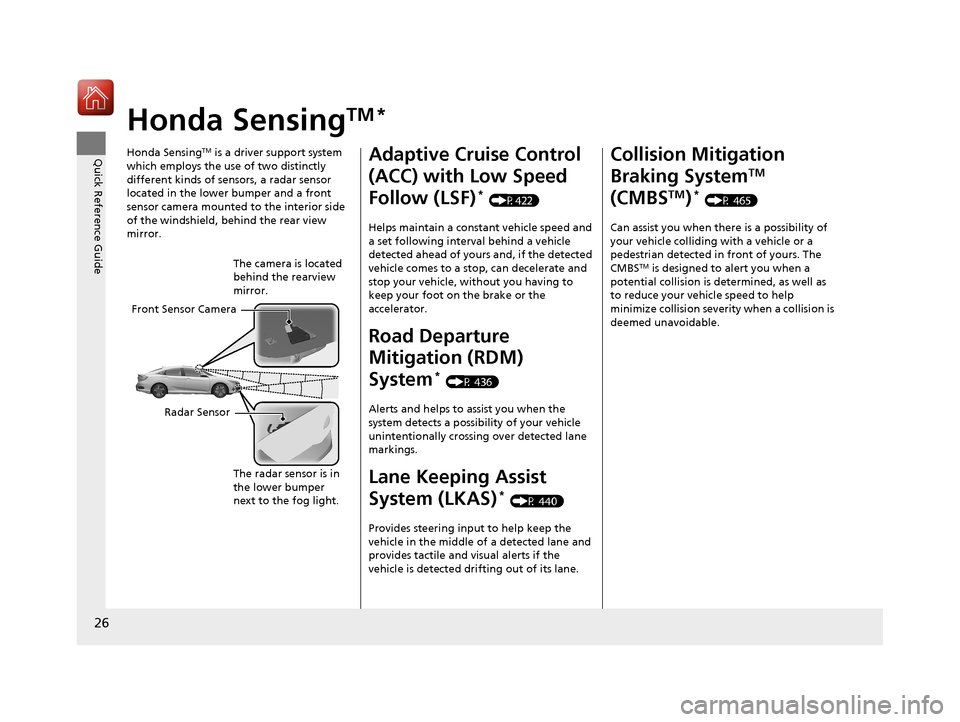

Honda SensingTM *
Honda SensingTM is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the lower bumper and a front
sensor camera mounted to the interior side
of the windshield, behind the rear view
mirror.
Front Sensor Camera The camera is located
behind the rearview
mirror.
Radar Sensor The radar sensor is in
the lower bumper
next to the fog light.
Adaptive Cruise Control
(ACC) with Low Speed
Follow (LSF)
* (P422)
Helps maintain a constant vehicle speed and
a set following interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, wi thout you having to
keep your foot on the brake or the
accelerator.
Road Departure
Mitigation (RDM)
System
* (P 436)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings.
Lane Keeping Assist
System (LKAS)
* (P 440)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Collision Mitigation
Braking System
TM
(CMBS
TM)* (P 465)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when a
potential collision is determined, as well as
to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 26 ページ ２０１６年８月３１日　水曜日　午後６時５分

27
Quick Reference Guide
Maintenance (P 481)
Under the Hood (P 495)
● Check engine oil, engine coolant, and windshield washer fluid. Add
when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the dashboard.
bLocate the hood latch lever, pull it up, and then raise the hood.
Once you have raised the hood slightly, you can release the lever.
cWhen finished, close the hood and make sure it is firmly locked in
place.
Lights (P 510)
● Inspect all lights regularly.
Wiper Blades (P 519)
● Replace blades if they leave streaks
across the windshield.
Tires (P 522)
● Inspect tires and wheels
regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 27 ページ ２０１６年８月３１日　水曜日　午後６時５分

28
Quick Reference Guide
Handling the Unexpected (P 543)
Flat Tire (P 545)
● Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
Indicators Come On
(P 561)
●Identify the indicator and consult the
owner's manual.
Engine Won’t Start
(P 552)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 567)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 559)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P 571)
●Call a professional towing service if you
need to tow your vehicle.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 28 ページ ２０１６年８月３１日　水曜日　午後６時５分

29
Quick Reference Guide
What to Do If
*1:Except U.S. models with continuously variable transmission
The ignition switch does
not turn from
(0 to (q.
Why?
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
The steering wheel may be locked.
●Try to turn the steering wheel left and right
while turning the ignition key.
●Move the steering wheel left and right after pressing the
ENGINE START/STOP button.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system
