engine HONDA CIVIC 2017 10.G Owners Manual

Contents
Child Safety P. 60Exhaust Gas Hazard P. 72Safety Labels P. 73
Opening and Closing the Trunk P. 147 Security System P. 150 Opening and Closing the Windows P. 153
Operating the Switches Around the Steering Wheel P. 157 Adjusting the Mirrors P. 171
Interior Lights/Interior Convenience Items P. 181 Heating System
* P. 193
Audio Error Messages P. 299General Information on the Audio System P. 302
When Driving P. 402 Braking P. 457Parking Your Vehicle P. 473
Fuel Economy and CO
2 Emissions P. 479 Turbo Engine Vehicle* P. 480
Maintenance Under the Hood P. 495 Replacing Light Bulbs P. 510
Checking and Maintaining Tires P. 522 Battery P. 531 Remote Transmitter Care P. 533
Cleaning P. 536 Accessories and Modifications P. 541
Engine Does Not Start P. 552 Jump Starting P. 555 Shift Lever Does Not Move P. 558
Fuses P. 567 Emergency Towing P. 571 When You Cannot Unlock the Fuel Fill Door P. 572
Devices that Emit Radio Waves P. 581 Reporting Safety Defects P. 582
Authorized Manuals P. 587 Customer Service Information P. 588
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 75
ControlsP. 127
FeaturesP. 203
DrivingP. 395
MaintenanceP. 481
Handling the UnexpectedP. 543
InformationP. 575
IndexP. 589
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 3 ページ ２０１６年８月３１日　水曜日　午後６時５分

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Ignition Switch* (P157)
❙ENGINE START/STOP Button*1 (P158)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
❙Tire Pressure Monitoring System
(TPMS) Button* (P452)
❙Information Display* (P110)
❙System Indicators (P76)
❙Gauges (P108)
❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button* (P465)
❙ (Vehicle Stability Assist (VSA ®)
System OFF) Button
(P448)
❙Road Departure Mitigation (RDM)
Button* (P436)
❙Navigation System*
() See Navigation System Manual
❙Audio System (P211, 229)
❙Hazard Warning Button
❙Rear Window Defogger (P169)
❙Heated Door Mirror Button* (P169)
❙Heating System* (P193)
❙Climate Control System* (P196)
❙Front Seat Heater Buttons* (P191)
❙Steering Wheel Adjustments (P170)
❙Driver Information Interface* (P113)
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 4 ページ ２０１６年８月３１日　水曜日　午後６時５分

10
Quick Reference Guide

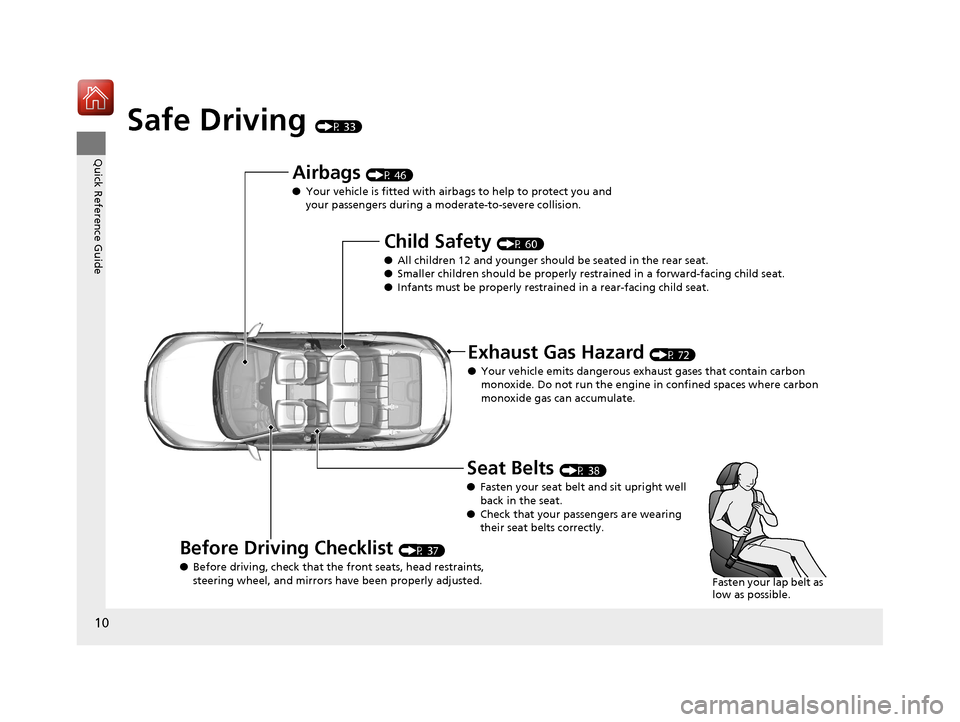

Safe Driving (P 33)
Airbags (P 46)
● Your vehicle is fitted with airbags to help to protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 60)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P 72)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 37)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 38)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 10 ページ ２０１６年８月３１日　水曜日　午後６時５分

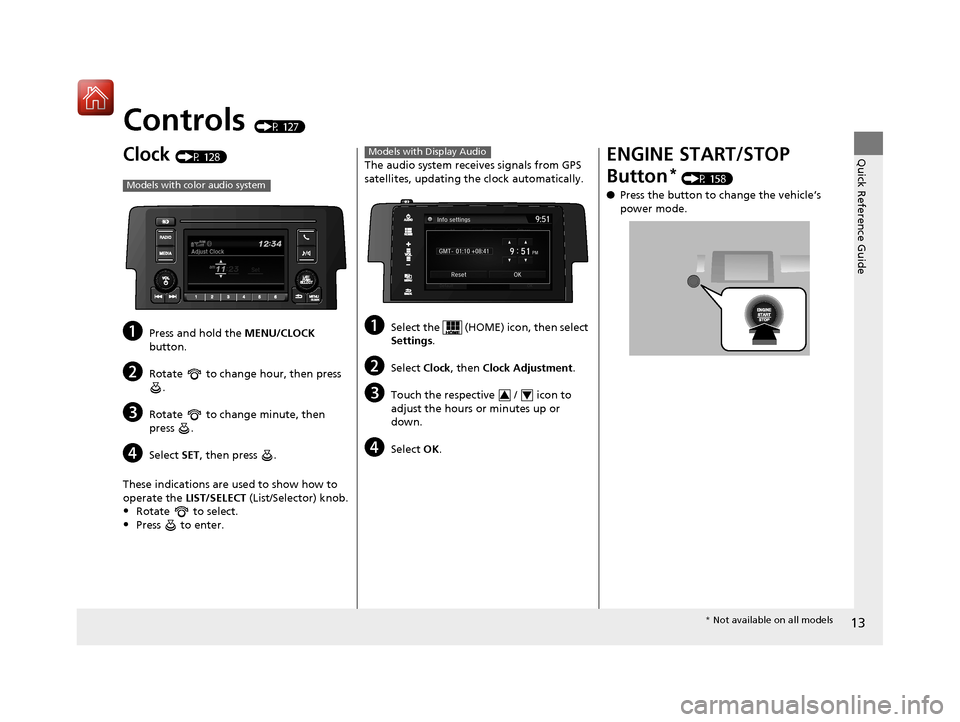

13
Quick Reference Guide
Controls (P 127)
Clock (P 128)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the LIST/SELECT (List/Selector) knob.
•Rotate to select.
•Press to enter.
Models with color audio system
The audio system receives signals from GPS
satellites, updating the clock automatically.
aSelect the (HOME) icon, then select
Settings.
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
Models with Display Audio
34
ENGINE START/STOP
Button
* (P 158)
● Press the button to change the vehicle’s
power mode.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 13 ページ ２０１６年８月３１日　水曜日　午後６時５分

15
Quick Reference Guide

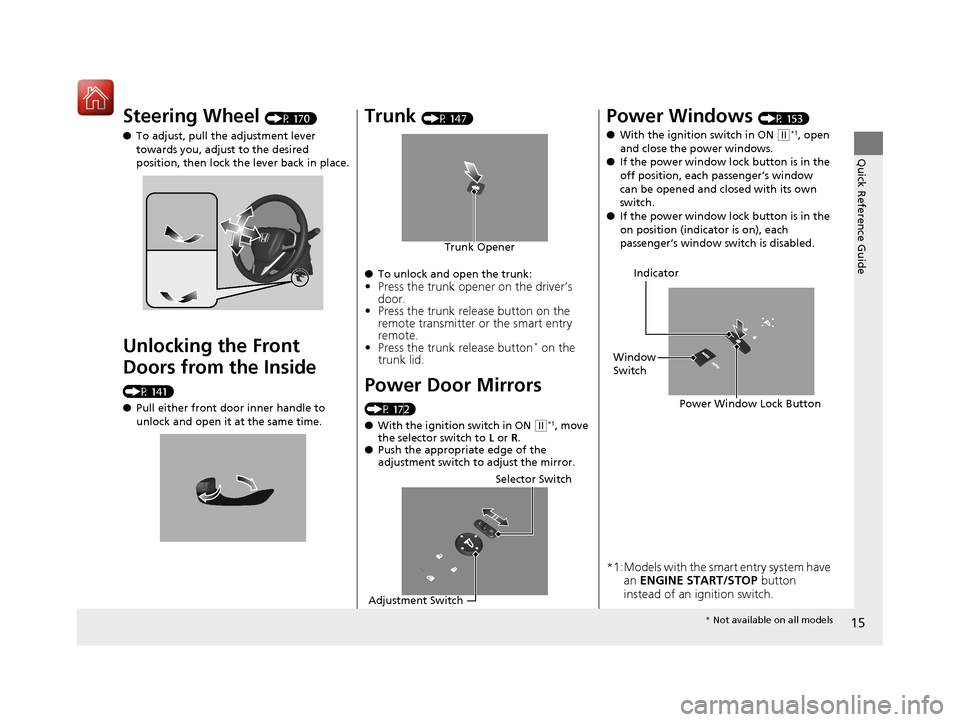

Steering Wheel (P 170)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P 141)
●Pull either front door inner handle to
unlock and open it at the same time.
Trunk (P 147)
● To unlock and open the trunk:
•Press the trunk opener on the driver’s
door.
• Press the trunk release button on the
remote transmitter or the smart entry
remote.
• Press the trunk release button
* on the
trunk lid.
Power Door Mirrors
(P 172)
● With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Opener
Selector Switch
Adjustment Switch
Power Windows (P 153)
● With the ignition switch in ON
(w*1, open
and close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
*1:Models with the smart entry system have
an ENGINE START/STOP button
instead of an ignition switch.
Power Window Lock Button
Window
Switch Indicator
*
Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 15 ページ ２０１６年８月３１日　水曜日　午後６時５分

24
Quick Reference Guide

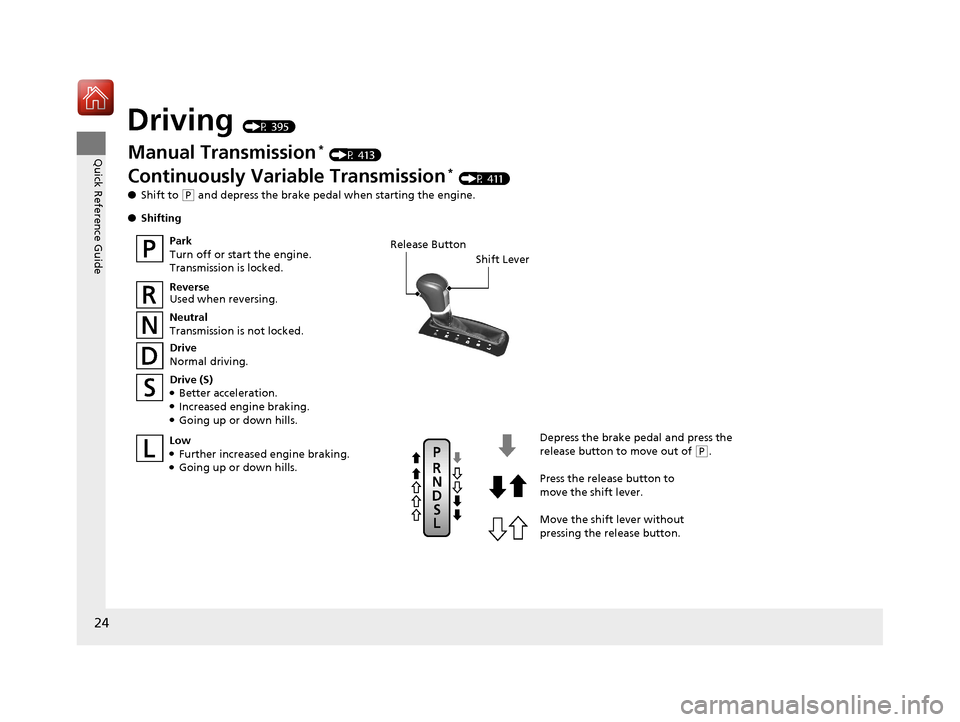

Driving (P 395)
Release ButtonShift Lever
Depress the brake pedal and press the
release button to move out of
(P.
Move the shift lever without
pressing the release button. Press the release button to
move the shift lever.
Manual Transmission* (P 413)
Continuously Variable Transmission* (P 411)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
Drive (S)
●Better acceleration.●Increased engine braking.●Going up or down hills.
Low
●Further increased engine braking.●Going up or down hills.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 24 ページ ２０１６年８月３１日　水曜日　午後６時５分

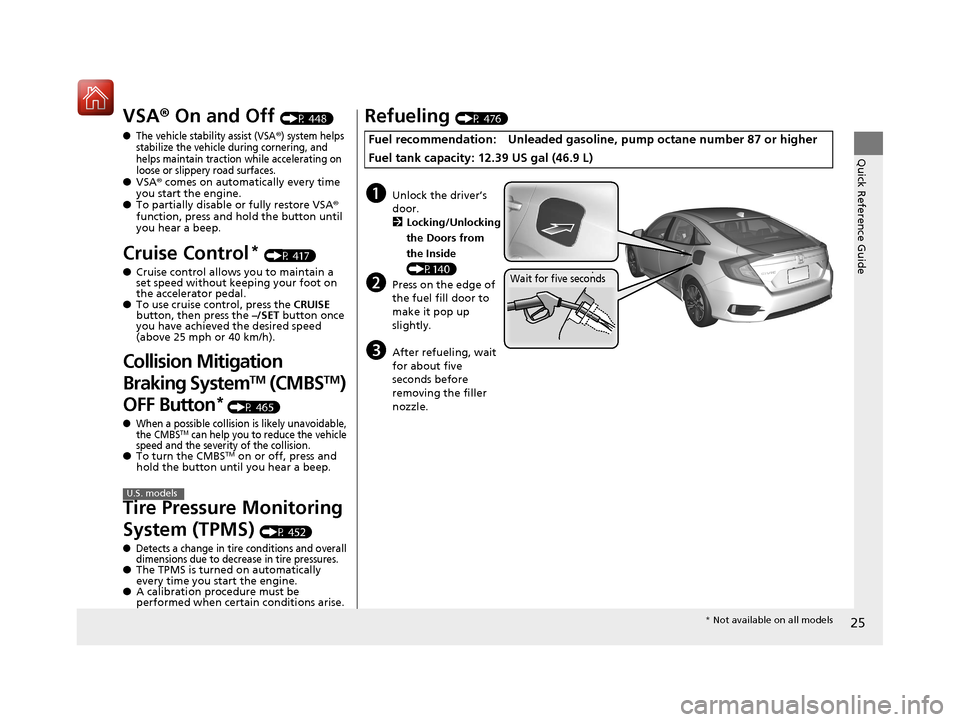

25
Quick Reference Guide
VSA® On and Off (P 448)
●The vehicle stability assist (VSA®) system helps
stabilize the vehicle during cornering, and
helps maintain traction while accelerating on
loose or slippery road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
Cruise Control* (P 417)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the –/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
Collision Mitigation
Braking System
TM (CMBSTM)
OFF Button
* (P 465)
●When a possible collision is likely unavoidable,
the CMBSTM can help you to reduce the vehicle
speed and the severity of the collision.
● To turn the CMBSTM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring
System (TPMS)
(P 452)
●Detects a change in tire conditions and overall
dimensions due to decrease in tire pressures.
● The TPMS is turned on automatically
every time you start the engine.
● A calibration procedure must be
performed when certain conditions arise.
U.S. models
Refueling (P 476)
Fuel recommendation: Unlead ed gasoline, pump octane number 87 or higher
Fuel tank capacity: 12.39 US gal (46.9 L)
aUnlock the driver’s
door. 2 Locking/Unlocking
the Doors from
the Inside
(P140)
bPress on the edge of
the fuel fill door to
make it pop up
slightly.
cAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
Wait for five seconds
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 25 ページ ２０１６年８月３１日　水曜日　午後６時５分

27
Quick Reference Guide

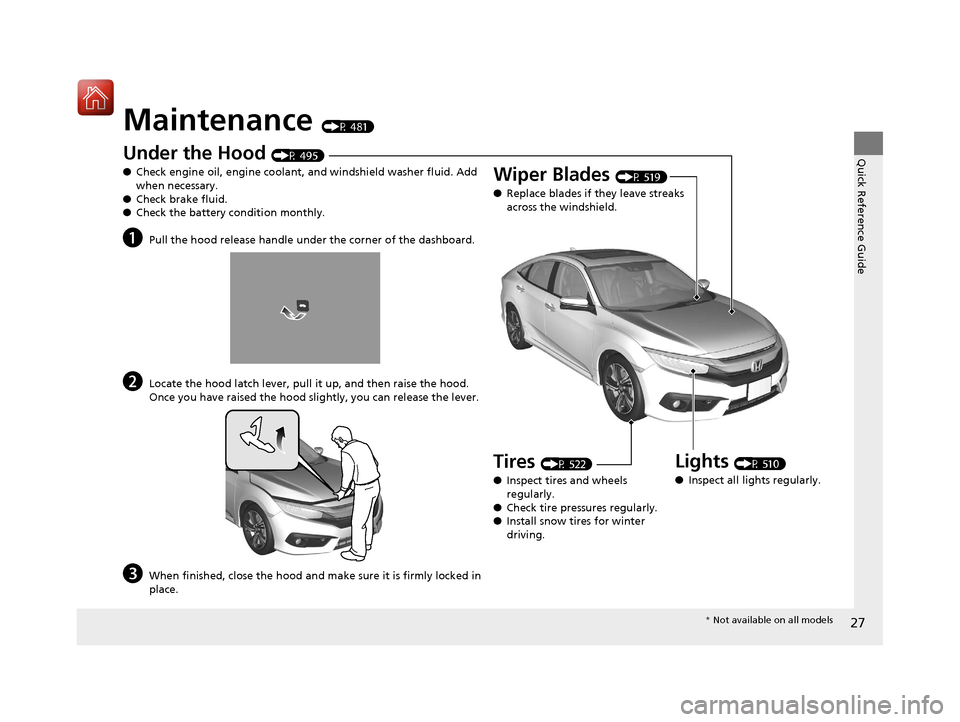

Maintenance (P 481)
Under the Hood (P 495)
● Check engine oil, engine coolant, and windshield washer fluid. Add
when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the dashboard.
bLocate the hood latch lever, pull it up, and then raise the hood.
Once you have raised the hood slightly, you can release the lever.
cWhen finished, close the hood and make sure it is firmly locked in
place.
Lights (P 510)
● Inspect all lights regularly.
Wiper Blades (P 519)
● Replace blades if they leave streaks
across the windshield.
Tires (P 522)
● Inspect tires and wheels
regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 27 ページ ２０１６年８月３１日　水曜日　午後６時５分

28
Quick Reference Guide

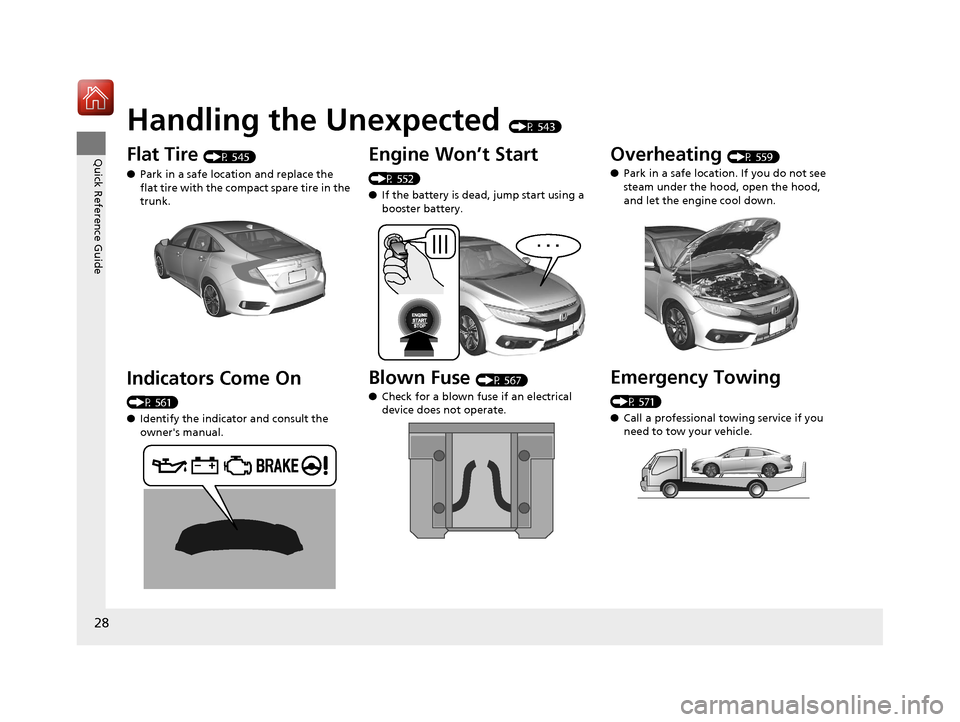

Handling the Unexpected (P 543)
Flat Tire (P 545)
● Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
Indicators Come On
(P 561)
●Identify the indicator and consult the
owner's manual.
Engine Won’t Start
(P 552)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 567)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 559)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P 571)
●Call a professional towing service if you
need to tow your vehicle.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 28 ページ ２０１６年８月３１日　水曜日　午後６時５分

29
Quick Reference Guide

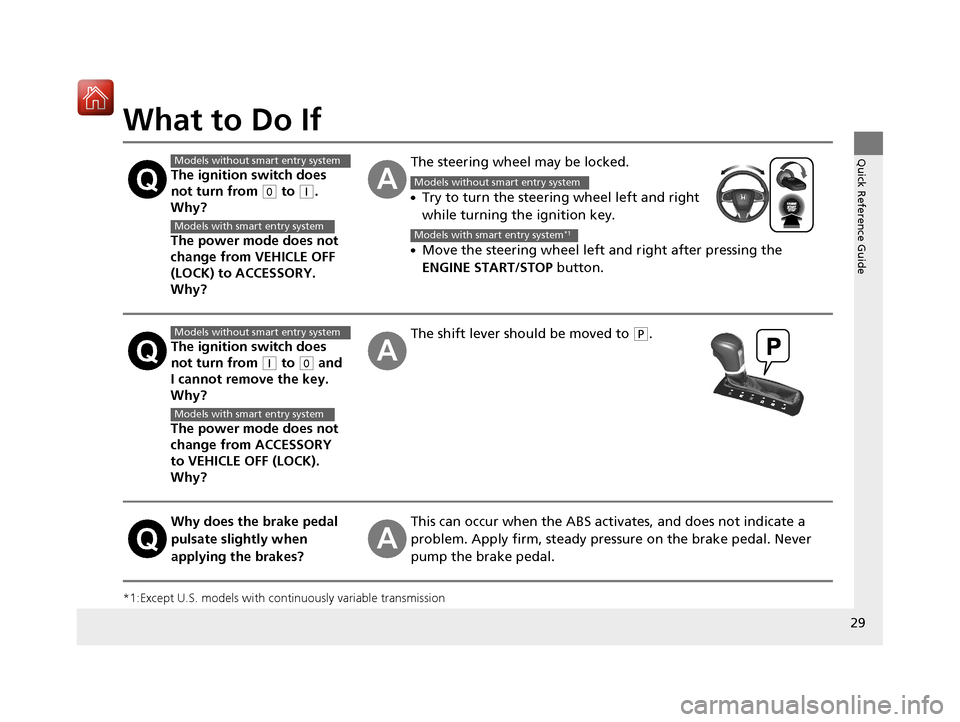

What to Do If
*1:Except U.S. models with continuously variable transmission
The ignition switch does
not turn from
(0 to (q.
Why?
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
The steering wheel may be locked.
●Try to turn the steering wheel left and right
while turning the ignition key.
●Move the steering wheel left and right after pressing the
ENGINE START/STOP button.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 29 ページ ２０１６年８月３１日　水曜日　午後６時５分
