air conditioning HONDA CIVIC 2023 Owners Manual

23
Quick Reference Guide

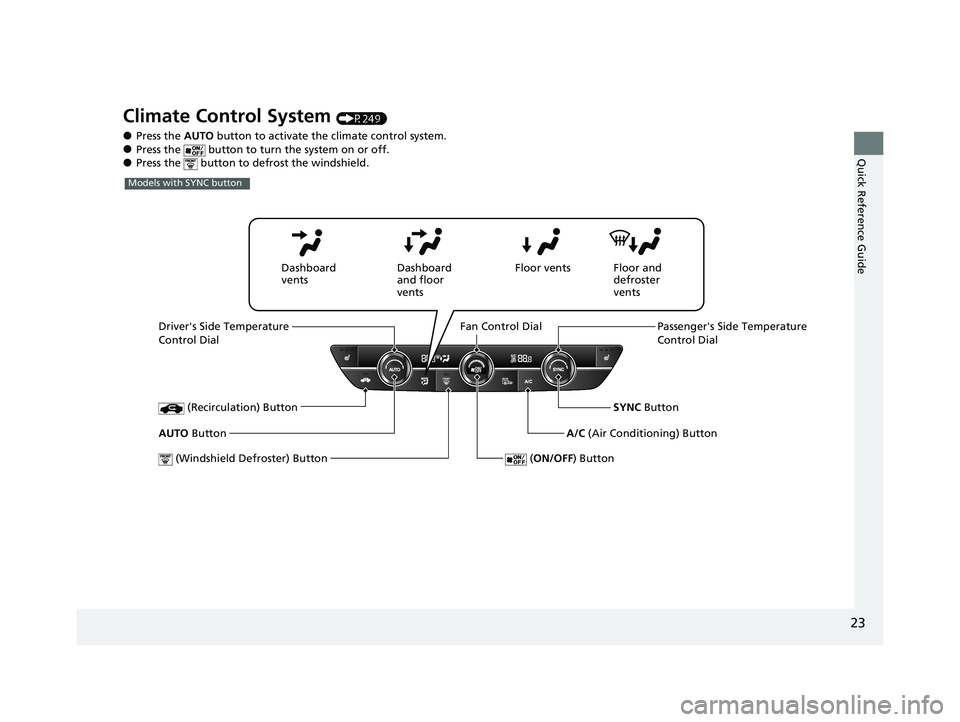

Climate Control System (P249)
●Press the AUTO button to activate th e climate control system.●Press the button to turn the system on or off.●Press the button to de frost the windshield.
Fan Control Dial
(Windshield Defroster) ButtonDriver's Side Temperature
Control Dial (Recirculation) Button
(ON/OFF ) Button
AUTO Button A/C (Air Conditioning) Button
Dashboard
vent
s D

ashboard
and floor
vents Floor vents Floor and
defroster
vents
Passenger's Side Temperature
Control D ial
SYNC Button
Models with SYNC button
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 23 ページ ２０２２年６月２３日　木曜日　午後９時２８分

24
Quick Reference Guide
(Windshield Defroster) Button
(Recirculation) Button
Fan Control Dial
Temperature Control Dial
(ON/OFF) Button
AUTO Button A/C
(Air Conditioning) Button
Dashboard
vent
s Dashboard
and floor
ven

tsFloor vents Floor and
defroster
vents

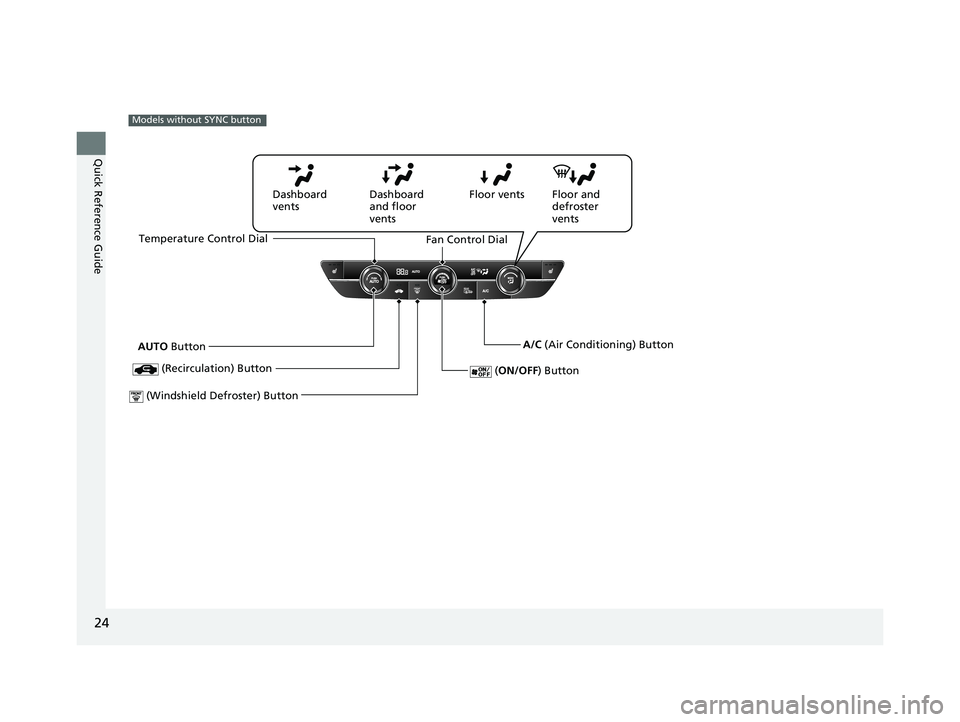

Models without SYNC button
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 24 ページ ２０２２年６月２３日　木曜日　午後９時２８分

249Continued
Controls

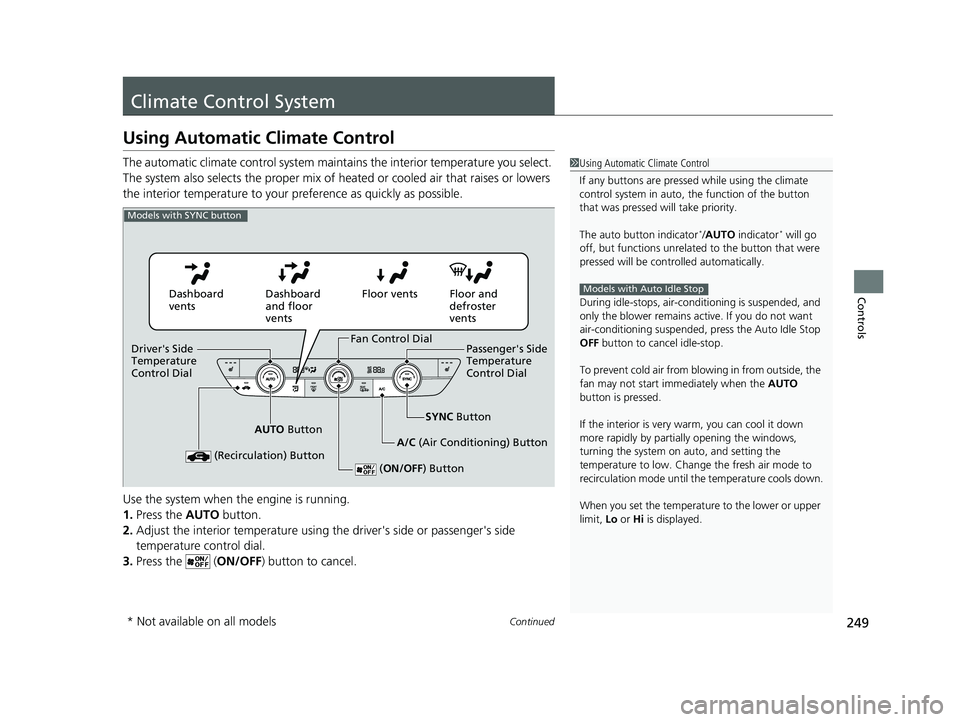

Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver's side or passenger's side
temperature control dial.
3. Press the ( ON/OFF) button to cancel.1Using Automatic Climate Control
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The auto button indicator
*/AUTO indicator* will go
off, but functions unrelated to the button that were
pressed will be cont rolled automatically.
During idle-stops, air-conditioning is suspended, and
only the blower remains ac tive. If you do not want
air-conditioning suspended, press the Auto Idle Stop
OFF button to cancel idle-stop.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
Models with Auto Idle Stop
Models with SYNC button
Dashboard
vents Dashboard
and floor
ventsFloor vents Floor and
defroster
vents
AUTO Button SYNC
Button
A/C (Air Conditioning) Button
(Recirculation) Button
( ON/OFF) Button
Fan Control Dial
Driver's Side
Temperature
Control Dial Passenger's Side
Temperature
Control Dial
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 249 ページ ２０２２年６月２３日　木曜日　午後９時２８分

uuClimate Control System uUsing Automatic Climate Control
250
Controls
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
3. Press the ( ON/OFF) button to cancel.

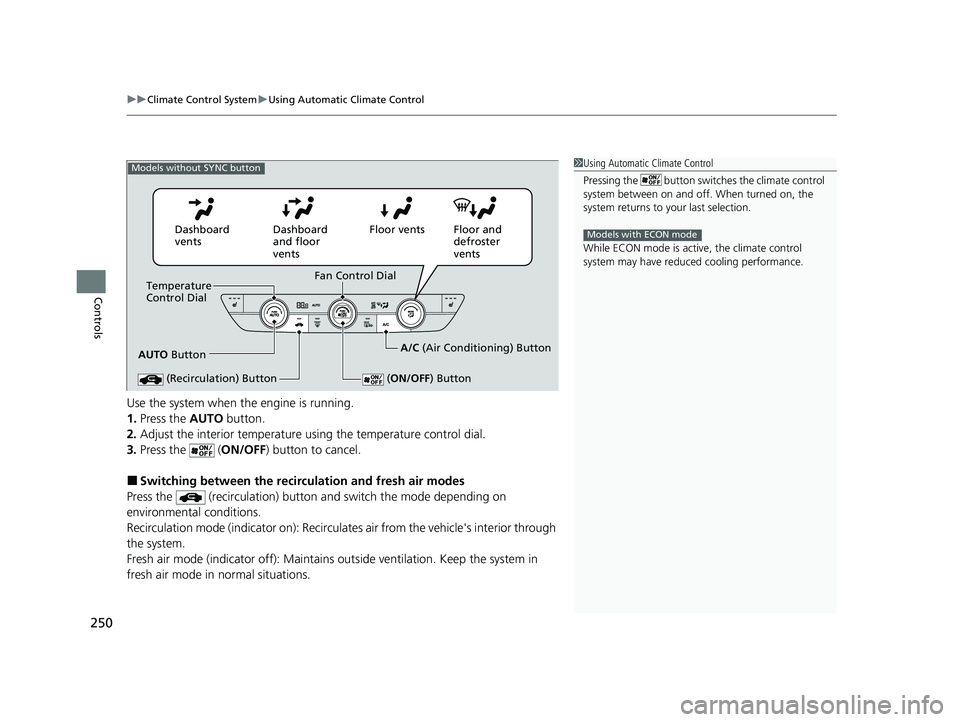

■Switching between the recirc ulation and fresh air modes
Press the (recirculation) button and switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle's interior through
the system.
Fresh air mode (indicator off): Maintains ou tside ventilation. Keep the system in
fresh air mode in normal situations.
1 Using Automatic Climate Control
Pressing the button switches the climate control
system between on and off. When turned on, the
system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.
Models with ECON mode
Models without SYNC button
AUTO Button
Temperature
Control Dial
(Recirculation) Button
(ON/OFF ) Button
Fan Control Dial
Dashboard
vents
Dashboard
and floor
ventsFloor vents Floor and
defroster
vents
A/C (Air Conditioning) Button
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 250 ページ ２０２２年６月２３日　木曜日　午後９時２８分

Continued251
uuClimate Control System uUsing Automatic Climate Control
Controls
Pressing the (windshield defroster) button
turns the air conditioning system on and
automatically switches th e system to fresh air
mode.
Press the button again to turn off, the
system returns to the previous settings.

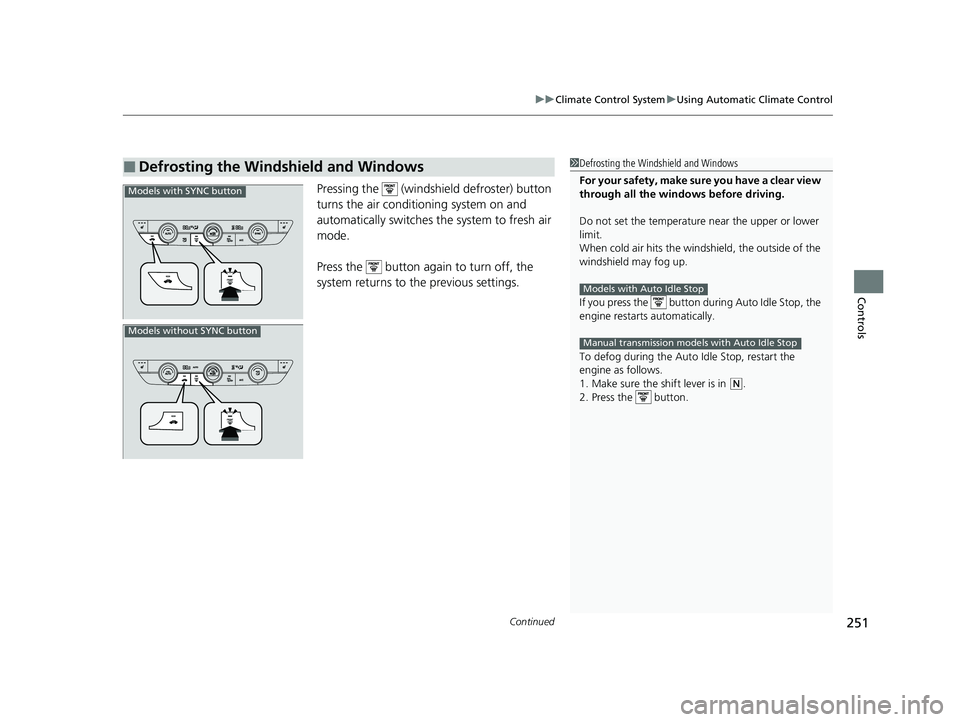

■Defrosting the Windshield and Windows1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If you press the button during Auto Idle Stop, the
engine restarts automatically.
To defog during the Auto Idle Stop, restart the
engine as follows.
1. Make sure the shift lever is in
( N.
2. Press the button.
Models with Auto Idle Stop
Manual transmission models with Auto Idle Stop
Models with SYNC button
Models without SYNC button
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 251 ページ ２０２２年６月２３日　木曜日　午後９時２８分

750
Maintenance

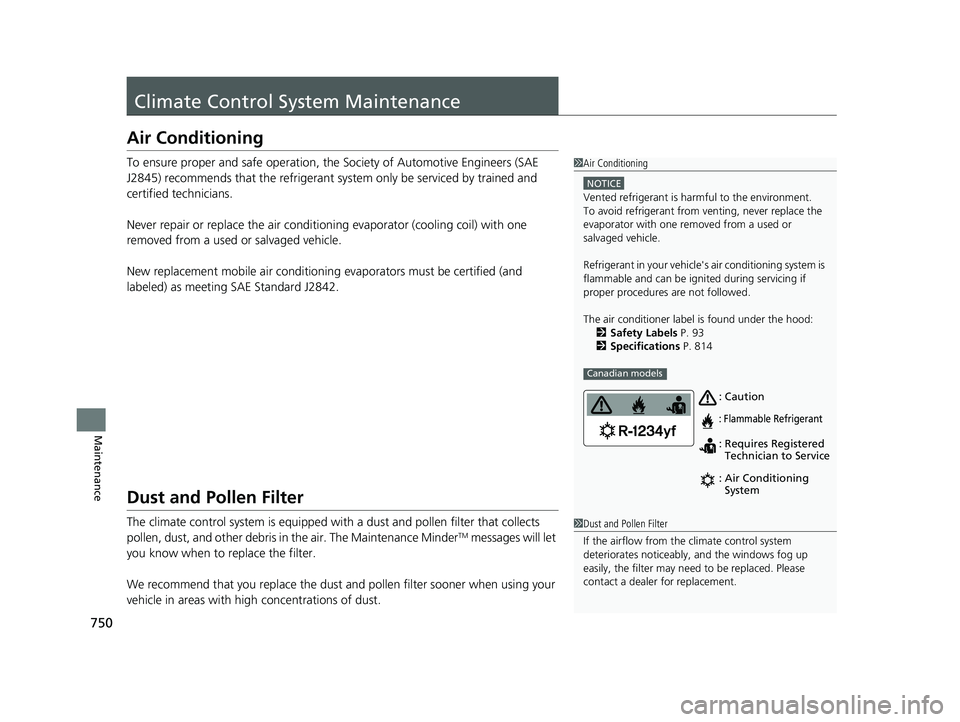

Climate Control System Maintenance
Air Conditioning
To ensure proper and safe operation, th e Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant sy stem only be serviced by trained and
certified technicians.
Never repair or replace the air conditioning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.
New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.
Dust and Pollen Filter
The climate control system is equipped wi th a dust and pollen filter that collects
pollen, dust, and other debris in the air. The Maintenance MinderTM messages will let
you know when to replace the filter.
We recommend that you replace the dust and pollen filter sooner when using your
vehicle in areas with high concentrations of dust.
1Air Conditioning
NOTICE
Vented refrigerant is harmful to the environment.
To avoid refrigerant from venting, never replace the
evaporator with one re moved from a used or
salvaged vehicle.
Refrigerant in your vehicle' s air conditioning system is
flammable and can be igni ted during servicing if
proper procedures are not followed.
The air conditioner labe l is found under the hood:
2 Safety Labels P. 93
2 Specifications P. 814
Canadian models
: Caution
: Flammable Refrigerant
:
: Requires Registered
Technician to Service
Air Conditioning
System
1
Dust and Pollen Filter
If the airflow from the climate control system
deteriorates noticeably, and the windows fog up
easily, the filter may need to be replaced. Please
contact a dealer for replacement.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 750 ページ ２０２２年６月２３日　木曜日　午後９時２８分

814
Information

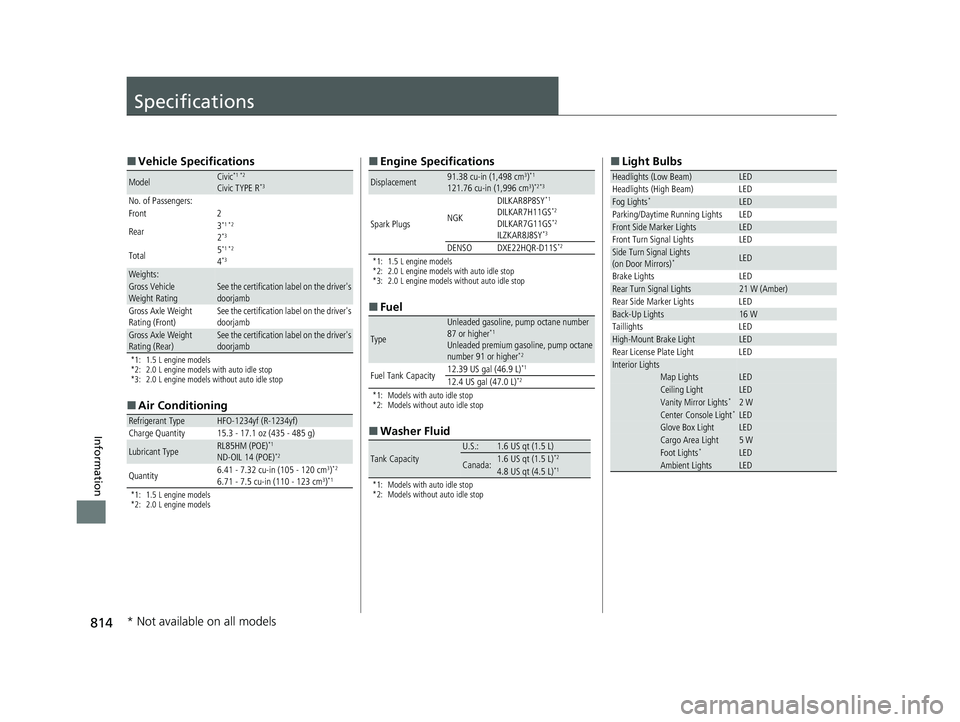

Specifications
■Vehicle Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models with auto idle stop
*3: 2.0 L engine models without auto idle stop
■Air Conditioning
*1: 1.5 L engine models
*2: 2.0 L engine models
ModelCivic*1 *2
Civic TYPE R*3
No. of Passengers:
Front 2
Rear 3
*1 *2
2*3
Total5*1 *2
4*3
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver's
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 15.3 - 17.1 oz (435 - 485 g)
Lubricant TypeRL85HM (POE)*1
ND-OIL 14 (POE)*2
Quantity 6.41 - 7.32 cu-in (105 - 120 cm3)*2
6.71 - 7.5 cu-in (110 - 123 cm3)*1
■
Engine Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models with auto idle stop
*3: 2.0 L engine models without auto idle stop
■Fuel
*1: Models with auto idle stop
*2: Models without auto idle stop
■Washer Fluid
*1: Models with auto idle stop
*2: Models without auto idle stop
Displacement91.38 cu-in (1,498 cm3)*1
121.76 cu-in (1,996 cm3)*2*3
Spark Plugs NGKDILKAR8P8SY
*1
DILKAR7H11GS*2
DILKAR7G11GS*2
ILZKAR8J8SY*3
DENSODXE22HQR-D11S*2
Type
Unleaded gasoline, pump octane number
87 or higher*1
Unleaded premium gasoline, pump octane
number 91 or higher*2
Fuel Tank Capacity
12.39 US gal (46.9 L)*1
12.4 US gal (47.0 L)*2
Tank CapacityU.S.:1.6 US qt (1.5 L)
Canada:1.6 US qt (1.5 L)*2
4.8 US qt (4.5 L)*1
■
Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Fog Lights*LED
Parking/Daytime Running Lights LED
Front Side Marker LightsLED
Front Turn Signal Lights LED
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights LED
Rear Turn Signal Lights21 W (Amber)
Rear Side Marker Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap LightsLEDCeiling LightLEDVanity Mirror Lights*2 WCenter Console Light*LEDGlove Box LightLEDCargo Area Light5 WFoot Lights*LEDAmbient LightsLED
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 814 ページ ２０２２年６月２３日　木曜日　午後９時２８分

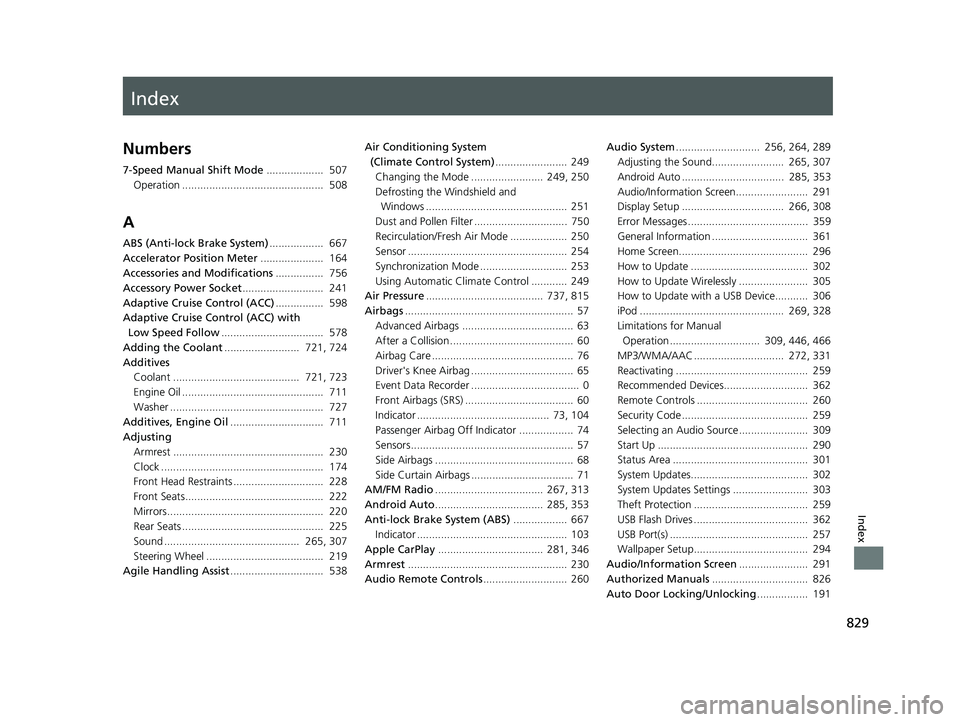

Index
829
Index
Index
Numbers
7-Speed Manual Shift Mode................... 507
Operation ............................................... 508
A
ABS (Anti-lock Brake System) .................. 667
Accelerator Position Meter ..................... 164
Accessories and Modifications ................ 756
Accessory Power Socket ........................... 241
Adaptive Cruise Control (ACC) ................ 598
Adaptive Cruise Control (ACC) with Low Speed Follow .................................. 578
Adding the Coolant ......................... 721, 724
Additives Coolant .......................................... 721, 723
Engine Oil ............................................... 711
Washer ................................................... 727
Additives, Engine Oil ............................... 711
Adjusting Armrest .................................................. 230
Clock ...................................................... 174
Front Head Restraints .............................. 228
Front Seats.............................................. 222
Mirrors.................................................... 220
Rear Seats ............................................... 225
Sound ............................................. 265, 307
Steering Wheel ....................................... 219
Agile Handling Assist ............................... 538 Air Conditioning System
(Climate Control System) ........................ 249
Changing the Mode ........................ 249, 250
Defrosting the Windshield and Windows ............................................... 251
Dust and Pollen Filter ............................... 750
Recirculation/Fresh Air Mode ................... 250
Sensor ..................................................... 254
Synchronization Mode ............................. 253
Using Automatic Climate Control ............ 249
Air Pressure ....................................... 737, 815
Airbags ........................................................ 57
Advanced Airbags ..................................... 63
After a Collision ......................................... 60
Airbag Care ............................................... 76
Driver's Knee Airbag .................................. 65
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 60
Indicator ............................................ 73, 104
Passenger Airbag Off Indicator .................. 74
Sensors ...................................................... 57
Side Airbags .............................................. 68
Side Curtain Airbags .................................. 71
AM/FM Radio .................................... 267, 313
Android Auto .................................... 285, 353
Anti-lock Brake System (ABS) .................. 667
Indicator .................................................. 103
Apple CarPlay ................................... 281, 346
Armrest ..................................................... 230
Audio Remote Controls ............................ 260 Audio System
............................ 256, 264, 289
Adjusting the Sound........................ 265, 307
Android Auto .................................. 285, 353
Audio/Information Screen........................ 291
Display Setup .................................. 266, 308
Error Messages ........................................ 359
General Information ................................ 361
Home Screen........................................... 296
How to Update ....................................... 302
How to Update Wirelessly ....................... 305
How to Update with a USB Device........... 306
iPod ................................................ 269, 328
Limitations for Manual Operation .............................. 309, 446, 466
MP3/WMA/AAC .............................. 272, 331
Reactivating ............................................ 259
Recommended Devices............................ 362
Remote Controls ..................................... 260
Security Code .......................................... 259
Selecting an Audio Source ....................... 309
Start Up .................................................. 290
Status Area ............................................. 301
System Updates....................................... 302
System Updates Settings ......................... 303
Theft Protection ...................................... 259
USB Flash Drives ...................................... 362
USB Port(s) .............................................. 257
Wallpaper Setup...................................... 294
Audio/Information Screen ....................... 291
Authorized Manuals ................................ 826
Auto Door Locking/Unlocking ................. 191
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 829 ページ ２０２２年６月２３日　木曜日　午後９時２８分
