This light alerts you that
the passenger’s side airbag
has been automatically shut off. A f ront seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutof f
system f rom working properly.
When you turn the ignition ON (II),
the indicator should light brief ly and
goout(seepage ).Ifitdoesn’t
light, stays on, or comes on while
driving without a passenger in the
f ront seat, have the system checked.
If a small-statured adult leans
sideways, or larger adult slouches
and leans sideways into the
deployment path of the side airbag,
the system may also shut of f the side
airbag.
If the side airbag indicator light
comes on, you should have the
passenger sit upright. Once the
passenger is out of the deployment
path of the side airbag, the system
will turn the airbag back on and the
light will go out.
To reduce the risk of injury f rom an
inf lating side airbag, your car has an
automatic cutoff system for the
passenger’s side airbag.
Although Honda does not encourage
children to ride in the f ront, this
system is designed to shut of f the
side airbag if a child leans sideways
and the child’s head is in the side
airbag deployment path.
It does not mean there is a problem
with your side airbags. It means that
thesideairbagcutoff systemhas
activated to prevent the side airbag
f rom deploying.
61
Only on models equipped with side
airbags
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
How the Side A irbag Cutof f
Indicator L ight Works
52

Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury. See page f or f urther inf ormation
and precautions relating to your
airbags.
If rain or spilled water
soaks into a seat-back, it can
prevent the side airbag system
f rom working properly. Improperly
replacing or covering f ront seat-
back covers can prevent your side
airbags f rom inf lating during a
collision.
Your f ront and side airbag systems
(if equipped) are virtually
maintenance-f ree, and there are no
parts you can saf ely service.
However, you must have your car
serviced if :
Any
airbag that has deployed must be
replaced along with the seat belt
tensioners, control unit and other
related parts. Do not try to remove
or replace any airbag by yourself.
This must be done by a Honda
dealer or a knowledgeable body
shop.
Take your car to an
authorized Honda dealer as soon
as possible. If you ignore this
indication, the airbags might not
inf late when you need them. 170
Airbag Service Additional Saf ety Precautions
Donotattempttodeactivateyour
airbags.
Do not t amper wit h airbagcomponent s or wiring f or any
reason.
Do not expose t he f ront seat -backsto water. Do not cover or replace f ront seat -
back covers wit hout consult ing aHonda dealer.
Your airbags ever inf late.
T he SRS indicat or light alert s yout o a problem.
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety53

Push the button.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
Your car’s exhaust contains carbon
monoxide gas. You should have no
problem with carbon monoxide
entering the car in normal driving if
you maintain your car properly.
Have the exhaust system inspected
f or leaks whenever:
The car is raised f or an oil change.
You notice a change in the sound
of the exhaust.
Thecarwasinanaccidentthat
may have damaged the underside. If you must sit in your parked car,
even in an unconf ined area, with the
engine running, adjust the heating
and cooling system as f ollows:
With the trunk lid open, air f low can
pull exhaust gas into your car’s
interior and create a hazardous
condition. If you must drive with the
trunk lid open, open all the windows
and set the heating and cooling
system as shown below. 1. 2.3.4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety54
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even killyou.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels caref ully.
If a label comes of f or becomes hard
to read, contact your Honda dealer
f or a replacement.
CONT INUED
U.S. modelsCanadian models
U.S. models only
Saf ety L abels
Driver and Passenger Saf ety55
RADIATOR CAP SUN VISOR
DASHBOARD

On models without side airbagsOn models with side airbags
Saf ety L abels
Driver and Passenger Saf ety56
HOOD

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your Honda. All the essential
controls are within easy reach............................
Control Locations . 58 ...............................
Indicator Lights . 59
.............................................
Gauges . 66
...............................
Speedometer . 66
.................................
Tachometer . 66
.....................................
Odometer . 66
...................................
Trip Meter . 67
..................................
Fuel Gauge . 67
...................
Temperature Gauge . 68
Controls Near the Steering .......................................
Wheel . 69
...................................
Headlights . 70
............
Daytime Running Lights . 71
....
Instrument Panel Brightness . 71
................................
Turn Signals . 72
.....................
Windshield Wipers . 72
..................
Windshield Washers . 73
..........................
Hazard Warning . 74
.............
Rear Window Def ogger . 74
......
Steering Wheel Adjustment . 75
...............................
Keys and Locks . 76
..............................................
Keys . 76
....................
Immobilizer System . 77
............................
Ignition Switch . 78
..................................
Door Locks . 80
......................
Power Door Locks . 81
...................
Remote Transmitter . 81 ...........................................
Trunk . 84
........
Emergency Trunk Opener . 85
............................
Seat Adjustments . 86
.............
Front Seat Adjustments . 86
Driver’s Seat Height
..............................
Adjustment . 87
................
Driver’s Seat Armrest . 87
........................
Rear Seat Access . 87
..........................
Head Restraints . 89
...........................
Folding Rear Seat . 90
..............................
Power Windows . 92
.........................................
Moonroof . 94
.............................................
Mirrors . 95
....
Adjusting the Power Mirrors . 95
.................................
Parking Brake . 96
........................................
Glove Box . 97
.............................
Beverage Holder . 98
...................
Console Compartment . 98
..........................................
Coin Box . 99
.................................
Center Pocket . 99
...............
Accessory Power Socket . 99
......................................
Coat Hook . 100
...............................
Interior Lights . 100
..............................
Ceiling Light . 100
...................................
Spotlights . 101
........................
Courtesy Lights . 102
Instruments and Controls
Inst rument s and Cont rols57

Control L ocations
Inst rument s and Cont rols58
AAUUDDIIOOSSYYSSTTEEMM
DDIIGGIITTAALLCCLLOOCCKK
HHEEAATTIINNGG//CCOOOOLLIINNGGCCOONNTTRROOLLSS
((PP..7777))
CCRRUUIISSEECCOONNTTRROOLL
PPOOWWEERRDDOOOORRLLOOCCKKSSWWIITTCCHH
PPOOWWEERRWWIINNDDOOWWSSWWIITTCCHHEESS
HHOOOODDRREELLEEAASSEEHHAANNDDLLEE
MMOOOONNRROOOOFF
FFUUEELLFFIILLLLDDOOOORRRREELLEEAASSEE
TTRRUUNNKKRREELLEEAASSEE
((PP..116633))((PP..116644))
((PP..9944))((PP..9955))
MMIIRRRROORRCCOONNTTRROOLLSS((PP..110044))
((PP..111122,,112244,,113366))
((PP..111155,,112277,,113399))
CCRRUUIISSEECCOONNTTRROOLLBBUUTTTTOONNSS
((PP..8844))
((PP..9922))
((PP..115566))
((PP..8811))

ÎÎ
ÎÎ
ÎÎ
Î Î
CONT INUED
12The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Shif t Lever Position Indicator f or the HX is shown on page 185 .
Indicator L ights
Inst rument s and Cont rols
U.S.:HX,LX,EX,Canada:LX,Si
59
SSUUPPPPLLEEMMEENNTTAALLRREESSTTRRAAIINNTTSSYYSSTTEEMMIINNDDIICCAATTOORRTTRRUUNNKK--OOPPEENNIINNDDIICCAATTOORR
MMAALLFFUUNNCCTTIIOONNIINNDDIICCAATTOORRLLAAMMPP
LLOOWWFFUUEELLIINNDDIICCAATTOORR
((PP..6611))
((PP..6622))
((PP..6633))
((PP..6611))
((PP..6633))
((PP..6633))
((PP..6622))
((PP..6644))
PPAARRKKIINNGGBBRRAAKKEEAANNDDBBRRAAKKEESSYYSSTTEEMMIINNDDIICCAATTOORR
CCRRUUIISSEECCOONNTTRROOLLIINNDDIICCAATTOORR
MMAAIINNTTEENNAANNCCEERREEQQUUIIRREEDDIINNDDIICCAATTOORR
((PP..228800))
AANNTTII--LLOOCCKKBBRRAAKKEESSYYSSTTEEMMIINNDDIICCAATTOORR
IIMMMMOOBBIILLIIZZEERRSSYYSSTTEEMMIINNDDIICCAATTOORR
CCHHAARRGGIINNGGSSYYSSTTEEMMIINNDDIICCAATTOORR
((PP..6644))
((PP..227799))
LLOOWWOOIILLPPRREESSSSUURREEIINNDDIICCAATTOORR((PP..227788))
SSHHIIFFTTLLEEVVEERRPPOOSSIITTIIOONNIINNDDIICCAATTOORR((LLXX,,EEXX))
HHIIGGHHBBEEAAMMIINNDDIICCAATTOORR((PP..6633))
SSEEAATTBBEELLTTRREEMMIINNDDEERRLLIIGGHHTT((PP..6611))
SSIIDDEEAAIIRRBBAAGGOOFFFFIINNDDIICCAATTOORR11
22

Î
ÎÎ
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in thetext.
Indicator L ights
Inst rument s and Cont rols
DX
60
LLOOWWOOIILLPPRREESSSSUURREEIINNDDIICCAATTOORR
SSUUPPPPLLEEMMEENNTTAALLRREESSTTRRAAIINNTTSSYYSSTTEEMMIINNDDIICCAATTOORRTTRRUUNNKK--OOPPEENNIINNDDIICCAATTOORR
MMAALLFFUUNNCCTTIIOONNIINNDDIICCAATTOORRLLAAMMPP
LLOOWWFFUUEELLIINNDDIICCAATTOORR
((PP..6611))((PP..6633))
((PP..6611))
((PP..6633))
((PP..6622))((PP..6633))
((PP..6644))
PPAARRKKIINNGGBBRRAAKKEEAANNDDBBRRAAKKEESSYYSSTTEEMMIINNDDIICCAATTOORRHHIIGGHHBBEEAAMMIINNDDIICCAATTOORR
CCHHAARRGGIINNGGSSYYSSTTEEMMIINNDDIICCAATTOORR
IIMMMMOOBBIILLIIZZEERRSSYYSSTTEEMMIINNDDIICCAATTOORR
((PP..227788))
((PP..227799))
((PP..228800))
MMAAIINNTTEENNAANNCCEERREEQQUUIIRREEDDIINNDDIICCAATTOORR((PP..6644))
((PP..6611))SSEEAATTBBEELLTTRREEMMIINNDDEERRLLIIGGHHTTSSIIDDEEAAIIRRBBAAGGOOFFFFIINNDDIICCAATTOORR

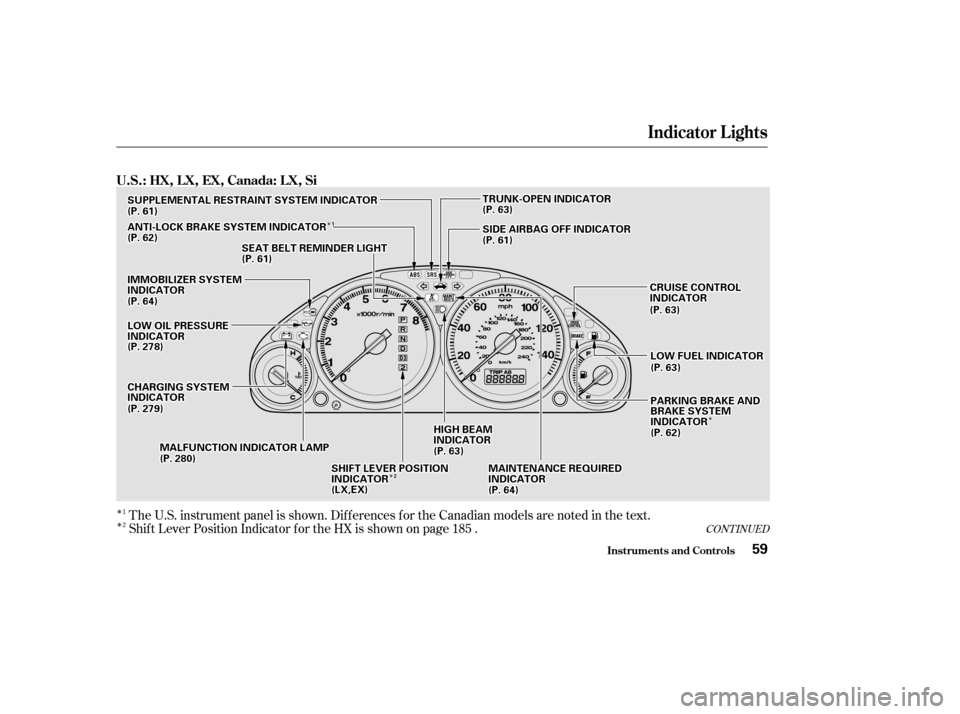

The instrument panel has many
indicators to give you important
inf ormation about your car.
This indicator lights when you turn
the ignition switch ON (II). It is a
reminder to you and your passengers
to protect yourselves by f astening
the seat belts. A beeper also sounds
if you have not fastened your seat
belt.
If you do not f asten your seat belt,
the beeper will stop af ter a f ew
seconds but the light stays on until
you do. Both the light and the beeper
stay of f if you f asten your seat belt
bef ore turning on the ignition.This indicator lights when you turn
the ignition switch ON (II). If it
comes on at any other time, it
indicates a potential problem with
your f ront airbags or automatic seat
belt tensioners. On models equipped
with side airbags, this light will also
alert you to a potential problem with
your side airbags or passenger’s side
airbag automatic cutoff system. For
complete inf ormation, see page .
This indicator lights when you turn
the ignition switch ON (II). If it
comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For complete inf ormation, see page
. If this light comes on when the
engine is running, the battery is not
being charged. For complete
inf ormation, see page .
The engine can be severely damaged
if this light f lashes or stays on when
the engine is running. For complete
inf ormation, see page .
51
52 279
278
CONT INUED
Only on models equipped with side airbags
Indicator L ights
Inst rument s and Cont rols
Seat Belt Reminder L ight Supplemental Restraint
System Indicator
Side A irbag Cutof f
IndicatorCharging System
Indicator
L ow Oil Pressure
Indicator
61
