HONDA CIVIC COUPE 2003 7.G Owners Manual

Ø Ø Ø ØØ Ø Ø Ø
ÌÎ
Î ÎÌ
Maint enance198
See timing belt on page for replacement information under
special driving conditions.
See dust and pollen filter on page for replacement information
under special driving conditions.
See information on maintenance and emissions warranty, last
column, page .
Check engine oil and coolant at each fuel stop.
Check and adjust valve clearance, cold engine, only if noisy.
NOTE:
193
1: 2:
: 229
231
6yrs
105,000 mi/168,000 km
105,000 mi/168,000 km/6 yrs
110,000 mi/176,000 km
110,000 mi/176,000 km
110,000 mi/176,000 km/6 yrs
110,000 mi/176,000 km/7 yrs
115,000 mi/184,000 km/6-½ yrs
120,000 mi/192,000 km
120,000 mi/192,000 km/6 yrs
120,000 mi/192,000 km/7 yrs
120,000 mi/192,000 km/10 yrs Replace brake fluid (indepeudent of mileage)
Do item in E.
Do item in A.
Replace spark plugs.
Inspect valva clearance, cold engine.
Do items in A, B. Replace timing belt , inspect auto-tensioner,
and water pump. Inspect idle speed.
Do item in A.
Do item in E. Replace transmission fluid (M/T).
DoitemsinA,B,C,D. Replace transmission fluid (A/T).
Replace engine coolant then replace every
60,000 mi/96,000 km/5 yrs.
2
Maintenance Schedule for Severe Conditions (listed by distance/time)
——y

y
(%y
y

CONT INUED
Required Maintenance Record (f or Normal and Severe Schedules)
Maint enance199
5,000 mi
10,000 mi
15,000 mi
20,000 mi
25,000 mi
30,000 mi35,000 mi
40,000 mi
45,000 mi
50,000 mi
55,000 mi
60,000 mi
You or the servicing dealer can record all completed maintenance here, whether you follow the sc
hedule for normal conditions (page ) or severe
conditions (page ). Keep the receipts for all work done on your vehicle.
Signature or dealer stamp Signature or dealer stamp
8,000 km
16,000 km
24,000 km
32,000 km
(or 1 year)
40,000 km
48,000 km 56,000 km
64,000 km
(or 2 years)
72,000 km
80,000 km
88,000 km
96,000 km
(or 3 years)
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
DateDateDateDateDateDate
Date
Date
Date
Date
Date
Date 194
196
——y
y
(%yy

Required Maintenance Record (f or Normal and Severe Schedules)
Maint enance200
65,000 mi
70,000 mi
75,000 mi
80,000 mi
85,000 mi
90,000 mi95,000 mi
100,000 mi
105,000 mi
110,000 mi
115,000 mi
120,000 mi
Signature or dealer stamp
Signature or dealer stamp
104,000 km
112,000 km
120,000 km
128,000 km
(or 4 years)
136,000 km
144,000 km 152,000 km
160,000 km
(or 5 years)
168,000 km
176,000 km
184,000 km
192,000 km
(or 6 years)
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
DateDateDateDateDateDate Date
Date
Date
Date
Date
Date
——y
y
(%yy

µµµ µ
µ
µ
µ
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page .
Windshield washer f luid Check
the level in the reservoir monthly.
If weather conditions cause you to
use the washers f requently, check
the reservoir each time you stop
f or f uel. See page .
Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the page given.
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
turn signals, brake lights, and
license plate lights monthly. See
page .
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page
.
Automatic transmission Check
the f luid level monthly. See page .
Brakes Check the f luid level
monthly. See page . 160
161
213
214 217 232
239
Owner Maintenance Checks
Maint enance201
——y
y
(%yy

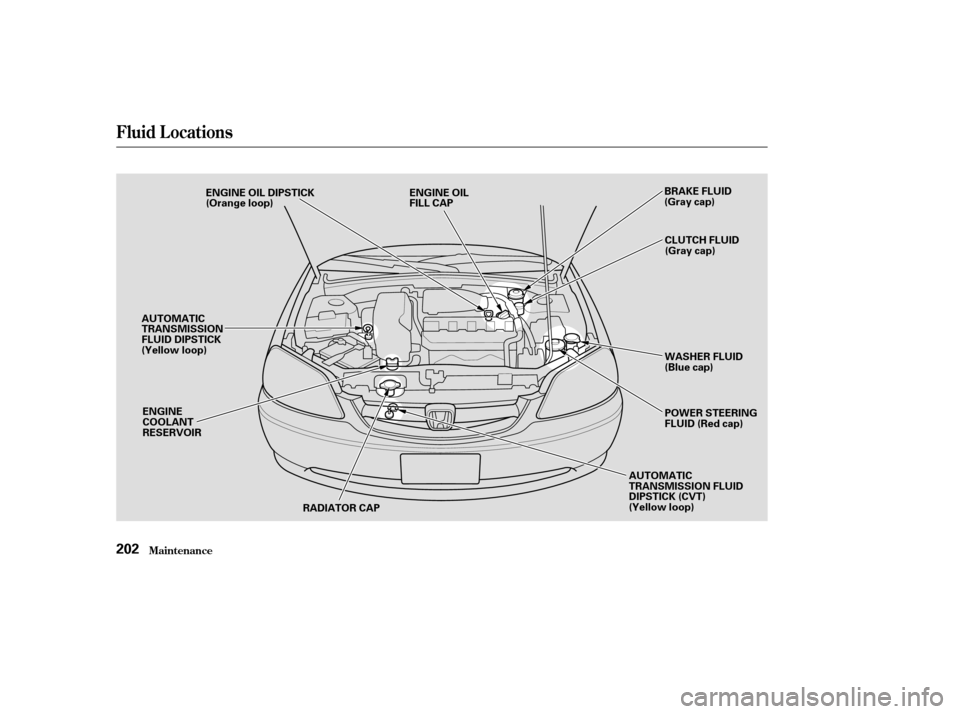

Fluid Locations
Maint enance202
ENGINE OIL
FILL CAPBRAKE FLUID
(Gray cap)
CLUTCH FLUID
(Gray cap)
WASHER FLUID
(Blue cap)
POWER STEERING
FLUID (Red cap)
AUTOMATIC
TRANSMISSION FLUID
DIPSTICK (CVT)
(Yellow loop)
RADIATOR CAP
ENGINE
COOLANT
RESERVOIR ENGINE OIL DIPSTICK
(Orange loop)
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
——y

y
(%yy

To add oil, unscrew and remove the
engine oil f ill cap on top of the valve
cover. Pour in the oil, and install the
engine oil f ill cap. Tighten it securely.
Wait a f ew minutes and recheck the
oil level. Do not f ill above the upper
mark; you could damage the engine.Oil is a major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade 5W-20
detergent oil displaying the API
Certif ication Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements.
Make sure the API Certif ication Seal
says ‘‘For Gasoline Engines.’’
Pour the oil slowly and caref ully so
you do not spill. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment. Honda Motor Oil is the pref erred
5W-20 lubricant f or your car. It is
highly recommended that you use
Honda Motor Oil in your car f or
optimum engine protection.
CONT INUED
Recommended Oil
A dding Oil
Engine Oil
Maint enance203

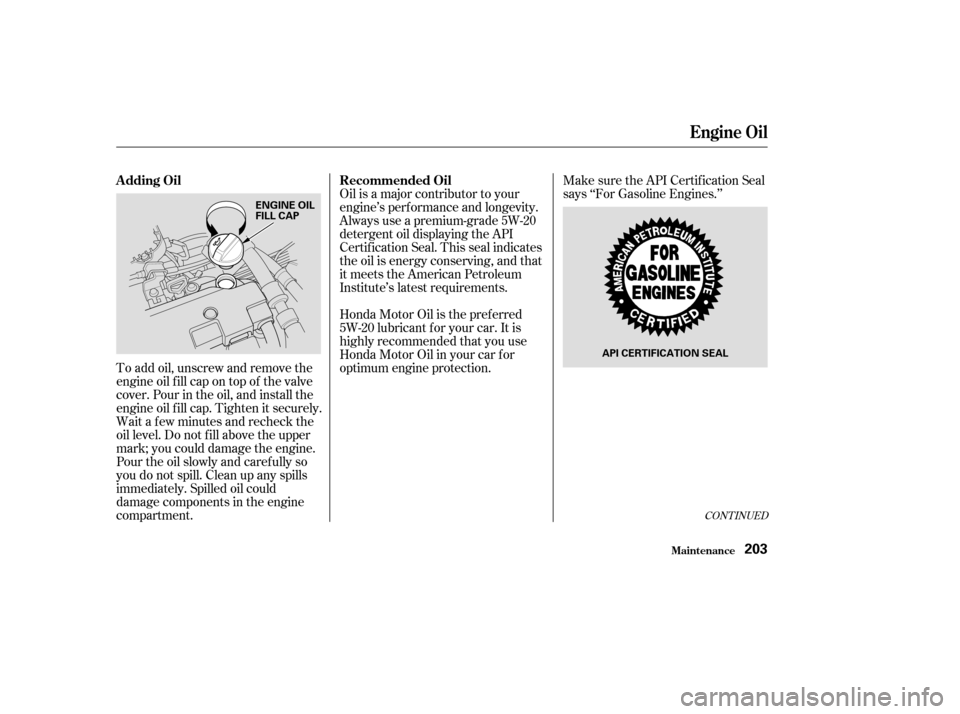

ENGINE OIL
FILL CAP
API CERTIFICATION SEAL
——y
y
(%yy

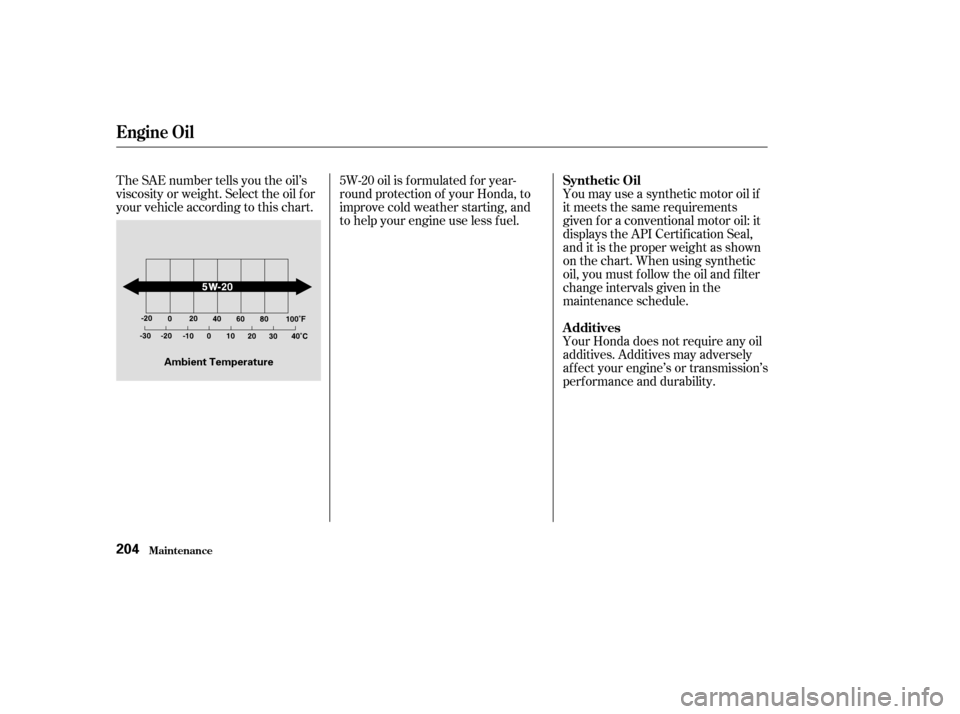

The SAE number tells you the oil’s
viscosity or weight. Select the oil f or
your vehicle according to this chart.You may use a synthetic motor oil if
it meets the same requirements
given f or a conventional motor oil: it
displays the API Certif ication Seal,
and it is the proper weight as shown
on the chart. When using synthetic
oil, you must f ollow the oil and f ilter
change intervals given in the
maintenance schedule.
Your Honda does not require any oil
additives. Additives may adversely
af f ect your engine’s or transmission’s
perf ormance and durability.
5W-20 oil is f ormulated f or year-
round protection of your Honda, to
improve cold weather starting, and
to help your engine use less f uel.
Engine Oil
Maint enance
Synthetic Oil
A dditives
204
Ambient Temperature
——y
y
(%yy

Remove the oil f ilter and let the
remaining oil drain. A special
wrench (available from your
Honda dealer) is required to
remove the f ilter.
Install a new oil f ilter according to
instructions that come with it.
Run the engine until it reaches
normal operating temperature,
then shut it off.
Open the hood and remove the
engine oil f ill cap. Remove the oil
drain bolt and washer f rom the
bottom of the engine. Drain the oil
into an appropriate container.
Always change the oil and f ilter
accordingtothetimeanddistance
(miles/kilometers) recommenda-
tions in the maintenance schedule.
The oil and f ilter collect contami-
nants that can damage your engine if
they are not removed regularly.
Changing the oil and f ilter requires
special tools and access f rom
underneath the car. The car should
be raised on a service station-type
hydraulic lif t f or this service. Unless
you have the knowledge and proper
equipment, you should have this
maintenance done by a skilled
mechanic.
1. 2.
4.
3.
CONT INUED
Changing the Oil and Filter
Engine Oil
Maint enance205

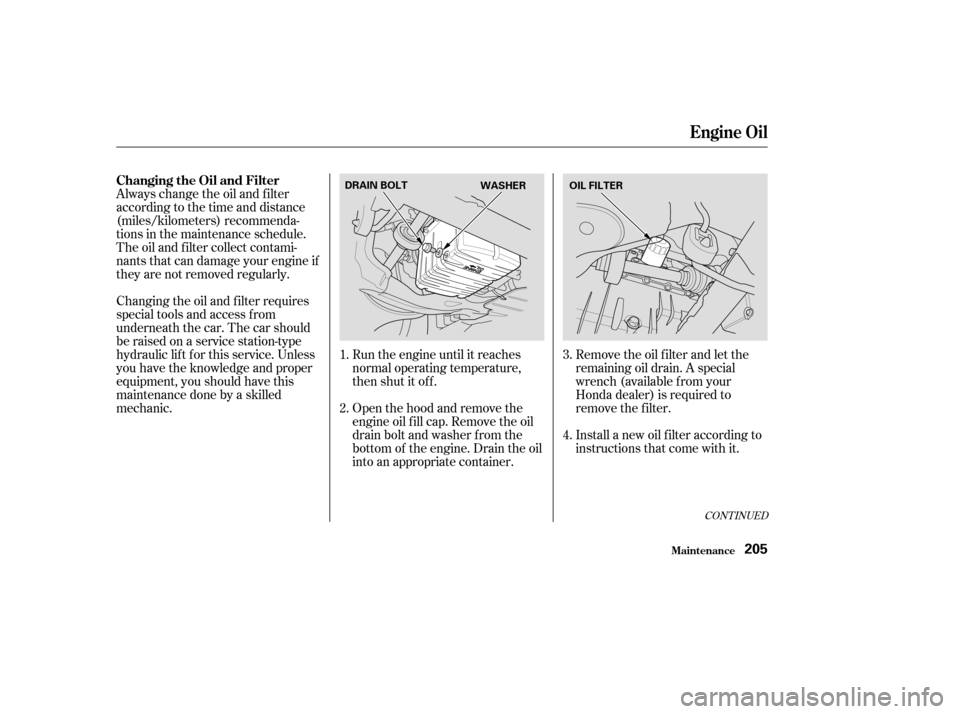

DRAIN BOLT
WASHEROIL FILTER
——y
y
(%yy

Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten it to:Replace the engine oil f ill cap.
Start the engine. The oil pressure
indicator light should go out within
f ive seconds. If it does not, turn of f
the engine and reinspect your
work.
Let the engine run f or several
minutes, then check the drain bolt
and oil f ilter f or leaks.
Turn of f the engine, let it sit f or
several minutes, then check the oil
level. If necessary, add oil to bring
the level to the upper mark on the
dipstick.
Refill the engine with the recom-
mended oil.
Engine oil change capacity
(including f ilter):
5. 6.
7. 8. 9.
(U.S.: DX, LX, Canada: DX, LX)
(U.S.: EX, HX, Canada: Si)
(U.S.: DX, LX, Canada: DX, LX)
(U.S.: EX, HX, Canada: Si)
Engine Oil
Maint enance206
33 lbf·ft (44 N·m , 4.5 kgf·m)
29 lbf·ft (39 N·m , 4.0 kgf·m)
3.4 US qt (3.2
)
3.7 US qt (3.5
) Improper disposal of engine oil can be
harmf ul to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.
——y

y
(%yy

If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system f or leaks.
The coolant you add should always
be a mixture of 50 percent antif reeze
and 50 percent water. Never add
straight antif reeze or plain water.If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
Make sure the engine and radiator
are cool.
Always use Honda All Season
Antif reeze/Coolant Type 2. This
coolant is pre-mixed with 50 percent
antif reeze and 50 percent water. It
does not require any additional
mixing.
If it is not available, you may use
another major-brand non-silicate
coolant as a temporary replacement.
Make sure it is a high-quality coolant
recommended f or aluminum engines.
However, continued use of any non-
Honda coolant can result in
corrosion, causing the cooling
system to malf unction or f ail. Have
the cooling system f lushed and
ref illed with Honda antif reeze/
coolant as soon as possible.
1.
CONT INUED
A dding Engine Coolant
Cooling Syst em
Maint enance207
RESERVE TANK
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
