µTo open the driver’s
window f ully, push the window
switch f irmly down and release it.
The window automatically goes all
the way down. To stop the window
f rom going all the way down, pull
back on the window switch brief ly.
If the MAIN switch is OFF, the
passenger windows cannot be raised
or lowered. Keep the MAIN switch
off whenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the
windows unintentionally. The moonroof can be tilted up in the
back f or ventilation, or it can be slid
back into the roof. Use the switch
under the lef t dashboard vent to
operate the moonroof .
To tilt up the back of the moonroof ,
press and hold the center button
( ). To close the moonroof ,
press and hold the top of the switch
( ). To open the moonroof ,press and hold the bottom of the
switch ( ).
On U.S. EX model, and Canada Si model
A UT O Moonroof
Inst rument s and Cont rols
Power Windows, Moonroof
82
MOONROOF SWITCH
TILT BUTTON
Opening or closing the
moonroof on someone’s hands
or fingers can cause seriousinjury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it.
If you try to open the moonroof in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or motor.
——y

y
(%yy

Move the selector switch to L
(driver’s side) or R (passenger’s
side).Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns of f the
adjustment switch so you can’t
move a mirror out of position by
accidentally bumping the switch.

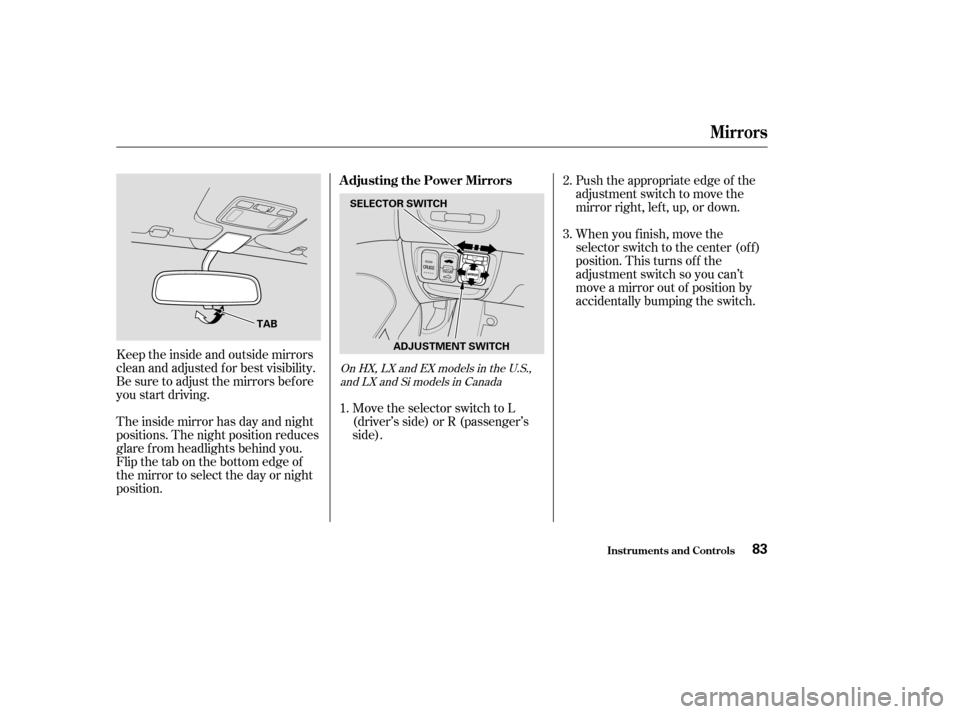

The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving. 3.
1. 2.
On HX, LX and EX models in the U.S.,
and LX and Si models in Canada
Adjusting the Power Mirrors
Inst rument s and Cont rols
Mirrors
83
SELECTOR SWITCH
ADJUSTMENT SWITCH
TAB
——y

y
(%yy

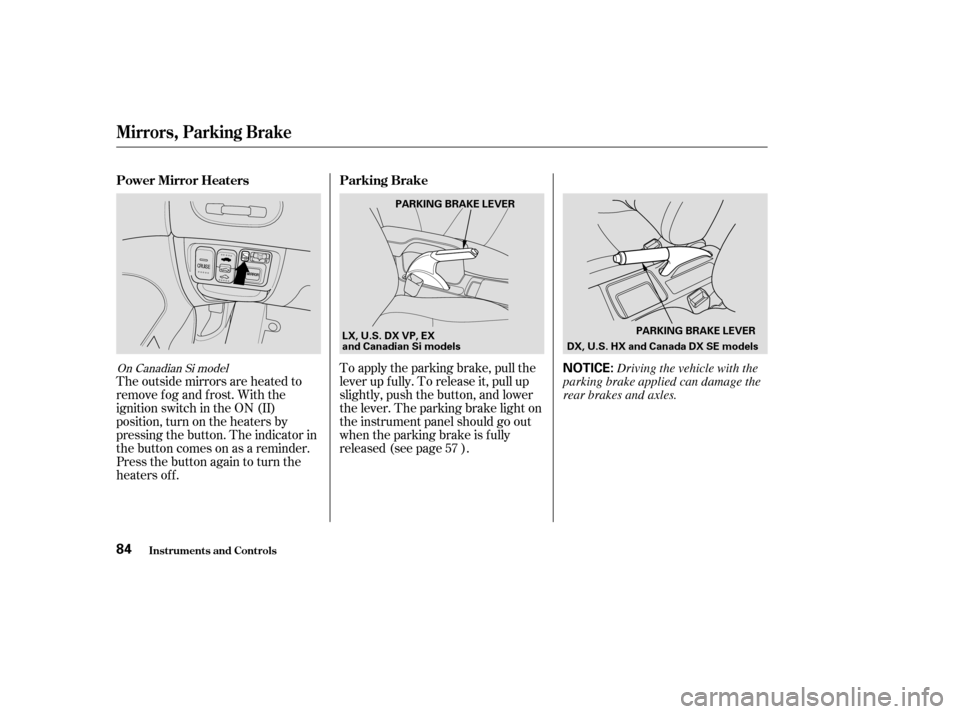

The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off.To apply the parking brake, pull the
lever up f ully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake light on
the instrument panel should go out
when the parking brake is f ully
released (see page ).
57
On Canadian Si model
Power Mirror Heaters Parking Brake
Inst rument s and Cont rols
Mirrors, Parking Brake
84
NOTICE:
PARKING BRAKE LEVER
PARKING BRAKE LEVER
LX, U.S. DX VP, EX
and Canadian Si models DX, U.S. HX and Canada DX SE models
Driving the vehicle with the
parking brake applied can damage the
rear brakes and axles.
——y

y
(%yy

The ceiling light has a three-position
switch; ON, Door Activated, and
OFF.
In the Door Activated (center)
position, the light comes on when
you:Open any door.
Remove the key from the ignition.
If you do not open a door, the light
f ades out in about 10 seconds.
Unlock the doors with the key or
remote transmitter. The f ront ceiling light also contains
two spotlights, Push the button next
to the light to turn it on and off.
Push on the spotlight lenses to turn
the light on and of f . The courtesy lights in the f ront
doors and around the ignition switch
come on when you open any door.
Af ter you close the door, the ignition
switch light stays on f or several
seconds.On U.S. EX and Canada Si models
On LX models
Interior Lights
Ceiling L ight Individual Interior L ights
Inst rument s and Cont rols85
DOOR ACTIVATED
DOOR ACTIVATED
ON
OFF OFF
ON FRONT
——y

y
(%yy

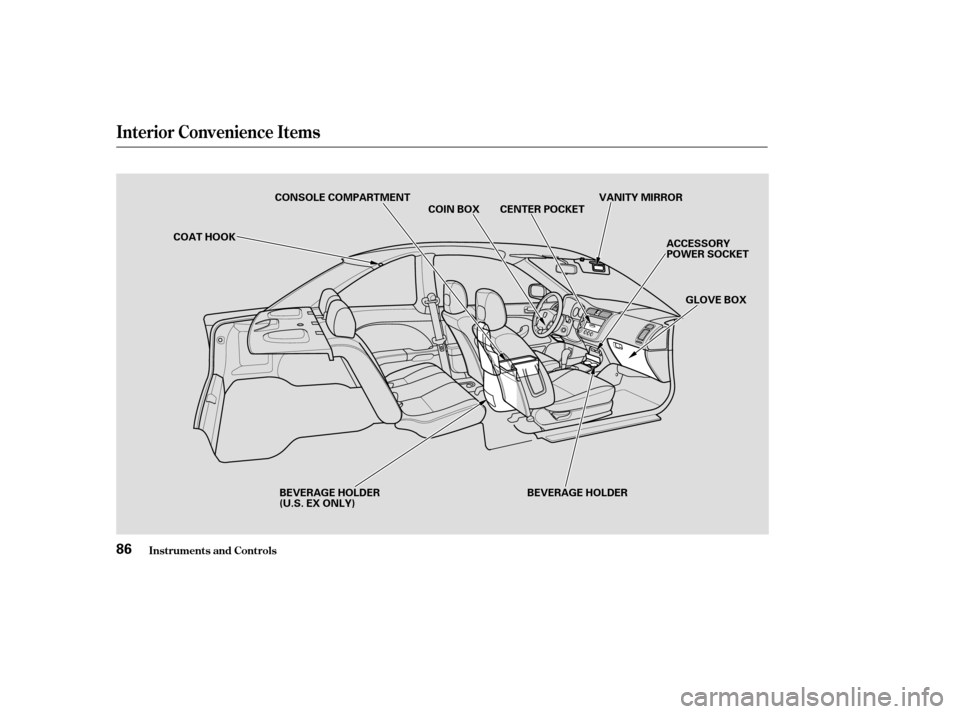

Inst rument s and Cont rols
Interior Convenience Items
86
VANITY MIRRORGLOVE BOX
CONSOLE COMPARTMENT
COIN BOX CENTER POCKET
ACCESSORY
POWER SOCKET
COAT HOOK
BEVERAGE HOLDER
BEVERAGE HOLDER
(U.S. EX ONLY)
——y

y
(%yy

Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Spilled liquids can also
damage the upholstery, carpeting,
and electrical components in the
interior.
On the U.S., LX, EX models and
Canada LX and Si models, open the
f ront beverage holder by pushing on
the top.
On the U.S., EX model, open the rear
beverage holder by pushing on the
back and pulling the holder all the
way out.To open the console compartment,
pull the lef t lever and lif t the lid.
To close, lower the lid and push it
down until it latches.
Open the glove box by squeezing the
handle. Close it with a f irm push.
On the U.S. LX, EX models and Canada
LXandSimodels
Beverage Holders Glove Box Console Compartment
Inst rument s and Cont rols
Interior Convenience Items
87
LEVER
CONSOLE COMPERTMENT
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seatbelt.
Always keep the glove box
closed while driving.
——y


y
(%yy

The center pocket is located under
the audio system. To open the lid,
pull it down. Close it with a f irm push.To use an accessory power socket,
pull up the cover.
This socket is intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps). The ignition switch must be
in ACCESSORY (I) or ON (II).
It will not power an automotive type
cigarette lighter element.Touseavanitymirroronthebackof
the sun visor, pull up the cover.
OnLXandEXmodelsintheU.S.,and
LXandSimodelsinCanada
Center Pocket Vanity Mirror
A ccessory Power Socket
Inst rument s and Cont rols
Interior Convenience Items
88
——y
y
(%y
y

Î
ÎThe heating and air conditioning
systems in your Honda provide a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them. (If you selected an
optional audio system, ref er to the
operating instructions that came
with it.)
Your Honda has an anti-thef t audio
system that requires a code number
to enable it. Air conditioning is standard on LX
andEXmodelsintheU.S.,andLX
and Si models in Canada. It is
optional on other models. ...............
Vents, Heating, and A/C . 90
.........................
Air Flow Buttons . 91
............................
Playing the Radio . 94
..............................
Radio Reception . 97
....................................
Playing a CD . 99
...................................
CD Changer . 100
....................
Protecting Your CDs . 101
.........
CD Player Error Messages . 102
CD Changer Error
...................................
Messages . 103
...............................
Playing a Tape . 104
.................
Radio Thef t Protection . 107
..........................
Setting the Clock . 108
...............................
Cruise Control . 110
Standard f or HX, LX and EX models in
the U.S., and LX and Si models in
Canada
Comf ort and Convenience Features
Comf ort and Convenience Feat ures89
——y
y
(%yy

Vents, Heating, and A/C
Comf ort and Convenience Feat ures90
MODE CONTROL DIALTEMPERATURE
CONTROL DIAL FAN CONTROL DIAL REAR WINDOW
DEFOGGER
BUTTON
AIR CONDITIONING
(A/C) BUTTON
RECIRCULATION BUTTON
——y
y
(%yy

Turn this dial clockwise to increase
fan speed and increase the airflow.
Turning this dial clockwise increases
the temperature of the airflow.Air f low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents. When you select , the
system automatically switches to
Fresh Air mode.
Air f low is divided between
the f loor vents and the def roster
vents at the base of the windshield.
Air f lows f rom the def roster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C. Air flows from the center
and corner vents in the dashboard.
This button turns the air
conditioning on and of f . The light in
thebuttonisonwhentheA/Cison.
When the light in the button is on,
air f rom the vehicle’s interior is sent
throughout the system again. When
the light is of f , air is brought in f rom
the outside of the vehicle (Fresh Air
mode). The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Use the mode control dial to select
the vents the air flow from. Some air
will f low f rom the dashboard vents in
all modes.
67
Standard on LX and EX models in the
U.S.,andLXandSimodelsinCanadaOptional on other models
Air Flow Buttons
Fan Control Dial
T emperature Control Dial
Air Conditioning (A/C) Button
Recirculation Button Rear Window Def ogger Button
Mode Control Dial
Comf ort and Convenience Feat ures91
