The instrument panel has many
indicators to give you important
inf ormation about your vehicle. If this indicator comes on when theengine is running, the battery is not
being charged. For more inf ormation,
see page .
The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more information, see page .
See page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you have not
f astened your seat belt.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belt, the beeper sounds
and the indicator f lashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
f lashing but remains on. If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page .
18 263
263
264 Charging System
Indicator
L ow Oil Pressure
Indicator
Seat Belt Reminder
Indicator
Malf unction Indicator
Lamp
Instrument Panel Indicators
Inst rument s and Cont rols
57
——y
y
(+yy

This indicator has two f unctions:Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you try to drive with the
parking brake not f ully released.
Driving with the parking brake not
fully released can damage the
brakes and tires.
If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page . This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
potential problem with your f ront
airbags. This indicator will also alert
you to a potential problem with your
side airbags, passenger’s side airbag
automatic cutoff system, side curtain
airbags, automatic seat belt
tensioners, driver’s seat position
sensor, or the f ront passenger’s
weight sensors. For more
inf ormation, see page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position. If it comes on at any
other time, it indicates that the
passenger’s side airbag has
automatically shut off. For more
inf ormation, see page .
1.
2.
265 28
29
Parking Brake and Brake System
Indicator
Supplemental Restraint
System Indicator
Side Airbag Of f Indicator
Instrument Panel Indicators
58
U.S. Canada U.S. Canada
——y
y
(+y
y

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock f unction. For more
inf ormation, see page .The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash.
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. It will then go of f if
you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink,
and the engine’s f uel system will be
disabled (see page ).
204 235
75
Instrument Panel Indicators
Anti-lock Brake System
(A BS) Indicator
Turn Signal and Hazard Warning
Indicators
Immobilizer System
Indicator
Inst rument s and Cont rols
59
——y

y
(+yy

If you turn the steering wheel to the
f ull lef t or right repeatedly while
stopping or driving at very low speed,
you may f eel slightly harder steering
due to overheating of the steering
gear box.
Continuously driving under those
conditions could damage the power
steering system.
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
inf ormation display. See page f or
more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
This indicator normally comes on
when you turn the ignition switch to
the ON (II) position and goes of f
af ter the engine starts. If it comes on
at any other time, there is a problem
in the electric power steering system.
If this happens, stop the vehicle in a
saf e place, and turn of f the engine.
Reset the system by restarting the
engine. The indicator will not turn
of f immediately. If it does not go of f
after driving a short distance, or
comes back on again while driving,
take the vehicle to your dealer to
have it checked. With the indicator
on, the EPS may be of f , making the
vehicle harder to steer.
To protect the engine f rom damage,
never drive with the tachometer in
its red zone. This indicator shows you when the
engine speed is near the tachometer’s
red zone. When the engine speed
gets to near the red zone, the
indicator blinks. If you exceed the
maximum speed f or the gear you are
in, the indicator stays on, and you
may f eel the engine cut in and out
due to the engine speed limiter (see
page ).
209
197
Instrument Panel Indicators
Electric Power Steering
(EPS) Indicator
Maintenance Minder
IndicatorRev L imit Indicator
Si model only
Si model only
60
LEV LIMIT INDICATOR
——y
y
(+yy

If this indicator comes on when you
turn the ignition switch to the ON
(II) position and release the parking
brake, it means there is a problem
withtheDRL.Theremayalsobea
problem with the high beam
headlights. Have your vehicle
checked by your dealer.
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).This indicator comes on when the
washer f luid level is low. Add washer
f luid when you see this indicator
(see page ). This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control. This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ). This indicator comes on if either
door is not closed tightly. This indicator comes on if the trunk
lid is not closed tightly.
70
71 175
175
227
Canadian models only
If equipped
If equipped
‘‘Daytime Running
Lights’’ Indicator Cruise Main Indicator
High Beam Indicator Washer Level Indicator Cruise Control IndicatorDoor-open Indicator Trunk-open Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
61
——y
y
(+yy

This indicator is located in the f uel
gauge. It comes on as a reminder
that you must ref uel soon.
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or LOCK (0) position without
turning of f the light switch, this
indicator will stay on. A reminder
beeper will also sound when you
open the driver’s door.
This indicator comes on when the
security system is set. See pagef or more inf ormation on the
security system. When the indicator comes on, there is about 1.9 US gal (7.5
)of fuel
remaining in the tank bef ore the
reading reaches E. There is a small
reserve of f uel remaining in the tank
when the reading does reach E.
174
If equipped
Low Fuel Indicator
Lights On Indicator Security System Indicator
Instrument Panel Indicators
62
LOW FUEL INDICATOR
SECURITY SYSTEM INDICATOR
——y
y
(+yy

To switch the information display
between the odometer, trip meter,
and outside temperature (if
equipped), and engine oil lif e and
maintenance service items, press the
SEL/RESET button repeatedly.
Gauges
Inst rument s and Cont rols
63

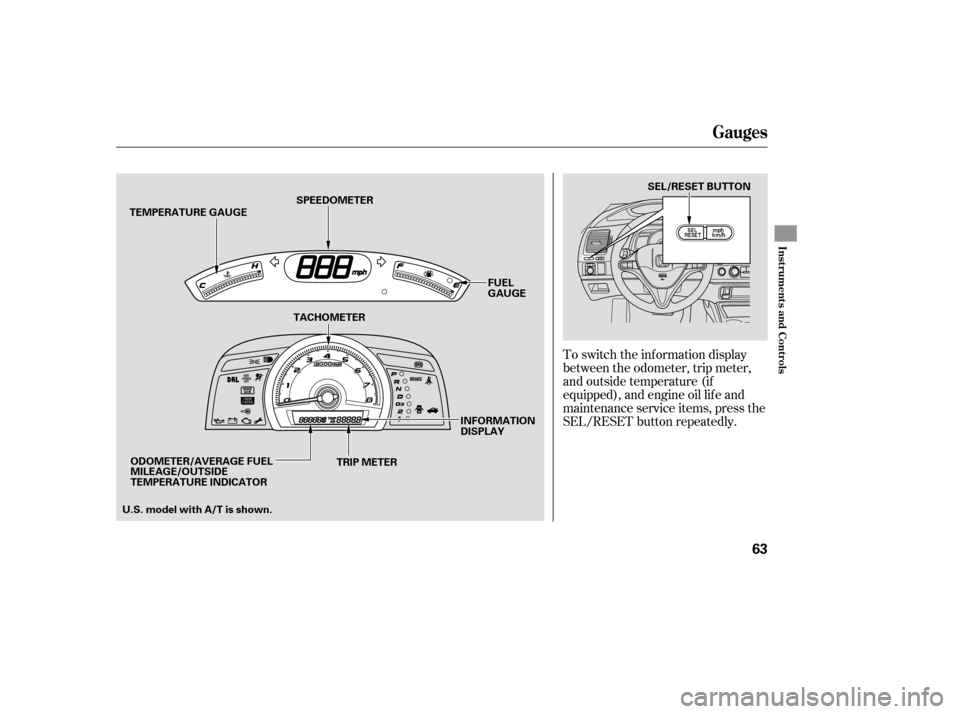

SPEEDOMETERTRIP METER INFORMATION
DISPLAYFUEL
GAUGE
TACHOMETER
TEMPERATURE GAUGE
ODOMETER/AVERAGE FUEL
MILEAGE/OUTSIDE
TEMPERATURE INDICATOR
U.S. model with A/T is shown. SEL/RESET BUTTON
——y
y
(+yy

Press and hold the display change
button until you hear a beep. The
speedmeter, trip meter, and
odometer readings switch between
miles per hour (mph) and kilometers
per hour (km/h).This meter shows the number of
miles or kilometers driven since you
last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the SEL/
RESET button repeatedly. Each trip
meter works independently, so you
can keep track of two dif f erent
distances.
When you turn the ignition switch to
the ON (II) position, what you last
selected is displayed.
To reset a trip meter, display it, and
then press and hold the SEL/RESET
button until the number resets to
‘‘0.0.’’
This shows the total distance your
vehicle has been driven. It measures
miles or kilometers.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
The odometer and the outside
temperature indicator (if equipped)
use the same display. To switch the
display between them, press the
SEL/RESET button repeatedly.
When you turn the ignition switch to
the ON (II) position, your last
selection is displayed.
Gauges
Display Change Button
Odometer Trip Meter
64
DISPLAY CHANGE BUTTON
——y

y
(+yy

¶¶µµµµ
µµµ
µ If the outside temperature is
incorrectly displayed, you can adjust
it 5°F in U.S. models ( 3°C in
Canadian models) warmer or cooler.
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press the SEL/RESET
button f or 10 seconds. The f ollowing
sequence will appear f or 1 second
each:0,1,2,3,4,5, 5, 4, 3, 2, 1,0(U.S.)or0,1,2,3, 3, 2,
1, 0 (Canada).
When it reaches the desired value,
release the SEL/RESET button. You
should see the new outside
temperature displayed. In certain weather conditions,
temperature readings indicate near
f reezing (32°F, 0°C) and the display
starts blinking. This could mean that
ice is f orming on the road surf ace.
This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
SEL/RESET button until the
temperature is shown on the
inf ormation display.
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
If equipped
Gauges
Outside Temperature Indicator
Inst rument s and Cont rols
65
——y
y
(+yy

This shows how much f uel you have.
It may show slightly more or less
than the actual amount.This shows the temperature of the
engine’s coolant. During normal
operation, the reading should rise to
about the middle of the gauge. In
severe driving conditions, such as
very hot weather or a long period of
uphill driving, the reading may rise
intotheupperhalfofthegauge.Ifit
reaches the red (Hot) mark, pull
safely to the side of the road. See
page f or instructions and
precautions on checking the engine
cooling system.If your f uel f ill cap is loose or
missing, a ‘‘CHECK FUEL CAP’’
message appears in the information
display af ter you start the engine.
The message goes f rom CHECK to
FUEL,thentoCAPrepeatedly.You
will also hear a beep.
Turn the engine of f , and conf irm the
f uel f ill cap is installed. If it is, loosen
the cap, then retighten it until it
clicks at least once. When you
restart the engine, the message
appears again. To clear the message,
press and hold the SEL/RESET
button until it goes away.
261
Fuel Gauge T emperature Gauge Check Fuel Cap Indicator
Gauges
66
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
——y
y
(+yy
