Air f lows f rom the f loor
vents.
When you select , the system
automatically switches to f resh air
mode. If you switch the mode f rom or to , the system
keeps the A/C on. The A/C
indicator will not come on if it was
off to start with.
To turn of f the A/C, press the A/C
button to illuminate the indicator,
then press it again to turn off the
A/C.
Airf low is divided between
the f loor vents and def roster vents at
the base of the windshield. Air f lows f rom the def roster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
f resh air mode and turns on the A/C.
You cannot turn the A/C of f in this
mode.
The f low-through ventilation system
draws in outside air, circulates it
through the interior, then releases it
through vents near the rear window.
Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed. The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
Select .
When you select , the system
automatically switches to f resh air
mode. If you switch the mode
f rom or , the system
also automatically turns on the
A/C. This helps prevent the
windows f rom f ogging up
unintendedly. The A/C indicator
willnotcomeonifitwasoffto
start with (see the f irst column on
this page).
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
When you switch to or
mode f rom , the A/C
turnsoff.Butifitwasontostart
with, the A/C stays on. 1.
2.
3.
4.1.
2.
3.
Vents, Heating, and A/C
Ventilation
Using the Heater
118
——y
y
(+y
y
2009 Civic Coupe

Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected.
Make sure the temperature is set
to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select f resh air mode.
Set the f an to the desired speed. you can
cool it down more rapidly by partially
opening the windows, turning on the
air conditioning, and setting the f an
to maximum speed in f resh air mode.
To cool the interior with MAX A/C: Set the f an to the desired speed.
Select MAX A/C.
The system automatically turns on
the A/C, selects , and
switches to recirculation mode.
Make sure the temperature is set
to maximum cool. Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry and
can prevent the windows f rom
f ogging up.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).
Turn the fan on.
Turn on the air conditioning.
Select and fresh air mode.
Adjust the temperature to your
pref erence.
1.
2.
3.
4.
5. 1.
2.
3.
4.
1.
2.
3.
68
If the interior is very warm,Dehumidif y the Interior
Using the A/C
Vents, Heating, and A/C
Features
119
\f—\f—\fy
\fy
(+\fy\f
y
2009 Civic Coupe

To remove f og f rom the inside of the
windows:Turning the f an speed control dial all
the way to the left shuts the system
of f .
Keep the system of f f or short
periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
When you switch to , f rom or , the A/C stays on.
This helps prevent the windows f rom
rapidly f ogging up when the air is
suddenly routed away f rom the
windshield. If you want to turn the
A/C off, press and release the A/C
button twice. The indicator in the
buttoncomesonandthengoesoff. Select . The system
automatically switches to f resh air
mode and turns on the A/C.
The A/C indicator does not come
on if it was of f to start with.
Select .
Set the f an and temperature
controls to maximum level.
To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel next to each vent.
This sends more warm air to the
windshield def roster vents. Once the
windshield is clear, select f resh air
mode to avoid f ogging the windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
Set the f an to the desired speed, or
high f or f aster def rosting.
Select . The system
automatically switches to f resh air
mode and turns on the A/C. The
A/C indicator will not come on if it
was off to start with.
Adjust the temperature so the
airflow feels warm.
Select to help clear the
rear window.
To increase airf low to the
windshield, close the corner vents.
1.
2.
3.
1.
2.
3.
4.
5.
/
To Defog and Defrost To Turn Everything Off
T o Remove Exterior Frost or Ice
From the Windows
Vents, Heating, and A/C
120
\f—\f—\fy
\fy
(+\fy\f
y
2009 Civic Coupe

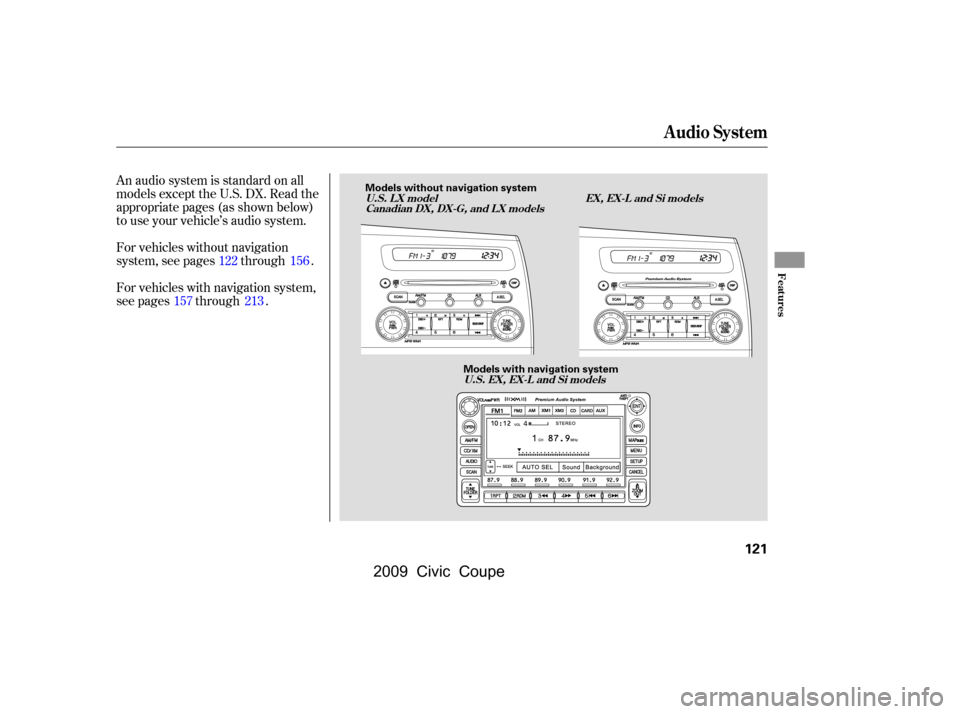

An audio system is standard on all
models except the U.S. DX. Read the
appropriate pages(as shown below)
to use your vehicle’s audio system.
For vehicles without navigation
system, see pages through .
For vehicles with navigation system,
see pages through .122156
213
157
Audio System
Features
U.S. EX, EX-L and Si models
U.S. L X model
Canadian DX, DX-G, and LX models EX, EX-L and Si models
121
Models with navigation system
Models without navigation system
\f—\f—\fy

\f\f\f\fy
(+\fy\f
y
2009 Civic Coupe

To change the letter, select the
previous segment by pushing the
bottom of the SEEK button.
Turn the TUNE knob to change a
letter.
Push the top of the SEEK button
to select the next segment, then
turn the TUNE knob to select a
letter. Repeat this procedure to set
your message.
Your audio system shows a welcome
message on the display when you
turn the ignition switch to the
ACCESSORY (I) or the ON (II)
position. You can see a message
‘‘WELCOME’’ on the display when
your vehicle was new.
You can also customize this welcome
message to your liking with the
audio controls.
Youcansetupto16characterson
the display.
To select a character:
Make sure the audio system is of f .
PushandholdtheTUNEknob,
then push the power/volume knob
on the audio control panel. You
will see the f irst letter blinking. The system will return to the audio
display about 10 seconds af ter you
stop selecting a letter.
2. 3.
4.
1.
Audio System (Models without navigation system)
To Customize a Message
122
EX model is shown. TUNE KNOB
POWER/VOLUME
KNOB
SEEK BUTTON
\f—\f—\fy

\f\f\fy
(+\fy\f
y
2009 Civic Coupe

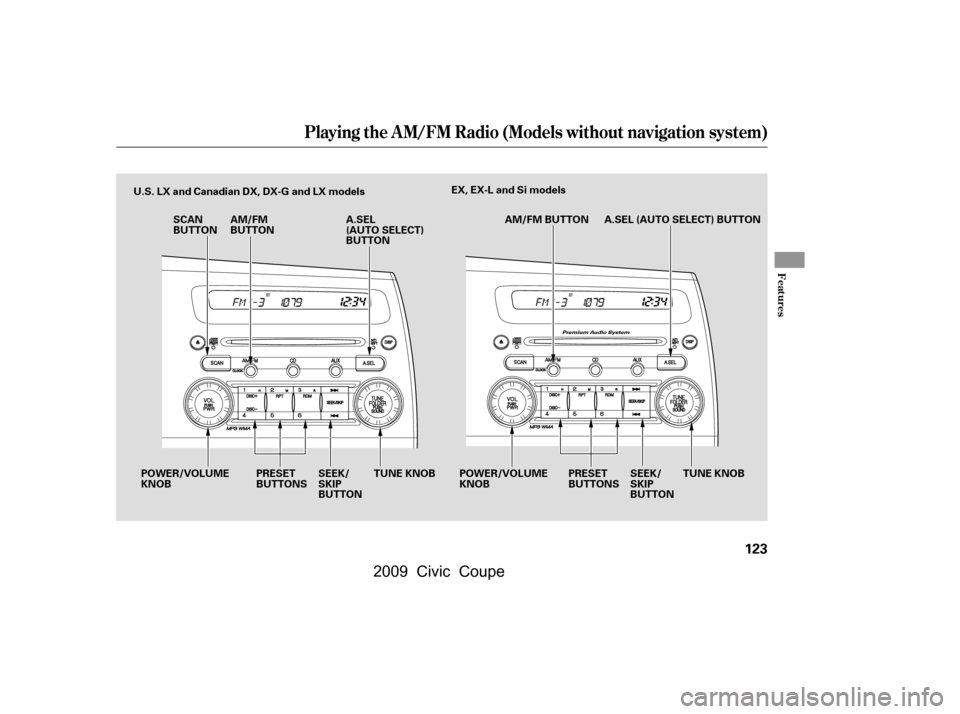

Playing the A M/FM Radio (Models without navigation system)
Features
123
SCAN
BUTTON
POWER/VOLUME
KNOB PRESET
BUTTONS TUNE KNOB TUNE KNOB
PRESET
BUTTONS
POWER/VOLUME
KNOB
U.S. LX and Canadian DX, DX-G and LX models
SEEK/
SKIP
BUTTON A.SEL (AUTO SELECT) BUTTON
AM/FM BUTTON
SEEK/
SKIP
BUTTON
EX, EX-L and Si models
A.SEL
(AUTO SELECT)
BUTTON
AM/FM
BUTTON
\f—\f—\fy

\f\f
y
(+\fy\f
y
2009 Civic Coupe

µµ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob to the right to tune to
a higher f requency, and turn it to the
lef t to tune to a lower f requency. The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal. When it f inds
one, it will stop and play that station
f or about 10 seconds.
If you do nothing, the system will
then scan f or the next strong station
and play it f or 10 seconds. When it
plays a station you want to listen to,
press the SCAN button again.
The seek f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK/SKIP button, then release it.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
power/volume knob or the AM/FM
button. Adjust the volume by turning
the power/volume knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction in
AM is not available.
To Select a Station
TUNE
SCAN
To Play the AM/FM Radio
SEEK
Playing the A M/FM Radio (Models without navigation system)
124
\f—\f—\fy

\f\fy
(+\fy\f
y
2009 Civic Coupe

µµµ
Each side of the buttons
(1 through 6) can store one
f requency on AM, and two
f requencies on FM. If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the A. SEL button. You will see
A. SEL f lashing in the display, and
the system goes into scan mode f or
several seconds. It stores the
f requencies of six AM, and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
every preset button. If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described.
,pressthe
A. SEL (auto select) button. This
restores the presets you originally
set.
For inf ormation on AM/FM radio
f requencies and reception, see page
.
Select the desired band, AM or
FM. FM1 and FM2 let you store
six stations each.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Pick a preset number (1 6), and
hold it until you hear a beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
1.
2.
3.
4.
214
To turn of f auto select
Preset A UT O SEL ECT
Playing the A M/FM Radio (Models without navigation system)
Features
125
\f—\f—\fy

\f\f
y
(+\fy\f
\fy
2009 Civic Coupe

µ
µ
µ µ
µ
µ The SVC mode controls the volume
based on vehicle speed. The f aster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
The SVC has f our modes: SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. Turn the TUNE knob to
adjust the setting to your liking. If
you f eel the sound is too loud, choose low. If you f eel the sound is
too quiet, choose high.
Eachmodeisshowninthedisplayas
it changes. Turn the TUNE knob to
adjust the setting to your liking.
When the level reaches the center,
you will see ‘‘C’’ in the display. Adjusts the volume level
basedonthevehiclespeed.
This f unction is set to MID as the
def ault setting when the vehicle
leaves the factory.
You can use the instrument panel
brightness control buttons to adjust
the illumination of the audio system
(see page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f .
The system will return to the audio
display about 5 seconds af ter you
stop adjusting a mode.
Press the TUNE (SOUND) knob
repeatedly to display the SUBW (if
equipped), BASS, TREBLE, FADER,
BALANCE, and SVC (speed-
sensitive volume compensation)
settings.
Adjusts the strength of
sound f rom the subwoof er speaker.
Adjusts the bass.Adjusts the treble.
Adjusts the front-to-back
strength of the sound.
Adjusts the side-to-
side strength of the sound. 74
If equipped
Speed-sensit ive VolumeCompensat ion (SVC)
SVC
A udio System L ighting
SUBW
BASS
TREBLE
FADER
BAL ANCE
A djusting the Sound (Models without navigation system)
126
\f—\f—\fy

\f\fy
(+\fy\f

y
2009 Civic Coupe

Your audio system is capable of
receiving XM Radio anywhere in the
United States, except Hawaii and
Alaska.
XM
is a registered trademark of
XM Satellite Radio
,Inc.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display.
Playing the XMRadio (Models without navigation system)
Features
Opt ional on U.S. EX, EX-L and Si models
127
POWER/VOLUME KNOB
XM RADIO BUTTON
SCAN BUTTON
PRESET BUTTONS TUNE KNOB DISP BUTTON
SEEK/SKIP BUTTON
\f—\f—\fy

\f\fy
(+\fy\f
y
2009 Civic Coupe
