49
System Setup
Vehicle
HINFO button  Setup  Other  Vehicle
Set the off-road tracking feature and correct the vehicle position displayed on the
map.
Select an item.
The following items are available:
• Off-road Tracking : Set whether to display the tracking dots on the map.
2Off-road Tracking P. 50
• Correct Vehicle Position : Adjust the position of the vehicle on the map.
2Correct Vehicle Position P. 51
QRG
Index
Home
TOC
2012 Civic Navigation

50
VehicleOff-road Tracking
System Setup
Off-road Tracking
HINFO button  Setup  Other  Vehicle
The navigation system can be set to display white off-road tracking dots
(“breadcrumbs”) on the map screen whenever you drive into an area approximately
1/2 mile away from a mapped road.
Select an option.
The following options are available:
• On : The system displays the white tracking dots.
2Driving Off-road P. 83
• Off (factory default): Disables the feature.
1Off-road Tracking
To clear existing breadcrumbs, set Off-road
Tracking to Off, exit the Setup screen, and then
set Off-road Tracking to On again.
QRG
Index
Home
TOC
2012 Civic Navigation

51
VehicleCorrect Vehicle Position
System Setup
Correct Vehicle Position
HINFO button  Setup  Other  Vehicle
Manually adjust the current position of the vehicle as displayed on the map screen if
the position appears to be incorrect.
1.Put the vehicle in Park.
2. Select ADJUST under Current
Vehicle Position .
3. Scroll the map to position the
arrowhead at your correct position.
4. Select or to position the
arrowhead in the correct direction
the vehicle is facing.
5. Select OK.1Correct Vehicle Position
An apparent position error can occur where
buildings, tunnels, and other objects block or
reflect the GPS signals, forcing the system to use
“dead reckoning” to dete rmine your location
and direction.
Using this function to adjust vehicle position is
not recommended. When the system reacquires
a GPS signal, it will automatically place the
vehicle in the correct location.
If you continually have to adjust the vehicle
position, you may have problems with the GPS
reception or there may be database errors.
2 System Limitations P. 182
QRG
Index
Home
TOC
2012 Civic Navigation

52
System Setup
Data Reset
Reset Factory Default Settings
HINFO button  Setup  Other  Reset Factory Default
Reset all the settings on the Setup sc reens to their factory defaults.
Select Yes.1Reset Factory Default Settings
The following settings are reset:
•Brightness, Contrast, Black Level, Volume,
Guidance Prompts
•Basic Settings: Keyboard Layout, Units, Voice
Recognition Tutor, Verbal Reminder, Display
Voice Commands Tips
•Routing & Guidance: Rerouting, Unverified
Area Routing, Edit Waypoint Search Area,
Guidance Mode
•Clock Adjustment: Auto Daylight, Auto Time
Zone, Clock Format Time, Clock Type
•Vehicle: Off-road Tracking
•Color: Map Color, Menu Color
When you transfer the vehicle to a third party,
reset all settings to de fault and delete all
personal data.
2 Deleting an Address Book Entry P. 34
2 Home Addresses P. 35
2 PIN Numbers P. 36
2 User Name P. 37
2 Previous De stinations P. 38
2 Edit Avoid Area P. 43
2 Deleting a Paired Phone P. 149
QRG
Index
Home
TOC
2012 Civic Navigation

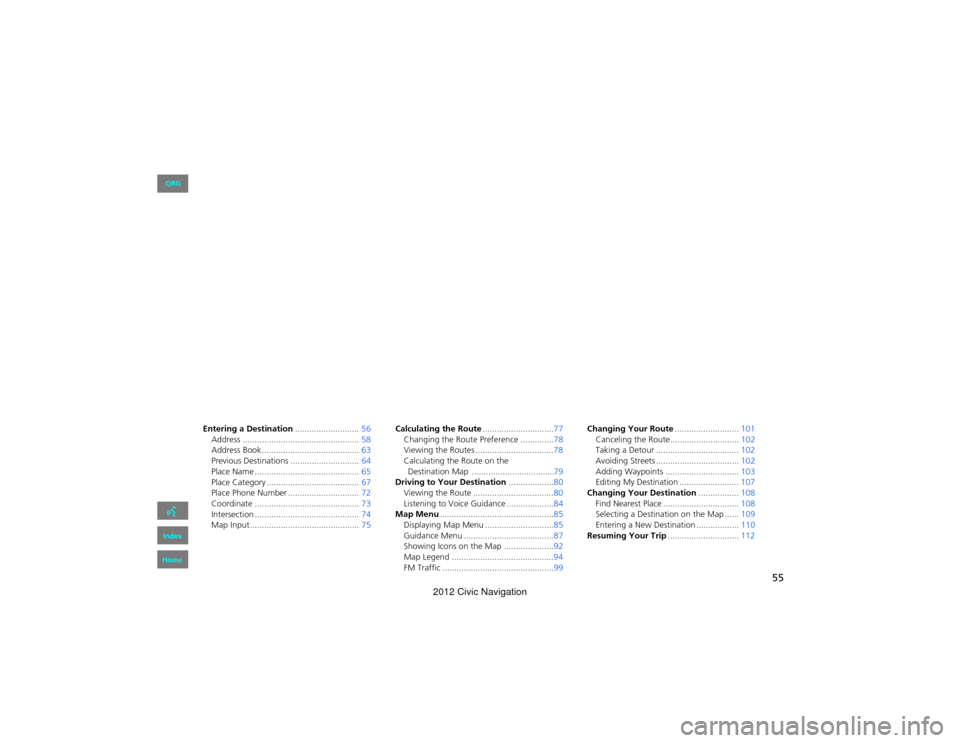

55
Navigation
This section describes how to enter a destination, select a route to take,
and follow the route to your destinati on. It also describes how to change
your route or destination along the way.
Entering a Destination ...........................56
Address ................................................. 58
Address Book ..... ......................... ...........63
Previous Destinations ............................. 64
Place Name ............................................ 65
Place Category ....................................... 67
Place Phone Number ......... .....................72
Coordinate ............................................ 73
Intersection ............................................ 74
Map Input.............................................. 75Calculating the Route
..............................77
Changing the Route Preference ..............78
Viewing the Routes .................................78
Calculating the Route on the 79
Driving to Your Destination ...................80
Viewing the Route ..................................80
Listening to Voice Guidance ....................84
Map Menu ................................................85
Displaying Map Menu .............................85
Guidance Menu ......................................87
Showing Icons on the Ma p .....................92
Map Legend ...........................................94
FM Traffic ...............................................99 Changing Your Route
...........................101
Canceling the Route............................. 102
Taking a Detour ................................... 102
Avoiding Streets ................................... 102
Adding Waypoints .......... .....................103
Editing My Destination ......................... 107
Changing Your Destination .................108
Find Nearest Place ................................ 108
Selecting a Destination on the Map ...... 109
Entering a New Destinat ion ..................110
Resuming Your Trip ..............................112
QRG
Index
Home
Destination Map ...................................
2012 Civic Navigation

56
Navigation
Entering a Destination
HDEST button
This section describes how to ente r a destination for route guidance.
Select an item.
Select DEST Menu 2 to display
additional menu entries.
The following items are available:
• Address : Sets a destination by entering an address.
2Address P. 58
• Address Book : Sets a destination by selecting an address stored in your Address
Book.
2 Address Book P. 63
• Previous Destinations : Sets a destination by select ing a previous destination.
2Previous Destinations P. 64
1Entering a Destination
d “Display Menu” , d “Display Navigation”
If you press the DEST bu tton when en route, the
Route Menu screen is displayed.
2 Changing Your Route P. 101
Prior to departure, you ca n set areas along your
route to avoid.
2 Avoiding Streets P. 102
QRG
Index
Home
TOC
2012 Civic Navigation

58
Entering a DestinationAddress
Navigation
Address
HDEST button  Address
Enter an address to use as the destination. The state or province you are currently in
is displayed (e.g., California).
Select an item.
The following items are available:
• City : Selects your destination city.
2Selecting a City P. 60
• Street : Selects your destination street.
2Selecting a Street P. 61
• Change State : Selects the state or province.
2Selecting the State or Province P. 59
QRG
Index
Home
TOC
2012 Civic Navigation

59
Entering a DestinationAddress
Navigation
HDEST button  Address  Change State
1.Enter a state name.
Select List to display a list of
states.
2. Select a state from the list.
■Selecting the State or Province
QRG
Index
Home
TOC
2012 Civic Navigation

60
Entering a DestinationAddress
Navigation
HDEST button  Address  City
The name of the city where you ar e currently located is displayed.
1.Enter the name of a different city,
or select List for the current city.
Select List to display a list of
cities.
2. Select your destination city from
the list.
A list of matching hits is
automatically displayed after
you enter several letters, with
the closest match at the top of
the list.
Next, you are prompted to enter
a street name.
2 Selecting a Street P. 61
■Selecting a City1 Selecting a City by Name
Vehicle position may no t be displayed when:
•The automobile is traveling off-road.
•The vehicle position data cannot be updated.
You do not need to enter spaces or symbols
(e.g., &, -, %). Partial matches are supported
(e.g., “ANGELES” to find “LOS ANGELES”).
Using Voice Command (English only)
Say d “City ” on the Find address by screen, and
the following screen is displayed:
Say d “Current City” to select your current
location, or say the name of a different city.
2 Selecting a Street P. 61
If your city is not listed, it may be part of a larger
metropolitan area. Try ente ring the street first.
Non-detailed area mark: Try entering the
street first and then select the city.
QRG
Index
Home
TOC
2012 Civic Navigation

61
Entering a DestinationAddress
Navigation
HDEST button  Address  Street
1.Enter the name of your destination
street.
Do not enter the street type
(e.g., street, road, avenue) or
direction (e.g., north, south,
east, west).
Select List to display a list of
streets.
2. Select your destination street from
the list.
A list of matching hits is
automatically displayed after
you enter several letters, with
the closest match at the top of
the list.
■Selecting a Street1 Selecting a Street
When entering the name s of major freeways,
you can use the following abbreviations. For
interstates, use an “I” (e.g., I-10). For U.S.
freeways, use “US” (e.g., US-18). For state
freeways, use the two-character state
designation (e.g., CA-101). For county roads, use
the appropriate designation (e.g., G-2).
Using Voice Command (English only)
Say d “Street ” on the Find address by screen,
and the following screen is displayed:
•Say the name of your destination street, and
say the street number as a string of individual
numbers.
•Set the route to your destination.
2 Calculating the Route P. 77
Continued
QRG
Index
Home
TOC
