HONDA CIVIC COUPE 2015 9.G Owners Manual

420Information

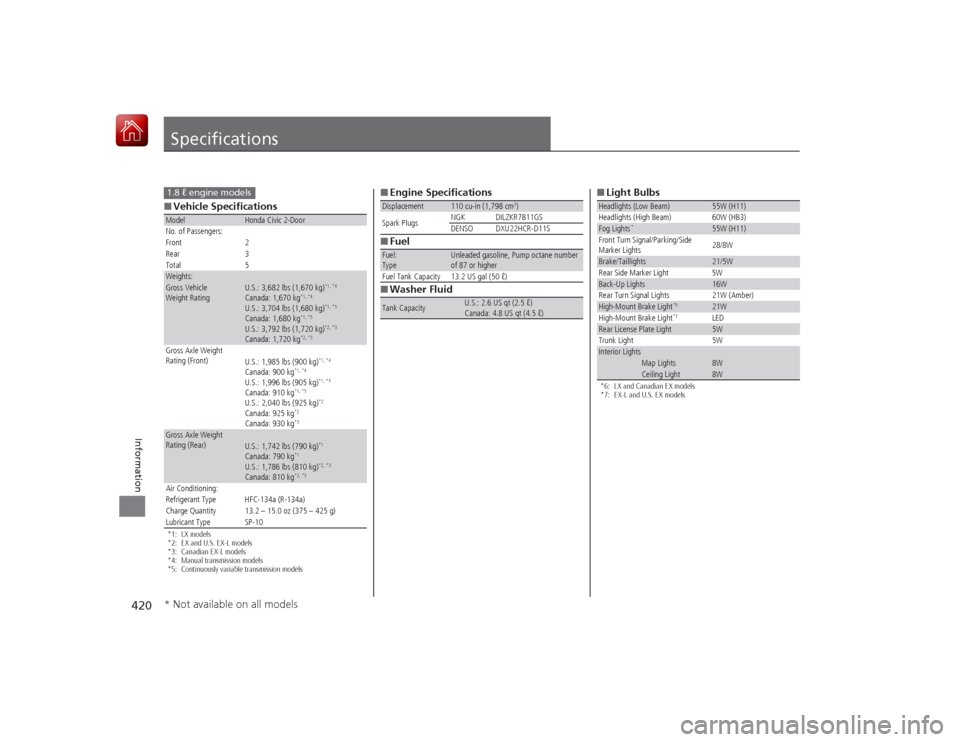

Specifications■Vehicle Specifications*1: LX models
*2: EX and U.S. EX-L models
*3: Canadian EX-L models
*4: Manual transmission models
*5: Continuously variable transmission modelsModel
Honda Civic 2-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating
U.S.: 3,682 lbs (1,670 kg)
*1, *4
Canada: 1,670 kg
*1, *4
U.S.: 3,704 lbs (1,680 kg)
*1, *5
Canada: 1,680 kg
*1, *5
U.S.: 3,792 lbs (1,720 kg)
*2, *3
Canada: 1,720 kg
*2, *3
Gross Axle Weight
Rating (Front)
U.S.: 1,985 lbs (900 kg)
*1, *4
Canada: 900 kg
*1, *4
U.S.: 1,996 lbs (905 kg)
*1, *5
Canada: 910 kg
*1, *5
U.S.: 2,040 lbs (925 kg)
*2
Canada: 925 kg
*2
Canada: 930 kg
*3
Gross Axle Weight
Rating (Rear)
U.S.: 1,742 lbs (790 kg)
*1
Canada: 790 kg
*1
U.S.: 1,786 lbs (810 kg)
*2, *3
Canada: 810 kg
*2, *3
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-101.8 ℓ engine models
■ Engine Specifications
■ Fuel
■ Washer FluidDisplacement
110 cu-in (1,798 cm
3)
Spark Plugs NGK DILZKR7B11GS
DENSO DXU22HCR-D11S
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs*6: LX and Canadian EX models
*7: EX-L and U.S. EX modelsHeadlights (Low Beam)
55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights
*
55W (H11)
Front Turn Signal/Parking/Side
Marker Lights 28/8W
Brake/Taillights
21/5W
Rear Side Marker Light 5W
Back-Up Lights
16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake Light
*6
21W
High-Mount Brake Light
*7
LED
Rear License Plate Light
5W
Trunk Light 5W
Interior Lights
Map Lights
8W
Ceiling Light
8W
* Not available on all models

421
uuSpecifications u
Continued
Information

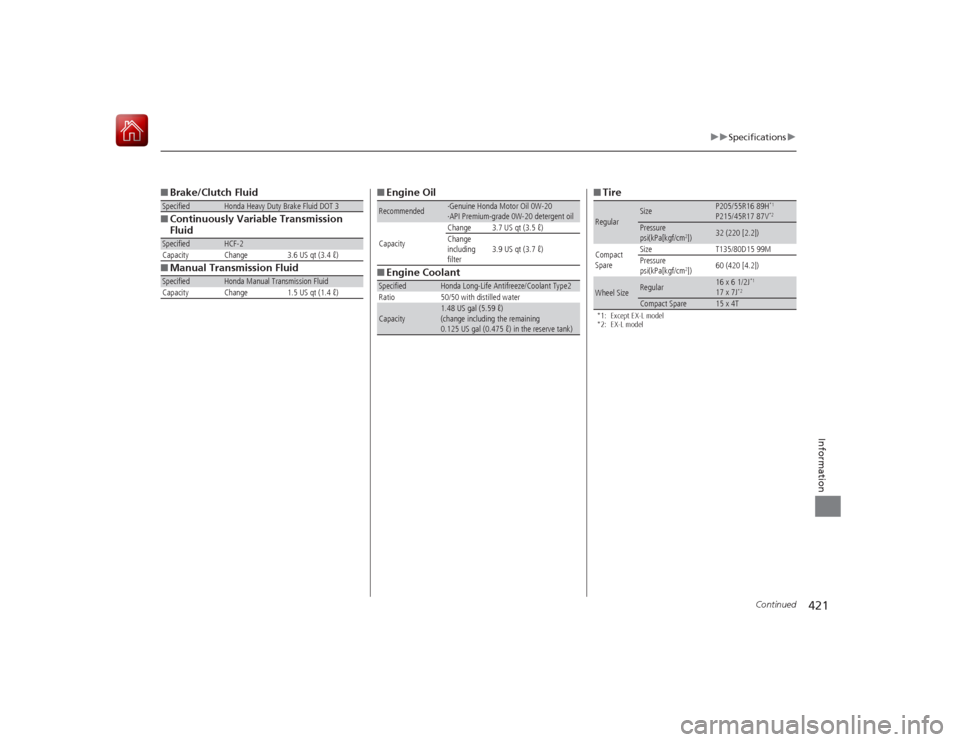

■Brake/Clutch Fluid
■ Continuously Variable Transmission
Fluid
■ Manual Transmission FluidSpecified
Honda Heavy Duty Brake Fluid DOT 3
Specified
HCF-2
Capacity Change 3.6 US qt (3.4 ℓ)
Specified
Honda Manual Transmission Fluid
Capacity Change 1.5 US qt (1.4 ℓ)
■ Engine Oil
■ Engine CoolantRecommended
·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.7 US qt (3.5 ℓ)
Change
including
filter
3.9 US qt (3.7 ℓ)
Specified
Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.48 US gal (5.59 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire*1: Except EX-L model
*2: EX-L modelRegular
Size
P205/55R16 89H
*1
P215/45R17 87V
*2
Pressure
psi(kPa[kgf/cm
2])
32 (220 [2.2])
Compact
Spare Size T135/80D15 99M
Pressure
psi(kPa[kgf/cm
2])
60 (420 [4.2])
Wheel Size
Regular
16 x 6 1/2J
*1
17 x 7J
*2
Compact Spare
15 x 4T

422
uuSpecifications u
Information

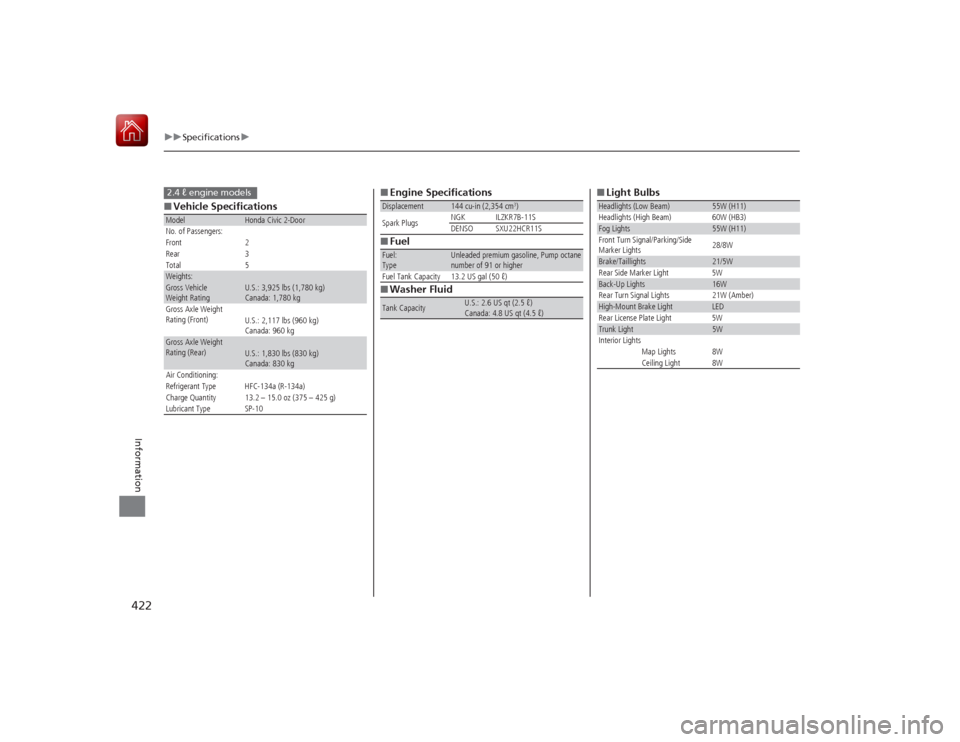

■Vehicle SpecificationsModel
Honda Civic 2-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating
U.S.: 3,925 lbs (1,780 kg)
Canada: 1,780 kg
Gross Axle Weight
Rating (Front)
U.S.: 2,117 lbs (960 kg)
Canada: 960 kg
Gross Axle Weight
Rating (Rear)
U.S.: 1,830 lbs (830 kg)
Canada: 830 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-10
2.4 ℓ engine models
■ Engine Specifications
■ Fuel
■ Washer FluidDisplacement
144 cu-in (2,354 cm
3)
Spark Plugs NGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel:
Type
Unleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light BulbsHeadlights (Low Beam)
55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights
55W (H11)
Front Turn Signal/Parking/Side
Marker Lights 28/8W
Brake/Taillights
21/5W
Rear Side Marker Light 5W
Back-Up Lights
16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake Light
LED
Rear License Plate Light 5W
Trunk Light
5W
Interior Lights Map Lights 8W
Ceiling Light 8W

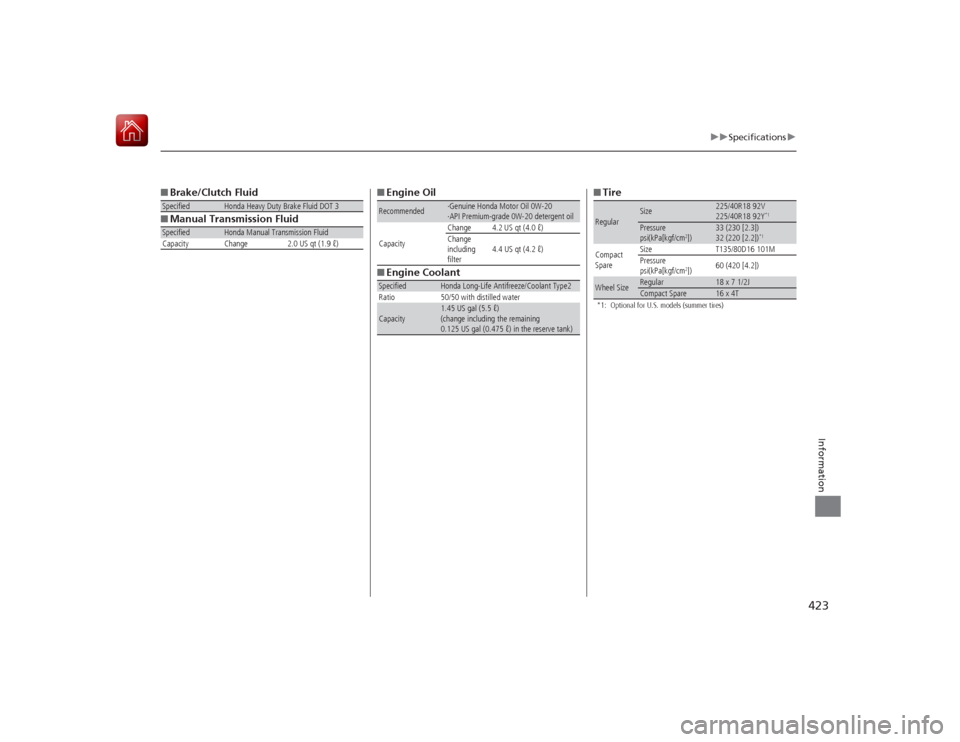

423
uuSpecifications u
Information
■Brake/Clutch Fluid
■ Manual Transmission FluidSpecified
Honda Heavy Duty Brake Fluid DOT 3
Specified
Honda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine CoolantRecommended
·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
Specified
Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.45 US gal (5.5 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire*1: Optional for U.S. models (summer tires)Regular
Size
225/40R18 92V
225/40R18 92Y
*1
Pressure
psi(kPa[kgf/cm
2])
33 (230 [2.3])
32 (220 [2.2])
*1
Compact
Spare Size T135/80D16 101M
Pressure
psi(kPa[kgf/cm
2])
60 (420 [4.2])
Wheel Size
Regular
18 x 7 1/2J
Compact Spare
16 x 4T

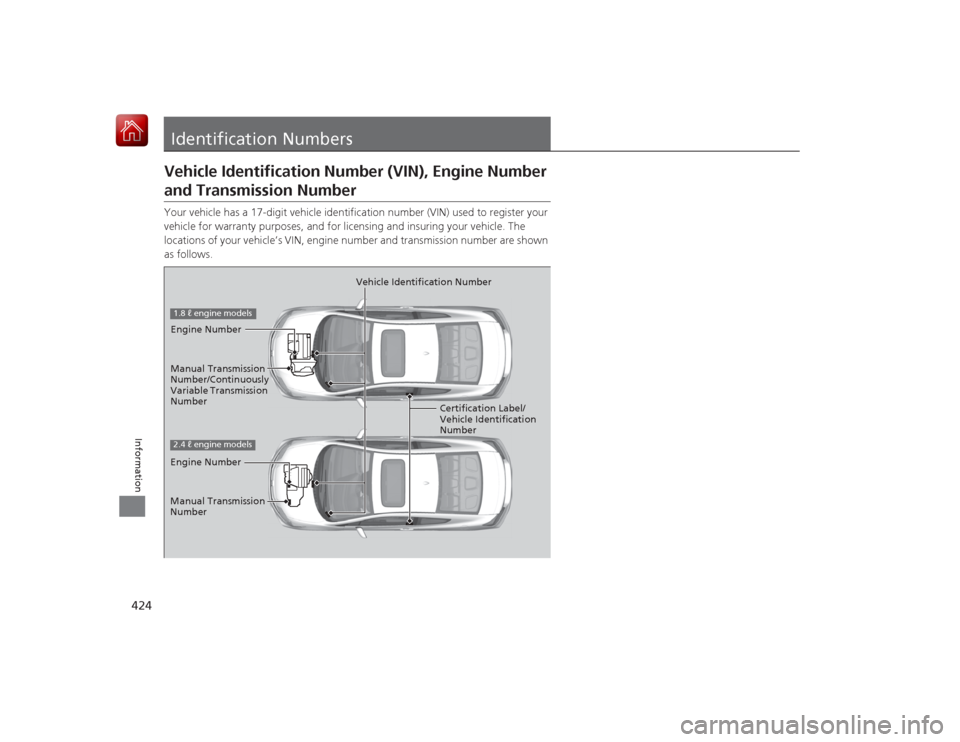

424Information
Identification NumbersVehicle Identification Number (VIN), Engine Number and Transmission NumberYour vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. The
locations of your vehicle’s VIN, engine number and transmission number are shown
as follows.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
Manual Transmission
Number/Continuously
Variable Transmission
Number
2.4 ℓ engine models1.8 ℓ engine modelsEngine Number
Manual Transmission
Number

425Information

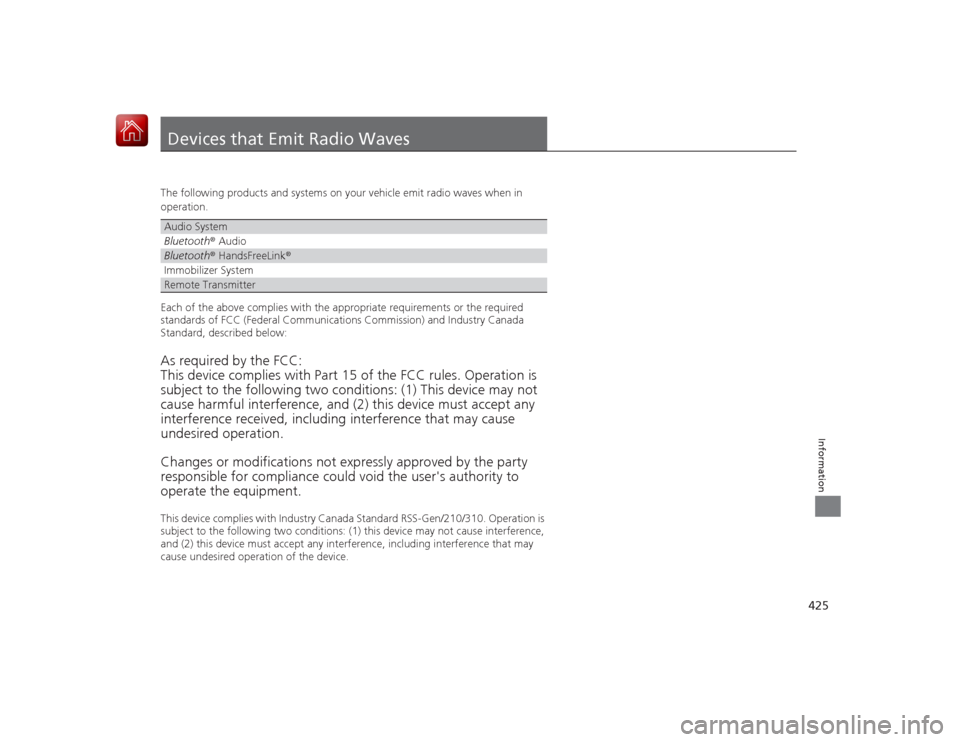

Devices that Emit Radio WavesThe following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or mo difications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this de vice may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.Audio SystemBluetooth ® AudioBluetooth® HandsFreeLink ®Immobilizer SystemRemote Transmitter

426Information

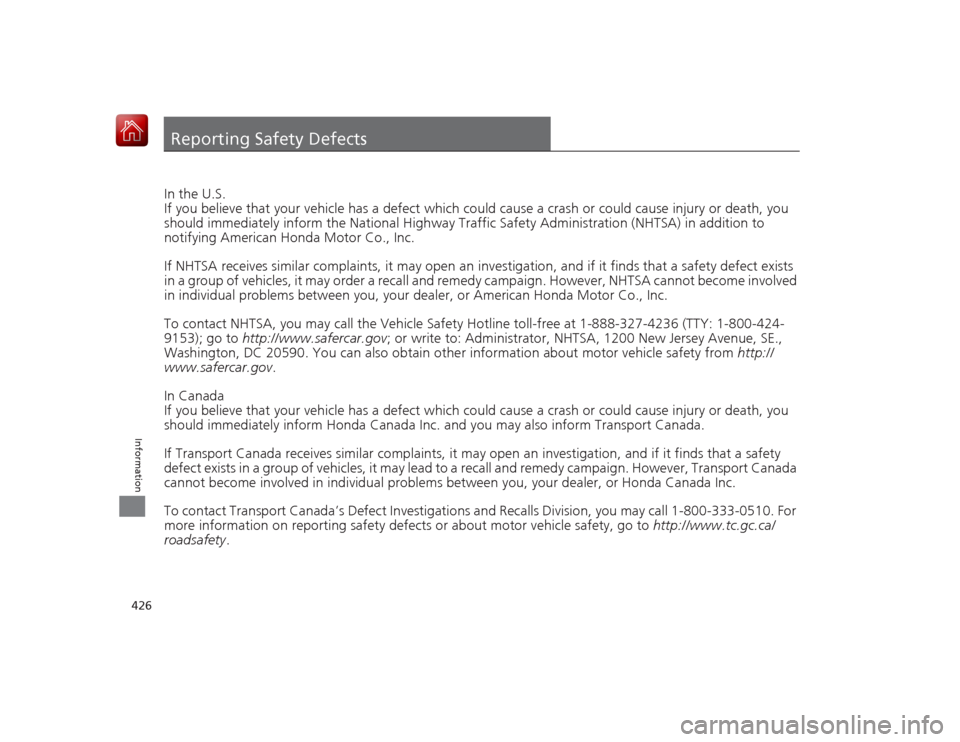

Reporting Safety DefectsIn the U.S.
If you believe that your vehicle has a defect which could cause a crash \
or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it ma y open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may or der a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which could cause a crash \
or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives simi lar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a reca ll and remedy campaign. However, Transport Canada
cannot become involved in individ ual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .

427
Continued
Information

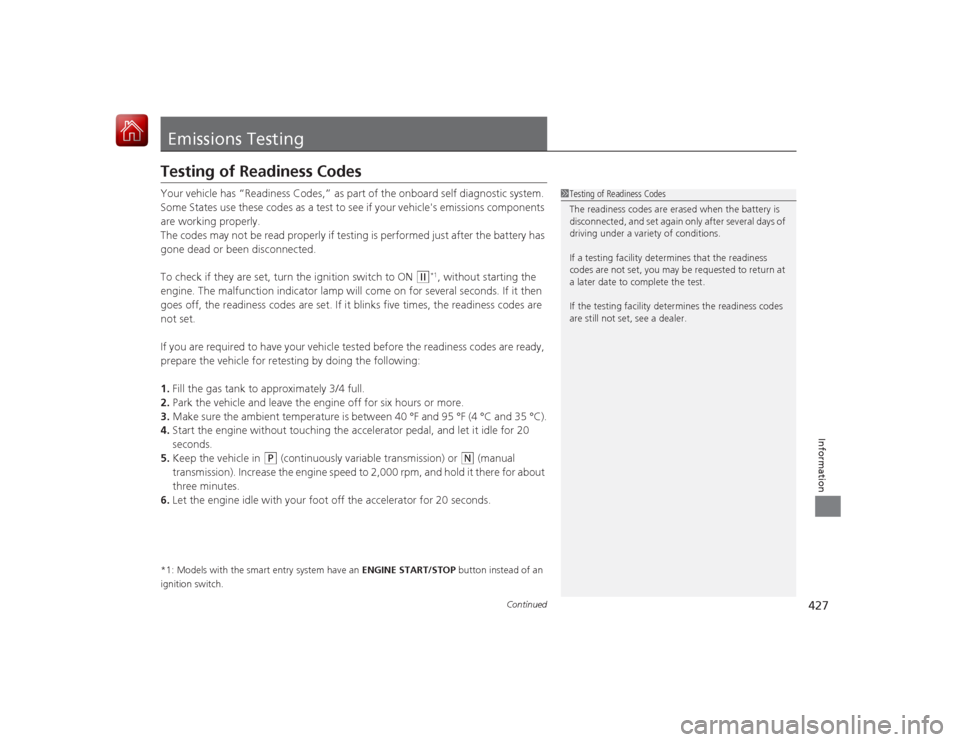

Emissions TestingTesting of Readiness CodesYour vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle's emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w
*1, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for six hours or more.
3. Make sure the ambient temperature is between 40 °F and 95 °F (4 °C and 35 °C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P
(continuously variable transmission) or
(N
(manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility dete rmines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing faci lity determines the readiness codes
are still not set, see a dealer.

428
uuEmissions Testing uTesting of Readiness Codes
Information

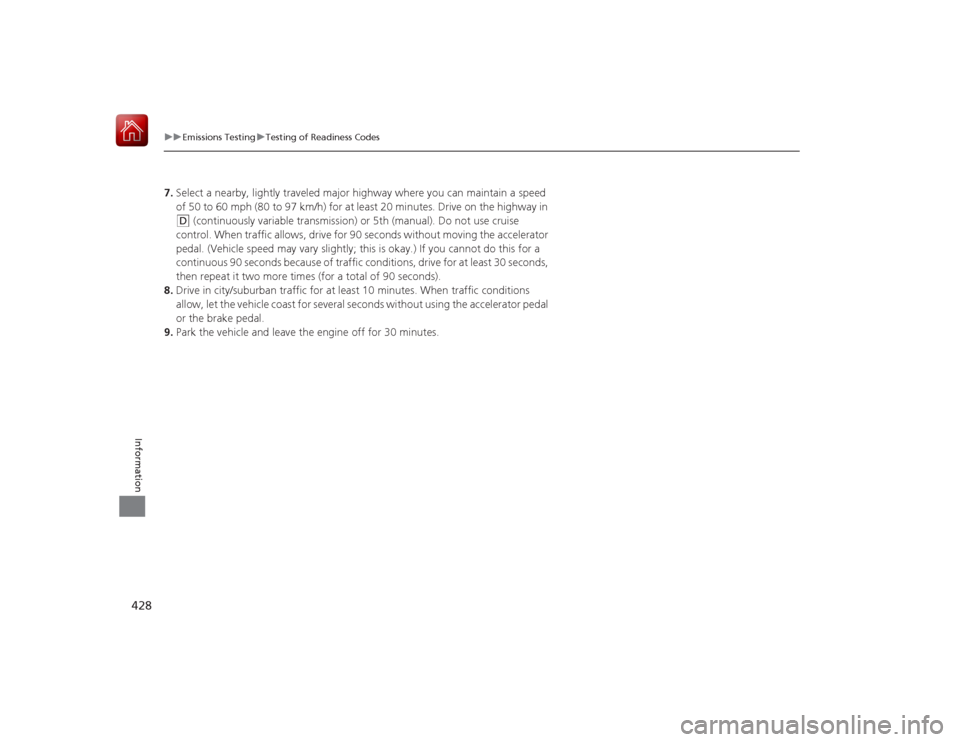

7. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D
(continuously variable transmission) or 5th (manual). Do not use cruise
control. When traffic allows, drive for 90 seconds without moving the accelerator
pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do this for a
continuous 90 seconds because of traffic conditions, drive for at least 30 seconds,
then repeat it two more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.

429
Continued
Information

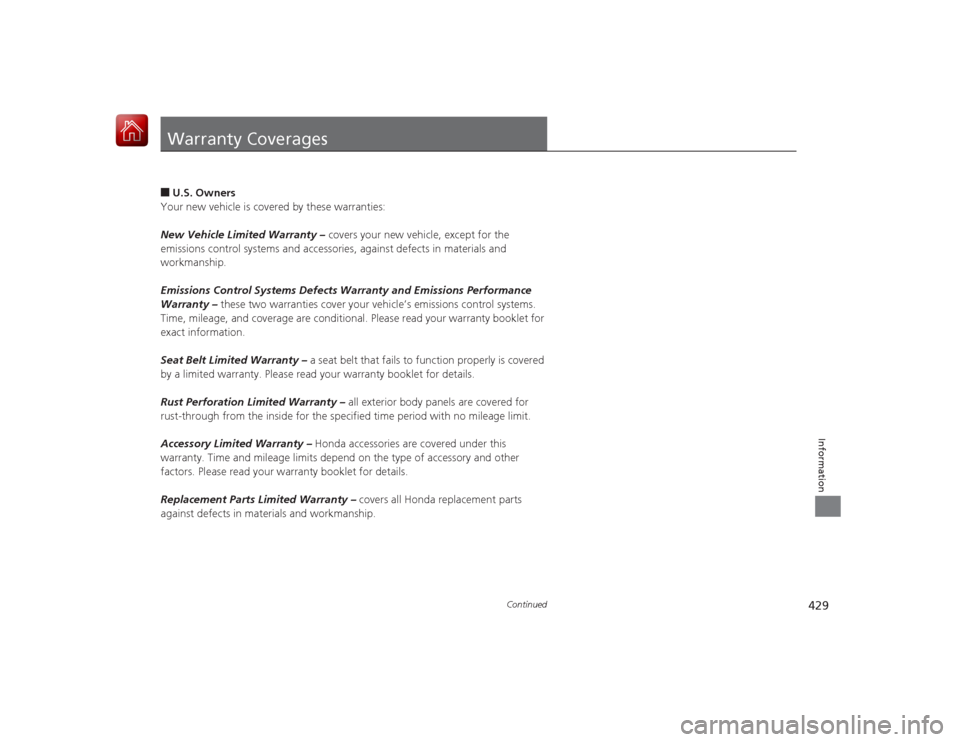

Warranty Coverages■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessories, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your vehicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time period with no mileage limit.
Accessory Li mited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.
