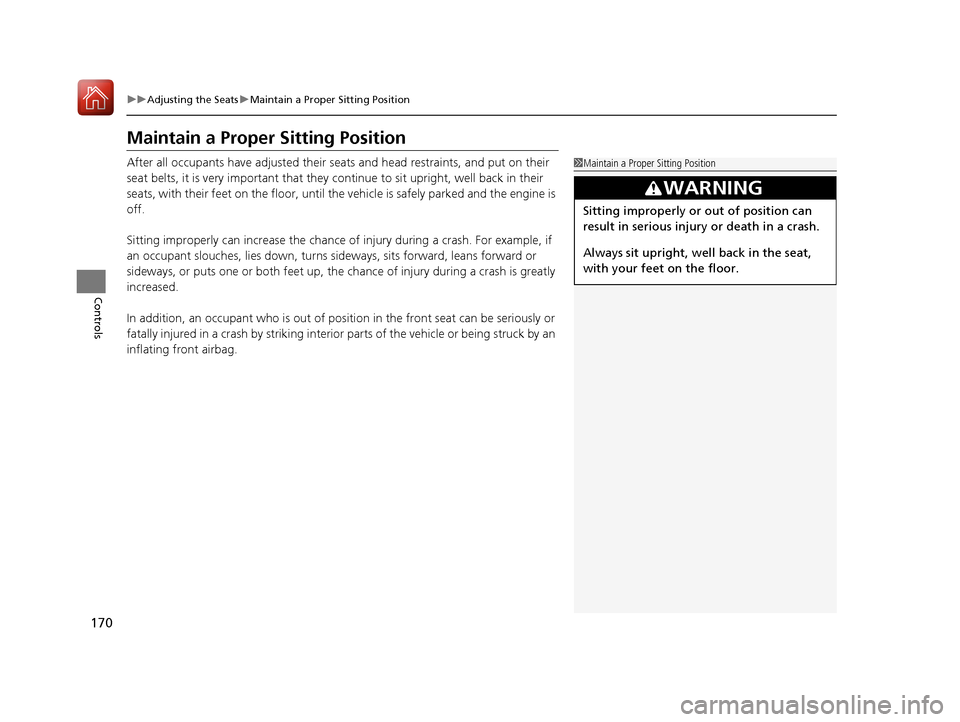

HONDA CIVIC COUPE 2017 10.G Owners Manual

170
uuAdjusting the Seats uMaintain a Proper Sitting Position
Controls
Maintain a Proper Sitting Position
After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the engine is
off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns si deways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.1 Maintain a Proper Sitting Position
3WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 170 ページ ２０１６年８月３１日　水曜日　午後５時４３分

171
uuAdjusting the Seats uMaintain a Proper Sitting Position
Controls

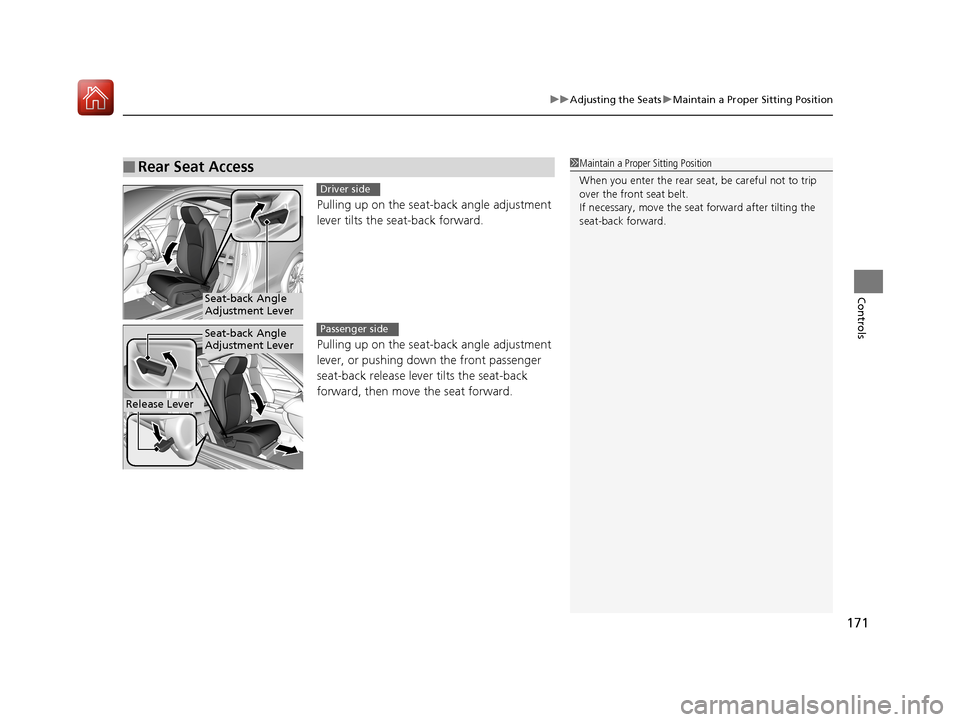

Pulling up on the seat-bac k angle adjustment
lever tilts the seat-back forward.
Pulling up on the seat-bac k angle adjustment
lever, or pushing down the front passenger
seat-back release lever tilts the seat-back
forward, then move the seat forward.
■Rear Seat Access1 Maintain a Proper Sitting Position
When you enter the rear seat, be careful not to trip
over the front seat belt.
If necessary, move the seat forward after tilting the
seat-back forward.
Seat-back Angle
Adjustment Lever
Driver side
Seat-back Angle
Adjustment Lever
Release Lever
Passenger side
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 171 ページ ２０１６年８月３１日　水曜日　午後５時４３分

172
uuAdjusting the Seats uRear Seats
Controls

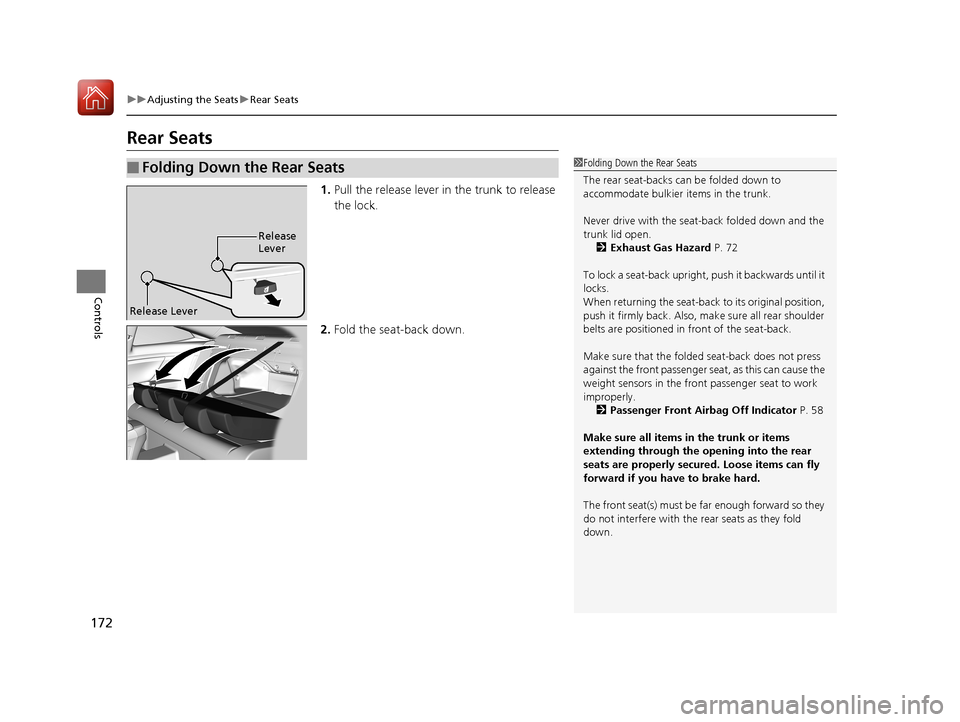

Rear Seats
1. Pull the release lever in the trunk to release
the lock.
2. Fold the seat-back down.
■Folding Down the Rear Seats1Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier items in the trunk.
Never drive with the seat-back folded down and the
trunk lid open.
2 Exhaust Gas Hazard P. 72
To lock a seat-back upright, push it backwards until it
locks.
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure that the folded seat-back does not press
against the front passenger se at, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Front Airbag Off Indicator P. 58
Make sure all items in the trunk or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.
Release
Lever
Release Lever
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 172 ページ ２０１６年８月３１日　水曜日　午後５時４３分

173
uuAdjusting the Seats uArmrest
Controls

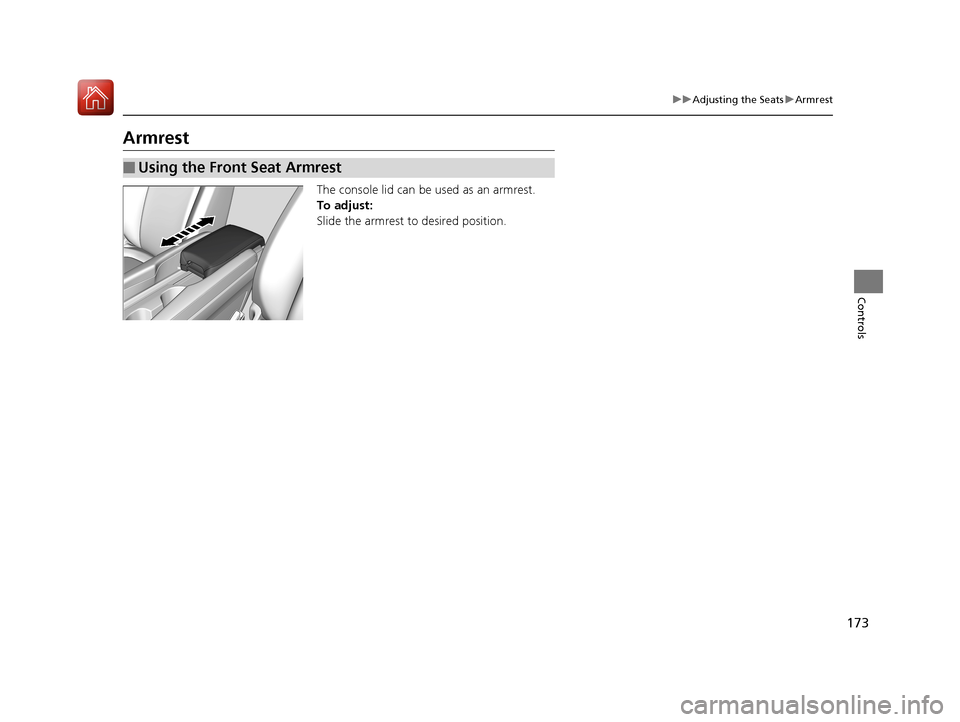

Armrest
The console lid can be used as an armrest.
To adjust:
Slide the armrest to desired position.
■Using the Front Seat Armrest
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 173 ページ ２０１６年８月３１日　水曜日　午後５時４３分

174
Controls

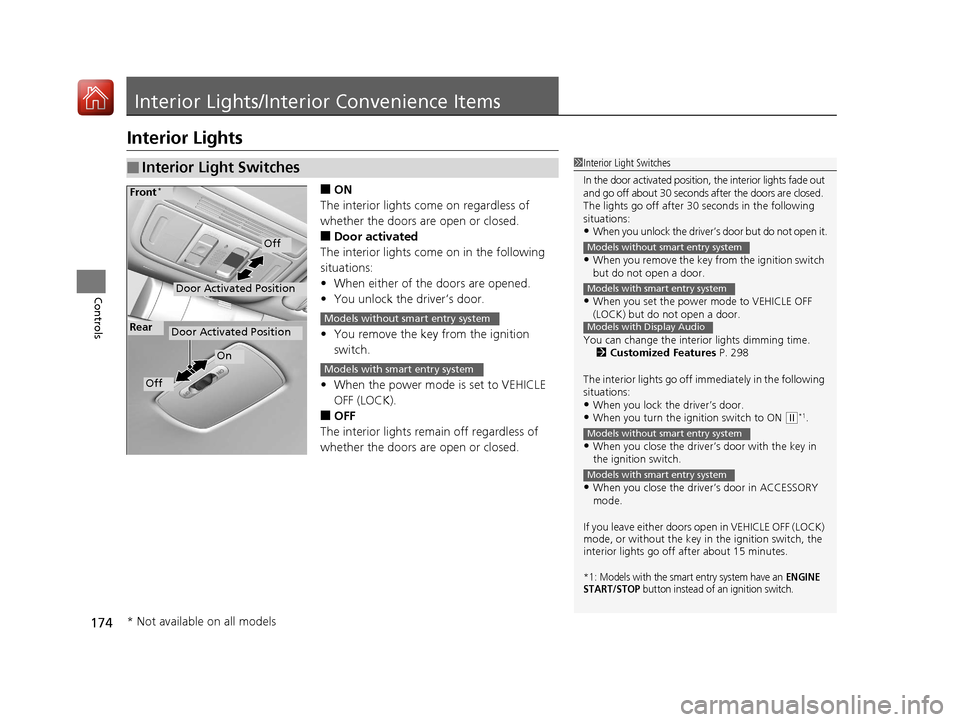

Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When either of the doors are opened.
• You unlock the driver’s door.
• You remove the key from the ignition
switch.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade out
and go off about 30 seconds after the doors are closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open it.
•When you remove the key from the ignition switch
but do not open a door.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 298
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.•When you turn the ignition switch to ON ( w*1.
•When you close the driver’s door with the key in
the ignition switch.
•When you close the driver’s door in ACCESSORY
mode.
If you leave either doors open in VEHICLE OFF (LOCK)
mode, or without the key in the ignition switch, the
interior lights go off after about 15 minutes.
*1: Models with the smart entry system have an ENGINE
START/STOP button instead of an ignition switch.
Models without smart entry system
Models with smart entry system
Models with Display Audio
Models without smart entry system
Models with smart entry system
Door Activated Position
Off
Front*
Door Activated Position
On
Off
RearModels without smart entry system
Models with smart entry system
* Not available on all models
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 174 ページ ２０１６年８月３１日　水曜日　午後５時４３分

175
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls

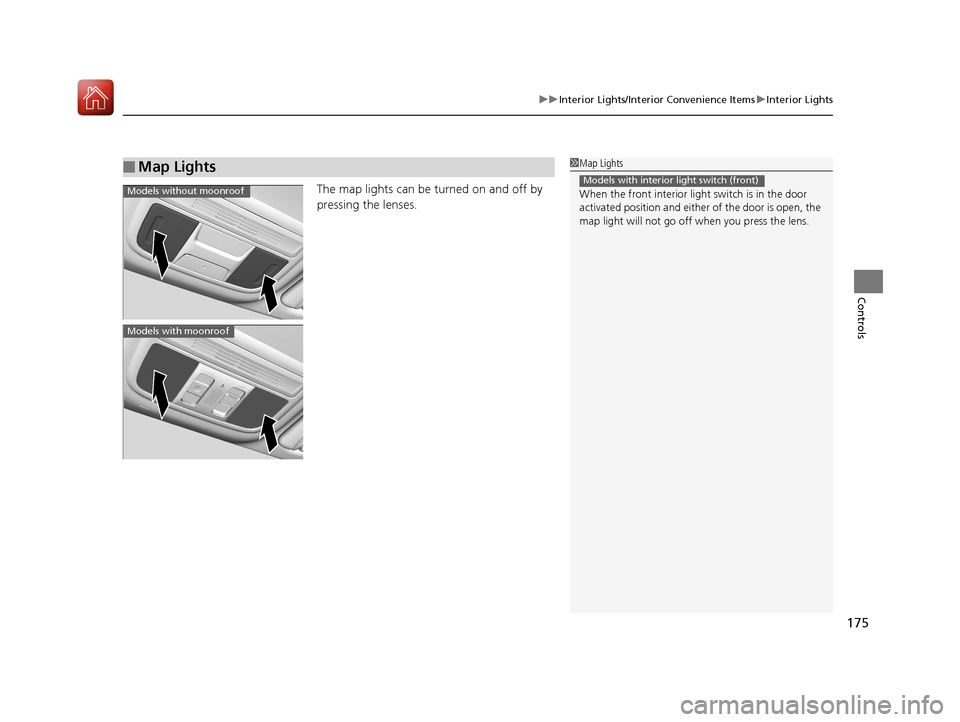

The map lights can be turned on and off by
pressing the lenses.
■Map Lights1Map Lights
When the front interior li ght switch is in the door
activated position and either of the door is open, the
map light will not go off when you press the lens.
Models with interior light switch (front)Models without moonroof
Models with moonroof
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 175 ページ ２０１６年８月３１日　水曜日　午後５時４３分

176
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

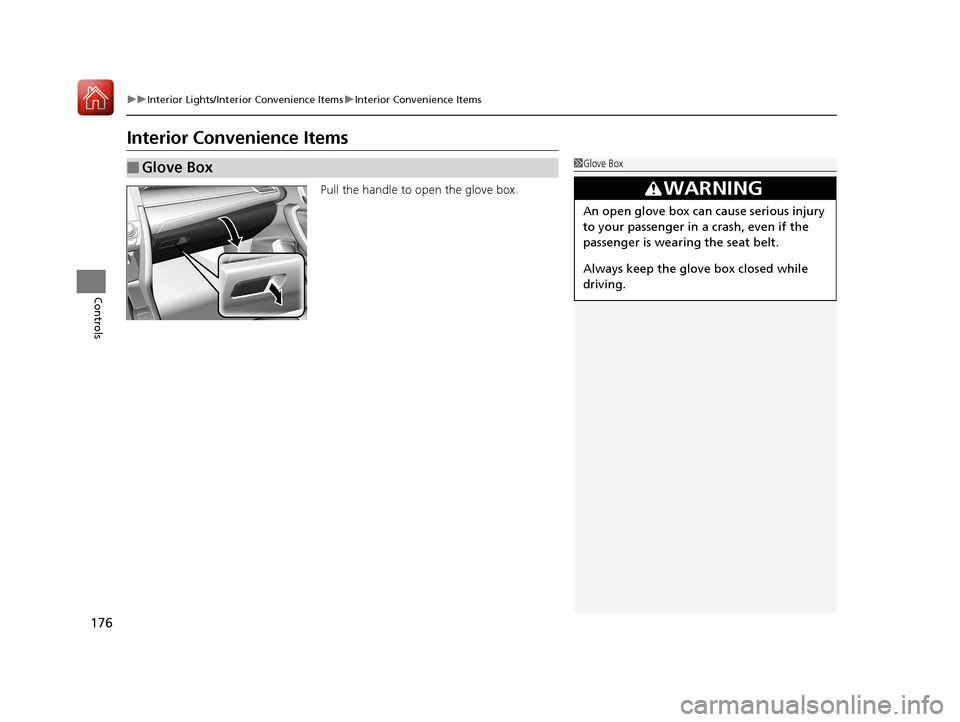

Interior Convenience Items
Pull the handle to open the glove box.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 176 ページ ２０１６年８月３１日　水曜日　午後５時４３分

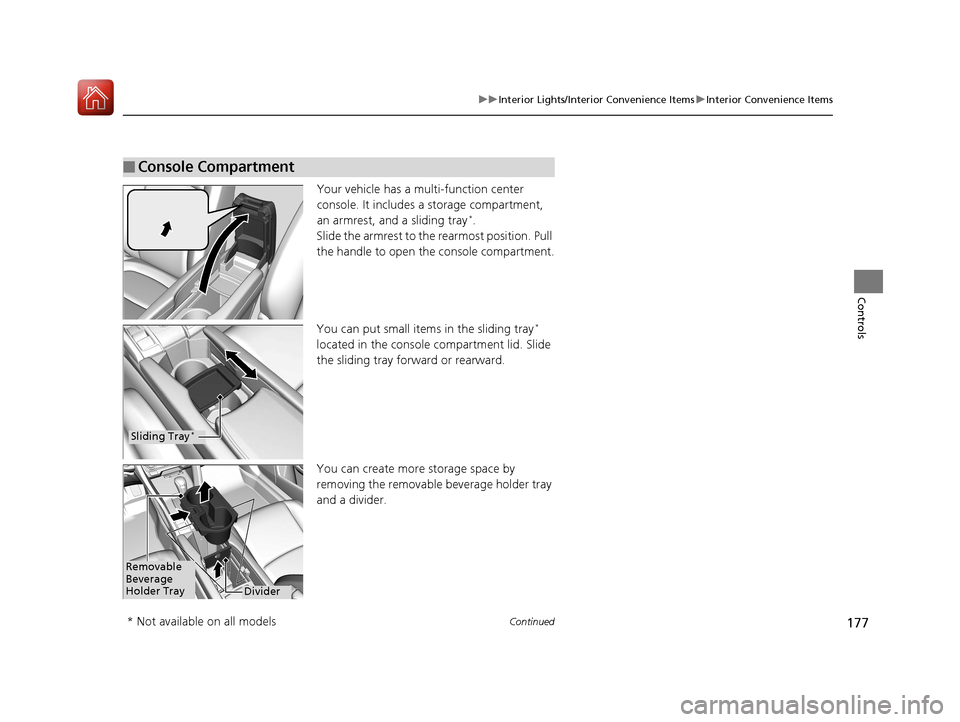

177
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Your vehicle has a multi-function center
console. It includes a storage compartment,
an armrest, and a sliding tray
*.
Slide the armrest to the rearmost position. Pull
the handle to open the console compartment.
You can put small items in the sliding tray
*
located in the console compartment lid. Slide
the sliding tray forward or rearward.
You can create more storage space by
removing the removable beverage holder tray
and a divider.
■Console Compartment
Sliding Tray*
Removable
Beverage
Holder Tray
Divider
* Not available on all models
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 177 ページ ２０１６年８月３１日　水曜日　午後５時４３分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
178
Controls

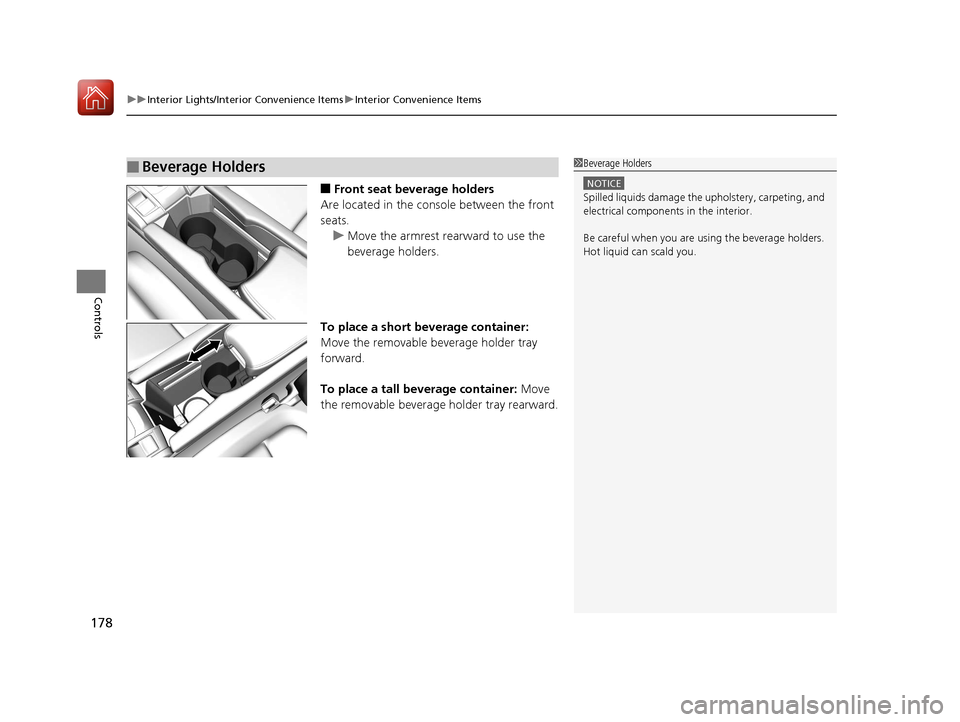

■Front seat beverage holders
Are located in the console between the front
seats. u Move the armrest rearward to use the
beverage holders.
To place a short beverage container:
Move the removable beverage holder tray
forward.
To place a tall beverage container: Move
the removable beverage holder tray rearward.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 178 ページ ２０１６年８月３１日　水曜日　午後５時４３分

179
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

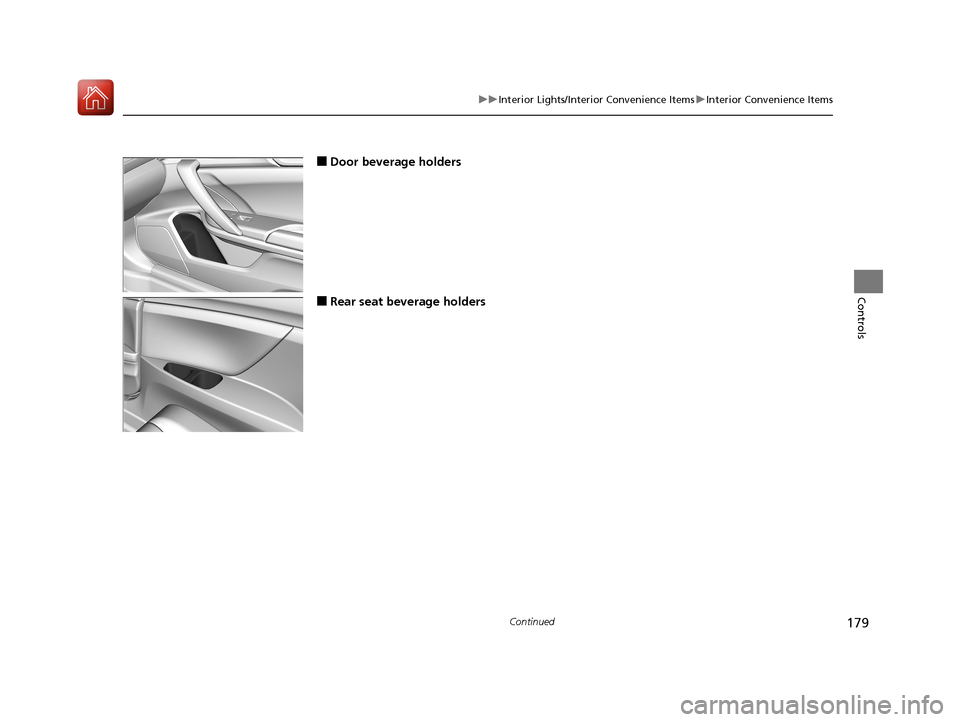

■Door beverage holders
■Rear seat beverage holders
