HONDA CIVIC COUPE 2017 10.G Owners Manual

380
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

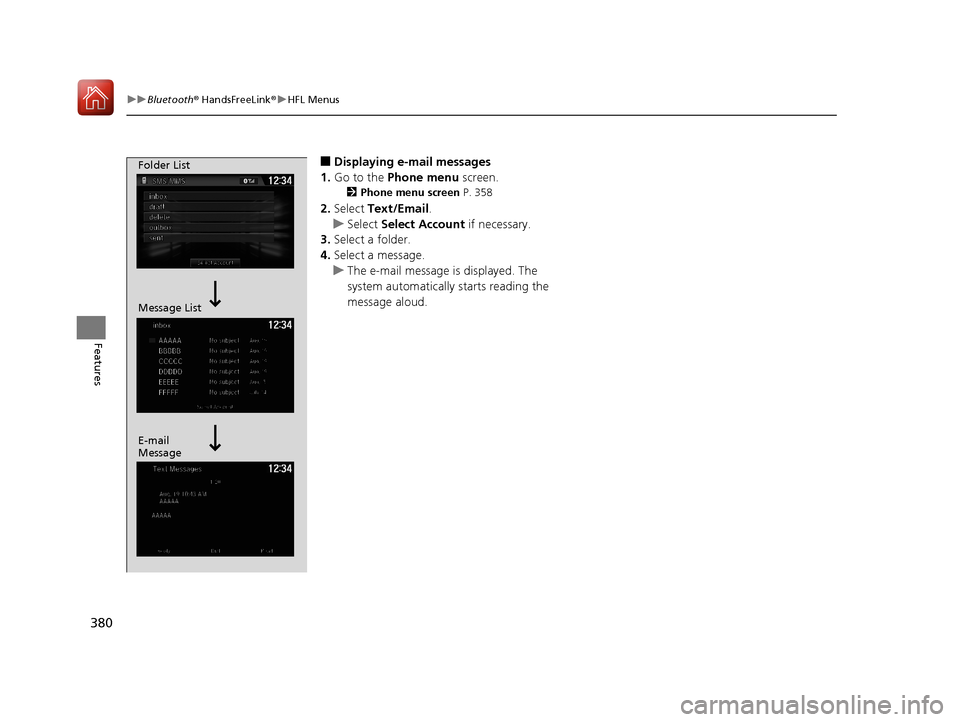

■Displaying e-mail messages
1. Go to the Phone menu screen.
2Phone menu screen P. 358
2.Select Text/Email .
u Select Select Account if necessary.
3. Select a folder.
4. Select a message.
u The e-mail message is displayed. The
system automatically starts reading the
message aloud.
Folder List
Message List
E-mail
Message
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 380 ページ ２０１６年８月３１日　水曜日　午後５時４３分

Continued381
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

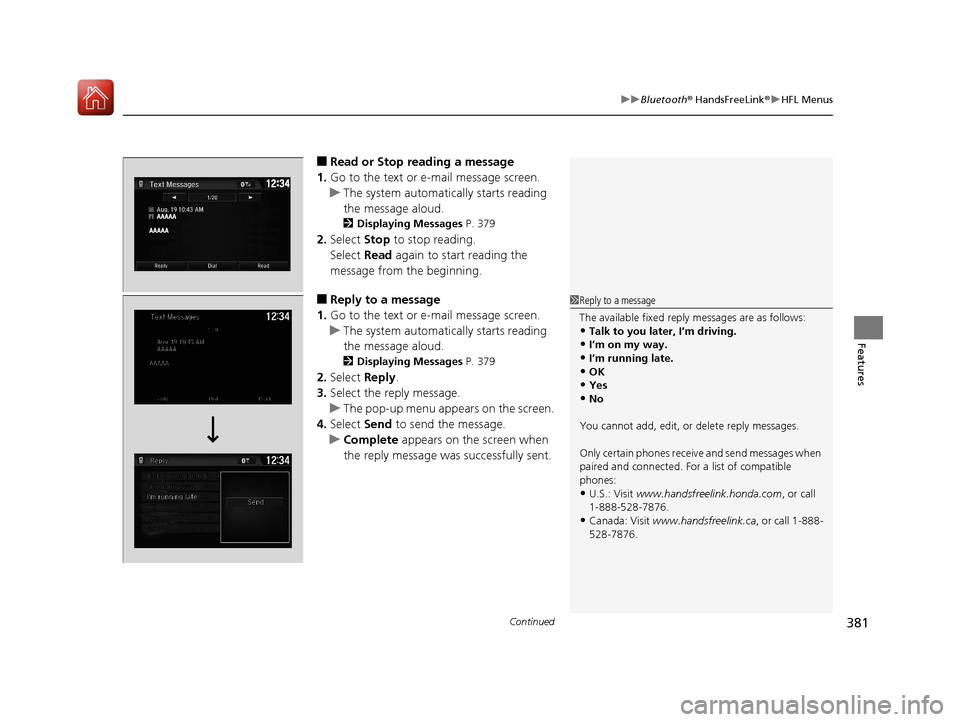

■Read or Stop reading a message
1. Go to the text or e-mail message screen.
u The system automatica lly starts reading
the message aloud.
2 Displaying Messages P. 379
2.Select Stop to stop reading.
Select Read again to start reading the
message from the beginning.
■Reply to a message
1. Go to the text or e-mail message screen.
u The system automatica lly starts reading
the message aloud.
2 Displaying Messages P. 379
2.Select Reply.
3. Select the reply message.
u The pop-up menu appears on the screen.
4. Select Send to send the message.
u Complete appears on the screen when
the reply message was successfully sent.
1 Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.•I’m on my way.
•I’m running late.
•OK•Yes
•No
You cannot add, edit, or delete reply messages.
Only certain phones receiv e and send messages when
paired and connected. For a list of compatible
phones:
•U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 381 ページ ２０１６年８月３１日　水曜日　午後５時４３分

382
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

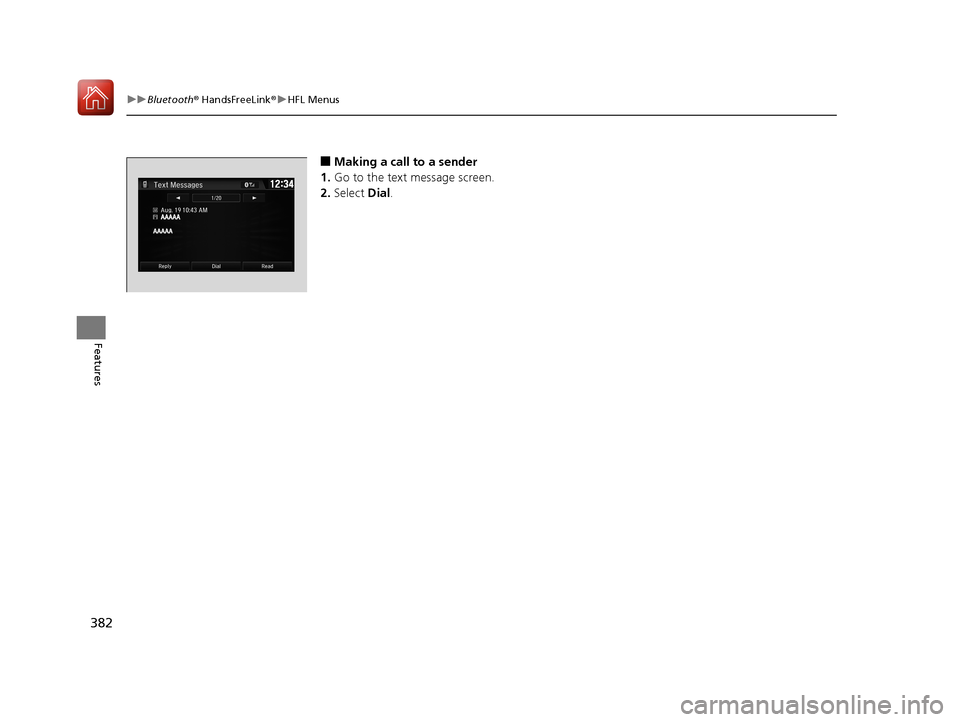

■Making a call to a sender
1. Go to the text message screen.
2. Select Dial.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 382 ページ ２０１６年８月３１日　水曜日　午後５時４３分

Continued383
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

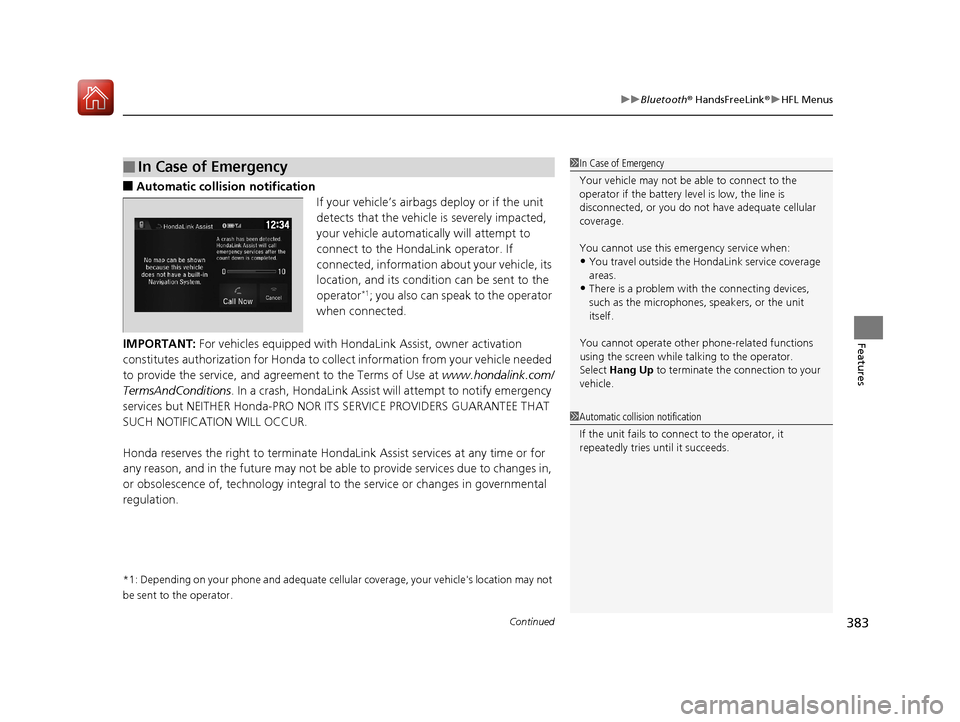

■Automatic collis ion notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink operator. If
connected, information about your vehicle, its
location, and its condition can be sent to the
operator
*1; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipped with HondaLink Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agreement to the Terms of Use at www.hondalink.com/
TermsAndConditions . In a crash, HondaLink Assist will attempt to notify emergency
services but NEITHER Honda-PRO NOR ITS SERVICE PROVIDERS GUARANTEE THAT
SUCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink Assist services at any time or for
any reason, and in the future may not be ab le to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
*1: Depending on your phone and adequate cellular coverage, your vehicle's location may not
be sent to the operator.
■In Case of Emergency1 In Case of Emergency
Your vehicle may not be able to connect to the
operator if the battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency service when:
•You travel outside the HondaLink service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 383 ページ ２０１６年８月３１日　水曜日　午後５時４３分

uuBluetooth ® HandsFreeLink ®u HFL Menus
384
Features

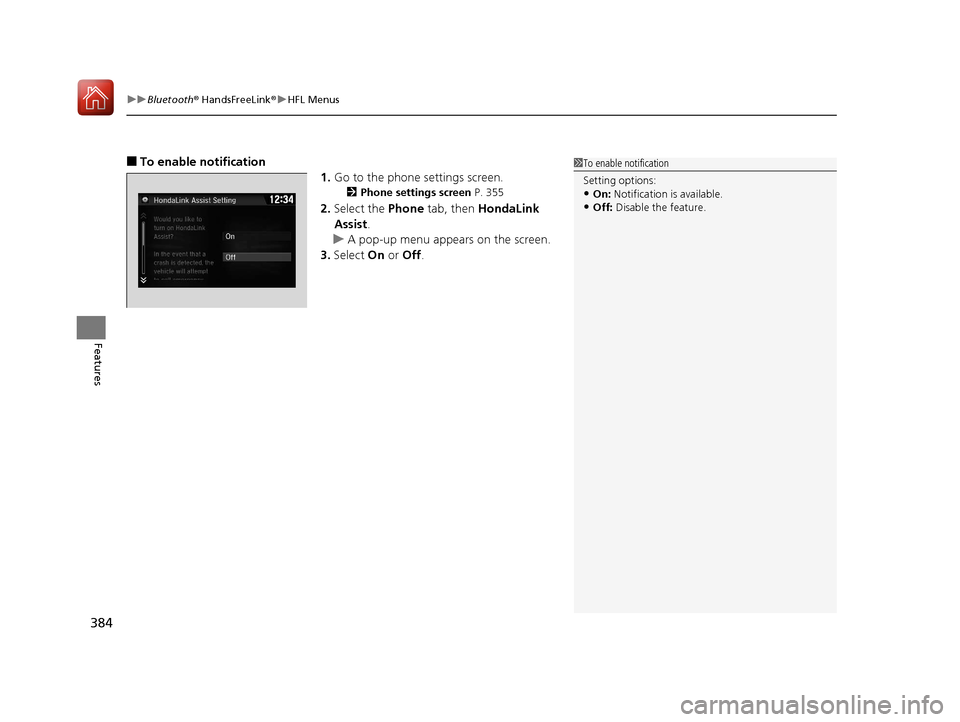

■To enable notification
1.Go to the phone settings screen.
2 Phone settings screen P. 355
2.Select the Phone tab, then HondaLink
Assist .
u A pop-up menu appears on the screen.
3. Select On or Off .
1To enable notification
Setting options:
•On: Notification is available.
•Off: Disable the feature.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 384 ページ ２０１６年８月３１日　水曜日　午後５時４３分

385

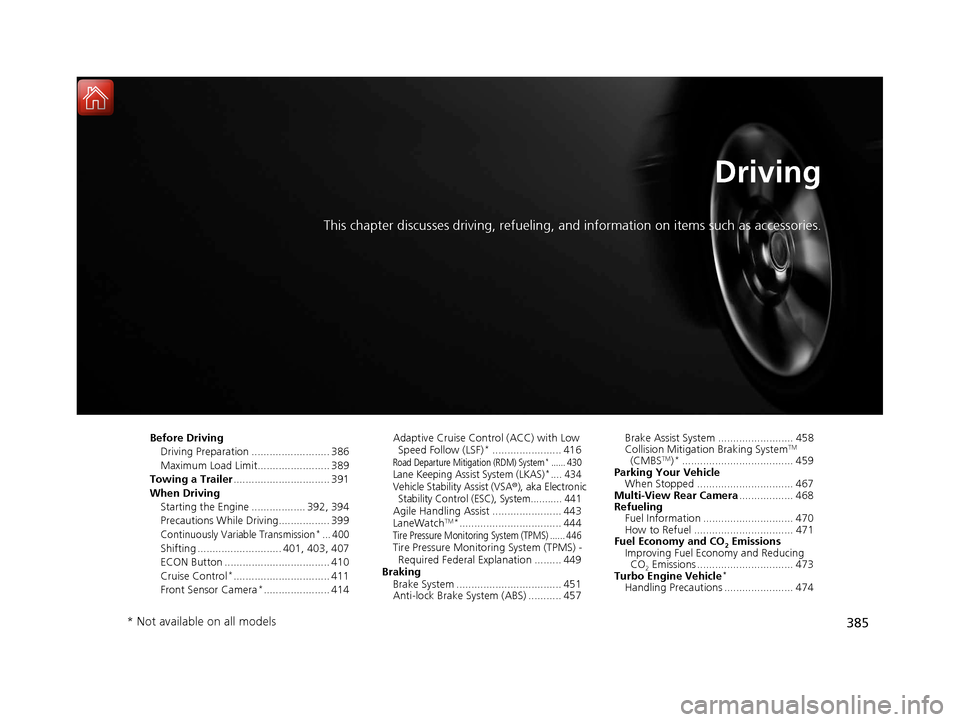

Driving
This chapter discusses driving, refueling, and information on items such as accessories.
Before Driving
Driving Preparation .......................... 386
Maximum Load Limit........................ 389
Towing a Trailer ................................ 391
When Driving Starting the Engine .................. 392, 394
Precautions While Driving................. 399
Continuously Variable Transmission*... 400
Shifting ............................ 401, 403, 407
ECON Button ................................... 410
Cruise Control
*................................ 411
Front Sensor Camera*...................... 414 Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF)
*....................... 416Road Departure Mitigation (RDM) System*...... 430Lane Keeping Assist System (LKAS)*.... 434
Vehicle Stabilit y Assist (VSA®), aka Electronic
Stability Control (ESC), System........... 441
Agile Handling Assist ....................... 443
LaneWatchTM*.................................. 444Tire Pressure Monitoring System (TPMS) ...... 446Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 449
Braking Brake System ................................... 451
Anti-lock Brake System (ABS) ........... 457 Brake Assist System ......................... 458
Collision Mitigation Braking System
TM
(CMBSTM)*..................................... 459
Parking Your Vehicle When Stopped ................................ 467
Multi-View Rear Camera .................. 468
Refueling Fuel Information .............................. 470
How to Refuel ................................. 471
Fuel Economy and CO
2 Emissions
Improving Fuel Economy and Reducing
CO
2 Emissions ................................ 473
Turbo Engine Vehicle*
Handling Precautions ....................... 474
* Not available on all models
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 385 ページ ２０１６年８月３１日　水曜日　午後５時４３分

386

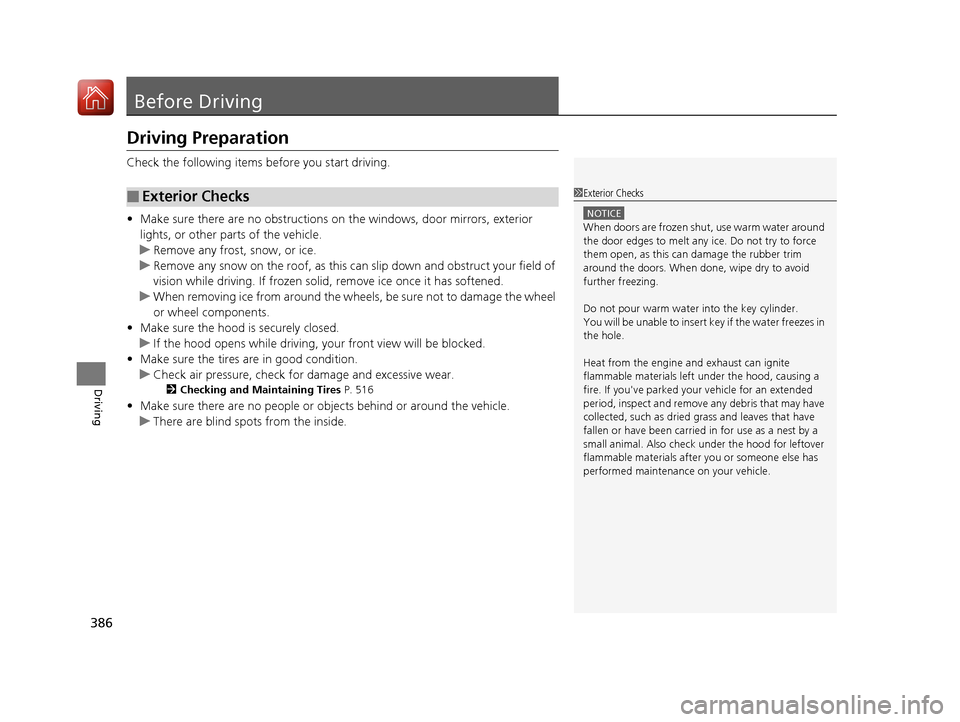

Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressure, check for damage and excessive wear.
2 Checking and Maintaining Tires P. 516
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert key if the water freezes in
the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you've parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 386 ページ ２０１６年８月３１日　水曜日　午後５時４３分

Continued387
uuBefore Driving uDriving Preparation
Driving

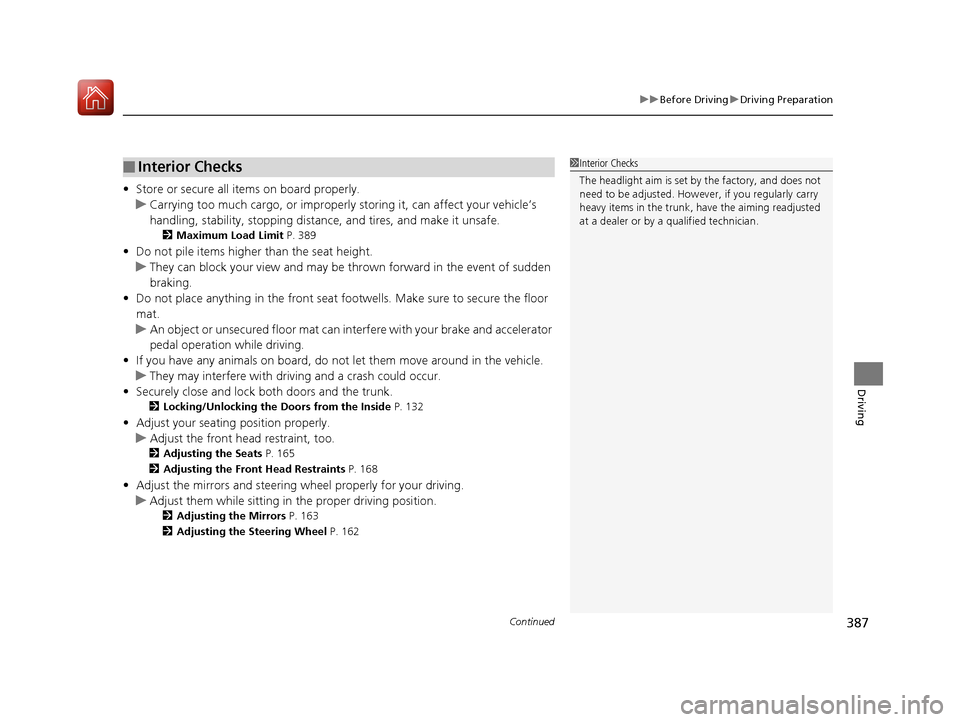

• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 389
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driving and a crash could occur.
• Securely close and lock both doors and the trunk.
2 Locking/Unlocking the Doors from the Inside P. 132
•Adjust your seating position properly.
u Adjust the front h ead restraint, too.
2Adjusting the Seats P. 165
2 Adjusting the Front Head Restraints P. 168
•Adjust the mirrors and steering wh eel properly for your driving.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 163
2 Adjusting the Steering Wheel P. 162
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 387 ページ ２０１６年８月３１日　水曜日　午後５時４３分

388
uuBefore Driving uDriving Preparation
Driving

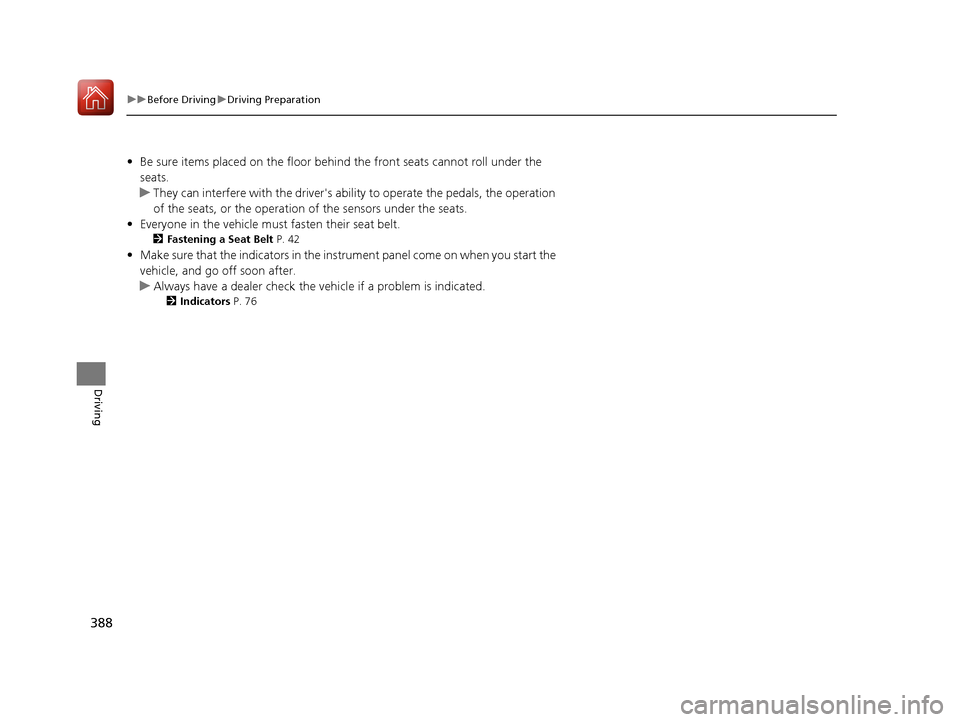

• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver's ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 42
•Make sure that the indicators in the ins trument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 76
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 388 ページ ２０１６年８月３１日　水曜日　午後５時４３分

389
uuBefore Driving uMaximum Load Limit
Continued
Driving

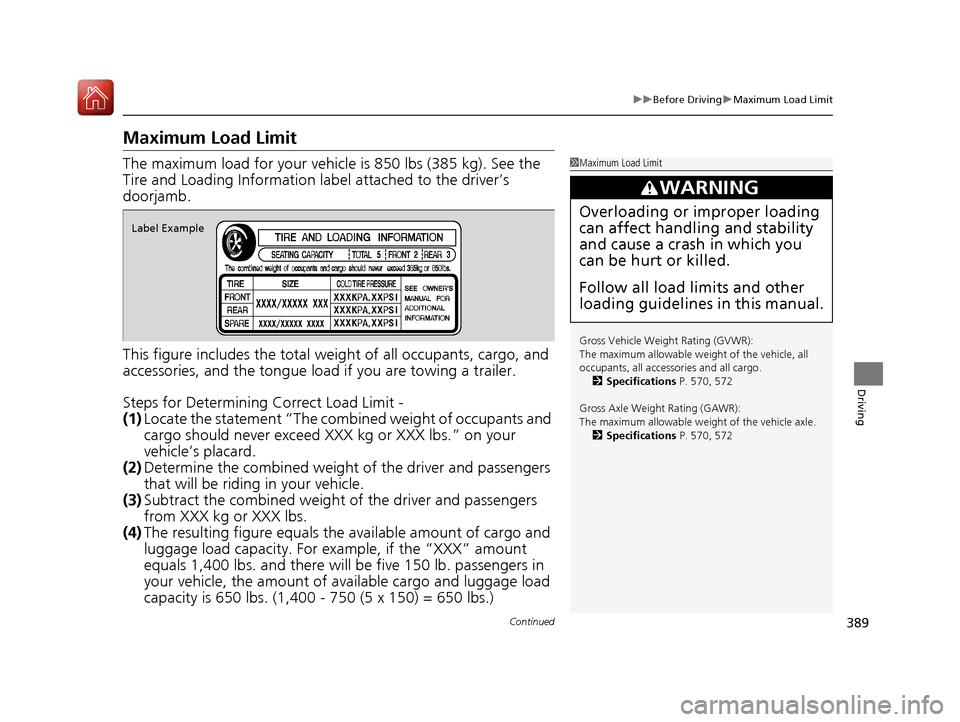

Maximum Load Limit
The maximum load for your vehicl e is 850 lbs (385 kg). See the
Tire and Loading Information la bel attached to the driver’s
doorjamb.
This figure includes the total weig ht of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.
Steps for Determining Correct Load Limit -
(1) Locate the statement “The comb ined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your
vehicle’s placard.
(2) Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and
luggage load capacity. For example, if the “XXX” amount
equals 1,400 lbs. and there will be five 150 lb. passengers in
your vehicle, the am ount of available cargo and luggage load
capacity is 650 lbs. (1,400 - 750 (5 x 150) = 650 lbs.)1 Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all accesso ries and all cargo.
2 Specifications P. 570, 572
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle. 2 Specifications P. 570, 572
3WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
Label Example
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 389 ページ ２０１６年８月３１日　水曜日　午後５時４３分
