Continued189
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

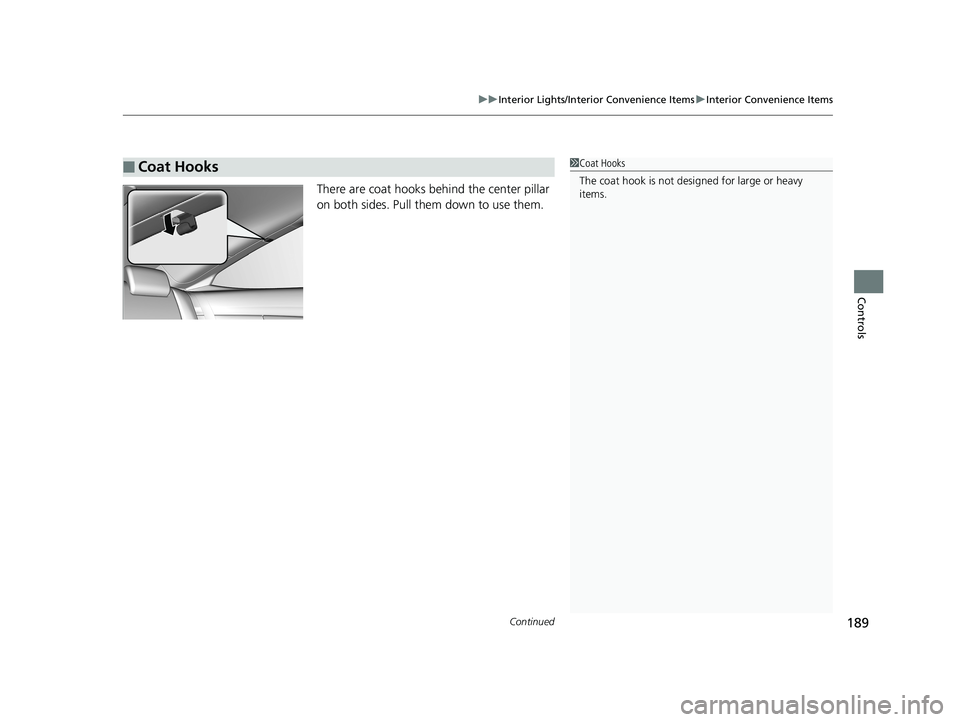

There are coat hooks behind the center pillar
on both sides. Pull them down to use them.
■Coat Hooks1Coat Hooks
The coat hook is not desi gned for large or heavy
items.
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 189 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
190
Controls

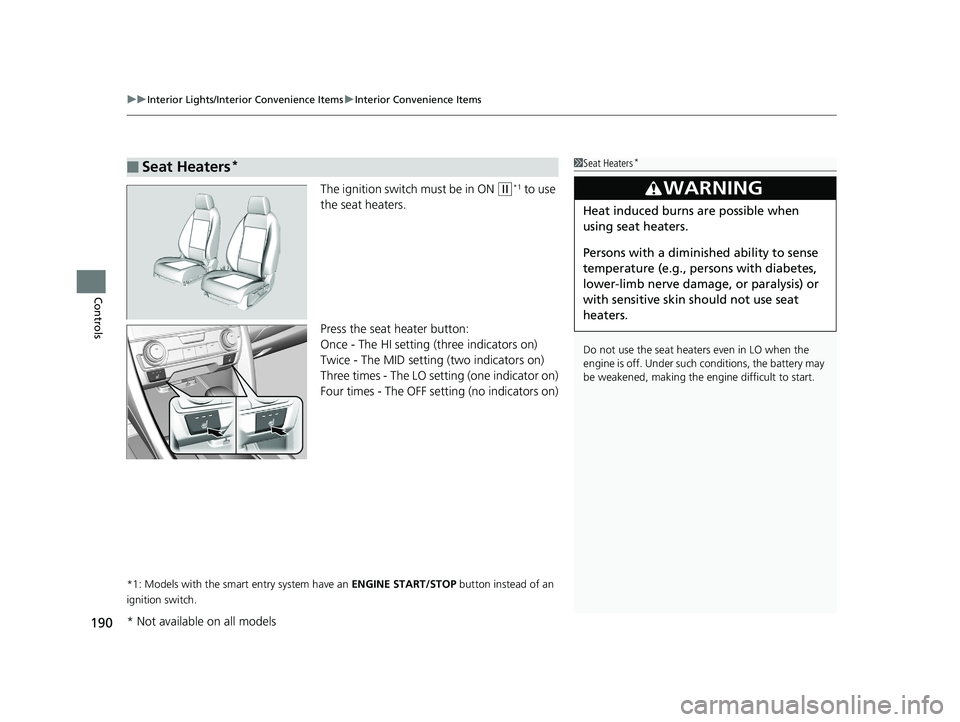

The ignition switch must be in ON (w*1 to use
the seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Seat Heaters*1 Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 190 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

191Continued
Controls

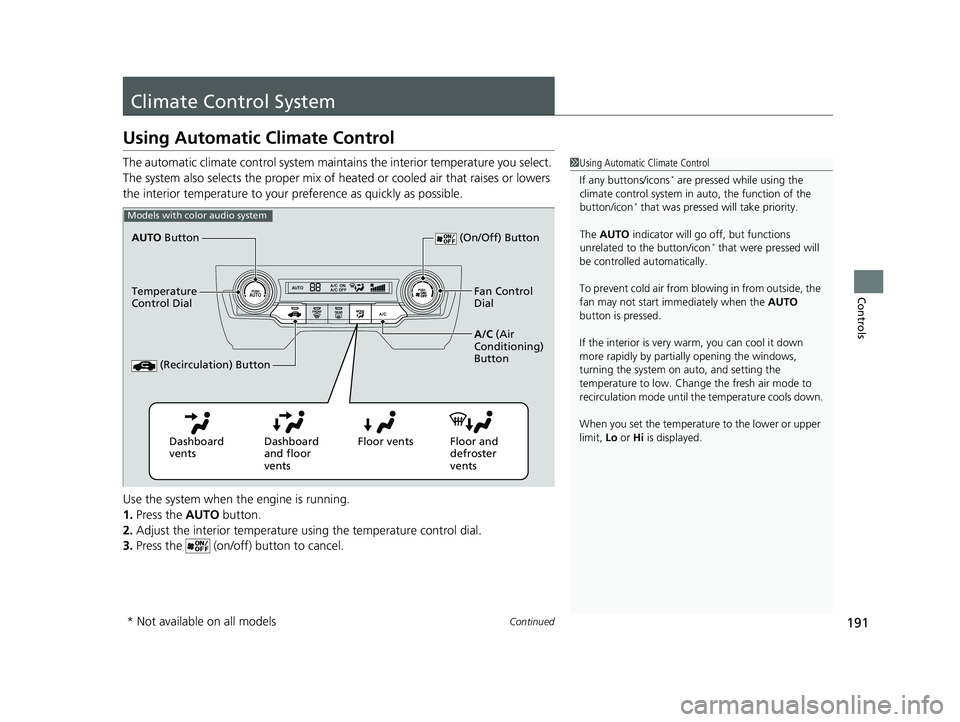

Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
3. Press the (on/off) button to cancel.1Using Automatic Climate Control
If any buttons/icons
* are pressed while using the
climate control system in auto, the function of the
button/icon
* that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button/icon
* that were pressed will
be controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
Models with color audio system
Dashboard
vents Dashboard
and floor
ventsFloor vents Floor and
defroster
vents
AUTO
Button
Temperature
Control Dial A/C (Air
Conditioning)
Button
(Recirculation) Button
(On/Off) Button
Fan Control
Dial
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 191 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

uuClimate Control System uUsing Automatic Climate Control
192
Controls

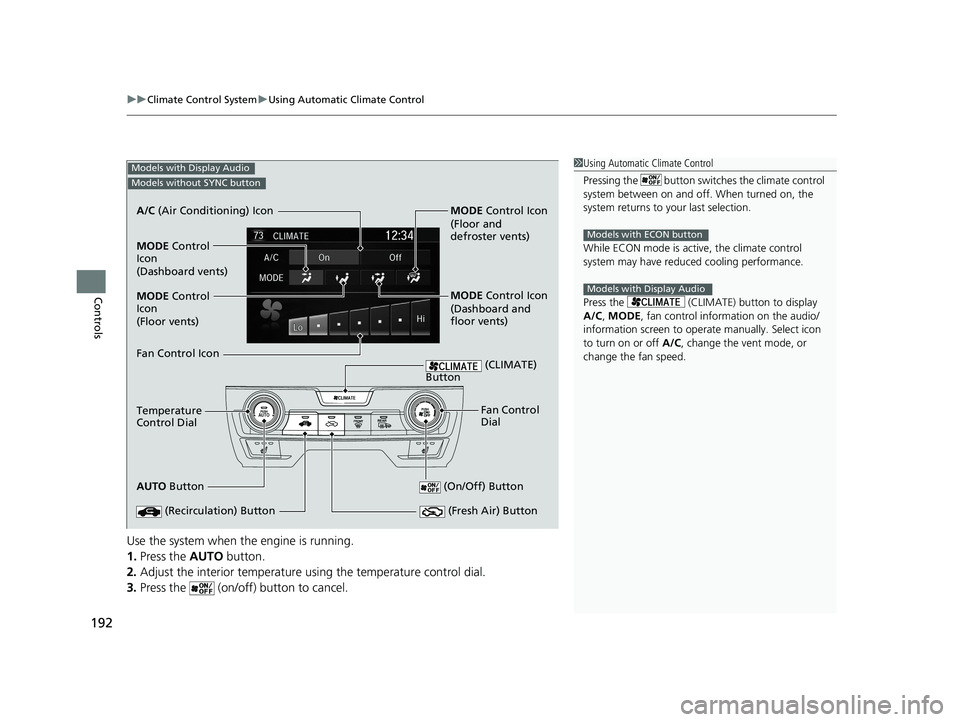

Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
3. Press the (on/off) button to cancel.
1Using Automatic Climate Control
Pressing the button switches the climate control
system between on and off. When turned on, the
system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.
Press the (CLIMATE) button to display
A/C , MODE, fan control information on the audio/
information screen to ope rate manually. Select icon
to turn on or off A/C, change the vent mode, or
change the fan speed.
Models with ECON button
Models with Display Audio
Models with Display Audio
Models without SYNC button
AUTO Button
Temperature
Control Dial A/C
(Air Conditioning) Icon
(Recirculation) Button (On/Off) Button
Fan Control
Dial
(Fresh Air) Button
Fan Control Icon MODE Control
Icon
(Dashboard vents)
(Floor vents) MODE Control
Icon MODE
Control Icon
MODE Control Icon
(Floor and
defroster vents)
(Dashboard and
floor vents)
(CLIMATE)
Button
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 192 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

193
uuClimate Control System uUsing Automatic Climate Control
Continued
Controls

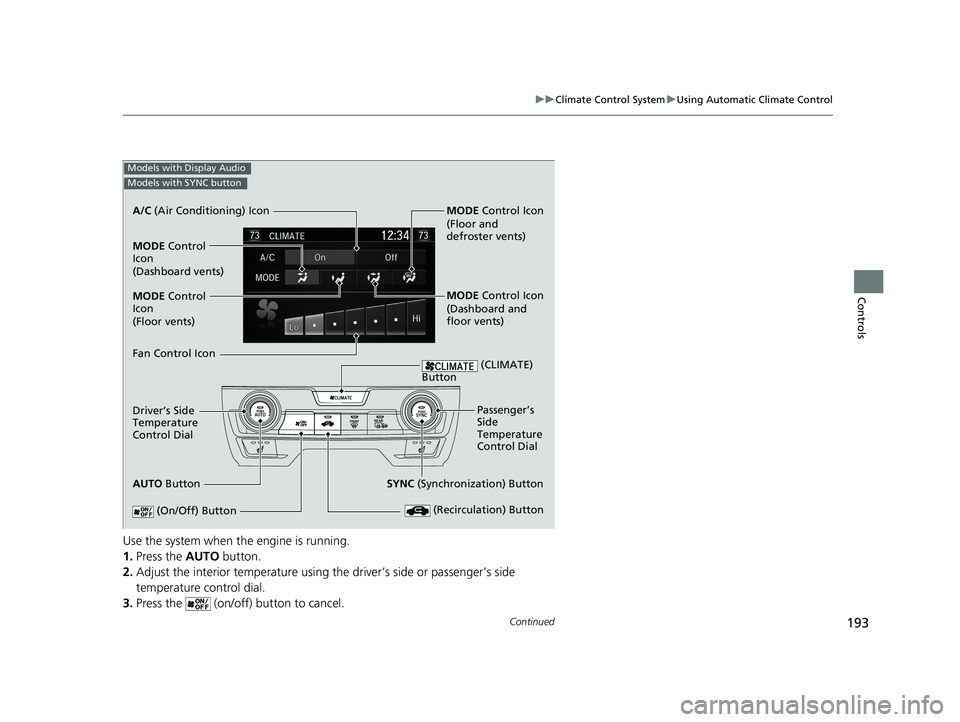

Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver’s side or passenger’s side
temperature control dial.
3. Press the (on/off) button to cancel.
Models with Display Audio
Models with SYNC button
AUTO Button
Driver’s Side
Temperature
Control Dial A/C
(Air Conditioning) Icon
(Recirculation) Button
(On/Off) Button
Passenger’s
Side
Temperature
Control Dial
Fan Control Icon MODE
Control
Icon
(Dashboard vents)
(Floor vents) MODE Control
Icon MODE
Control Icon
MODE Control Icon
(Floor and
defroster vents)
(Dashboard and
floor vents)
(CLIMATE)
Button
SYNC (Synchronization) Button
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 193 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

194
uuClimate Control System uUsing Automatic Climate Control
Controls

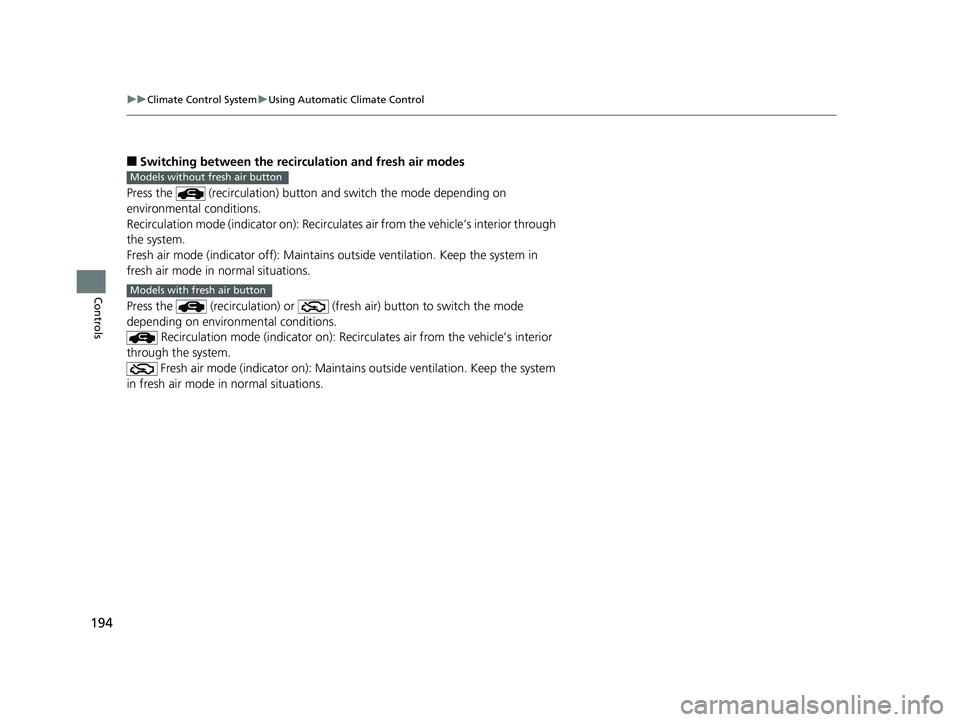

■Switching between the recirculation and fresh air modes
Press the (recirculation) button and switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculat es air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains ou tside ventilation. Keep the system in
fresh air mode in normal situations.
Press the (recirculation) or (fre sh air) button to switch the mode
depending on environmental conditions. Recirculation mode (indicator on): Reci rculates air from the vehicle’s interior
through the system. Fresh air mode (indicator on): Maintain s outside ventilation. Keep the system
in fresh air mode in normal situations.
Models without fresh air button
Models with fresh air button
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 194 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

Continued195
uuClimate Control System uUsing Automatic Climate Control
Controls

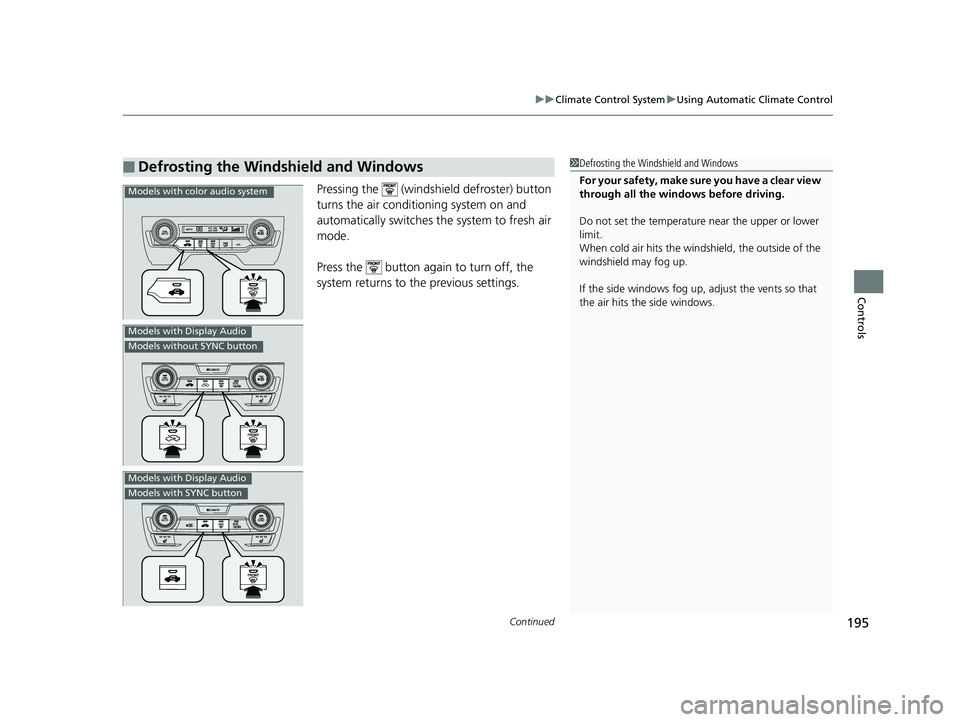

Pressing the (windshield defroster) button
turns the air conditioning system on and
automatically switches th e system to fresh air
mode.
Press the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
Models with color audio system
Models with Display Audio
Models without SYNC button
Models with Display Audio
Models with SYNC button
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 195 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

uuClimate Control System uUsing Automatic Climate Control
196
Controls

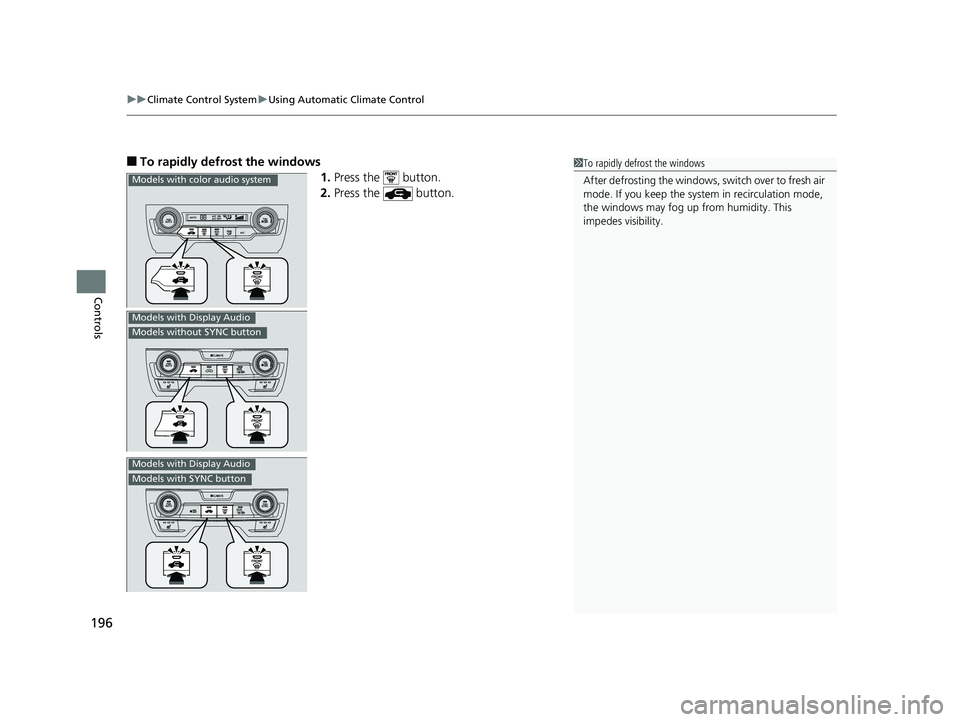

■To rapidly defrost the windows
1.Press the button.
2. Press the button.1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the syst em in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.
Models with color audio system
Models with Display Audio
Models without SYNC button
Models with Display Audio
Models with SYNC button
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 196 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

197
uuClimate Control System uUsing Automatic Climate Control
Controls

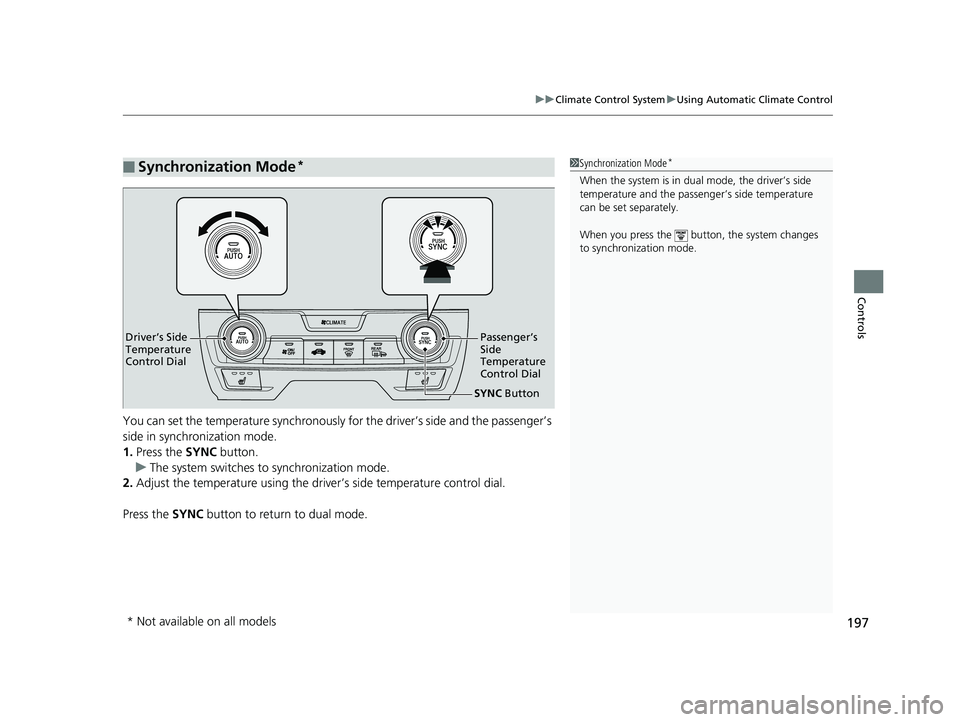

You can set the temperature synchronously for the driver’s side and the passenger’s
side in synchronization mode.
1. Press the SYNC button.
u The system switches to synchronization mode.
2. Adjust the temperature using the driv er’s side temperature control dial.
Press the SYNC button to return to dual mode.
■Synchronization Mode*1Synchronization Mode*
When the system is in dua l mode, the driver’s side
temperature and the passe nger’s side temperature
can be set separately.
When you press the button, the system changes
to synchronization mode.
SYNC Button
Driver’s Side
Temperature
Control Dial
Passenger’s
Side
Temperature
Control Dial
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 197 ページ ２０１８年１０月２６日
　金曜日　午前９時１０分

198
uuClimate Control System uAutomatic Climate Control Sensors
Controls

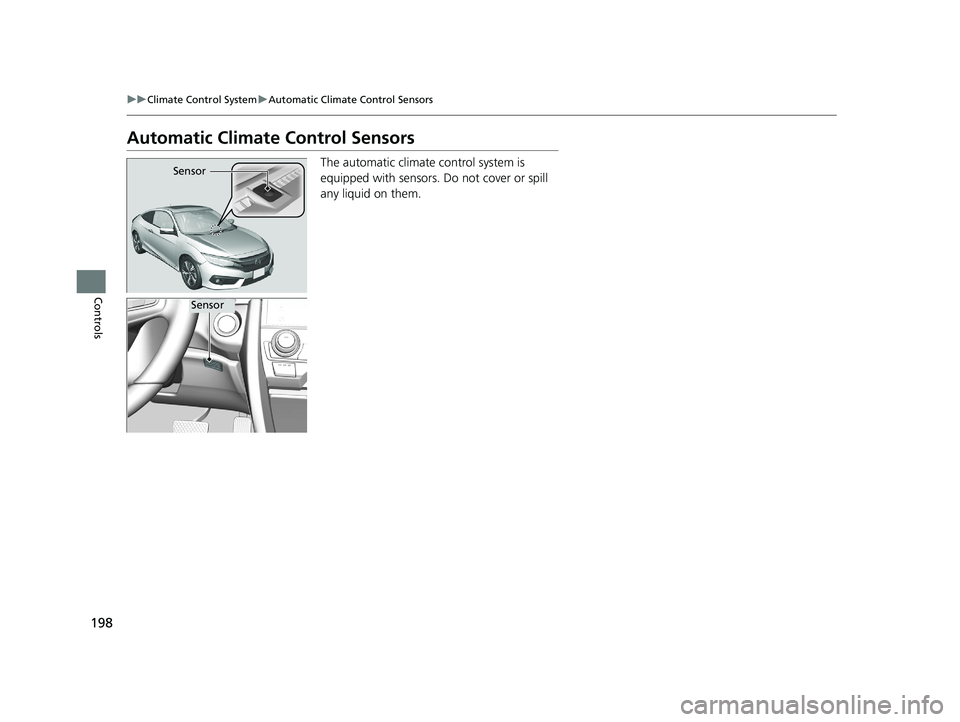

Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
