headlight bulb HONDA CIVIC COUPE 2018 Owner's Manual (in English)

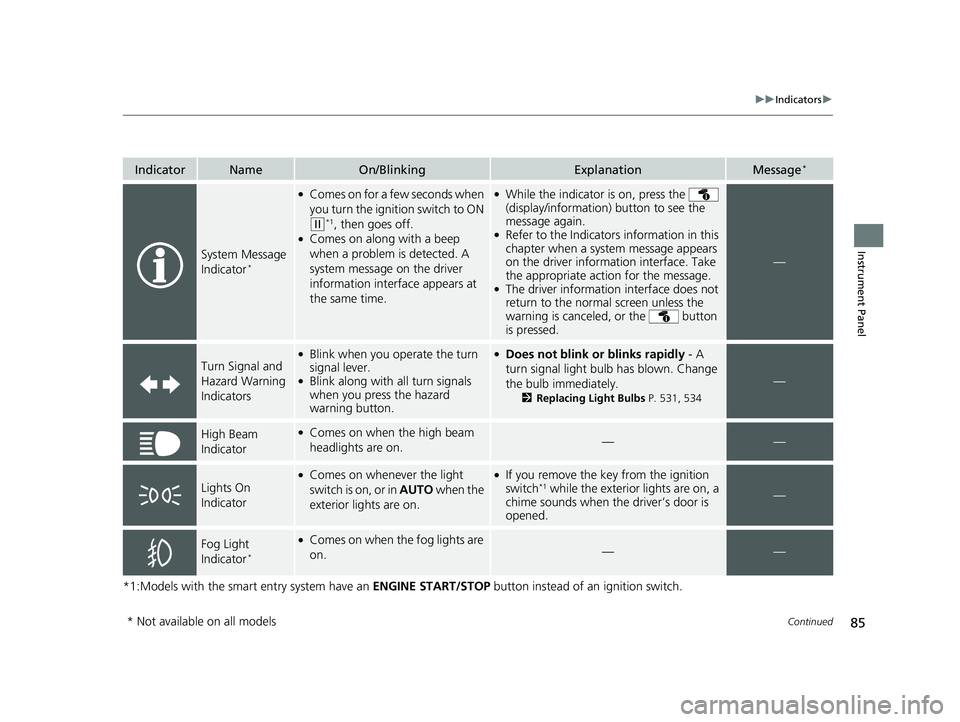

85
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
System Message
Indicator*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.
●While the indicator is on, press the
(display/information) button to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.
●The driver information interface does not
return to the normal screen unless the
warning is canceled, or the button
is pressed.
—
Turn Signal and
Hazard Warning
Indicators
●Blink when you operate the turn
signal lever.
●Blink along with all turn signals
when you press the hazard
warning button.
●Does not blink or blinks rapidly - A
turn signal light bulb has blown. Change
the bulb immediately.
2 Replacing Light Bulbs P. 531, 534
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on whenever the light
switch is on, or in AUTO when the
exterior lights are on.●If you remove the key from the ignition
switch*1 while the exterior lights are on, a
chime sounds when the driver’s door is
opened.—
Fog Light
Indicator*
●Comes on when the fog lights are
on.——
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 85 ページ ２０１８年１０月２６日　 金曜日　午前９時１０分

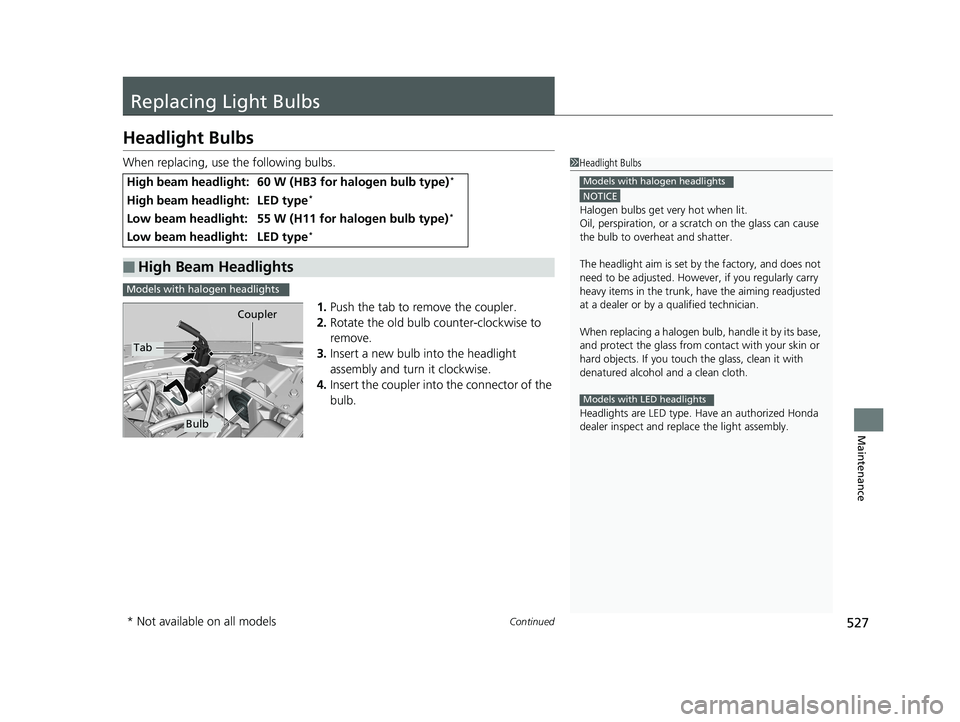

527Continued
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.
High beam headlight:60 W (HB3 for halogen bulb type)*
High beam headlight:LED type*
Low beam headlight:55 W (H11 for halogen bulb type)*
Low beam headlight:LED type*
■High Beam Headlights
1 Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
When replacing a halogen bu lb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Headlights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Models with halogen headlights
Models with LED headlights
Models with halogen headlights
Tab Coupler
Bulb
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 527 ページ ２０１８年１０月２６日
　金曜日　午前９時１０分

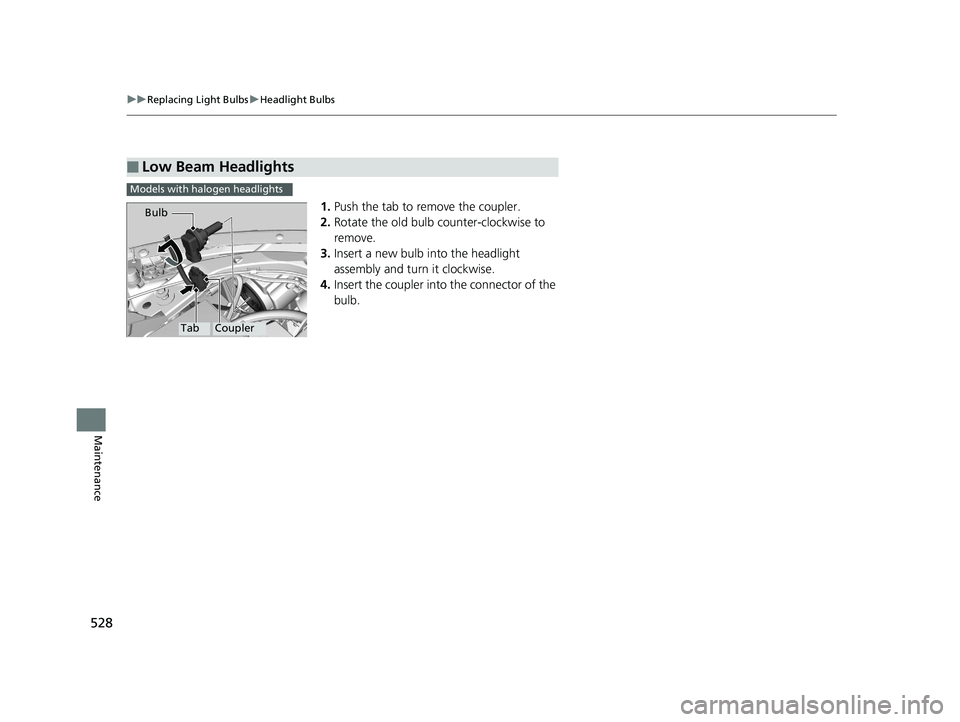

528
uuReplacing Light Bulbs uHeadlight Bulbs
Maintenance
1. Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.
■Low Beam Headlights
Models with halogen headlights
TabCoupler
Bulb
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 528 ページ ２０１８年１０月２６日
　金曜日　午前９時１０分

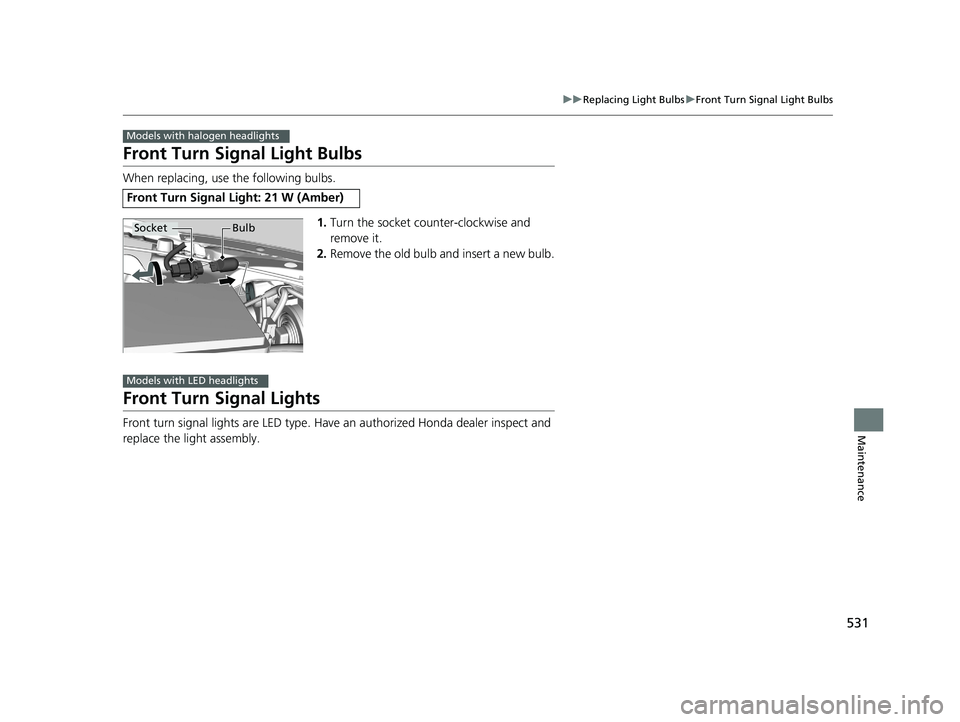

531
uuReplacing Light Bulbs uFront Turn Signal Light Bulbs
Maintenance
Front Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket counter-clockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Front Turn Signal Lights
Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Front Turn Signal Light: 21 W (Amber)
Models with halogen headlights
Socket Bulb
Models with LED headlights
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 531 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

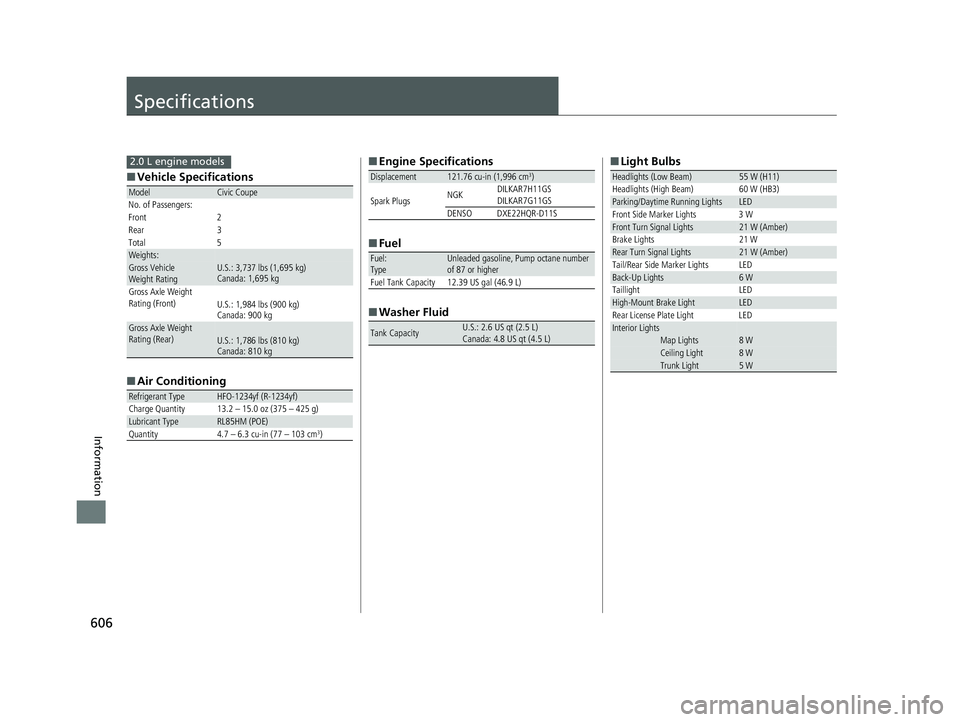

606
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelCivic Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,737 lbs (1,695 kg)
Canada: 1,695 kg
Gross Axle Weight
Rating (Front)U.S.: 1,984 lbs (900 kg)
Canada: 900 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,786 lbs (810 kg)
Canada: 810 kg
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.7 – 6.3 cu-in (77 – 103 cm3)
2.0 L engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement121.76 cu-in (1,996 cm3)
Spark Plugs NGK
DILKAR7H11GS
DILKAR7G11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)55 W (H11)
Headlights (High Beam) 60 W (HB3)
Parking/Daytime Running LightsLED
Front Side Marker Lights 3 W
Front Turn Signal Lights21 W (Amber)
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Tail/Rear Side Marker Lights LED
Back-Up Lights6 W
Taillight LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WTrunk Light5 W
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 606 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

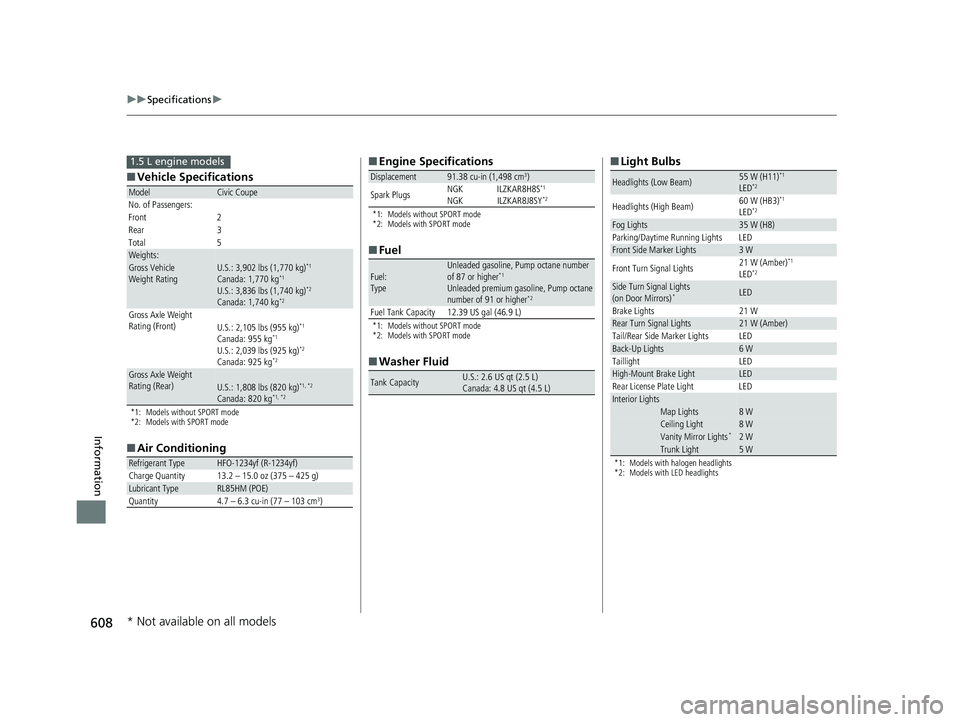

608
uuSpecifications u
Information
■Vehicle Specifications
*1: Models without SPORT mode
*2: Models with SPORT mode
■Air Conditioning
ModelCivic Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,902 lbs (1,770 kg)*1
Canada: 1,770 kg*1
U.S.: 3,836 lbs (1,740 kg)*2
Canada: 1,740 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,105 lbs (955 kg)*1
Canada: 955 kg*1
U.S.: 2,039 lbs (925 kg)*2
Canada: 925 kg*2
Gross Axle Weight
Rating (Rear)U.S.: 1,808 lbs (820 kg)*1, *2
Canada: 820 kg*1, *2
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.7 – 6.3 cu-in (77 – 103 cm3)
1.5 L engine models■ Engine Specifications
*1: Models without SPORT mode
*2: Models with SPORT mode
■Fuel
*1: Models without SPORT mode
*2: Models with SPORT mode
■Washer Fluid
Displacement91.38 cu-in (1,498 cm3)
Spark Plugs NGK
NGKILZKAR8H8S*1
ILZKAR8J8SY*2
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher*1
Unleaded premium gasoline, Pump octane
number of 91 or higher*2
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■
Light Bulbs
*1: Models with halogen headlights
*2: Models with LED headlights
Headlights (Low Beam)55 W (H11)*1
LED*2
Headlights (High Beam) 60 W (HB3)*1
LED*2
Fog Lights35 W (H8)
Parking/Daytime Running Lights LED
Front Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)*1
LED*2
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Tail/Rear Side Marker Lights LED
Back-Up Lights6 W
Taillight LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WVanity Mirror Lights*2 WTrunk Light5 W
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 608 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

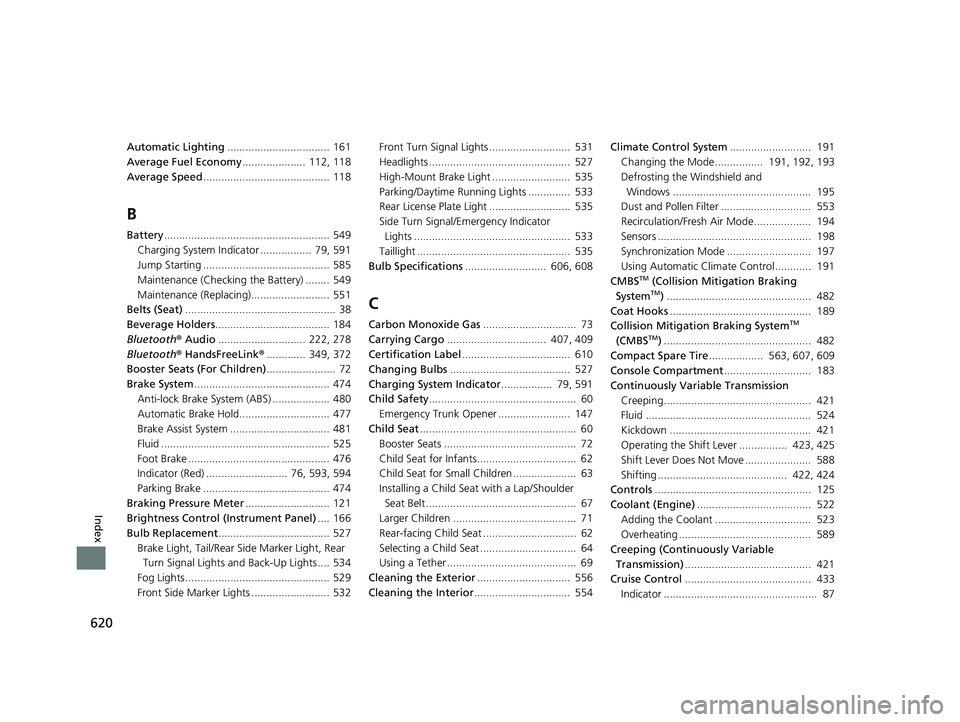

620
Index
Automatic Lighting.................................. 161
Average Fuel Economy ..................... 112, 118
Average Speed .......................................... 118
B
Battery....................................................... 549
Charging System Indicator ................. 79, 591
Jump Starting .......................................... 585
Maintenance (Checking the Battery) ........ 549
Maintenance (Replacing).......................... 551
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 184
Bluetooth ® Audio ............................. 222, 278
Bluetooth ® HandsFreeLink ®............. 349, 372
Booster Seats (For Children) ....................... 72
Brake System ............................................. 474
Anti-lock Brake System (ABS) ................... 480
Automatic Brake Hold.............................. 477
Brake Assist System ................................. 481
Fluid ........................................................ 525
Foot Brake ............................................... 476
Indicator (Red) ........................... 76, 593, 594
Parking Brake .......................................... 474
Braking Pressure Meter ............................ 121
Brightness Control (Instrument Panel) .... 166
Bulb Replacement ..................................... 527
Brake Light, Tail/Rear Side Marker Light, Rear Turn Signal Lights and Back-Up Lights .... 534
Fog Lights ................................................ 529
Front Side Marker Lights .......................... 532 Front Turn Signal Lights ........................... 531
Headlights ............................................... 527
High-Mount Brake Light .......................... 535
Parking/Daytime Running Lights .............. 533
Rear License Plate Light ........................... 535
Side Turn Signal/Emergency Indicator
Lights .................................................... 533
Taillight ................................................... 535
Bulb Specifications ........................... 606, 608
C
Carbon Monoxide Gas ............................... 73
Carrying Cargo ................................. 407, 409
Certification Label .................................... 610
Changing Bulbs ........................................ 527
Charging System Indicator ................. 79, 591
Child Safety ................................................. 60
Emergency Trunk Opener ........................ 147
Child Seat .................................................... 60
Booster Seats ............................................ 72
Child Seat for Infants................................. 62
Child Seat for Small Children ..................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 67
Larger Children ......................................... 71
Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Using a Tether ........................................... 69
Cleaning the Exterior ............................... 556
Cleaning the Interior ................................ 554 Climate Control System
........................... 191
Changing the Mode................ 191, 192, 193
Defrosting the Windshield and Windows .............................................. 195
Dust and Pollen Filter .............................. 553
Recirculation/Fresh Air Mode................... 194
Sensors ................................................... 198
Synchronization Mode ............................ 197
Using Automatic Climate Control............ 191
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 482
Coat Hooks ............................................... 189
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 482
Compact Spare Tire .................. 563, 607, 609
Console Compartment ............................. 183
Continuously Variable Transmission
Creeping................................................. 421
Fluid ....................................................... 524
Kickdown ............................................... 421
Operating the Shift Lever ................ 423, 425
Shift Lever Does Not Move ...................... 588
Shifting ........................................... 422, 424
Controls .................................................... 125
Coolant (Engine) ...................................... 522
Adding the Coolant ................................ 523
Overheating ............................................ 589
Creeping (Continuously Variable
Transmission) .......................................... 421
Cruise Control .......................................... 433
Indicator ................................................... 87
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 620 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

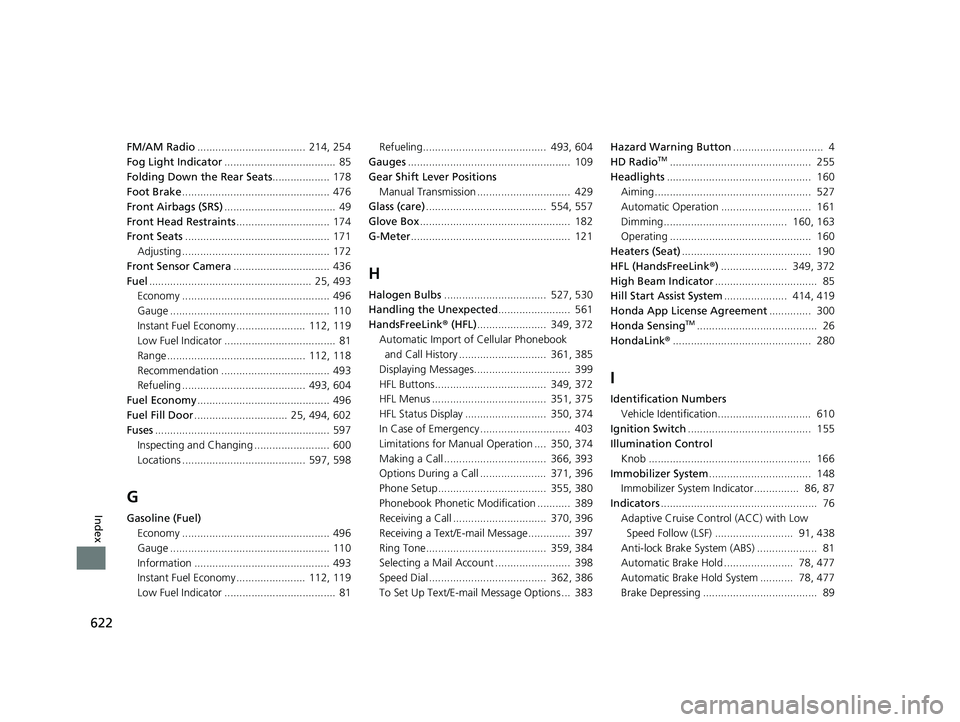

622
Index
FM/AM Radio.................................... 214, 254
Fog Light Indicator ..................................... 85
Folding Down the Rear Seats ................... 178
Foot Brake ................................................. 476
Front Airbags (SRS) ..................................... 49
Front Head Restraints ............................... 174
Front Seats ................................................ 171
Adjusting ................................................. 172
Front Sensor Camera ................................ 436
Fuel ...................................................... 25, 493
Economy ................................................. 496
Gauge ..................................................... 110
Instant Fuel Economy ....................... 112, 119
Low Fuel Indicator ..................................... 81
Range .............................................. 112, 118
Recommendation .................................... 493
Refueling ......................................... 493, 604
Fuel Economy ............................................ 496
Fuel Fill Door ............................... 25, 494, 602
Fuses .......................................................... 597
Inspecting and Changing ......................... 600
Locations ......................................... 597, 598
G
Gasoline (Fuel) Economy ................................................. 496
Gauge ..................................................... 110
Information ............................................. 493
Instant Fuel Economy ....................... 112, 119
Low Fuel Indicator ..................................... 81 Refueling......................................... 493, 604
Gauges ...................................................... 109
Gear Shift Lever Positions Manual Transmission ............................... 429
Glass (care) ........................................ 554, 557
Glove Box .................................................. 182
G-Meter ..................................................... 121
H
Halogen Bulbs .................................. 527, 530
Handling the Unexpected ........................ 561
HandsFreeLink ® (HFL) ....................... 349, 372
Automatic Import of Cellular Phonebook
and Call History ............................. 361, 385
Displaying Messages................................ 399
HFL Buttons..................................... 349, 372
HFL Menus ...................................... 351, 375
HFL Status Display ........................... 350, 374
In Case of Emergency .............................. 403
Limitations for Manual Operation .... 350, 374
Making a Call .................................. 366, 393
Options During a Call ...................... 371, 396
Phone Setup.................................... 355, 380
Phonebook Phonetic Modification ........... 389
Receiving a Call ............................... 370, 396
Receiving a Text/E-mail Message.............. 397
Ring Tone........................................ 359, 384
Selecting a Mail Account ......................... 398
Speed Dial ....................................... 362, 386
To Set Up Text/E-mail Message Options ... 383 Hazard Warning Button
.............................. 4
HD Radio
TM............................................... 255
Headlights ................................................ 160
Aiming.................................................... 527
Automatic Operation .............................. 161
Dimming......................................... 160, 163
Operating ............................................... 160
Heaters (Seat) ........................................... 190
HFL (HandsFreeLink ®) ...................... 349, 372
High Beam Indicator .................................. 85
Hill Start Assist System ..................... 414, 419
Honda App License Agreement .............. 300
Honda Sensing
TM........................................ 26
HondaLink ®.............................................. 280
I
Identification Numbers
Vehicle Identification............................... 610
Ignition Switch ......................................... 155
Illumination Control
Knob ...................................................... 166
Immobilizer System .................................. 148
Immobilizer System Indicator............... 86, 87
Indicators .................................................... 76
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .......................... 91, 438
Anti-lock Brake System (ABS) .................... 81
Automatic Brake Hold ....................... 78, 477
Automatic Brake Hold System ........... 78, 477
Brake Depressing ...................................... 89
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 622 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分
