HONDA CIVIC COUPE 2019 Owner's Manual (in English)

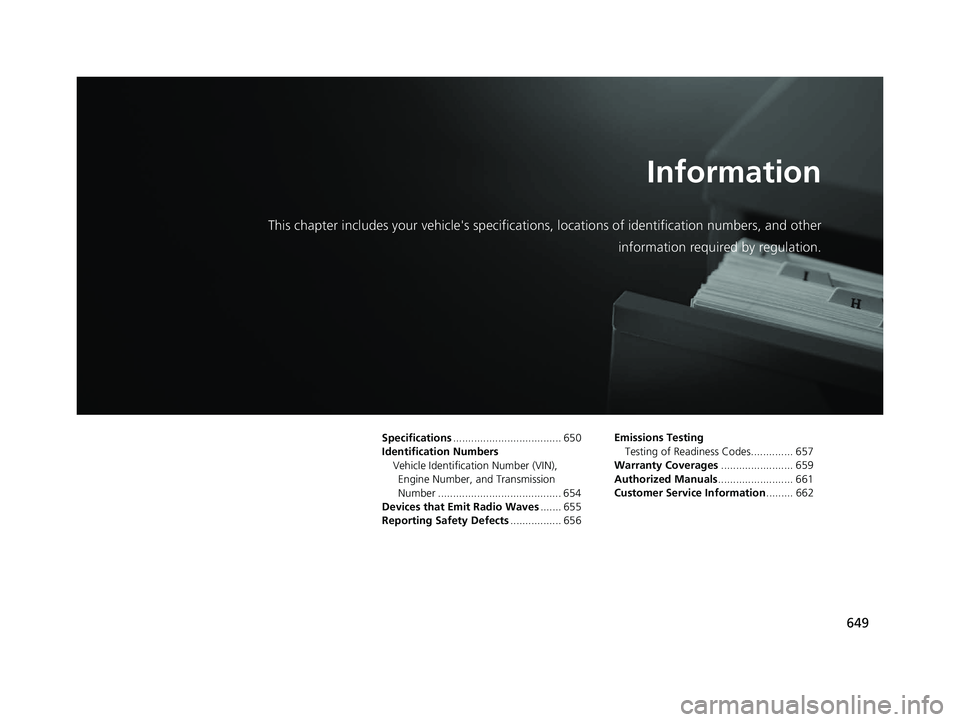

649
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 650
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 654
Devices that Emit Radio Waves ....... 655
Reporting Safety Defects ................. 656Emissions Testing
Testing of Readiness Codes.............. 657
Warranty Coverages ........................ 659
Authorized Manuals ......................... 661
Customer Service Information ......... 662
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 649 ページ ２０１８年９月４日　火 曜日　午後１時３８分

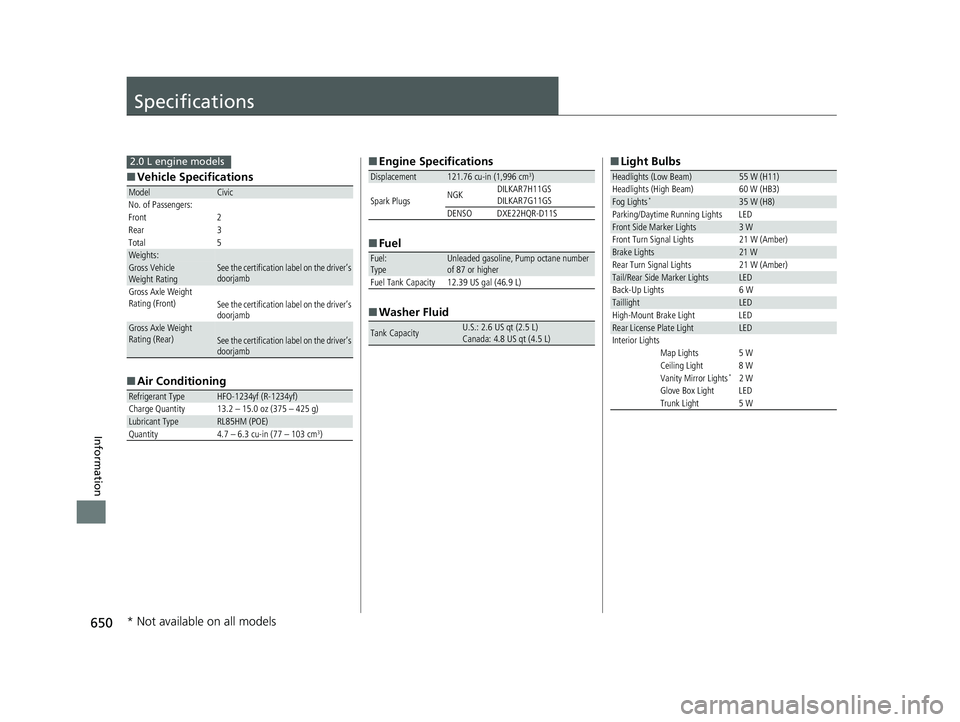

650
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelCivic
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.7 – 6.3 cu-in (77 – 103 cm3)
2.0 L engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement121.76 cu-in (1,996 cm3)
Spark Plugs NGK
DILKAR7H11GS
DILKAR7G11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)55 W (H11)
Headlights (High Beam) 60 W (HB3)
Fog Lights*35 W (H8)
Parking/Daytime Running Lights LED
Front Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)
Brake Lights21 W
Rear Turn Signal Lights 21 W (Amber)
Tail/Rear Side Marker LightsLED
Back-Up Lights 6 W
TaillightLED
High-Mount Brake Light LED
Rear License Plate LightLED
Interior Lights Map Lights 5 W
Ceiling Light 8 W
Vanity Mirror Lights
*2 W
Glove Box Light LED
Trunk Light 5 W
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 650 ページ ２０１８年９月４日　火 曜日　午後１時３８分

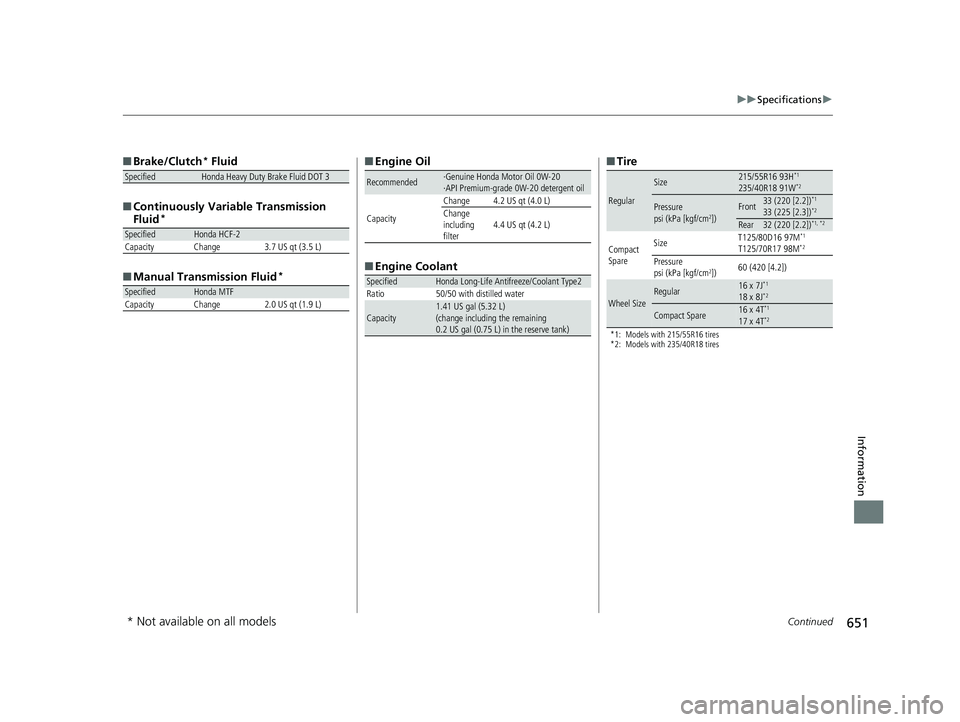

651
uuSpecifications u
Continued
Information
■Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■Manual Transmission Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2
Capacity Change 3.7 US qt (3.5 L)
SpecifiedHonda MTF
Capacity Change 2.0 US qt (1.9 L)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 L)
Change
including
filter
4.4 US qt (4.2 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.41 US gal (5.32 L)
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
■ Tire
*1: Models with 215/55R16 tires
*2: Models with 235/40R18 tires
Regular
Size215/55R16 93H*1
235/40R18 91W*2
Pressure
psi (kPa [kgf/cm2])Front33 (220 [2.2])*1
33 (225 [2.3])*2
Rear32 (220 [2.2])*1, *2
Compact
Spare Size
T125/80D16 97M
*1
T125/70R17 98M*2
Pressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular16 x 7J*1
18 x 8J*2
Compact Spare16 x 4T*1
17 x 4T*2
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 651 ページ ２０１８年９月４日　火
曜日　午後１時３８分

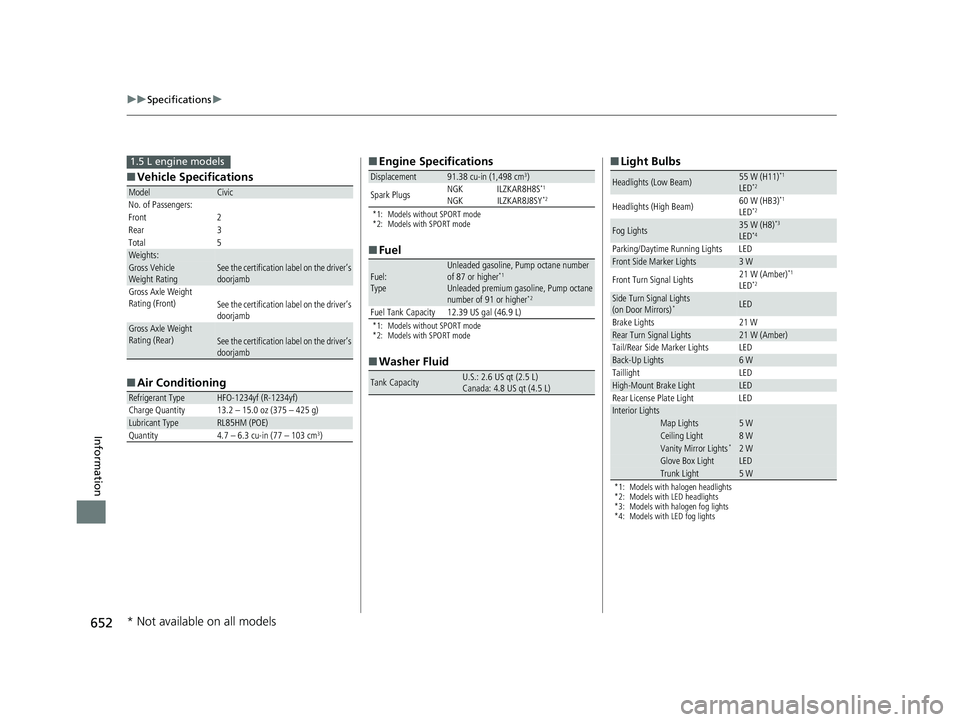

652
uuSpecifications u
Information
■Vehicle Specifications
■ Air Conditioning
ModelCivic
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.7 – 6.3 cu-in (77 – 103 cm3)
1.5 L engine models■ Engine Specifications
*1: Models without SPORT mode
*2: Models with SPORT mode
■Fuel
*1: Models without SPORT mode
*2: Models with SPORT mode
■Washer Fluid
Displacement91.38 cu-in (1,498 cm3)
Spark Plugs NGK
NGKILZKAR8H8S*1
ILZKAR8J8SY*2
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher*1
Unleaded premium gasoline, Pump octane
number of 91 or higher*2
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■
Light Bulbs
*1: Models with halogen headlights
*2: Models with LED headlights
*3: Models with halogen fog lights
*4: Models with LED fog lights
Headlights (Low Beam)55 W (H11)*1
LED*2
Headlights (High Beam) 60 W (HB3)*1
LED*2
Fog Lights35 W (H8)*3
LED*4
Parking/Daytime Running Lights LEDFront Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)*1
LED*2
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Tail/Rear Side Marker Lights LED
Back-Up Lights6 W
Taillight LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights5 WCeiling Light8 WVanity Mirror Lights*2 WGlove Box LightLEDTrunk Light5 W
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 652 ページ ２０１８年９月４日　火 曜日　午後１時３８分

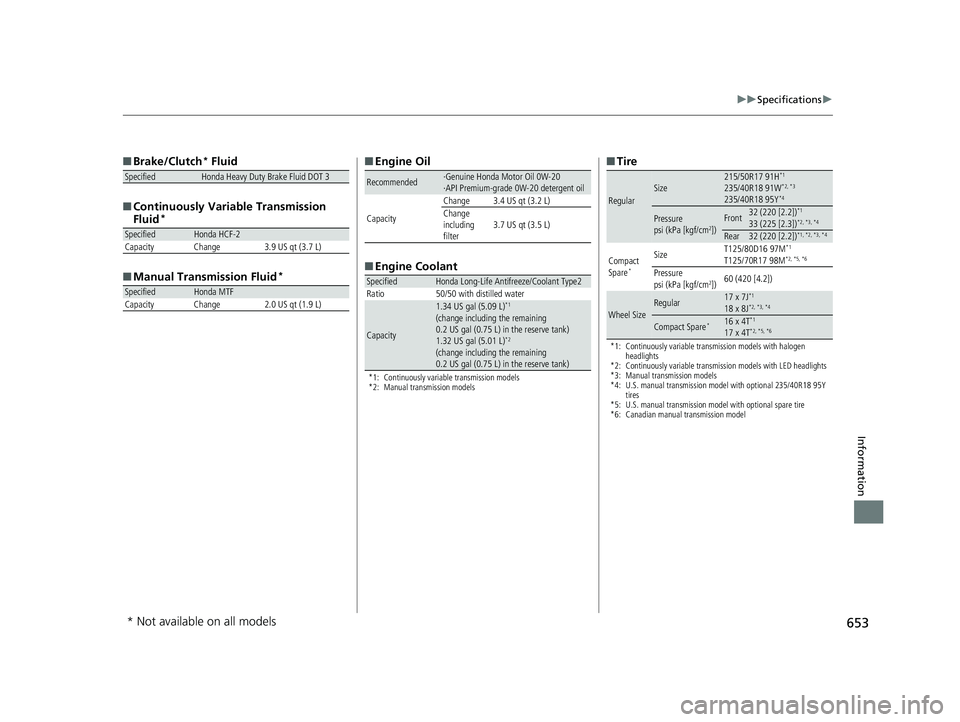

653
uuSpecifications u
Information
■Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■Manual Transmission Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2
Capacity Change 3.9 US qt (3.7 L)
SpecifiedHonda MTF
Capacity Change 2.0 US qt (1.9 L)
■ Engine Oil
■ Engine Coolant
*1: Continuously variable transmission models
*2: Manual transmission models
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.4 US qt (3.2 L)
Change
including
filter
3.7 US qt (3.5 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.34 US gal (5.09 L)*1
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
1.32 US gal (5.01 L)
*2
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
■ Tire
*1: Continuously variable transmission models with halogen
headlights
*2: Continuously variable transmission models with LED headlights
*3: Manual transmission models
*4: U.S. manual transmission model with optional 235/40R18 95Y tires
*5: U.S. manual transmission model with optional spare tire
*6: Canadian manual transmission model
RegularSize215/50R17 91H*1
235/40R18 91W*2, *3
235/40R18 95Y*4
Pressure
psi (kPa [kgf/cm2])Front32 (220 [2.2])*1
33 (225 [2.3])*2, *3, *4
Rear32 (220 [2.2])*1, *2, *3, *4
Compact
Spare*
Size T125/80D16 97M*1
T125/70R17 98M*2, *5, *6
Pressure
psi (kPa [kgf/cm2])
60 (420 [4.2])
Wheel SizeRegular17 x 7J*1
18 x 8J*2, *3, *4
Compact Spare*16 x 4T*1
17 x 4T*2, *5, *6
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 653 ページ ２０１８年９月４日　火
曜日　午後１時３８分

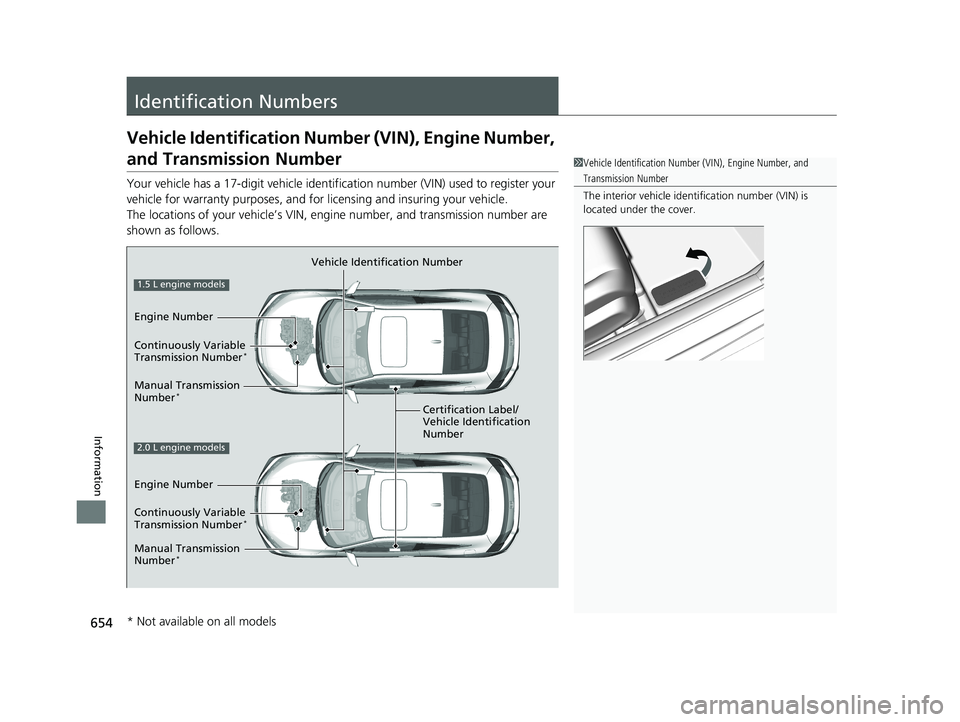

654
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
2.0 L engine models
1.5 L engine models
Continuously Variable
Transmission Number*
Engine Number
Continuously Variable
Transmission Number*
Manual Transmission
Number*
Manual Transmission
Number*
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 654 ページ ２０１８年９月４日　火 曜日　午後１時３８分

655
Information
Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 655 ページ ２０１８年９月４日　火 曜日　午後１時３８分

656
Information
Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 656 ページ ２０１８年９月４日　火 曜日　午後１時３８分

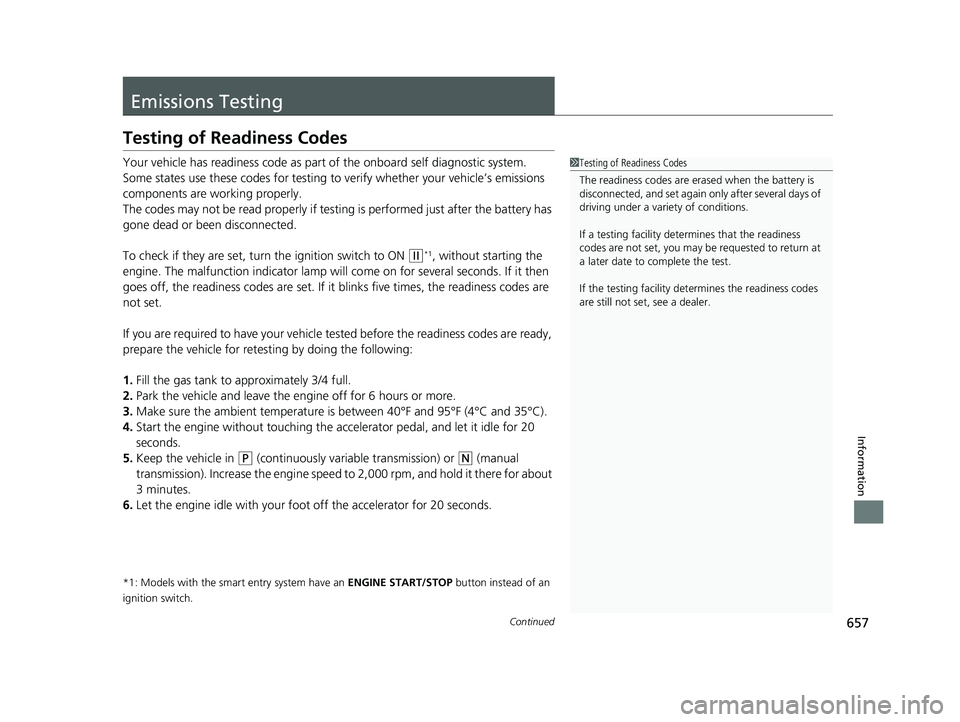

657Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 657 ページ ２０１８年９月４日　火 曜日　午後１時３８分

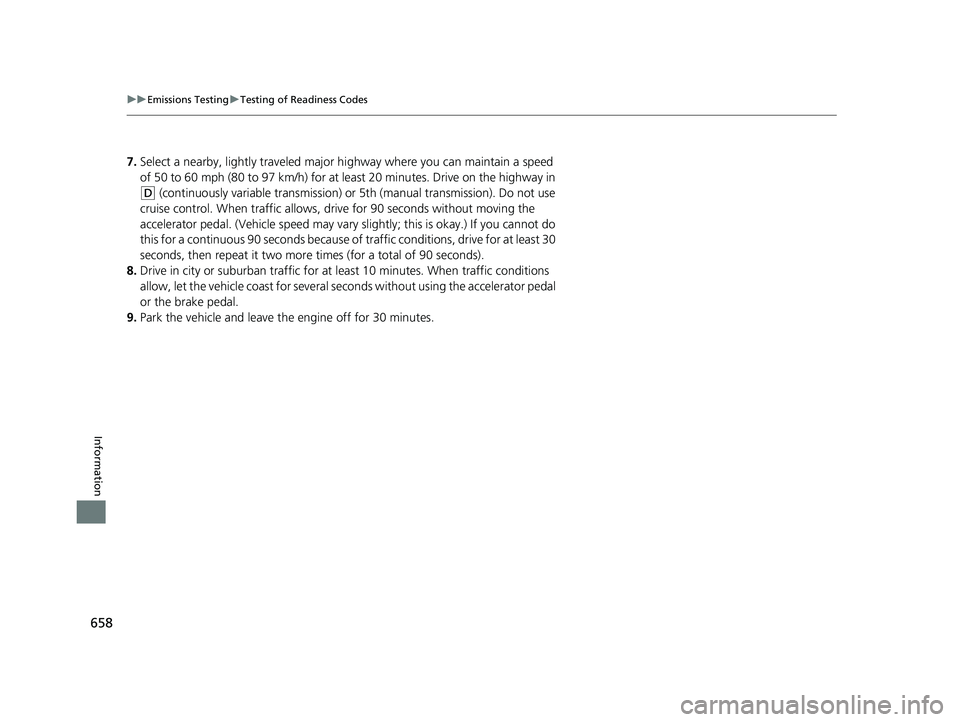

658
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (continuously variable transmission) or 5th (manual transmission). Do not use
cruise control. When tra ffic allows, drive for 90 seconds without moving the
accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do
this for a continuous 90 seconds because of traffic conditions, drive for at least 30
seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 658 ページ ２０１８年９月４日　火 曜日　午後１時３８分
