service indicator HONDA CIVIC COUPE 2020 Owner's Manual (in English)

Contents
Child Safety P. 60Exhaust Gas Hazard P. 73Safety Labels P. 74
Opening and Closing the Trunk P. 150 Security System P. 153 Opening and Closing the Windows P. 156
Operating the Switches Around the Steering Wheel P. 160 Adjusting the Mirrors P. 178
Interior Lights/Interior Convenience It ems P. 190 Climate Control System P. 202
Audio Error Messages P. 307General Information on the Audio System P. 310
Bluetooth ® HandsFreeLink ® P. 365, 391
When Driving P. 432 Honda Sensing® P. 465 Braking P. 524
Refueling P. 536 Fuel Economy and CO
2 Emissions P. 539 Turbo Engine Vehicle* P. 540
Maintenance Under the Hood P. 551 Replacing Light Bulbs P. 566
Checking and Maintaining Tires P. 578 Battery P. 588 Remote Transmitter Care P. 590
Cleaning P. 593 Accessories and Modifications P. 598
Handling of the Jack P. 622 Engine Does Not Start P. 623 Jump Starting P. 626
Indicator, Coming On/Blinking P. 632 Fuses P. 638 Emergency Towing P. 642
When You Cannot Open the Trunk P. 644 Refueling P. 645
Devices that Emit Radio Waves P. 653 Reporting Safety Defects P. 654
Authorized Manuals P. 659 Customer Service Information P. 660
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 75
ControlsP. 133
FeaturesP. 211
DrivingP. 425
MaintenanceP. 541
Handling the UnexpectedP. 601
InformationP. 647
IndexP. 661
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 3 ページ ２０１９年６月４日　火曜日　午前８時３２分

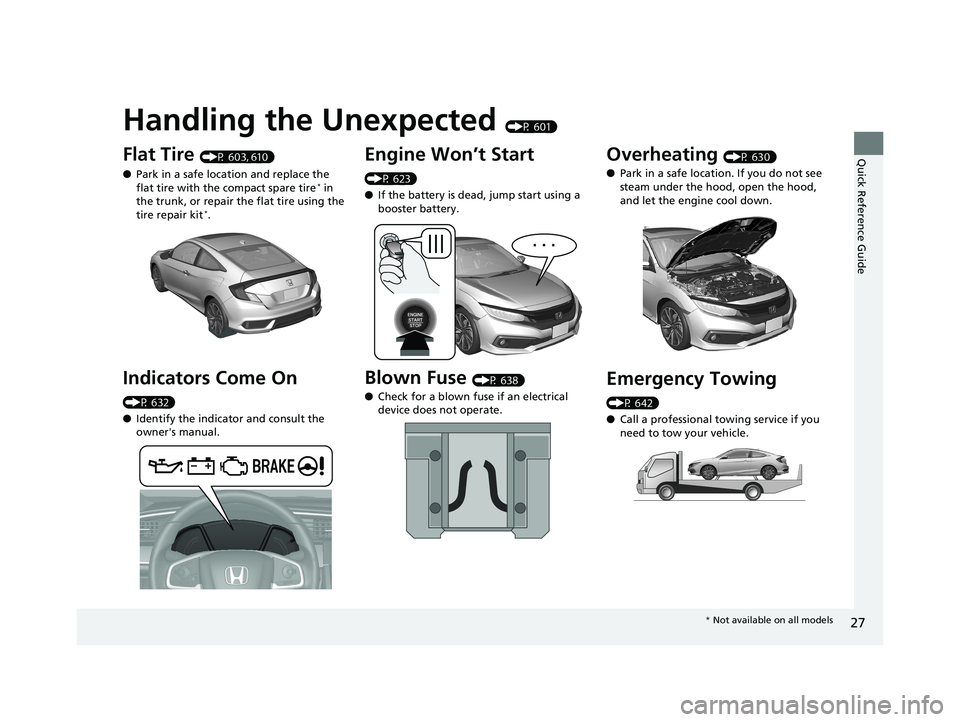

Quick Reference Guide
27
Handling the Unexpected (P 601)
Flat Tire (P 603, 610)
● Park in a safe location and replace the
flat tire with the compact spare tire
* in
the trunk, or repair the flat tire using the
tire repair kit
*.
Indicators Come On
(P 632)
● Identify the indica tor and consult the
owner's manual.
Engine Won’t Start
(P 623)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 638)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 630)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P 642)
●Call a professional towing service if you
need to tow your vehicle.
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 27 ページ ２０１９年６月４日　火曜 日　午前８時３２分

536
Driving
Refueling
Fuel Information
■Fuel recommendation
Use of a lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.
Use of a lower octane gasoline can cause occasional metallic knocking noise in the
engine and will result in decreased engine performance.
Use of a gasoline with a pump octane less than 87 can lead to engine damage.
■Top tier detergent gasoline
Because the level of detergency and additives in gasoline vary in the market, Honda
endorses the use of “TOP TIER Deterg ent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard join tly established by leading automotive
manufacturers to meet the need s of today’s advanced engines.
Qualifying gasoline retailers will, in most ca ses, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of detergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.
Unleaded gasoline, pump octane number 87 or higher
Unleaded premium gasoline, pump octane number 91 or higher
1Fuel Information
NOTICE
We recommend quality ga soline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly reco mmend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, a nd cause the malfunction
indicator lamp on your inst rument panel to come on.
If this happens, contact a dealer for service.
Some gasoline today is ble nded with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gaso line containing methanol.
If you notice any undesira ble operating symptoms, try
another service station or sw itch to another brand of
gasoline.
Models without SPORT mode
Models with SPORT mode
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 536 ページ ２０１９年６月４日　火 曜日　午前８時３２分

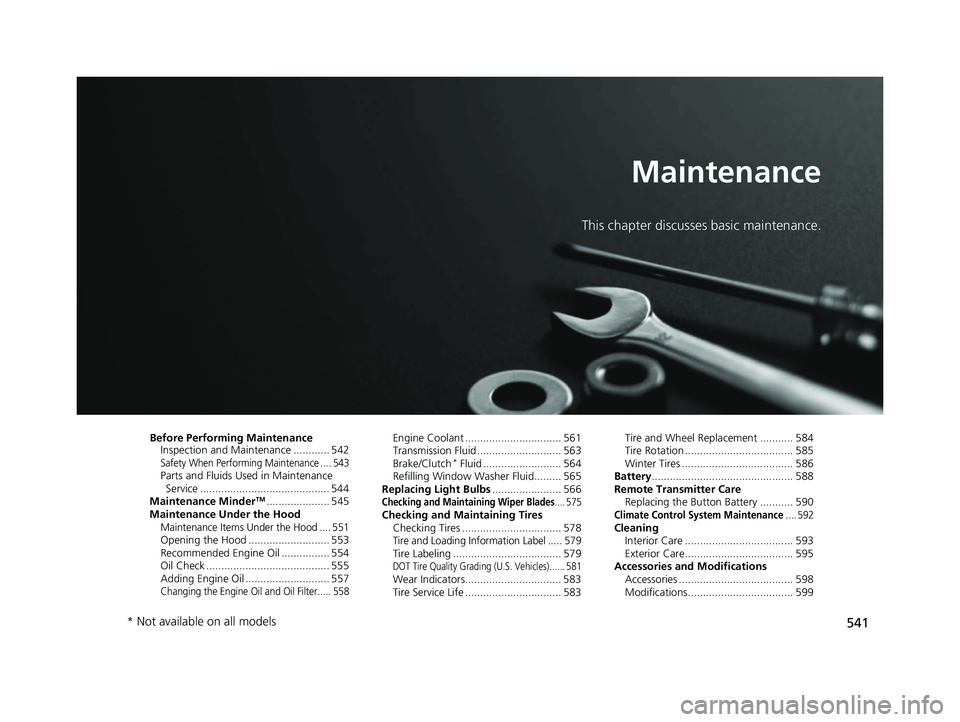

541
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 542
Safety When Performing Maintenance .... 543Parts and Fluids Used in Maintenance
Service ........................................... 544
Maintenance Minder
TM..................... 545
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 551Opening the Hood ........................... 553
Recommended Engine Oil ................ 554
Oil Check ......................................... 555
Adding Engine Oil ............................ 557
Changing the Engine Oil and Oil Filter..... 558
Engine Coolant ................................ 561
Transmission Fluid ............................ 563
Brake/Clutch
* Fluid .......................... 564
Refilling Window Washer Fluid......... 565
Replacing Light Bulbs ....................... 566
Checking and Maintaining Wiper Blades.... 575Checking and Maintaining Tires
Checking Tires ................................. 578
Tire and Loading Information Label ..... 579Tire Labeling .................................... 579DOT Tire Quality Grading (U.S. Vehicles) ...... 581Wear Indicators................................ 583
Tire Service Life ................................ 583 Tire and Wheel Replacement ........... 584
Tire Rotation .................................... 585
Winter Tires ..................................... 586
Battery ............................................... 588
Remote Transmitter Care Replacing the Button Battery ........... 590
Climate Control System Maintenance.... 592CleaningInterior Care .................................... 593
Exterior Care.................................... 595
Accessories and Modifications Accessories ...................................... 598
Modifications................................... 599
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 541 ページ ２０１９年６月４日　火 曜日　午前８時３２分

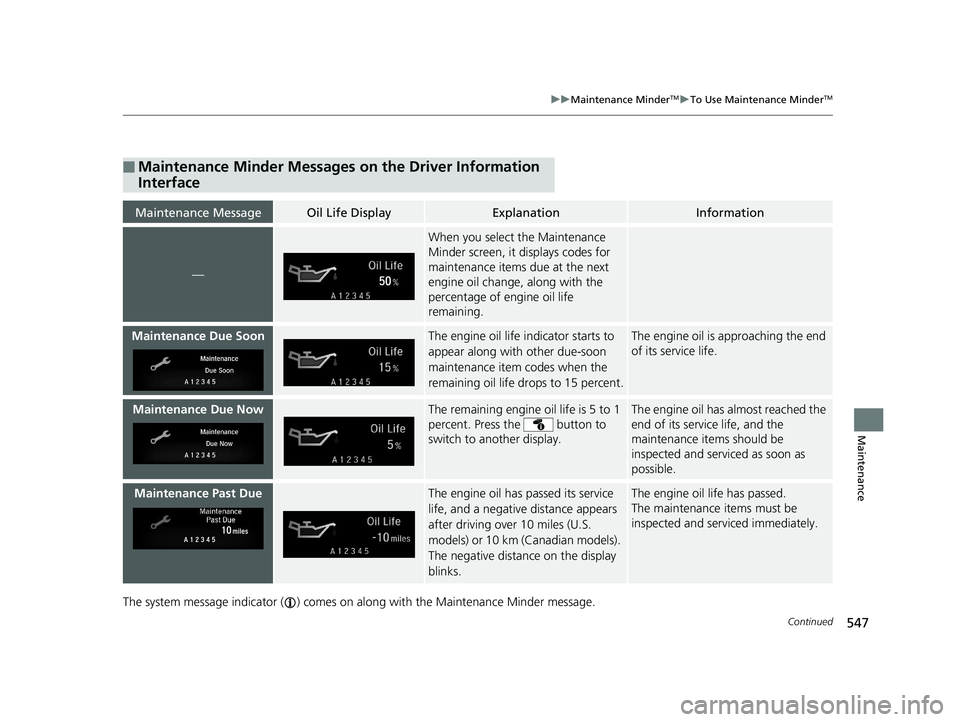

547
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
The system message indicator ( ) comes on along with the Maintenance Minder message.
■Maintenance Minder Messages on the Driver Information
Interface
Maintenance MessageOil Life DisplayExplanationInformation
—
When you select the Maintenance
Minder screen, it displays codes for
maintenance items due at the next
engine oil change, along with the
percentage of engine oil life
remaining.
Maintenance Due SoonThe engine oil life indicator starts to
appear along with other due-soon
maintenance item codes when the
remaining oil life drops to 15 percent.The engine oil is approaching the end
of its service life.
Maintenance Due NowThe remaining engine oil life is 5 to 1
percent. Press the button to
switch to another display.The engine oil has almost reached the
end of its service life, and the
maintenance items should be
inspected and serviced as soon as
possible.
Maintenance Past DueThe engine oil has passed its service
life, and a negative distance appears
after driving over 10 miles (U.S.
models) or 10 km (Canadian models).
The negative distance on the display
blinks.The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 547 ページ ２０１９年６月４日　火 曜日　午前８時３２分

548
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for temporary tire repair kit
bottle (if equipped)
●Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4:
Driving in mountainous areas at very low vehicle speeds results in higher tra nsmission temperatures. This requires
transmission fluid changes more freque ntly than recommended by the Maintenance Minder. If you regularly drive
your vehicle under these conditions, have the transmi ssion fluid changed every 25,000 miles (40,000 km).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is
reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
Continuously variable transmission models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 548 ページ ２０１９年６月４日　火 曜日　午前８時３２分

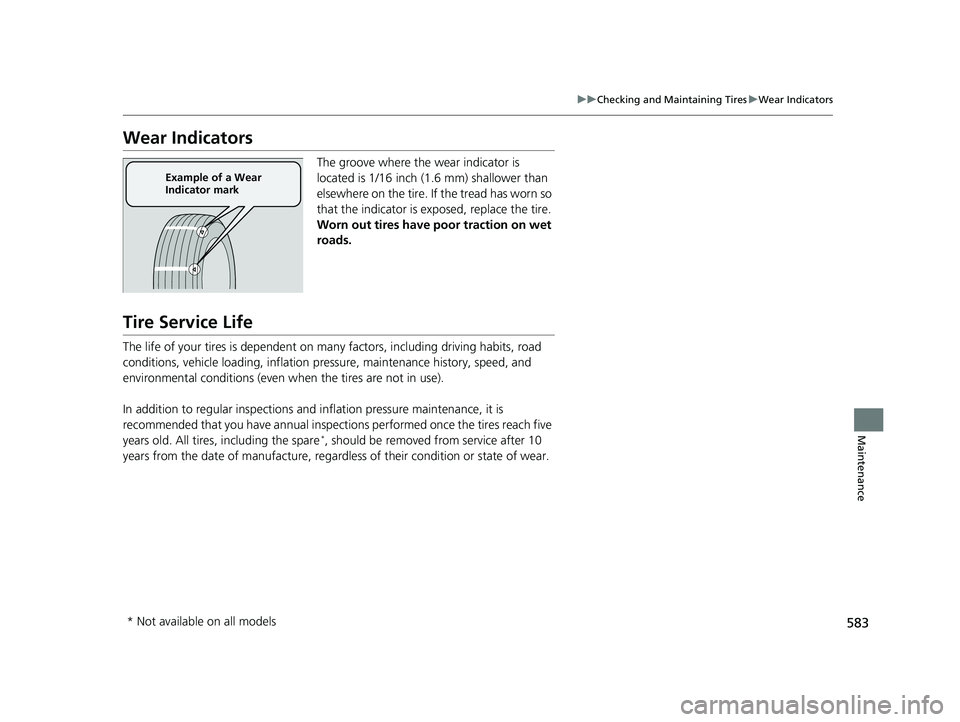

583
uuChecking and Maintaining Tires uWear Indicators
Maintenance
Wear Indicators
The groove where the wear indicator is
located is 1/16 inch (1.6 mm) shallower than
elsewhere on the tire. If the tread has worn so
that the indicator is ex posed, replace the tire.
Worn out tires have po or traction on wet
roads.
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even wh en the tires are not in use).
In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires, including the spare
*, should be removed from service after 10
years from the date of manufacture, regardle ss of their condition or state of wear.
Example of a Wear
Indicator mark
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 583 ページ ２０１９年６月４日　火 曜日　午前８時３２分

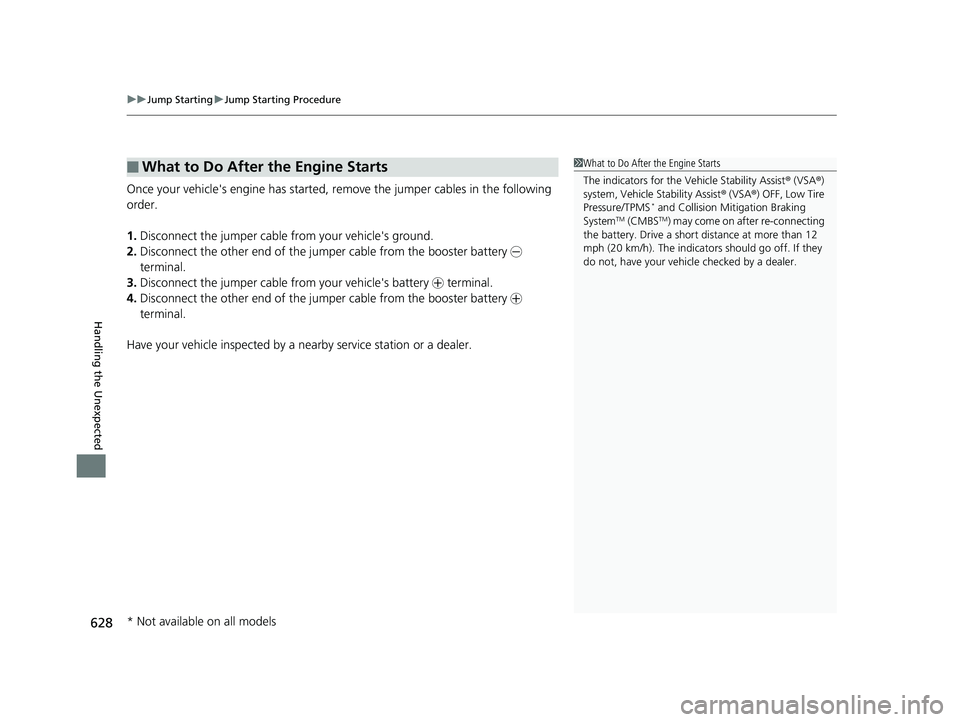

uuJump Starting uJump Starting Procedure
628
Handling the Unexpected
Once your vehicle's engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle's battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts1What to Do After the Engine Starts
The indicators for the Vehicle Stability Assist ® (VSA ®)
system, Vehicle Stability Assist ® (VSA ®) OFF, Low Tire
Pressure/TPMS
* and Collision Mi tigation Braking
SystemTM (CMBSTM) may come on after re-connecting
the battery. Drive a short distance at more than 12
mph (20 km/h). The indicators should go off. If they
do not, have your vehicl e checked by a dealer.
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 628 ページ ２０１９年６月４日　火 曜日　午前８時３２分

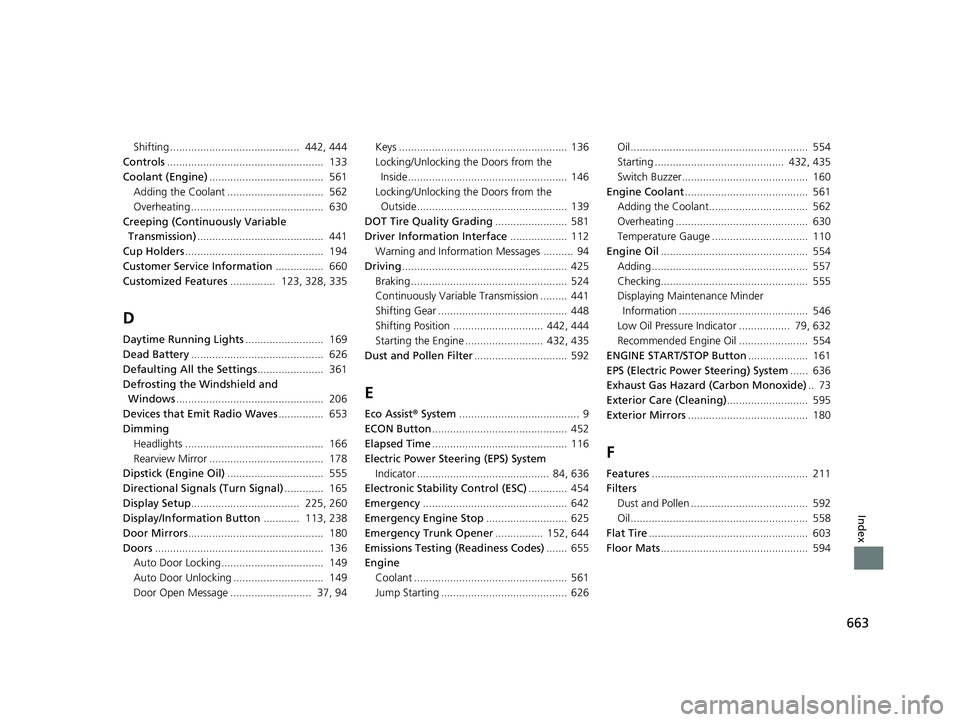

663
Index
Shifting ........................................... 442, 444
Controls .................................................... 133
Coolant (Engine) ...................................... 561
Adding the Coolant ................................ 562
Overheating ............................................ 630
Creeping (Continuously Variable Transmission) .......................................... 441
Cup Holders .............................................. 194
Customer Service Information ................ 660
Customized Features ............... 123, 328, 335
D
Daytime Running Lights .......................... 169
Dead Battery ............................................ 626
Defaulting All the Settings ...................... 361
Defrosting the Windshield and Windows ................................................. 206
Devices that Emit Radio Waves ............... 653
Dimming Headlights .............................................. 166
Rearview Mirror ...................................... 178
Dipstick (Engine Oil) ................................ 555
Directional Signals (Turn Signal) ............. 165
Display Setup .................................... 225, 260
Display/Information Button ............ 113, 238
Door Mirrors ............................................. 180
Doors ........................................................ 136
Auto Door Locking.................................. 149
Auto Door Unlocking .............................. 149
Door Open Message ........................... 37, 94 Keys ........................................................ 136
Locking/Unlocking the Doors from the
Inside..................................................... 146
Locking/Unlocking the Doors from the Outside.................................................. 139
DOT Tire Quality Grading ........................ 581
Driver Information Interface ................... 112
Warning and Information Messages .......... 94
Driving ....................................................... 425
Braking .................................................... 524
Continuously Variable Transmission ......... 441
Shifting Gear ........................................... 448
Shifting Position .............................. 442, 444
Starting the Engine .......................... 432, 435
Dust and Pollen Filter ............................... 592
E
Eco Assist® System ........................................ 9
ECON Button ............................................. 452
Elapsed Time ............................................. 116
Electric Power Steering (EPS) System Indicator ............................................ 84, 636
Electronic Stability Control (ESC) ............. 454
Emergency ................................................ 642
Emergency Engine Stop ........................... 625
Emergency Trunk Opener ................ 152, 644
Emissions Testing (Readiness Codes) ....... 655
Engine Coolant ................................................... 561
Jump Starting .......................................... 626 Oil ........................................................... 554
Starting ........................................... 432, 435
Switch Buzzer.......................................... 160
Engine Coolant ......................................... 561
Adding the Coolant................................. 562
Overheating ............................................ 630
Temperature Gauge ................................ 110
Engine Oil ................................................. 554
Adding .................................................... 557
Checking................................................. 555
Displaying Maintenance Minder Information ........................................... 546
Low Oil Pressure Indicator ................. 79, 632
Recommended Engine Oil ....................... 554
ENGINE START/STOP Button .................... 161
EPS (Electric Power Steering) System ...... 636
Exhaust Gas Hazard (Carbon Monoxide) .. 73
Exterior Care (Cleaning) ........................... 595
Exterior Mirrors ........................................ 180
F
Features.................................................... 211
Filters
Dust and Pollen ....................................... 592
Oil ........................................................... 558
Flat Tire ..................................................... 603
Floor Mats ................................................. 594
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 663 ページ ２０１９年６月４日　火 曜日　午前８時３２分

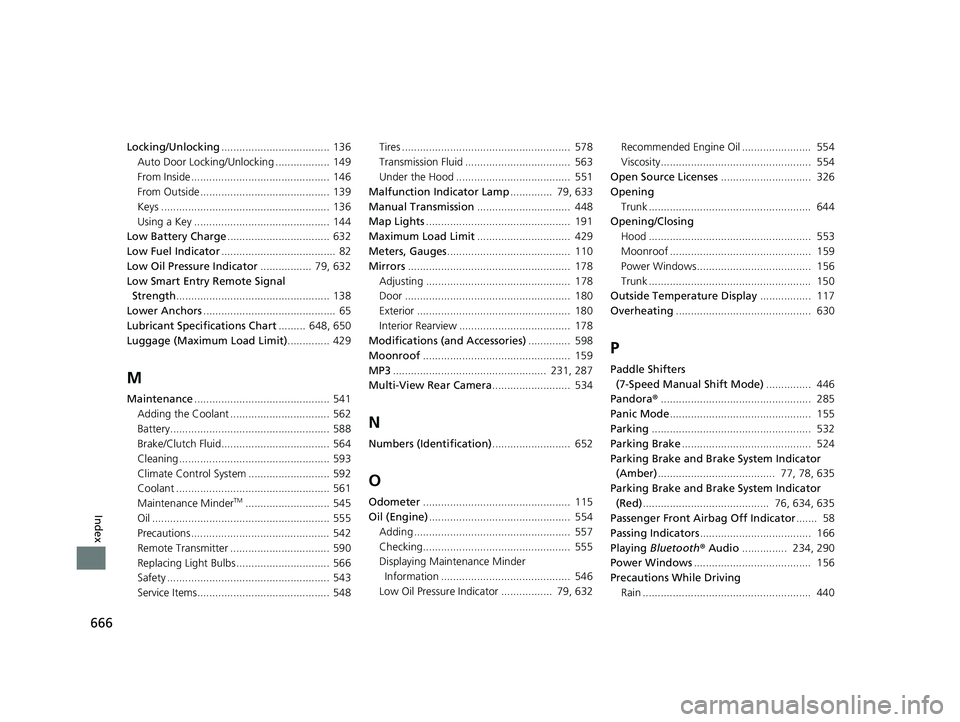

666
Index
Locking/Unlocking.................................... 136
Auto Door Locking/Unlocking .................. 149
From Inside .............................................. 146
From Outside ........................................... 139
Keys ........................................................ 136
Using a Key ............................................. 144
Low Battery Charge .................................. 632
Low Fuel Indicator ...................................... 82
Low Oil Pressure Indicator ................. 79, 632
Low Smart Entry Remote Signal Strength ................................................... 138
Lower Anchors ............................................ 65
Lubricant Specifications Chart ......... 648, 650
Luggage (Maximum Load Limit) .............. 429
M
Maintenance............................................. 541
Adding the Coolant ................................. 562
Battery..................................................... 588
Brake/Clutch Fluid.................................... 564
Cleaning .................................................. 593
Climate Control System ........................... 592
Coolant ................................................... 561
Maintenance Minder
TM............................ 545
Oil ........................................................... 555
Precautions .............................................. 542
Remote Transmitter ................................. 590
Replacing Light Bulbs ............................... 566
Safety ...................................................... 543
Service Items............................................ 548 Tires ........................................................ 578
Transmission Fluid ................................... 563
Under the Hood ...................................... 551
Malfunction Indicator Lamp .............. 79, 633
Manual Transmission ............................... 448
Map Lights ................................................ 191
Maximum Load Limit ............................... 429
Meters, Gauges ......................................... 110
Mirrors ...................................................... 178
Adjusting ................................................ 178
Door ....................................................... 180
Exterior ................................................... 180
Interior Rearview ..................................... 178
Modifications (and Accessories) .............. 598
Moonroof ................................................. 159
MP3 ................................................... 231, 287
Multi-View Rear Camera .......................... 534
N
Numbers (Identification).......................... 652
O
Odometer................................................. 115
Oil (Engine) ............................................... 554
Adding .................................................... 557
Checking................................................. 555
Displaying Maintenance Minder Information ........................................... 546
Low Oil Pressure Indicator ................. 79, 632 Recommended Engine Oil ....................... 554
Viscosity.................................................. 554
Open Source Licenses .............................. 326
Opening Trunk ...................................................... 644
Opening/Closing Hood ...................................................... 553
Moonroof ............................................... 159
Power Windows...................................... 156
Trunk ...................................................... 150
Outside Temperature Display ................. 117
Overheating ............................................. 630
P
Paddle Shifters
(7-Speed Manual Shift Mode) ............... 446
Pandora® .................................................. 285
Panic Mode ............................................... 155
Parking ..................................................... 532
Parking Brake ........................................... 524
Parking Brake and Brake System Indicator (Amber) ....................................... 77, 78, 635
Parking Brake and Brake System Indicator
(Red) .......................................... 76, 634, 635
Passenger Front Airbag Off Indicator ....... 58
Passing Indicators ..................................... 166
Playing Bluetooth ® Audio ............... 234, 290
Power Windows ....................................... 156
Precautions While Driving
Rain ........................................................ 440
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 666 ページ ２０１９年６月４日　火 曜日　午前８時３２分
