Page 2 of 215
Î
Î To use the horn, press the center pad of the steering wheel.
:
Your Vehicle at a Glance
3
WINDSHIELD WIPERS/WASHERS
REAR WINDOW DEFOGGER
HORN
TILT ADJUSTMENT
HEADLIGHTS/
TURN SIGNALS
CRUISE CONTROL
MASTER SWITCH
MIRROR CONTROLS
CRUISE CONTROL BUTTONS
(P. 61)
(P. 105)
(P. 79) (P. 60)
(P. 62)
(P. 62)
(P. 63) (P. 105)HAZARD WARNING BUTTON
— —y
y
() y y
Page 50 of 215

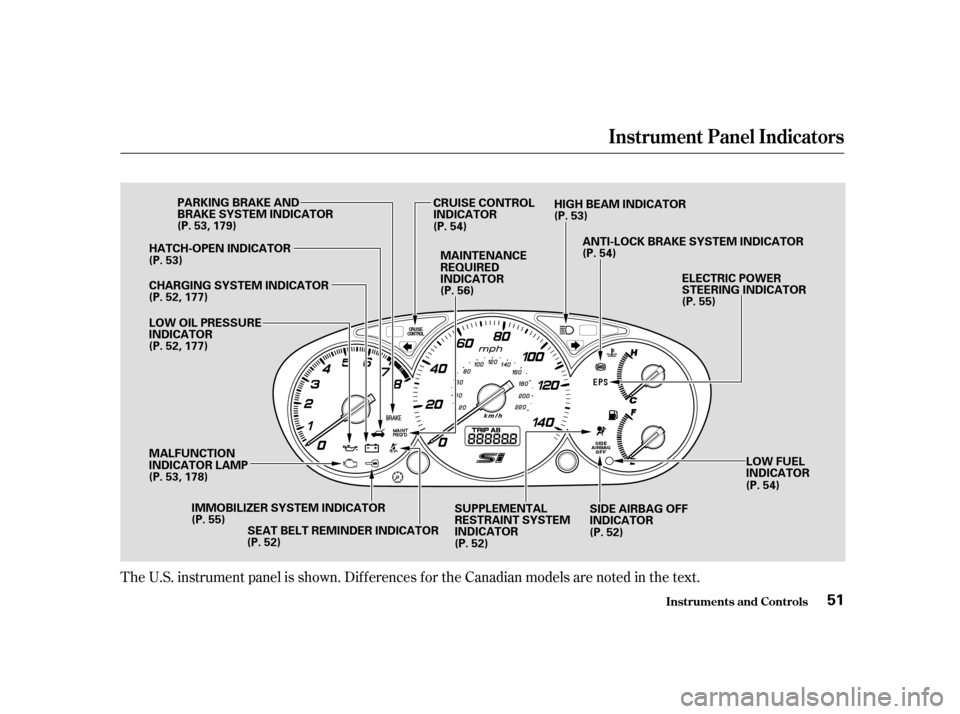

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in thetext.
Inst rument s and Cont rols
Instrument Panel Indicators
51
PARKING BRAKE AND
BRAKE SYSTEM INDICATOR
HATCH-OPEN INDICATOR
CHARGING SYSTEM INDICATOR
LOW OIL PRESSURE
INDICATOR
MALFUNCTION
INDICATOR LAMP
IMMOBILIZER SYSTEM INDICATOR CRUISE CONTROL
INDICATOR
HIGH BEAM INDICATOR
ANTI-LOCK BRAKE SYSTEM INDICATOR ELECTRIC POWER
STEERING INDICATOR
LOW FUEL
INDICATOR
SUPPLEMENTAL
RESTRAINT SYSTEM
INDICATOR
MAINTENANCE
REQUIRED
INDICATOR
(P. 53) (P. 54)
(P. 56) (P. 53)
(P. 54)
(P. 55)
(P. 54)
(P. 52)
(P. 52)
(P. 55)
(P. 53, 179)
(P. 52, 177)
(P. 52, 177)
(P. 53, 178) SIDE AIRBAG OFF
INDICATOR
SEAT BELT REMINDER INDICATOR
(P. 52)
— —y
y
() y y
Page 53 of 215
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem in the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but not
anti-lock. For complete inf ormation,
see page .

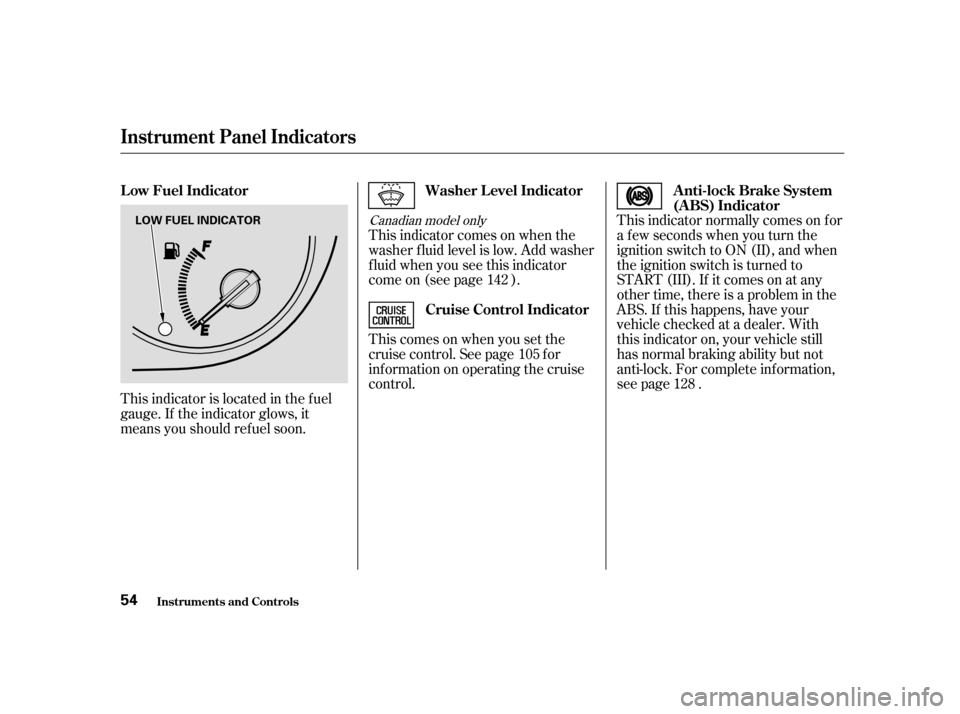

This indicator is located in the f uel
gauge. If the indicator glows, it
means you should ref uel soon. This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
Thiscomesonwhenyousetthe
cruise control. See page f or
inf ormation on operating the cruise
control.
128
142
105Canadian model only
Inst rument s and Cont rols
Low Fuel Indicator Washer Level Indicator
Cruise Control IndicatorAnti-lock Brake System
(A BS) Indicator
Instrument Panel Indicators
54LOW FUEL INDICATOR
— —y
y
() y y
Page 58 of 215
Î
Î To use the horn, press the pad around the ‘‘H’’ logo.
Inst rument s and Cont rols
Controls Near the Steering Wheel
59
REAR WINDOW DEFOGGER
MIRROR CONTROLS TILT ADJUSTMENTHORN
HEADLIGHTS/TURN SIGNALS
WINDSHIELD WIPERS/WASHERS
(P. 61) (P. 60)
(P. 62)
CRUISE CONTROL
SWITCHES
(P. 105)
(P. 79) (P. 63)
(P. 62)
CRUISE CONTROL
MASTER SWITCH
(P. 105)
HAZARD WARNING BUTTON
— —y
y
() y y
Page 84 of 215
The heating and air conditioning
systems in your Honda provide a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them. (If you selected an
optional audio system, ref er to the
operating instructions that came
with it.)
Your Honda has an anti-thef t audio
system that requires a code number
to enable it................
Vents, Heating, and A/C . 86
.........................
Air Flow Buttons . 87
............................
Playing the Radio . 90
..............................
Radio Reception . 93
....................................
Playing a CD . 95
.....................................
CD Changer . 96
......................
Protecting Your CDs . 97
...........
CD Player Error Messages . 98
.......
CD Changer Error Messages . 99
...............................
Playing a Tape . 100
.................
Radio Thef t Protection . 103
..........................
Setting the Clock . 104
...............................
Cruise Control . 105
Comf ort and Convenience Features
Comf ort and Convenience Feat ures 85
— —y
y
() y y
Page 104 of 215

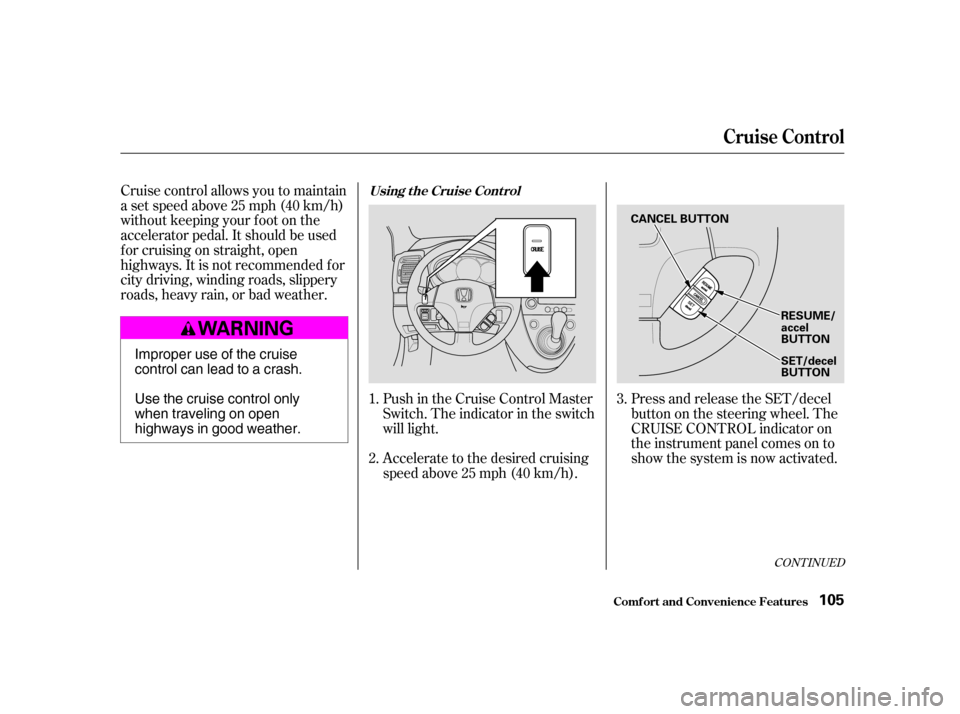

Cruise control allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your f oot on the
accelerator pedal. It should be used
f or cruising on straight, open
highways. It is not recommended f or
city driving, winding roads, slippery
roads, heavy rain, or bad weather.Push in the Cruise Control Master
Switch. The indicator in the switch
will light.
Accelerate to the desired cruising
speedabove25mph(40km/h).Press and release the SET/decel
buttononthesteeringwheel.The
CRUISE CONTROL indicator on
the instrument panel comes on to
show the system is now activated.
1. 2. 3.
CONT INUED
Cruise Control
Comf ort and Convenience Feat ures
Using t he Cruise Cont rol
105
RESUME/ accel
BUTTON
SET/decel
BUTTON
CANCEL BUTTON
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
— —y
y
() y
y
Page 105 of 215
You can increase the set cruising
speed in any of these ways:Press and hold the RESUME/
accel button. When you reach the
desired cruising speed, release the
button. You can decrease the set cruising
speed in any of these ways:
Press and hold the SET/decel
button. Release the button when
you reach the desired speed.
To slow down in very small
amounts, tap the SET/decel
button. Each time you do this,
your vehicle will slow down about
1 mph (1.6 km/h).
Push on the accelerator pedal.
Accelerate to the desired cruising
speed, and press the SET/decel
button.
To increase your speed in very
small amounts, tap the RESUME/
accel button. Each time you do
this, your vehicle will speed up
about 1 mph (1.6 km/h).
Thecruisecontrolmaynotholdthe
set speed when you are going up and
down hills. If your speed increases
going down a hill, use the brakes to
slow down. This will cancel the
cruise control. To resume the set
speed, press the RESUME/accel
button. The CRUISE CONTROL
indicator on the instrument panel will
come back on.
Tap the brake or clutch pedal
lightly with your f oot. The
CRUISE CONTROL indicator on
the instrument panel will go out.
When the vehicle slows to the
desired speed, press the SET/
decel button.
Cruise Control
Comf ort and Convenience Feat ures
Changing t he Set Speed
106
— —y
y
() y
y
Page 106 of 215
Even with the cruise control turned
on, you can still use the accelerator
pedal to speed up f or passing. Af ter
completing the pass, take your foot
of f the accelerator pedal. The vehicle
will return to the set cruising speed.
Resting your f oot on the brake or
clutch pedal will cause the cruise
control to cancel.Pressing the Cruise Control Master
Switch turns the system completely
of f and erases the previous cruising
speed.
Youcancancelthecruisecontrolin
any of these ways:
Tap the brake or clutch pedal.
Push the CANCEL button on the
steering wheel.
Press the Cruise Control Master
Switch. When you push the CANCEL
button, or tap the brake or clutch
pedal, the system remembers the
previously-set cruising speed. To
return to that speed, accelerate to
above25mph(40km/h)andthen
press and release the RESUME/
accel button. The CRUISE
CONTROL indicator comes on.
The vehicle will accelerate to the
same cruising speed as bef ore.
Cruise Control
Comf ort and Convenience Feat ures
Cancelling t he Cruise Cont rol
107
— —y
y
() y
y
Page 113 of 215
Try to maintain a constant speed.
Everytimeyouslowdownand
speed up, your vehicle uses extra
fuel.Usethecruisecontrolwhen
appropriate.
Combine several short trips into
one.
The air conditioning puts an extra
load on the engine which makes it
usemorefuel.Usethefresh-air
ventilation when possible.
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see on page f or
inf ormation on adding the proper
coolant.
Refer to
on page f or inf ormation
on checking other items in your
Honda. an underinf lated tire
causes more ‘‘rolling resistance,’’
which uses f uel.
The build-up of snow or mud on
your vehicle’s underside adds
weight and rolling resistance.
Frequent cleaning helps your f uel
mileage and reduces the chance of
corrosion.
Always maintain your vehicle
according to the maintenance
schedule. See
(see page
).
Drive moderately. Rapid
acceleration, abrupt cornering and
hard braking use more f uel.
Always drive in the highest gear
possible.
141
132 132
For example,
Service Station Procedures, Fuel Economy
Bef ore Driving Improving Fuel Economy
Engine Coolant Check
A dding
Engine Coolant
Owner’s Maintenance
Checks Owner’s
Maintenance Checks
114 RESERVE
TANK
MIN
MAX
— —y
y
() y
y
Page 197 of 215
Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80to97km/h)foratleast20
minutes. Drive on the highway in
5th.Donotusethecruisecontrol.
When traffic allows, drive for 90
seconds without moving the
accelerator pedal. (Vehicle speed
may vary slightly; this is okay.) If
you cannot do this f or a
continuous 90 seconds because of
traf f ic conditions, drive f or at least
30 seconds, then repeat it two
more times (for a total of 90
seconds).Then drive in city/suburban
traffic for at least 10 minutes.
When traf f ic conditions allow, let
the vehicle coast f or several
seconds without using the
accelerator pedal or the brake
pedal.
If the testing f acility determines the
readiness codes are still not set, see
your Honda dealer.
St at e Emissions T est ing
T echnical Inf ormation
198
