Page 3 of 641
Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 33
For Safe Driving P. 34 Seat Belts P. 38 Airbags P. 46
2Instrument Panel P. 77
Indicators P. 78 Gauges and Displays P. 114
2Controls P. 133
Clock P. 134 Locking and Unlocking the Doors P. 136
Opening and Closing the Moonroof* P. 164
Adjusting the Seats P. 185
2 Features P. 217
Audio System P. 218 Audio System Basic Operation P. 225, 243
Customized Features P. 324 Bluetooth® HandsFreeLink ®* P. 356, 382
2Driving P. 415
Before Driving P. 416 Towing a Trailer P. 421
Multi-View Rear Camera P. 515 Refueling P. 517
2Maintenance P. 523
Before Performing Maintenance P. 524 Maintenance MinderTM P. 527
Checking and Maintaining Wiper Blades P. 556
Climate Control System Maintenance P. 575
2Handling the Unexpected P. 583
Tools P. 584 If a Tire Goes Flat P. 585
Overheating P. 600 Indicator, Coming On/Blinking P. 602
When You Cannot Open the Hatch P. 614 Refueling P. 615
2Information P. 617
Specifications P. 618 Identification Numbers P. 620
Emissions Testing P. 623 Warranty Coverages P. 625
17 CIVIC 5D (KA KC KL)-31TGG6000.book 2 ページ 2016年6月8日 水曜日 午後2時8分
Page 4 of 641
Contents
Child Safety P. 60Exhaust Gas Hazard P. 74Safety Labels P. 75
Opening and Closing the Hatch P. 154 Security System P. 157 Opening and Closing the Windows P. 161
Operating the Switches Around the Steering Wheel P. 165 Adjusting the Mirrors P. 183
Interior Lights/Interior Convenience It ems P. 193 Climate Control System P. 208
Audio Error Messages P. 313General Information on the Audio System P. 317
When Driving P. 422 Braking P. 497Parking Your Vehicle P. 514
Fuel Economy and CO
2 Emissions P. 521 Turbo Engine Vehicle P. 522
Maintenance Under the Hood P. 536 Replacing Light Bulbs P. 548
Checking and Maintaining Tires P. 561 Battery P. 571 Remote Transmitter Care P. 573
Cleaning P. 576 Accessories and Modifications P. 582
Engine Does Not Start P. 593 Jump Starting P. 596 Shift Lever Does Not Move P. 599
Fuses P. 608 Emergency Towing P. 612 When You Cannot Unlock the Fuel Fill Door P. 613
Devices that Emit Radio Waves P. 621 Reporting Safety Defects P. 622
Authorized Manuals P. 627 Customer Service Information P. 628
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 77
ControlsP. 133
FeaturesP. 217
DrivingP. 415
MaintenanceP. 523
Handling the UnexpectedP. 583
InformationP. 617
IndexP. 630
17 CIVIC 5D (KA KC KL)-31TGG6000.book 3 ページ 2016年6月8日 水曜日 午後2時8分
Page 9 of 641
Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P536)
❙Windshield Wipers (P177, 556)
❙Tires (P561, 585)
❙Fog Lights* (P173, 550)
❙Power Door Mirrors (P184)
❙How to Refuel (P518)
❙High-Mount Brake Light (P555)
❙Opening/Closing the Hatch (P154)
❙Multi-View Rear Camera (P515)
❙Door Lock/Unlock Control (P138)
❙Side Turn Signal Lights* (P170, 553)
❙Headlights (P170, 548)
❙Front Turn Signal Lights (P170, 551)
❙Parking/Daytime Running Lights (P170, 553)
❙Front Side Marker Lights (P552)
❙Taillights (P555)
❙Back-Up Lights (P554)
❙Brake Lights (P554)
❙Rear Turn Signal Lights (P554)
❙Tail/Rear Side Marker Lights (P555)
❙Rear Wiper (P179, 559)
❙Hatch Release Button (P155)
❙License Plate Light (P555)
17 CIVIC 5D (KA KC KL)-31TGG6000.book 8 ページ 2016年6月8日 水曜日 午後2時8分
Page 10 of 641
9
Quick Reference Guide
Eco Assist® System (P 441)
Ambient Meter●Changes color to re flect your driving
style.
Green: Fuel efficient driving
White green: Moderate acceleration/
deceleration
White: Aggressive acceleration/
deceleration
● The ambient meter color changes in
accordance with your brake or
accelerator pedal operation.
ECON Button (P 441)
Helps maximize fuel economy.
ECON Mode Indicator (P 90)
Comes on when the ECON button is pressed.
Models with driver information interface
The message is displayed for a few seconds when the
ECON button is pressed.
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 9 ページ 2016年6月8日 水曜日 午後2時8分
Page 12 of 641
11
Quick Reference Guide
Instrument Panel (P 77)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
IndicatorAnti-lock Brake
System (
ABS)
Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator Low Tire Pressure/
TPMS Indicator
Electric Power
Steering (EPS) System
Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL
Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Door and Hatch Open
Indicator CRUISE MAIN
Indicator
Tachometer Fuel Gauge
Immobilizer System Indicator/
Security System Alarm Indicator Shift Lever Position Indicator
*
Low Fuel Indicator
Gauges (P 114)/Information Display* (P 115)/
Driver Information Interface
* (P 118)/System Indicators (P 78)
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Maintenance Minder
Indicator
Models with information display
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
Automatic
Brake Hold
System Indicator
Automatic Brake
Hold Indicator
Temperature Gauge
Brake Depressing
Indicator
Continuously variable
transmission models
Brake Depressing
Indicator
Manual transmission
models
Fog Light Indicator*
M
(7-speed manual shift mode)
Indicator/Shift Indicator*
Speedometer
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 11 ページ 2016年6月8日 水曜日 午後 2時8分
Page 13 of 641
12
Quick Reference Guide
200
323.412‰34Menu40 80
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator Anti-lock Brake
System (
ABS)
Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator
*
Electric Power
Steering (EPS) System
Indicator Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Tachometer
Speedometer
Fuel Gauge
Immobilizer System Indicator/
Security System Alarm Indicator Shift Lever Position Indicator
*
Low Fuel Indicator
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Models with driver information interface
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada Automatic
Brake Hold
System Indicator
Automatic Brake
Hold IndicatorU.S.
Canada
Temperature Gauge
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (ACC) with
Low Speed Follow
(LSF)
* Indicator
(Amber/Green)*
System Message
Indicator
Collision Mitigation
Braking System
TM
(CMBSTM) Indicator*
Road Departure
Mitigation (RDM)
Indicator
*
Lane Keeping Assist
System (LKAS)
Indicator (Amber/
Green)
*
M (7-speed manual shift mode)
Indicator/Shift Indicator*
Auto High-Beam
Indicator*
Shift Up/Down
Indicator*
17 CIVIC 5D (KA KC KL)-31TGG6000.book 12 ページ 2016年6月8日 水曜日 午後 2時8分

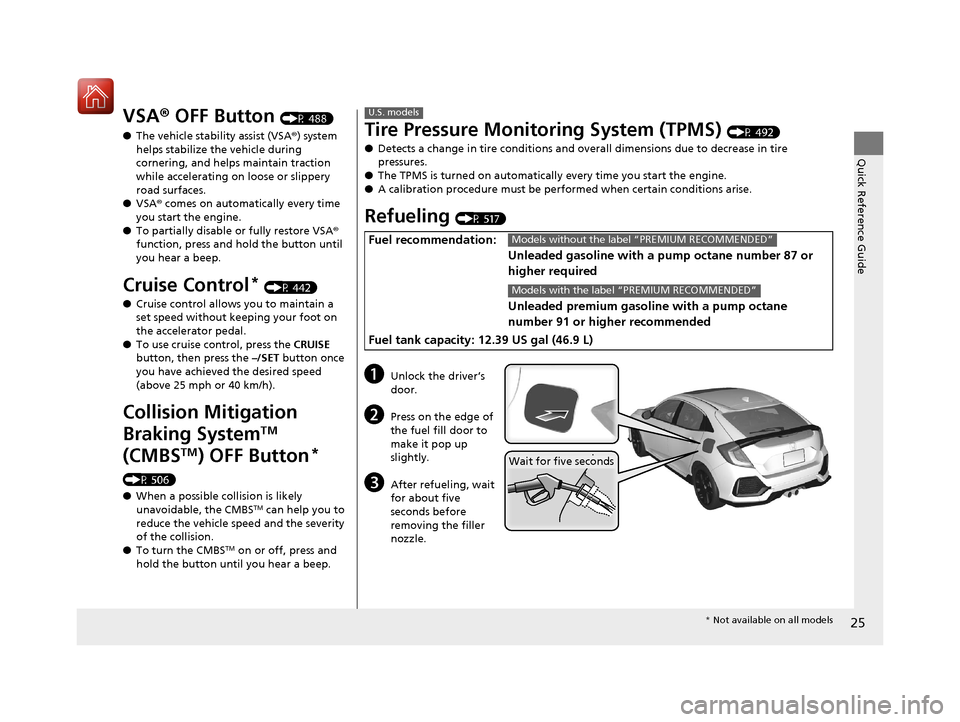

Page 26 of 641
25
Quick Reference Guide
VSA® OFF Button (P 488)
● The vehicle stability assist (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
Cruise Control* (P 442)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the –/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
Collision Mitigation
Braking System
TM
(CMBS
TM) OFF Button*
(P 506)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle speed and the severity
of the collision.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring System (TPMS) (P 492)
● Detects a change in tire conditions and overall dimensions due to decrease in tire
pressures.
● The TPMS is turned on automatically every time you start the engine.
● A calibration procedure must be performed when certain conditions arise.
Refueling (P 517)
Fuel recommendation:
Unleaded gasoline with a pump octane number 87 or
higher required
Unleaded premium gasoline with a pump octane
number 91 or higher recommended
Fuel tank capacity: 12.39 US gal (46.9 L)
U.S. models
Models without the label “PREMIUM RECOMMENDED”
Models with the label “PREMIUM RECOMMENDED”
aUnlock the driver’s
door.
bPress on the edge of
the fuel fill door to
make it pop up
slightly.
cAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
Wait for five seconds
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 25 ページ 2016年6月8日 水曜日 午後 2時8分

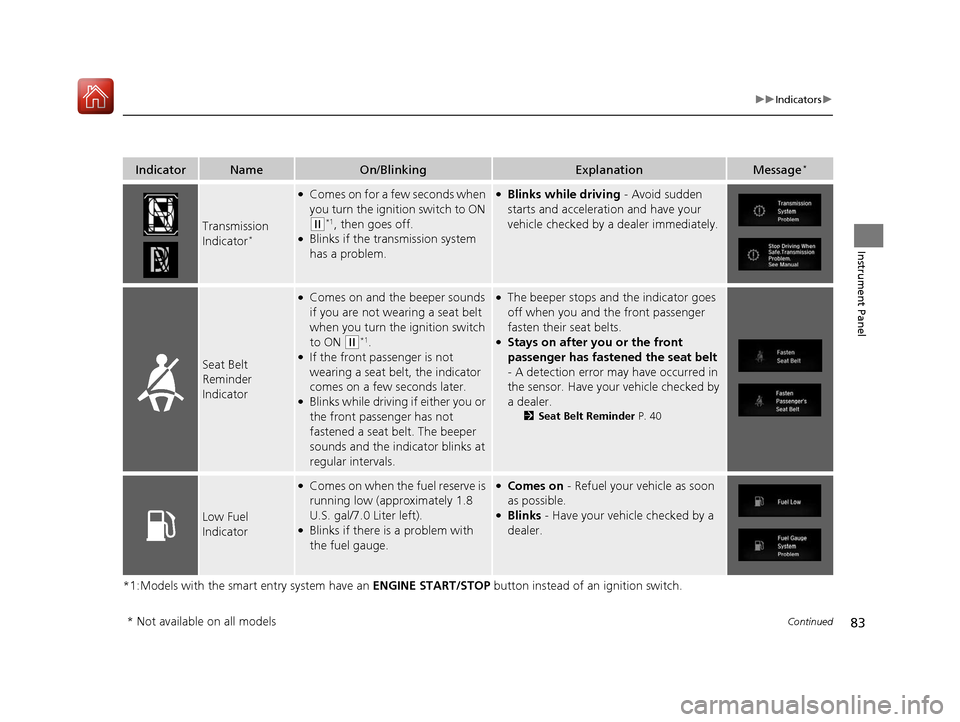

Page 84 of 641
83
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Transmission
Indicator*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Blinks if the transmission system
has a problem.
●Blinks while driving - Avoid sudden
starts and acceleration and have your
vehicle checked by a dealer immediately.
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds
if you are not wearing a seat belt
when you turn the ignition switch
to ON
(w*1.●If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
●Blinks while driving if either you or
the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.
●The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
●Stays on after you or the front
passenger has fastened the seat belt
- A detection error may have occurred in
the sensor. Have your vehicle checked by
a dealer.
2 Seat Belt Reminder P. 40
Low Fuel
Indicator
●Comes on when the fuel reserve is
running low (approximately 1.8
U.S. gal/7.0 Liter left).
●Blinks if there is a problem with
the fuel gauge.
●Comes on - Refuel your vehicle as soon
as possible.
●Blinks - Have your vehicle checked by a
dealer.
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 83 ページ 2016年6月8日 水曜日 午後 2時8分
Page 115 of 641
114
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON
(w*1.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1 Gauges
Press and hold the km/mil e change knob until you
hear a beep. The speedometer reading and the
displayed measurements switch between mph and
km/h.
Press the (display /information) button
repeatedly until the ic on is shown on the driver
information interface. Press ENTER , then press and
hold it again. The spee dometer reading and the
displayed measurements wi ll switch between mph
and km/h.
Models with information display
Models with driver information interface
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 600
17 CIVIC 5D (KA KC KL)-31TGG6000.book 114 ページ 2016年6月8日 水曜日 午 後2時8分
Page 116 of 641
115
uuGauges and Displays uInformation Display*
Continued
Instrument Panel
Information Display*
The information display shows the odom eter, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the ( TRIP) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0.
■Switching the Display
1Switching the Display
Each time you press the knob, the information
display changes as follows:
Instant Fuel Economy,
Odometer, Trip Meter A,
Outside Temperature
Instant Fuel Economy,
Range, Trip Meter A,
Outside Temperature
Engine Oil Life
Instant Fuel Economy, Average
Fuel Economy A, Trip Meter A,
Outside Temperature Instant Fuel Economy, Average
Fuel Economy B, Trip Meter B,
Outside Temperature
■Odometer
■Trip Meter
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 115 ページ 2016年6月8日 水曜日 午 後2時8分
