mirror controls HONDA CIVIC HATCHBACK 2017 10.G Owners Manual

Contents
Child Safety P. 60Exhaust Gas Hazard P. 74Safety Labels P. 75
Opening and Closing the Hatch P. 154 Security System P. 157 Opening and Closing the Windows P. 161
Operating the Switches Around the Steering Wheel P. 165 Adjusting the Mirrors P. 183
Interior Lights/Interior Convenience It ems P. 193 Climate Control System P. 208
Audio Error Messages P. 313General Information on the Audio System P. 317
When Driving P. 422 Braking P. 497Parking Your Vehicle P. 514
Fuel Economy and CO
2 Emissions P. 521 Turbo Engine Vehicle P. 522
Maintenance Under the Hood P. 536 Replacing Light Bulbs P. 548
Checking and Maintaining Tires P. 561 Battery P. 571 Remote Transmitter Care P. 573
Cleaning P. 576 Accessories and Modifications P. 582
Engine Does Not Start P. 593 Jump Starting P. 596 Shift Lever Does Not Move P. 599
Fuses P. 608 Emergency Towing P. 612 When You Cannot Unlock the Fuel Fill Door P. 613
Devices that Emit Radio Waves P. 621 Reporting Safety Defects P. 622
Authorized Manuals P. 627 Customer Service Information P. 628
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 77
ControlsP. 133
FeaturesP. 217
DrivingP. 415
MaintenanceP. 523
Handling the UnexpectedP. 583
InformationP. 617
IndexP. 630
17 CIVIC 5D (KA KC KL)-31TGG6000.book 3 ページ ２０１６年６月８日　水曜日　午後２時８分

Visual Index
6
Quick Reference Guide
❙Door Mirror Controls (P184)
❙Passenger’s Front Airbag
(P49)
❙Glove Box (P195)
❙Rearview Mirror (P183)
❙Hood Release Handle (P537)
❙Power Door Lock Master Switch (P149)
❙Power Window Switches (P161)
❙Interior Fuse Box (P609)
❙Driver’s Front Airbag (P49)
❙Shift Lever
Continuously Variable
Transmission
(P431, 433)
Manual Transmission (P438)
❙ECON Button (P441)
❙Electric Parking Brake Switch
(P497)
❙USB Port* (P219)
❙Wireless Charger* (P200)
❙Automatic Brake Hold
Button
(P501)
17 CIVIC 5D (KA KC KL)-31TGG6000.book 6 ページ ２０１６年６月８日　水曜日　午後２時８分

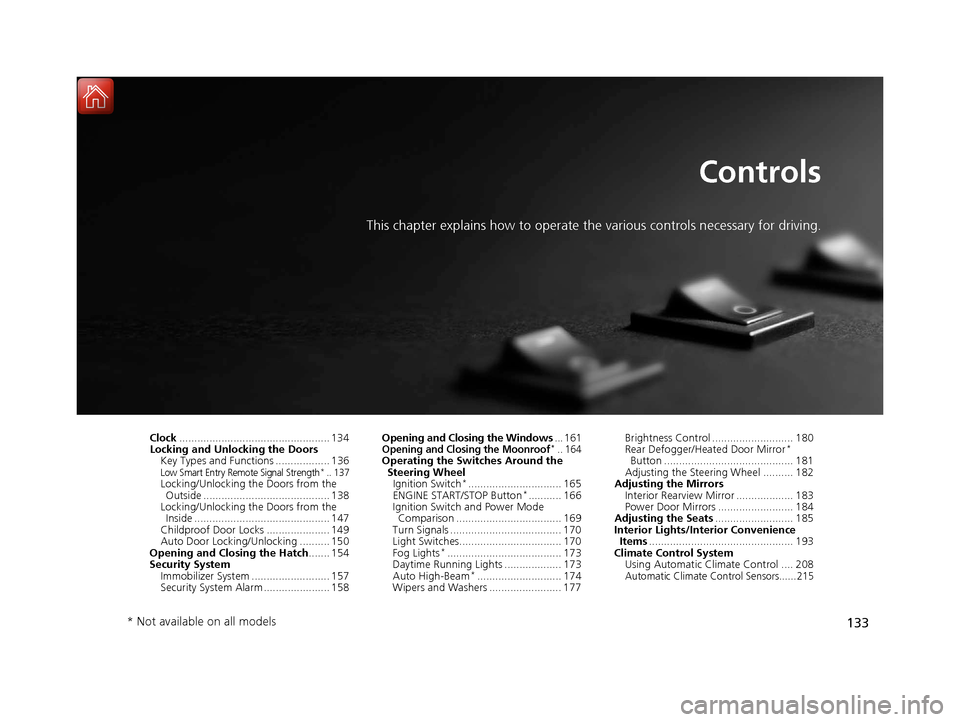

133
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 134
Locking and Unlocking the Doors
Key Types and Functions .................. 136
Low Smart Entry Remote Signal Strength*.. 137Locking/Unlocking the Doors from the Outside .......................................... 138
Locking/Unlocking the Doors from the Inside ............................................. 147
Childproof Door Locks ..................... 149
Auto Door Locking/Unlocking .......... 150
Opening and Closing the Hatch....... 154
Security System
Immobilizer System .......................... 157
Security System Alarm ...................... 158 Opening and Closing the Windows
... 161
Opening and Closing the Moonroof*.. 164Operating the Switches Around the
Steering Wheel Ignition Switch
*............................... 165
ENGINE START/STOP Button*........... 166
Ignition Switch and Power Mode Comparison ................................... 169
Turn Signals ..................................... 170
Light Switches.................................. 170
Fog Lights
*...................................... 173
Daytime Running Lights ................... 173
Auto High-Beam
*............................ 174
Wipers and Washers ........................ 177 Brightness Control ........................... 180
Rear Defogger/Heated Door Mirror
*
Button ........................................... 181
Adjusting the Steering Wheel .......... 182
Adjusting the Mirrors
Interior Rearview Mirror ................... 183
Power Door Mirrors ......................... 184
Adjusting the Seats .......................... 185
Interior Lights/Interior Convenience Items ................................................ 193
Climate Control System
Using Automatic Climate Control .... 208
Automatic Climate Control Sensors......215
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 133 ページ ２０１６年６月８日　水曜日　午 後２時８分

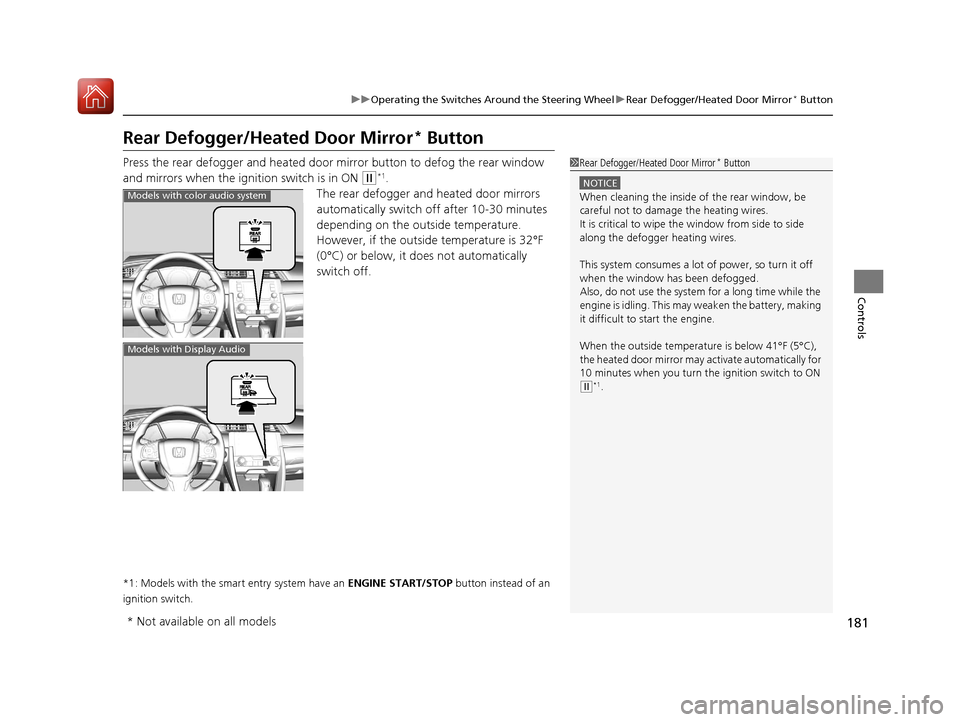

181
uuOperating the Switches Around the Steering Wheel uRear Defogger/Heated Door Mirror* Button
Controls
Rear Defogger/Heated Door Mirror* Button
Press the rear defogger and heated door mirror button to defog the rear window
and mirrors when the ignition switch is in ON
(w*1.
The rear defogger and heated door mirrors
automatically switch of f after 10-30 minutes
depending on the outside temperature.
However, if the outside temperature is 32°F
(0°C) or below, it does not automatically
switch off.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Rear Defogger/Heated Door Mirror* Button
NOTICE
When cleaning the inside of the rear window, be
careful not to damage the heating wires.
It is critical to wipe the window from side to side
along the defogger heating wires.
This system consumes a lot of power, so turn it off
when the window has been defogged.
Also, do not use the system for a long time while the
engine is idling. This may weaken the battery, making
it difficult to start the engine.
When the outside temperature is below 41°F (5°C),
the heated door mirror may activate automatically for
10 minutes when you turn the ignition switch to ON
( w*1.
Models with color audio system
Models with Display Audio
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 181 ページ ２０１６年６月８日　水曜日　午 後２時８分

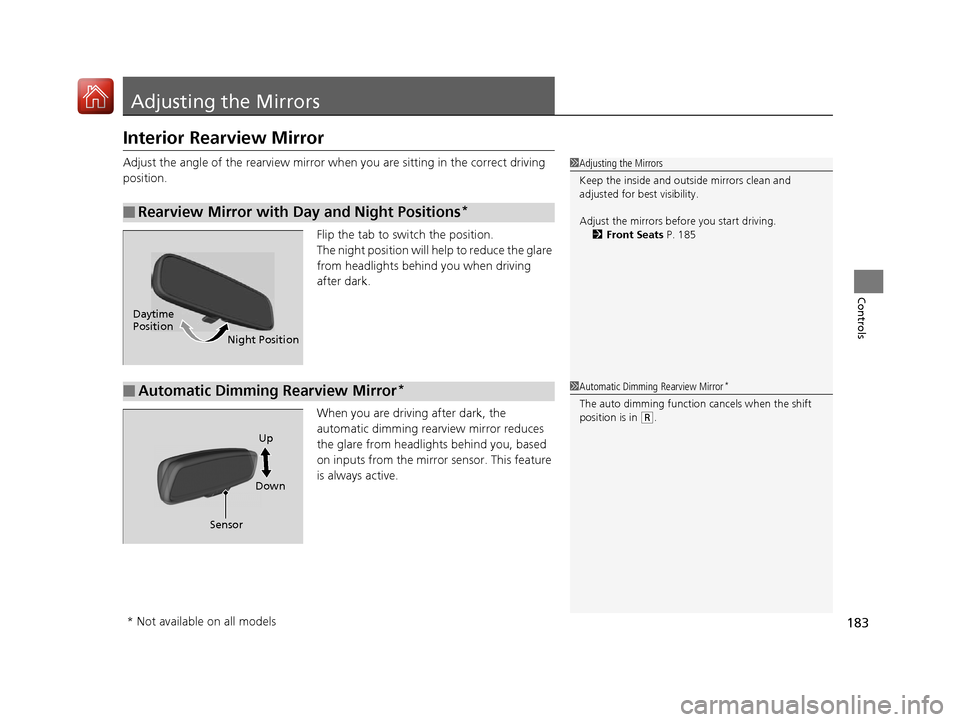

183
Controls
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
When you are driving after dark, the
automatic dimming rearview mirror reduces
the glare from headlights behind you, based
on inputs from the mirror sensor. This feature
is always active.
■Rearview Mirror with Day and Night Positions*
1 Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors befo re you start driving.
2 Front Seats P. 185
Daytime
Position
Night Position
■Automatic Dimming Rearview Mirror*1Automatic Dimming Rearview Mirror*
The auto dimming function cancels when the shift
position is in
(R.
Sensor DownUp
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 183 ページ ２０１６年６月８日　水曜日　午
後２時８分

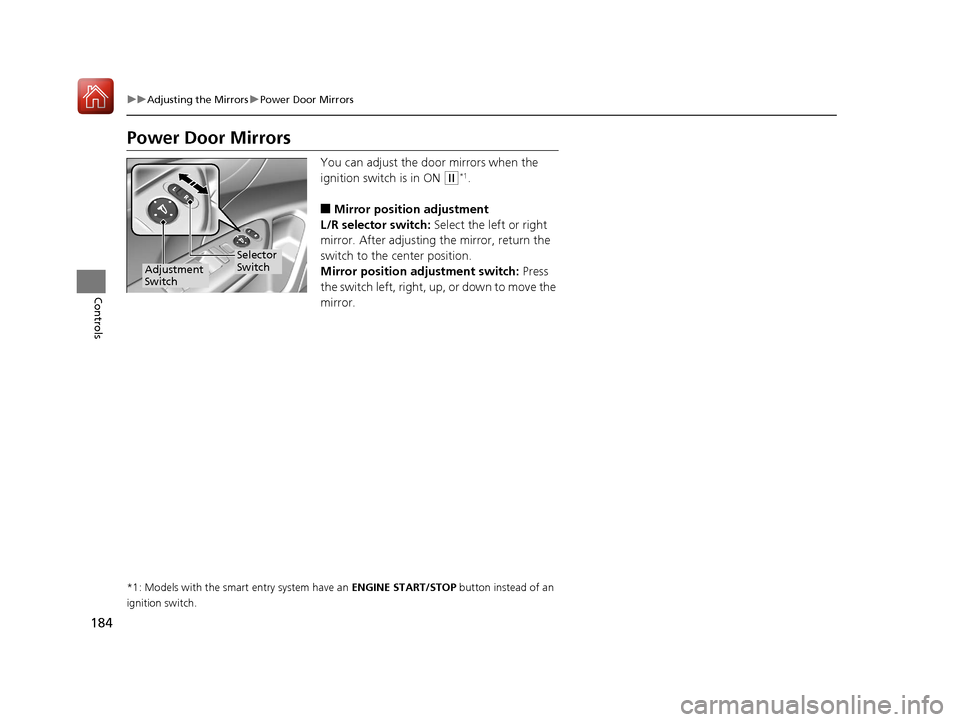

184
uuAdjusting the Mirrors uPower Door Mirrors
Controls
Power Door Mirrors
You can adjust the door mirrors when the
ignition switch is in ON
(w*1.
■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Selector
Switch
Adjustment
Switch
17 CIVIC 5D (KA KC KL)-31TGG6000.book 184 ページ ２０１６年６月８日　水曜日　午 後２時８分

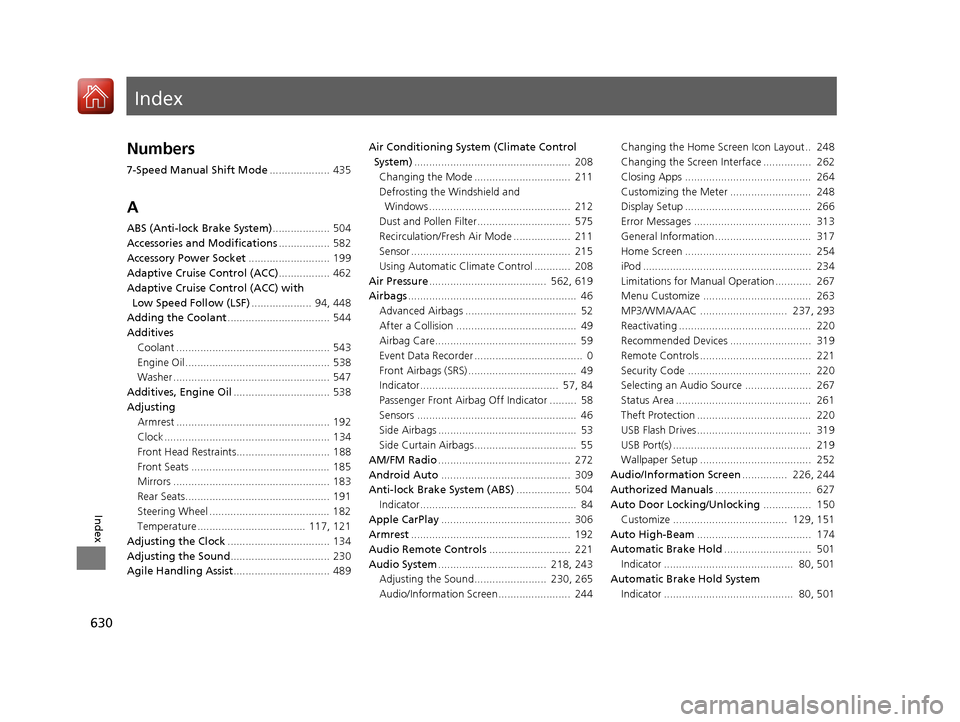

Index
630
Index
Index
Numbers
7-Speed Manual Shift Mode.................... 435
A
ABS (Anti-lock Brake System) ................... 504
Accessories and Modifications ................. 582
Accessory Power Socket ........................... 199
Adaptive Cruise Control (ACC) ................. 462
Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) .................... 94, 448
Adding the Coolant .................................. 544
Additives
Coolant ................................................... 543
Engine Oil ................................................ 538
Washer .................................................... 547
Additives, Engine Oil ................................ 538
Adjusting
Armrest ................................................... 192
Clock ....................................................... 134
Front Head Restraints............................... 188
Front Seats .............................................. 185
Mirrors .................................................... 183
Rear Seats................................................ 191
Steering Wheel ........................................ 182
Temperature .................................... 117, 121
Adjusting the Clock .................................. 134
Adjusting the Sound ................................. 230
Agile Handling Assist ................................ 489 Air Conditioning System (Climate Control
System) .................................................... 208
Changing the Mode ................................ 211
Defrosting the Windshield and Windows ............................................... 212
Dust and Pollen Filter............................... 575
Recirculation/Fresh Air Mode ................... 211
Sensor ..................................................... 215
Using Automatic Climate Control ............ 208
Air Pressure ....................................... 562, 619
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ........................................ 49
Airbag Care............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator.............................................. 57, 84
Passenger Front Airbag Off Indicator ......... 58
Sensors ..................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags.................................. 55
AM/FM Radio ............................................ 272
Android Auto ........................................... 309
Anti-lock Brake System (ABS) .................. 504
Indicator.................................................... 84
Apple CarPlay ........................................... 306
Armrest ..................................................... 192
Audio Remote Controls ........................... 221
Audio System .................................... 218, 243
Adjusting the Sound........................ 230, 265
Audio/Information Screen........................ 244 Changing the Home Screen Icon Layout.. 248
Changing the Screen Interface ................ 262
Closing Apps .......................................... 264
Customizing the Meter ........................... 248
Display Setup .......................................... 266
Error Messages ....................................... 313
General Information................................ 317
Home Screen .......................................... 254
iPod ........................................................ 234
Limitations for Manual Operation ............ 267
Menu Customize .................................... 263
MP3/WMA/AAC ............................. 237, 293
Reactivating ............................................ 220
Recommended Devices ........................... 319
Remote Controls ..................................... 221
Security Code ......................................... 220
Selecting an Audio Source ...................... 267
Status Area ............................................. 261
Theft Protection ...................................... 220
USB Flash Drives...................................... 319
USB Port(s) .............................................. 219
Wallpaper Setup ..................................... 252
Audio/Information Screen ............... 226, 244
Authorized Manuals ................................ 627
Auto Door Locking/Unlocking ................ 150
Customize ...................................... 129, 151
Auto High-Beam ...................................... 174
Automatic Brake Hold ............................. 501
Indicator ........................................... 80, 501
Automatic Brake Hold System Indicator ........................................... 80, 501
17 CIVIC 5D (KA KC KL)-31TGG6000.book 630 ページ ２０１６年６月８日　水曜日　午 後２時８分
