sensor HONDA CIVIC HATCHBACK 2018 (in English) Workshop Manual

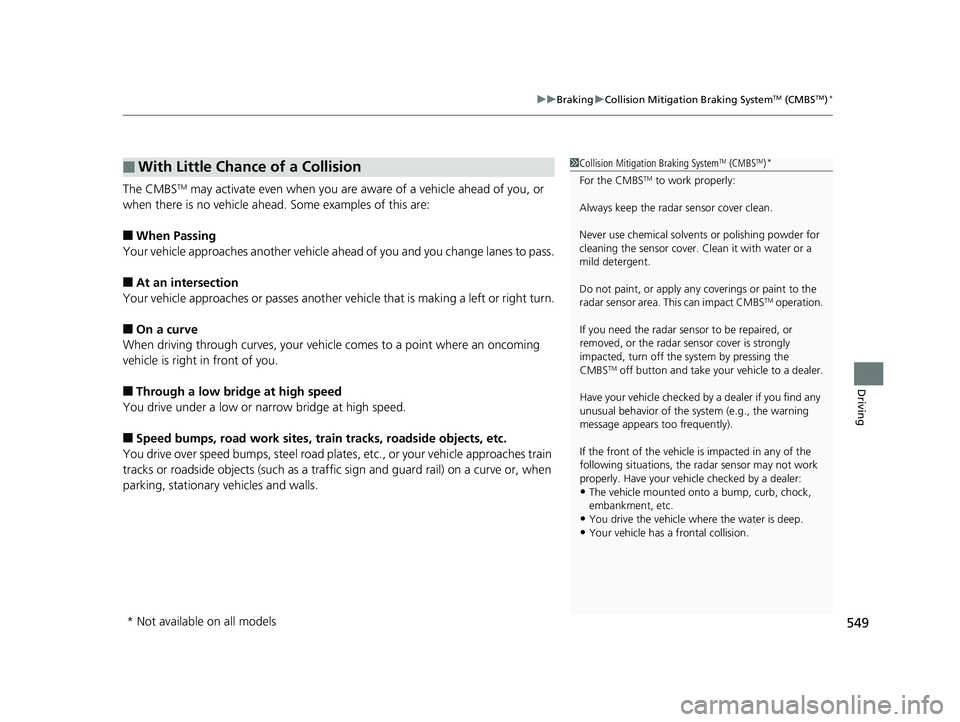

549
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Driving
The CMBSTM may activate even when you are aware of a vehicle ahead of you, or
when there is no vehicle ahead. Some examples of this are:
■When Passing
Your vehicle approaches another vehicle ah ead of you and you change lanes to pass.
■At an intersection
Your vehicle approaches or passes another ve hicle that is making a left or right turn.
■On a curve
When driving through curves, your vehicle comes to a point where an oncoming
vehicle is right in front of you.
■Through a low bridge at high speed
You drive under a low or na rrow bridge at high speed.
■Speed bumps, road work sites, train tracks, roadside objects, etc.
You drive over speed bumps, st eel road plates, etc., or your vehicle approaches train
tracks or roadside objects (such as a traffic sign and guard rail) on a curve or, when
parking, stationary vehicles and walls.
■With Little Chance of a Collision1 Collision Mitigation Braking SystemTM (CMBSTM)*
For the CMBSTM to work properly:
Always keep the radar sensor cover clean.
Never use chemical solvents or polishing powder for
cleaning the sensor cover. Clean it with water or a
mild detergent.
Do not paint, or apply any coverings or paint to the
radar sensor area. This can impact CMBS
TM operation.
If you need the radar sensor to be repaired, or
removed, or the radar se nsor cover is strongly
impacted, turn off the system by pressing the
CMBS
TM off button and take your vehicle to a dealer.
Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).
If the front of the vehicle is impacted in any of the
following situations, the ra dar sensor may not work
properly. Have your vehi cle checked by a dealer:
•The vehicle mounted onto a bump, curb, chock,
embankment, etc.
•You drive the vehicle where the water is deep.
•Your vehicle has a frontal collision.
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 549 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

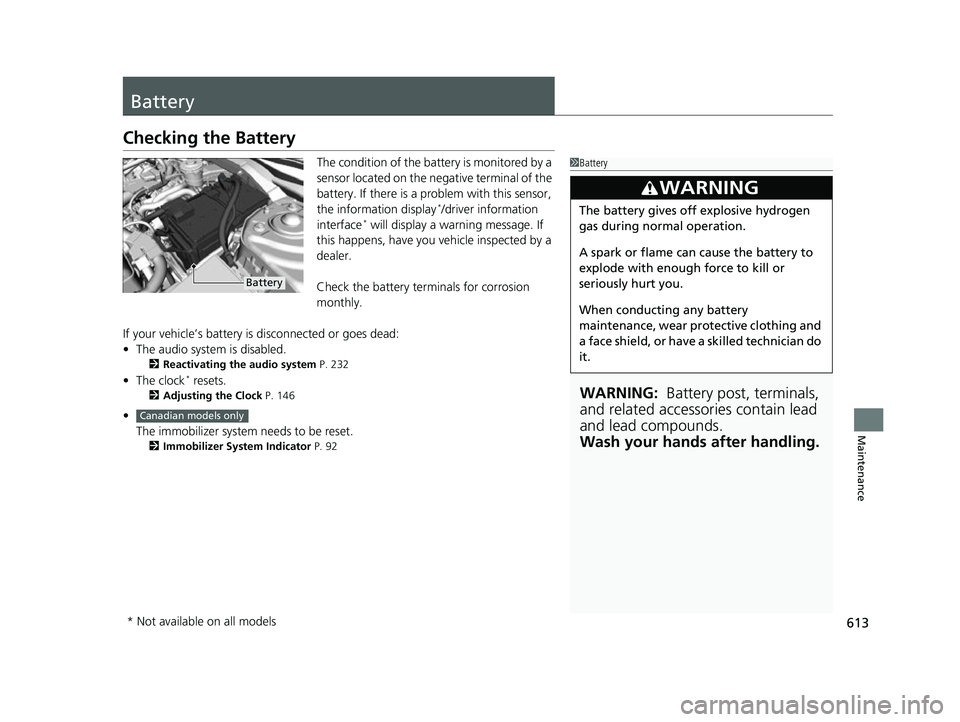

613
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the information display
*/driver information
interface* will display a warning message. If
this happens, have you vehicle inspected by a
dealer.
Check the battery termi nals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 232
•The clock* resets.
2 Adjusting the Clock P. 146
•
The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 92
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Battery
Canadian models only
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 613 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

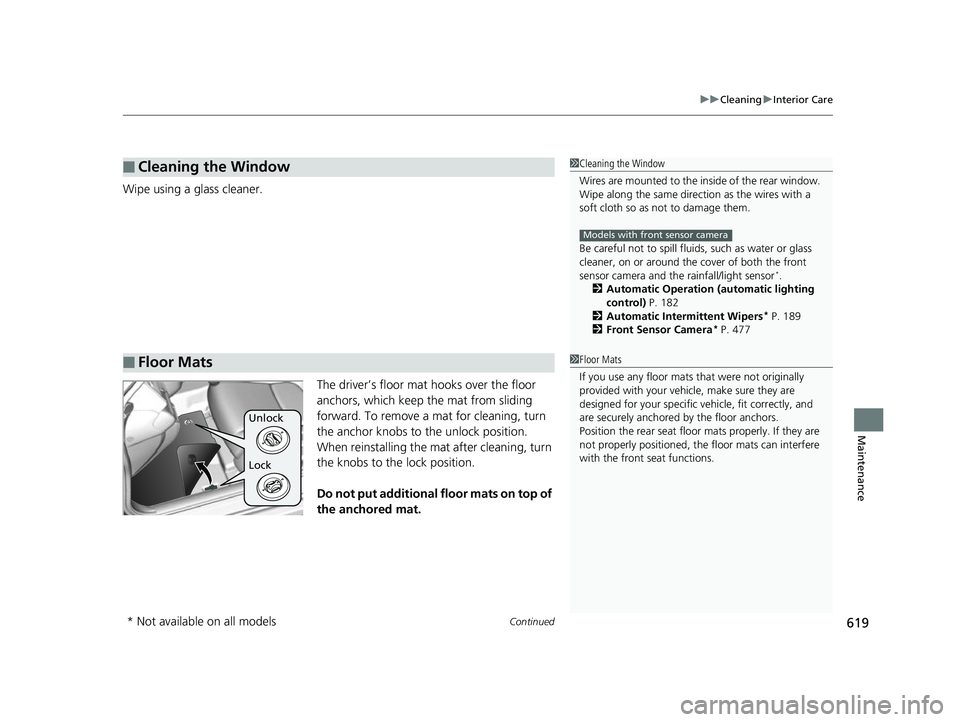

Continued619
uuCleaning uInterior Care
Maintenance
Wipe using a glass cleaner.
The driver’s floor mat hooks over the floor
anchors, which keep the mat from sliding
forward. To remove a mat for cleaning, turn
the anchor knobs to the unlock position.
When reinstalling the mat after cleaning, turn
the knobs to the lock position.
Do not put additional floor mats on top of
the anchored mat.
■Cleaning the Window
■Floor Mats
1Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill fluids, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor
*.
2 Automatic Operation (automatic lighting
control) P. 182
2 Automatic Intermittent Wipers
* P. 189
2 Front Sensor Camera* P. 477
Models with front sensor camera
1Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific ve hicle, fit correctly, and
are securely anchored by the floor anchors.
Position the rear seat floor mats properly. If they are
not properly positioned, the floor mats can interfere
with the front seat functions.
Lock Unlock
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 619 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

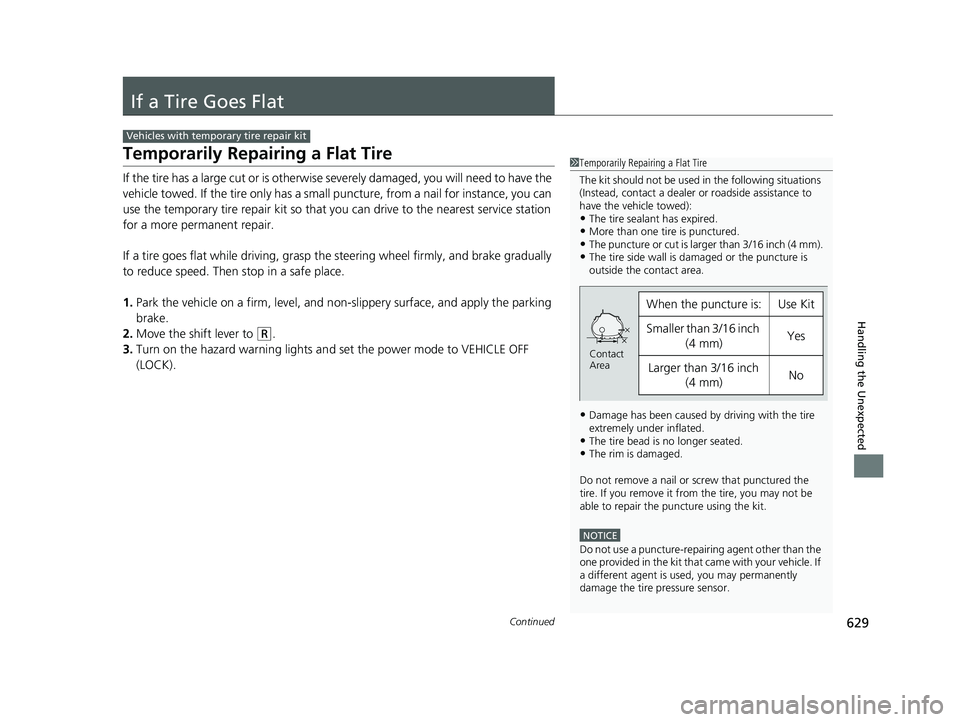

629Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface, and apply the parking
brake.
2. Move the shift lever to
(R.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
Vehicles with temporary tire repair kit
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations
(Instead, contact a dealer or roadside assistance to
have the vehicle towed):
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture is:Use Kit
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
18 CIVIC 5D (KA KC KL)-31TGG6100.book 629 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

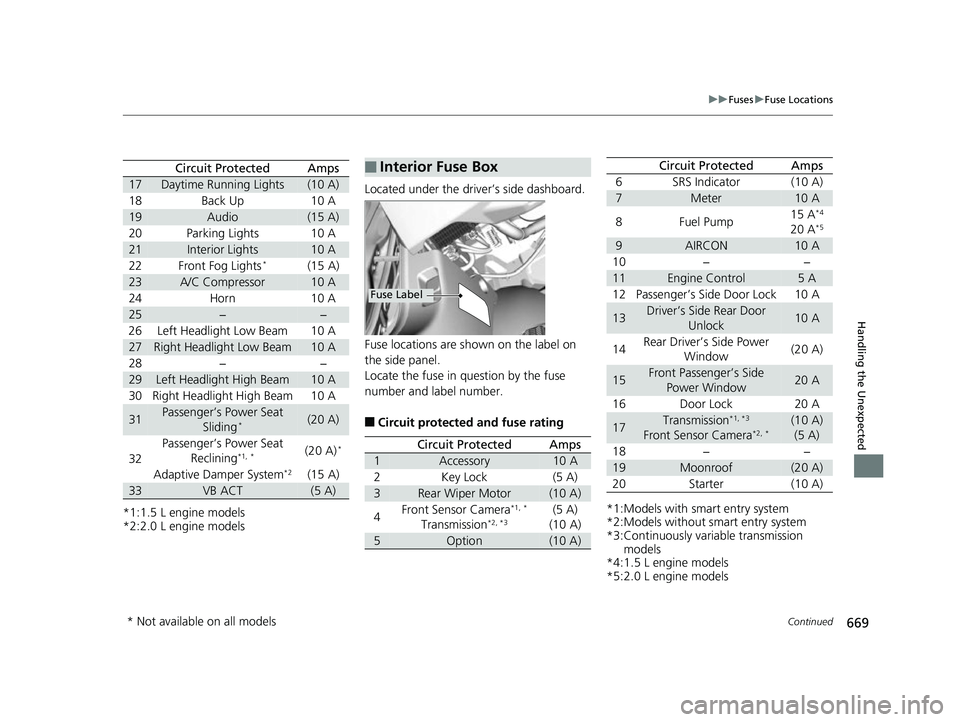

669
uuFuses uFuse Locations
Continued
Handling the Unexpected
*1:1.5 L engine models
*2:2.0 L engine models
Circuit ProtectedAmps
17Daytime Running Lights(10 A)
18 Back Up 10 A
19Audio(15 A)
20 Parking Lights 10 A
21Interior Lights10 A
22 Front Fog Lights*(15 A)
23A/C Compressor10 A
24 Horn 10 A
25−−
26 Left Headlight Low Beam 10 A
27Right Headlight Low Beam10 A
28 − −
29Left Headlight High Beam10 A
30 Right Headlight High Beam 10 A
31Passenger’s Power Seat Sliding*(20 A)
32 Passenger’s Power Seat
Reclining
*1, *(20 A)*
Adaptive Damper System*2(15 A)
33VB ACT(5 A)
Located under the driver’s side dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Circuit ProtectedAmps
1Accessory10 A
2Key Lock(5 A)
3Rear Wiper Motor(10 A)
4Front Sensor Camera*1, *
Transmission*2, *3(5 A)
(10 A)
5Option(10 A)
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
*4:1.5 L engine models
*5:2.0 L engine models
6SRS Indicator(10 A)
7Meter10 A
8Fuel Pump15 A*4
20 A*5
9AIRCON10 A
10−−
11Engine Control5A
12Passenger’s Side Door Lock10 A
13Driver’s Side Rear Door
Unlock10 A
14Rear Driver’s Side Power Window(20 A)
15Front Passenger’s Side
Power Window20 A
16Door Lock20 A
17Transmission*1, *3
Front Sensor Camera*2, *(10 A)(5 A)
18−−
19Moonroof(20 A)
20Starter(10 A)
Circuit ProtectedAmps
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 669 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

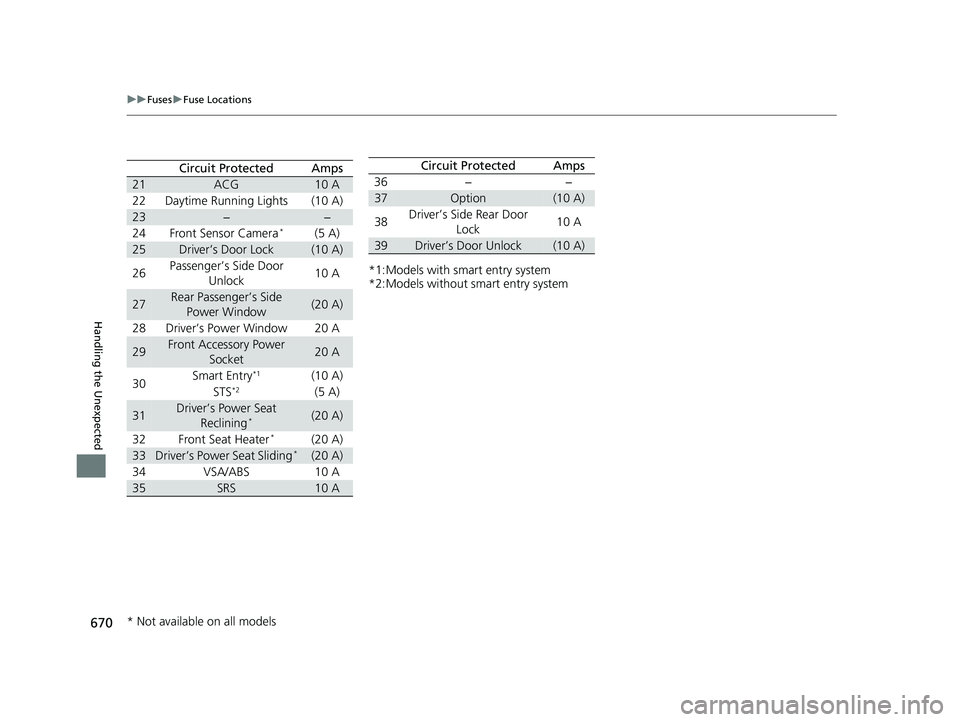

670
uuFuses uFuse Locations
Handling the Unexpected
Circuit ProtectedAmps
21ACG10 A
22Daytime Running Lights(10 A)
23−−
24Front Sensor Camera*(5 A)
25Driver’s Door Lock(10 A)
26Passenger’s Side Door
Unlock10 A
27Rear Passenger’s Side Power Window(20 A)
28Driver’s Power Window20 A
29Front Accessory Power
Socket20 A
30 Smart Entry
*1(10 A)
STS*2(5 A)
31Driver’s Power Seat Reclining*(20 A)
32 Front Seat Heater
*(20 A)
33Driver’s Power Seat Sliding*(20 A)
34 VSA/ABS 10 A
35SRS10 A
*1:Models with smart entry system
*2:Models without smart entry system 36 − −
37Option(10 A)
38 Driver’s Side Rear Door
Lock 10 A
39Driver’s Door Unlock(10 A)
Circuit ProtectedAmps
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 670 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

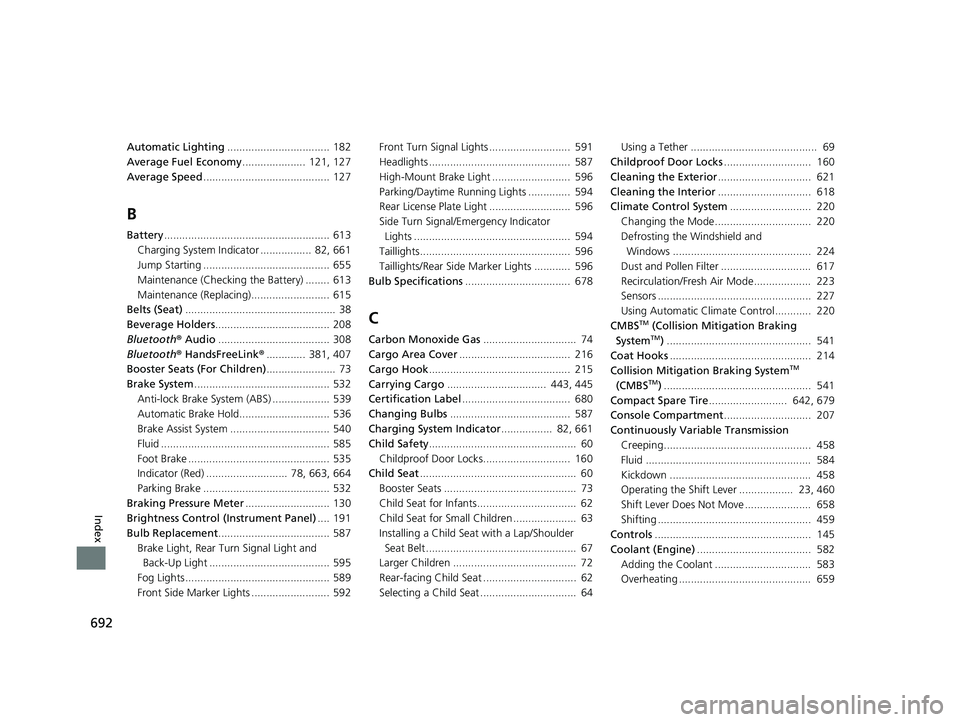

Index
691
Index
Index
Numbers
7-Speed Manual Shift Mode................... 463
A
ABS (Anti-lock Brake System) .................. 539
Accelerator Position Meter ..................... 130
Accessories and Modifications ................ 624
Accessory Power Socket ........................... 211
Adaptive Cruise Control (ACC) ................ 495
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ................... 97, 479
Adding the Coolant ................................. 583
Additives Coolant .................................................. 582
Engine Oil ............................................... 575
Washer ................................................... 586
Additives, Engine Oil ............................... 575
Adjusting Armrest .................................................. 203
Clock ...................................................... 146
Front Head Restraints .............................. 199
Front Seats.............................................. 196
Mirrors.................................................... 194
Rear Seats ............................................... 202
Steering Wheel ....................................... 193
Temperature ................................... 122, 128
Adjusting the Clock ................................. 146
Adjusting the Sound ................................ 242
Agile Handling Assist ............................... 523 Air Conditioning System (Climate Control
System) .................................................... 220
Changing the Mode ................................ 223
Defrosting the Windshield and Windows ............................................... 224
Dust and Pollen Filter ............................... 617
Recirculation/Fresh Air Mode ................... 223
Sensor ..................................................... 227
Using Automatic Climate Control ............ 220
Air Pressure ....................................... 603, 679
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ......................................... 49
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator .............................................. 57, 86
Passenger Front Airbag Off Indicator ......... 58
Sensors ...................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
AM/FM Radio ............................................ 284
Android Auto ............................................ 321
Anti-lock Brake System (ABS) .................. 539
Indicator .................................................... 86
Apple CarPlay ........................................... 318
Armrest ..................................................... 203
Audio Remote Controls ............................ 233
Audio System .................................... 230, 255
Adjusting the Sound ........................ 242, 277
Audio/Information Screen ........................ 256 Changing the Home Screen Icon Layout .. 260
Changing the Screen Interface ................ 274
Closing Apps ........................................... 276
Customizing the Meter............................ 260
Display Setup .......................................... 278
Error Messages ........................................ 325
General Information ................................ 329
Home Screen........................................... 266
iPod ........................................................ 246
Limitations for Manual Operation ............ 279
Menu Customize ..................................... 275
MP3/WMA/AAC .............................. 249, 305
Reactivating ............................................ 232
Recommended Devices............................ 331
Remote Controls ..................................... 233
Security Code .......................................... 232
Selecting an Audio Source ....................... 279
Status Area ............................................. 273
Theft Protection ...................................... 232
USB Flash Drives ...................................... 331
USB Port(s) .............................................. 231
Wallpaper Setup...................................... 264
Audio/Information Screen ............... 238, 256
Authorized Manuals ................................ 688
Auto Door Locking/Unlocking ................. 161
Customize ....................................... 140, 162
Auto High-Beam ....................................... 185
Automatic Brake Hold ............................. 536
Indicator............................................ 81, 536
Automatic Brake Hold System Indicator............................................ 81, 536
18 CIVIC 5D (KA KC KL)-31TGG6100.book 691 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

692
Index
Automatic Lighting.................................. 182
Average Fuel Economy ..................... 121, 127
Average Speed .......................................... 127
B
Battery....................................................... 613
Charging System Indicator ................. 82, 661
Jump Starting .......................................... 655
Maintenance (Checking the Battery) ........ 613
Maintenance (Replacing).......................... 615
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 208
Bluetooth ® Audio ..................................... 308
Bluetooth ® HandsFreeLink ®............. 381, 407
Booster Seats (For Children) ....................... 73
Brake System ............................................. 532
Anti-lock Brake System (ABS) ................... 539
Automatic Brake Hold.............................. 536
Brake Assist System ................................. 540
Fluid ........................................................ 585
Foot Brake ............................................... 535
Indicator (Red) ........................... 78, 663, 664
Parking Brake .......................................... 532
Braking Pressure Meter ............................ 130
Brightness Control (Instrument Panel) .... 191
Bulb Replacement ..................................... 587
Brake Light, Rear Tu rn Signal Light and
Back-Up Light ........................................ 595
Fog Lights ................................................ 589
Front Side Marker Lights .......................... 592 Front Turn Signal Lights ........................... 591
Headlights ............................................... 587
High-Mount Brake Light .......................... 596
Parking/Daytime Running Lights .............. 594
Rear License Plate Light ........................... 596
Side Turn Signal/Emergency Indicator
Lights .................................................... 594
Taillights.................................................. 596
Taillights/Rear Side Marker Lights ............ 596
Bulb Specifications ................................... 678
C
Carbon Monoxide Gas ............................... 74
Cargo Area Cover ..................................... 216
Cargo Hook ............................................... 215
Carrying Cargo ................................. 443, 445
Certification Label .................................... 680
Changing Bulbs ........................................ 587
Charging System Indicator ................. 82, 661
Child Safety ................................................. 60
Childproof Door Locks............................. 160
Child Seat .................................................... 60
Booster Seats ............................................ 73
Child Seat for Infants................................. 62
Child Seat for Small Children ..................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 67
Larger Children ......................................... 72
Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64 Using a Tether .......................................... 69
Childproof Door Locks ............................. 160
Cleaning the Exterior ............................... 621
Cleaning the Interior ............................... 618
Climate Control System ........................... 220
Changing the Mode................................ 220
Defrosting the Windshield and Windows .............................................. 224
Dust and Pollen Filter .............................. 617
Recirculation/Fresh Air Mode................... 223
Sensors ................................................... 227
Using Automatic Climate Control............ 220
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 541
Coat Hooks ............................................... 214
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 541
Compact Spare Tire .......................... 642, 679
Console Compartment ............................. 207
Continuously Variable Transmission Creeping................................................. 458
Fluid ....................................................... 584
Kickdown ............................................... 458
Operating the Shift Lever .................. 23, 460
Shift Lever Does Not Move ...................... 658
Shifting ................................................... 459
Controls .................................................... 145
Coolant (Engine) ...................................... 582
Adding the Coolant ................................ 583
Overheating ............................................ 659
18 CIVIC 5D (KA KC KL)-31TGG6100.book 692 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

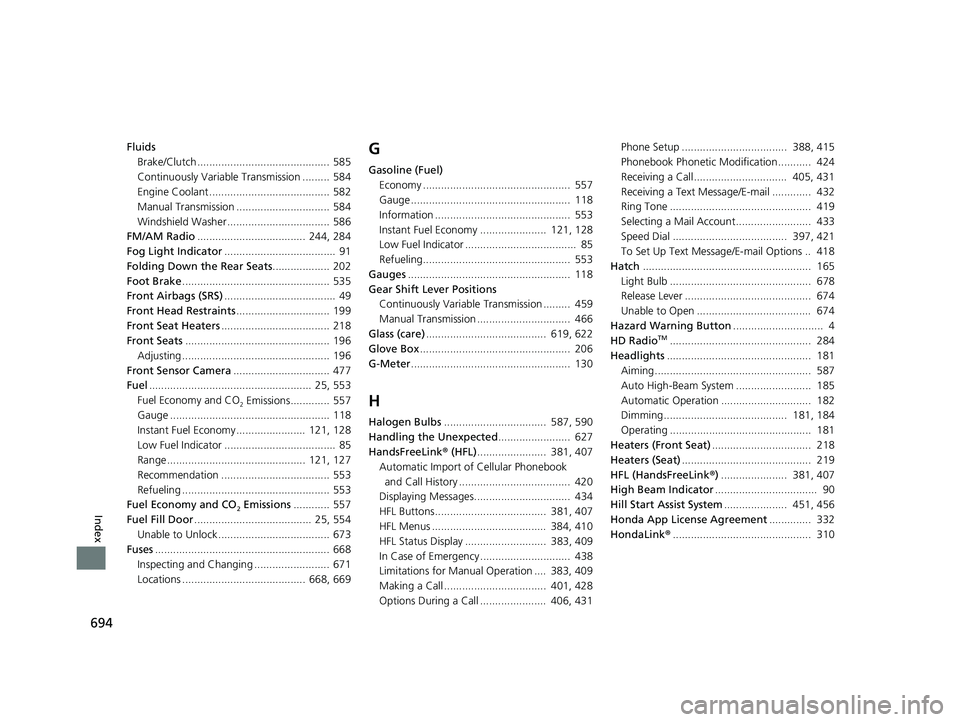

694
Index
FluidsBrake/Clutch ............................................ 585
Continuously Variable Transmission ......... 584
Engine Coolant ........................................ 582
Manual Transmission ............................... 584
Windshield Washer .................................. 586
FM/AM Radio .................................... 244, 284
Fog Light Indicator ..................................... 91
Folding Down the Rear Seats ................... 202
Foot Brake ................................................. 535
Front Airbags (SRS) ..................................... 49
Front Head Restraints ............................... 199
Front Seat Heaters .................................... 218
Front Seats ................................................ 196
Adjusting ................................................. 196
Front Sensor Camera ................................ 477
Fuel ...................................................... 25, 553
Fuel Economy and CO
2 Emissions............. 557
Gauge ..................................................... 118
Instant Fuel Economy ....................... 121, 128
Low Fuel Indicator ..................................... 85
Range .............................................. 121, 127
Recommendation .................................... 553
Refueling ................................................. 553
Fuel Economy and CO
2 Emissions ............ 557
Fuel Fill Door ....................................... 25, 554
Unable to Unlock ..................................... 673
Fuses .......................................................... 668
Inspecting and Changing ......................... 671
Locations ......................................... 668, 669
G
Gasoline (Fuel) Economy ................................................. 557
Gauge ..................................................... 118
Information ............................................. 553
Instant Fuel Economy ...................... 121, 128
Low Fuel Indicator ..................................... 85
Refueling................................................. 553
Gauges ...................................................... 118
Gear Shift Lever Positions Continuously Variable Transmission ......... 459
Manual Transmission ............................... 466
Glass (care) ........................................ 619, 622
Glove Box .................................................. 206
G-Meter ..................................................... 130
H
Halogen Bulbs .................................. 587, 590
Handling the Unexpected ........................ 627
HandsFreeLink ® (HFL) ....................... 381, 407
Automatic Import of Cellular Phonebook
and Call History ..................................... 420
Displaying Messages................................ 434
HFL Buttons..................................... 381, 407
HFL Menus ...................................... 384, 410
HFL Status Display ........................... 383, 409
In Case of Emergency .............................. 438
Limitations for Manual Operation .... 383, 409
Making a Call .................................. 401, 428
Options During a Call ...................... 406, 431 Phone Setup ................................... 388, 415
Phonebook Phonetic M
odification........... 424
Receiving a Call............................... 405, 431
Receiving a Text Message/E-mail ............. 432
Ring Tone ............................................... 419
Selecting a Mail Account......................... 433
Speed Dial ...................................... 397, 421
To Set Up Text Message/E-mail Options .. 418
Hatch ........................................................ 165
Light Bulb ............................................... 678
Release Lever .......................................... 674
Unable to Open ...................................... 674
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 284
Headlights ................................................ 181
Aiming.................................................... 587
Auto High-Beam System ......................... 185
Automatic Operation .............................. 182
Dimming......................................... 181, 184
Operating ............................................... 181
Heaters (Front Seat) ................................. 218
Heaters (Seat) ........................................... 219
HFL (HandsFreeLink ®) ...................... 381, 407
High Beam Indicator .................................. 90
Hill Start Assist System ..................... 451, 456
Honda App License Agreement .............. 332
HondaLink ®.............................................. 310
18 CIVIC 5D (KA KC KL)-31TGG6100.book 694 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

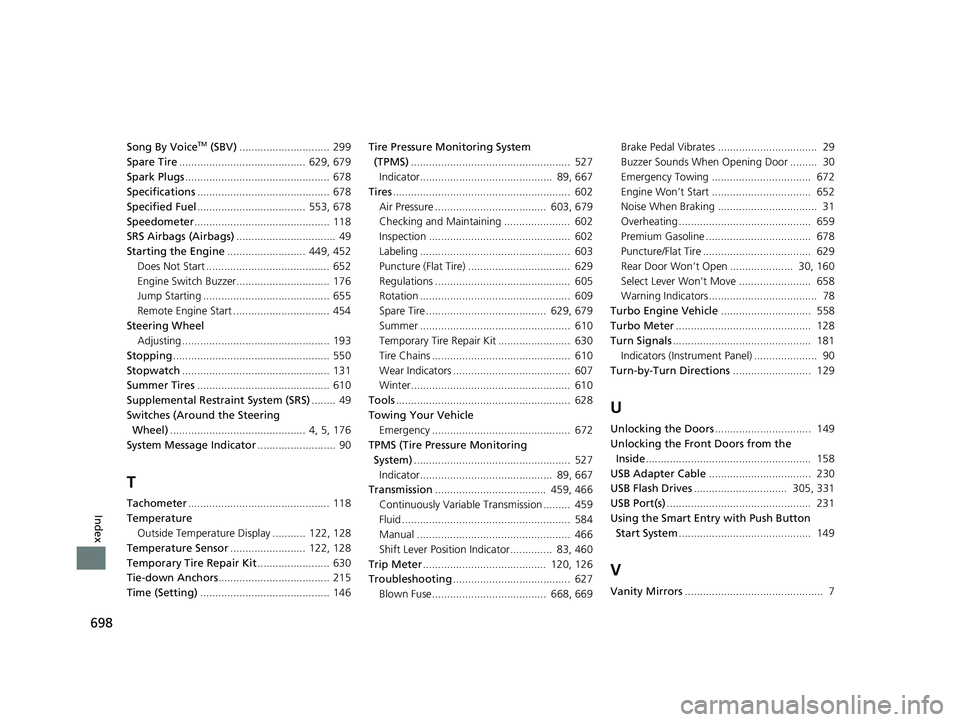

698
Index
Song By VoiceTM (SBV).............................. 299
Spare Tire .......................................... 629, 679
Spark Plugs ................................................ 678
Specifications ............................................ 678
Specified Fuel .................................... 553, 678
Speedometer ............................................. 118
SRS Airbags (Airbags) ................................. 49
Starting the Engine .......................... 449, 452
Does Not Start ......................................... 652
Engine Switch Buzzer............................... 176
Jump Starting .......................................... 655
Remote Engine Start ................................ 454
Steering Wheel Adjusting ................................................. 193
Stopping .................................................... 550
Stopwatch ................................................. 131
Summer Tires ............................................ 610
Supplemental Restraint System (SRS) ........ 49
Switches (Around the Steering
Wheel) ............................................. 4, 5, 176
System Message Indicator .......................... 90
T
Tachometer............................................... 118
Temperature Outside Temperature Display ........... 122, 128
Temperature Sensor ......................... 122, 128
Temporary Tire Repair Kit ........................ 630
Tie-down Anchors ..................................... 215
Time (Setting) ........................................... 146 Tire Pressure Monitoring System
(TPMS) ..................................................... 527
Indicator............................................ 89, 667
Tires ........................................................... 602
Air Pressure ..................................... 603, 679
Checking and Maintaining ...................... 602
Inspection ............................................... 602
Labeling .................................................. 603
Puncture (Flat Tire) .................................. 629
Regulations ............................................. 605
Rotation .................................................. 609
Spare Tire ........................................ 629, 679
Summer .................................................. 610
Temporary Tire Re pair Kit ........................ 630
Tire Chains .............................................. 610
Wear Indicators ....................................... 607
Winter..................................................... 610
Tools .......................................................... 628
Towing Your Vehicle
Emergency .............................................. 672
TPMS (Tire Pressure Monitoring System) .................................................... 527
Indicator............................................ 89, 667
Transmission ..................................... 459, 466
Continuously Variable Transmission ......... 459
Fluid ........................................................ 584
Manual ................................................... 466
Shift Lever Position Indicator.............. 83, 460
Trip Meter ......................................... 120, 126
Troubleshooting ....................................... 627
Blown Fuse...................................... 668, 669 Brake Pedal Vibrates ................................. 29
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 672
Engine Won’t Start ................................. 652
Noise When Braking ................................. 31
Overheating ............................................ 659
Premium Gasoline ................................... 678
Puncture/Flat Tire .................................... 629
Rear Door Won’t Open ..................... 30, 160
Select Lever Won’t Move ........................ 658
Warning Indicators.................................... 78
Turbo Engine Vehicle .............................. 558
Turbo Meter ............................................. 128
Turn Signals .............................................. 181
Indicators (Instru ment Panel) ..................... 90
Turn-by-Turn Directions .......................... 129
U
Unlocking the Doors................................ 149
Unlocking the Fron t Doors from the
Inside ....................................................... 158
USB Adapter Cable .................................. 230
USB Flash Drives ............................... 305, 331
USB Port(s) ................................................ 231
Using the Smart Entr y with Push Button
Start System ............................................ 149
V
Vanity Mirrors .............................................. 7
18 CIVIC 5D (KA KC KL)-31TGG6100.book 698 ページ ２０１７年１２月２７日　水曜日　午前１１時２分
