Page 610 of 699
608
Maintenance

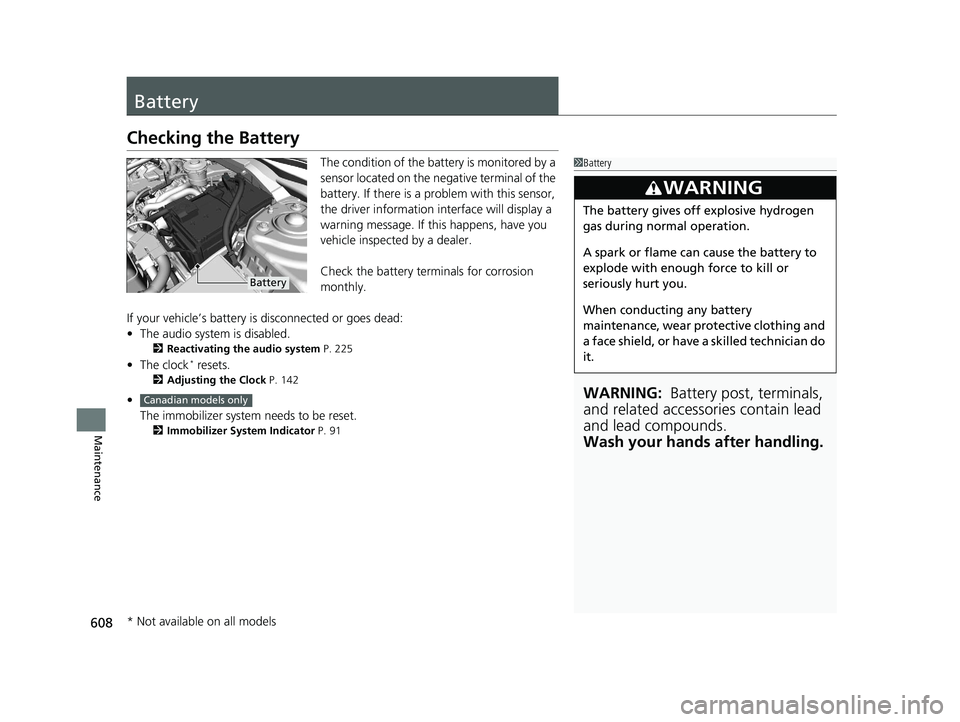

Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have you
vehicle inspected by a dealer.
Check the battery te rminals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 225
•The clock* resets.
2 Adjusting the Clock P. 142
•
The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 91
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Battery
Canadian models only
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 608 ページ ２０１８年１０月２５日 木曜日 午後４時１２分
Page 616 of 699
uuCleaning uInterior Care
614
Maintenance
Wipe using a glass cleaner.
The driver’s floor mat hooks over the floor
anchors, which keep the mat from sliding
forward. To remove a mat for cleaning, turn
the anchor knobs to the unlock position.
When reinstalling the mat after cleaning, turn
the knobs to the lock position.
Do not put additional floor mats on top of
the anchored mat.

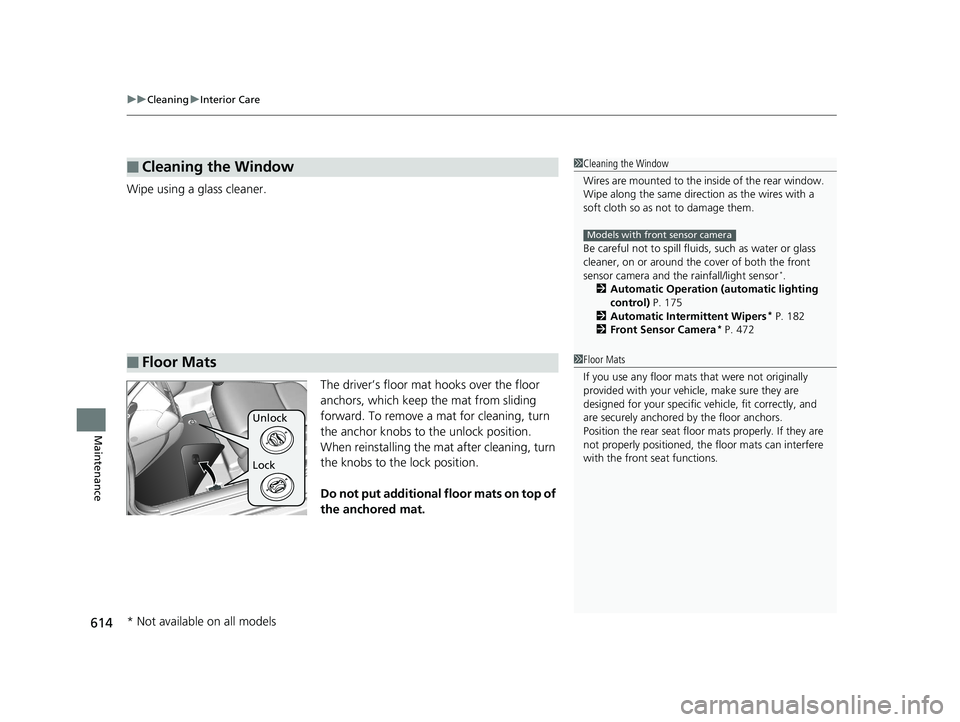

■Cleaning the Window
■Floor Mats
1 Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill fluids, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor
*.
2 Automatic Operation (automatic lighting
control) P. 175
2 Automatic Intermittent Wipers
* P. 182
2 Front Sensor Camera* P. 472
Models with front sensor camera
1Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific ve hicle, fit correctly, and
are securely anchored by the floor anchors.
Position the rear seat floor mats properly. If they are
not properly positioned, the floor mats can interfere
with the front seat functions.
Lock Unlock
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 614 ページ ２０１８年１０月２５日 木曜日 午後４時１２分
Page 625 of 699
623Continued
Handling the Unexpected

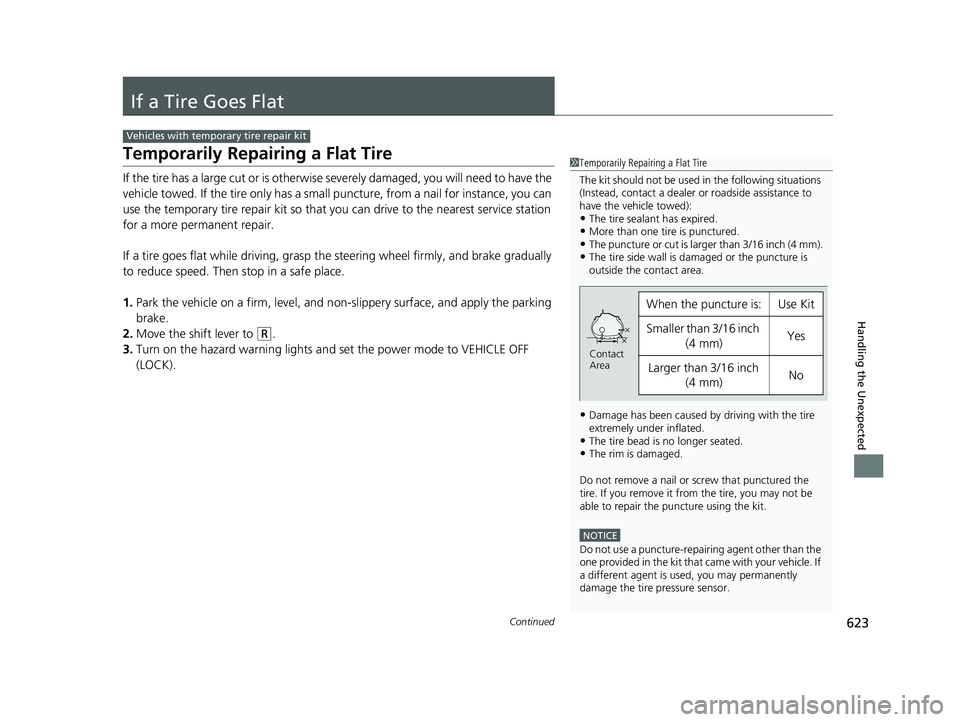

If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface, and apply the parking
brake.
2. Move the shift lever to
(R.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
Vehicles with temporary tire repair kit
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations
(Instead, contact a dealer or roadside assistance to
have the vehicle towed):
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture is:Use Kit
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 623 ページ ２０１８年１０月２５日 木曜日 午後４時１２分
Page 666 of 699
664
uuFuses uFuse Locations
Handling the Unexpected

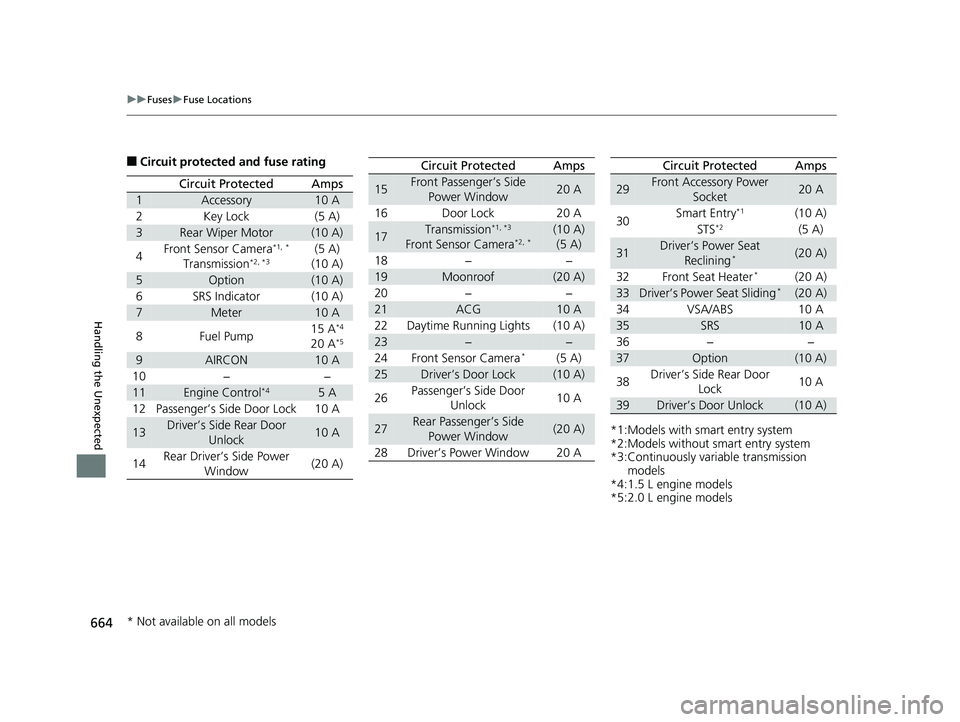

■Circuit protected and fuse rating
Circuit ProtectedAmps
1Accessory10 A
2Key Lock(5 A)
3Rear Wiper Motor(10 A)
4Front Sensor Camera*1, *
Transmission*2, *3(5 A)
(10 A)
5Option(10 A)
6SRS Indicator(10 A)
7Meter10 A
8Fuel Pump15 A*4
20 A*5
9AIRCON10 A
10−−
11Engine Control*45A
12Passenger’s Side Door Lock10 A
13Driver’s Side Rear Door Unlock10 A
14Rear Driver’s Side Power
Window(20 A)
15Front Passenger’s Side Power Window20 A
16Door Lock20 A
17Transmission*1, *3
Front Sensor Camera*2, *(10 A)(5 A)
18−−
19Moonroof(20 A)
20−−
21ACG10 A
22Daytime Running Lights(10 A)
23−−
24Front Sensor Camera*(5 A)
25Driver’s Door Lock(10 A)
26Passenger’s Side Door Unlock10 A
27Rear Passenger’s Side
Power Window(20 A)
28Driver’s Power Window20 A
Circuit ProtectedAmps
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
*4:1.5 L engine models
*5:2.0 L engine models
29Front Accessory Power
Socket20 A
30 Smart Entry
*1(10 A)
STS*2(5 A)
31Driver’s Power Seat Reclining*(20 A)
32 Front Seat Heater
*(20 A)
33Driver’s Power Seat Sliding*(20 A)
34 VSA/ABS 10 A
35SRS10 A
36 − −
37Option(10 A)
38 Driver’s Side Rear Door
Lock 10 A
39Driver’s Door Unlock(10 A)
Circuit ProtectedAmps
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 664 ページ ２０１８年１０月２５日 木曜日 午後４時１２分
Page 687 of 699

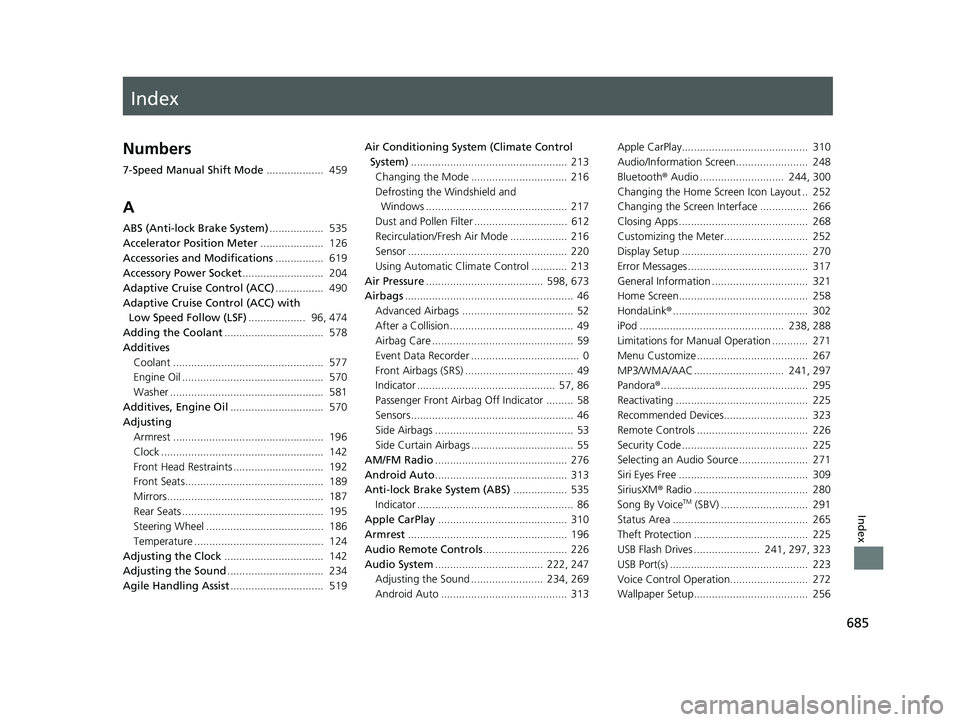

Index
685
Index
Index
Numbers
7-Speed Manual Shift Mode................... 459
A
ABS (Anti-lock Brake System) .................. 535
Accelerator Position Meter ..................... 126
Accessories and Modifications ................ 619
Accessory Power Socket ........................... 204
Adaptive Cruise Control (ACC) ................ 490
Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) ................... 96, 474
Adding the Coolant ................................. 578
Additives Coolant .................................................. 577
Engine Oil ............................................... 570
Washer ................................................... 581
Additives, Engine Oil ............................... 570
Adjusting Armrest .................................................. 196
Clock ...................................................... 142
Front Head Restraints .............................. 192
Front Seats.............................................. 189
Mirrors.................................................... 187
Rear Seats ............................................... 195
Steering Wheel ....................................... 186
Temperature ........................................... 124
Adjusting the Clock ................................. 142
Adjusting the Sound ................................ 234
Agile Handling Assist ............................... 519 Air Conditioning System (Climate Control
System) .................................................... 213
Changing the Mode ................................ 216
Defrosting the Windshield and Windows ............................................... 217
Dust and Pollen Filter ............................... 612
Recirculation/Fresh Air Mode ................... 216
Sensor ..................................................... 220
Using Automatic Climate Control ............ 213
Air Pressure ....................................... 598, 673
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ......................................... 49
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator .............................................. 57, 86
Passenger Front Airbag Off Indicator ......... 58
Sensors ...................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
AM/FM Radio ............................................ 276
Android Auto ............................................ 313
Anti-lock Brake System (ABS) .................. 535
Indicator .................................................... 86
Apple CarPlay ........................................... 310
Armrest ..................................................... 196
Audio Remote Controls ............................ 226
Audio System .................................... 222, 247
Adjusting the Sound ........................ 234, 269
Android Auto .......................................... 313 Apple CarPlay.......................................... 310
Audio/Information Screen........................ 248
Bluetooth
® Audio ............................ 244, 300
Changing the Home Screen Icon Layout .. 252
Changing the Screen Interface ................ 266
Closing Apps ........................................... 268
Customizing the Meter............................ 252
Display Setup .......................................... 270
Error Messages ........................................ 317
General Information ................................ 321
Home Screen........................................... 258
HondaLink ®............................................. 302
iPod ................................................ 238, 288
Limitations for Manual Operation ............ 271
Menu Customize ..................................... 267
MP3/WMA/AAC .............................. 241, 297
Pandora ®................................................. 295
Reactivating ............................................ 225
Recommended Devices............................ 323
Remote Controls ..................................... 226
Security Code .......................................... 225
Selecting an Audio Source ....................... 271
Siri Eyes Free ........................................... 309
SiriusXM ® Radio ...................................... 280
Song By Voice
TM (SBV) ............................. 291
Status Area ............................................. 265
Theft Protection ...................................... 225
USB Flash Drives ...................... 241, 297, 323
USB Port(s) .............................................. 223
Voice Control Operation.......................... 272
Wallpaper Setup...................................... 256
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 685 ページ ２０１８年１０月２５日 木曜日 午後４時１２分

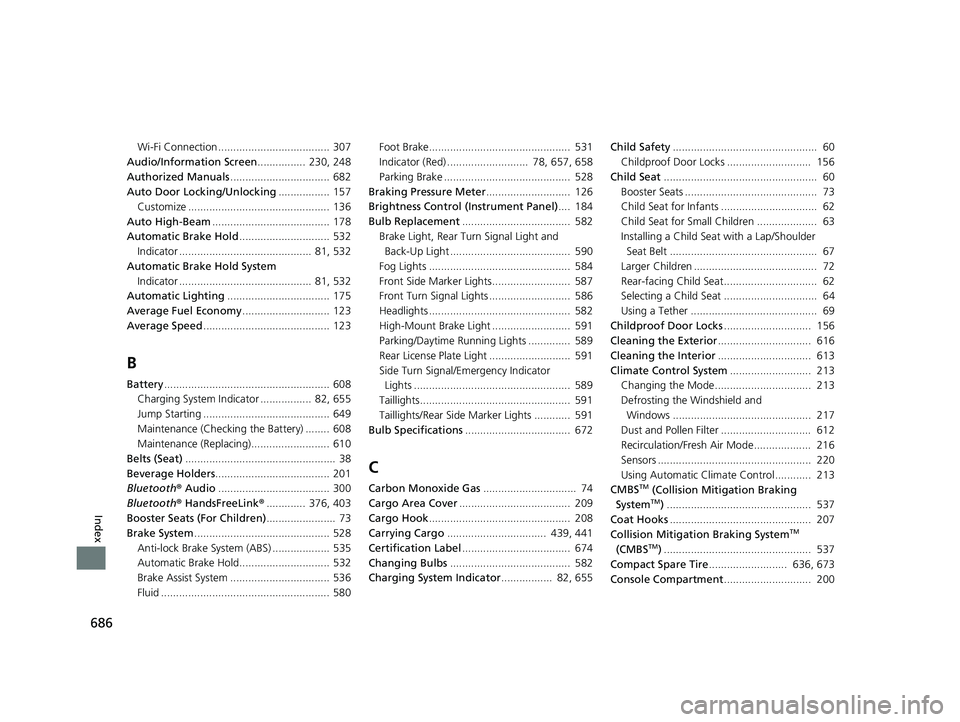

Page 688 of 699
686
Index
Wi-Fi Connection ..................................... 307
Audio/Information Screen ................ 230, 248
Authorized Manuals ................................. 682
Auto Door Locking/Unlocking ................. 157
Customize ............................................... 136
Auto High-Beam ....................................... 178
Automatic Brake Hold .............................. 532
Indicator ............................................ 81, 532
Automatic Brake Hold System Indicator ............................................ 81, 532
Automatic Lighting .................................. 175
Average Fuel Economy ............................. 123
Average Speed .......................................... 123
B
Battery....................................................... 608
Charging System Indicator ................. 82, 655
Jump Starting .......................................... 649
Maintenance (Checking the Battery) ........ 608
Maintenance (Replacing).......................... 610
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 201
Bluetooth ® Audio ..................................... 300
Bluetooth ® HandsFreeLink ®............. 376, 403
Booster Seats (For Children) ....................... 73
Brake System ............................................. 528
Anti-lock Brake System (ABS) ................... 535
Automatic Brake Hold.............................. 532
Brake Assist System ................................. 536
Fluid ........................................................ 580 Foot Brake............................................... 531
Indicator (Red) ........................... 78, 657, 658
Parking Brake .......................................... 528
Braking Pressure Meter ............................ 126
Brightness Control (Instrument Panel) .... 184
Bulb Replacement .................................... 582
Brake Light, Rear Tu rn Signal Light and
Back-Up Light ........................................ 590
Fog Lights ............................................... 584
Front Side Marker Lights.......................... 587
Front Turn Signal Lights ........................... 586
Headlights ............................................... 582
High-Mount Brake Light .......................... 591
Parking/Daytime Running Lights .............. 589
Rear License Plate Light ........................... 591
Side Turn Signal/Emergency Indicator Lights .................................................... 589
Taillights.................................................. 591
Taillights/Rear Side Marker Lights ............ 591
Bulb Specifications ................................... 672
C
Carbon Monoxide Gas ............................... 74
Cargo Area Cover ..................................... 209
Cargo Hook ............................................... 208
Carrying Cargo ................................. 439, 441
Certification Label .................................... 674
Changing Bulbs ........................................ 582
Charging System Indicator ................. 82, 655Child Safety
................................................ 60
Childproof Door Locks ............................ 156
Child Seat ................................................... 60
Booster Seats ............................................ 73
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 67
Larger Children ......................................... 72
Rear-facing Child Seat............................... 62
Selecting a Child Seat ............................... 64
Using a Tether .......................................... 69
Childproof Door Locks ............................. 156
Cleaning the Exterior ............................... 616
Cleaning the Interior ............................... 613
Climate Control System ........................... 213
Changing the Mode................................ 213
Defrosting the Windshield and Windows .............................................. 217
Dust and Pollen Filter .............................. 612
Recirculation/Fresh Air Mode................... 216
Sensors ................................................... 220
Using Automatic Climate Control............ 213
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 537
Coat Hooks ............................................... 207
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 537
Compact Spare Tire .......................... 636, 673
Console Compartment ............................. 200
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 686 ページ ２０１８年１０月２５日 木曜日 午後４時１２分
Page 690 of 699

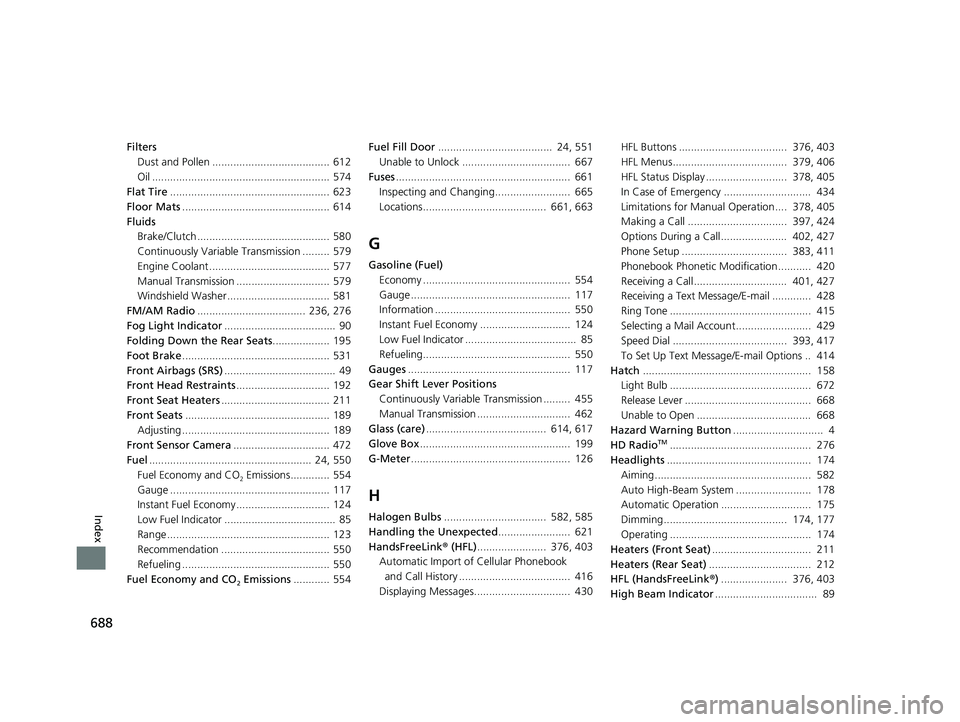

688
Index
FiltersDust and Pollen ....................................... 612
Oil ........................................................... 574
Flat Tire ..................................................... 623
Floor Mats ................................................. 614
Fluids Brake/Clutch ............................................ 580
Continuously Variable Transmission ......... 579
Engine Coolant ........................................ 577
Manual Transmission ............................... 579
Windshield Washer .................................. 581
FM/AM Radio .................................... 236, 276
Fog Light Indicator ..................................... 90
Folding Down the Rear Seats ................... 195
Foot Brake ................................................. 531
Front Airbags (SRS) ..................................... 49
Front Head Restraints ............................... 192
Front Seat Heaters .................................... 211
Front Seats ................................................ 189
Adjusting ................................................. 189
Front Sensor Camera ................................ 472
Fuel ...................................................... 24, 550
Fuel Economy and CO
2 Emissions............. 554
Gauge ..................................................... 117
Instant Fuel Economy ............................... 124
Low Fuel Indicator ..................................... 85
Range ...................................................... 123
Recommendation .................................... 550
Refueling ................................................. 550
Fuel Economy and CO
2 Emissions ............ 554 Fuel Fill Door
...................................... 24, 551
Unable to Unlock .................................... 667
Fuses .......................................................... 661
Inspecting and Changing......................... 665
Locations......................................... 661, 663
G
Gasoline (Fuel) Economy ................................................. 554
Gauge ..................................................... 117
Information ............................................. 550
Instant Fuel Economy .............................. 124
Low Fuel Indicator ..................................... 85
Refueling................................................. 550
Gauges ...................................................... 117
Gear Shift Lever Positions Continuously Variable Transmission ......... 455
Manual Transmission ............................... 462
Glass (care) ........................................ 614, 617
Glove Box .................................................. 199
G-Meter ..................................................... 126
H
Halogen Bulbs .................................. 582, 585
Handling the Unexpected ........................ 621
HandsFreeLink ® (HFL) ....................... 376, 403
Automatic Import of Cellular Phonebook
and Call History ..................................... 416
Displaying Messages................................ 430 HFL Buttons .................................... 376, 403
HFL Menus...................................... 379, 406
HFL Status Display ........................... 378, 405
In Case of Emergency ............................. 434
Limitations for Manual Operation .... 378, 405
Making a Call ................................. 397, 424
Options During a Call...................... 402, 427
Phone Setup ................................... 383, 411
Phonebook Phonetic M
odification........... 420
Receiving a Call............................... 401, 427
Receiving a Text Message/E-mail ............. 428
Ring Tone ............................................... 415
Selecting a Mail Account......................... 429
Speed Dial ...................................... 393, 417
To Set Up Text Message/E-mail Options .. 414
Hatch ........................................................ 158
Light Bulb ............................................... 672
Release Lever .......................................... 668
Unable to Open ...................................... 668
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 276
Headlights ................................................ 174
Aiming.................................................... 582
Auto High-Beam System ......................... 178
Automatic Operation .............................. 175
Dimming......................................... 174, 177
Operating ............................................... 174
Heaters (Front Seat) ................................. 211
Heaters (Rear Seat) .................................. 212
HFL (HandsFreeLink ®) ...................... 376, 403
High Beam Indicator .................................. 89
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 688 ページ ２０１８年１０月２５日 木曜日 午後４時１２分
Page 694 of 699

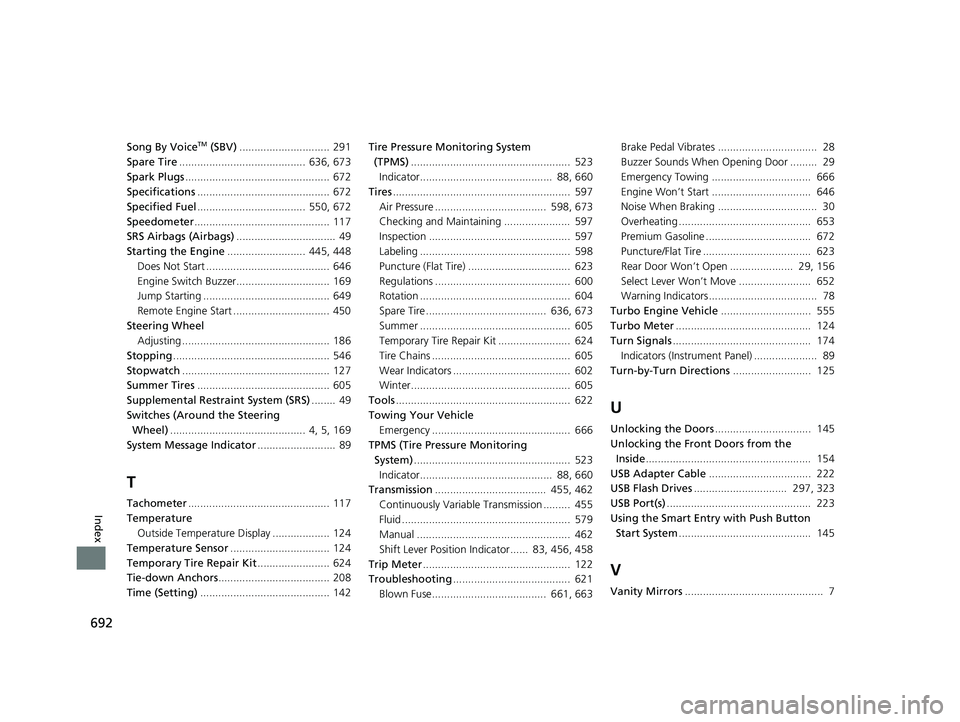

692
Index
Song By VoiceTM (SBV).............................. 291
Spare Tire .......................................... 636, 673
Spark Plugs ................................................ 672
Specifications ............................................ 672
Specified Fuel .................................... 550, 672
Speedometer ............................................. 117
SRS Airbags (Airbags) ................................. 49
Starting the Engine .......................... 445, 448
Does Not Start ......................................... 646
Engine Switch Buzzer............................... 169
Jump Starting .......................................... 649
Remote Engine Start ................................ 450
Steering Wheel Adjusting ................................................. 186
Stopping .................................................... 546
Stopwatch ................................................. 127
Summer Tires ............................................ 605
Supplemental Restraint System (SRS) ........ 49
Switches (Around the Steering
Wheel) ............................................. 4, 5, 169
System Message Indicator .......................... 89
T
Tachometer............................................... 117
Temperature Outside Temperature Display ................... 124
Temperature Sensor ................................. 124
Temporary Tire Repair Kit ........................ 624
Tie-down Anchors ..................................... 208
Time (Setting) ........................................... 142 Tire Pressure Monitoring System
(TPMS) ..................................................... 523
Indicator............................................ 88, 660
Tires ........................................................... 597
Air Pressure ..................................... 598, 673
Checking and Maintaining ...................... 597
Inspection ............................................... 597
Labeling .................................................. 598
Puncture (Flat Tire) .................................. 623
Regulations ............................................. 600
Rotation .................................................. 604
Spare Tire ........................................ 636, 673
Summer .................................................. 605
Temporary Tire Re pair Kit ........................ 624
Tire Chains .............................................. 605
Wear Indicators ....................................... 602
Winter..................................................... 605
Tools .......................................................... 622
Towing Your Vehicle
Emergency .............................................. 666
TPMS (Tire Pressure Monitoring
System) .................................................... 523
Indicator............................................ 88, 660
Transmission ..................................... 455, 462
Continuously Variable Transmission ......... 455
Fluid ........................................................ 579
Manual ................................................... 462
Shift Lever Position Indicator...... 83, 456, 458
Trip Meter ................................................. 122
Troubleshooting ....................................... 621
Blown Fuse...................................... 661, 663 Brake Pedal Vibrates ................................. 28
Buzzer Sounds When Opening Door ......... 29
Emergency Towing ................................. 666
Engine Won’t Start ................................. 646
Noise When Braking ................................. 30
Overheating ............................................ 653
Premium Gasoline ................................... 672
Puncture/Flat Tire .................................... 623
Rear Door Won’t Open ..................... 29, 156
Select Lever Won’t Move ........................ 652
Warning Indicators.................................... 78
Turbo Engine Vehicle .............................. 555
Turbo Meter ............................................. 124
Turn Signals .............................................. 174
Indicators (Instru ment Panel) ..................... 89
Turn-by-Turn Directions .......................... 125
U
Unlocking the Doors................................ 145
Unlocking the Fron t Doors from the
Inside ....................................................... 154
USB Adapter Cable .................................. 222
USB Flash Drives ............................... 297, 323
USB Port(s) ................................................ 223
Using the Smart Entr y with Push Button
Start System ............................................ 145
V
Vanity Mirrors .............................................. 7
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 692 ページ ２０１８年１０月２５日 木曜日 午後４時１２分
