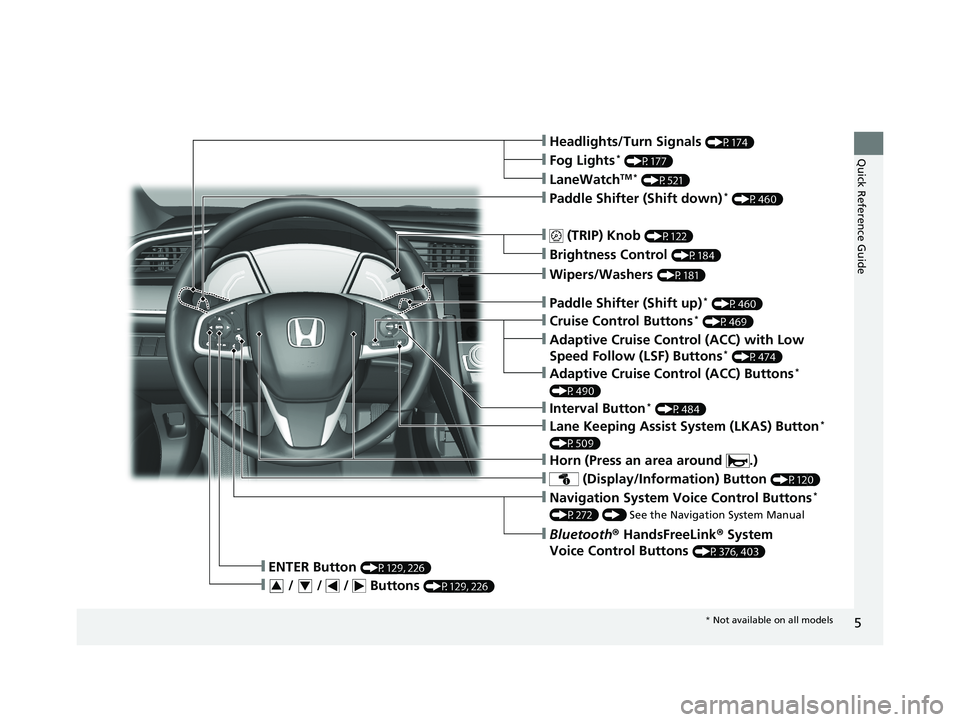

5
Quick Reference Guide❙Headlights/Turn Signals (P174)
❙ (TRIP) Knob (P122)
❙Brightness Control (P184)
❙LaneWatchTM * (P521)
❙Fog Lights* (P177)
❙ (Display/Information) Button (P120)
❙Navigation System Voice Control Buttons*
(P272) () See the Navigation System Manual
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P376, 403)
❙ENTER Button (P129, 226)
❙ / / / Buttons (P129, 226)34
❙Lane Keeping Assist System (LKAS) Button*
(P509)
❙Paddle Shifter (Shift down)* (P460)
❙Paddle Shifter (Shift up)* (P460)
❙Wipers/Washers (P181)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons* (P474)
❙Interval Button* (P484)
❙Horn (Press an area around .)
❙Cruise Control Buttons* (P469)
❙Adaptive Cruise Control (ACC) Buttons*
(P490)
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 5 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

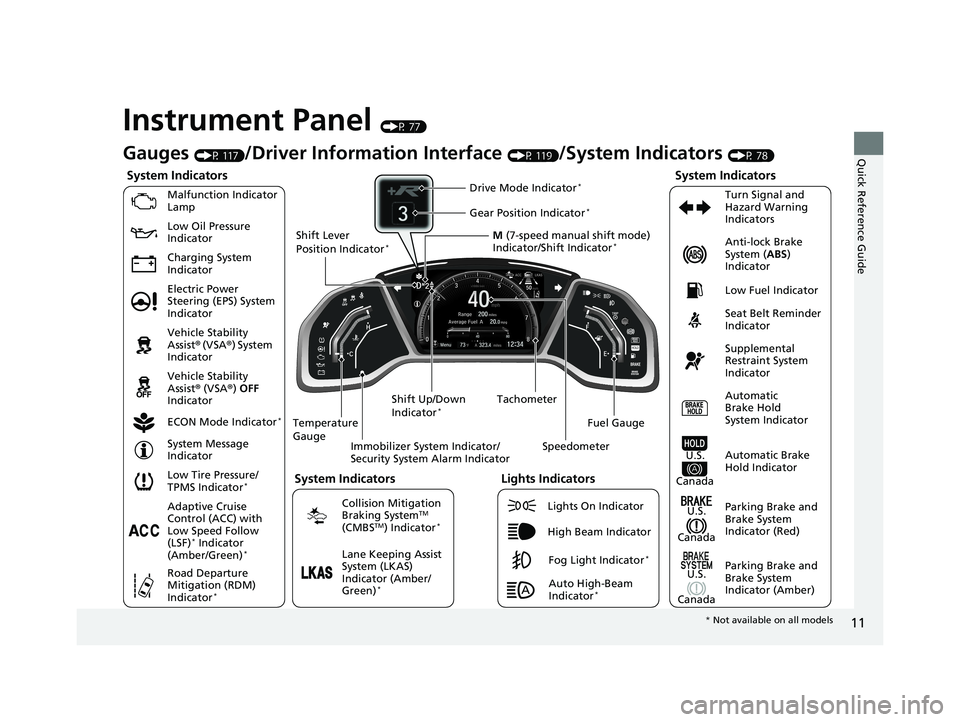

11
Quick Reference Guide
Instrument Panel (P 77)
System Indicators
Malfunction Indicator
Lamp
Charging System
IndicatorAnti-lock Brake
System (
ABS)
Indicator
Vehicle Stability
Assist® (VSA®) System
Indicator
Vehicle Stability
Assist® (VSA®) OFF
Indicator
Low Tire Pressure/
TPMS Indicator
*
Electric Power
Steering (EPS) System
Indicator Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Tachometer
Immobilizer System Indicator/
Security System Alarm Indicator
Shift Lever
Position Indicator
*
Low Fuel Indicator
ECON Mode Indicator
*
Turn Signal and
Hazard Warning
Indicators
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada Automatic
Brake Hold
System Indicator
Automatic Brake
Hold IndicatorU.S.
Canada
Temperature
Gauge
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (ACC) with
Low Speed Follow
(LSF)
* Indicator
(Amber/Green)*
System Message
Indicator
Collision Mitigation
Braking System
TM
(CMBSTM) Indicator*
Road Departure
Mitigation (RDM)
Indicator
*
Lane Keeping Assist
System (LKAS)
Indicator (Amber/
Green)
*
M (7-speed manual shift mode)
Indicator/Shift Indicator*
Auto High-Beam
Indicator*
Shift Up/Down
Indicator*
Drive Mode Indicator*
Speedometer Fuel Gauge
Gear Position Indicator*
Gauges (P 117)/Driver Informat
ion Interface (P 119)/System Indicators (P 78)
Low Oil Pressure
Indicator
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 11 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

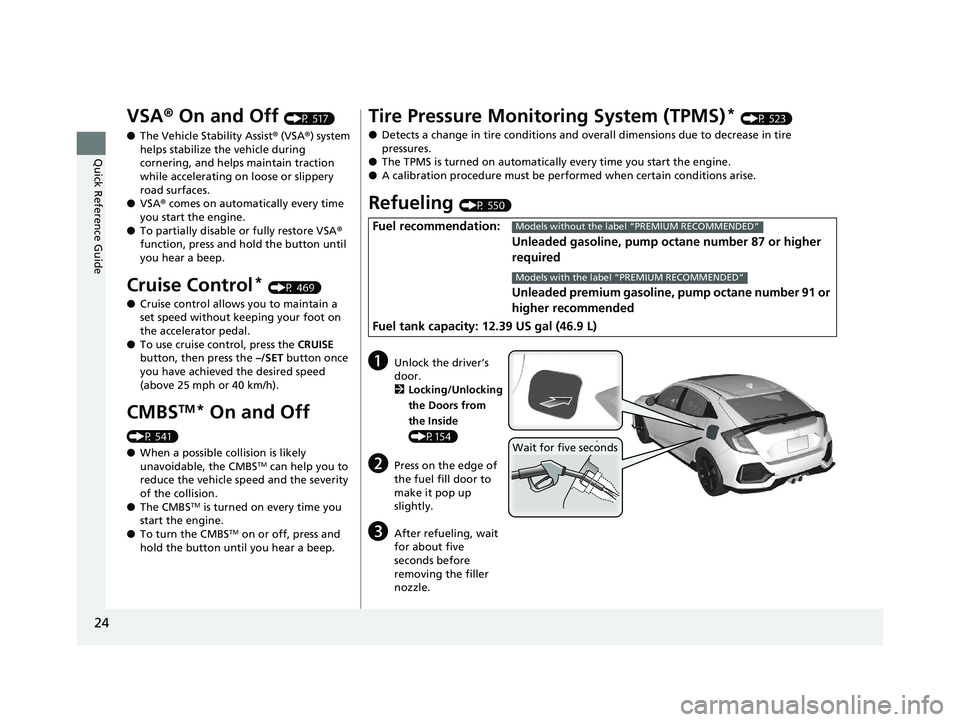

24
Quick Reference Guide
VSA® On and Off (P 517)
● The Vehicle Stability Assist ® (VSA ®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
Cruise Control* (P 469)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the –/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
CMBSTM* On and Off
(P 541)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle sp eed and the severity
of the collision.
● The CMBS
TM is turned on every time you
start the engine.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring System (TPMS)* (P 523)
● Detects a change in tire conditions and overall dimensions due to decrease in tire
pressures.
● The TPMS is turned on automatically every time you start the engine.
● A calibration procedure must be performed when certain conditions arise.
Refueling (P 550)
Fuel recommendation:
Unleaded gasoline, pump octane number 87 or higher
required
Unleaded premium gasoline, pump octane number 91 or
higher recommended
Fuel tank capacity: 12.39 US gal (46.9 L)Models without the label “PREMIUM RECOMMENDED”
Models with the label “PREMIUM RECOMMENDED”
aUnlock the driver’s
door.
2 Locking/Unlocking
the Doors from
the Inside
(P154)
bPress on the edge of
the fuel fill door to
make it pop up
slightly.
cAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
Wait for five seconds
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 24 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

25
Quick Reference Guide
Honda Sensing®*
Honda Sensing® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the lower bu mper next to the fog
light
* and a front sensor camera mounted to
the interior side of the windshield, behind
the rearview mirror.
The camera is
located behind the
rearview mirror.
Front Sensor
Camera
Radar Sensor
The radar sensor is in
the lower bumper.
Adaptive Cruise Control
(ACC) with Low Speed
Follow (LSF)
* (P 474)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Adaptive Cruise Control
(ACC)
* (P 490)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.
Road Departure
Mitigation (RDM) System
(P 504)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
Lane Keeping Assist
System (LKAS)
(P 509)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P 537)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when a
potential collision is determined, as well as
to reduce your vehi cle speed to help
minimize collision severity when a collision is
deemed unavoidable.
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 25 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

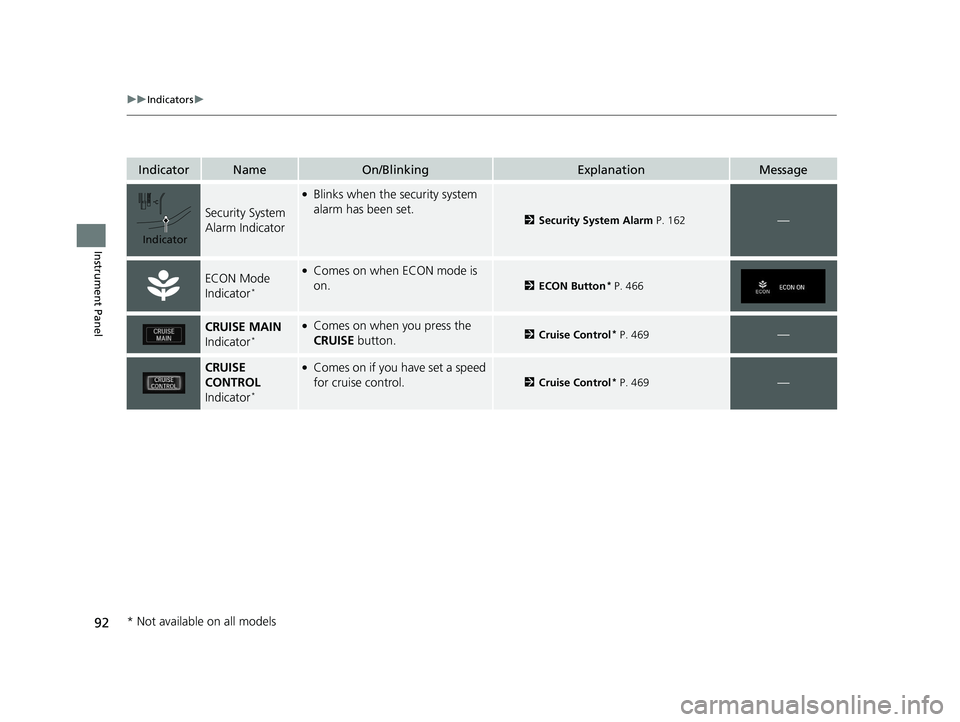

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Security System
Alarm Indicator
●Blinks when the security system
alarm has been set.
2Security System Alarm P. 162—
ECON Mode
Indicator*
●Comes on when ECON mode is
on.
2ECON Button* P. 466
CRUISE MAIN
Indicator*
●Comes on when you press the
CRUISE button.2Cruise Control* P. 469—
CRUISE
CONTROL
Indicator
*
●Comes on if you have set a speed
for cruise control.
2 Cruise Control* P. 469—
Indicator
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 92 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

96
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC)
with Low Speed
Follow (LSF)
*
Indicator
(Amber)
*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if there is a problem
with ACC with LSF*.
●Comes on while driving - Have your
vehicle checked by a dealer.
●Comes on if the ACC with LSF* is
deactivated temporarily after the
battery has been disconnected,
then re-connected.●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
●Comes on if there is a problem
with ACC with LSF*.●Indicator may comes on
temporarily when the Maximum
Load Limit is exceeded.
●ACC with LSF* has been
automatically canceled.
●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 441●Stays on constantly - Have your vehicle
checked by a dealer.—
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 96 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

97
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC)
with Low Speed
Follow (LSF)
*
Indicator
(Green)
*
●Comes on when you press the
MAIN button.2Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF)* P. 474
2 Adaptive Cruise Control (ACC)* P. 490—
●Comes on when ACC with LSF* is
in operation, but the temperature
inside the front sensor camera is
too high. ACC with LSF
* cancels
automatically. The beeper sounds
simultaneously.
●Use the climate contro l system to cool
down the camera.
●Goes off - The camera has been cooled
down and the system activates normally.
●Comes on if anything covers the
radar sensor cover and prevents
the sensor from detecting a
vehicle in front.
●May come on when driving in bad
weather (rain, snow, fog, etc.)
●ACC with LSF* has been
automatically canceled.
●When the radar sensor gets dirty, stop
your vehicle in a safe place, and wipe off
dirt using a soft cloth.
●Have your vehicle checked by a dealer if
the message does not disappear even after
you clean the sensor cover.
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 97 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

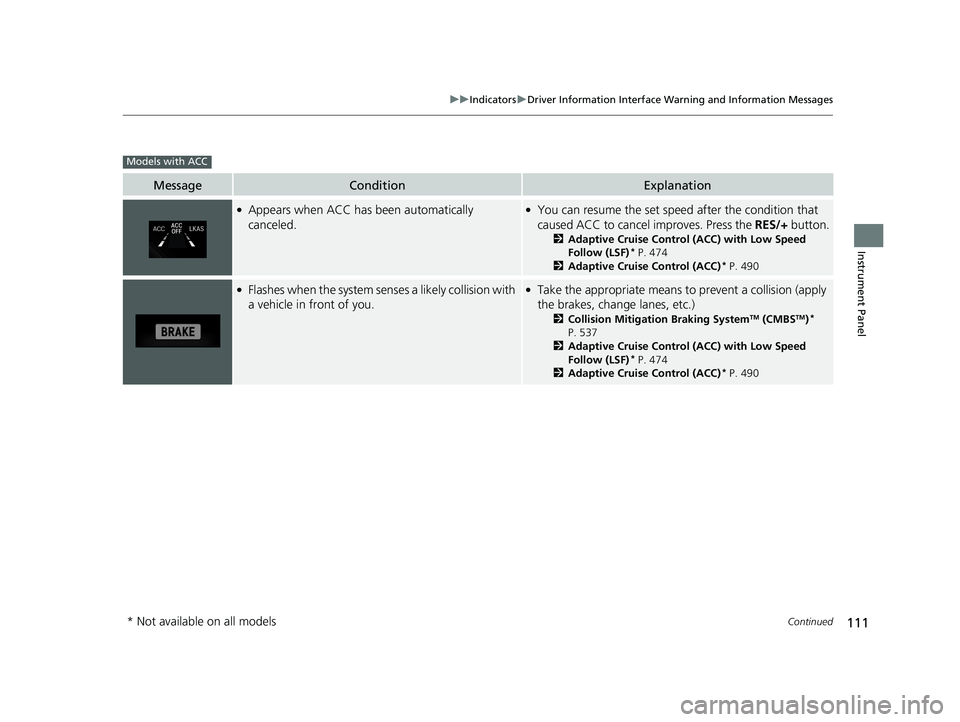

111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when ACC has been automatically
canceled.●You can resume the set speed after the condition that
caused ACC to cancel improves. Press the RES/+ button.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
2 Adaptive Cruise Control (ACC)* P. 490
●Flashes when the system sens es a likely collision with
a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)*
P. 537
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 474
2 Adaptive Cruise Control (ACC)* P. 490
Models with ACC
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 111 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

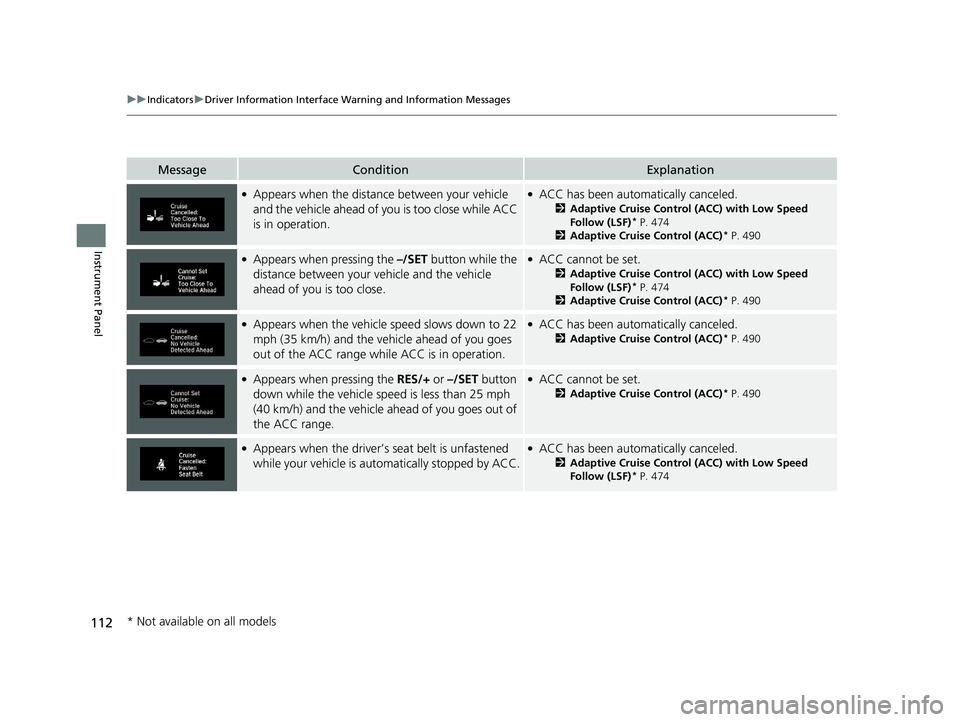

112
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
is in operation.●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
2 Adaptive Cruise Control (ACC)* P. 490
●Appears when pressing the –/SET button while the
distance between your vehicle and the vehicle
ahead of you is too close.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
2 Adaptive Cruise Control (ACC)* P. 490
●Appears when the vehicle speed slows down to 22
mph (35 km/h) and the vehicle ahead of you goes
out of the ACC range while ACC is in operation.●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC)* P. 490
●Appears when pressing the RES/+ or –/SET button
down while the vehicle speed is less than 25 mph
(40 km/h) and the vehicle ahead of you goes out of
the ACC range.●ACC cannot be set.
2 Adaptive Cruise Control (ACC)* P. 490
●Appears when the driver’s seat belt is unfastened
while your vehicle is au tomatically stopped by ACC.●ACC has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 112 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

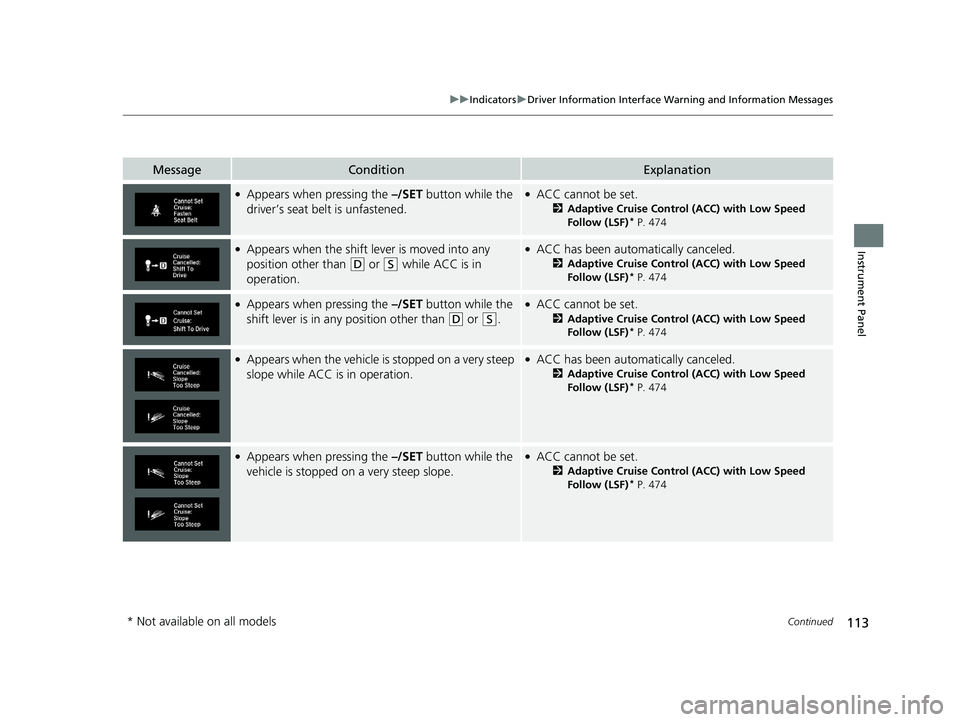

113
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when pressing the –/SET button while the
driver’s seat belt is unfastened.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
●Appears when the shift le ver is moved into any
position other than
(D or (S while ACC is in
operation.
●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
●Appears when pressing the –/SET button while the
shift lever is in any position other than
(D or (S.
●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
●Appears when the vehicle is stopped on a very steep
slope while ACC is in operation.●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
●Appears when pressing the –/SET button while the
vehicle is stopped on a very steep slope.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 113 ページ ２０１８年１０月２５日　木曜日　午後４時１２分
