HONDA CIVIC HATCHBACK 2020 Owner's Manual (in English)

99
uuIndicators u
Instrument Panel

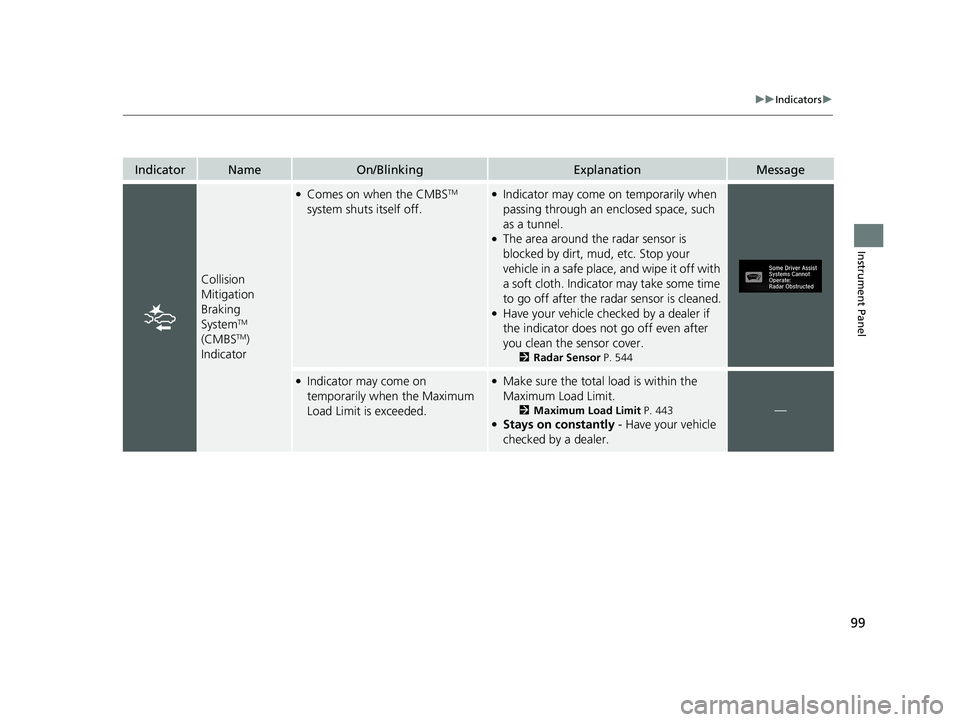

IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator
●Comes on when the CMBSTM
system shuts itself off.●Indicator may come on temporarily when
passing through an en closed space, such
as a tunnel.
●The area around the radar sensor is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off with
a soft cloth. Indicator may take some time
to go off after the radar sensor is cleaned.
●Have your vehicle checked by a dealer if
the indicator does no t go off even after
you clean the sensor cover.
2 Radar Sensor P. 544
●Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.●Make sure the total lo ad is within the
Maximum Load Limit.
2 Maximum Load Limit P. 443●Stays on constantly - Have your vehicle
checked by a dealer.
—
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 99 ページ ２０１９年１１月１１日　 月曜日　午後２時５０分

100
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel

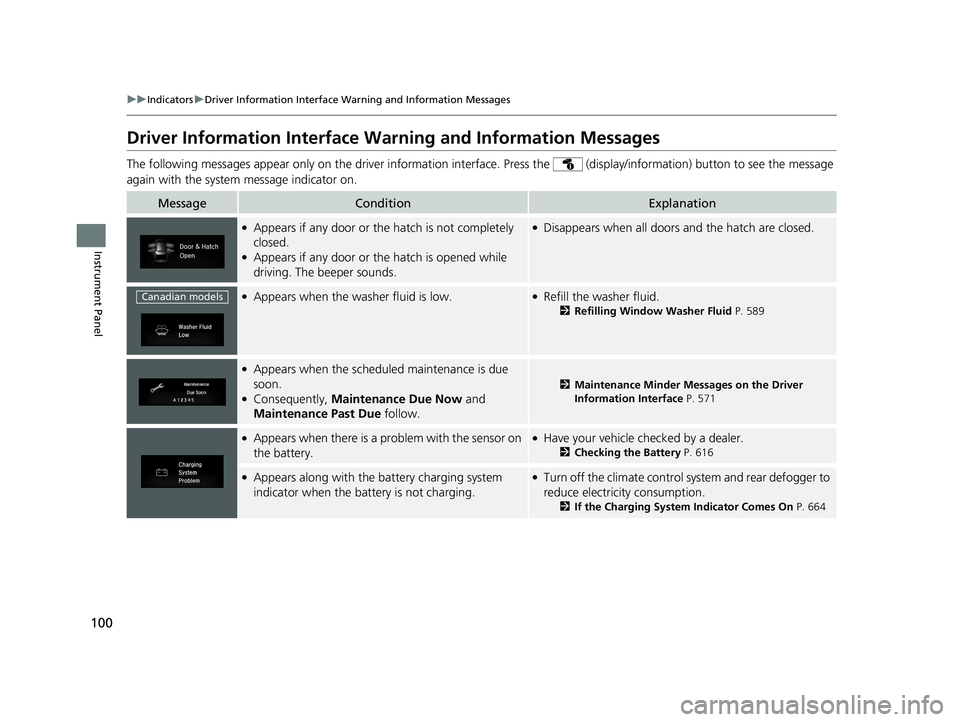

Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (display/information) button to see the mess age
again with the system message indicator on.
MessageConditionExplanation
●Appears if any door or the hatch is not completely
closed.
●Appears if any door or the hatch is opened while
driving. The beeper sounds.
●Disappears when all doors and the hatch are closed.
●Appears when the washer fluid is low.●Refill the washer fluid.
2Refilling Window Washer Fluid P. 589
●Appears when the scheduled maintenance is due
soon.
●Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Driver
Information Interface P. 571
●Appears when there is a pr oblem with the sensor on
the battery.●Have your vehicle ch ecked by a dealer.
2Checking the Battery P. 616
●Appears along with the battery charging system
indicator when the batte ry is not charging.●Turn off the climate control sy stem and rear defogger to
reduce electricity consumption.
2 If the Charging System Indicator Comes On P. 664
Canadian models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 100 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

101
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the engine coolant temperature gets
abnormally high.2Overheating P. 662
●Appears while you are customizing the settings and
the shift lever is moved out of
(P.
●Appears while you are customizing the settings and
the parking brake is released.2Customized Features P. 130
●Appears if the automatic br ake hold is automatically
canceled while it is in operation.●Immediately depress the brake pedal.
Continuously
variable
transmission models
Manual transmission
models
Continuously variable transmission models
Manual transmission models
Continuously
variable
transmission models
Manual transmission
models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 101 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

102
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

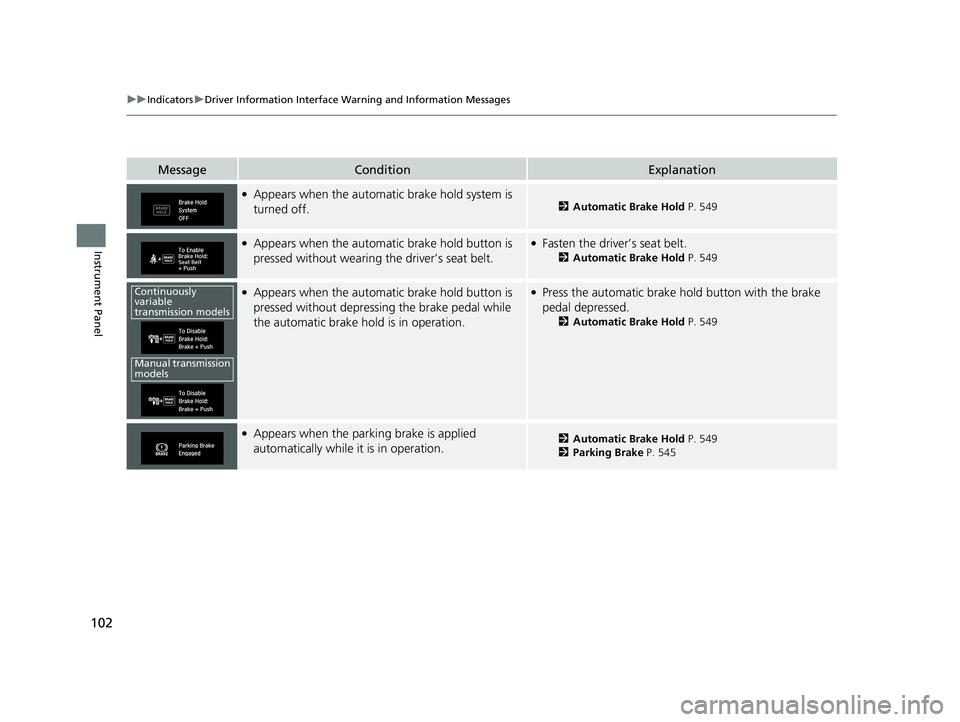

●Appears when the automatic brake hold system is
turned off.2 Automatic Brake Hold P. 549
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 549
●Appears when the automa tic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.●Press the automatic brake ho ld button with the brake
pedal depressed.
2 Automatic Brake Hold P. 549
●Appears when the parking brake is applied
automatically while it is in operation.2Automatic Brake Hold P. 549
2 Parking Brake P. 545
Continuously
variable
transmission models
Manual transmission
models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 102 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

103
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation

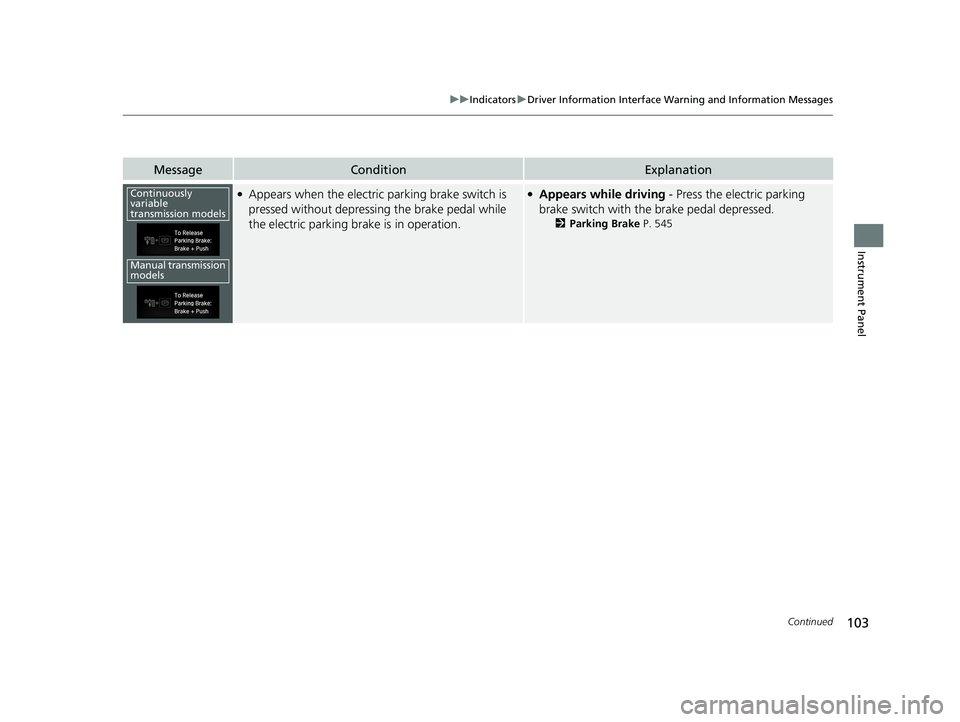

●Appears when the electric parking brake switch is
pressed without depressing the brake pedal while
the electric parking brake is in operation.●Appears while driving - Press the electric parking
brake switch with the brake pedal depressed.
2 Parking Brake P. 545
Continuously
variable
transmission models
Manual transmission
models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 103 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

104
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

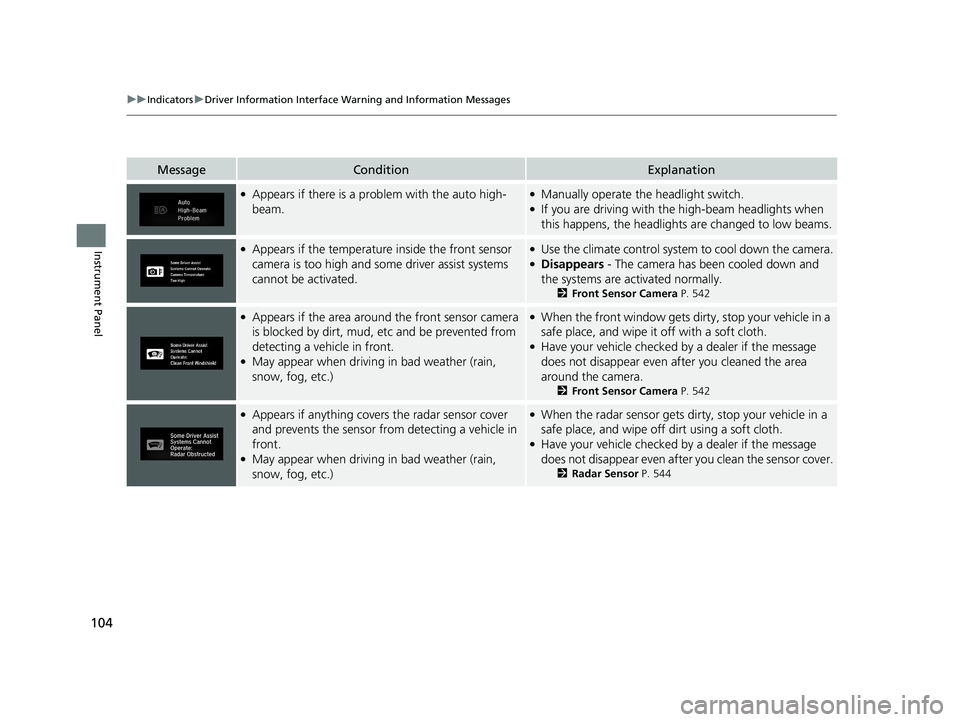

●Appears if there is a problem with the auto high-
beam.●Manually operate the headlight switch.●If you are driving with the high-beam headlights when
this happens, the headlight s are changed to low beams.
●Appears if the temperature inside the front sensor
camera is too high and some driver assist systems
cannot be activated.●Use the climate control system to cool down the camera.●Disappears - The camera has been cooled down and
the systems are activated normally.
2Front Sensor Camera P. 542
●Appears if the area around the front sensor camera
is blocked by dirt, mud, etc and be prevented from
detecting a vehicle in front.
●May appear when driving in bad weather (rain,
snow, fog, etc.)
●When the front window gets dirty, stop your vehicle in a
safe place, and wipe it off with a soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even after you cleaned the area
around the camera.
2 Front Sensor Camera P. 542
●Appears if anything covers the radar sensor cover
and prevents the sensor from detecting a vehicle in
front.
●May appear when driving in bad weather (rain,
snow, fog, etc.)
●When the radar sensor gets di rty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even after you clean the sensor cover.
2 Radar Sensor P. 544
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 104 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

105
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation

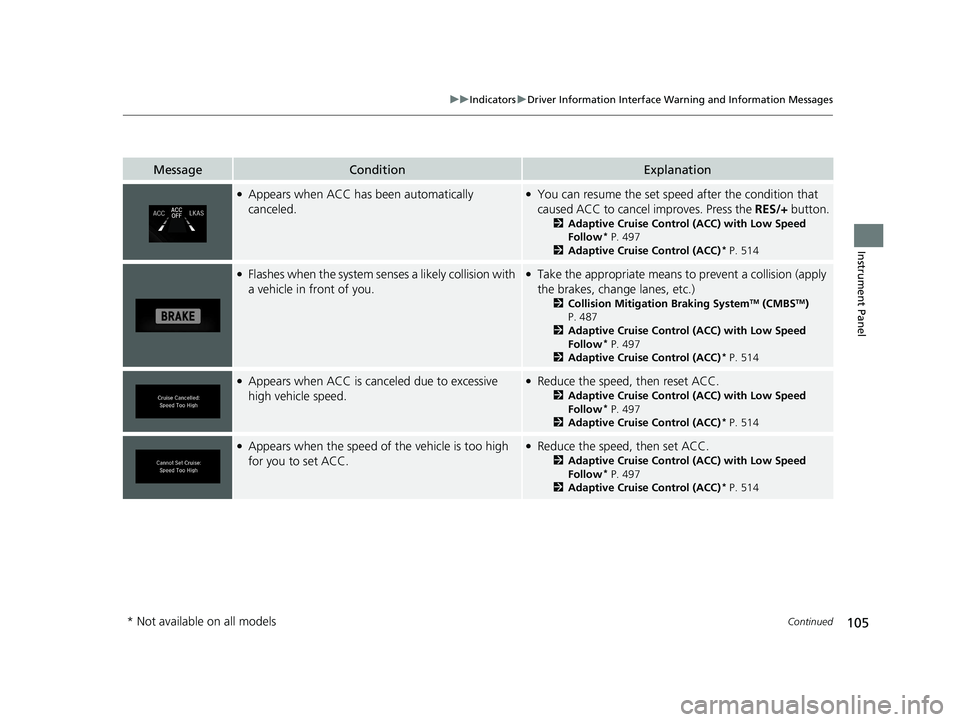

●Appears when ACC has been automatically
canceled.●You can resume the set speed after the condition that
caused ACC to cancel improves. Press the RES/+ button.
2Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 497
2 Adaptive Cruise Control (ACC)* P. 514
●Flashes when the system senses a likely collision with
a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2Collision Mitigation Braking SystemTM (CMBSTM)
P. 487
2 Adaptive Cruise Control (ACC) with Low Speed
Follow
* P. 497
2 Adaptive Cruise Control (ACC)* P. 514
●Appears when ACC is canceled due to excessive
high vehicle speed.●Reduce the speed, then reset ACC.
2Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 497
2 Adaptive Cruise Control (ACC)* P. 514
●Appears when the speed of the vehicle is too high
for you to set ACC.●Reduce the speed, then set ACC.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 497
2 Adaptive Cruise Control (ACC)* P. 514
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 105 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

106
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

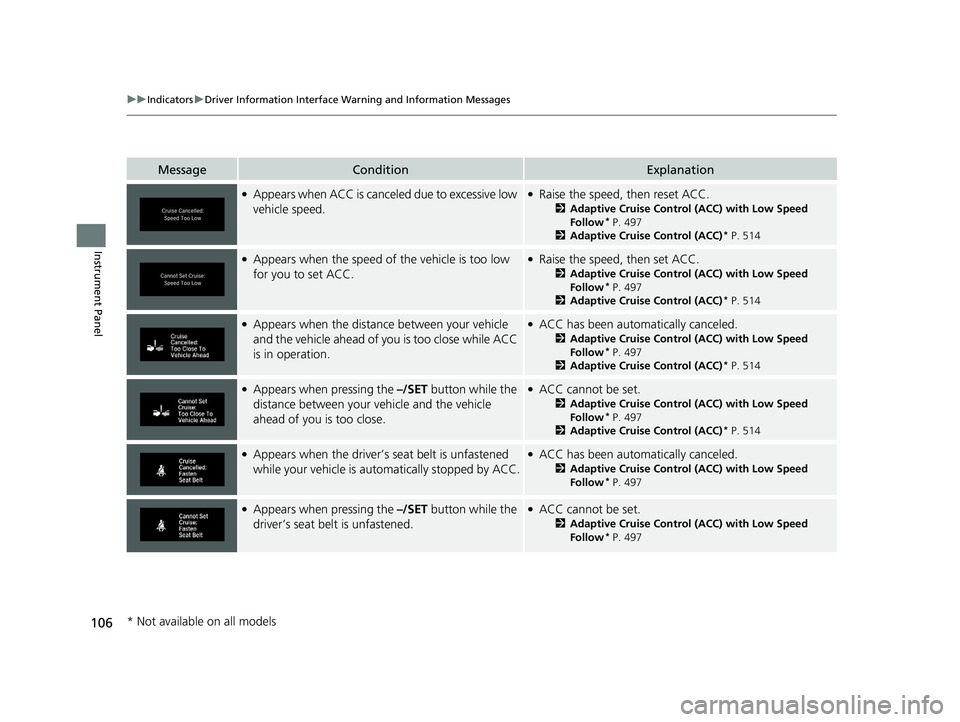

●Appears when ACC is canceled due to excessive low
vehicle speed.●Raise the speed, then reset ACC.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 497
2 Adaptive Cruise Control (ACC)* P. 514
●Appears when the speed of the vehicle is too low
for you to set ACC.●Raise the speed, then set ACC.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 497
2 Adaptive Cruise Control (ACC)* P. 514
●Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
is in operation.●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 497
2 Adaptive Cruise Control (ACC)* P. 514
●Appears when pressing the –/SET button while the
distance between your vehicle and the vehicle
ahead of you is too close.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 497
2 Adaptive Cruise Control (ACC)* P. 514
●Appears when the driver’s seat belt is unfastened
while your vehicle is au tomatically stopped by ACC.●ACC has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 497
●Appears when pressing the –/SET button while the
driver’s seat belt is unfastened.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 497
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 106 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

107
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation

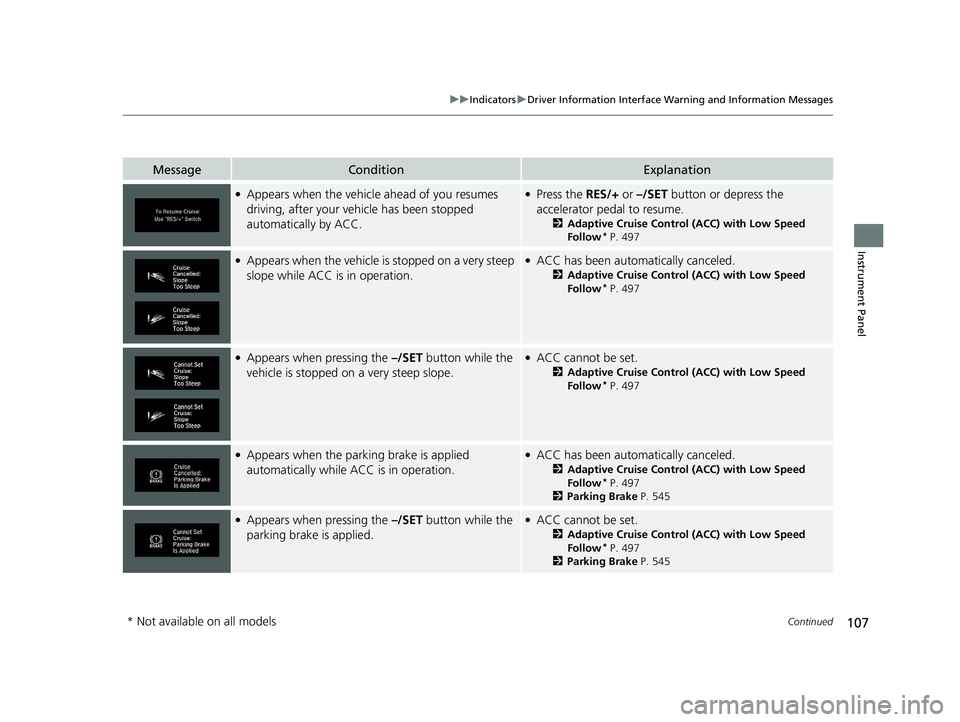

●Appears when the vehicle ahead of you resumes
driving, after your vehicle has been stopped
automatically by ACC.●Press the RES/+ or –/SET button or depress the
accelerator pedal to resume.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 497
●Appears when the vehicle is stopped on a very steep
slope while ACC is in operation.●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 497
●Appears when pressing the –/SET button while the
vehicle is stopped on a very steep slope.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 497
●Appears when the parking brake is applied
automatically while ACC is in operation.●ACC has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 497
2 Parking Brake P. 545
●Appears when pressing the –/SET button while the
parking brake is applied.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 497
2 Parking Brake P. 545
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 107 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

108
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when pressing the RES/+ or –/SET button
while the VSA ® is completely disabled.
2When the drive mode is in +R mode P. 473
●ACC cannot be set.
2Adaptive Cruise Control (ACC)* P. 514
●Appears if the VSA ® or traction control function
operates while ACC is in operation.●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 497
2 Adaptive Cruise Control (ACC)* P. 514
2.0 L engine models
* Not available on all models
