Page 673 of 704

671
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
Option Block 1*(60 A)
−−
Cooling Fan50 A*4
30 A*5
Audio AMP*(30 A)
IG Main 2*1(30 A)
Headlight High Beam Main30 A
Battery125 A
2
EPS70 A
IG Main 1 30 A*1
50 A*2
Fuse Box Option*(40 A)
Fuse Box 1 60 A
Front Wiper Motor30 A
Headlight Low Beam Main 30 A
3
Rear Defroster40 A
Starter Motor(30 A)
Fuse Box 240 A
ABS/VSA Motor40 A
ABS/VSA FSR40 A
Blower Motor40 A
4 −−
−−
−−
−−
5Cooling Fan*4(5 A)
6Washer 15A
7FI Main15 A*4
20 A*5
8 Stop Lights 10 A
9FI Sub15 A
10 Injector*4(15 A)
Sub Fan Motor*520 A
11LAF5A
12 FI ECU 10 A
13Hazard15 A
14 Rear Heated Seat*(15 A)
15IG Coil15 A
16 Transmission*3(15 A)
17Daytime Running Lights(10 A)
18 Back Up 10 A
19Audio(15 A)
20 Parking Lights 10 A
Circuit ProtectedAmps
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
*4:1.5 L engine models
*5:2.0 L engine models
21Interior Lights10 A
22 Front Fog Lights*(15 A)
23A/C Compressor10 A
24 Horn 10 A
25−−
26 Left Headlight Low Beam 10 A
27Right Headlight Low Beam10 A
28 − −
29Left Headlight High Beam10 A
30 Right Headlight High Beam 10 A
31Passenger’s Power Seat Sliding*(20 A)
32 Passenger’s Power Seat
Reclining
*(20 A)
Adaptive Damper System
*5(15 A)
33VB ACT(5 A)
Circuit ProtectedAmps
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 671 ページ 2019年11月11日 月曜日 午後2時50分
Page 676 of 704

674
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 670
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 674 ページ 2019年11月11日
月曜日 午後2時50分

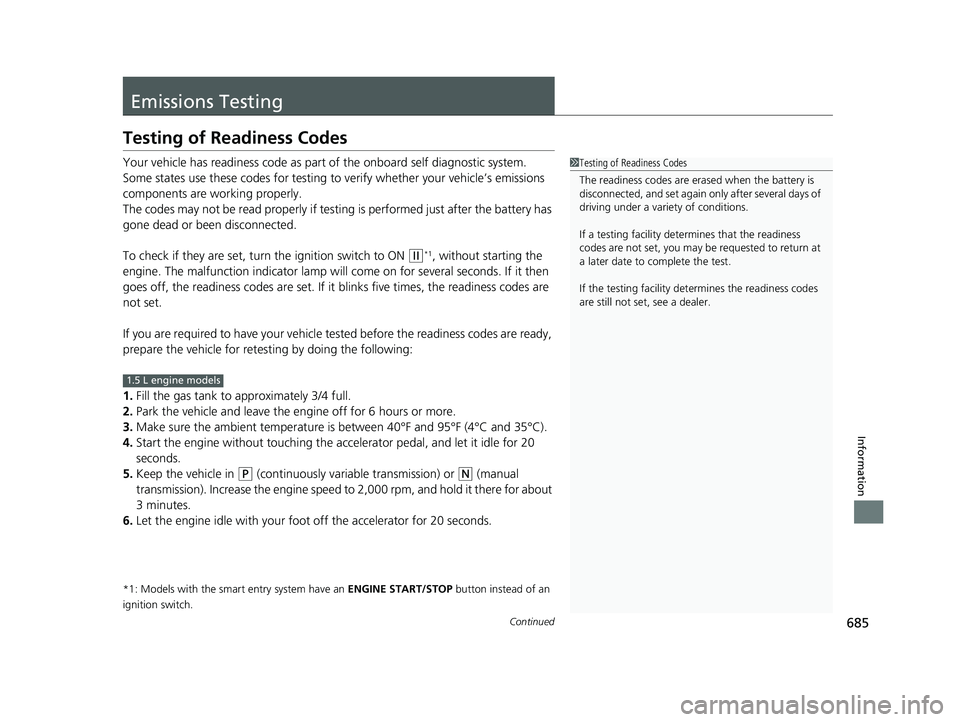

Page 687 of 704

685Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
1.5 L engine models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 685 ページ 2019年11月11日 月曜日 午後2時50分
Page 697 of 704

695
Index
Continuously Variable TransmissionCreeping................................................. 456
Fluid ....................................................... 587
Kickdown ............................................... 456
Operating the Shift Lever .................. 22, 458
Shift Lever Does Not Move ...................... 661
Shifting ................................................... 457
Controls .................................................... 139
Coolant (Engine) ...................................... 585
Adding the Coolant ................................ 586
Overheating ............................................ 662
Creeping (Continuously Variable Transmission) .......................................... 456
Cup Holders .............................................. 201
Customer Service Information ................ 691
Customized Features ....................... 130, 346
D
Daytime Running Lights .......................... 176
Dead Battery ............................................ 658
Defaulting All the Settings ...................... 375
Defrosting the Windshield and Windows ................................................. 217
Devices that Emit Radio Waves ............... 683
Dimming Headlights .............................................. 173
Rearview Mirror ...................................... 186
Dipstick (Engine Oil) ................................ 579
Directional Signals (Turn Signal) ............. 172
Display Button .......................................... 248 Display Setup
............................................ 235
Display/Information Button ..................... 121
Door Mirrors ............................................. 188
Doors ......................................................... 141
Auto Door Locking .................................. 155
Auto Door Unlocking ............................... 155
Keys ........................................................ 141
Locking/Unlocking the Doors from the
Inside..................................................... 152
Locking/Unlocking the Doors from the Outside.................................................. 143
DOT Tire Quality Grading ........................ 608
Drive Mode Switch ................................... 469
Driver Information Interface ................... 120
Driving ....................................................... 439
Braking .................................................... 545
Continuously Variable Transmission ......... 456
Shifting Gear ........................................... 464
Shifting Position ...................................... 457
Starting the Engine .......................... 447, 450
Dust and Pollen Filter ............................... 620
E
Eco Assist System.......................................... 9
ECON Mode .............................................. 468
Elapsed Time ............................................. 124
Electric Power Steering (EPS) System ........ 85
Indicator ............................................ 85, 668
Electronic Stability Control (ESC) ............. 471
Emergency ................................................ 675 Emergency Engine Stop
........................... 657
Emissions Testing (Readiness Codes) ....... 685
Engine Coolant ................................................... 585
Jump Starting .......................................... 658
Oil ........................................................... 578
Starting ........................................... 447, 450
Switch Buzzer.......................................... 167
Engine Coolant ......................................... 585
Adding the Coolant................................. 586
Overheating ............................................ 662
Temperature Gauge ................................ 118
Engine Oil ................................................. 578
Adding .................................................... 581
Checking................................................. 579
Displaying Oil Life .................................... 570
Low Oil Pressure Indicator ................. 80, 664
Recommended Engine Oil ....................... 578
ENGINE START/STOP Button .................... 168
EPS (Electric Power Steering) System ...... 668
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) ........................... 624
Exterior Mirrors ........................................ 188F
Features.................................................... 221
Filters Dust and Pollen ....................................... 620
Oil ........................................................... 582
Flat Tire ..................................................... 631
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 695 ページ 2019年11月11日 月曜日 午後2時50分

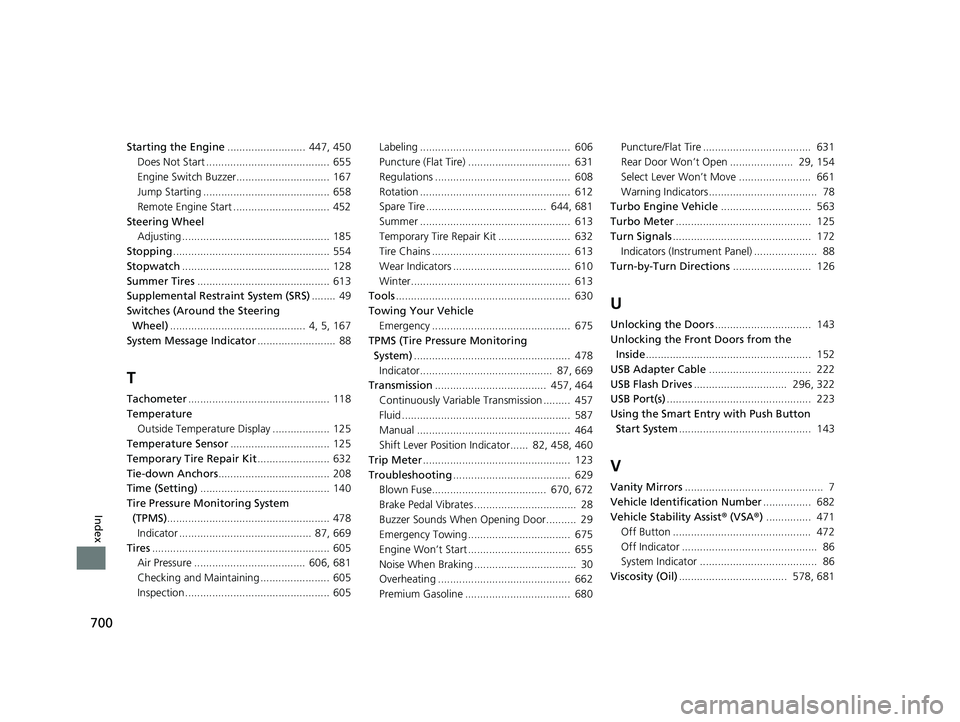

Page 702 of 704

700
Index
Starting the Engine.......................... 447, 450
Does Not Start ......................................... 655
Engine Switch Buzzer............................... 167
Jump Starting .......................................... 658
Remote Engine Start ................................ 452
Steering Wheel Adjusting ................................................. 185
Stopping .................................................... 554
Stopwatch ................................................. 128
Summer Tires ............................................ 613
Supplemental Restraint System (SRS) ........ 49
Switches (Around the Steering Wheel) ............................................. 4, 5, 167
System Message Indicator .......................... 88
T
Tachometer............................................... 118
Temperature Outside Temperature Display ................... 125
Temperature Sensor ................................. 125
Temporary Tire Repair Kit ........................ 632
Tie-down Anchors ..................................... 208
Time (Setting) ........................................... 140
Tire Pressure Monitoring System (TPMS) ...................................................... 478
Indicator ............................................ 87, 669
Tires ........................................................... 605
Air Pressure ..................................... 606, 681
Checking and Maintaining ....................... 605
Inspection ................................................ 605 Labeling .................................................. 606
Puncture (Flat Tire) .................................. 631
Regulations ............................................. 608
Rotation .................................................. 612
Spare Tire ........................................ 644, 681
Summer .................................................. 613
Temporary Tire Re
pair Kit ........................ 632
Tire Chains .............................................. 613
Wear Indicators ....................................... 610
Winter..................................................... 613
Tools .......................................................... 630
Towing Your Vehicle Emergency .............................................. 675
TPMS (Tire Pressure Monitoring
System) .................................................... 478
Indicator............................................ 87, 669
Transmission ..................................... 457, 464
Continuously Variable Transmission ......... 457
Fluid ........................................................ 587
Manual ................................................... 464
Shift Lever Position Indicator...... 82, 458, 460
Trip Meter ................................................. 123
Troubleshooting ....................................... 629
Blown Fuse...................................... 670, 672
Brake Pedal Vibrates .................................. 28
Buzzer Sounds When Opening Door.......... 29
Emergency Towing .................................. 675
Engine Won’t Start .................................. 655
Noise When Braking .................................. 30
Overheating ............................................ 662
Premium Gasoline ................................... 680 Puncture/Flat Tire .................................... 631
Rear Door Won’t Open ..................... 29, 154
Select Lever Won’t Move ........................ 661
Warning Indicators.................................... 78
Turbo Engine Vehicle .............................. 563
Turbo Meter ............................................. 125
Turn Signals .............................................. 172
Indicators (Instru ment Panel) ..................... 88
Turn-by-Turn Directions .......................... 126
U
Unlocking the Doors................................ 143
Unlocking the Fron t Doors from the
Inside ....................................................... 152
USB Adapter Cable .................................. 222
USB Flash Drives ............................... 296, 322
USB Port(s) ................................................ 223
Using the Smart Entr y with Push Button
Start System ............................................ 143
V
Vanity Mirrors .............................................. 7
Vehicle Identification Number ................ 682
Vehicle Stability Assist ® (VSA ®) ............... 471
Off Button .............................................. 472
Off Indicator ............................................. 86
System Indicator ....................................... 86
Viscosity (Oil) .................................... 578, 681
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 700 ページ 2019年11月11日 月曜日 午後2時50分
