HONDA CIVIC HATCHBACK 2020 Owner's Manual (in English)

Continued149
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

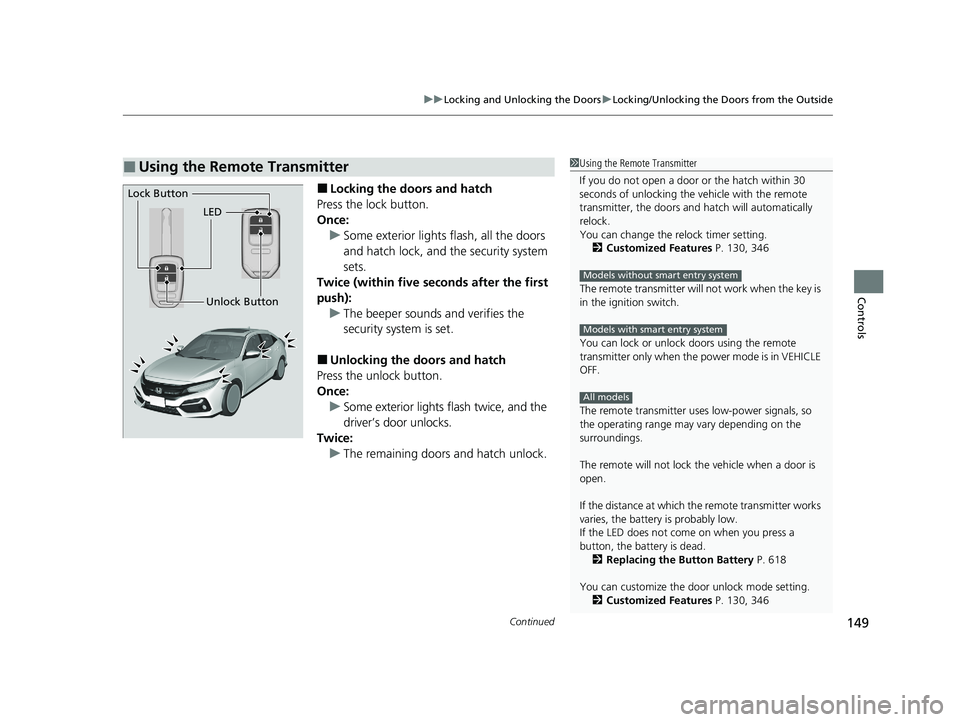

■Locking the doors and hatch
Press the lock button.
Once: u Some exterior lights flash, all the doors
and hatch lock, and the security system
sets.
Twice (within five se conds after the first
push): u The beeper sounds and verifies the
security system is set.
■Unlocking the doors and hatch
Press the unlock button.
Once:
u Some exterior lights flash twice, and the
driver’s door unlocks.
Twice: u The remaining doors and hatch unlock.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door or the hatch within 30
seconds of unlocking the vehicle with the remote
transmitter, the doors and hatch will automatically
relock.
You can change the relock timer setting. 2 Customized Features P. 130, 346
The remote transmitter will not work when the key is
in the ignition switch.
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 618
You can customize the door unlock mode setting. 2 Customized Features P. 130, 346
Models without smart entry system
Models with smart entry system
All models
LED
Unlock Button
Lock Button
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 149 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
150
Controls

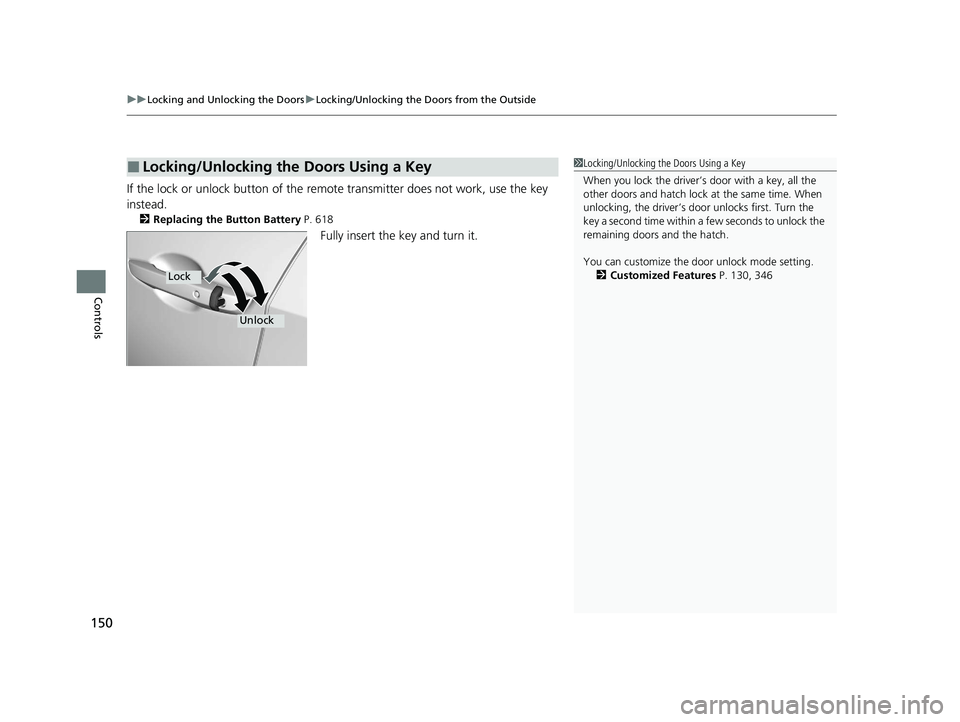

If the lock or unlock button of the remo te transmitter does not work, use the key
instead.
2 Replacing the Button Battery P. 618
Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors and hatch lock at the same time. When
unlocking, the driver’s door unlocks first. Turn the
key a second time within a few seconds to unlock the
remaining doors and the hatch.
You can customize the door unlock mode setting. 2 Customized Features P. 130, 346
Lock
Unlock
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 150 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

151
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

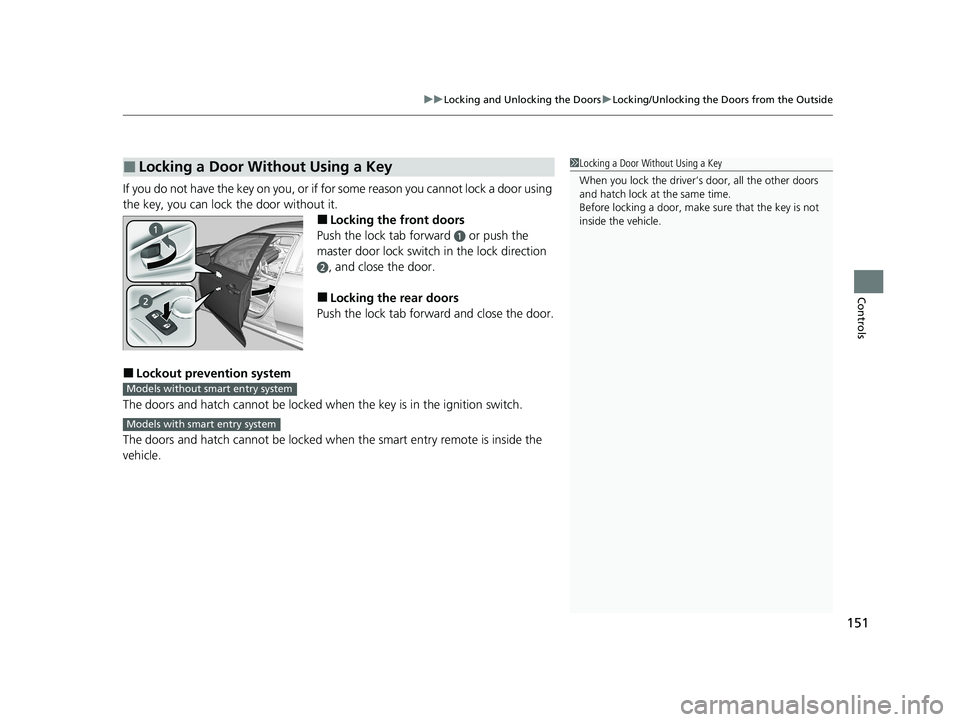

If you do not have the key on you, or if fo r some reason you cannot lock a door using
the key, you can lock the door without it.
■Locking the front doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the rear doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors and hatch cannot be locked wh en the key is in the ignition switch.
The doors and hatch cannot be locked when the smart entry remote is inside the
vehicle.
■Locking a Door Without Using a Key1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
and hatch lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.
Models without smart entry system
Models with smart entry system
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 151 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

152
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

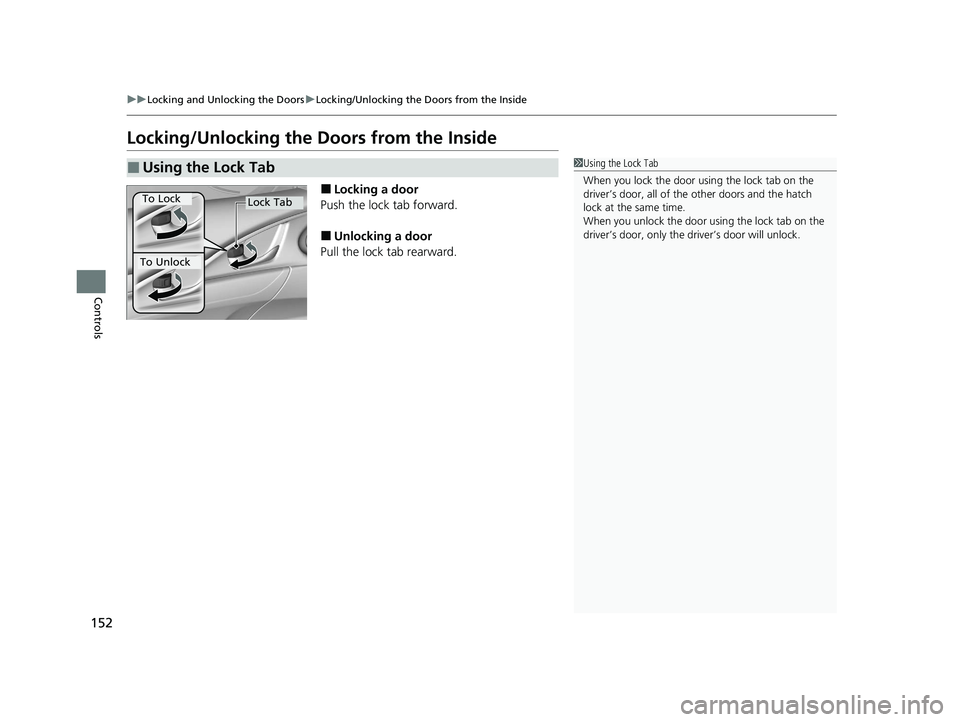

Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all of the other doors and the hatch
lock at the same time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To Unlock
Lock TabTo Lock
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 152 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

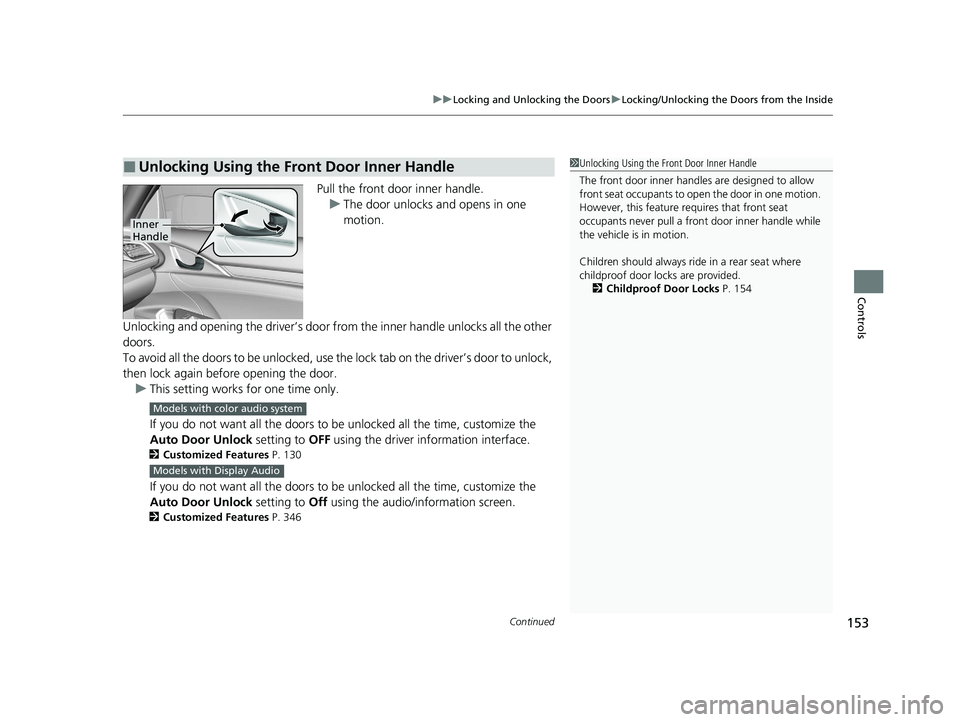

Continued153
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use th e lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only.
If you do not want all the doors to be unlocked all the time, customize the
Auto Door Unlock setting to OFF using the driver information interface.
2Customized Features P. 130
If you do not want all the doors to be unlocked all the time, customize the
Auto Door Unlock setting to Off using the audio/in formation screen.
2Customized Features P. 346
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to ope n the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 154
Inner
Handle
Models with color audio system
Models with Display Audio
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 153 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

uuLocking and Unlocking the Doors uChildproof Door Locks
154
Controls

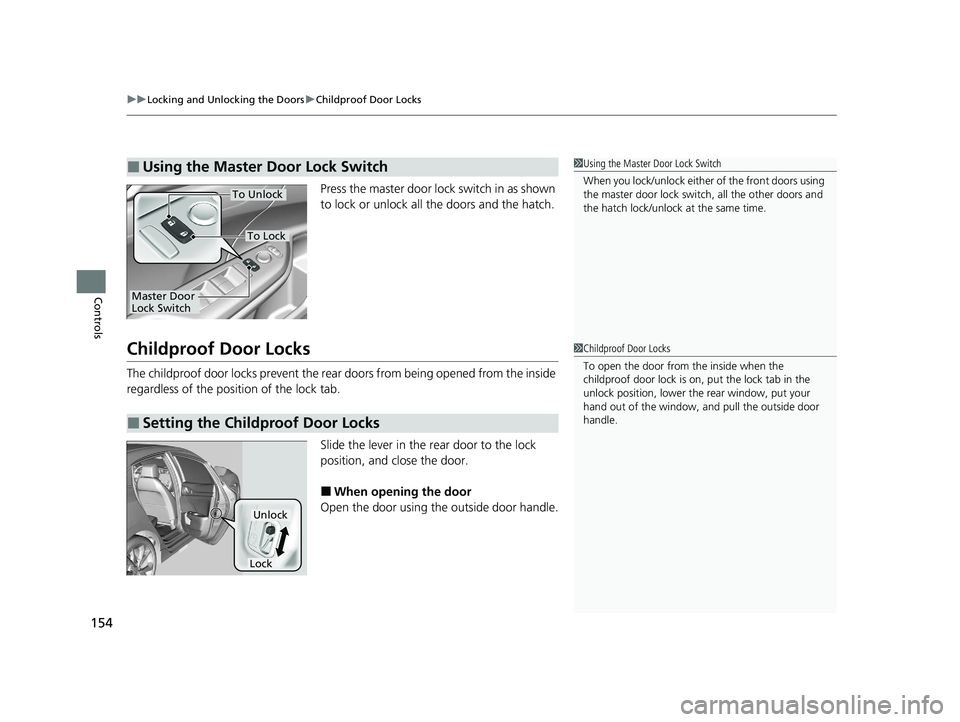

Press the master door lock switch in as shown
to lock or unlock all the doors and the hatch.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock either of the front doors using
the master door lock swit ch, all the other doors and
the hatch lock/unlock at the same time.
To Unlock
Master Door
Lock Switch
To Lock
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Lock
Unlock
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 154 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

155
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls

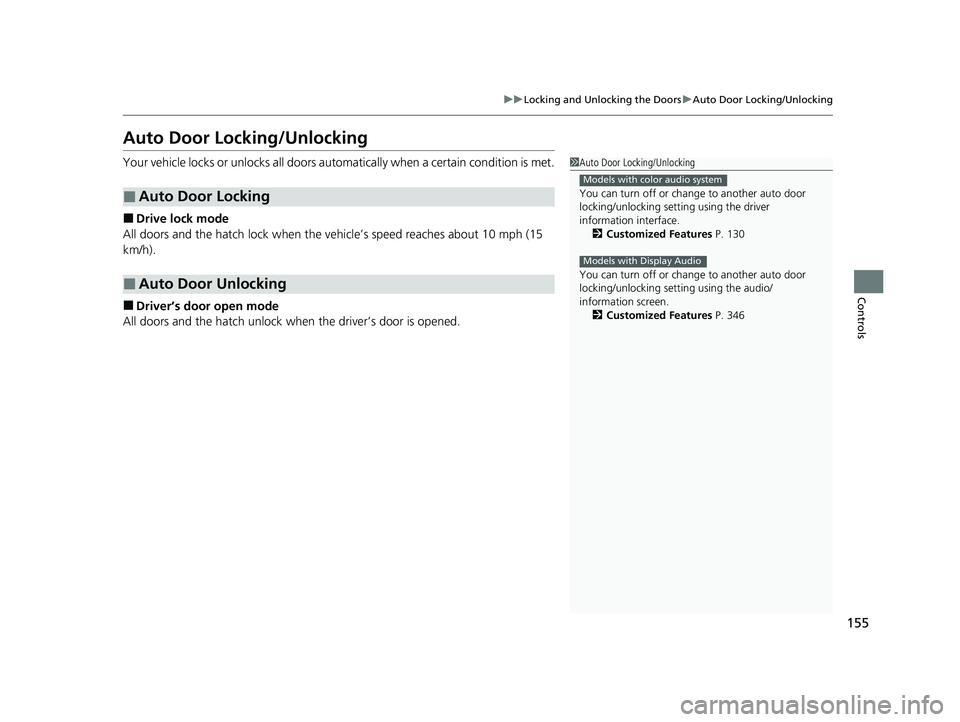

Auto Door Locking/Unlocking
Your vehicle locks or unlocks all doors automatically when a certain condition is met.
■Drive lock mode
All doors and the hatch lock when the vehicle’s speed reaches about 10 mph (15
km/h).
■Driver’s door open mode
All doors and the hatch unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the driver
information interface. 2 Customized Features P. 130
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the audio/
information screen. 2 Customized Features P. 346
Models with color audio system
Models with Display Audio
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 155 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

156
Controls

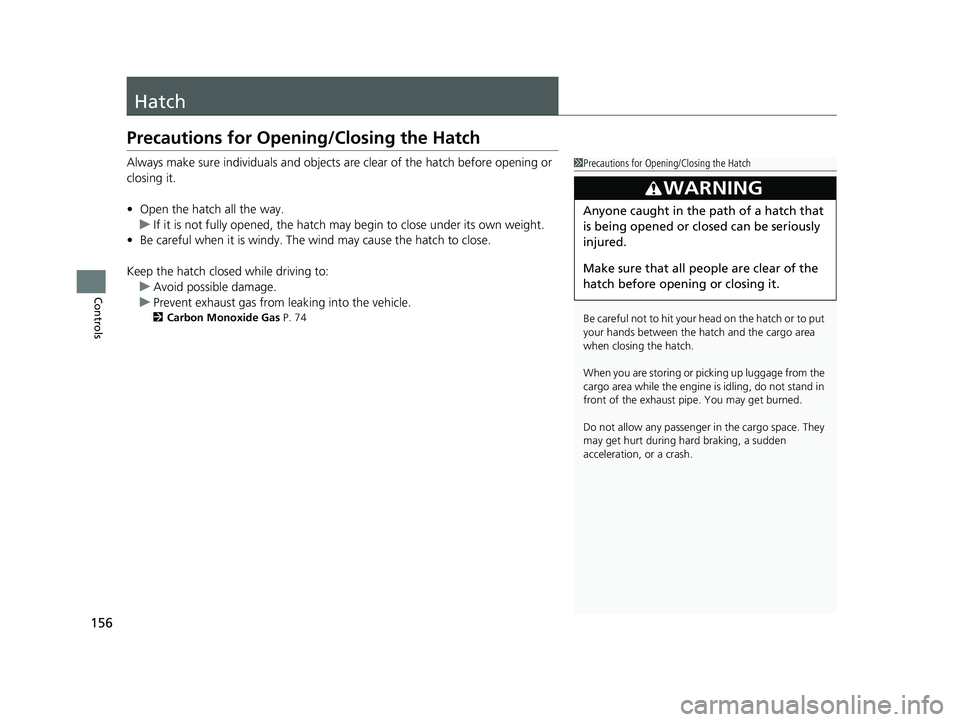

Hatch
Precautions for Opening/Closing the Hatch
Always make sure individuals and objects are clear of the hatch before opening or
closing it.
• Open the hatch all the way.
u If it is not fully opened, the hatch may begin to close under its own weight.
• Be careful when it is windy. The wind may cause the hatch to close.
Keep the hatch closed while driving to:
u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Carbon Monoxide Gas P. 74
1Precautions for Opening/Closing the Hatch
Be careful not to hit your head on the hatch or to put
your hands between the ha tch and the cargo area
when closing the hatch.
When you are storing or picking up luggage from the
cargo area while the engine is idling, do not stand in
front of the exhaust pipe. You may get burned.
Do not allow any passenger in the cargo space. They
may get hurt during hard braking, a sudden
acceleration, or a crash.
3WARNING
Anyone caught in the path of a hatch that
is being opened or closed can be seriously
injured.
Make sure that all people are clear of the
hatch before opening or closing it.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 156 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

157
uuHatch uOpening/Closing the Hatch
Continued
Controls

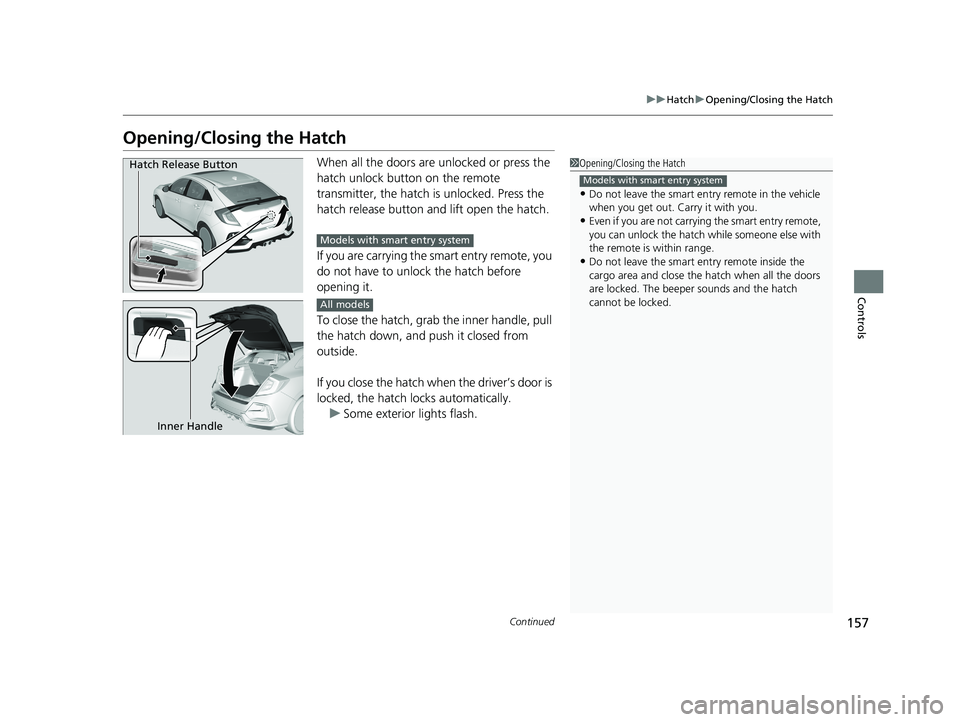

Opening/Closing the Hatch
When all the doors are unlocked or press the
hatch unlock button on the remote
transmitter, the hatch is unlocked. Press the
hatch release button and lift open the hatch.
If you are carrying the smart entry remote, you
do not have to unlock the hatch before
opening it.
To close the hatch, grab the inner handle, pull
the hatch down, and push it closed from
outside.
If you close the hatch when the driver’s door is
locked, the hatch locks automatically.
u Some exterior lights flash.1Opening/Closing the Hatch
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can unlock the hatch while someone else with
the remote is within range.
•Do not leave the smart entry remote inside the
cargo area and close the hatch when all the doors
are locked. The beeper sounds and the hatch
cannot be locked.
Models with smart entry system
Hatch Release Button
Models with smart entry system
Inner Handle
All models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 157 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

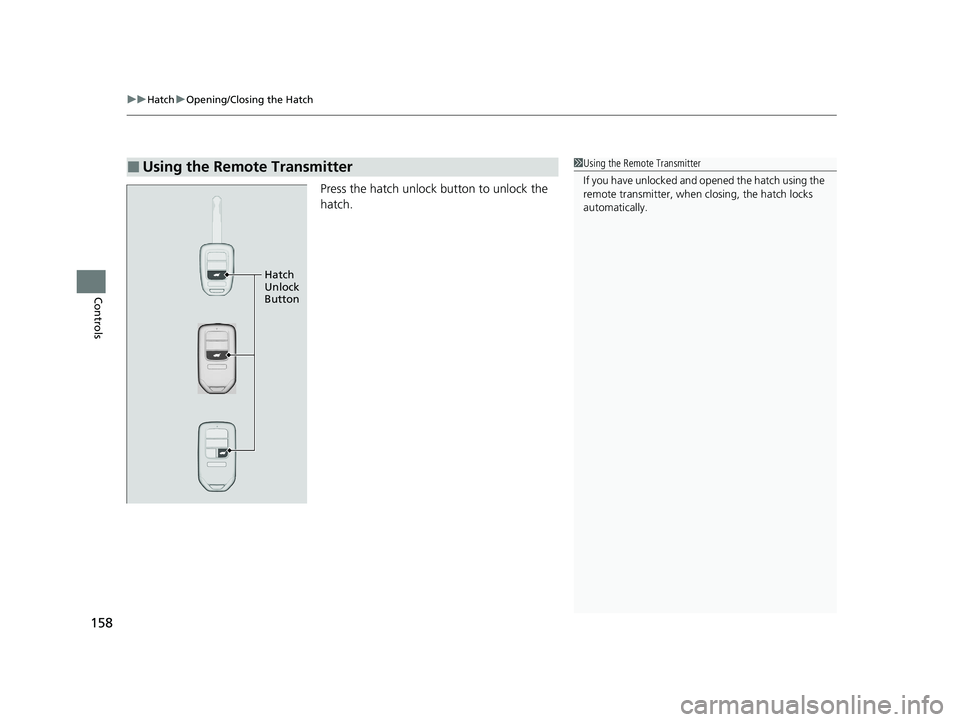

uuHatch uOpening/Closing the Hatch
158
Controls
Press the hatch unlock button to unlock the
hatch.
■Using the Remote Transmitter1Using the Remote Transmitter
If you have unlocked and opened the hatch using the
remote transmitter, when closing, the hatch locks
automatically.
Hatch
Unlock
Button
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 158 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分
