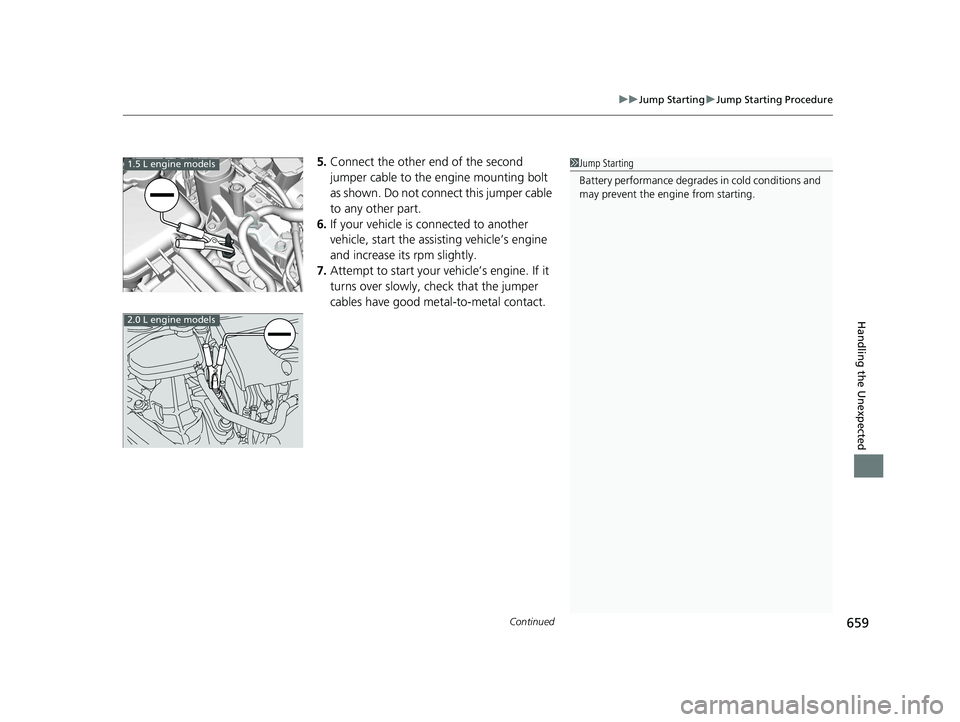

Continued659
uuJump Starting uJump Starting Procedure
Handling the Unexpected
5. Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
7. Attempt to start your ve hicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.1 Jump Starting
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.1.5 L engine models
2.0 L engine models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 659 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

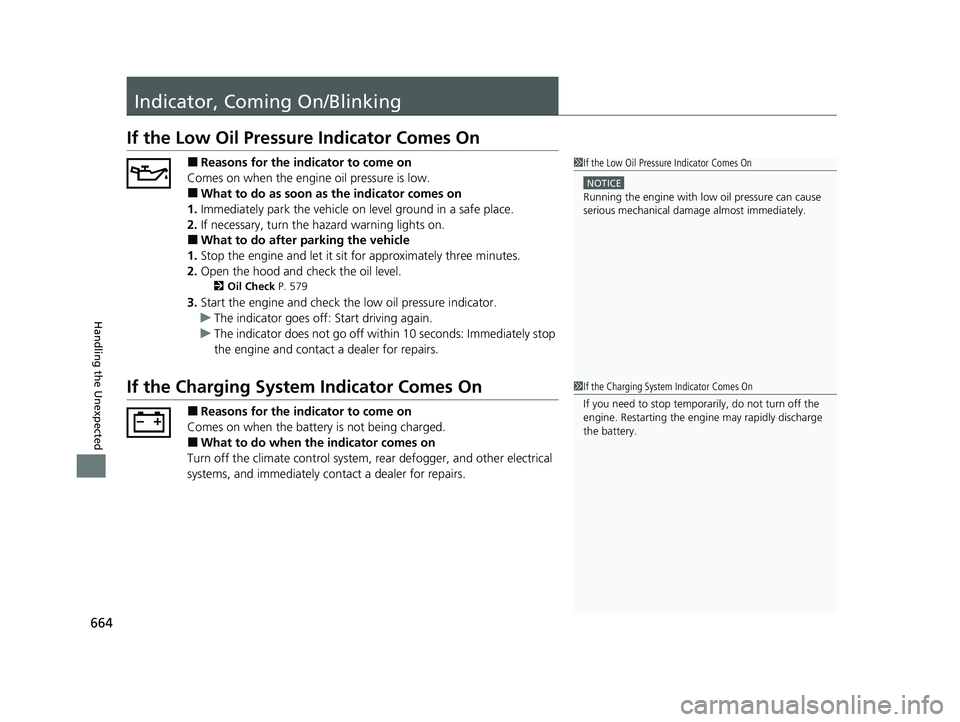

664
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for approximately three minutes.
2. Open the hood and check the oil level.
2 Oil Check P. 579
3.Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off with in 10 seconds: Immediately stop
the engine and contact a dealer for repairs.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when the indicator comes on
Turn off the climate con trol system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1 If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 664 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

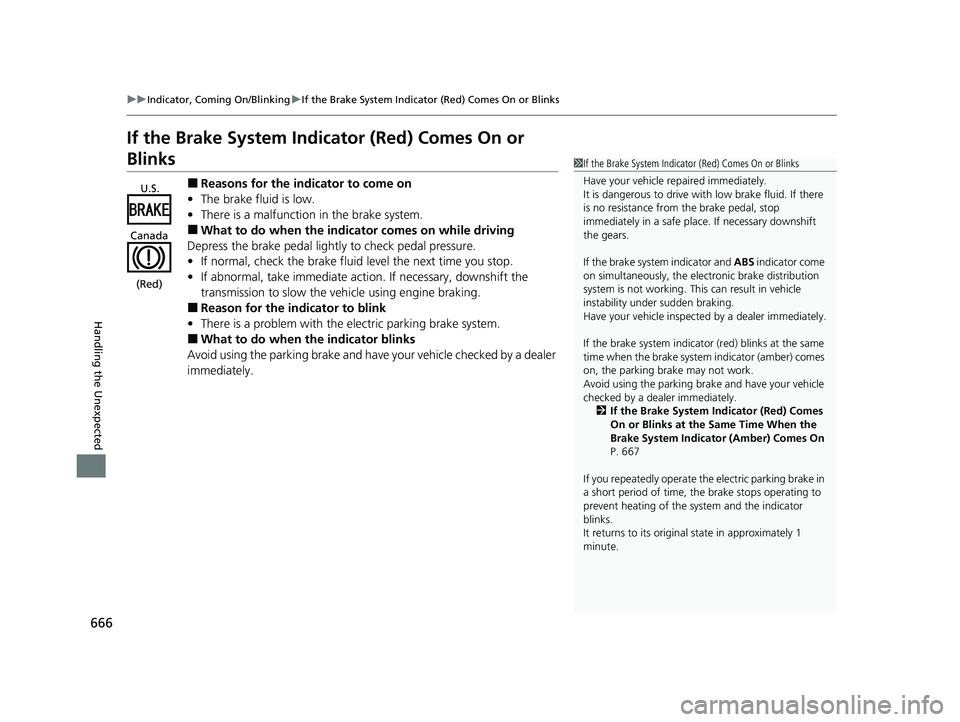

666
uuIndicator, Coming On/Blinking uIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action . If necessary, downshift the
transmission to slow the vehicle using engine braking.
■Reason for the in dicator to blink
• There is a problem with the electric parking brake system.
■What to do when the indicator blinks
Avoid using the parking brake and have your vehicle checked by a dealer
immediately.
1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately. 2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 667
If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.
U.S.
Canada
(Red)
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 666 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

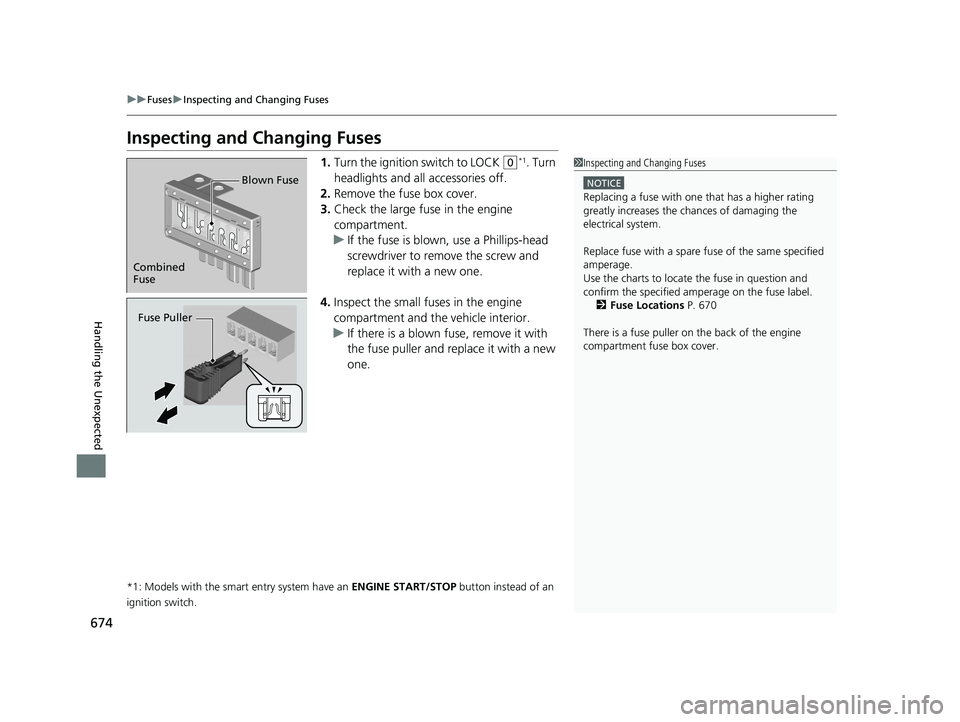

674
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 670
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 674 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

695
Index
Continuously Variable TransmissionCreeping................................................. 456
Fluid ....................................................... 587
Kickdown ............................................... 456
Operating the Shift Lever .................. 22, 458
Shift Lever Does Not Move ...................... 661
Shifting ................................................... 457
Controls .................................................... 139
Coolant (Engine) ...................................... 585
Adding the Coolant ................................ 586
Overheating ............................................ 662
Creeping (Continuously Variable Transmission) .......................................... 456
Cup Holders .............................................. 201
Customer Service Information ................ 691
Customized Features ....................... 130, 346
D
Daytime Running Lights .......................... 176
Dead Battery ............................................ 658
Defaulting All the Settings ...................... 375
Defrosting the Windshield and Windows ................................................. 217
Devices that Emit Radio Waves ............... 683
Dimming Headlights .............................................. 173
Rearview Mirror ...................................... 186
Dipstick (Engine Oil) ................................ 579
Directional Signals (Turn Signal) ............. 172
Display Button .......................................... 248 Display Setup
............................................ 235
Display/Information Button ..................... 121
Door Mirrors ............................................. 188
Doors ......................................................... 141
Auto Door Locking .................................. 155
Auto Door Unlocking ............................... 155
Keys ........................................................ 141
Locking/Unlocking the Doors from the
Inside..................................................... 152
Locking/Unlocking the Doors from the Outside.................................................. 143
DOT Tire Quality Grading ........................ 608
Drive Mode Switch ................................... 469
Driver Information Interface ................... 120
Driving ....................................................... 439
Braking .................................................... 545
Continuously Variable Transmission ......... 456
Shifting Gear ........................................... 464
Shifting Position ...................................... 457
Starting the Engine .......................... 447, 450
Dust and Pollen Filter ............................... 620
E
Eco Assist System.......................................... 9
ECON Mode .............................................. 468
Elapsed Time ............................................. 124
Electric Power Steering (EPS) System ........ 85
Indicator ............................................ 85, 668
Electronic Stability Control (ESC) ............. 471
Emergency ................................................ 675 Emergency Engine Stop
........................... 657
Emissions Testing (Readiness Codes) ....... 685
Engine Coolant ................................................... 585
Jump Starting .......................................... 658
Oil ........................................................... 578
Starting ........................................... 447, 450
Switch Buzzer.......................................... 167
Engine Coolant ......................................... 585
Adding the Coolant................................. 586
Overheating ............................................ 662
Temperature Gauge ................................ 118
Engine Oil ................................................. 578
Adding .................................................... 581
Checking................................................. 579
Displaying Oil Life .................................... 570
Low Oil Pressure Indicator ................. 80, 664
Recommended Engine Oil ....................... 578
ENGINE START/STOP Button .................... 168
EPS (Electric Power Steering) System ...... 668
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) ........................... 624
Exterior Mirrors ........................................ 188F
Features.................................................... 221
Filters Dust and Pollen ....................................... 620
Oil ........................................................... 582
Flat Tire ..................................................... 631
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 695 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

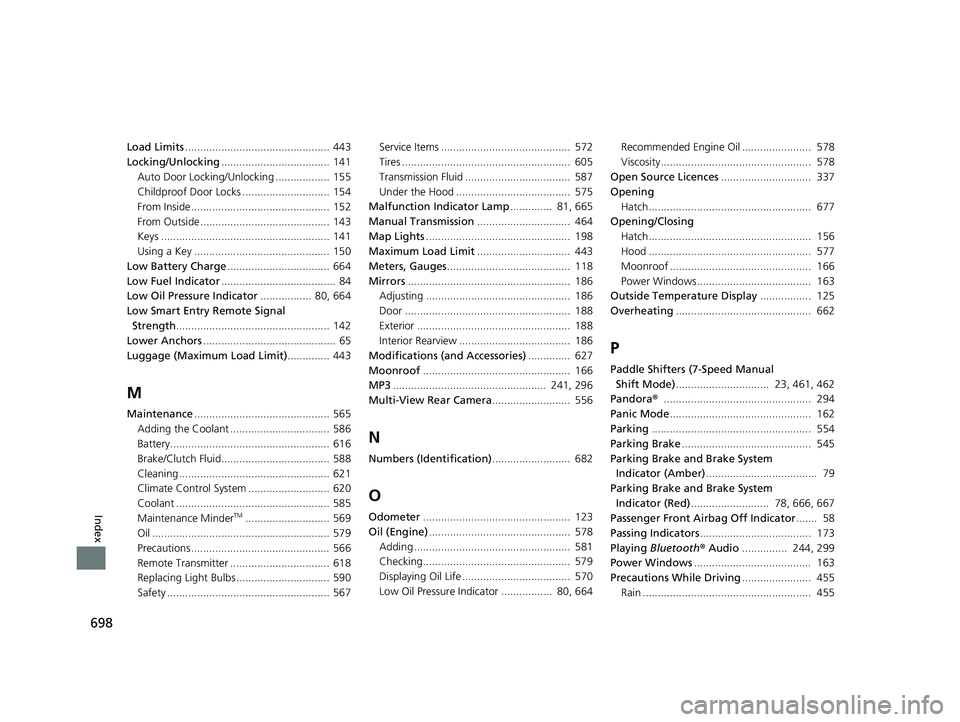

698
Index
Load Limits................................................ 443
Locking/Unlocking .................................... 141
Auto Door Locking/Unlocking .................. 155
Childproof Door Locks ............................. 154
From Inside .............................................. 152
From Outside ........................................... 143
Keys ........................................................ 141
Using a Key ............................................. 150
Low Battery Charge .................................. 664
Low Fuel Indicator ...................................... 84
Low Oil Pressure Indicator ................. 80, 664
Low Smart Entry Remote Signal Strength ................................................... 142
Lower Anchors ............................................ 65
Luggage (Maximum Load Limit) .............. 443
M
Maintenance............................................. 565
Adding the Coolant ................................. 586
Battery..................................................... 616
Brake/Clutch Fluid.................................... 588
Cleaning .................................................. 621
Climate Control System ........................... 620
Coolant ................................................... 585
Maintenance Minder
TM............................ 569
Oil ........................................................... 579
Precautions .............................................. 566
Remote Transmitter ................................. 618
Replacing Light Bulbs ............................... 590
Safety ...................................................... 567 Service Items ........................................... 572
Tires ........................................................ 605
Transmission Fluid ................................... 587
Under the Hood ...................................... 575
Malfunction Indicator Lamp .............. 81, 665
Manual Transmission ............................... 464
Map Lights ................................................ 198
Maximum Load Limit ............................... 443
Meters, Gauges ......................................... 118
Mirrors ...................................................... 186
Adjusting ................................................ 186
Door ....................................................... 188
Exterior ................................................... 188
Interior Rearview ..................................... 186
Modifications (and Accessories) .............. 627
Moonroof ................................................. 166
MP3 ................................................... 241, 296
Multi-View Rear Camera .......................... 556
N
Numbers (Identification).......................... 682
O
Odometer................................................. 123
Oil (Engine) ............................................... 578
Adding .................................................... 581
Checking................................................. 579
Displaying Oil Life .................................... 570
Low Oil Pressure Indicator ................. 80, 664 Recommended Engine Oil ....................... 578
Viscosity.................................................. 578
Open Source Licences .............................. 337
Opening Hatch...................................................... 677
Opening/Closing Hatch...................................................... 156
Hood ...................................................... 577
Moonroof ............................................... 166
Power Windows...................................... 163
Outside Temperature Display ................. 125
Overheating ............................................. 662
P
Paddle Shifters (7-Speed Manual
Shift Mode) ............................... 23, 461, 462
Pandora® ................................................. 294
Panic Mode ............................................... 162
Parking ..................................................... 554
Parking Brake ........................................... 545
Parking Brake and Brake System Indicator (Amber) ..................................... 79
Parking Brake and Brake System
Indicator (Red) .......................... 78, 666, 667
Passenger Front Airbag Off Indicator ....... 58
Passing Indicators ..................................... 173
Playing Bluetooth ® Audio ............... 244, 299
Power Windows ....................................... 163
Precautions While Driving ....................... 455
Rain ........................................................ 455
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 698 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分
