uuLocking and Unlocking the Doors uLow Smart Entry Remote Signal Strength*

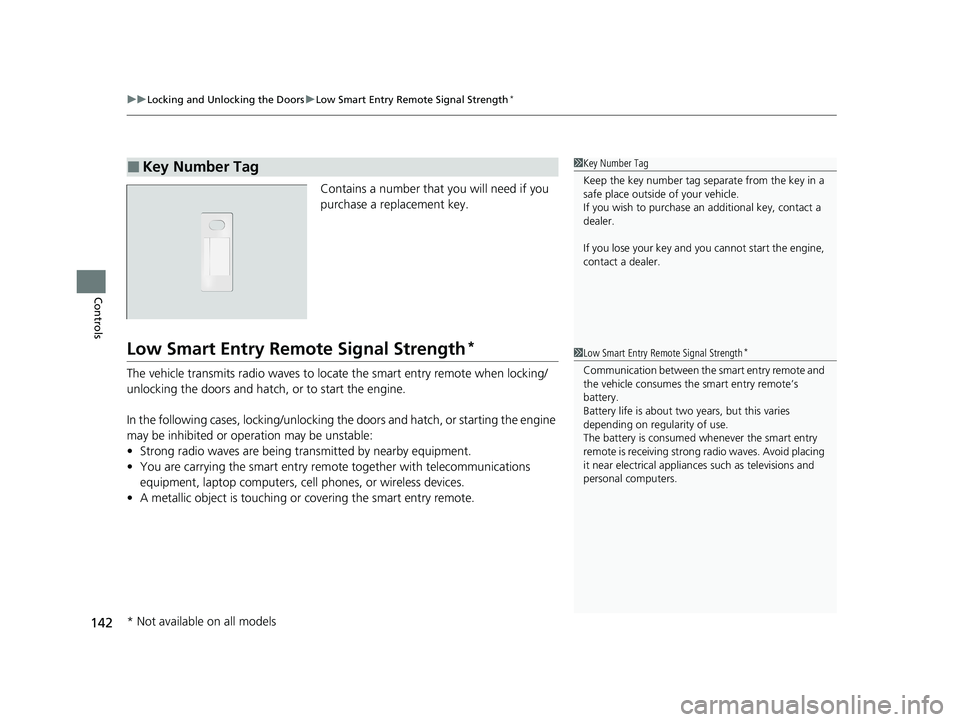

142
Controls
Contains a number that you will need if you
purchase a replacement key.
Low Smart Entry Remo te Signal Strength*
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors and hatch, or to start the engine.
In the following cases, locking/unlocking the doors and hatch, or starting the engine
may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
1 Low Smart Entry Remote Signal Strength*
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 142 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

565
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 566
Safety When Performing Maintenance .... 567Parts and Fluids Used in Maintenance Service ........................................... 568
Maintenance Minder
TM..................... 569
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 575Opening the Hood ........................... 577
Recommended Engine Oil ................ 578
Oil Check ......................................... 579
Adding Engine Oil ............................ 581
Changing the Engine Oil and Oil Filter..... 582
Engine Coolant ................................ 585
Transmission Fluid ............................ 587
Brake/Clutch
* Fluid .......................... 588
Refilling Window Washer Fluid......... 589
Replacing Light Bulbs ....................... 590
Checking and Maintaining Wiper
Blades .......................................... 600
Checking and Maintaining Tires
Checking Tires ................................. 605
Tire and Loading Information Label ..... 606Tire Labeling .................................... 606DOT Tire Quality Grading (U.S. Vehicles) ...... 608Wear Indicators................................ 610 Tire Service Life ................................ 610
Tire and Wheel Replacement ........... 611
Tire Rotation .................................... 612
Winter Tires ..................................... 613
Cold Weather Driving ...................... 615
Battery ............................................... 616
Remote Transmitter Care Replacing the Button Battery ........... 618
Climate Control System Maintenance .. 620Cleaning
Interior Care .................................... 621
Exterior Care.................................... 624
Accessories and Modifications ........ 627
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 565 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

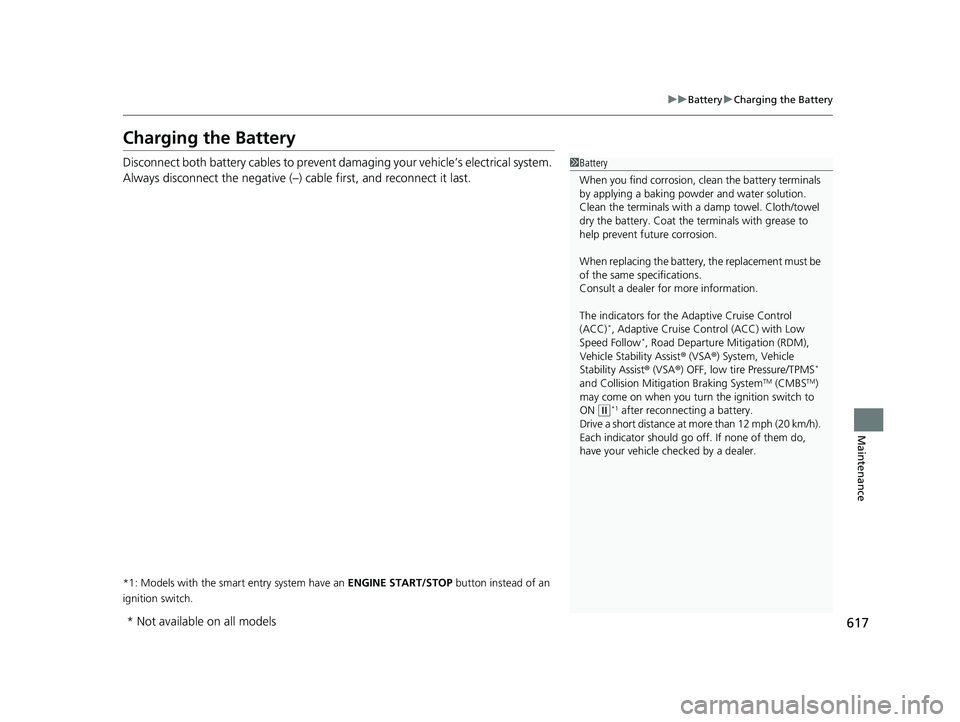

617
uuBattery uCharging the Battery
Maintenance
Charging the Battery
Disconnect both battery cables to prevent damaging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Battery
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
The indicators for the Adaptive Cruise Control
(ACC)
*, Adaptive Cruise Control (ACC) with Low
Speed Follow*, Road Departure Mitigation (RDM),
Vehicle Stability Assist ® (VSA ®) System, Vehicle
Stability Assist ® (VSA ®) OFF, low tire Pressure/TPMS
*
and Collision Mitiga tion Braking SystemTM (CMBSTM)
may come on when you turn the ignition switch to
ON
( w*1 after reconnecting a battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If none of them do,
have your vehicle ch ecked by a dealer.
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 617 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

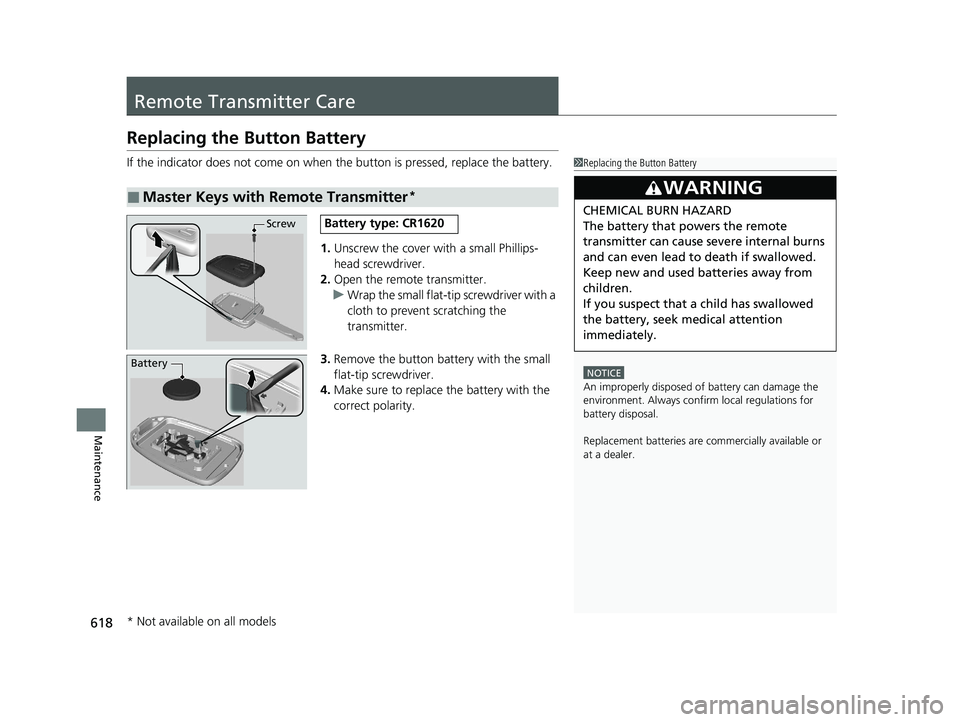

618
Maintenance
Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Unscrew the cover with a small Phillips-
head screwdriver.
2. Open the remote transmitter.
u Wrap the small flat-tip screwdriver with a
cloth to prevent scratching the
transmitter.
3. Remove the button battery with the small
flat-tip screwdriver.
4. Make sure to replace the battery with the
correct polarity.
■Master Keys with Remote Transmitter*
1 Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.ScrewBattery type: CR1620
Battery
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 618 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

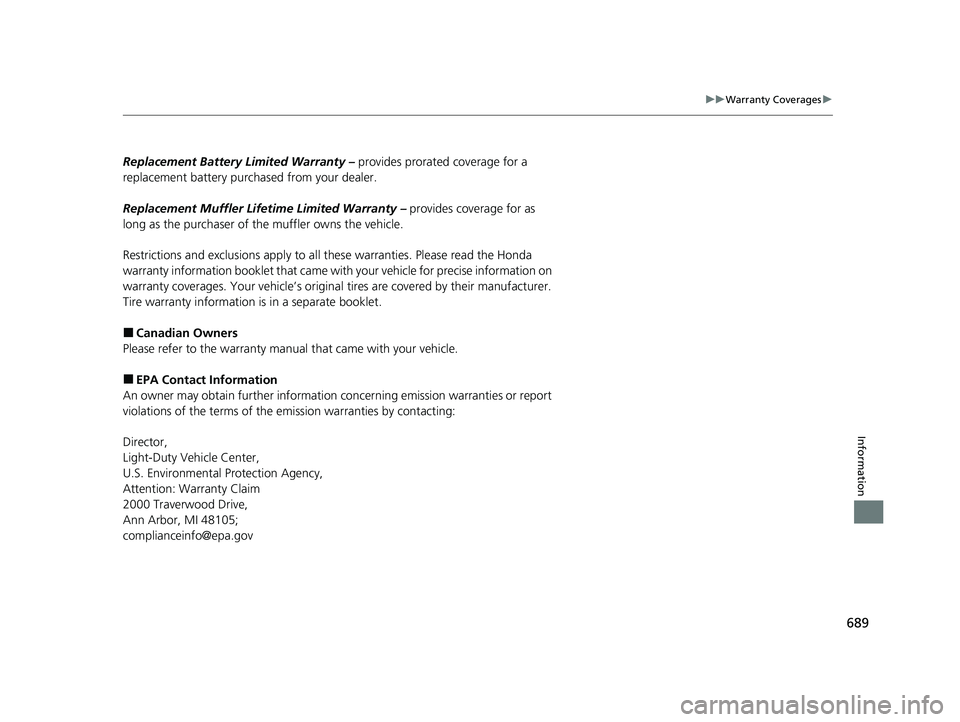

689
uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purch ased from your dealer.
Replacement Muffler Lifeti me Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to all these warranties. Please read the Honda
warranty information booklet th at came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further in formation concerning emission warranties or report
violations of the terms of the emission warranties by contacting:
Director,
Light-Duty Vehicle Center,
U.S. Environmental Protection Agency,
Attention: Warranty Claim
2000 Traverwood Drive,
Ann Arbor, MI 48105;
[email protected]
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 689 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

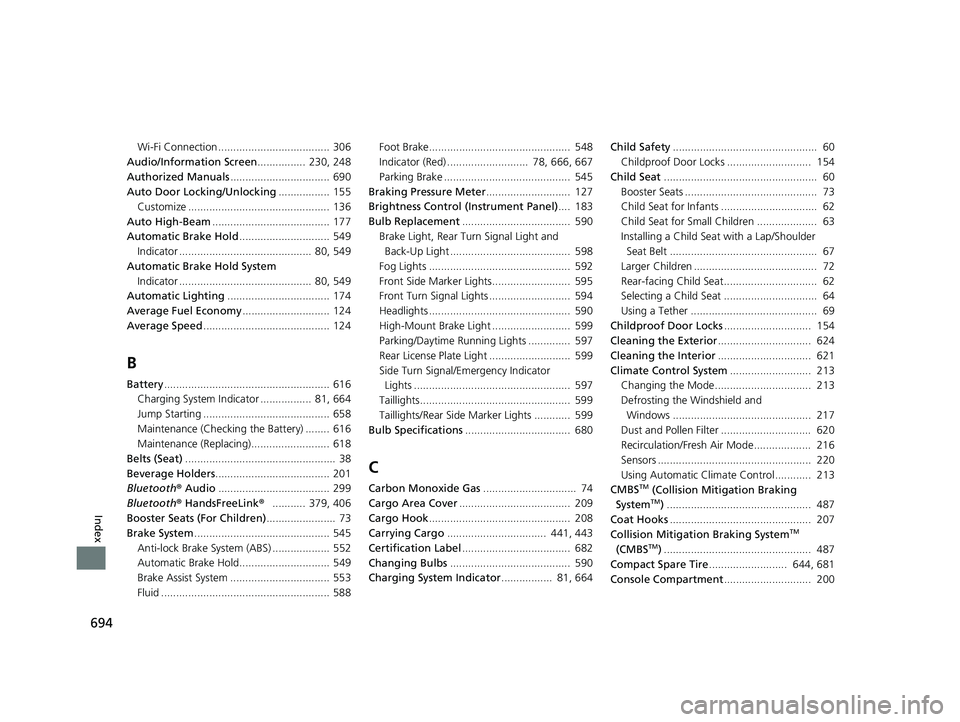

694
Index
Wi-Fi Connection ..................................... 306
Audio/Information Screen ................ 230, 248
Authorized Manuals ................................. 690
Auto Door Locking/Unlocking ................. 155
Customize ............................................... 136
Auto High-Beam ....................................... 177
Automatic Brake Hold .............................. 549
Indicator ............................................ 80, 549
Automatic Brake Hold System Indicator ............................................ 80, 549
Automatic Lighting .................................. 174
Average Fuel Economy ............................. 124
Average Speed .......................................... 124
B
Battery....................................................... 616
Charging System Indicator ................. 81, 664
Jump Starting .......................................... 658
Maintenance (Checking the Battery) ........ 616
Maintenance (Replacing).......................... 618
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 201
Bluetooth ® Audio ..................................... 299
Bluetooth ® HandsFreeLink ®........... 379, 406
Booster Seats (For Children) ....................... 73
Brake System ............................................. 545
Anti-lock Brake System (ABS) ................... 552
Automatic Brake Hold.............................. 549
Brake Assist System ................................. 553
Fluid ........................................................ 588 Foot Brake............................................... 548
Indicator (Red) ........................... 78, 666, 667
Parking Brake .......................................... 545
Braking Pressure Meter ............................ 127
Brightness Control (Instrument Panel).... 183
Bulb Replacement .................................... 590
Brake Light, Rear Tu rn Signal Light and
Back-Up Light ........................................ 598
Fog Lights ............................................... 592
Front Side Marker Lights.......................... 595
Front Turn Signal Lights ........................... 594
Headlights ............................................... 590
High-Mount Brake Light .......................... 599
Parking/Daytime Running Lights .............. 597
Rear License Plate Light ........................... 599
Side Turn Signal/Emergency Indicator Lights .................................................... 597
Taillights.................................................. 599
Taillights/Rear Side Marker Lights ............ 599
Bulb Specifications ................................... 680
C
Carbon Monoxide Gas ............................... 74
Cargo Area Cover ..................................... 209
Cargo Hook ............................................... 208
Carrying Cargo ................................. 441, 443
Certification Label .................................... 682
Changing Bulbs ........................................ 590
Charging System Indicator ................. 81, 664Child Safety
................................................ 60
Childproof Door Locks ............................ 154
Child Seat ................................................... 60
Booster Seats ............................................ 73
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 67
Larger Children ......................................... 72
Rear-facing Child Seat............................... 62
Selecting a Child Seat ............................... 64
Using a Tether .......................................... 69
Childproof Door Locks ............................. 154
Cleaning the Exterior ............................... 624
Cleaning the Interior ............................... 621
Climate Control System ........................... 213
Changing the Mode................................ 213
Defrosting the Windshield and Windows .............................................. 217
Dust and Pollen Filter .............................. 620
Recirculation/Fresh Air Mode................... 216
Sensors ................................................... 220
Using Automatic Climate Control............ 213
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 487
Coat Hooks ............................................... 207
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 487
Compact Spare Tire .......................... 644, 681
Console Compartment ............................. 200
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 694 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

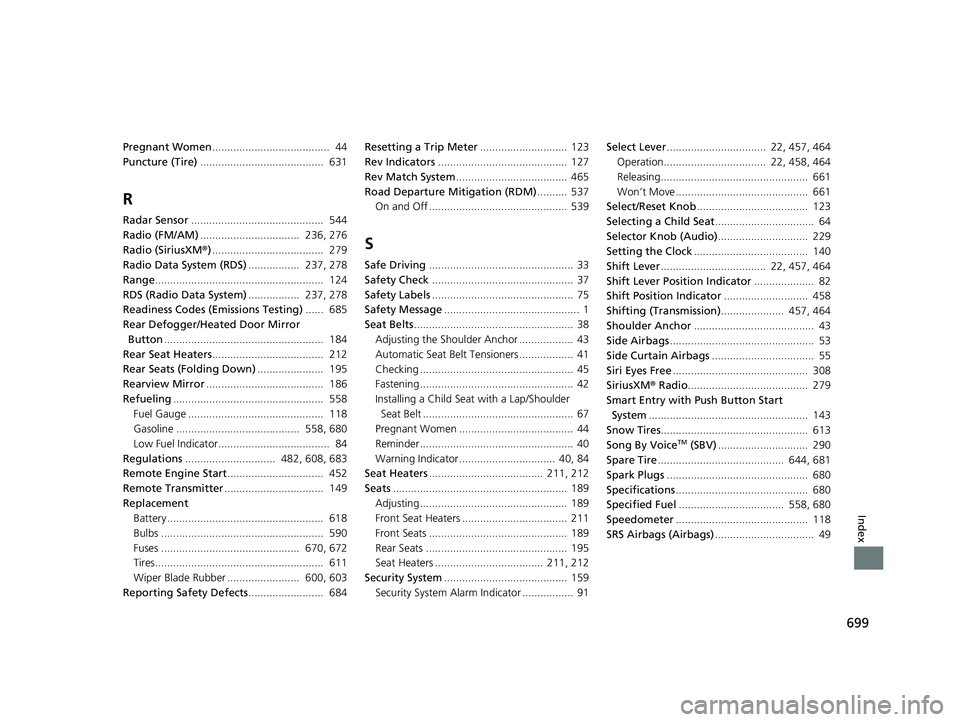

699
Index
Pregnant Women....................................... 44
Puncture (Tire) ......................................... 631
R
Radar Sensor............................................ 544
Radio (FM/AM) ................................. 236, 276
Radio (SiriusXM ®)..................................... 279
Radio Data System (RDS) ................. 237, 278
Range ........................................................ 124
RDS (Radio Data System) ................. 237, 278
Readiness Codes (Emissions Testing) ...... 685
Rear Defogger/Heated Door Mirror
Button ..................................................... 184
Rear Seat Heaters ..................................... 212
Rear Seats (Folding Down) ...................... 195
Rearview Mirror ....................................... 186
Refueling .................................................. 558
Fuel Gauge ............................................. 118
Gasoline ......................................... 558, 680
Low Fuel Indicator..................................... 84
Regulations .............................. 482, 608, 683
Remote Engine Start ................................ 452
Remote Transmitter ................................. 149
Replacement Battery .................................................... 618
Bulbs ...................................................... 590
Fuses .............................................. 670, 672
Tires........................................................ 611
Wiper Blade Rubber ........................ 600, 603
Reporting Safety Defects ......................... 684Resetting a Trip Meter
............................. 123
Rev Indicators ........................................... 127
Rev Match System ..................................... 465
Road Departure Mitigation (RDM) .......... 537
On and Off .............................................. 539
S
Safe Driving ................................................ 33
Safety Check ............................................... 37
Safety Labels ............................................... 75
Safety Message ............................................. 1
Seat Belts ..................................................... 38
Adjusting the Shoulder Anchor .................. 43
Automatic Seat Belt Tensioners .................. 41
Checking ................................................... 45
Fastening ................................................... 42
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 67
Pregnant Women ...................................... 44
Reminder ................................................... 40
Warning Indicator ................................ 40, 84
Seat Heaters ...................................... 211, 212
Seats .......................................................... 189
Adjusting ................................................. 189
Front Seat Heaters ................................... 211
Front Seats .............................................. 189
Rear Seats ............................................... 195
Seat Heaters .................................... 211, 212
Security System ......................................... 159
Security System Alarm Indicator ................. 91 Select Lever
................................. 22, 457, 464
Operation.................................. 22, 458, 464
Releasing................................................. 661
Won’t Move ............................................ 661
Select/Reset Knob ..................................... 123
Selecting a Child Seat ................................. 64
Selector Knob (Audio) .............................. 229
Setting the Clock ...................................... 140
Shift Lever ................................... 22, 457, 464
Shift Lever Position Indicator .................... 82
Shift Position Indicator ............................ 458
Shifting (Transmission) ..................... 457, 464
Shoulder Anchor ........................................ 43
Side Airbags ................................................ 53
Side Curtain Airbags .................................. 55
Siri Eyes Free ............................................. 308
SiriusXM ® Radio ........................................ 279
Smart Entry with Push Button Start System ..................................................... 143
Snow Tires ................................................. 613
Song By Voice
TM (SBV) .............................. 290
Spare Tire .......................................... 644, 681
Spark Plugs ............................................... 680
Specifications ............................................ 680
Specified Fuel ................................... 558, 680
Speedometer ............................................ 118
SRS Airbags (Airbags) ................................. 49
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 699 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分
