fog light bulb HONDA CIVIC HATCHBACK 2020 Owner's Manual (in English)

592

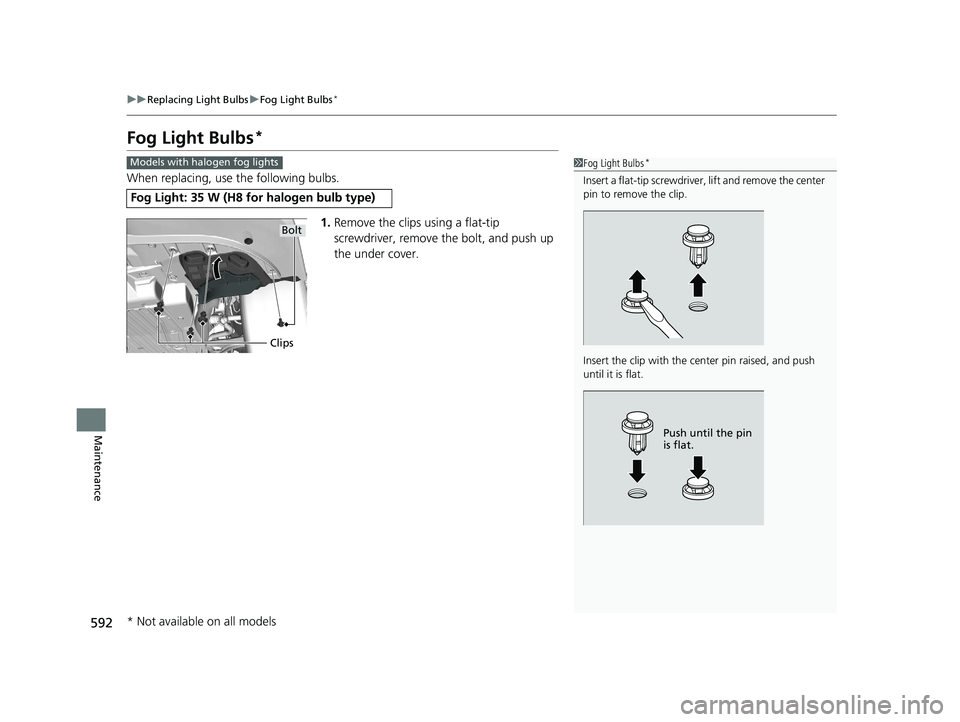

uuReplacing Light Bulbs uFog Light Bulbs*
Maintenance
Fog Light Bulbs*
When replacing, use the following bulbs.
1.Remove the clips using a flat-tip
screwdriver, remove the bolt, and push up
the under cover.
Fog Light: 35 W (H8 fo r halogen bulb type)
1Fog Light Bulbs*
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Push until the pin
is flat.
Models with halogen fog lights
Clips
Bolt
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 592 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

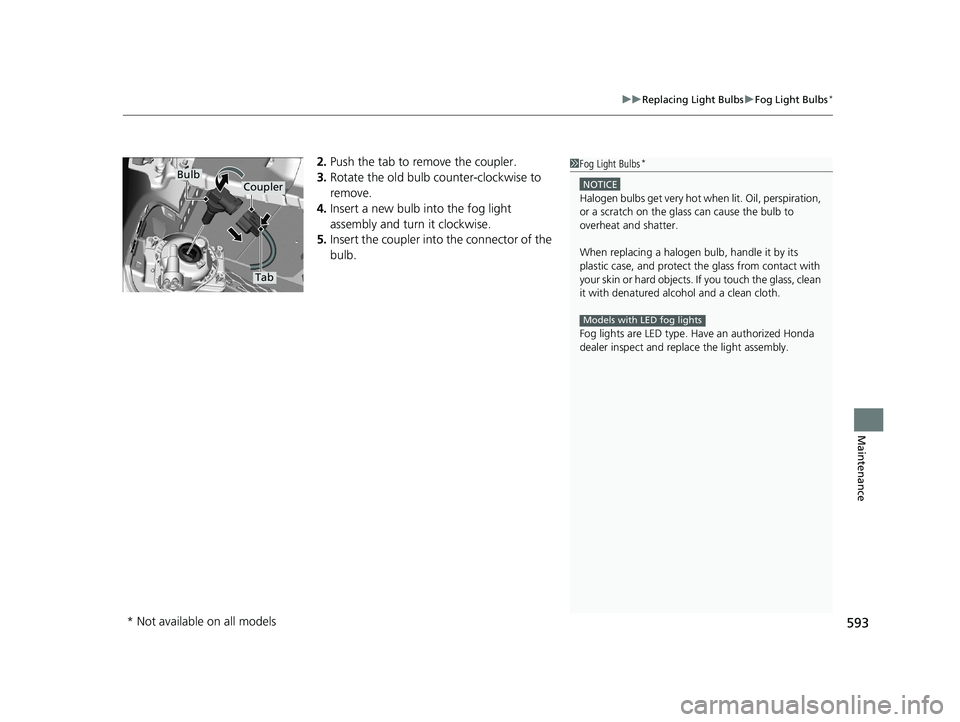

593
uuReplacing Light Bulbs uFog Light Bulbs*
Maintenance
2. Push the tab to remove the coupler.
3. Rotate the old bulb counter-clockwise to
remove.
4. Insert a new bulb into the fog light
assembly and turn it clockwise.
5. Insert the coupler into the connector of the
bulb.1 Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect th e glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alc ohol and a clean cloth.
Fog lights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Models with LED fog lights
Tab
CouplerBulb
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 593 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

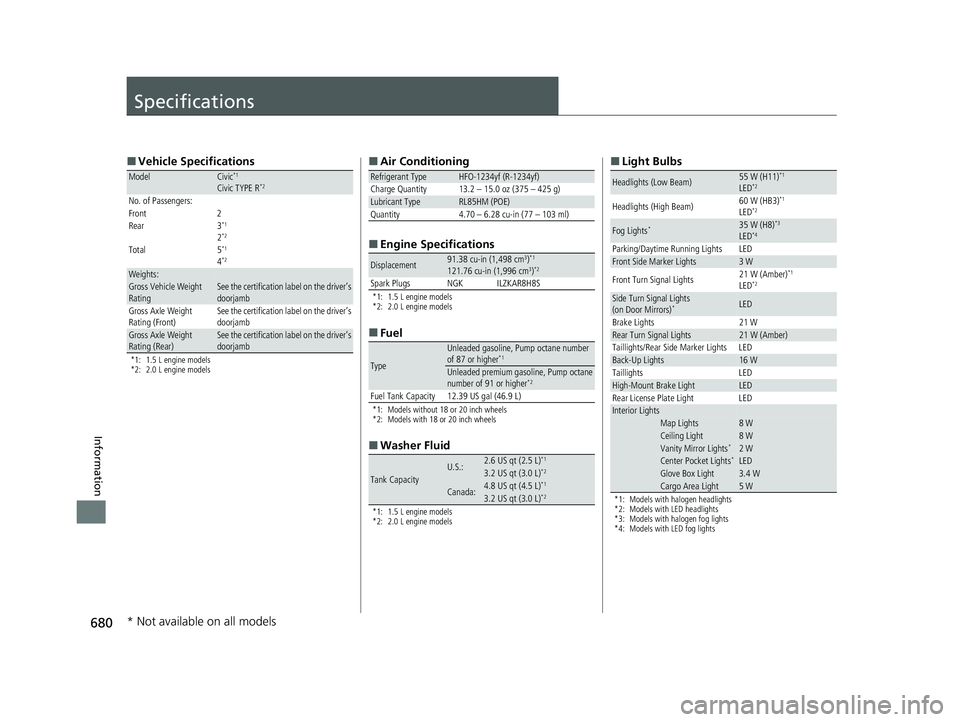

680
Information
Specifications
■Vehicle Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models
ModelCivic*1
Civic TYPE R*2
No. of Passengers:
Front 2
Rear 3
*1
2*2
Total 5*1
4*2
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
■
Air Conditioning
■ Engine Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models
■Fuel
*1: Models without 18 or 20 inch wheels
*2: Models with 18 or 20 inch wheels
■Washer Fluid
*1: 1.5 L engine models
*2: 2.0 L engine models
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.70 – 6.28 cu-in (77 – 103 ml)
Displacement91.38 cu-in (1,498 cm3)*1
121.76 cu-in (1,996 cm3)*2
Spark Plugs NGK ILZKAR8H8S
Type
Unleaded gasoline, Pump octane number
of 87 or higher*1
Unleaded premium gasoline, Pump octane
number of 91 or higher*2
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.:2.6 US qt (2.5 L)*1
3.2 US qt (3.0 L)*2
Canada:4.8 US qt (4.5 L)*1
3.2 US qt (3.0 L)*2
■ Light Bulbs
*1: Models with halogen headlights
*2: Models with LED headlights
*3: Models with halogen fog lights
*4: Models with LED fog lights
Headlights (Low Beam)55 W (H11)*1
LED*2
Headlights (High Beam) 60 W (HB3)*1
LED*2
Fog Lights*35 W (H8)*3
LED*4
Parking/Daytime Running Lights LEDFront Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)*1
LED*2
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Taillights/Rear Side Marker Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WVanity Mirror Lights*2 WCenter Pocket Lights* LEDGlove Box Light3.4 WCargo Area Light5 W
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 680 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

694
Index
Wi-Fi Connection ..................................... 306
Audio/Information Screen ................ 230, 248
Authorized Manuals ................................. 690
Auto Door Locking/Unlocking ................. 155
Customize ............................................... 136
Auto High-Beam ....................................... 177
Automatic Brake Hold .............................. 549
Indicator ............................................ 80, 549
Automatic Brake Hold System Indicator ............................................ 80, 549
Automatic Lighting .................................. 174
Average Fuel Economy ............................. 124
Average Speed .......................................... 124
B
Battery....................................................... 616
Charging System Indicator ................. 81, 664
Jump Starting .......................................... 658
Maintenance (Checking the Battery) ........ 616
Maintenance (Replacing).......................... 618
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 201
Bluetooth ® Audio ..................................... 299
Bluetooth ® HandsFreeLink ®........... 379, 406
Booster Seats (For Children) ....................... 73
Brake System ............................................. 545
Anti-lock Brake System (ABS) ................... 552
Automatic Brake Hold.............................. 549
Brake Assist System ................................. 553
Fluid ........................................................ 588 Foot Brake............................................... 548
Indicator (Red) ........................... 78, 666, 667
Parking Brake .......................................... 545
Braking Pressure Meter ............................ 127
Brightness Control (Instrument Panel).... 183
Bulb Replacement .................................... 590
Brake Light, Rear Tu rn Signal Light and
Back-Up Light ........................................ 598
Fog Lights ............................................... 592
Front Side Marker Lights.......................... 595
Front Turn Signal Lights ........................... 594
Headlights ............................................... 590
High-Mount Brake Light .......................... 599
Parking/Daytime Running Lights .............. 597
Rear License Plate Light ........................... 599
Side Turn Signal/Emergency Indicator Lights .................................................... 597
Taillights.................................................. 599
Taillights/Rear Side Marker Lights ............ 599
Bulb Specifications ................................... 680
C
Carbon Monoxide Gas ............................... 74
Cargo Area Cover ..................................... 209
Cargo Hook ............................................... 208
Carrying Cargo ................................. 441, 443
Certification Label .................................... 682
Changing Bulbs ........................................ 590
Charging System Indicator ................. 81, 664Child Safety
................................................ 60
Childproof Door Locks ............................ 154
Child Seat ................................................... 60
Booster Seats ............................................ 73
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 67
Larger Children ......................................... 72
Rear-facing Child Seat............................... 62
Selecting a Child Seat ............................... 64
Using a Tether .......................................... 69
Childproof Door Locks ............................. 154
Cleaning the Exterior ............................... 624
Cleaning the Interior ............................... 621
Climate Control System ........................... 213
Changing the Mode................................ 213
Defrosting the Windshield and Windows .............................................. 217
Dust and Pollen Filter .............................. 620
Recirculation/Fresh Air Mode................... 216
Sensors ................................................... 220
Using Automatic Climate Control............ 213
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 487
Coat Hooks ............................................... 207
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 487
Compact Spare Tire .......................... 644, 681
Console Compartment ............................. 200
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 694 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

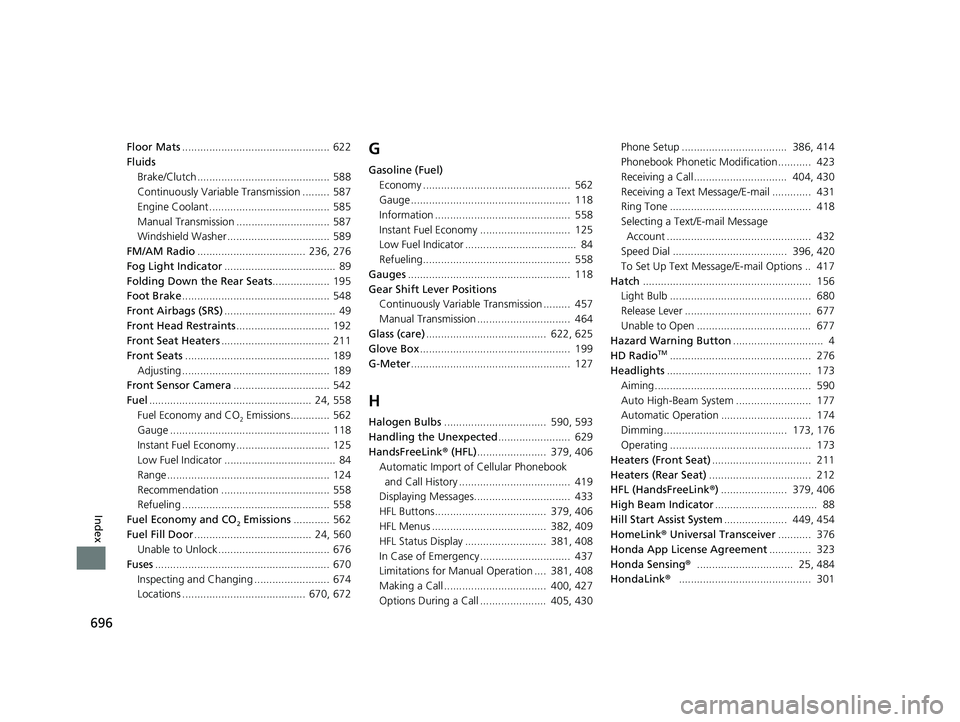

696
Index
Floor Mats................................................. 622
Fluids
Brake/Clutch ............................................ 588
Continuously Variable Transmission ......... 587
Engine Coolant ........................................ 585
Manual Transmission ............................... 587
Windshield Washer .................................. 589
FM/AM Radio .................................... 236, 276
Fog Light Indicator ..................................... 89
Folding Down the Rear Seats ................... 195
Foot Brake ................................................. 548
Front Airbags (SRS) ..................................... 49
Front Head Restraints ............................... 192
Front Seat Heaters .................................... 211
Front Seats ................................................ 189
Adjusting ................................................. 189
Front Sensor Camera ................................ 542
Fuel ...................................................... 24, 558
Fuel Economy and CO
2 Emissions............. 562
Gauge ..................................................... 118
Instant Fuel Economy ............................... 125
Low Fuel Indicator ..................................... 84
Range ...................................................... 124
Recommendation .................................... 558
Refueling ................................................. 558
Fuel Economy and CO
2 Emissions ............ 562
Fuel Fill Door ....................................... 24, 560
Unable to Unlock ..................................... 676
Fuses .......................................................... 670
Inspecting and Changing ......................... 674
Locations ......................................... 670, 672
G
Gasoline (Fuel)
Economy ................................................. 562
Gauge ..................................................... 118
Information ............................................. 558
Instant Fuel Economy .............................. 125
Low Fuel Indicator ..................................... 84
Refueling................................................. 558
Gauges ...................................................... 118
Gear Shift Lever Positions Continuously Variable Transmission ......... 457
Manual Transmission ............................... 464
Glass (care) ........................................ 622, 625
Glove Box .................................................. 199
G-Meter ..................................................... 127
H
Halogen Bulbs .................................. 590, 593
Handling the Unexpected ........................ 629
HandsFreeLink ® (HFL) ....................... 379, 406
Automatic Import of Cellular Phonebook
and Call History ..................................... 419
Displaying Messages................................ 433
HFL Buttons..................................... 379, 406
HFL Menus ...................................... 382, 409
HFL Status Display ........................... 381, 408
In Case of Emergency .............................. 437
Limitations for Manual Operation .... 381, 408
Making a Call .................................. 400, 427
Options During a Call ...................... 405, 430 Phone Setup ................................... 386, 414
Phonebook Phonetic M
odification........... 423
Receiving a Call............................... 404, 430
Receiving a Text Message/E-mail ............. 431
Ring Tone ............................................... 418
Selecting a Text/E-mail Message Account ................................................ 432
Speed Dial ...................................... 396, 420
To Set Up Text Message/E-mail Options .. 417
Hatch ........................................................ 156
Light Bulb ............................................... 680
Release Lever .......................................... 677
Unable to Open ...................................... 677
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 276
Headlights ................................................ 173
Aiming.................................................... 590
Auto High-Beam System ......................... 177
Automatic Operation .............................. 174
Dimming......................................... 173, 176
Operating ............................................... 173
Heaters (Front Seat) ................................. 211
Heaters (Rear Seat) .................................. 212
HFL (HandsFreeLink ®) ...................... 379, 406
High Beam Indicator .................................. 88
Hill Start Assist System ..................... 449, 454
HomeLink ® Universal Transceiver ........... 376
Honda App License Agreement .............. 323
Honda Sensing ®................................ 25, 484
HondaLink ®............................................ 301
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 696 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

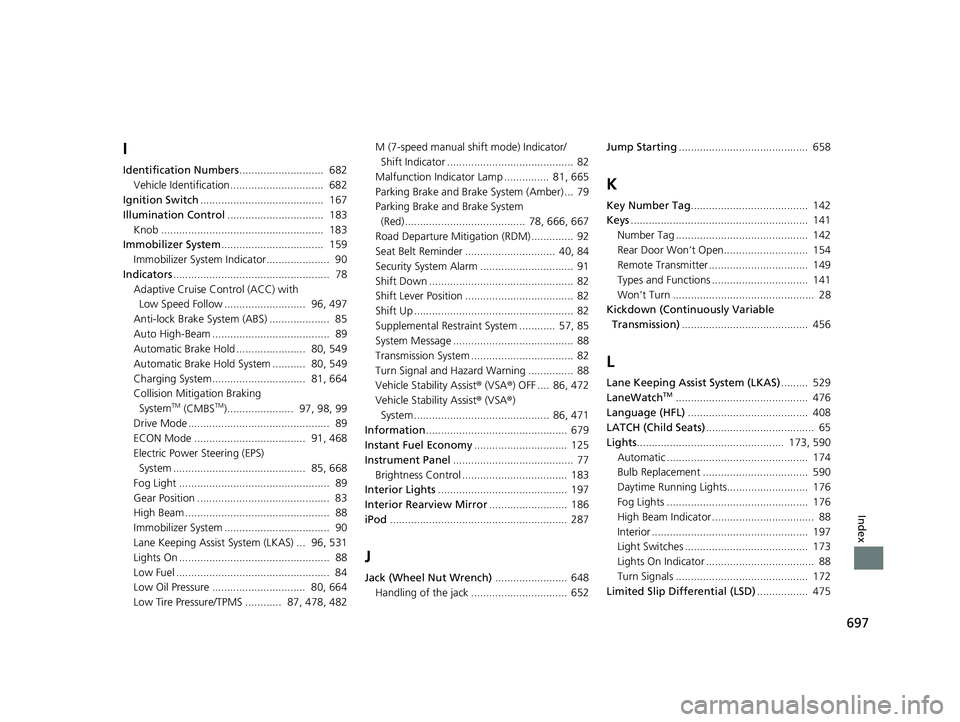

697
Index
I
Identification Numbers............................ 682
Vehicle Identification............................... 682
Ignition Switch ......................................... 167
Illumination Control ................................ 183
Knob ...................................................... 183
Immobilizer System .................................. 159
Immobilizer System Indicator..................... 90
Indicators .................................................... 78
Adaptive Cruise Control (ACC) with Low Speed Follow ........................... 96, 497
Anti-lock Brake System (ABS) .................... 85
Auto High-Beam ....................................... 89
Automatic Brake Hold ....................... 80, 549
Automatic Brake Hold System ........... 80, 549
Charging System............................... 81, 664
Collision Mitigation Braking System
TM (CMBSTM)...................... 97, 98, 99
Drive Mode ............................................... 89
ECON Mode ..................................... 91, 468
Electric Power Steering (EPS) System ............................................ 85, 668
Fog Light .................................................. 89
Gear Position ............................................ 83
High Beam ................................................ 88
Immobilizer System ................................... 90
Lane Keeping Assist System (LKAS) ... 96, 531
Lights On .................................................. 88
Low Fuel ................................................... 84
Low Oil Pressure ............................... 80, 664
Low Tire Pressure/TPMS ............ 87, 478, 482 M (7-speed manual shift mode) Indicator/
Shift Indicator .......................................... 82
Malfunction Indicator Lamp ............... 81, 665
Parking Brake and Brake System (Amber) ... 79
Parking Brake and Brake System (Red)........................................ 78, 666, 667
Road Departure Mitigation (RDM) .............. 92
Seat Belt Reminder .............................. 40, 84
Security System Alarm ............................... 91
Shift Down ................................................ 82
Shift Lever Position .................................... 82
Shift Up ..................................................... 82
Supplemental Restraint System ............ 57, 85
System Message ........................................ 88
Transmission System .................................. 82
Turn Signal and Haza rd Warning ............... 88
Vehicle Stability Assist ® (VSA ®) OFF .... 86, 472
Vehicle Stability Assist ® (VSA ®)
System............................................. 86, 471
Information ............................................... 679
Instant Fuel Economy ............................... 125
Instrument Panel ........................................ 77
Brightness Control ................................... 183
Interior Lights ........................................... 197
Interior Rearview Mirror .......................... 186
iPod ........................................................... 287
J
Jack (Wheel Nut Wrench) ........................ 648
Handling of the jack ................................ 652 Jump Starting
........................................... 658
K
Key Number Tag ....................................... 142
Keys ........................................................... 141
Number Tag ............................................ 142
Rear Door Won’t Open............................ 154
Remote Transmitter ................................. 149
Types and Functions ................................ 141
Won’t Turn ............................................... 28
Kickdown (Continuously Variable Transmission) .......................................... 456
L
Lane Keeping Assist System (LKAS) ......... 529
LaneWatchTM............................................ 476
Language (HFL) ........................................ 408
LATCH (Child Seats) .................................... 65
Lights ................................................. 173, 590
Automatic ............................................... 174
Bulb Replacement ................................... 590
Daytime Running Lights........................... 176
Fog Lights ............................................... 176
High Beam Indicator .................................. 88
Interior .................................................... 197
Light Switches ......................................... 173
Lights On Indicator .................................... 88
Turn Signals ............................................ 172
Limited Slip Differential (LSD) ................. 475
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 697 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分
