power steering fluid HONDA CIVIC HATCHBACK 2020 Owner's Manual (in English)

455

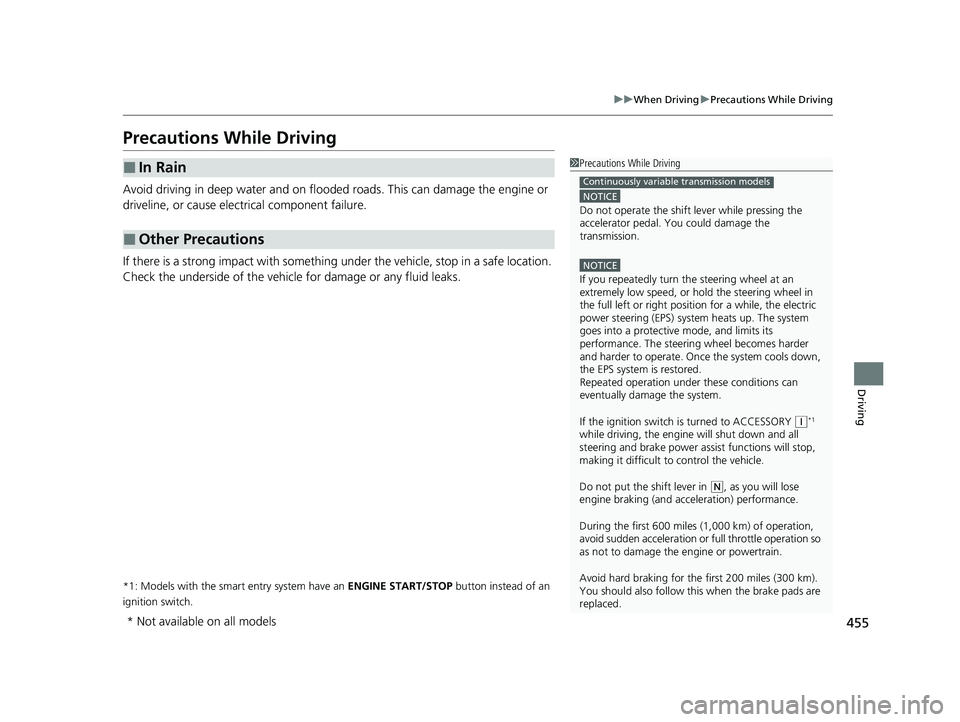

uuWhen Driving uPrecautions While Driving
Driving
Precautions While Driving
Avoid driving in deep water and on flooded roads. This can damage the engine or
driveline, or cause electrical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■In Rain
■Other Precautions
1 Precautions While Driving
NOTICE
Do not operate the shift lever while pressing the
accelerator pedal. You could damage the
transmission.
NOTICE
If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel in
the full left or right position for a while, the electric
power steering (EPS) system heats up. The system
goes into a protective mode, and limits its
performance. The steering wheel becomes harder
and harder to operate. Once the system cools down,
the EPS system is restored.
Repeated operation under these conditions can
eventually damage the system.
If the ignition switch is turned to ACCESSORY
( q*1
while driving, the engine will shut down and all
steering and brake power a ssist functions will stop,
making it difficult to control the vehicle.
Do not put the shift lever in
( N, as you will lose
engine braking (and acce leration) performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as not to damage the engine or powertrain.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.
Continuously variable transmission models
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 455 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

572
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for Temporary Tire Repair kit
bottle (If equipped)
●Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles.
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes
more frequently than recommended by the Maintenance Minder. If you regularly drive your vehicle
under these conditions, have the transmission fluid changed every 25,000 miles.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
Continuously variable transmission models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 572 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

573
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km.
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km.
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes
more frequently than recommended by the Maintenance Minder. If you regularly drive your vehicle
under these conditions, have the transmission fluid changed every 40,000 km.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
Continuously variable transmission models
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
9●Service front and rear brakes●Check expiration date for Temporary Tire Repair kit
bottle (If equipped)
●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 573 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

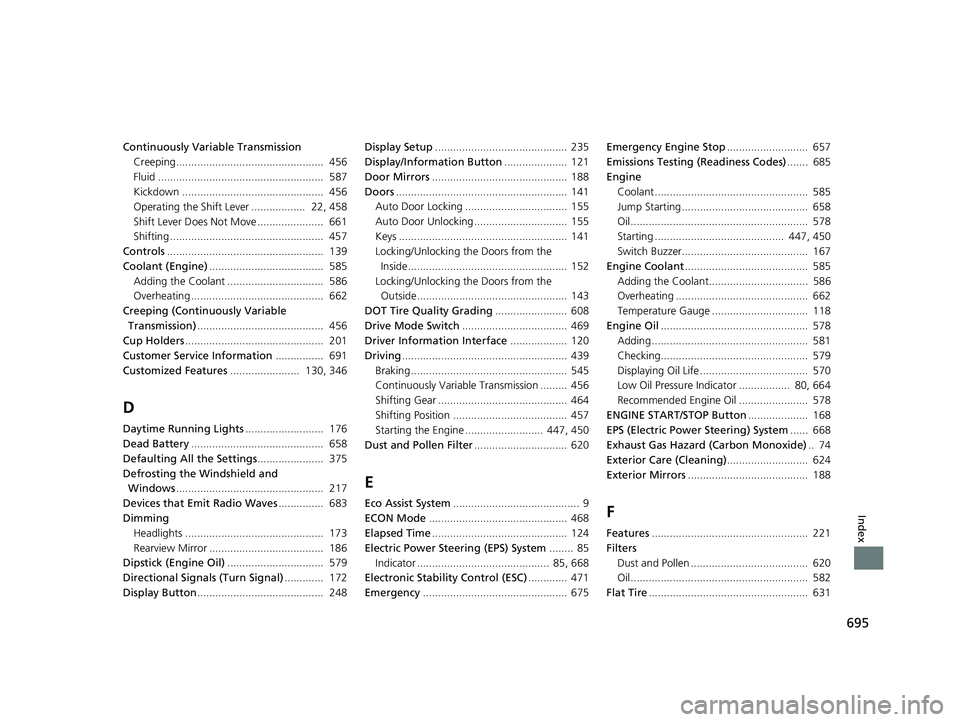

695
Index
Continuously Variable TransmissionCreeping................................................. 456
Fluid ....................................................... 587
Kickdown ............................................... 456
Operating the Shift Lever .................. 22, 458
Shift Lever Does Not Move ...................... 661
Shifting ................................................... 457
Controls .................................................... 139
Coolant (Engine) ...................................... 585
Adding the Coolant ................................ 586
Overheating ............................................ 662
Creeping (Continuously Variable Transmission) .......................................... 456
Cup Holders .............................................. 201
Customer Service Information ................ 691
Customized Features ....................... 130, 346
D
Daytime Running Lights .......................... 176
Dead Battery ............................................ 658
Defaulting All the Settings ...................... 375
Defrosting the Windshield and Windows ................................................. 217
Devices that Emit Radio Waves ............... 683
Dimming Headlights .............................................. 173
Rearview Mirror ...................................... 186
Dipstick (Engine Oil) ................................ 579
Directional Signals (Turn Signal) ............. 172
Display Button .......................................... 248 Display Setup
............................................ 235
Display/Information Button ..................... 121
Door Mirrors ............................................. 188
Doors ......................................................... 141
Auto Door Locking .................................. 155
Auto Door Unlocking ............................... 155
Keys ........................................................ 141
Locking/Unlocking the Doors from the
Inside..................................................... 152
Locking/Unlocking the Doors from the Outside.................................................. 143
DOT Tire Quality Grading ........................ 608
Drive Mode Switch ................................... 469
Driver Information Interface ................... 120
Driving ....................................................... 439
Braking .................................................... 545
Continuously Variable Transmission ......... 456
Shifting Gear ........................................... 464
Shifting Position ...................................... 457
Starting the Engine .......................... 447, 450
Dust and Pollen Filter ............................... 620
E
Eco Assist System.......................................... 9
ECON Mode .............................................. 468
Elapsed Time ............................................. 124
Electric Power Steering (EPS) System ........ 85
Indicator ............................................ 85, 668
Electronic Stability Control (ESC) ............. 471
Emergency ................................................ 675 Emergency Engine Stop
........................... 657
Emissions Testing (Readiness Codes) ....... 685
Engine Coolant ................................................... 585
Jump Starting .......................................... 658
Oil ........................................................... 578
Starting ........................................... 447, 450
Switch Buzzer.......................................... 167
Engine Coolant ......................................... 585
Adding the Coolant................................. 586
Overheating ............................................ 662
Temperature Gauge ................................ 118
Engine Oil ................................................. 578
Adding .................................................... 581
Checking................................................. 579
Displaying Oil Life .................................... 570
Low Oil Pressure Indicator ................. 80, 664
Recommended Engine Oil ....................... 578
ENGINE START/STOP Button .................... 168
EPS (Electric Power Steering) System ...... 668
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) ........................... 624
Exterior Mirrors ........................................ 188F
Features.................................................... 221
Filters Dust and Pollen ....................................... 620
Oil ........................................................... 582
Flat Tire ..................................................... 631
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 695 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分
