This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your Honda. All the essential
controls are within easy reach............................
Control Locations .50
............................
Instrument Panel .51
.............................................
Gauges .59
.....................................
Odometer .60
...................................
Trip Meter .60
.................
Current Fuel Mileage . 60
................................
Trip Mileage .60
Turning Of f the Mileage .....................................
Display .61
..................................
Fuel Gauge .61
.........
IMA Battery Level Gauge . 62
................
Charge/Assist Gauge . 63
...................
Temperature Gauge . 63
Controls Near the Steering ...........................................
Wheel .64
.
Windshield Wipers and Washers . 65
...........
Turn Signal and Headlights . 66
........
Instrument Panel Brightness . 67
.................
Hazard Warning Button . 67
.................
Rear Window Def ogger . 68
..........
Steering Wheel Adjustment . 69
...............................
Keys and Locks .70
........................
Immobilizer System .71
................................
Ignition Switch .72 ......................................
Door Locks .73
..................................
Door Locks .73
......................
Power Door Locks .73
..............
Childproof Door Locks . 73
...........................................
Trunk .74
........
Emergency Trunk Opener . 74
.......................
Remote Transmitter .75
.................................................
Seats .77
..............................
Power Windows .79
.............................................
Mirrors .81
.................................
Parking Brake .82
.................................
Interior Lights .83
...........
Interior Convenience Items . 84
.......................
Beverage Holders .85
..........
Accessory Power Sockets . 85
....................................
Glove Box .85
...............
Console Compartment . 85
Instruments and Controls
Inst rument s and Cont rols49

Gauges
Automatic Transmission (CVT) is shown
Inst rument s and Cont rols59

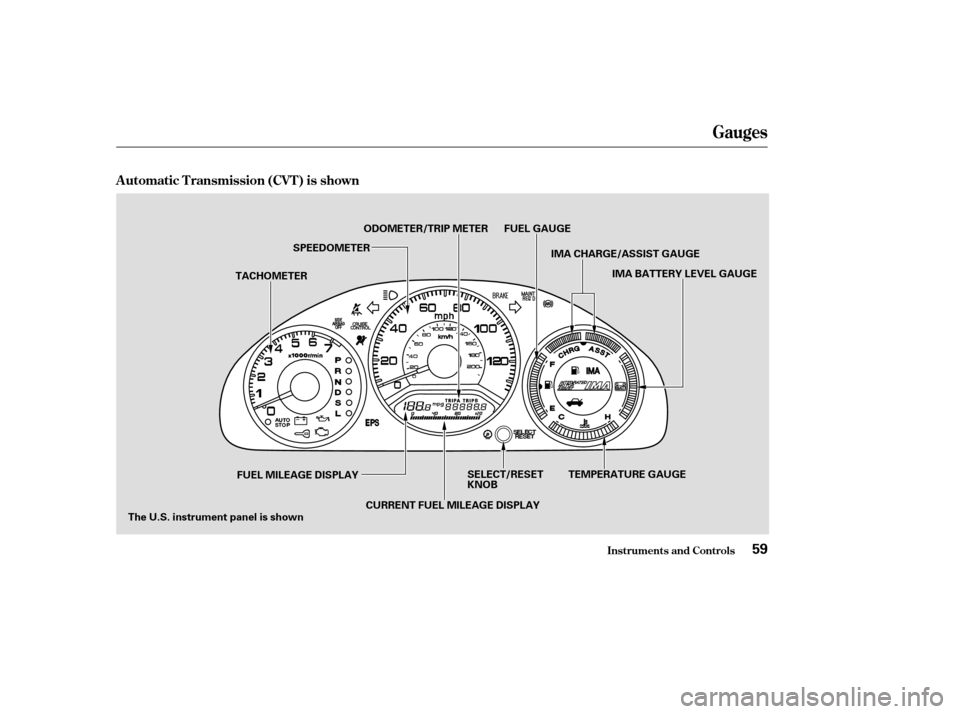

TACHOMETERSPEEDOMETER
ODOMETER/TRIP METER FUEL GAUGE
IMA CHARGE/ASSIST GAUGE
FUEL MILEAGE DISPLAY CURRENT FUEL MILEAGE DISPLAY TEMPERATURE GAUGEIMA BATTERY LEVEL GAUGE
The U.S. instrument panel is shown SELECT/RESET
KNOB

The trip meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.There are two trip meters: Trip A
and Trip B. Each trip meter works
independently, so you can keep track
of two dif f erent distances.
To reset a trip meter, display it and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0’’.
The odometer and the trip meters
use the same display. Switch these
displays by pressing the Select/
Reset knob.
The odometer shows the total dis-
tance your vehicle has been driven.
It measures miles in U.S. models and
kilometers in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
This display shows the current, or
instantaneous fuel mileage you are
getting.
It shows the number of mpg (U.S.)
or l/100 km (Canada).
You can turn off this display at any
time. See page .
When a trip meter is displayed, the
average fuel mileage you have been
getting during that trip is shown in
the Fuel Mileage display. This
number is updated once per ten
seconds.
When you reset a trip meter, the
average fuel mileage for that trip
meter also resets.
61
Trip Meter Current Fuel MileageTrip Mileage
Odometer
Inst rument s and Cont rols
Gauges
60
TRIP MILEAGE (TRIPA)
U.S. Model is shown

You can temporarily turn of f the
Current Fuel Mileage display.This shows how much f uel you have.
It may show slightly more or less
than the actual amount.
Turn the ignition switch to ON (II)
and make sure the transmission is
in Neutral (manual) or Park
(automatic) and the parking brake
is set.
Use the Select/Reset button to
select the odometer display.
Press and hold the Select/Reset
button f or about 10 to 15 seconds,
then release it. The Current Fuel
Mileage display will turn of f .
The display will turn back on when
you repeat the same procedure in
step 3. 1.
3. 2.
Gauges
Inst rument s and Cont rols
T urning Of f the Mileage Display Fuel Gauge
61
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.

Push the button between the center
vents to turn on the hazard warning
lights (f our-way f lashers). This
causes all f our outside turn signals
and both indicators in the instrument
panel to f lash. Use the hazard
warning lights if you need to park in
a dangerous area near heavy traffic,
or if your vehicle is disabled.

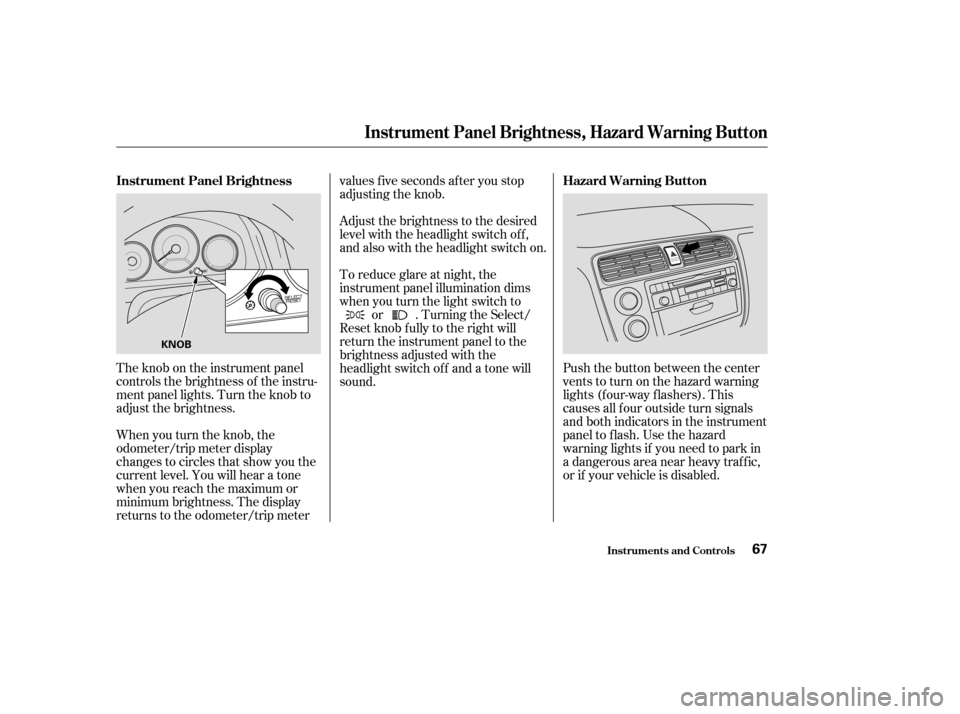

The knob on the instrument panel
controls the brightness of the instru-
ment panel lights. Turn the knob to
adjust the brightness.
When you turn the knob, the
odometer/trip meter display
changes to circles that show you the
current level. You will hear a tone
when you reach the maximum or
minimum brightness. The display
returns to the odometer/trip meter values f ive seconds af ter you stop
adjusting the knob.
Adjust the brightness to the desired
level with the headlight switch of f ,
and also with the headlight switch on.
To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to
or . Turning the Select/
Reset knob f ully to the right will
return the instrument panel to the
brightness adjusted with the
headlight switch of f and a tone will
sound.
Instrument Panel Brightness
Hazard Warning Button
Instrument Panel Brightness, Hazard Warning Button
Inst rument s and Cont rols67
KNOB

µµ
µ µ
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob or the AM/FM
button. Adjust the volume by turning
thesameknob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
You can use any of f ive methods to
f ind radio stations on the selected
band: the
preset buttons, and .
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a lower f requency.
The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
bar, then release it.
The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan f or
a station with a strong signal. When
it f inds one, it will stop and play that
station f or about f ive seconds.
If you do nothing, the system will
then scan f or the next strong station
and play it for five seconds. When it
plays a station you want to listen to,
press the SCAN button again. Each preset button can
store one f requency on AM, and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pick a preset button, and hold it
until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
stations on FM.
The preset f requencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed. 1.
2.
3.
4.
CONT INUED
To Play the Radio
To Select a Station
TUNE,SEEK,SCAN, AUTO SELECT
TUNE SEEK
SCAN
Preset
Playing the Radio
Comf ort and Convenience Feat ures95

µµ µ
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the Auto Select f eature
to find stations in the local area.
Press the A. SEL Button. ‘‘A.SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM, and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if Auto
Select cannot f ind a strong station
f or every preset button.
If you do not like the stations Auto
Select has stored, you can store
other f requencies on the preset
buttons. Use the TUNE, SEEK, or
SCAN functions to find stations, then
store them in the preset buttons as
described. press the
A. SEL button. This restores the
presets you originally set.
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f .
Use the TRE/BAS
modes to adjust the tone to your
liking. Eachmodeisshowninthedisplayas
it changes. Turn the SOUND
(TUNE) knob to adjust the setting to
your liking. When the level reaches
the center, you will see ‘‘C’’ in the
display. The system will
automatically return the display to
the selected audio mode about f ive
seconds af ter you stop adjusting a
mode. These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength.
Press the SOUND (TUNE) knob
repeatedly to display the Bass (BAS),
Treble (TRE), Fader (FAD), and
Balance (BAL) setting.
67To turn of f Auto Select,AUTO SELECT
Adjusting the SoundA udio System L ighting
Treble/Bass Balance/Fader
Playing the Radio
Comf ort and Convenience Feat ures96

Your Honda’s radio can receive the
complete AM and FM bands.
Those bands cover these f requen-
cies:
AM band:
530 to 1,710 kilohertz
FM band:
87.7 to 107.9 megahertz
Radio stations on the AM band are
assigned f requencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned f requencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’How well your Honda’s radio
receives stations is dependent on
many f actors, such as the distance
from the station’s transmitter,
nearby large objects, and atmos-
pheric conditions.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
CONT INUED
Radio Frequencies
Radio Reception
Radio Reception
Comf ort and Convenience Feat ures97

µ´
µ
µ
With the ignition in the
ACCESSORY (I) or ON (II) position,
insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way and begin to play it.
You operate the CD player with the
same controls used f or the radio.
The number of the track playing is
shown in the display. The system will
continuously play a CD until you
change modes.
To select the CD changer, press the
CD button. The CD and track
numbers will be displayed. To select
a dif f erent CD, use the preset5
(DISC ) or preset 6 (DISC )
button. If you select an empty slot in
the magazine, the changer will, af ter
f inding that slot empty, try to load
the CD in the next slot. Load the desired CDs in the
magazine, and load the magazine in
the changer according to the
instructions that came with the unit. A CD changer is available f or your
vehicle. It holds up to six CDs. You
operate the CD changer with the
same controls used f or the in-dash
CD player.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition, the CD will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .
Press the AM/FM button to switch
to the radio while a CD is playing.
Press the CD button to play the CD. Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it f rom the slot,
the system will automatically reload
the CD af ter 15 seconds and put it in
pause mode. To begin playing, press
the CD button. This f eature plays the
tracks in random order. To activate
Random Play, press and release the
RDM button. You will see RDM in
the display. This continues until you
press the RDM button again.
To continuously replay
a track, press and release the RPT button. You will see RPT in the
display. Press the RPT button again
to turn it off.
Each time you press and release , the player skips f orward to
the beginning of the next track.
Press and release to skip
backward to the beginning of the
previous track.
To move rapidly within a track, press
and hold the or . You will
see CUE or REW in the display. To Play a CD
Operating the Optional CD
Changer
To Stop Playing a CD RANDOM
REPEAT To Change Tracks (SKIP)
Playing a CD, CD Changer
Comf ort and Convenience Feat ures100

CauseSolution
If you see an error message in the
display while playing a CD, f ind the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to a Honda dealer. Error
Message
FOCUS Error
Mechanical Error
High temperature Press the EJECT button and pull out the CD.
Check if it is inserted correctly in the CD player.
Make sure the CD is not scratched or damaged.
Press the EJECT button and pull out the CD.
Check the CD for damage or deformation.
If the CD cannot be pulled out, or the error
message does not disappear after the CD is
ejected, see a Honda dealer.
Will disappear when the temperature returns to
normal.
CD Player Error Messages
Comf ort and Convenience Feat ures102
