Page 11 of 268

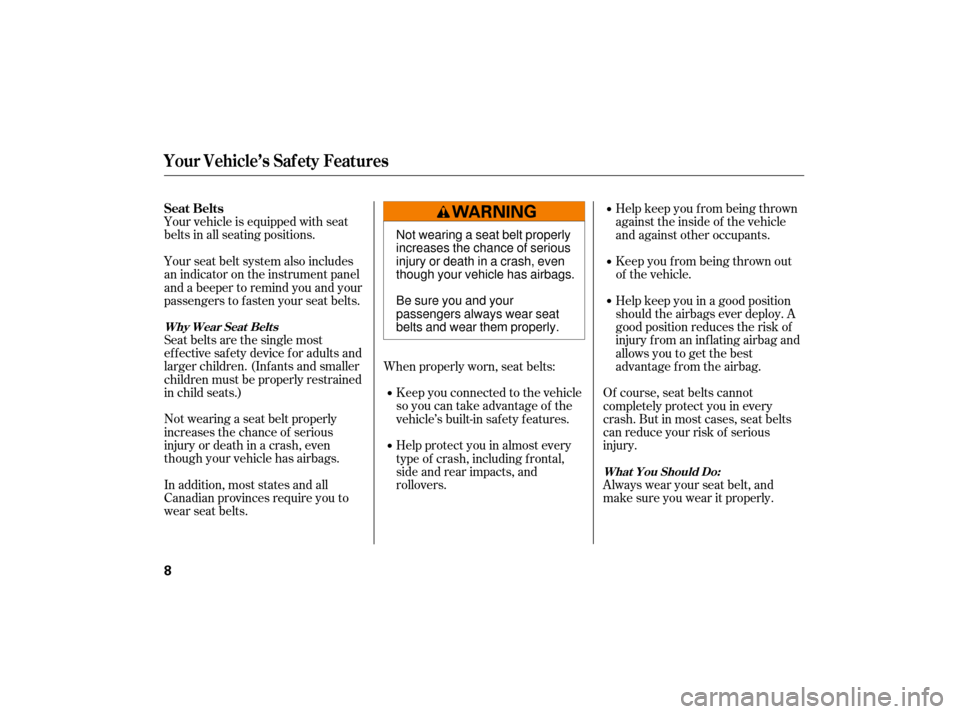

Your vehicle is equipped with seat
belts in all seating positions.
Seat belts are the single most
effectivesafetydeviceforadultsand
larger children. (Inf ants and smaller
children must be properly restrained
in child seats.)
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
In addition, most states and all
Canadian provinces require you to
wear seat belts.When properly worn, seat belts:
Keep you connected to the vehicle
so you can take advantage of the
vehicle’s built-in saf ety f eatures. Help keep you f rom being thrown
against the inside of the vehicle
and against other occupants.
Keep you f rom being thrown out
of the vehicle.
Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury f rom an inf lating airbag and
allows you to get the best
advantage f rom the airbag.
Of course, seat belts cannot
completely protect you in every
crash.Butinmostcases,seatbelts
can reduce your risk of serious
injury.
Always wear your seat belt, and
make sure you wear it properly.
Your seat belt system also includes
an indicator on the instrument panel
and a beeper to remind you and your
passengers to f asten your seat belts.
Help protect you in almost every
type of crash, including f rontal,
side and rear impacts, and
rollovers.
Your Vehicle’s Saf ety Features
Seat Belts
Why Wear Seat Belt s
What You Should Do:
8
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Be sure you and your
passengers always wear seat
belts and wear them properly.
Page 12 of 268
CONTINUED

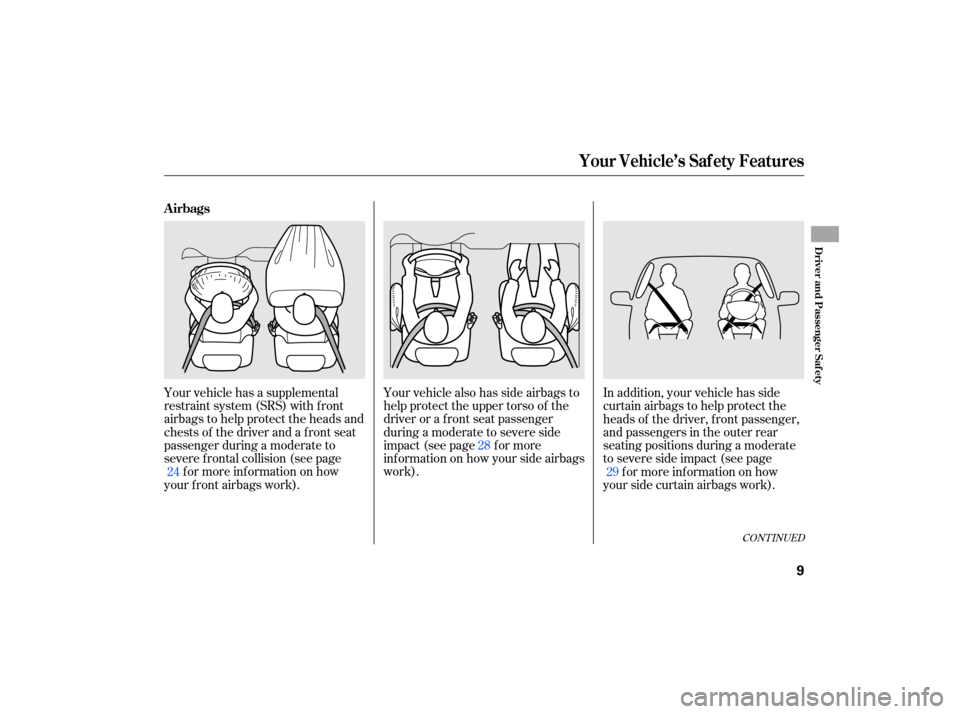

Your vehicle has a supplemental
restraint system (SRS) with front
airbags to help protect the heads and
chests of the driver and a front seat
passenger during a moderate to
severe frontal collision (see page
for more information on how
your front airbags work). Your
vehicle also has side airbags to
help protect the upper torso of the
driver or a front seat passenger
during a moderate to severe side
impact (see page for more
information on how your side airbags
work). In
addition, your vehicle has side
curtain airbags to help protect the
heads of the driver, front passenger,
and passengers in the outer rear
seating positions during a moderate
to severe side impact (see page f or more inf ormation on how
your side curtain airbags work).
24 28
29
Your Vehicle’s Saf ety Features
Airbags
Driver and Passenger Saf ety
9
Page 13 of 268

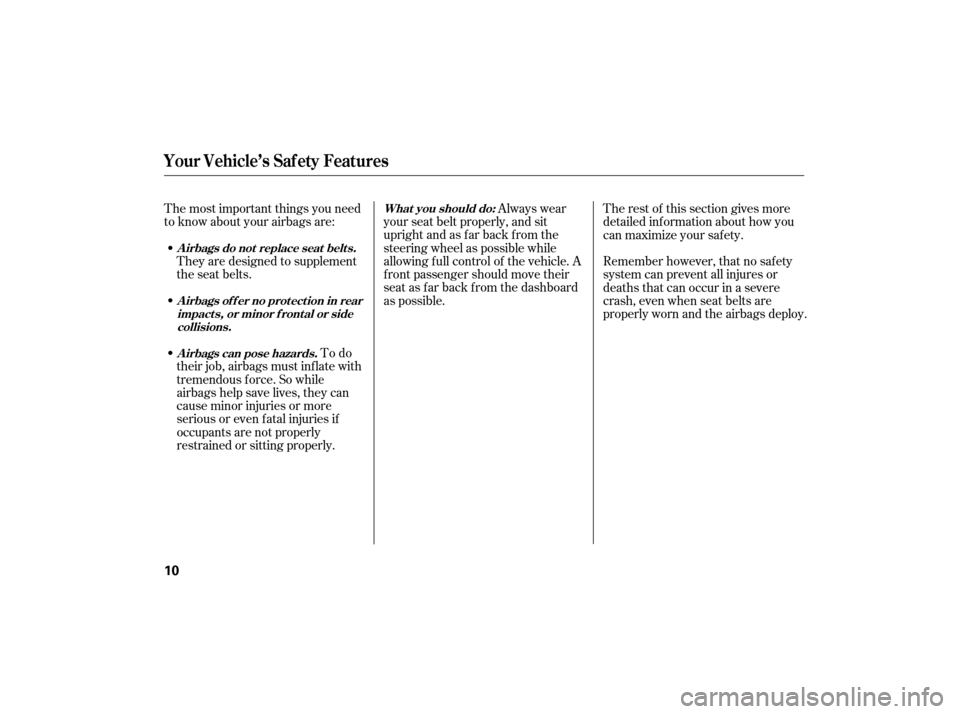

The most important things you need
to know about your airbags are:They are designed to supplement
the seat belts.
To do
their job, airbags must inf late with
tremendous f orce. So while
airbags help save lives, they can
cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly. Always wear
your seat belt properly, and sit
upright and as f ar back f rom the
steering wheel as possible while
allowing f ull control of the vehicle. A
f ront passenger should move their
seat as far back from the dashboard
as possible. The rest of this section gives more
detailed inf ormation about how you
can maximize your saf ety.
Remember however, that no saf ety
system can prevent all injures or
deaths that can occur in a severe
crash, even when seat belts are
properly worn and the airbags deploy.
Your Vehicle’s Saf ety Features
Airbags do not replace seat belts.
A irbags of f er no prot ect ion in rearimpact s, or minor f ront al or sidecollisions.
A irbags can pose hazards. What you should do:
10
Page 14 of 268
µ
See pages for important
guidelines on how to properly
protect infants, small children, and
larger children who ride in your
vehicle.

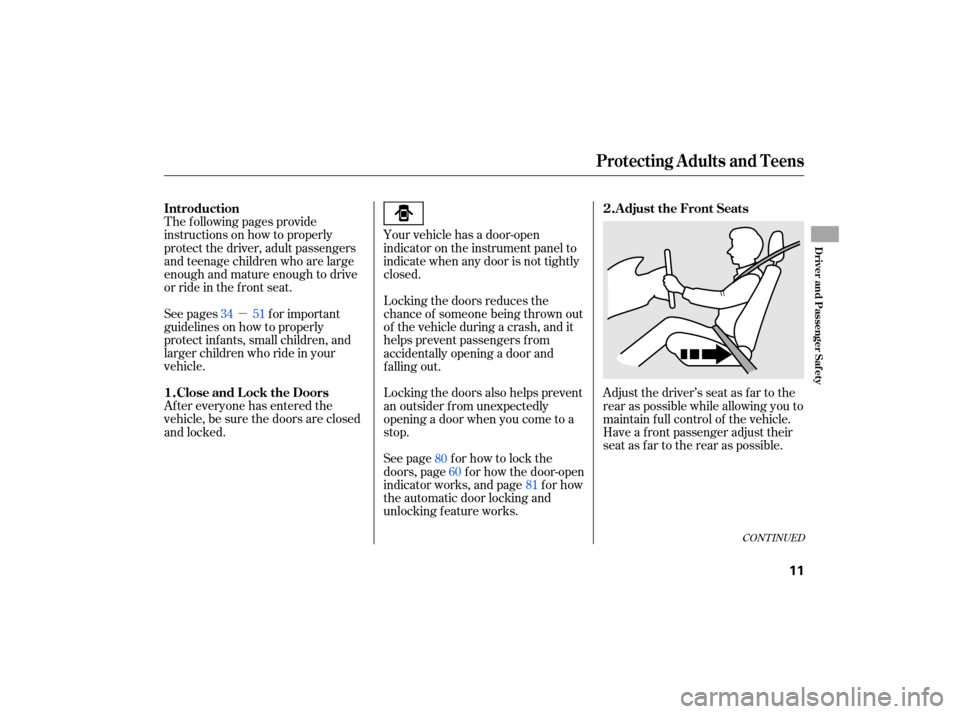

After everyone has entered the
vehicle, be sure the doors are closed
and locked. Your
vehicle has a door-open
indicator on the instrument panel to
indicate when any door is not tightly
closed.
The
following pages pro vide
instru ctions on how to properly
protect the driver, adult passengers
and teenage children who are large
enough and mature enough to drive
or ride in the front seat.
Locking the doors reduces the
chance of someone being thrown out
of the vehicle during a crash, and it
helps prevent passengers from
accidentally opening a door and
falling out.
Lo cking the doors also helps prevent
an outsider from unexp ectedly
opening a door when you come to a
stop.
See page for how to lock the
doors, page for how the door-open
indicator works, and page for how
the automatic door locking and
unlocking f eature works. Adjust the driver’s seat as far to the
rear as possible while allowing you to
maintain f ull control of the vehicle.
Have a f ront passenger adjust their
seat as far to the rear as possible.
34 51
8060 81
CONT INUED
Adjust the Front Seats
Introduction
Close and L ock the Doors
1. 2.
Protecting A dults and Teens
Driver and Passenger Saf ety
11
Page 15 of 268

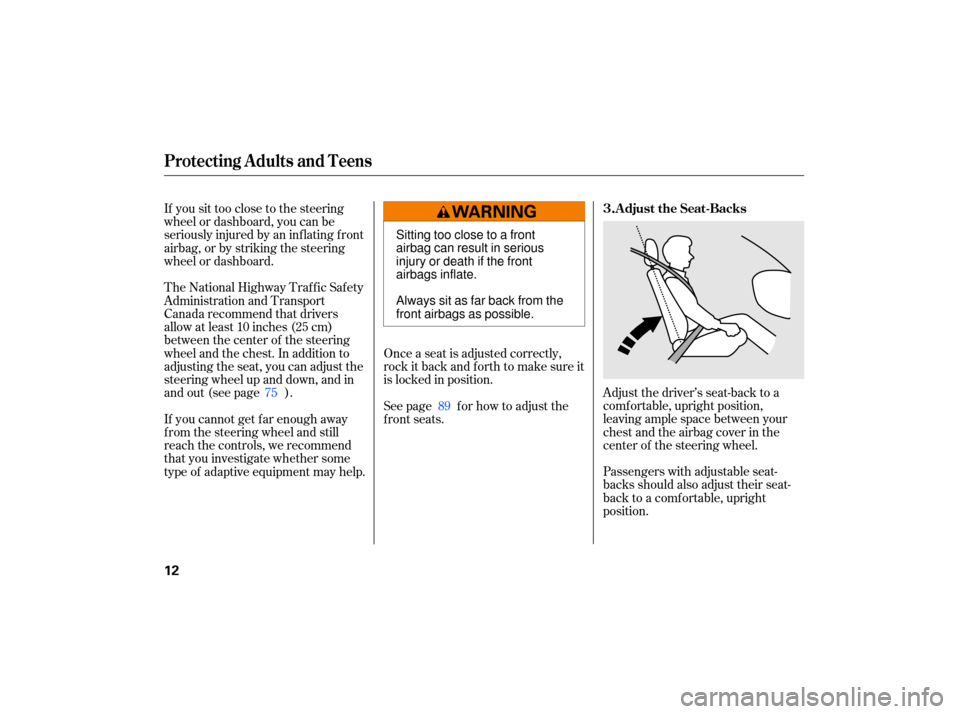

Adjust the driver’s seat-back to a
comfortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
Passengers with adjustable seat-
backs should also adjust their seat-
back to a comfo rtable, upright
position.
If
you sit too close to the steering
wh eel or dashboard, you can be
seriously injured by an inflating front
airbag, or by striking the steering
wh eel or dashboard.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest. In addition to
adjusting the seat, you can adjust the
steering wheel up and down, and in
and out (see page ).
If you cannot get far enough away
from the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help. See page f or how to adjust the
f ront seats. Once a seat is adjusted correctly,
rock it back and f orth to make sure it
is locked in position.
75 89
Protecting A dults and Teens
Adjust the Seat-Backs
3.
12
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.
Page 16 of 268

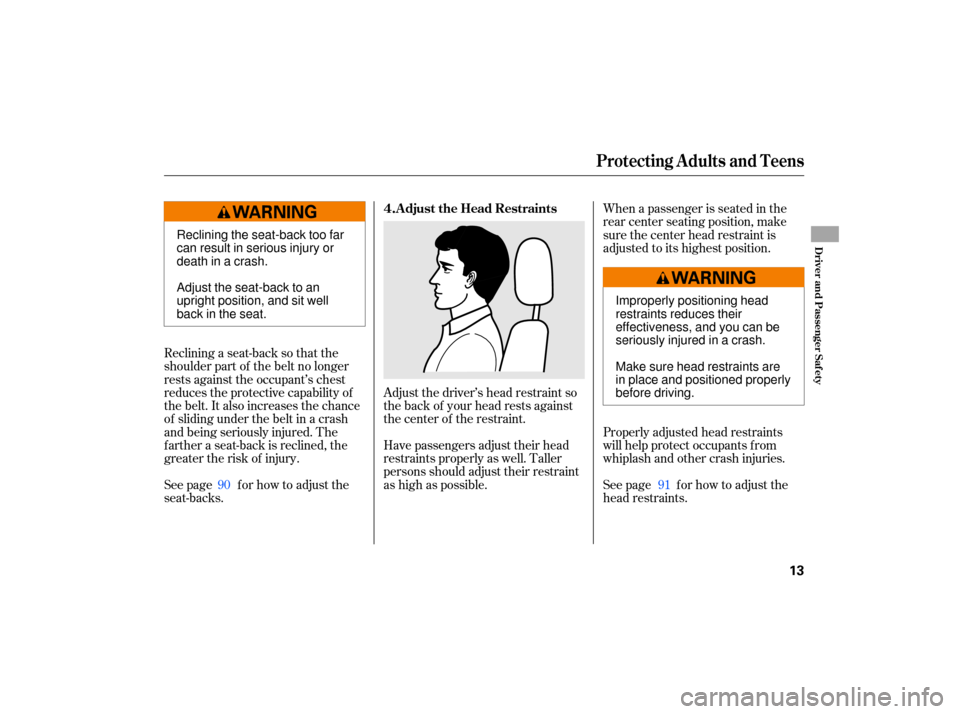

Adjust the driver’s head restraint so
the back of your head rests against
the center of the restraint.
Reclining
a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the pro tective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury. Have
passengers adjust their head
restraints properly as well. Taller
persons should adjust their restraint
as high as possible. When
a passenger is seated in the
rear center seating position, make
sure the center head restraint is
ad justed to its highest position.
Properly adjusted head restraints
will help protect occupants from
whiplash and other crash injuries.
See page for how to adjust the
head restraints.
See page f or how to adjust the
seat-backs. 91
90 A djust the Head Restraints
4.
Protecting A dults and Teens
Driver and Passenger Saf ety
13
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position, and sit well
back in the seat. Improperly positioning head
restraints reduces their
effectiveness, and you can be
seriously injured in a crash.
Make sure head restraints are
in place and positioned properly
before driving.
Page 17 of 268

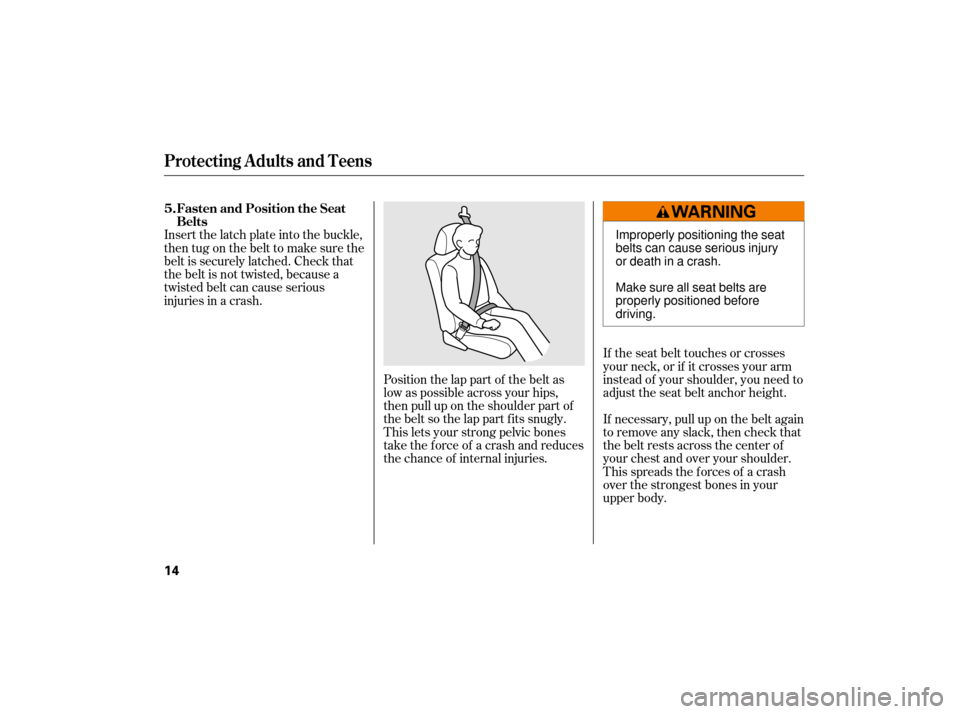

Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
the belt so the lap part f its snugly.
This lets your strong pelvic bones
take the force of a crash and reduces
the chance of internal injuries.
Insert the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched. Check that
the belt is not twisted, because a
twisted belt can cause serious
injuries in a crash.
If the seat belt touches or crosses
your neck, or if it crosses your arm
instead of your shoulder, you need to
adjust the seat belt anchor height.
If necessary, pull up on the belt again
to remove any slack, then check that
the belt rests across the center of
your chest and over your shoulder.
This spreads the f orces of a crash
over the strongest bones in your
upper body.
Protecting A dults and Teens
Fasten and Position the Seat
Belts
5.
14
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
Page 18 of 268
After all occupants have adjusted
their seats and put on seat belts, it is
very important that they continue to
sit upright, well back in their seats,
with their feet on the floor, until the
vehicle is parked and the engine is
off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both feet up, the
chance of injury during a crash is
greatly increased.
This
could cause
very serious injuries in a crash.
If a seat belt does not seem to work
properly, it may not protect the
occupant in a crash.
Using a seat
belt that is not working properly can
result in serious injury or death.
Have your dealer check the belt as
soon as possible.
See page f or additional
inf ormation about your seat belts
and how to take care of them.

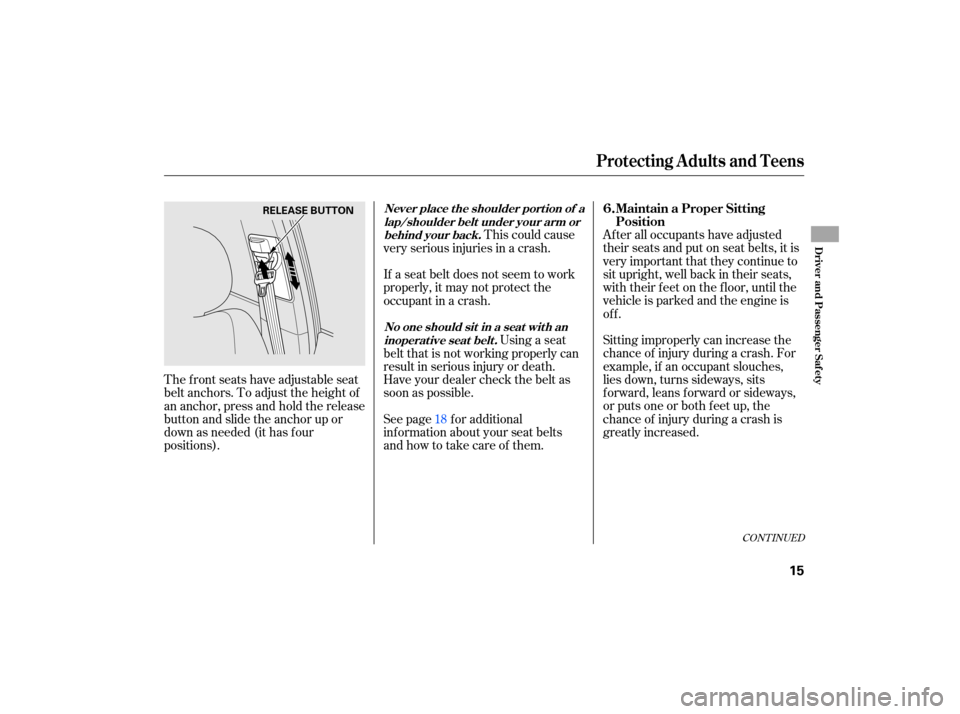

The front seats have adjustable seat
belt anchors. To adjust the height of
an anchor, press and hold the release
button and slide the anchor up or
down as needed (it has f our
positions).
18
CONT INUED
Maintain a Proper Sitting
Position
6.Never place t he shoulder port ion of a
lap/shoulder belt under your arm orbehind your back.
No one should sit in a seat wit h aninoperat ive seat belt .
Protecting A dults and Teens
Driver and Passenger Saf ety
15
RELEASE BUTTON
Page 19 of 268

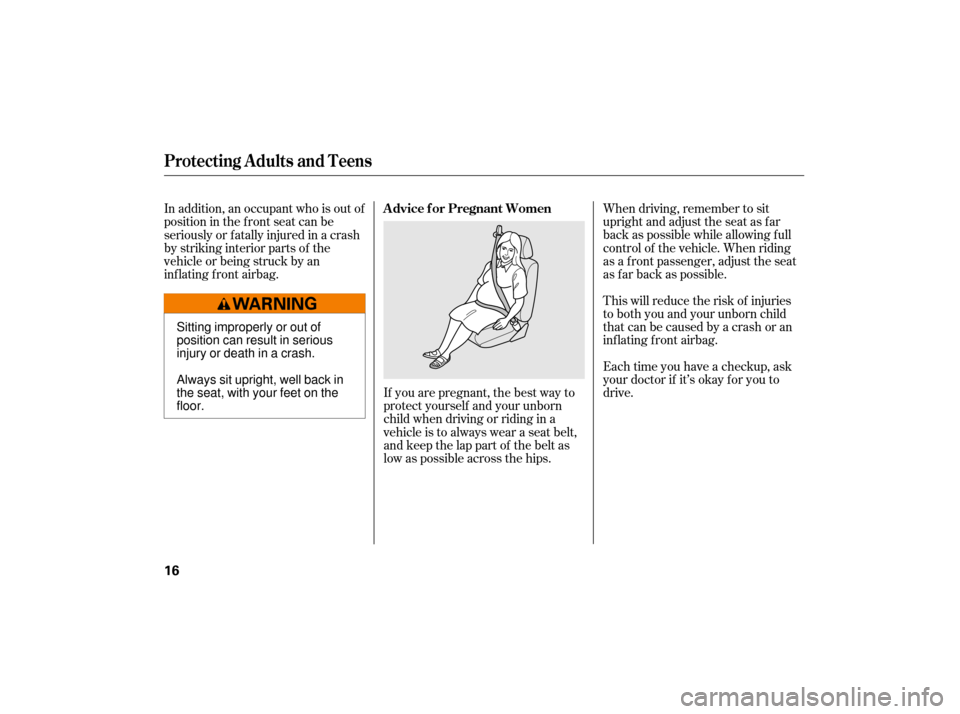

If you are pregnant, the best way to
protect yourself and your unborn
child when driving or riding in a
vehicle is to always wear a seat belt,
and keep the lap part of the belt as
low as possible across the hips.When driving, remember to sit
upright and adjust the seat as f ar
back as possible while allowing f ull
control of the vehicle. When riding
as a f ront passenger, adjust the seat
as far back as possible.
This will reduce the risk of injuries
to both you and your unborn child
that can be caused by a crash or an
inflating front airbag.
Each time you have a checkup, ask
your doctor if it’s okay f or you to
drive.
In addition, an occupant who is out of
position in the f ront seat can be
seriously or f atally injured in a crash
by striking interior parts of the
vehicle or being struck by an
inflating front airbag.
Advice f or Pregnant Women
Protecting A dults and Teens
16
Sitting improperly or out of
position can result in serious
injury or death in a crash.
Always sit upright, well back in
the seat, with your feet on the
floor.
Page 20 of 268
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp object in
your mouth, can result in injuries
if your f ront airbag inf lates.
If they do, they
could be very seriously injured in a
crash.
Devices intended to improve
occupant comf ort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
the seat belt and increase the
chance of serious injury in a crash. If your
hands or arms are close to an
airbag cover, they could be injured
if the airbag inf lates.
Objects on
the covers marked ‘‘SRS AIRBAG’’
could interf ere with the proper
operation of the airbags or be
propelled inside the vehicle and
hurt someone if the airbags inf late. If a side airbag or a
side curtain airbag inf lates, a cup
holder or other hard object
attached on or near the door could
be propelled inside the vehicle and
hurt someone.
Do not place hard or sharp object s
bet ween yourself and a f rontairbag.
T wo people should never use t he
same seat belt .
Do not put any accessories on seatbelts. K eep your hands and arms away
f rom t he airbag covers.
Do not at t ach or place object s on the f ront airbag covers. Do not at t ach hard object s on or

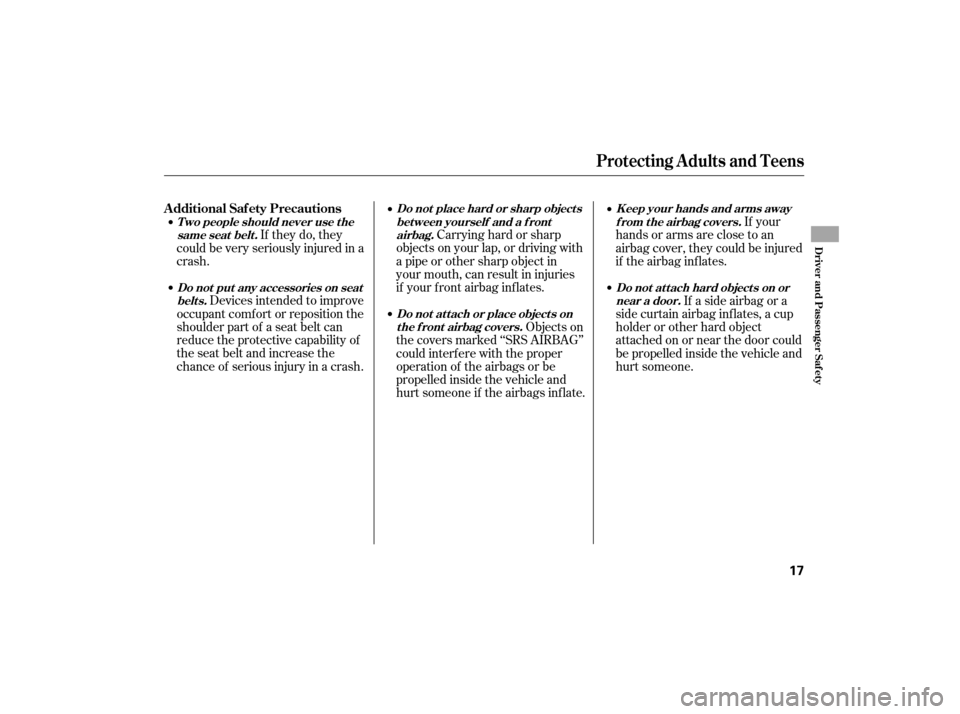

near a door.Additional Saf ety Precautions
Protecting A dults and Teens
Driver and Passenger Saf ety
17
