Page 191 of 268

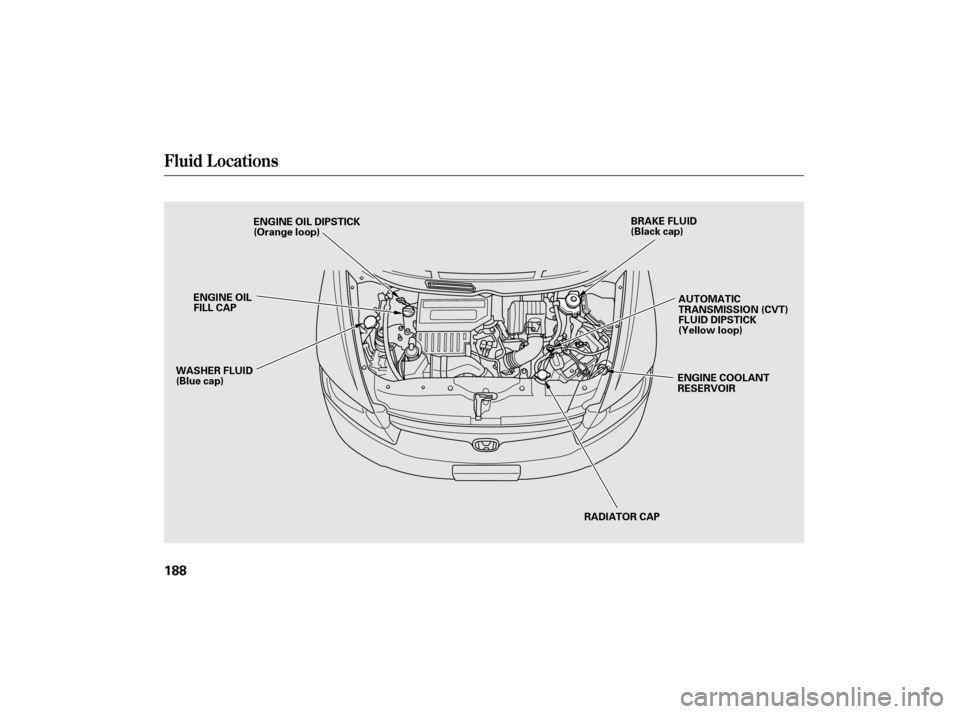

HONDA CIVIC HYBRID 2007 8.G Owners Manual Fluid Locations
188
RADIATOR CAP
ENGINE OIL DIPSTICK
(Orange loop)
ENGINE OIL
FILL CAP
WASHER FLUID
(Blue cap) AUTOMATIC
TRANSMISSION (CVT)
FLUID DIPSTICK
(Yellow loop)
ENGINE COOLANT
RESERVOIR
BRAKE

Page 192 of 268

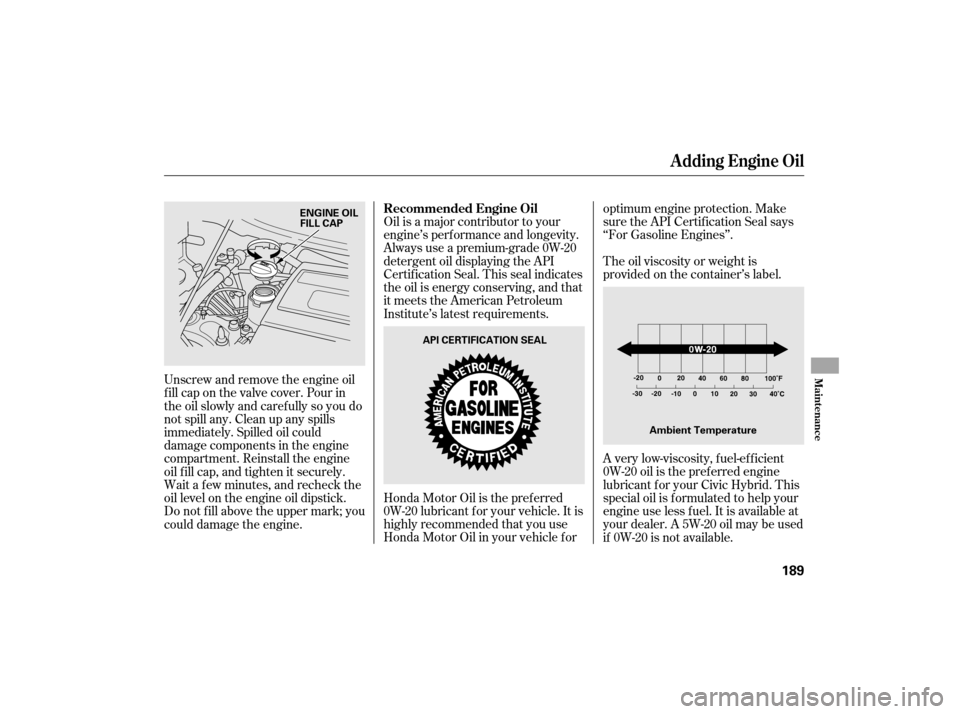

HONDA CIVIC HYBRID 2007 8.G Owners Manual The oil viscosity or weight is
provided on the container’s label.
Oil is a major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade 0W-20
detergent oil displaying

Page 193 of 268

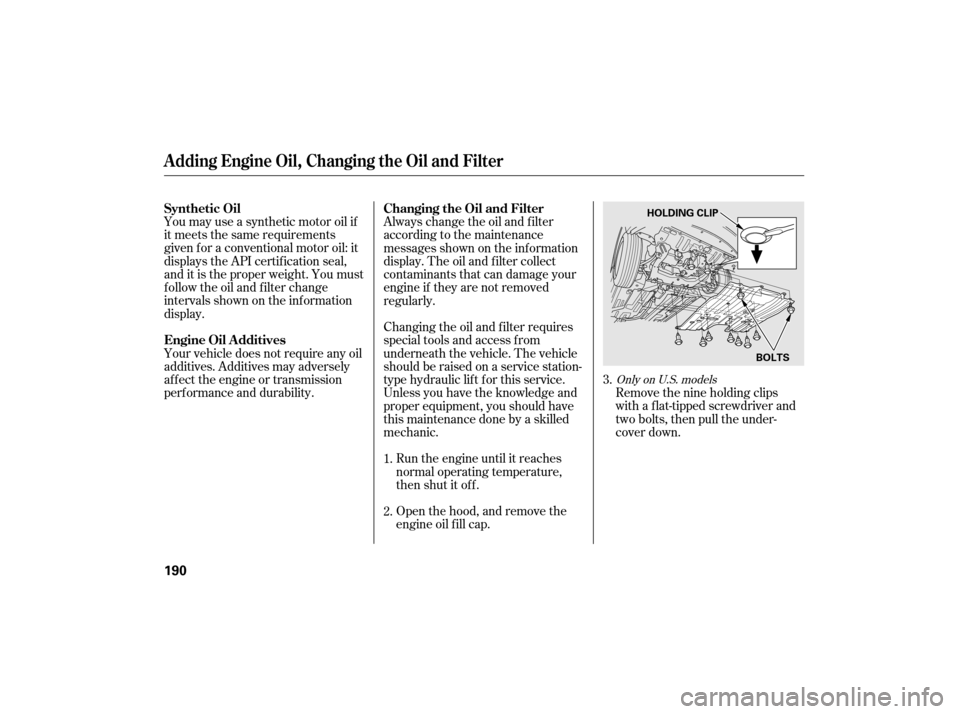

HONDA CIVIC HYBRID 2007 8.G Owners Manual You may use a synthetic motor oil if
it meets the same requirements
given f or a conventional motor oil: it
displays the API certif ication seal,
and it is the proper weight. You must
f ollow the oil

Page 194 of 268

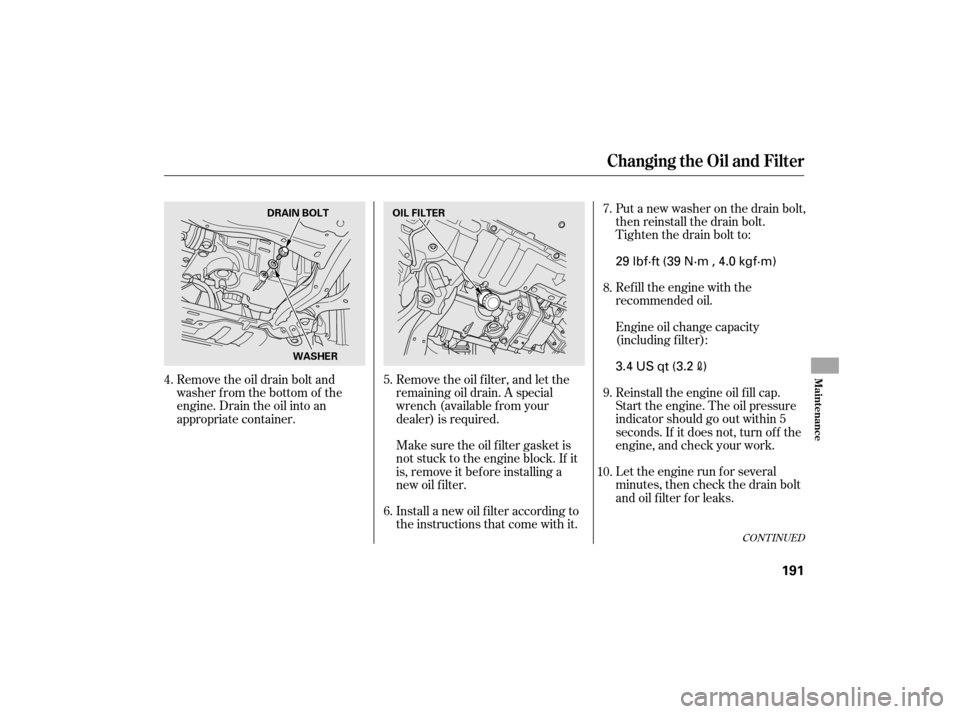

HONDA CIVIC HYBRID 2007 8.G Owners Manual Refill the engine with the
recommended oil.
Engine oil change capacity
(including f ilter):
Let the engine run f or several
minutes, then check the drain bolt
and oil f ilter f or leaks. Put a new was

Page 195 of 268

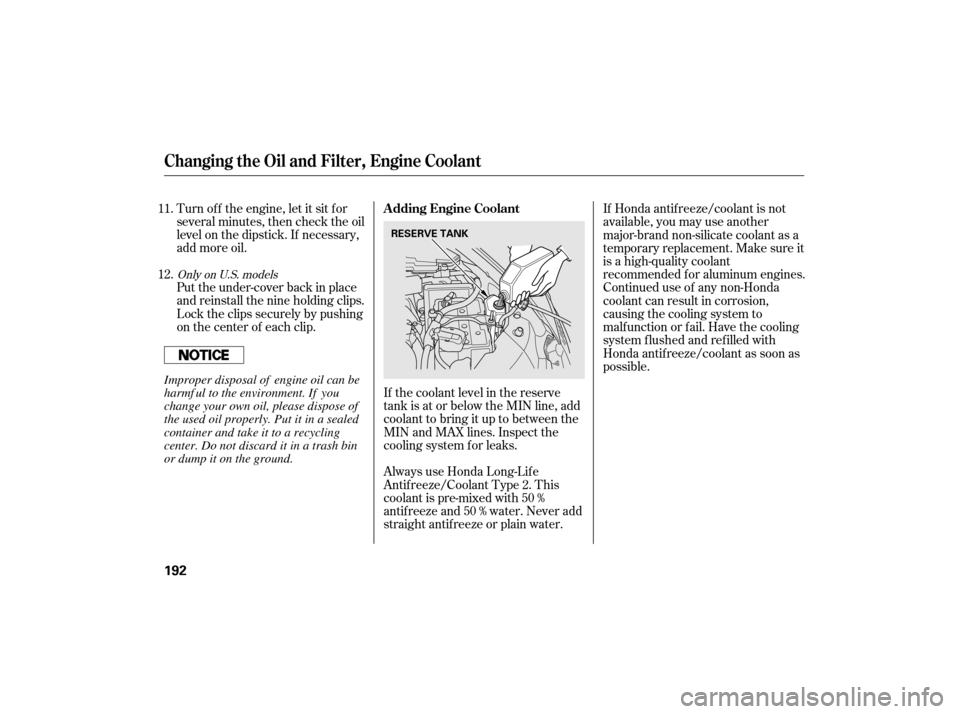

HONDA CIVIC HYBRID 2007 8.G Owners Manual Turn of f the engine, let it sit f or
several minutes, then check the oil
level on the dipstick. If necessary,
add more oil.
Put the under-cover back in place
and reinstall the nine holding clips.
Loc

Page 196 of 268

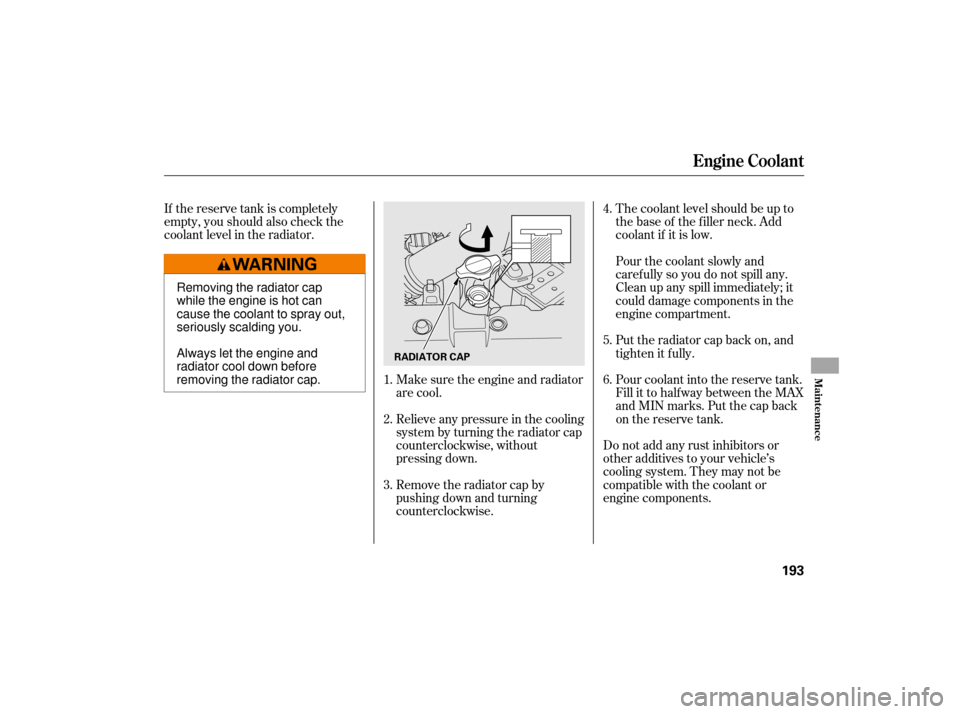

HONDA CIVIC HYBRID 2007 8.G Owners Manual If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.
Do not add an

Page 197 of 268

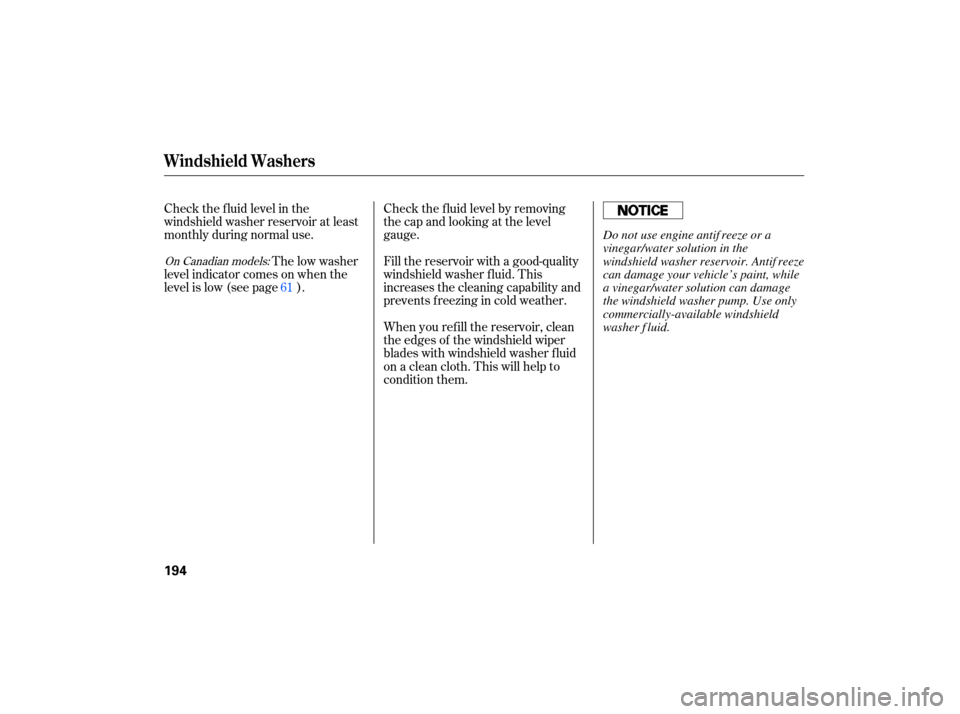

HONDA CIVIC HYBRID 2007 8.G Owners Manual Check the fluid  level  in the
windshield  washer reservoir  at least
monthly  during normal  use.
The  low washer
level  indicator  comes  on when  the
level is low (see page ). Check the f luid leve

Page 198 of 268

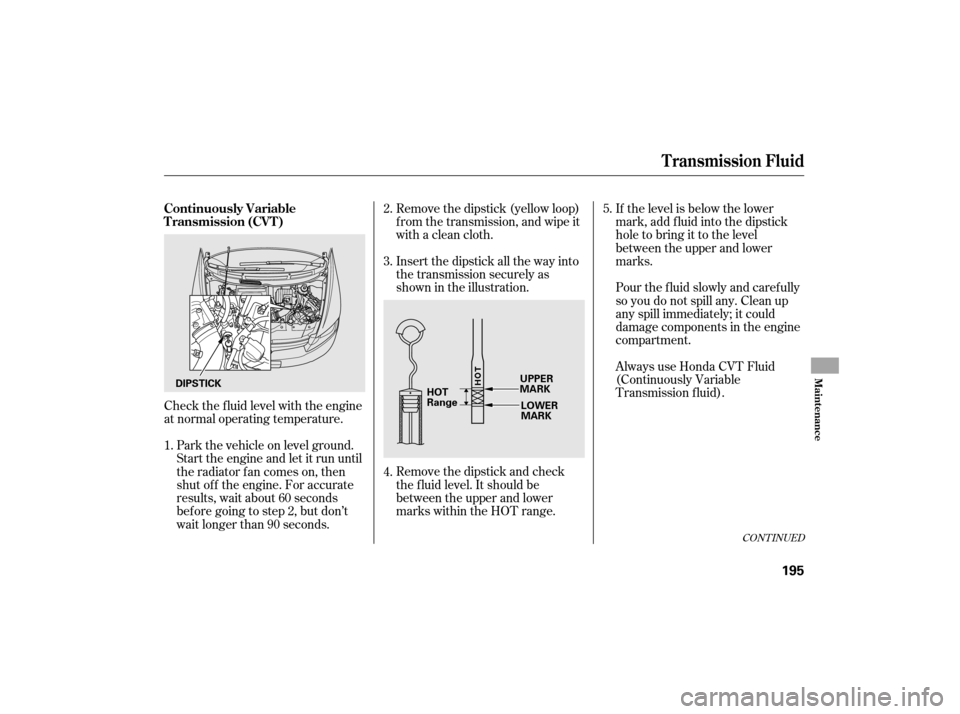

HONDA CIVIC HYBRID 2007 8.G Owners Manual Check the f luid level with the engine
at normal operating temperature.Remove the dipstick (yellow loop)
f rom the transmission, and wipe it
with a clean cloth.
Insert the dipstick all the way into
th

Page 199 of 268

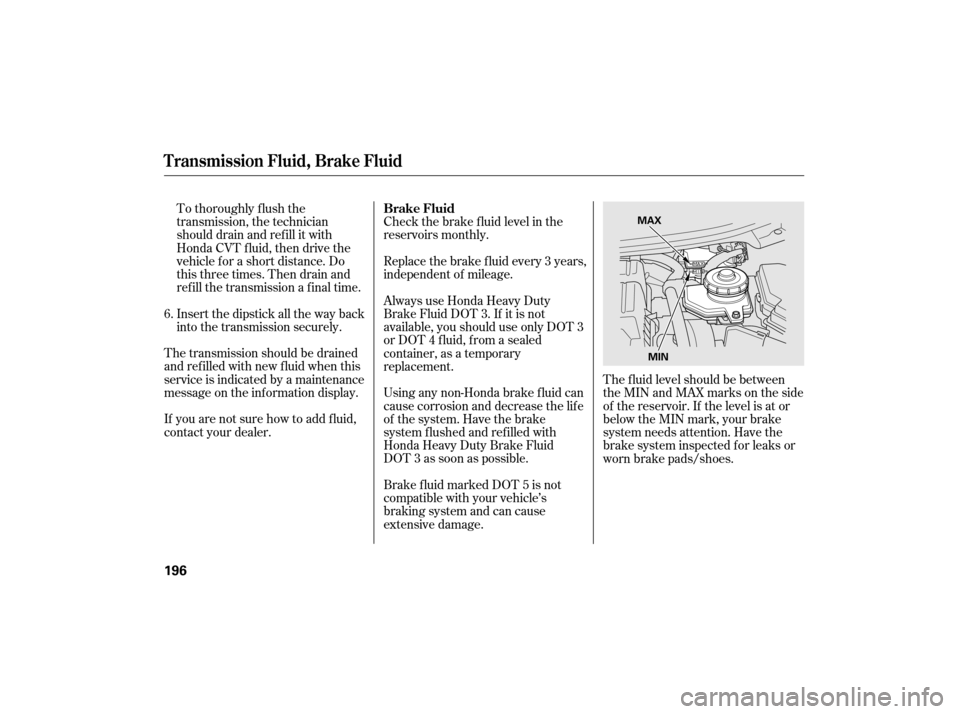

HONDA CIVIC HYBRID 2007 8.G Owners Manual Insert the dipstick all the way back
into the transmission securely.
The transmission should be drained
and ref illed with new f luid when this
service is indicated by a maintenance
message on the inf

Page 200 of 268

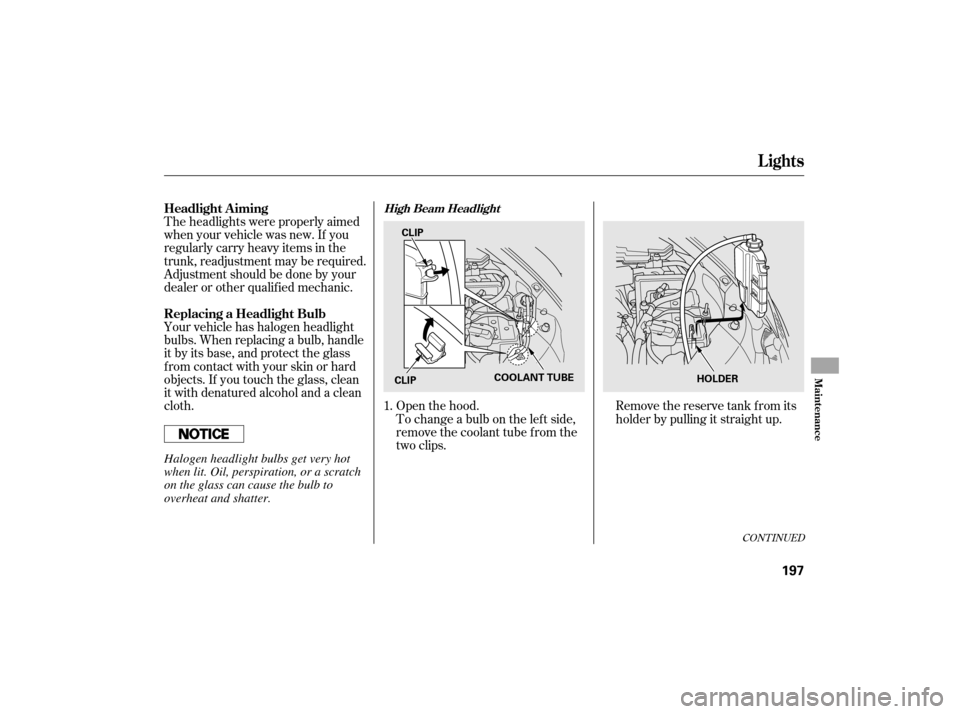

HONDA CIVIC HYBRID 2007 8.G Owners Manual CONT INUED
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk, readjustment may be required.
Adjustment should be done by your
dealer or other qu
