HONDA CIVIC HYBRID 2009 8.G Owners Manual

Cause
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
For additional information on
damaged discs, see page .
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer. Error
Message Solution
207
High Temperature
Track/File format not
supported
Mechanical Error
Servo Error Will disappear when the temperature returns to
normal.
Current track will be skipped. The next
supported track or file plays automatically.
Press the EJECT button and pull out the disc(s).
Check the disc for serious damage, signs of
deformation, excessive scratches, and/or dirt
(see page207).Insert the disc again. If the code
does not disappear, or the disc(s) cannot be
removed, consult your dealer. Do not try to
force the disc out the player.
Disc Player Error Messages (Models without navigation system)
128
HEAT ERROR
FORMAT
BAD DISC
PLEASE CHECK OWNER’S
MANUAL PUSH EJECT
BAD DISC
PLEASE CHECK OWNER’SMANUAL
\f—\f—
y\f\fy
(#\fy\f
y
2009 Civic Hybrid

Error
Message Solution
Cause
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
If there is still a problem, the error
message will appear again. Press the
eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.
Press the magazine eject button, and pull the
magazine out. If the message does not
disappear or the magazine cannot be pulled out,
see your dealer.
Insert disc.
Press the magazine eject button, pull the
magazine out, check for an error message, then
insert the magazine again. If the message does
not disappear, or the magazine cannot be pulled
out, see your dealer.
Insert disc magazine.
Will disappear when the temperature returns to
normal.
FOCUS Error
No disc in the disc
magazine
Mechanical Error
No disc magazine in the
disc changer
High Temperature
Optional Disc Changer Error Messages (Models without navigation system)
Features
129
\f—\f—
y\fy
(#\fy\f
y
2009 Civic Hybrid

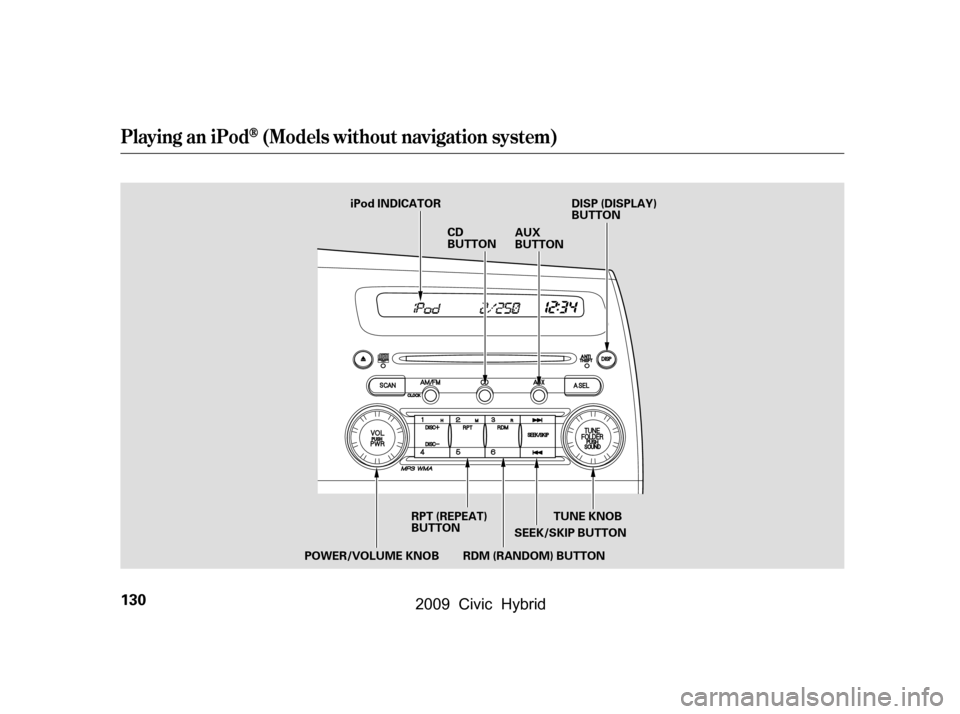

Playing an iPod(Models without navigation system)
130
SEEK/SKIP BUTTON
RDM (RANDOM) BUTTON
RPT (REPEAT)
BUTTON
iPod INDICATOR
AUX
BUTTON
CD
BUTTON
POWER/VOLUME KNOB TUNE KNOBDISP (DISPLAY)
BUTTON
\f—\f—
y\fy
(#\fy\f
y
2009 Civic Hybrid

Î
Î
The audio system reads and plays
sound f iles to be playable on the iPod.
The system cannot operate an iPod
as a mass storage device. The
system will only play songs stored on
the iPod with iTunes.
iPod and iTunes are registered
trademarks owned by Apple Inc.
iPods that are compatible with your
audio system are listed below.
Use the latest f irmware.
This audio system can select and
play the audio f iles on the iPod
with
the same controls used f or the disc
player. To play an iPod, connect it to
the USB adapter cable in the console
compartment by using your dock
connector, then press the AUX
button. The ignition switch must be
in the ACCESSORY (I) or ON (II)
position. The iPod will also be
charged with the ignition switch in
these positions.
Use only compatible iPods with the
latest f irmware. iPods that are not
compatible will not work in this audio
unit.:Model
iPod 5G
iPod classic
iPod nano
iPod nano
2nd generation
iPod nano
3rd generation
iPod touch
iPhone
CONT INUED
Firmware
Ver. 1.2 or more
Ver. 1.0 or more
Ver. 1.2 or more
Ver. 1.1.2 or more
Ver. 1.0 or more
Ver. 1.1.1 or more
Ver. 1.1.1 or more
To Play an iPod
Playing an iPod(Models without navigation system)
Features
131
\f—\f—
y\f
y
(#\fy\f
y
2009 Civic Hybrid

Do not connect your iPod using a
hub.
DonotkeeptheiPodinthe
vehicle. Direct sunlight and high
heat will damage it.
Do not use an extension cable
between the USB adapter cable
equipped with your vehicle and
your dock connector.
We recommend backing up your
data bef ore playing it.
In AAC f ormat, DRM (digital rights
management) f iles cannot be played.
If the system finds a DRM file, the
audio unit displays UNPLAYABLE,

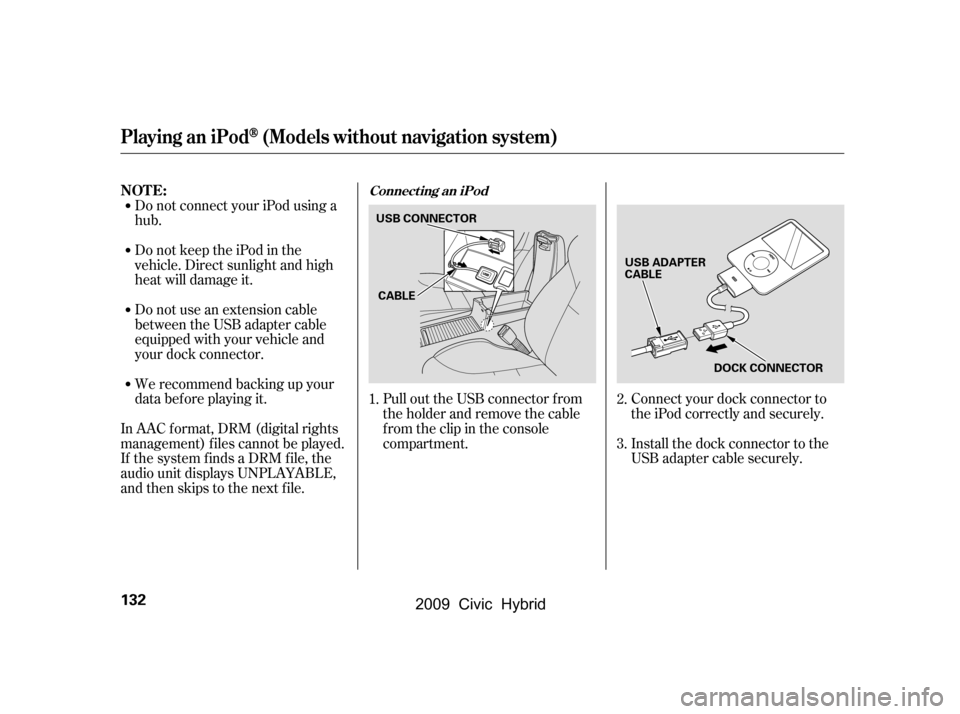

andthenskipstothenextfile. Install the dock connector to the
USB adapter cable securely.
Connect your dock connector to
the iPod correctly and securely.
Pull out the USB connector f rom
the holder and remove the cable
f rom the clip in the console
compartment.
1.
2.
3.
Playing an iPod(Models without navigation system)
NOT E:Connect ing an iPod
132
DOCK CONNECTOR
USB CONNECTOR
USB ADAPTER
CABLE
CABLE
\f—\f—
y\f\f\fy
(#\fy\f
y
2009 Civic Hybrid

Î
μ
If the audio system still does not
recognize the iPod, the iPod may
need to be reset. Follow the
instructions that came with your
iPod, or you can f ind reset
instructions online at
If the iPod indicator does not appear
in the audio display, check the
connections, and try to reconnect the
iPod a f ew times.
When the iPod is connected and the
iPod mode is selected on the audio
display, ‘‘USB LOAD’’ is shown f or a
f ew seconds, then the iPod indicator
is shown in the display. In the radio
or disc mode, the display shows a
‘‘USB CONNECTED’’ message f or a
f ew seconds. Af ter loading, you will
see the Honda mark on the iPod.
That means you can only operate
your iPod with the vehicle’s audio
unit. Itmaytakeafewminutesfor
the Honda mark to display on
the iPod. If the display does not
change, this f unction is not
supported on your iPod model
or f irmware.
Each time you press the DISP button,
the display mode switches between
the album name, the song/track
name, the artist name, or name of f
(which turns off the text display).
The display shows up to 16
characters of the selected data. If the
text data has more than 16
characters, you will see the first 15
characters and the indicator in
the display. Press and hold the DISP
button until the next 16 characters
are shown.
:
www.apple.com/
ipod.
CONT INUED
T ext Data Display Function
Playing an iPod(Models without navigation system)
Features
133

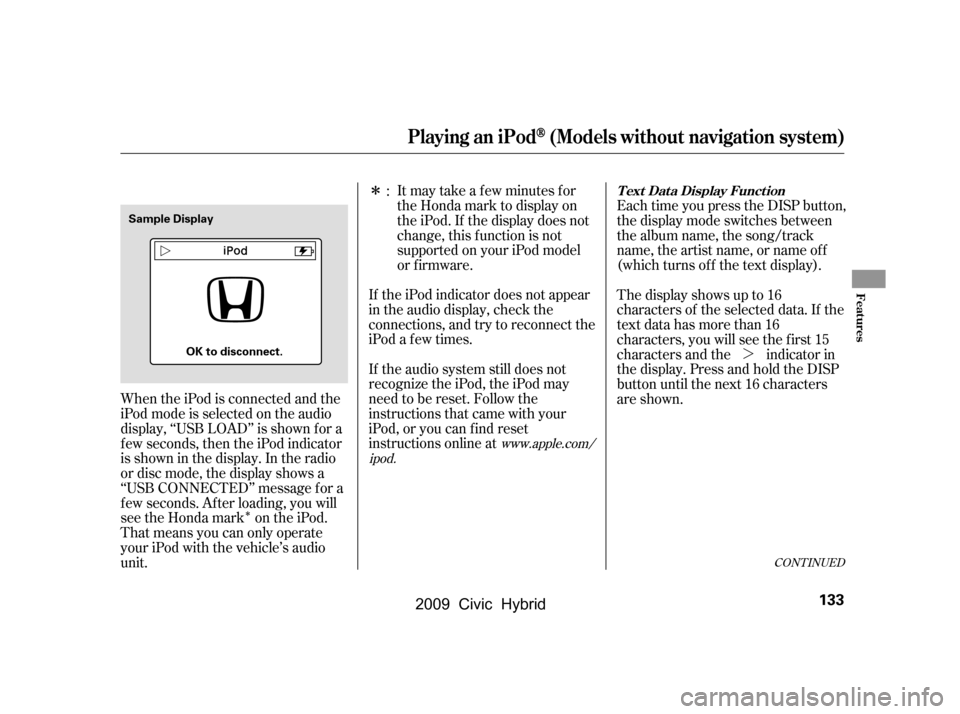

Sample Display
OK to disconnect.
\f—\f—
y\f\fy
(#\fy\f
y
2009 Civic Hybrid

µ
You can use the SEEK/SKIP button
while an iPod is playing to select
passages and change f iles.
Each time you press and
releasethe sideof theSEEK/
SKIP button, the system skips
f orward to the beginning of the next
f ile. Press and release the side
of thebuttontoskipbackwardtothe
beginning of the current f ile. Press it
again to skip to the beginning of the
previous f ile.
To move rapidly within a f ile, press
andholdeitherside( or )
of the SEEK/SKIP button. You can also select a f ile f rom the
iPod menu: ALBUM (albums),
SONG (songs), P-LIST (playlists),
and ARTIST (artists), by using the
TUNE knob. Push the TUNE
(SOUND) knob to switch the display
to an iPod menu, then turn the
TUNE knob to select a desired mode.
If you stop adjusting, the displayed
mode is selected af ter about f ive
seconds. The system begins to play
the f irst f ile stored in the selectedmode.
Playing an iPod(Models without navigation system)
T o Change or Select Files

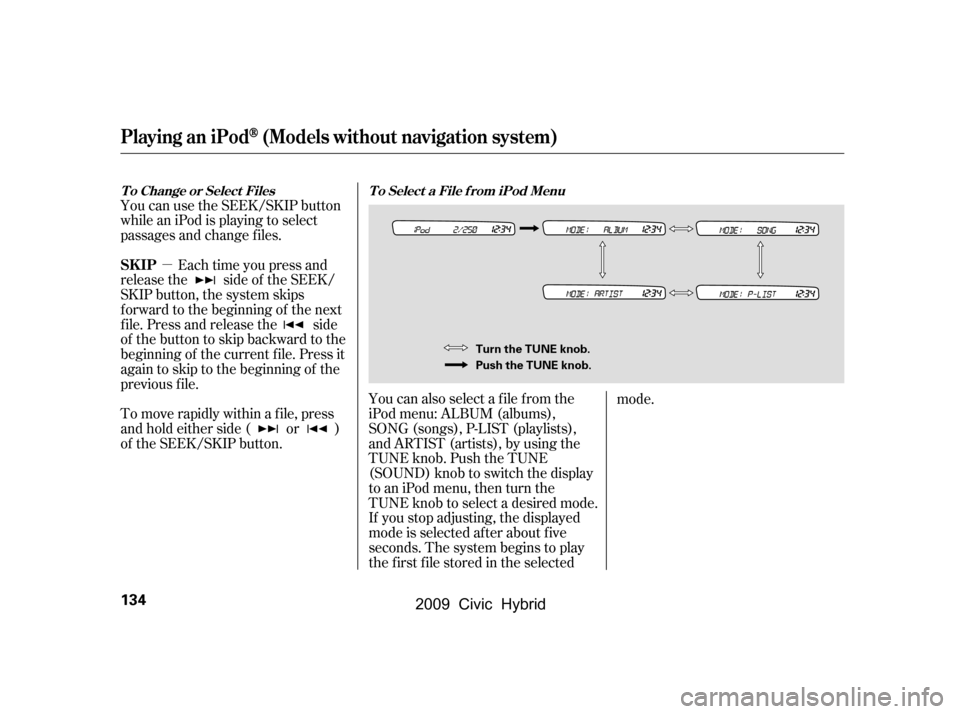

T o Select a File f rom iPod Menu
SK IP
134
Push the TUNE knob.
Turn the TUNE knob.
\f—\f—
y\f
y
(#\fy\f
y
2009 Civic Hybrid

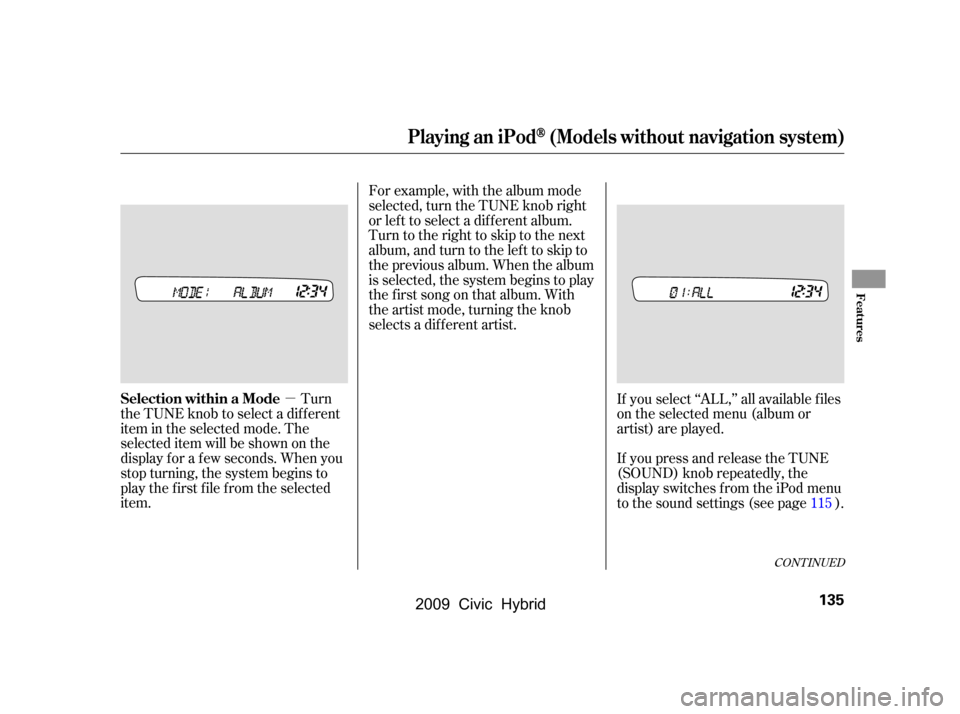

µTurn
the TUNE knob to select a dif f erent
item in the selected mode. The
selected item will be shown on the
display f or a f ew seconds. When you
stop turning, the system begins to
play the first file from the selected
item. For example, with the album mode
selected, turn the TUNE knob right
or lef t to select a dif f erent album.
Turn to the right to skip to the next
album, and turn to the left to skip to
the previous album. When the album
is selected, the system begins to play
the first song on that album. With
the artist mode, turning the knob
selects a dif f erent artist.
If you select ‘‘ALL,’’ all available f iles
on the selected menu (album or
artist) are played.
If you press and release the TUNE
(SOUND) knob repeatedly, the
display switches f rom the iPod menu
to the sound settings (see page ).115
CONT INUED
Playing an iPod(Models without navigation system)
Selection within a Mode
Features
135
\f—\f—
y\f
y
(#\fy\f
\fy
2009 Civic Hybrid

µµ
µ
You can select any type of repeat and
shuf f le modes by using the RPT and
RDM buttons.
This feature
plays all available f iles in a selected
mode (playlists, artists, albums or
songs) in random order. To activate
this, press and release the RDM
button. You will see RDM in the
display.
This
feature plays all available albums in a
selected mode (playlists, artists,
albums or songs) in random order.
The f iles in each album are played in the recorded order. To activate this,
press and release the RDM button
repeatedly until you see F-RDM in
the display.
Each time you press and release the
RDM button, the mode changes
f rom all random, to album random,
then to normal play.
Press and hold the button until you
hear a beep to turn off either random
mode.
Pressing either side of the SEEK/
SKIP button or turning the TUNE
knob changes a f ile while keeping
the random f unction.
Available operating f unctions vary on
models or versions. Some f unctions
may not be available on the vehicle’s
audio system.
This
f eature continuously plays a f ile. To
activate repeat, press and release the
RPT button. You will see RPT in the
display. Press the button again to
turn it off.
Pressing either side of the SEEK/
SKIP button or turning the TUNE
knob changes the f ile while keeping
the repeat f eature.
Playing an iPod(Models without navigation system)
T o Select Repeat or Random Mode:
RDM (All Random)
F-RDM (Album Random) NOT E:
RPT (Repeat one track)
136

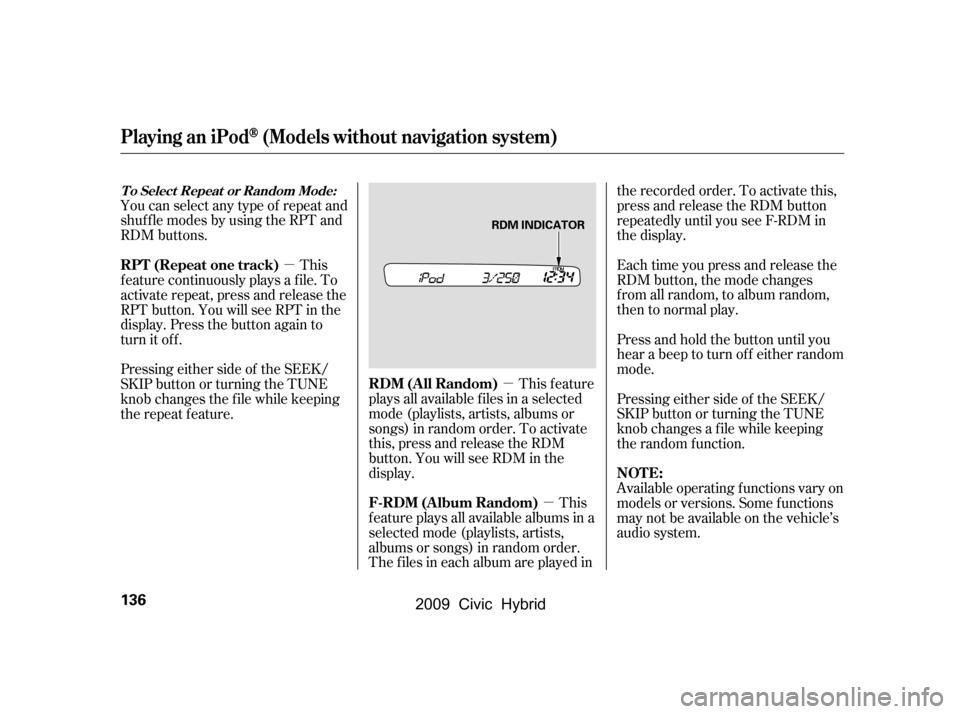

RDM INDICATOR
\f—\f—
y\f\fy
(#\fy\f

y
2009 Civic Hybrid

Î
Î
You can disconnect the iPod at any
time when you see the ‘‘OK to
disconnect’’ message in the iPod
display. With the AUX mode, you will
see a ‘‘USB NO DATA’’ message in
the display. Always make sure you
see ‘‘OK to disconnect’’ in the iPod
display bef ore you disconnect it.
Make sure to f ollow the iPod’s
instructions on how to disconnect
the dock connector f rom the USB
adapter cable.The displayed message may
vary on models or versions. On
some models, there is no
message to disconnect.
If you reconnect the same iPod, the
system may begin playing where it
lef t of f , depending on what mode the
iPod is in when it is reconnected. If you see an error message in the
display, see page .
To play the radio, press the AM/FM
button. Press the CD button to
switch to the disc mode (if a disc is
loaded).
: 138
Playing an iPod(Models without navigation system)
T o Stop Playing Your iPod
iPodError MessagesDisconnect ing an iPod
Features
137
\f—\f—
y\fy
(#\fy\f
y
2009 Civic Hybrid
