HONDA CIVIC HYBRID 2009 8.G Owners Manual

»¼»¼
»¼
»¼
The HFL phonebook can store up to
50 names with their associated
numbers. These can be any types of
numbers. For example, you can store
a phone number and use it to make a
call, or you can store an account
number and use it during a call to a
menu-driven phone system.
Press and release the Talk button.
After the beep, say the name you
would like to store. For example,
say ‘‘ John Smith .’’
HFL responds ‘‘What is the
number f or John Smith ? Press
the Talk button and say the
number.’’
Avoid using duplicate name
entries.
Avoid using ‘‘home’’ as a name
entry.
HFLwillbeabletobetter
recognize multisyllabic name
entries (‘‘Peter’’ instead of ‘‘Pete’’),
or using a longer name (‘‘John
Smith’’ instead of ‘‘John’’).
Press and release the Talk button.
Af ter the beep, say ‘‘Phonebook.’’
HFL responds ‘‘Phonebook
options are store, edit, delete,
receive contact, and list. Press the
Talk button and say a command.’’
Press and release the Talk button.
After the beep, say ‘‘Store.’’
HFL responds ‘‘What name would
you like to store? Press the Talk
button and say a name.’’ You can also say an account
number instead of John Smith .
Press and release the Talk button.
Af ter the beep, say the number.
For example, say ‘‘123 456 7891.’’
HFL responds ‘‘123 456 7891.
Press the Talk button and
continue to add numbers or say
Enter.’’
Useaconsistent,eventoneand
reduce background noise when
storing names, as the HFL voice
recognition can be sensitive.
HFL responds ‘‘ John Smith
has been stored.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Enter.’’
5.
4.
1.
2. 3.
To add a name, do this:
BluetoothHandsFreeL ink
NOT E:
Setting Up the Phonebook
238
\f—\f—
y\fy
(#\fy\fy
2009 Civic Hybrid

CONT INUED
To delete a name, do this:
To edit the number of a name, do this:
Press and release the Talk button.
Af ter the beep, say ‘‘Phonebook.’’
HFL responds ‘‘Phonebook
options are store, edit, delete,
receive contact, and list. Press the
Talk button and say a command.’’
Press and release the Talk button.
After the beep, say the name you
would like to edit. For example,
say ‘‘Eric.’’
HFL responds ‘‘What is the new
number f or Eric? Press the Talk
button and say the number.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Phonebook.’’
HFL responds ‘‘Phonebook
options are store, edit, delete,
receive contact, and list. Press the
Talk button and say a command.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Edit.’’
HFL responds ‘‘What name would
you like to edit? Press the Talk
button and say a name or say list
to hear the phonebook entries.’’
If only one number is stored, HFL
responds ‘‘What is the new
number f or Eric?’’ Then go to step
4. Press and release the Talk button.
Af ter the beep, say the new
number f or Eric. For example, say
‘‘987 654 3219.’’
HFL responds ‘‘987 654 3219.
Press the Talk button and
continue to add numbers or say
enter.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Enter.’’
HFL responds ‘‘The number has
been changed.’’Press and release the Talk button.
Af ter the beep, say ‘‘Delete.’’
HFL responds ‘‘What name would
you like to delete? Press the Talk
button and say a name or say list
to hear the phonebook entries.’’
Press and release the Talk button.
After the beep, say the name you
would like to delete. For example,
say ‘‘Eric.’’
HFL responds ‘‘Would you like to
delete Eric? Press the Talk button
and say Yes or No.’’
2.
3.
5.
1.
2.
1.
4. 3.
BluetoothHandsFreeL ink
Features
239
\f—\f—
y\fy
(#\fy\fy
2009 Civic Hybrid

»¼»¼
Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’
HFL responds ‘‘The name has
been deleted.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Phonebook.’’
HFL responds ‘‘Phonebook
options are store, edit, delete,
receive contact, and list. Press the
Talk button and say a command.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Phonebook.’’
HFL responds ‘‘Phonebook
options are store, edit, delete,
receive contact, and list. Press the
Talk button and say a command.’’
Press and release the Talk button.
Af ter the beep, say ‘‘List.’’
HFL responds by listing the names
in the phonebook in the order which
they were stored. Af ter all names are
listed, HFL responds ‘‘The entire list
has been read.’’ Press and release the Talk button.
Af ter the beep, say ‘‘List.’’
HFL responds by listing the
names in the phonebook. When it
saysthenameyouwanttocall,for
example, Eric , press and
release the Talk button. After the
beep, say ‘‘Call.’’ HFL responds
‘‘Would you like to call Eric ?
Press the Talk button and say Yes
or No.’’Once connected, you will hear the
person you called through the audio
speakers. To change the volume, use
the audio system volume knob or the
steering wheel volume controls.
Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’ HFL
responds ‘‘Calling.’’
1.
4.
2. 1.
2.
3.
To list all names in the phonebook, do
this: To call a name f rom the phonebook list,
do this:
BluetoothHandsFreeL ink
240
\f—\f—
y\fy
(#\fy\fy
2009 Civic Hybrid

»¼
»¼
CONT INUED
You can store the desired number to
the HFL phonebook directly f rom
your cell phone. Your phone may not have
phonebook import f unction. Visit ,orcallthe
HandsFreeLink
consumer support
at (888) 528-7876. In Canada, call
(888) 9-HONDA-9. You can see your
phone’s owner’s manual f or
inf ormation. Press and release the Talk button.
After the beep, say the name you
would like to store. For example,
say ‘‘Neil at work.’’
With your phone on and the
ignition switch in the
ACCESSORY (I) or ON (II)
position, press and release the
Talk button. After the beep, say
‘‘Phonebook.’’
HFL responds ‘‘Phonebook
options are store, edit, delete,
receive contact, and list. Press the
Talk button and say a command.’’ Press and release the Talk button.
Af ter the beep, say ‘‘Receive
contact.’’
HFL responds ‘‘The receive
process requires operation of your
Bluetooth device. For saf ety, only
perf orm this f unction while the
vehicle is stopped. HandsFreeLink
is now waiting to receive a contact
f rom a Bluetooth device.’’
Select a desired number f rom the
list on your phone, and send it via
Bluetooth (steps will vary f or
phone types, f ollow your phone’s
operating manual).
HFL responds, f or example ‘‘ 2
phone numbers have been
received f or this contact. What
name would you like to store f or
the mobile number
1234567891 ? Press the Talk
button and say a name or say
Discard, to discard this number.’’ HFL responds ‘‘Neil at work will
be stored. Is this correct? Press
the Talk button and say Yes or No.’’
HFL responds ‘‘Neil at work has
been stored. Would you like
HandsFreeLink to receive another
contact? Press the Talk button and
say Yes or No.’’
Go to step 6.
If you say, ‘‘No,’’ HFL returns to
idle.
Press and release the Talk button.
Af ter the beep, if you say ‘‘Yes.’’
2.
4.
1. 3.
5.
handsf reelink.honda.com
BluetoothHandsFreeL ink
Storing a Phone Number Directly
f rom Your Phone
Features
241
NOTE:
\f—\f—
y\f\fy
(#\fy\fy
2009 Civic Hybrid

The cellular phonebook option
allows you to store up to 1,000 names
and 10,000 phone numbers in the
phonebook of Bluetooth
HandsFreeLinkf rom your cellular
phonebook. The maximum names
and numbers to be stored varies on
the data size. With HFL, you can
then automatically dial any name or
number in the phonebook.
Your phone may not have
phonebook import f unction. Visit ,orcallthe
HandsFreeLink
consumer support
at (888) 528-7876. In Canada, call
(888) 9-HONDA-9. You can see your
phone’s owner’s manual f or
inf ormation. To use the cellular phonebook with
HFL, say or select a ‘‘Cellular
Phonebook’’ icon f rom the
information screen. The navigation
display will change as shown above.
If any phonebook is not stored and
your phone is not linked to HFL,
Cellular Phonebook icon is grayed
out.
If you want to continue to store
any other numbers, press and
release the Talk button. After the
beep, say ‘‘Yes.’’
HFL responds ‘‘HandsFreeLink is
now waiting to receive a contact
f rom a Bluetooth device.’’
Go back to step 3.
6.
handsf reelink.honda.com
Cellular Phonebook Options
BluetoothHandsFreeL ink
242
NOTE:
\f—\f—
y\f
y
(#\fy\fy
2009 Civic Hybrid

CONT INUED
To import the cellular phonebookSearch Imported Phonebook: This
option allows you to search the
phone numbers stored in HFL.
When you enter a person’s f irst
name or last name, the system will
f ind the number you want and let
you make calls.
Import Cellular Phonebook: This
option allows you to store the
phonebook of your cellular phone in
HFL. When you link your phone to
HFL and select this option, the
system will start importing and
loading the phonebook.
Delete Imported Phonebook: This
option allows you to delete the stored
phonebook f rom HFL. When you
link your phone to HFL and select
this option, the system will
automatically delete the phonebook
of the linked phone f rom HFL (see
page ).Bef ore selling or discarding
your vehicle, make sure to delete the
imported phonebook data.
PIN Number: This option allows you
to add, change, or remove a PIN
number f or any phonebook that has
been imported.
You can import the phonebook of
your cellular phone into HFL. Link
your phone to HFL, and select
‘‘Cellular Phonebook’’ f rom the
inf ormation screen, then select
‘‘Import Cellular Phonebook’’ f rom

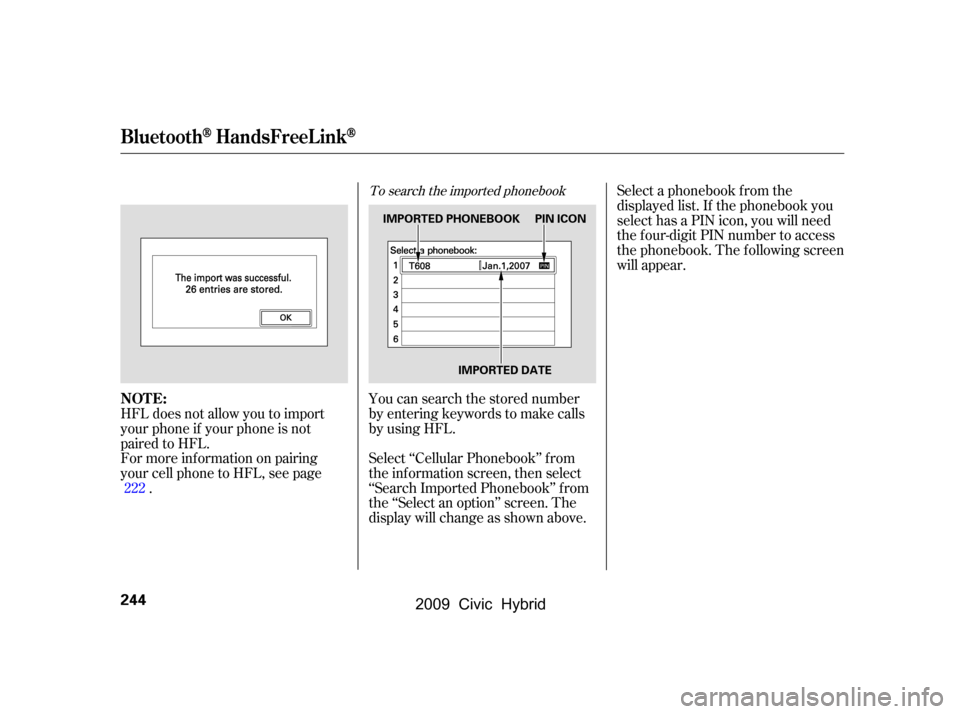

the ‘‘Select an option’’ screen. When
the message ‘‘The import was
successf ul’’ is displayed, touch the
screen to select ‘‘OK.’’
247
BluetoothHandsFreeL ink
Features
243
NOTE:
\f—\f—
y\fy
(#\fy\fy
2009 Civic Hybrid

To search the imported phonebook
You can search the stored number
by entering keywords to make calls
by using HFL.
Select ‘‘Cellular Phonebook’’ f rom
the inf ormation screen, then select
‘‘Search Imported Phonebook’’ f rom
the ‘‘Select an option’’ screen. The

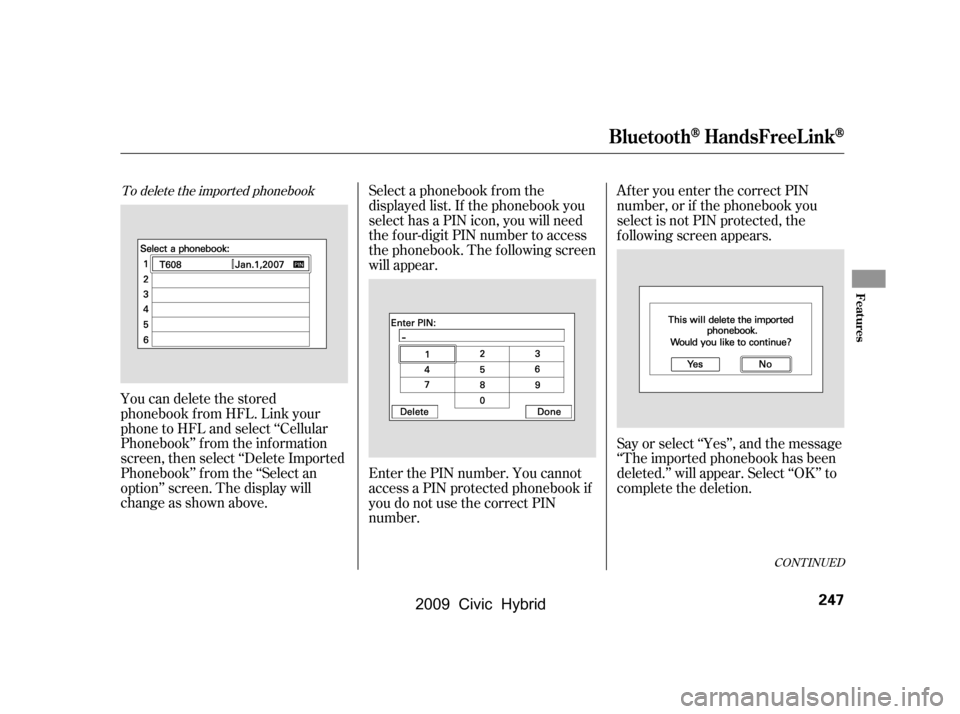

display will change as shown above.Select a phonebook f rom the
displayed list. If the phonebook you
select has a PIN icon, you will need
the f our-digit PIN number to access
the phonebook. The f ollowing screen
will appear.
HFL does not allow you to import
your phone if your phone is not
paired to HFL.
For more inf ormation on pairing
your cell phone to HFL, see page .222
BluetoothHandsFreeL ink
NOT E:
244
IMPORTED PHONEBOOK PIN ICON
IMPORTED DATE
\f—\f—
y\f
y
(#\fy\fy
2009 Civic Hybrid

CONT INUED
The system will display a list of
person’s names, with the closest
match to the name you entered at
the top of the list.

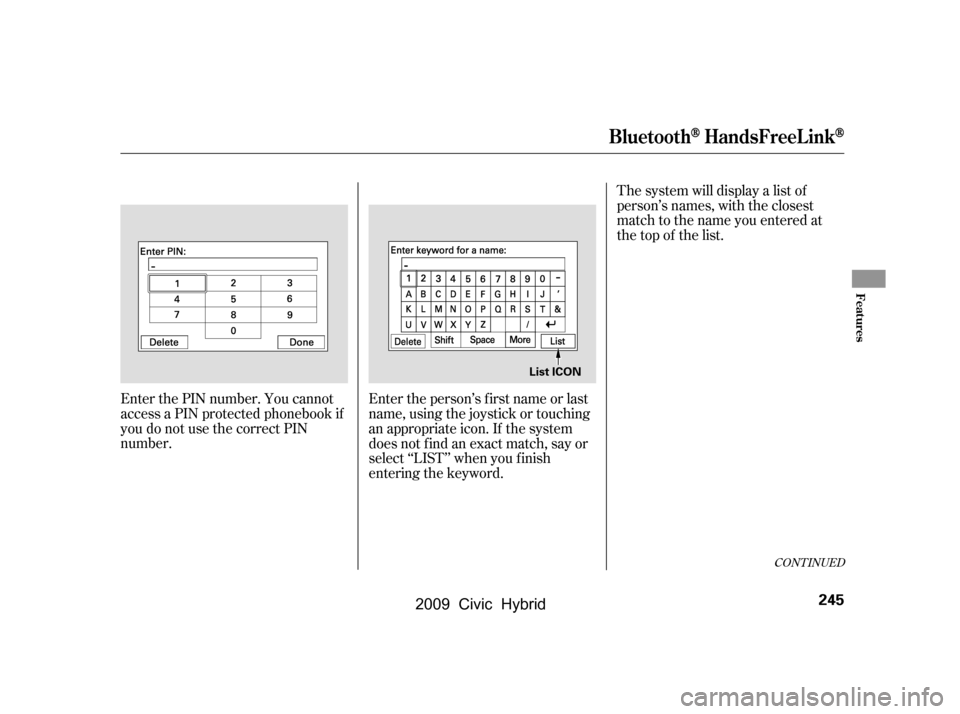

Enter the PIN number. You cannot
access a PIN protected phonebook if
you do not use the correct PIN
number. Enter the person’s f irst name or last
name, using the joystick or touching
an appropriate icon. If the system
does not f ind an exact match, say or
select ‘‘LIST’’ when you f inish
entering the keyword.
BluetoothHandsFreeL ink
Features
245
List ICON
\f—\f—
y\fy
(#\fy\f\fy
2009 Civic Hybrid

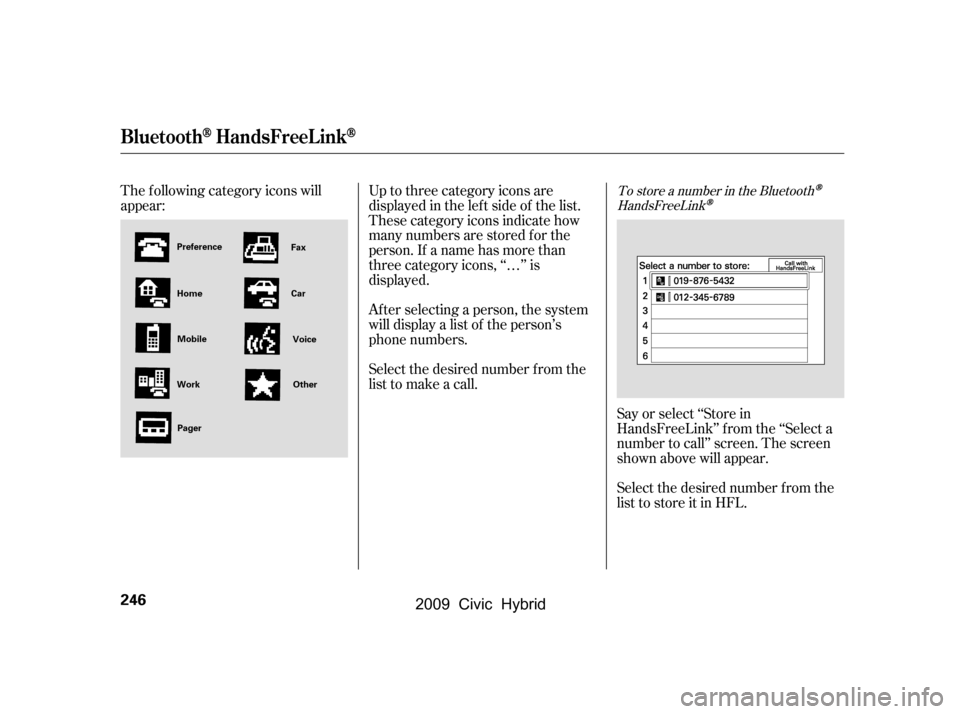

Select the desired number f rom the
list to store it in HFL.
The f ollowing category icons will
appear:
Say or select ‘‘Store in
HandsFreeLink’’ f rom the ‘‘Select a
number to call’’ screen. The screen
shown above will appear.
Up to three category icons are
displayed in the lef t side of the list.
These category icons indicate how
many numbers are stored f or the
person. If a name has more than
three category icons, ‘‘…’’ is
displayed.
Af ter selecting a person, the system
will display a list of the person’s
phone numbers.
Select the desired number f rom the
list to make a call.
To store a number in the Bluetooth
HandsFreeLink
BluetoothHandsFreeL ink
246
Work
Home
Preference
Mobile
Pager Fax
Car VoiceOther
\f—\f—
y\f
y
(#\fy\f
y
2009 Civic Hybrid

CONT INUED
To delete the imported phonebook
You can delete the stored
phonebook f rom HFL. Link your
phone to HFL and select ‘‘Cellular
Phonebook’’ f rom the inf ormation
screen, then select ‘‘Delete Imported
Phonebook’’ f rom the ‘‘Select an
option’’ screen. The display will
change as shown above.Select a phonebook f rom the
displayed list. If the phonebook you
select has a PIN icon, you will need
the f our-digit PIN number to access
the phonebook. The f ollowing screen
will appear.
Enter the PIN number. You cannot
access a PIN protected phonebook if
you do not use the correct PIN
number.After you enter the correct PIN
number, or if the phonebook you
select is not PIN protected, the
f ollowing screen appears.
Say or select ‘‘Yes’’, and the message
‘‘The imported phonebook has been
deleted.’’ will appear. Select ‘‘OK’’ to
complete the deletion.
BluetoothHandsFreeL ink
Features
247
\f—\f—
y\fy
(#\fy\fy
2009 Civic Hybrid
