Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f .
Remove the cover f rom the f use
box.
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pages
and , or the diagram on the
fuse box lid, which fuse or fuses
control that device. Check those
f uses f irst, but check all the f uses
bef ore deciding that a blown f use is
the cause. Replace any blown f uses,
and check if the device works.
Check each of the large f uses in
the primary under-hood f use box
by looking through the top at the
wire inside. Remove the screws
with a Phillips-head screwdriver.
1.
2. 3.
331 332
Checking and Replacing Fuses
Fuses
328
BLOWN
FUSE
BLOWN
09/07/15 11:14:13 31SNC640_333
2010 Civic Hybrid

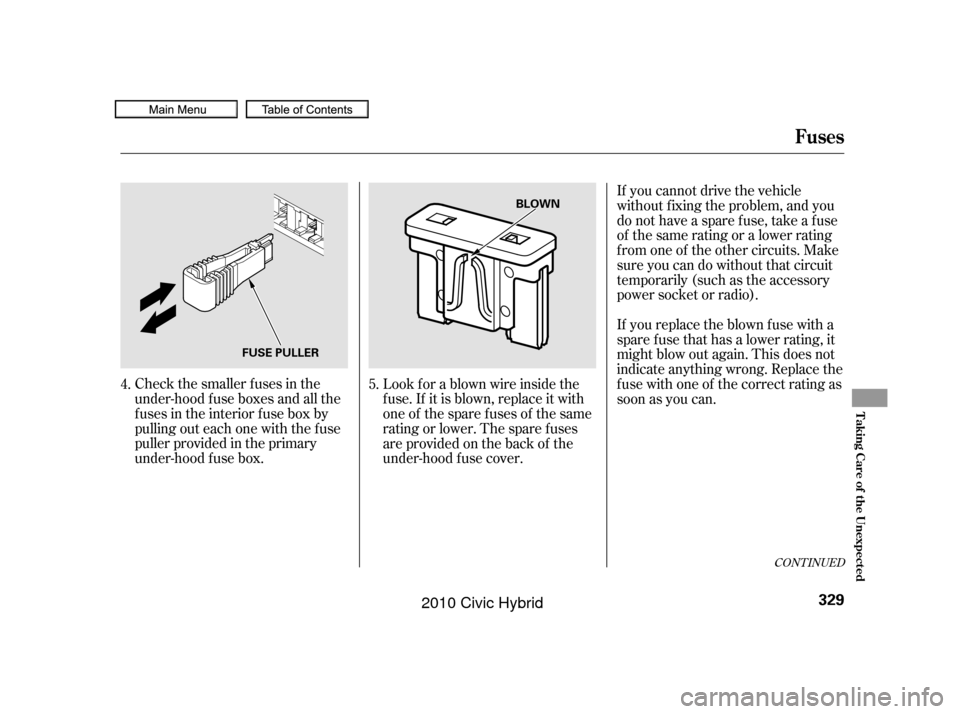

Check the smaller f uses in the
under-hood f use boxes and all the
fuses in the interior fuse box by
pulling out each one with the f use
puller provided in the primary

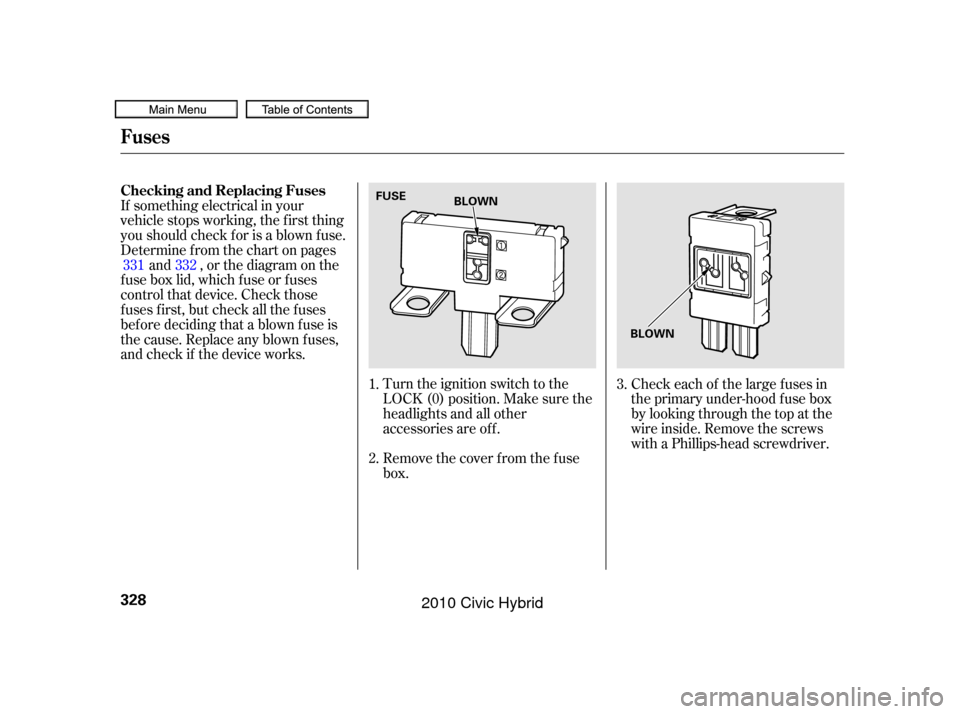

under-hood f use box.Look f or a blown wire inside the
f use. If it is blown, replace it with
oneof thesparefusesof thesame
rating or lower. The spare f uses
are provided on the back of the
under-hood f use cover.If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct rating as
soon as you can.
4.
5.
CONT INUED
Fuses
T aking Care of t he Unexpect ed
329
FUSE PULLER BLOWN
09/07/15 11:14:20 31SNC640_334
2010 Civic Hybrid

When the audio system is disabled,
the clock setting in the audio system
will be canceled. You will need to
reset the clock according to the
instructions in the audio system
sectioninthisowner’smanual.
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied technician.
6.
Fuses
330
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
09/07/15 11:14:24 31SNC640_335
2010 Civic Hybrid

µ
µNo.
No. Circuits Protected
No.
Circuits Protected
Circuits Protected Amps.
Amps.
Amps.
1
2
3
1
2
3 IMA2
IMA1
Booster MS
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23 Headlight Main
Power Window Main
Booster Motor
Sub Fan Motor
Main Fan Motor
Rear Defogger
Blower
Hazard
FI Sub
Stop and Horn
IG Coil (EX)
IG Coil (IN)
Oil Level
Not Used
Not Used
IG Coil
FI Main
MG Clutch
DBW
Interior Light
Back Up
Main Fuse
EPS
Option Main
Ignition Switch Main
ABS Motor
ABS F/S 50 A
40 A
40 A
20 A
20 A
30 A
40 A
10 A
15 A
15 A
15 A
15 A
7.5 A
20 A
15 A
7.5 A 15 A
7.5 A 10 A 10 A
7.5 A 15 A
100 A
70 A
60 A
50 A
30 A
40 A
Fuse Locations
T aking Care of t he Unexpect ed
331
UNDER-HOOD PRIMARY FUSE BOX UNDER-HOOD SECONDARY FUSE BOX
09/07/15 11:14:32 31SNC640_336
2010 Civic Hybrid

µ
µ
µ
µ
µ
µ
µ Î
Î
Î

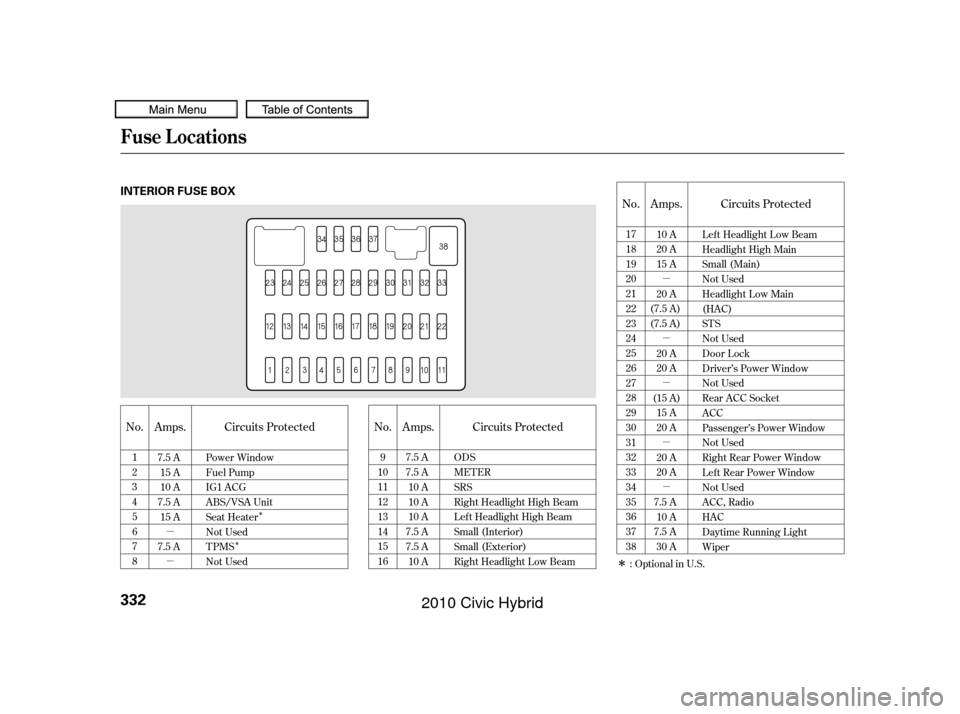

No. No.No.
Circuits Protected
Amps. Amps.
Amps. Circuits Protected Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
ODS
MET ER
SRS
Right Headlight High Beam
Left Headlight High Beam
Small (Interior)
Small (Exterior)
Right Headlight Low Beam
7.5 A
7.5 A
10 A
10 A
10 A
7.5 A
7.5 A 10 A 10 A
20 A
15 A
20 A
(7.5 A)
(7.5 A)
20 A
20 A
(15 A) 15 A
20 A
20 A
20 A
7.5 A 10 A
7.5 A 30 A
7.5 A
15 A
10 A
7.5 A 15 A
7.5 A Power Window
Fuel Pump
IG1 ACG
ABS/VSA Unit
Seat Heater
Not Used
TPMS
Not Used Left Headlight Low Beam
Headlight High Main
Small (Main)
Not Used
Headlight Low Main
(HAC)
STS
Not Used
Door Lock
Driver’s Power Window
Not Used
Rear ACC Socket
ACC
Passenger’s Power Window
Not Used
Right Rear Power Window
Left Rear Power Window
Not Used
ACC, Radio
HAC
Daytime Running Light
Wiper
: Optional in U.S.
Fuse Locations
332
INTERIOR FUSE BOX
09/07/15 11:14:40 31SNC640_337
2010 Civic Hybrid

µ
µ
CONT INUED
If , due to damage, your vehicle must
be towed with the f ront wheels on
the ground, do this:
With the f ront wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
Therearetwowaystotowyour
vehicle:
The tow
truck uses two pivoting arms that go
under the tires (f ront) and lif t them
of f the ground. The other two tires
remain on the ground. The operator
loads your vehicle on the back of a
truck. Start the engine.
Press on the brake pedal. Move
the shif t lever through all its
positions.
Shif t to D position and hold f or 5
seconds, then to N.
Turn of f the engine.
Release the parking brake.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
Wheel-lif t Equipment
Flat -bed Equipment
T his is an
acceptable way to tow your
vehicle. T his is the best way to
transport your vehicle.
Emergency Towing
T aking Care of t he Unexpect ed
333
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine, your vehicle must be
transported with the f ront wheels of f
the ground.
09/07/15 11:14:50 31SNC640_338
2010 Civic Hybrid

Emergency Towing
334
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns f reely bef ore you begin
towing.
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.
09/07/15 11:14:54 31SNC640_339
2010 Civic Hybrid

µ
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.
................
Identif ication Numbers . 336
................................
Specif ications .338
DOT Tire Quality Grading ......................
(U.S. Vehicles) .340
Unif orm Tire Quality ..................................
Grading .340
.................................
Treadwear .340
......................................
Traction .340
.............................
Temperature .341
.................................
Tire Labeling .341
Tire Pressure Monitoring System (TPMS) Required Federal ............................
Explanation .343 .......................
Emissions Controls .345
.....................
The Clean Air Act .345
Crankcase Emissions Control ....................................
System .345
Evaporative Emissions Control ....................................
System .345
Onboard Ref ueling Vapor ................................
Recovery .345
...
Exhaust Emissions Controls . 346
....................
PGM-FI System .346
Ignition Timing Control ................................
System .346
Exhaust Gas Recirculation ...................
(EGR) System . 346
Three Way Catalytic ...........................
Converter .346
....................
Replacement Parts . 346
..
Three Way Catalytic Converter . 347
........................
Emissions Testing .348
T echnical Inf ormation
Technical Inf ormation
335
09/07/15 11:14:58 31SNC640_340
2010 Civic Hybrid

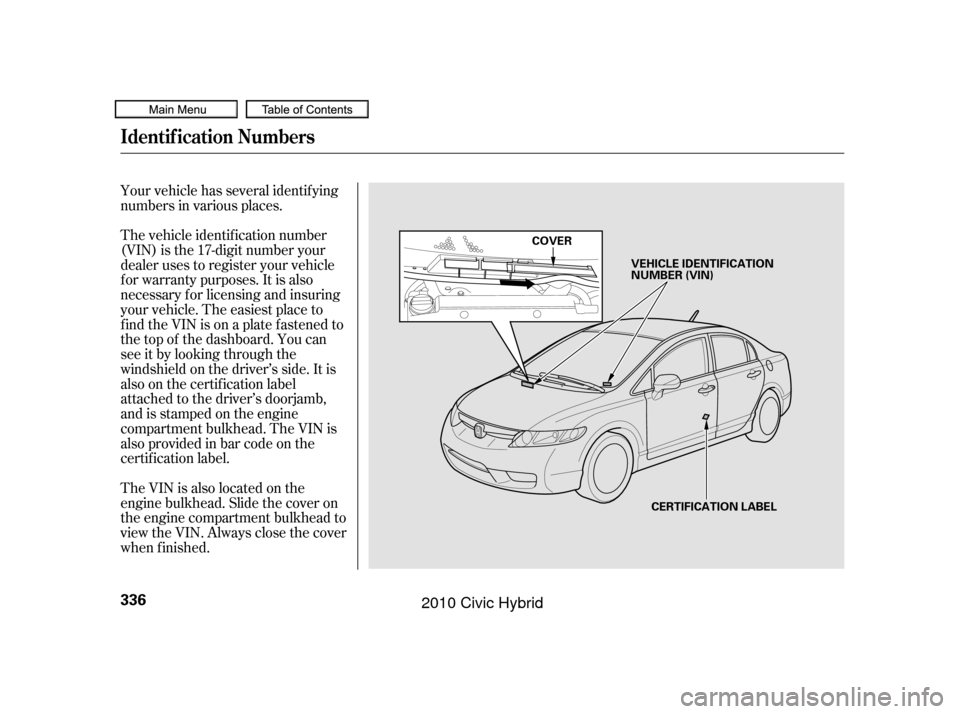

Your vehicle has several identif ying
numbers in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
The VIN is also located on the
engine bulkhead. Slide the cover on
the engine compartment bulkhead to
view the VIN. Always close the cover
when f inished.
Identif ication Numbers
336
COVERCERTIFICATION LABEL
VEHICLE IDENTIFICATION
NUMBER (VIN)
09/07/15 11:15:03 31SNC640_341
2010 Civic Hybrid

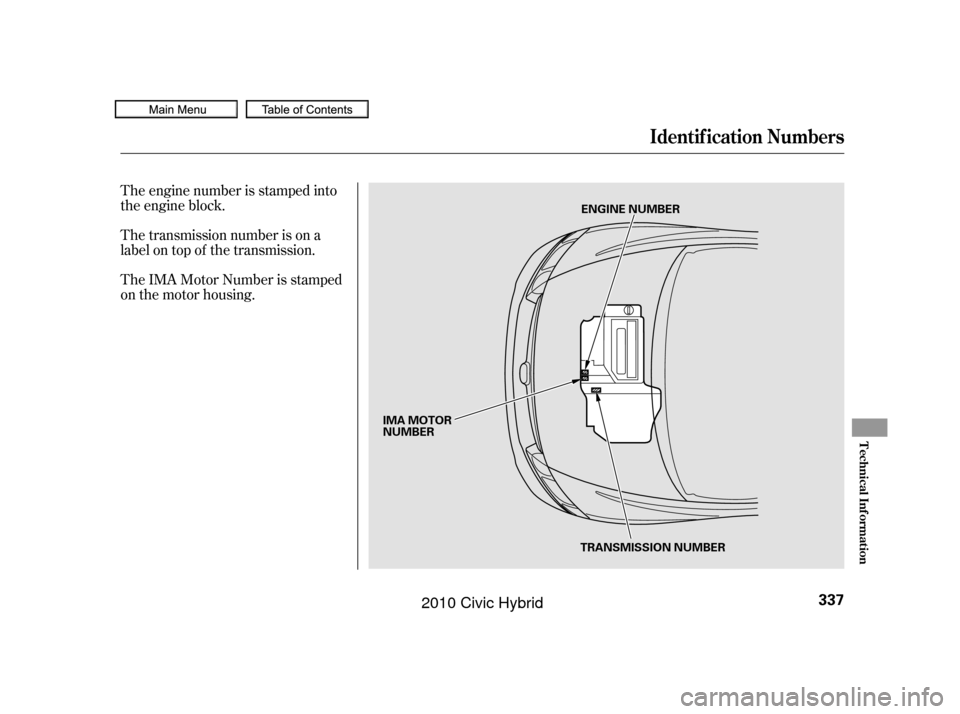

The engine number is stamped into
the engine block.
The transmission number is on a
label on top of the transmission.
The IMA Motor Number is stamped
on the motor housing.
Identif ication Numbers
Technical Inf ormation
337
ENGINE NUMBER
IMA MOTOR
NUMBER TRANSMISSION NUMBER
09/07/15 11:15:08 31SNC640_342
