HONDA CIVIC HYBRID 2011 8.G Owners Manual

µµ
µ
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
Turn the TUNE knob to
change channel selections. Turn the
knob right f or higher numbered
channels and lef t f or lower
numbered channels. In the category
mode, you can only select channels
within that category.
Press either side of the CATEGORY
button ( or ) to select
another category.
In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category.
To listen to XM Radio, turn the
ignition switch to the ACCESSORY
(I) or the ON (II) position. Push the
power/volume knob to turn on the
audio system, and press the ‘‘AUX’’
button. Adjust the volume by turning
the knob. The last channel you
listened to will show in the display. To switch between
channel mode and category mode,
press and hold the DISP button until
themodechanges.
Each time you press and release the
DISP button, the display changes in
the f ollowing sequence: Channel
name, channel number, category,
artist name, and music title.
CONT INUED
Operating the XM Radio
TUNE
SEEK /SK IP (CA T EGORY)
MODE
Playing the XMRadio (Models without navigation system)
Features
117
Main Menu

µµ µ
µ
µ
µ
The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again.
Youcanstoreupto12
preset channels using each side of
the preset button. Each side of the
button stores one channel f rom the
XM1 band and one channel f rom the
XM2 band.
To store a channel: Usethetune,seek,orscan
function to tune to a desired
channel.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected. XM is loading the
audio or program inf ormation.
The channel
currently selected is no longer
broadcasting.
The encryption
code is being updated. Wait until the
encryption code is f ully updated.
Channels 0 and 1 should still work
normally.
The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
Pick a preset number you want f or
that channel. Press and hold the
button until you hear a beep.
Repeat steps 2 and 3 to store the
f irst six channels.
Once a channel is stored, press and
release the proper side of the preset
button to tune to it.
Press the AUX button. Either XM1
or XM2 will show in the display. Press the AUX button again. Store
the next six channels using steps 2
and 3.
1. 2. 3. 4. 5.
SCAN
Preset
XM Radio Display Messages
‘‘L OA DING’’
‘‘OFF A IR’’
‘‘UPDA T ING’’
‘‘NO SIGNA L ’’
Playing the XMRadio (Models without navigation system)
118
Main Menu

µµ
The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas. Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
The selected channel
number does not exist, or is not part
of your subscription, or this channel
has no artist or title inf ormation at
this time.
There is a problem
with the XM antenna. Please consult
your dealer.
CONT INUED
‘‘----’’
‘‘A NT ENNA ’’
Playing the XMRadio (Models without navigation system)
Features
119

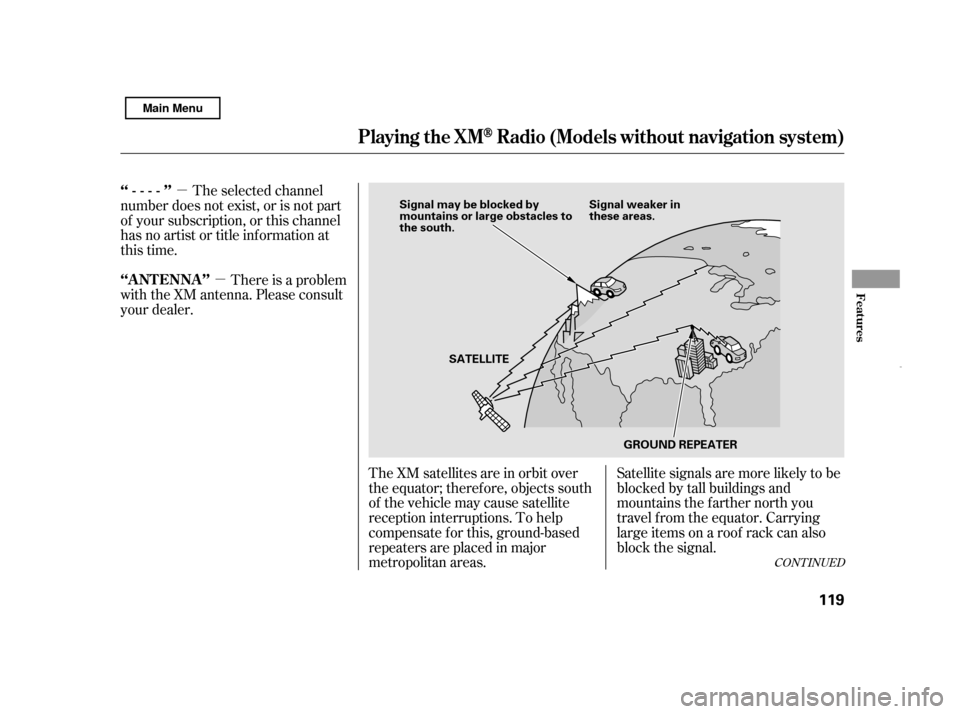

Signal may be blocked by
mountains or large obstacles to
the south.
Signal weaker in
these areas.
SATELLITE GROUND REPEATER
Main Menu

Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
Driving on the north side of an
east/west mountain road.
Large items carried on a roof rack.
There may be other geographic
situations that could af f ect XM Radio
reception. If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Radio. With the ignition
switch in the ACCESSORY (I) or ON
(II) position, push the power/volume
knob to turn on the audio system and
press the AUX button. A variety of
music types and styles will play.
If you decide to purchase XM Radio
service, contact XM Radio at
,orat
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, turn the TUNE
knob until ‘‘0’’ appears in the display. Your I.D. will appear in the display.
After you’ve registered with XM
Radio, keep your audio system in the
XM radio mode while you wait f or
activation. This should take about 30
minutes.
While waiting for activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, you’ll be
able to listen to XM Radio broadcasts.
XM Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contactXM
Radio. In Canada, contact XM
CANADA
.
As required by the FCC:
Changes or modif ications not expressly approved by the party responsible f orcompliance could void the user’s authority to operate the equipment.
www.xmradio.com
Receiving XM Radio Service
Playing the XMRadio (Models without navigation system)
120
Main Menu

Playing a Disc (Models wit hout navigation syst em)
Features
121

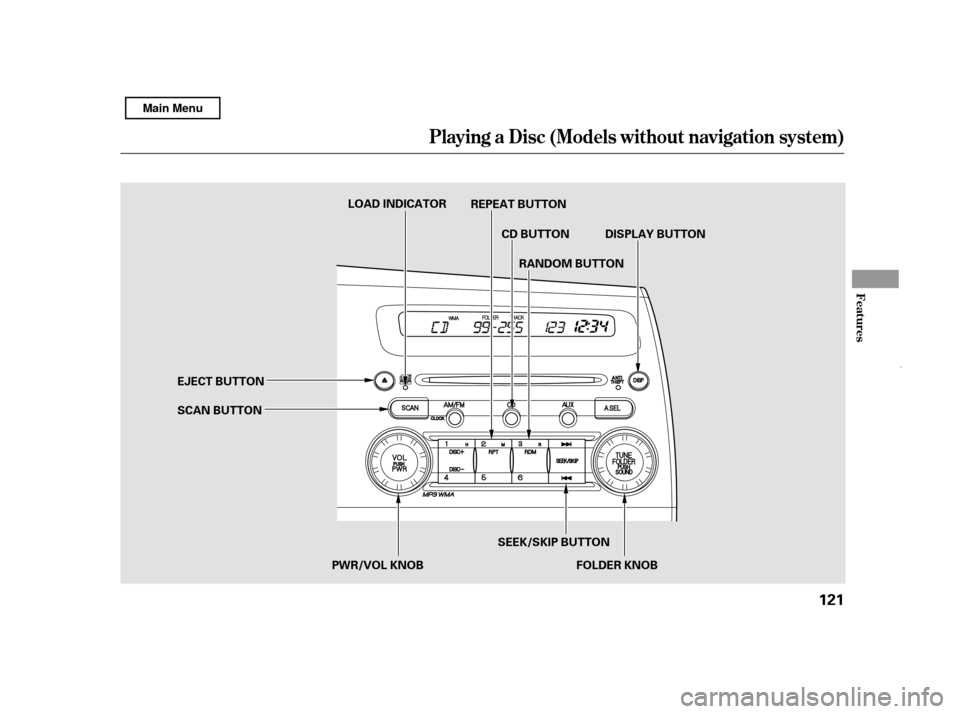

FOLDER KNOB
CD BUTTON
SCAN BUTTON
EJECT BUTTON
SEEK/SKIP BUTTONRANDOM BUTTON
REPEAT BUTTON
LOAD INDICATOR
DISPLAY BUTTON
PWR/VOL KNOB
Main Menu

To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
You operate the CD player with the
same controls used f or the radio. To
select the CD player, press the CD
button. You will see ‘‘CD’’ in the
display. The number of the track
playing is shown in the display. The
system will continuously play a disc
until you change modes.Insert the disc about half way into the
disc slot. The drive will pull the disc
in the rest of the way and begin to
play it. When the system reaches the
end of the disc, it will return to the
beginning and play the disc again.
The disc player can also play CD-Rs
and CD-RWs compressed in
CD-TEXT, MP3, and WMA f ormats.
When playing a disc in MP3 or WMA,
you will see ‘‘MP3’’ or ‘‘WMA’’ in the
display. You can select up to 255
folders or tracks.
Video CDs and DVDs will not work
in this unit. You cannot load and play 3-inch
(8-cm)discsinthissystem.
To play the radio when a disc is
playing, press the AM/FM button.
Press the CD button again to switch
back to the disc player.
Depending on the sof tware the f iles
were made with, it may not be
possible to play some f iles, or display
some text data.
To Play a Disc
Playing a Disc (Models wit hout navigation syst em)
122 NOTE:
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
Main Menu

¼
Each time you press the DISP button,
the display shows you the text data
on a disc, if the disc was recorded
with text data.
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the f older and f ile name, and the
artist, album, and track tag.
With the f older name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.
The display shows up to 16
characters of selected text data (the
foldername,filename,etc.).If the
text data has more than 16
characters, you will see the first 15
characters and the indicator in
the display. Press and hold the DISP
button until the next 16 characters
are shown. You will also see some text data
under these conditions:
When a new f older, f ile, or track is
selected.
When you change the audio mode
to play a disc with text data or in
MP3 or WMA. Use the SEEK/SKIP button while a
disc is playing to select passages and
change tracks (f iles in MP3/WMA
mode).
When you insert a disc, and the
system begins to play.
When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name. In MP3/WMA mode, use the
FOLDER knob to select f olders on
the disc, and use the SEEK/SKIP
button to change f iles.
CONT INUED
T o Change or Select T racks/Files
T ext Dat a Display Funct ion
Playing a Disc (Models wit hout navigation syst em)
Features
123
Main Menu

µµµ
Each time you
press and release the side of
the SEEK/SKIP button, the player
skips forward to the beginning of the
next track (f ile in MP3 or WMA
mode). Press and release the side to skip backward to the
beginning of the current track. Press
it again to skip to the beginning of
the previous track.
To move rapidly within a track, press
and hold the or side of the
SEEK/SKIP button. To
select a different folder, turn the
TUNE knob to move to the
beginning of the next f older. Turn
theknobtotherighttoskiptothe
next f older, and to the lef t to move to
the beginning of the current f older.
Turn it again to skip to the beginning
of the previous f older. Turning the
TUNE knob more than one click
skips several f olders at a time. To continuously replay
atrack(filesinMP3orWMAmode),
press and release the RPT button.
You will see ‘‘RPT’’ in the display.
Press and hold the RPT button for 2
seconds to turn it off.In MP3 or WMA modeSEEK /SK IP FOLDER SELECTIONREPEAT (TRACK/FILE
REPEAT)
Playing a Disc (Models wit hout navigation syst em)
124
Main Menu

µµ µ
In MP3 or WMA modeIn MP3 or WMA mode
This feature,
when activated, replays all f iles in
the selected f older in the order they
are compressed. To activate folder
repeat, press the RPT button twice.
You will hear a beep and see F-RPT
in the display. The system
continuously replays the current
folder. Press the RPT button again to
turn it off. Pressing the RDM button,
or selecting a dif f erent f older with
the TUNE knob also turns of f the
repeat f eature.
Each time you press and release the
RPT button, the mode changes f rom
f ile repeat to f older repeat, then to
normal play. This f eature plays
the tracks within a disc (the f iles
within a f older in MP3 or WMA
mode) in random order. To activate
random play, press and release the
RDM button. In MP3 or WMA mode,
press the RDM button repeatedly to
select RDM (within a f older random
play). You will see RDM in the
display. Press the RDM button f or 2
seconds to return to normal play. This
feature, when activated, plays all
filesineachfolderinrandomorder.
To activate folder random, press the
RDM button twice. You will hear a
beep and see F-RDM in the display.
The system will then select and play
f iles randomly. This continues until
you deactivate f older random by
pressing the RDM button again, or
by selecting a dif f erent f older with
the TUNE knob.
Each time you press and release the
RDM button, the mode changes
f rom f older random play to random
play (within a f older random play),
then to normal play.
CONT INUED
FOL DER-REPEA T RANDOM (Random within a
disc/f older) FOL DER-RA NDOM
Playing a Disc (Models wit hout navigation syst em)
Features
125
Main Menu

µµ
Pressing either side of the SEEK/
SKIP button also turns of f the scan
feature. Each time you press and release the
SCAN button, the mode changes
from file scan to folder scan, then to
normal play.Press the eject button ( ) to
remove the disc. If you eject the disc,
but do not remove it f rom the slot,
the system will automatically reload
it af ter 10 seconds and put it in pause
mode. To begin playing, press the
CD button.
You can also eject the disc when the
ignition switch is of f .
The scan f unction samples all tracks
(f iles in MP3 or WMA) on the disc in
the order they are recorded on the
disc. To activate scan, press the
SCAN button. In MP3 or WMA
mode, press the SCAN button
repeatedly to select SCAN. You will
see SCAN in the display. You will get
a10secondsamplingof eachtrack/
f ile on the disc. Press the SCAN
button again to get out of scan mode
and play the last track/f ile sampled. This
feature, when activated, samples the
f irst f ile in each f older on the disc.
To activate folder scan, press the
SCAN button twice. You will see
F-SCAN in the display.
The system plays the f irst f ile in the
f irst f older f or about 10 seconds. If
you do nothing, the system will then
play the f irst f iles in the next f olders
f or 10 seconds. Af ter playing the f irst
file in the last folder, the system
plays normally.
Pressing either side of the SEEK/
SKIP button, selecting a dif f erent
folder with the TUNE knob, or
pressing the SCAN button, also turns
of f the f older scan. To play the radio when a disc is
playing, press the AM/FM button.
Press the AUX button to switch to an
appropriate audio unit (if it is
connected to the auxiliary input jack
or the USB adapter cable). Press the
CD button again to switch back to
the disc player.In MP3 or WMA modeTo Stop Playing a Disc
SCA N (T RA CK /FIL E SCA N)
F-SCAN (FOLDER SCAN)
Playing a Disc (Models wit hout navigation syst em)
126
Main Menu
