The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the tex t.
Optional in U.S.
1:2: If equipped
Instrument Panel
Inst rument s and Cont rols
57
(P. 60)
AUTO IDLE STOP INDICATOR (P. 63)
(P. 59)
(P. 60) (P. 64)
(P. 62, 323)
(P. 62, 264, 265) (P. 19, 58)
(P. 61)
PARKING BRAKE AND BRAKE
SYSTEM INDICATOR (RED)
ELECTRIC POWER STEERING
(EPS) INDICATOR
SEAT BELT REMINDER
INDICATOR
(P. 63)
BRAKE SYSTEM INDICATOR
(AMBER) (P. 61)
LOW FUEL INDICATOR
TRUNK-OPEN INDICATOR
DOOR-OPEN INDICATOR (P. 60)
SECURITY SYSTEM INDICATOR
VEHICLE STABILITY ASSIST (VSA) SYSTEM INDICATOR
(P. 62)
(P. 60)
HIGH BEAM INDICATOR
LIGHTS ON
INDICATOR
(P. 60)
DAYTIME RUNNING
LIGHTS INDICATOR
(P. 60)
LOW OIL PRESSURE
INDICATOR
CHARGING SYSTEM
INDICATOR
LOW TIRE PRESSURE
INDICATOR
SIDE AIRBAG OFF INDICATOR(P. 31, 59)
MAINTENANCE MINDER
INDICATOR VEHICLE STABILITY ASSIST
(VSA) ACTIVATION
INDICATOR
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
CRUISE MAIN INDICATOR
(P. 61)
(P. 61)
CRUISE CONTROL
INDICATOR
(P. 61)
TIRE PRESSURE MONITORING SYSTEM (TPMS) INDICATOR
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR IMMOBILIZER SYSTEM INDICATOR
MALFUNCTION INDICATOR
LAMP
IMA SYSTEM INDICATOR
(P. 62)
(P. 62, 325) (P. 59)(P. 64)
(P. 30, 58)
(P. 62, 324)
(P. 58, 326)
2
12
1
Main Menu

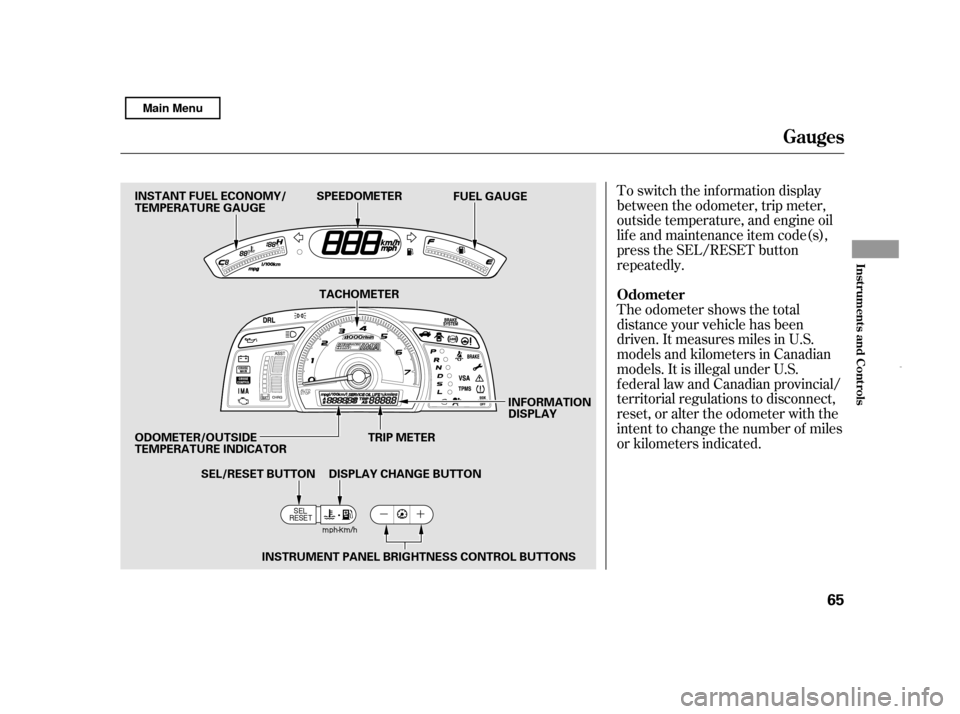

The instrument panel has many
indicators to give you important
inf ormation about your vehicle.If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page .
This indicator reminds you and your
passengers to f asten your seat belts.
If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position. If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page .
This indicator has two f unctions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not f ully released.
Driving with the parking brake not
fully released can damage the
brakes and tires.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belt, the beeper sounds
and the indicator f lashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
f lashing but remains on.
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
potential problem with your f ront
airbags. This indicator will also alert
you to a potential problem with your
airbag system components. For
more inf ormation, see page .
1. 2.
19 326
30
Instrument Panel Indicators
Seat Belt Reminder
Indicator Parking Brake
and Brake
System
Indicator (Red)Supplemental Restraint
System Indicator
58 U.S. Canada
Main Menu

This indicator comes on f or several
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For more inf ormation, see page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock f unction. For more
inf ormation, see page .The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash.
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. It will then go of f if
you have inserted a properly coded
ignition key. If it is not a properly
coded key, the indicator will blink,
and the engine’s f uel system will be
disabled (see page ).
31
268 295 296
79
Instrument Panel Indicators
Anti-lock Brake System
(A BS) Indicator Immobilizer System
Indicator
Turn Signal and
Hazard Warning
Indicators
Side Airbag Of f
Indicator
Inst rument s and Cont rols
59
U.S. Canada
Main Menu

If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
with a circuit. Have your vehicle
checked by your dealer.
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door and remove the key
from the ignition switch.
This indicator comes on if the trunk
lid is not closed tightly.
This indicator comes on if any door
is not closed tightly. This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on while driving,
it indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
If this happens, pull to the side of the
road when it is safe, check which tire
has lost pressure, and determine the
cause. If it is because of a f lat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a professional towing service
(see page ). For more
inf ormation, see page .
75 74
313
333 272U.S. models only
Instrument Panel Indicators
‘‘Daytime Running
Lights’’ Indicator
High Beam Indicator Lights On Indicator
Trunk-open Indicator
Door-open IndicatorLow Tire Pressure
Indicator
60
Main Menu

This indicator comes on as a
reminder that you must ref uel soon.
This indicator goes of f when your
dealer resets it af ter completing the
required maintenance service.
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
inf ormation display. See page f or
more inf ormation on the
Maintenance Minder .
This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ).
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control.
This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS. With
this indicator on, the low tire
pressure indicator will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked. For more
inf ormation, see page .
When the indicator comes on, there
are about 1.9 US gal (7.5
)of fuel
remaining in the tank.
When the reading reaches E, there is
a very small amount of f uel in the
tank.
214
290 277
214
273
Canadian models only
U.S. models only
Instrument Panel Indicators
Low Fuel Indicator
Maintenance Minder
Indicator
Cruise Main Indicator
Cruise Control Indicator
Washer Level Indicator
Tire Pressure Monitoring
System (T PMS) Indicator
Inst rument s and Cont rols
61
TM
Main Menu

The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more inf ormation, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .
See page . This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, it indicates a problem in the
integrated motor assist (IMA)
system. With the IMA indicator on,
the vehicle may not accelerate as it
normally does. Have the vehicle
checked by the dealer as soon as
possible.
See pages and .

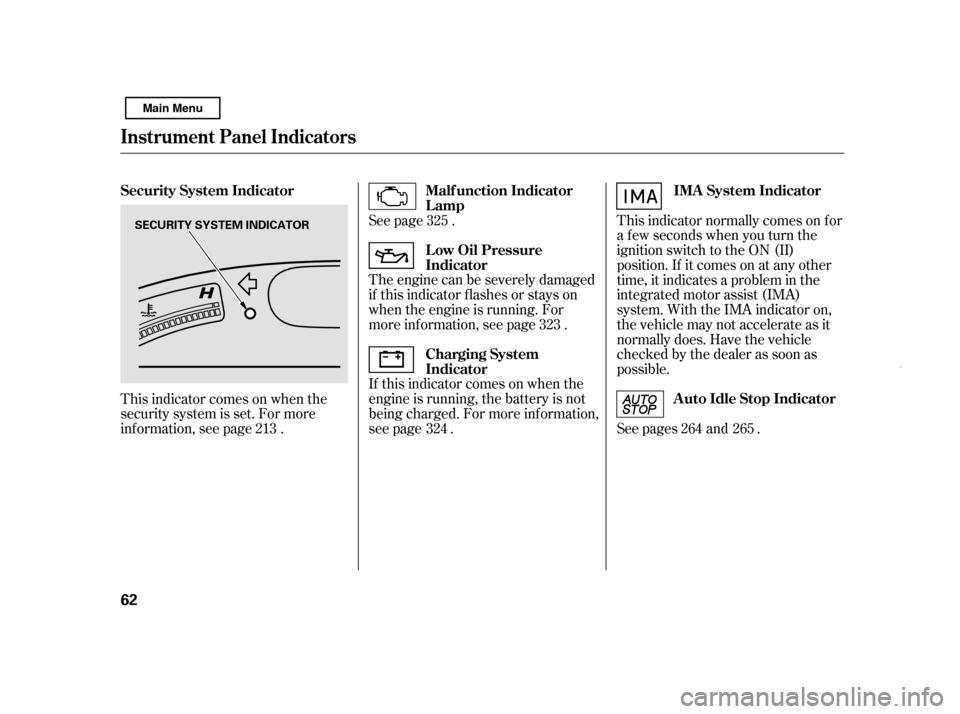

This indicator comes on when the
security system is set. For more
inf ormation, see page .
213 325
323
324 264 265
Instrument Panel Indicators
Security System Indicator Malf unction Indicator
Lamp
L ow Oil Pressure
Indicator
Charging System
IndicatorIMA System Indicator
A uto Idle Stop Indicator
62 SECURITY SYSTEM INDICATOR
Main Menu

If you turn the steering wheel to the
f ull lef t or right position repeatedly
while stopping or driving at very low
speed, you may f eel slightly harder
steering due to overheating of the
steering gearbox.For more inf ormation, see page .
Continuously driving under those
conditions could damage the power
steering system.
This indicator normally comes on
when you turn the ignition switch to
the ON (II) position and goes of f
af ter the engine starts. If it comes on
at any other time, there is a problem
in the electric power steering system.
If this happens, stop the vehicle in a
saf e place, and turn of f the engine.
Reset the system by restarting the
engine. The indicator will not turn
of f immediately. If it does not go of f
after driving a short distance, or
comes back on again while driving,
take the vehicle to your dealer to
have it checked. With the indicator
on, the EPS may be of f , making the
vehicle harder to steer. This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. When the brake system
indicator (amber) is on, there is a
problem with the Cooperative
Control with Regenerative Brake,
Creep Aid System or Brake Assist
(the normal brake operates properly).
Have your vehicle checked by your
dealer.
326
Electric Power Steering
(EPS) Indicator
Brake System
Indicator
(A mber)
Instrument Panel Indicators
Inst rument s and Cont rols
63
U.S. Canada
Main Menu

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If itcomesonandstaysonatany
other time, there is a problem with
the VSA system. Take your vehicle
to a dealer to have it checked.
Without VSA, your vehicle still has
normal driving ability, but will not
have VSA traction and stability
enhancement.This indicator has three f unctions:
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. For more inf ormation, see
page .
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
It flashes when VSA is active (see
page ).
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
1. 2. 3.
270
270
If equipped If equipped
Vehicle Stability Assist
(VSA ) System Indicator VSA A ctivation Indicator
Instrument Panel Indicators
64
Main Menu

To switch the information display
between the odometer, trip meter,
outside temperature, and engine oil
lif e and maintenance item code(s),
press the SEL/RESET button
repeatedly.
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial/
territorial regulations to disconnect,
reset, or alter the odometer with the
intent to change the number of miles
or kilometers indicated.
Odometer
Gauges
Inst rument s and Cont rols
65
TRIP METER
SEL/RESET BUTTON DISPLAY CHANGE BUTTON TACHOMETER
INSTRUMENT PANEL BRIGHTNESS CONTROL BUTTONS INFORMATION
DISPLAY
FUEL GAUGE
SPEEDOMETER
INSTANT FUEL ECONOMY/
TEMPERATURE GAUGE
ODOMETER/OUTSIDE
TEMPERATURE INDICATOR
Main Menu

This shows the temperature of the
engine’s coolant. During normal
operation, the reading should be in
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the reading may reach near
the red mark. If it reaches the red
(Hot) mark, pull saf ely to the side of
theroad.Seepage for
instructions and precautions on
checking the engine’s cooling
system.
Every time you press the display
change button, the display changes
f rom the instant f uel economy to the
temperature gauge, or f rom the
temperature gauge to the instant f uel
economy.
The average fuel mileage and instant
f uel economy are shown with mpg or
l/100 km.

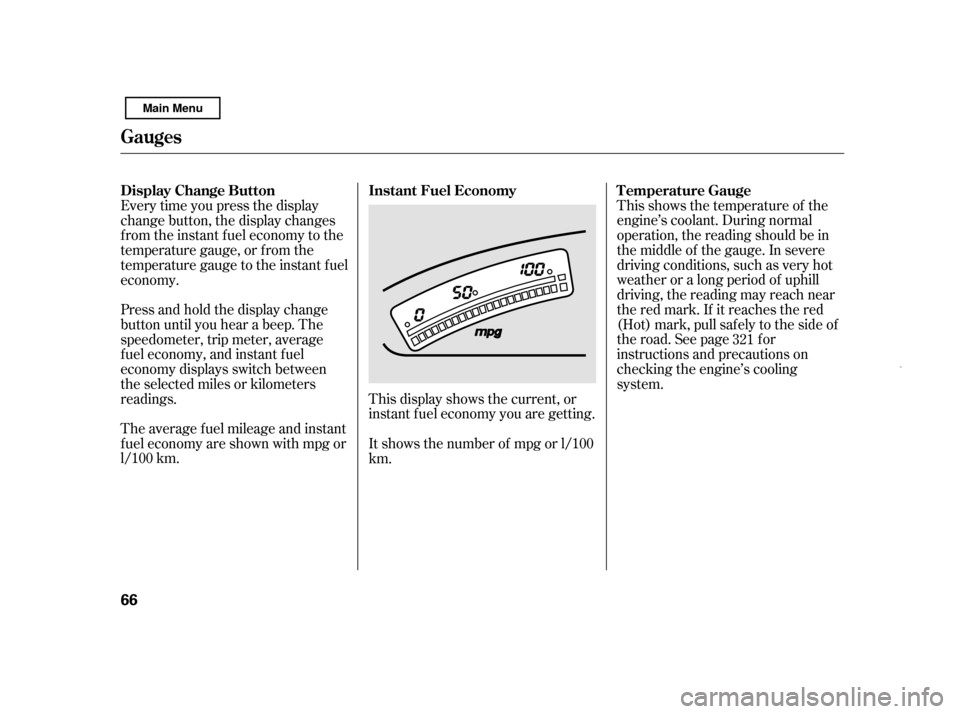

This display shows the current, or
instant f uel economy you are getting.
It shows the number of mpg or l/100
km.
Press and hold the display change
button until you hear a beep. The
speedometer, trip meter, average
f uel economy, and instant f uel
economy displays switch between
the selected miles or kilometers
readings.
321
Display Change Button
Temperature Gauge
Instant Fuel Economy
Gauges
66
Main Menu
