jump start HONDA CIVIC HYBRID 2012 9.G Owners Manual

Contents
Child Safety P. 54Exhaust Gas Hazard P. 66Safety Labels P. 67Opening and Closing the Trunk P. 110 Security System P. 113 Opening and Closing the Windows P. 115
Adjusting the Mirrors P. 125 Adjusting the Seats P. 126
Climate Control System P. 137Audio Error Messages P. 162 General Information on the Audio System P. 164When Driving P. 198Braking P. 213Parking Your Vehicle P. 217
Accessories and Modifications P. 226Maintenance Under the Hood P. 235 Replacing Light Bulbs P. 247
Checking and Maintaining Tires P. 254 12 Volt Battery P. 263 Remote Transmitter Care P. 264
Cleaning P. 266Engine Does Not Start P. 279 Jump Starting P. 280Shift Lever Does Not Move P. 282
Fuses P. 289 Emergency Towing P. 292Devices that Emit Radio Waves P. 297 Reporting Safety Defects P. 298
Authorized Manuals P. 303 Customer Service Information P. 304
Quick Reference Guide
P. 2
Safe Driving
P. 27
Instrument Panel
P. 69
Controls
P. 101
Features
P. 141
Driving
P. 191
Maintenance
P. 227
Handling the Unexpected
P. 271
Information
P. 293
Index
P. 305

Quick Reference Guide21
Handling the Unexpected
(P271)
Flat Tire
(P273)
● Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
Indicators Come On (P285)
●Identify the indicator and consult the
owner's manual.
Engine Won't Start
(P279)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse
(P289)
● Check for a blown fuse if an electrical
device does not operate.
Overheating
(P283)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P292)
● Call a professional towing service if you
need to tow your vehicle.

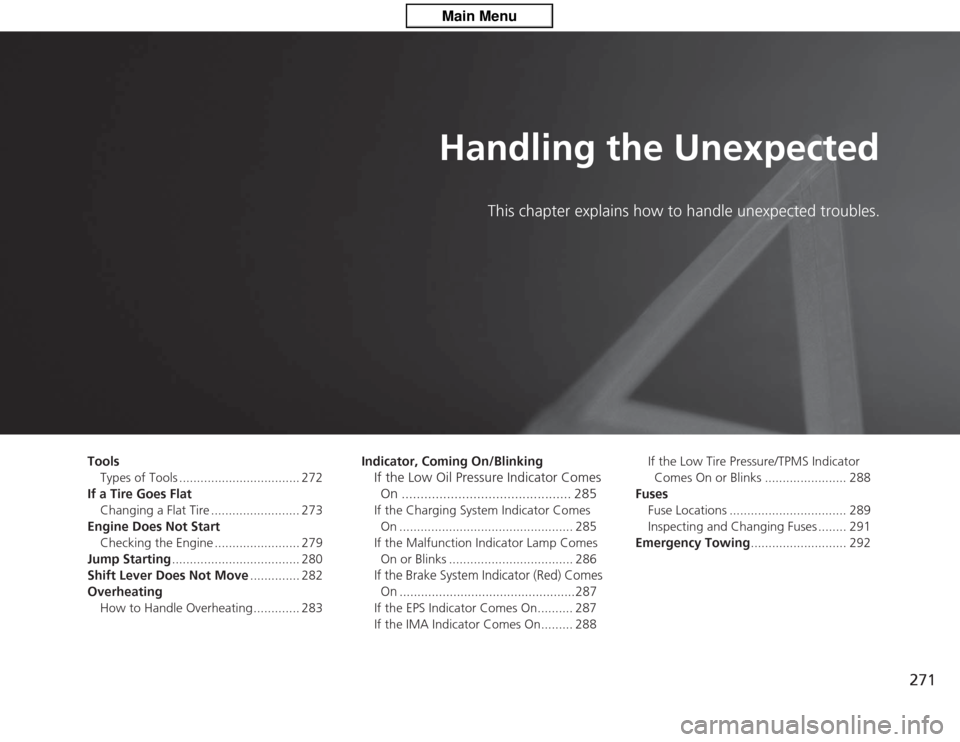

271
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
Tools
Types of Tools .................................. 272
If a Tire Goes Flat Changing a Flat Tire ......................... 273
Engine Does Not Start Checking the Engine ........................ 279
Jump Starting .................................... 280
Shift Lever Does Not Move .............. 282
Overheating How to Handle Overheating ............. 283 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 285If the Charging System Indicator Comes
On ................................................. 285
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 286If the Brake System Indicator (Red) Comes On .................................................287If the EPS Indicator Comes On.......... 287
If the IMA Indicator Comes On......... 288 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 288
Fuses Fuse Locations ................................. 289
Inspecting and Changing Fuses ........ 291
Emergency Towing ........................... 292

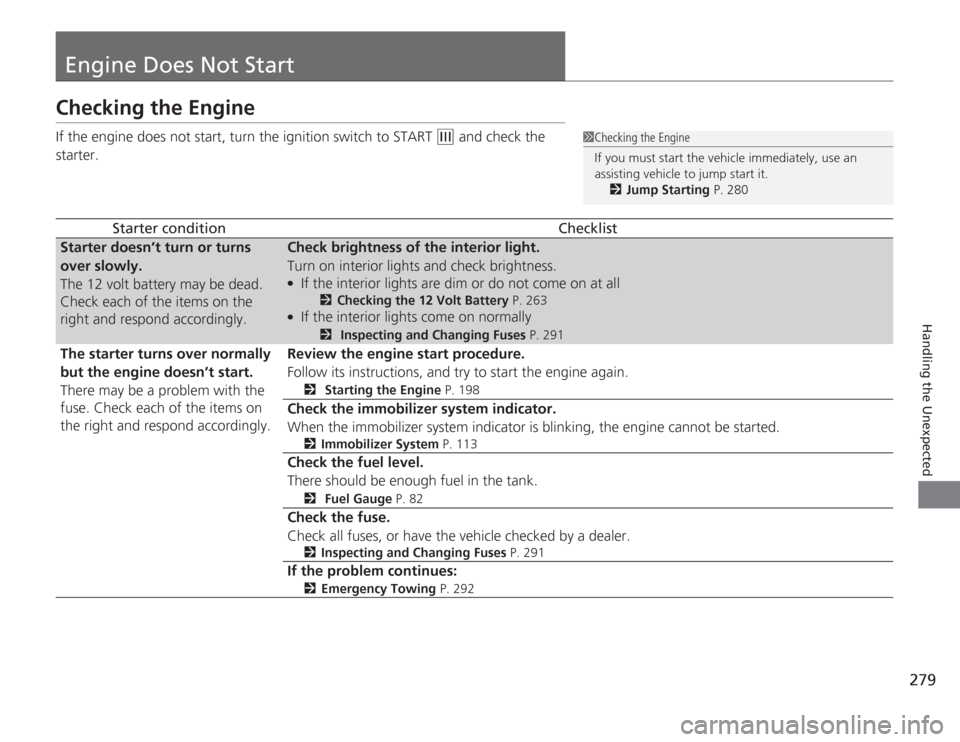

279
Handling the Unexpected
Engine Does Not StartChecking the EngineIf the engine does not start, turn the ignition switch to START
(e
and check the
starter.
Starter condition
Checklist
Starter doesn’t turn or turns
over slowly.
The 12 volt battery may be dead.
Check each of the items on the
right and respond accordingly.
Check brightness of the interior light.
Turn on interior lights and check brightness.●
If the interior lights are dim or do not come on at all
2 Checking the 12 Volt Battery P. 263
●
If the interior lights come on normally

2 Inspecting and Changing Fuses P. 291
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.
Review the engine start procedure.
Follow its instructions, and try to start the engine again.

2 Starting the Engine P. 198
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 113
Check the fuel level.
There should be enough fuel in the tank.

2 Fuel Gauge P. 82
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 291
If the problem continues:
2Emergency Towing P. 292
1Checking the Engine
If you must start the vehicle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 280

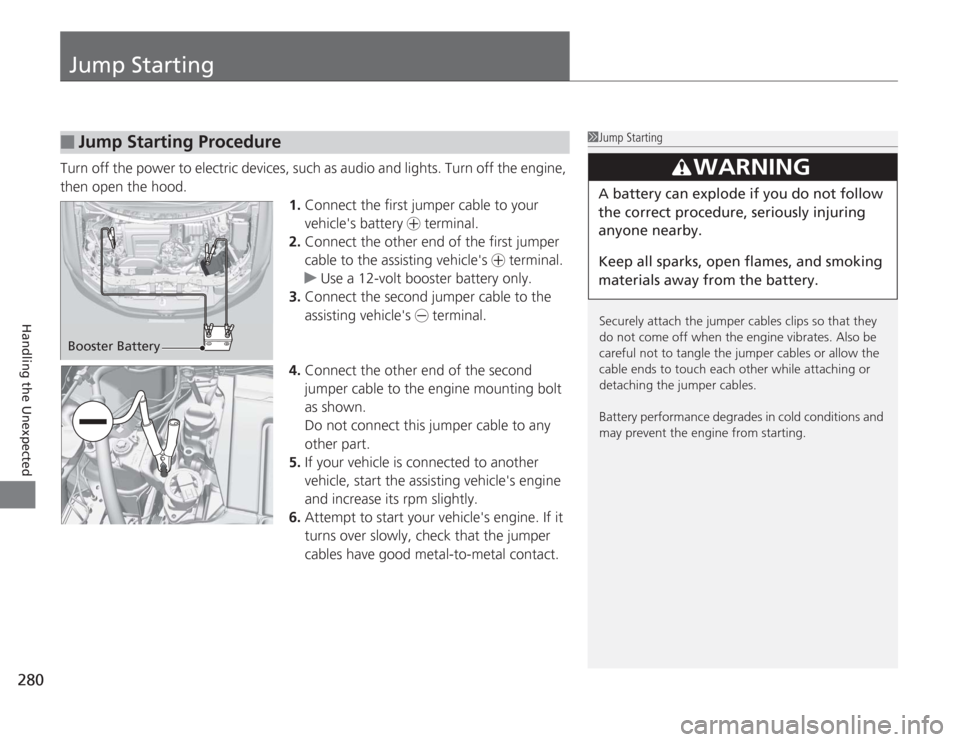

280Handling the Unexpected
Jump StartingTurn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.1.Connect the first jumper cable to your
vehicle's battery + terminal.
2. Connect the other end of the first jumper
cable to the assisting vehicle's + terminal.
u Use a 12-volt booster battery only.
3. Connect the second jumper cable to the
assisting vehicle's - terminal.
4. Connect the other end of the second
jumper cable to the engine mounting bolt
as shown.
Do not connect this jumper cable to any
other part.
5. If your vehicle is c onnected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.
6. Attempt to start your vehicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.■
Jump Starting Procedure
1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Also be
careful not to tangle the jumper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engine from starting.
3
WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery

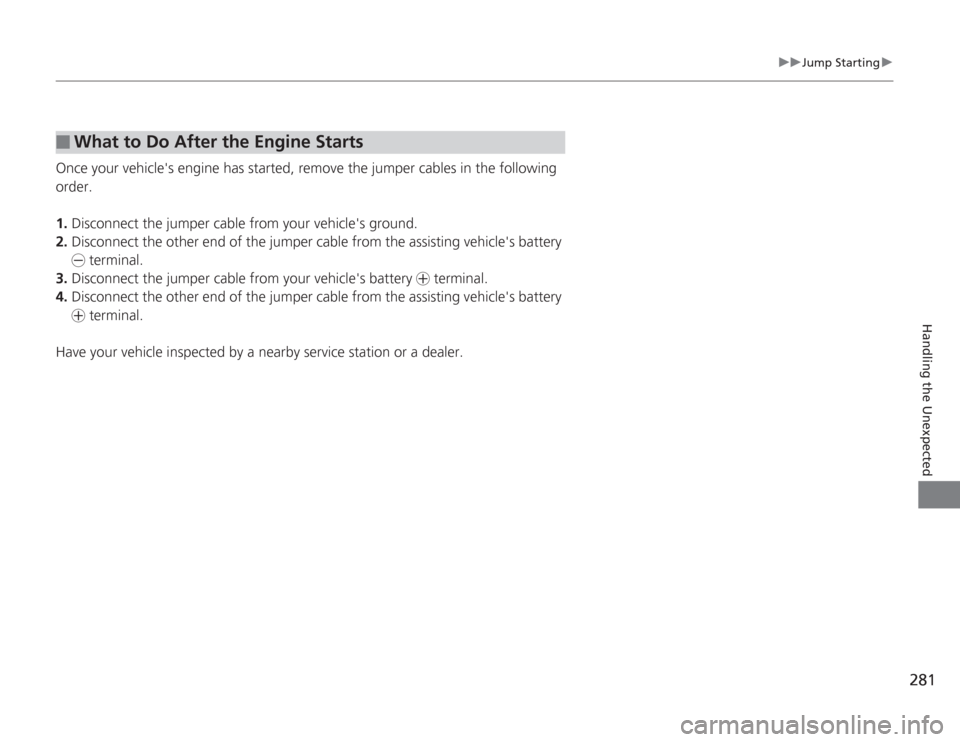

281
uuJump Starting u
Handling the Unexpected
Once your vehicle's engine has started, remove the jumper cables in the following
order.
1.Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the assisting vehicle's battery
- terminal.
3. Disconnect the jumper cable from your vehicle's battery + terminal.
4. Disconnect the other end of the jumper cable from the assisting vehicle's battery
+ terminal.
Have your vehicle inspected by a nearby service station or a dealer.■
What to Do After the Engine Starts

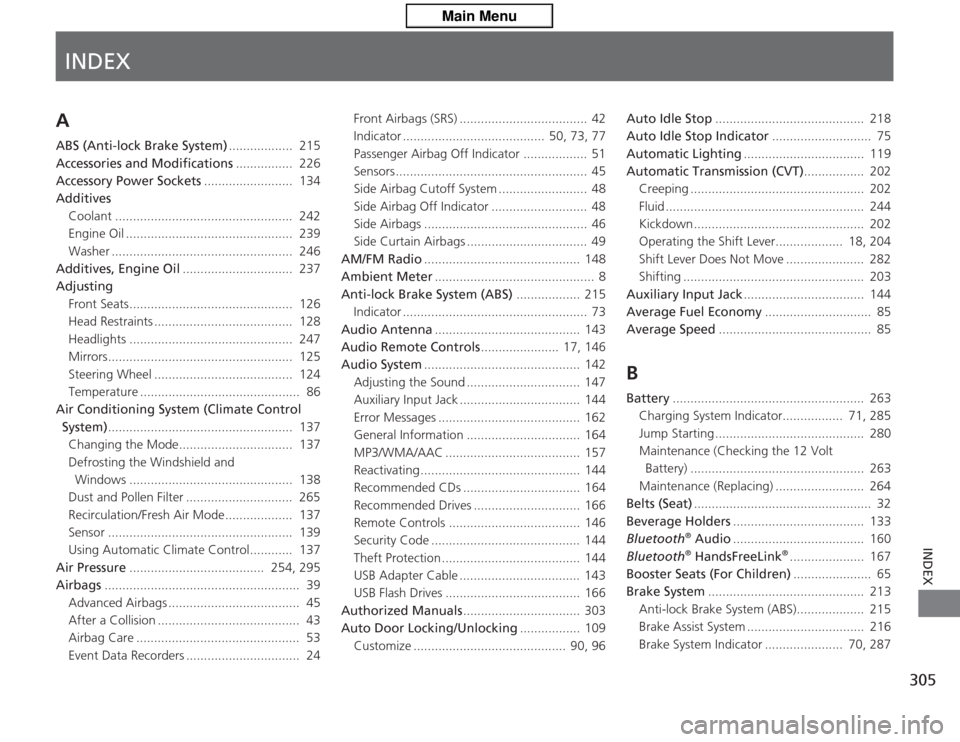

INDEX
305
INDEX
INDEX
AABS (Anti-lock Brake System).................. 215
Accessories and Modifications ................ 226
Accessory Power Sockets ......................... 134
Additives
Coolant .................................................. 242
Engine Oil ............................................... 239
Washer ................................................... 246
Additives, Engine Oil ............................... 237
Adjusting Front Seats.............................................. 126
Head Restraints ....................................... 128
Headlights .............................................. 247
Mirrors.................................................... 125
Steering Wheel ....................................... 124
Temperature ............................................. 86
Air Conditioning Sys tem (Climate Control
System) .................................................... 137
Changing the Mode................................ 137
Defrosting the Windshield and Windows .............................................. 138
Dust and Pollen Filter .............................. 265
Recirculation/Fresh Air Mode................... 137
Sensor .................................................... 139
Using Automatic Climate Control............ 137
Air Pressure ...................................... 254, 295
Airbags ....................................................... 39
Advanced Airbags ..................................... 45
After a Collision ........................................ 43
Airbag Care .............................................. 53
Event Data Recorders ................................ 24 Front Airbags (SRS) .................................... 42
Indicator ........................................ 50, 73, 77
Passenger Airbag Off Indicator .................. 51
Sensors ...................................................... 45
Side Airbag Cutoff System ......................... 48
Side Airbag Off Indicator ........................... 48
Side Airbags .............................................. 46
Side Curtain Airbags .................................. 49
AM/FM Radio ............................................ 148
Ambient Meter ............................................. 8
Anti-lock Brake System (ABS) .................. 215
Indicator .................................................... 73
Audio Antenna ......................................... 143
Audio Remote Controls ...................... 17, 146
Audio System ............................................ 142
Adjusting the Sound ................................ 147
Auxiliary Input Jack .................................. 144
Error Messages ........................................ 162
General Information ................................ 164
MP3/WMA/AAC ...................................... 157
Reactivating ............................................. 144
Recommended CDs ................................. 164
Recommended Drives .............................. 166
Remote Controls ..................................... 146
Security Code .......................................... 144
Theft Protection ....................................... 144
USB Adapter Cable .................................. 143
USB Flash Drives ...................................... 166
Authorized Manuals ................................. 303
Auto Door Locking/Unlocking ................. 109
Customize ........................................... 90, 96 Auto Idle Stop
.......................................... 218
Auto Idle Stop Indicator ............................ 75
Automatic Lighting .................................. 119
Automatic Transmission (CVT) ................. 202
Creeping ................................................. 202
Fluid ........................................................ 244
Kickdown ................................................ 202
Operating the Shift Lever................... 18, 204
Shift Lever Does Not Move ...................... 282
Shifting ................................................... 203
Auxiliary Input Jack .................................. 144
Average Fuel Economy .............................. 85
Average Speed ........................................... 85
BBattery...................................................... 263
Charging System Indicator................. 71, 285
Jump Starting .......................................... 280
Maintenance (Checking the 12 Volt Battery) ................................................. 263
Maintenance (Replacing) ......................... 264
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 133
Bluetooth
® Audio ..................................... 160
Bluetooth® HandsFreeLink
®..................... 167
Booster Seats (For Children) ...................... 65
Brake System ............................................ 213
Anti-lock Brake System (ABS)................... 215
Brake Assist System ................................. 216
Brake System Indicator ...................... 70, 287

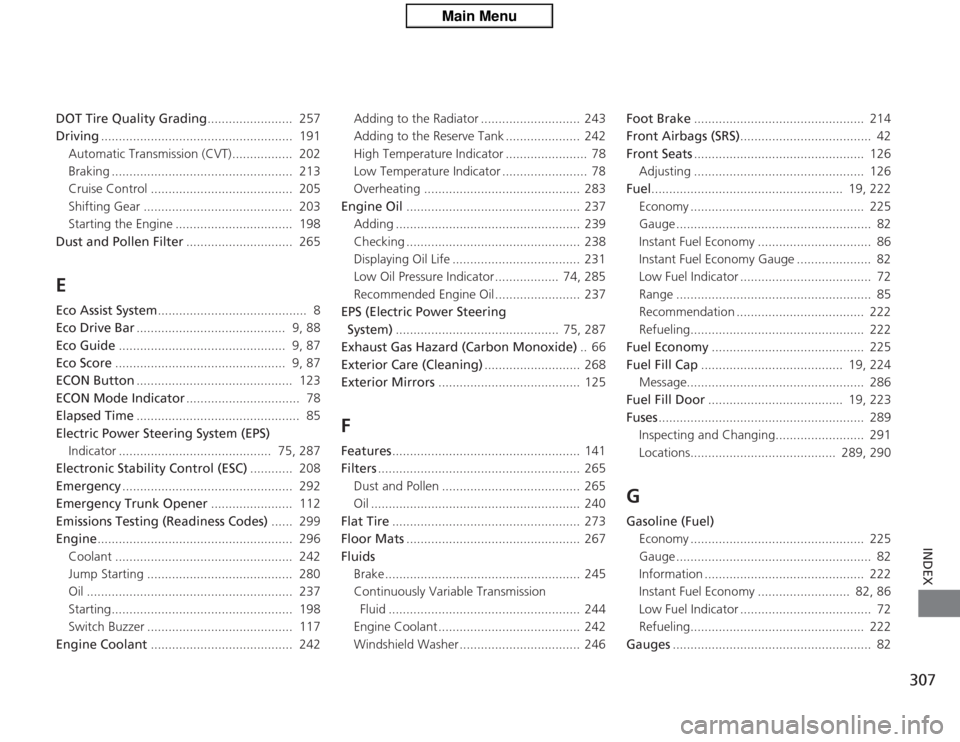

307
INDEX
DOT Tire Quality Grading........................ 257
Driving ...................................................... 191
Automatic Transmission (CVT)................. 202
Braking ................................................... 213
Cruise Control ........................................ 205
Shifting Gear .......................................... 203
Starting the Engine ................................. 198
Dust and Pollen Filter .............................. 265EEco Assist System.......................................... 8
Eco Drive Bar .......................................... 9, 88
Eco Guide ............................................... 9, 87
Eco Score ................................................ 9, 87
ECON Button ............................................ 123
ECON Mode Indicator ................................ 78
Elapsed Time .............................................. 85
Electric Power Steering System (EPS) Indicator ........................................... 75, 287
Electronic Stability Control (ESC) ............ 208
Emergency ................................................ 292
Emergency Trunk Opener ....................... 112
Emissions Testing (Readiness Codes) ...... 299
Engine ....................................................... 296
Coolant .................................................. 242
Jump Starting ......................................... 280
Oil .......................................................... 237
Starting................................................... 198
Switch Buzzer ......................................... 117
Engine Coolant ........................................ 242 Adding to the Radiator ............................ 243
Adding to the Reserve Tank ..................... 242
High Temperature Indicator ....................... 78
Low Temperature Indicator ........................ 78
Overheating ............................................ 283
Engine Oil ................................................. 237
Adding .................................................... 239
Checking ................................................. 238
Displaying Oil Life .................................... 231
Low Oil Pressure Indicator .................. 74, 285
Recommended Engine Oil ........................ 237
EPS (Electric Power Steering System) .............................................. 75, 287
Exhaust Gas Hazard (Carbon Monoxide) .. 66
Exterior Care (Cleaning) ........................... 268
Exterior Mirrors ........................................ 125
FFeatures..................................................... 141
Filters ......................................................... 265
Dust and Pollen ....................................... 265
Oil ........................................................... 240
Flat Tire ..................................................... 273
Floor Mats ................................................. 267
Fluids Brake ....................................................... 245
Continuously Variable Transmission Fluid ...................................................... 244
Engine Coolant ........................................ 242
Windshield Washer .................................. 246 Foot Brake
................................................ 214
Front Airbags (SRS) ..................................... 42
Front Seats ................................................ 126
Adjusting ................................................ 126
Fuel ...................................................... 19, 222
Economy ................................................. 225
Gauge ....................................................... 82
Instant Fuel Economy ................................ 86
Instant Fuel Economy Gauge ..................... 82
Low Fuel Indicator ..................................... 72
Range ....................................................... 85
Recommendation .................................... 222
Refueling................................................. 222
Fuel Economy ........................................... 225
Fuel Fill Cap ........................................ 19, 224
Message.................................................. 286
Fuel Fill Door ...................................... 19, 223
Fuses .......................................................... 289
Inspecting and Changing......................... 291
Locations......................................... 289, 290
GGasoline (Fuel)
Economy ................................................. 225
Gauge ....................................................... 82
Information ............................................. 222
Instant Fuel Economy .......................... 82, 86
Low Fuel Indicator ..................................... 72
Refueling................................................. 222
Gauges ........................................................ 82

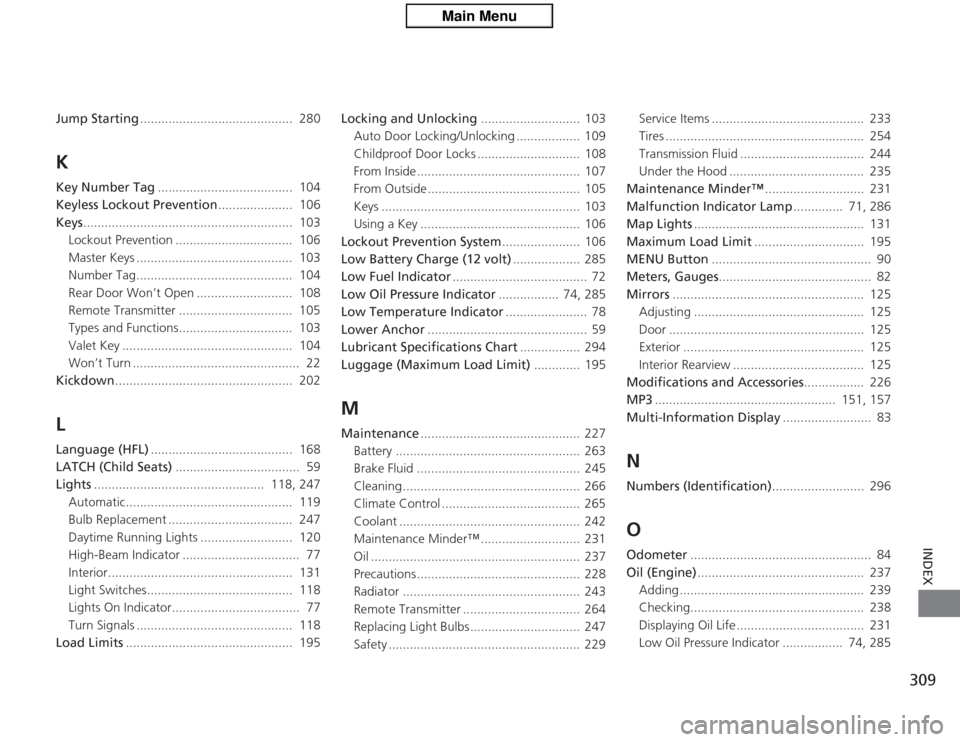

309
INDEX
Jump Starting........................................... 280KKey Number Tag ...................................... 104
Keyless Lockout Prevention ..................... 106
Keys ........................................................... 103
Lockout Prevention ................................. 106
Master Keys ............................................ 103
Number Tag............................................ 104
Rear Door Won’t Open ........................... 108
Remote Transmitter ................................ 105
Types and Functions................................ 103
Valet Key ................................................ 104
Won’t Turn ............................................... 22
Kickdown .................................................. 202LLanguage (HFL) ........................................ 168
LATCH (Child Seats) ................................... 59
Lights ................................................ 118, 247
Automatic............................................... 119
Bulb Replacement ................................... 247
Daytime Running Lights .......................... 120
High-Beam Indicator ................................. 77
Interior.................................................... 131
Light Switches......................................... 118
Lights On Indicator.................................... 77
Turn Signals ............................................ 118
Load Limits ............................................... 195 Locking and Unlocking
............................ 103
Auto Door Locking/Unlocking .................. 109
Childproof Door Locks ............................. 108
From Inside .............................................. 107
From Outside ........................................... 105
Keys ........................................................ 103
Using a Key ............................................. 106
Lockout Prevention System ...................... 106
Low Battery Charge (12 volt) ................... 285
Low Fuel Indicator ...................................... 72
Low Oil Pressure Indicator ................. 74, 285
Low Temperature Indicator ....................... 78
Lower Anchor ............................................. 59
Lubricant Specifications Chart ................. 294
Luggage (Maximum Load Limit) ............. 195
MMaintenance............................................. 227
Battery .................................................... 263
Brake Fluid .............................................. 245
Cleaning .................................................. 266
Climate Control ....................................... 265
Coolant ................................................... 242
Maintenance Minder™ ............................ 231
Oil ........................................................... 237
Precautions .............................................. 228
Radiator .................................................. 243
Remote Transmitter ................................. 264
Replacing Light Bulbs ............................... 247
Safety ...................................................... 229 Service Items ........................................... 233
Tires ........................................................ 254
Transmission Fluid ................................... 244
Under the Hood ...................................... 235
Maintenance Minder™ ............................ 231
Malfunction Indicator Lamp .............. 71, 286
Map Lights ................................................ 131
Maximum Load Limit ............................... 195
MENU Button ............................................. 90
Meters, Gauges ........................................... 82
Mirrors ...................................................... 125
Adjusting ................................................ 125
Door ....................................................... 125
Exterior ................................................... 125
Interior Rearview ..................................... 125
Modifications and Accessories ................. 226
MP3 ................................................... 151, 157
Multi-Information Display ......................... 83
NNumbers (Identification).......................... 296OOdometer................................................... 84
Oil (Engine) ............................................... 237
Adding .................................................... 239
Checking................................................. 238
Displaying Oil Life .................................... 231
Low Oil Pressure Indicator ................. 74, 285

311
INDEX
Spare Tire......................................... 273, 295
Spark Plugs ............................................... 294
Specifications ........................................... 294
Specified Fuel ................................... 222, 294
Speedometer .............................................. 82
SRS Airbags (Airbags) ................................ 39
Starting the Engine .................................. 198
Does Not Start ........................................ 279
Engine Switch Buzzer .............................. 117
Jump Starting ......................................... 280
Steering Wheel ........................................ 124
Adjusting ................................................ 124
Stopping ................................................... 217
Supplemental Restraint System (SRS) ....... 42
Switches (Around the Steering Wheel) ............................................ 2, 3, 117
System Message Indicator ......................... 76TTachometer................................................ 82
Temperature High Temperature Indicator ...................... 78
Low Temperature Indicator ....................... 78
Outside Temperature Display .................... 86
Temperature Sensor .................................. 86
Time (Setting) ........................................... 102
Tire Pressure Monitoring System (TPMS) ..................................................... 210
Indicator ........................................... 75, 288
Tires .......................................................... 254 Air Pressure ..................................... 255, 295
Checking and Maintaining ....................... 254
Compact Spare Tire ......................... 273, 295
Inspection ................................................ 254
Labeling .................................................. 255
Puncture (Flat Tire) ................................... 273
Regulations ............................................. 257
Rotation .................................................. 261
Tire Chains .............................................. 262
Wear Indicators ....................................... 259
Winter ..................................................... 262
Tools .......................................................... 272
Towing a Trailer ....................................... 197
Towing Your Vehicle ................................ 197
Emergency .............................................. 292
TPMS (Tire Pressure Monitoring System) .................................................... 210
Indicator ............................................ 75, 288
Transmission ............................................. 203
Automatic ............................................... 203
Fluid ........................................................ 244
Number ................................................... 296
Shift Lever Position Indicator .............. 71, 204
Trip Meter ................................................... 84
Troubleshooting ....................................... 271
Blown Fuse ...................................... 289, 290
Brake Pedal Vibrates .................................. 23
Buzzer Sounds When Opening Door .......... 23
Emergency Towing .................................. 292
Engine Does Not Start ............................. 279
Noise When Braking .................................. 23 Overheating ............................................ 283
Puncture/Flat Tire .................................... 273
Rear Door Won’t Open...................... 22, 108
Regular Gasoline ............................. 222, 294
Shift Lever Won’t Move ........................... 282
Warning Indicators .................................... 70
Trunk ......................................................... 110
Lid........................................................... 110
Light Bulb................................................ 294
Turn Signals .............................................. 118
Indicators (Instrument Panel) ..................... 76
UUnlocking the Doors ................................ 105
Unlocking the Front Doors from the
Inside ......................................................... 15
USB Adapter Cable ................................... 143
USB Flash Drives ....................................... 166VValet Key................................................... 104
Vanity Mirrors ............................................... 5
Vehicle Identification Number ................ 296
Vehicle Stability Assist (VSA
®) .................. 208
Off Button............................................... 209
Off Indicator.............................................. 74
System Indicator ........................................ 73
Viscosity (Oil) .................................... 237, 295
VSA
® (Vehicle Stability Assist) .................. 208
